Model Whirlpool KSSS42QDX00 BUILT IN REFRIGERATOR – Common Parts & Diagrams

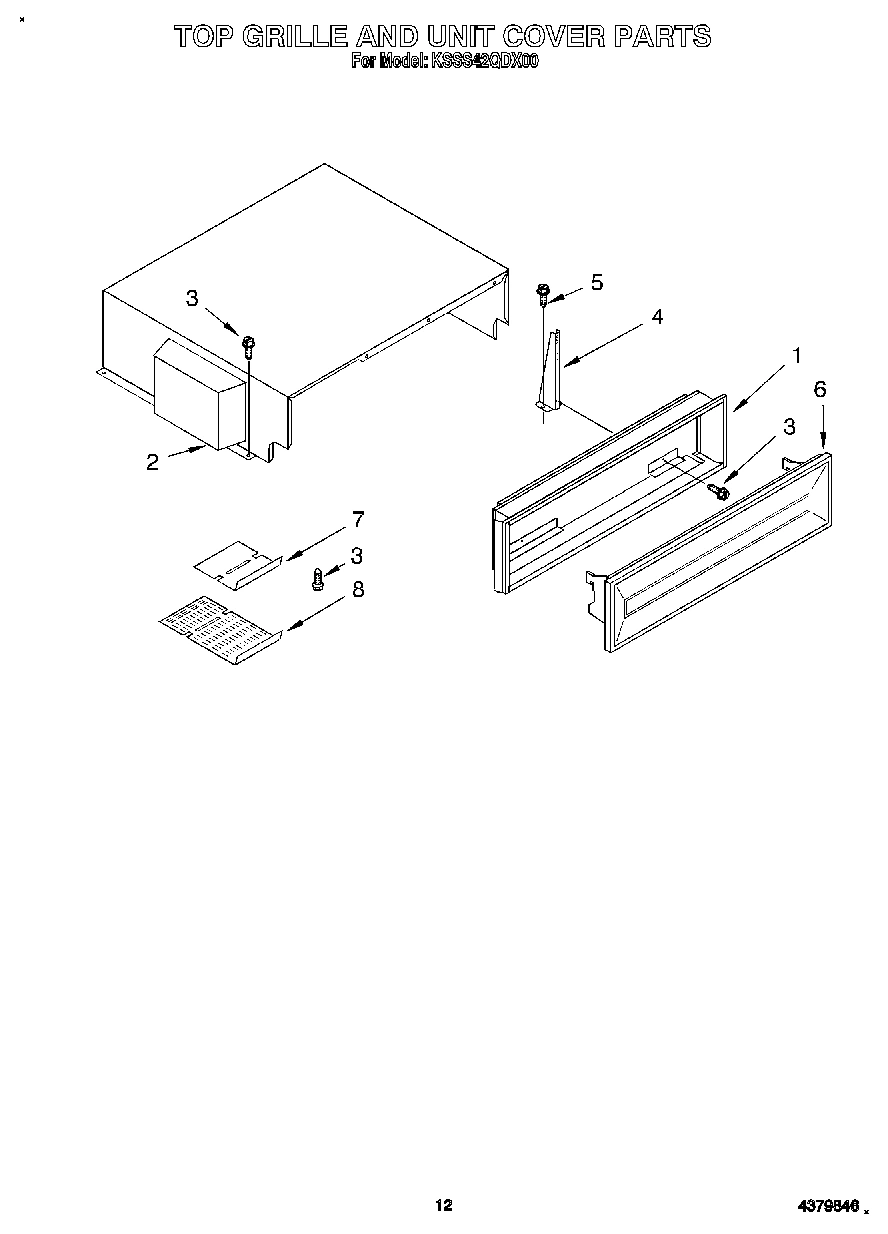

09 - TOP GRILLE AND UNIT COVER

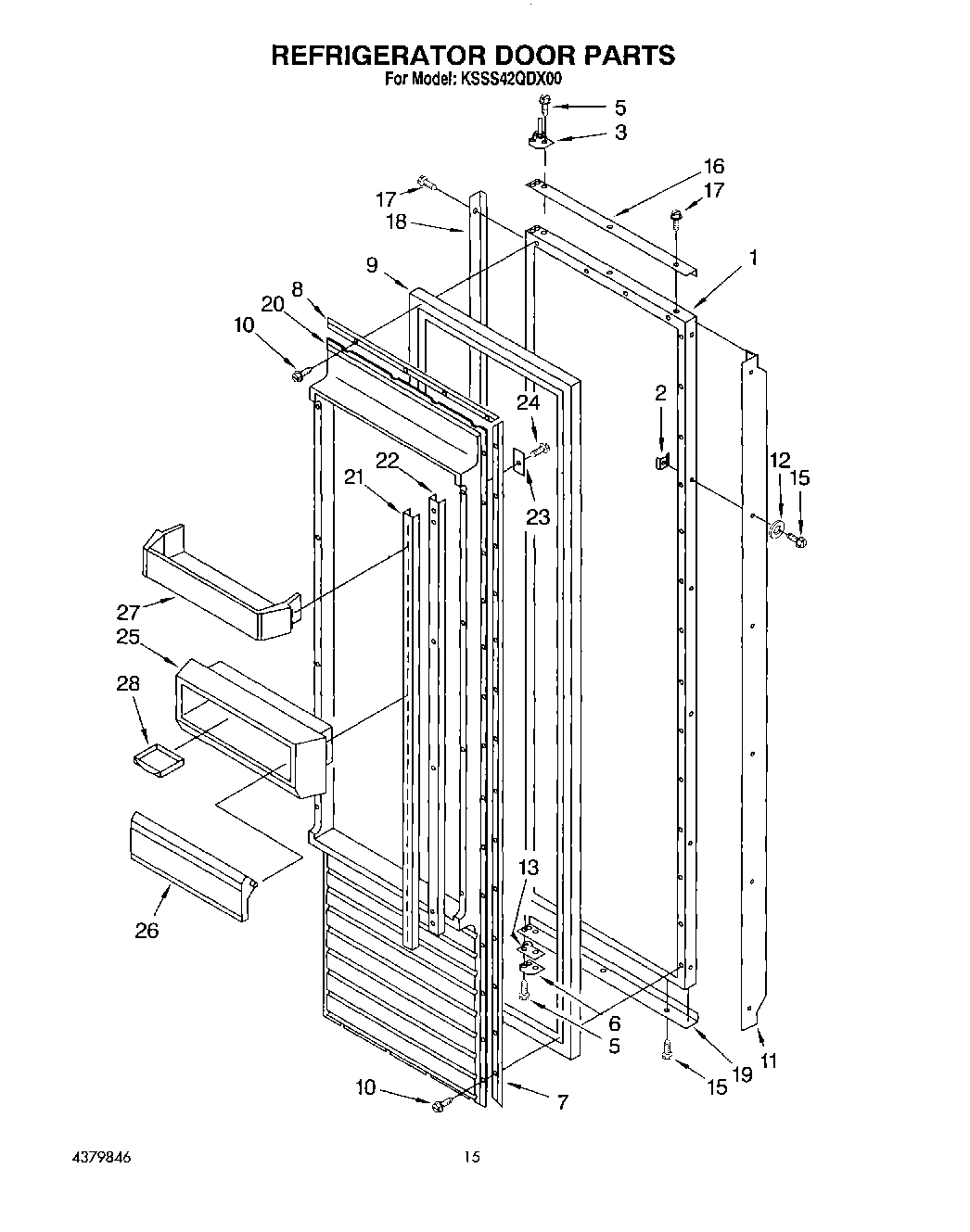

11 - REFRIGERATOR DOOR

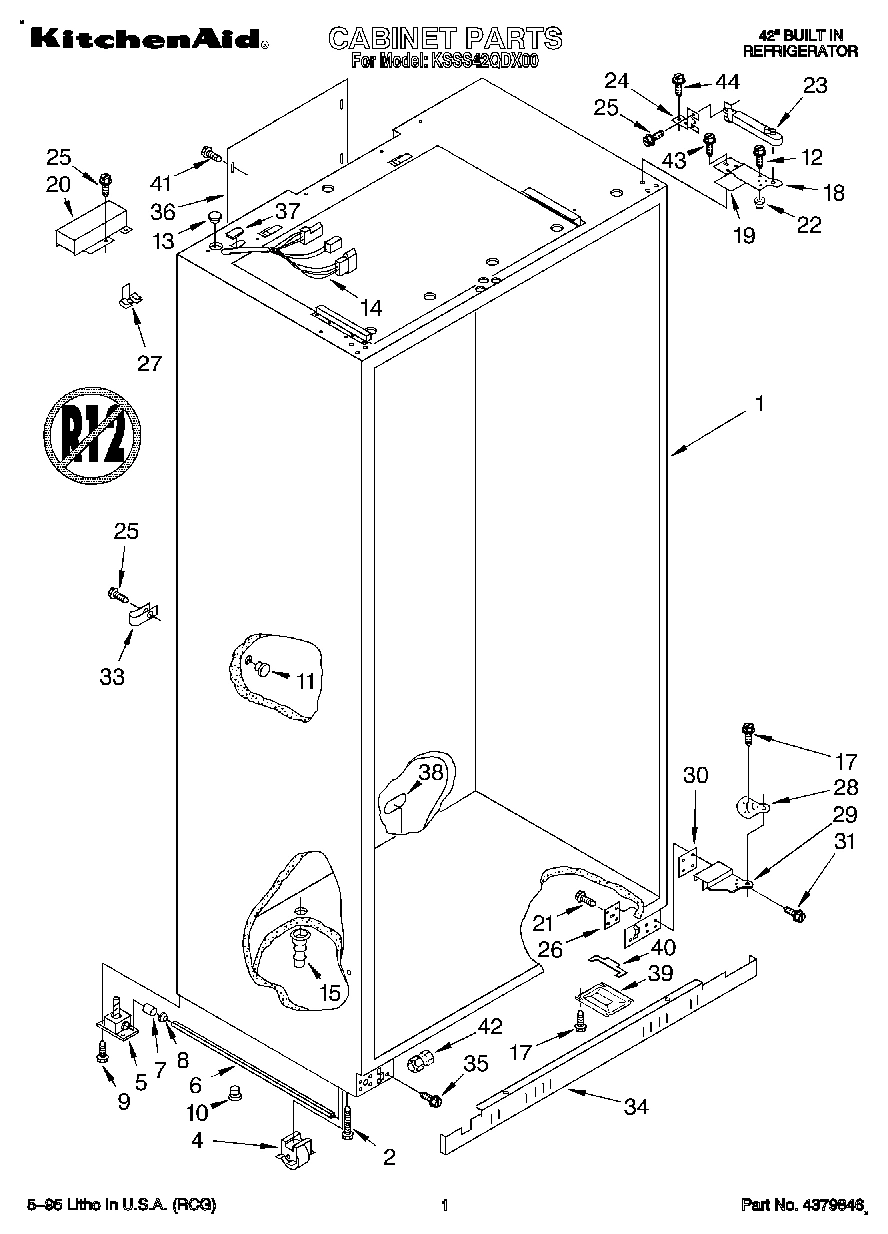

01 - CABINET

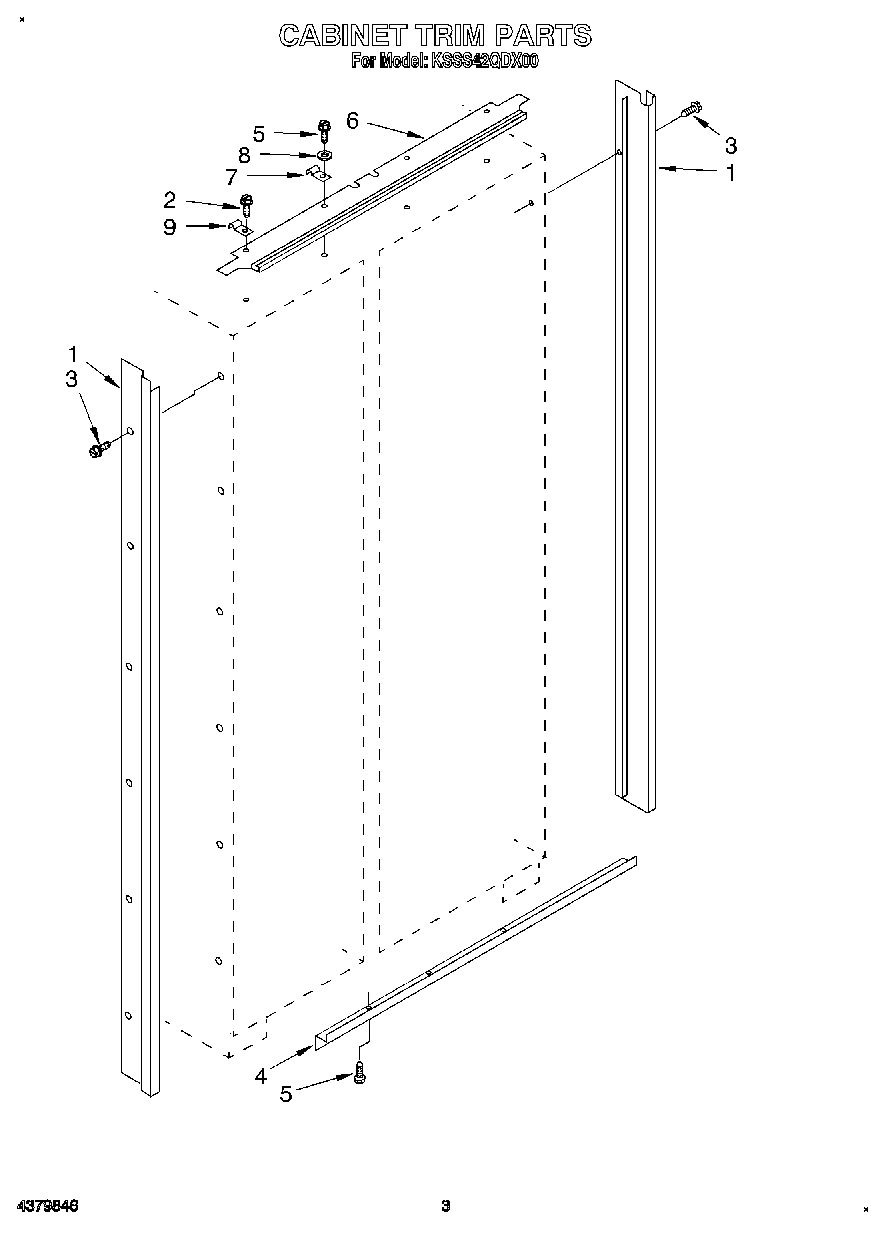

02 - CABINET TRIM

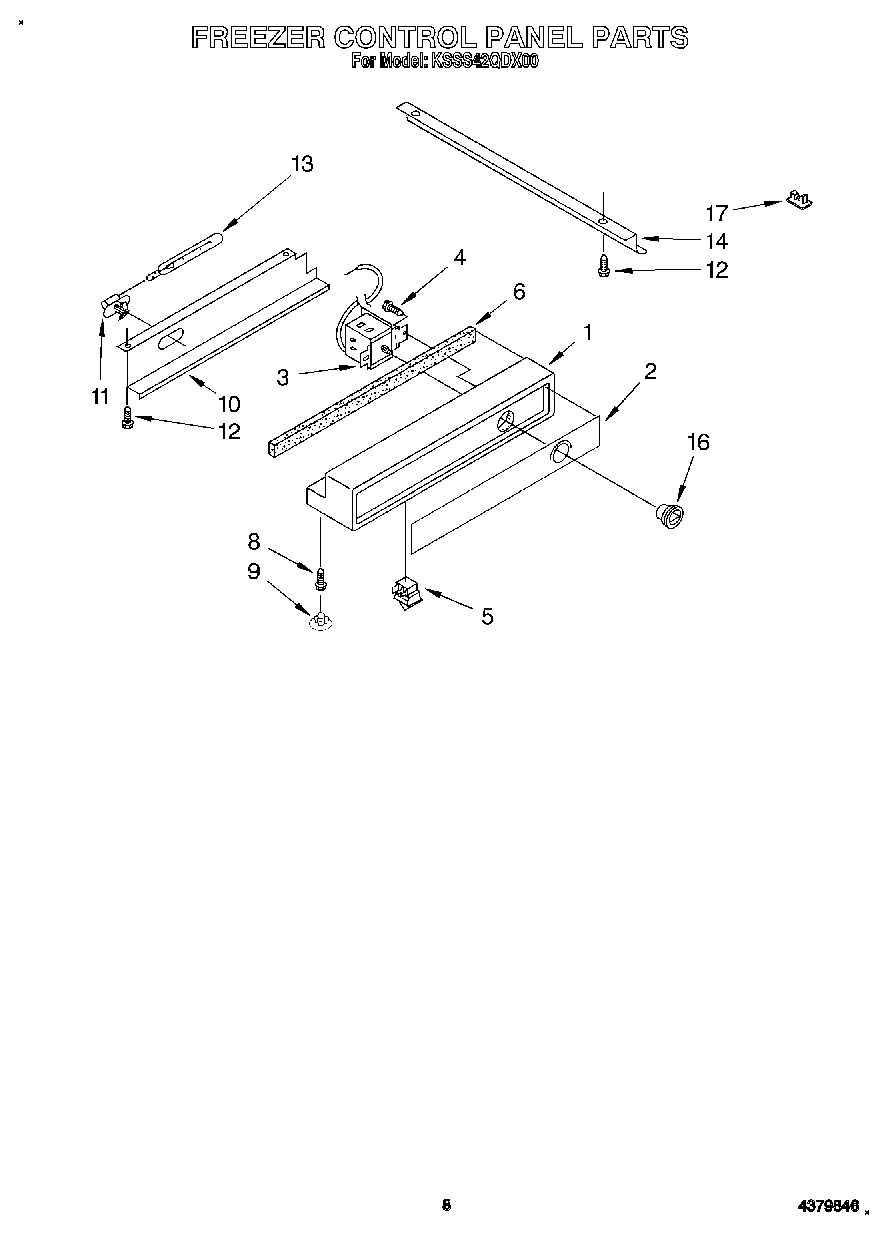

06 - FREEZER CONTROL PANEL

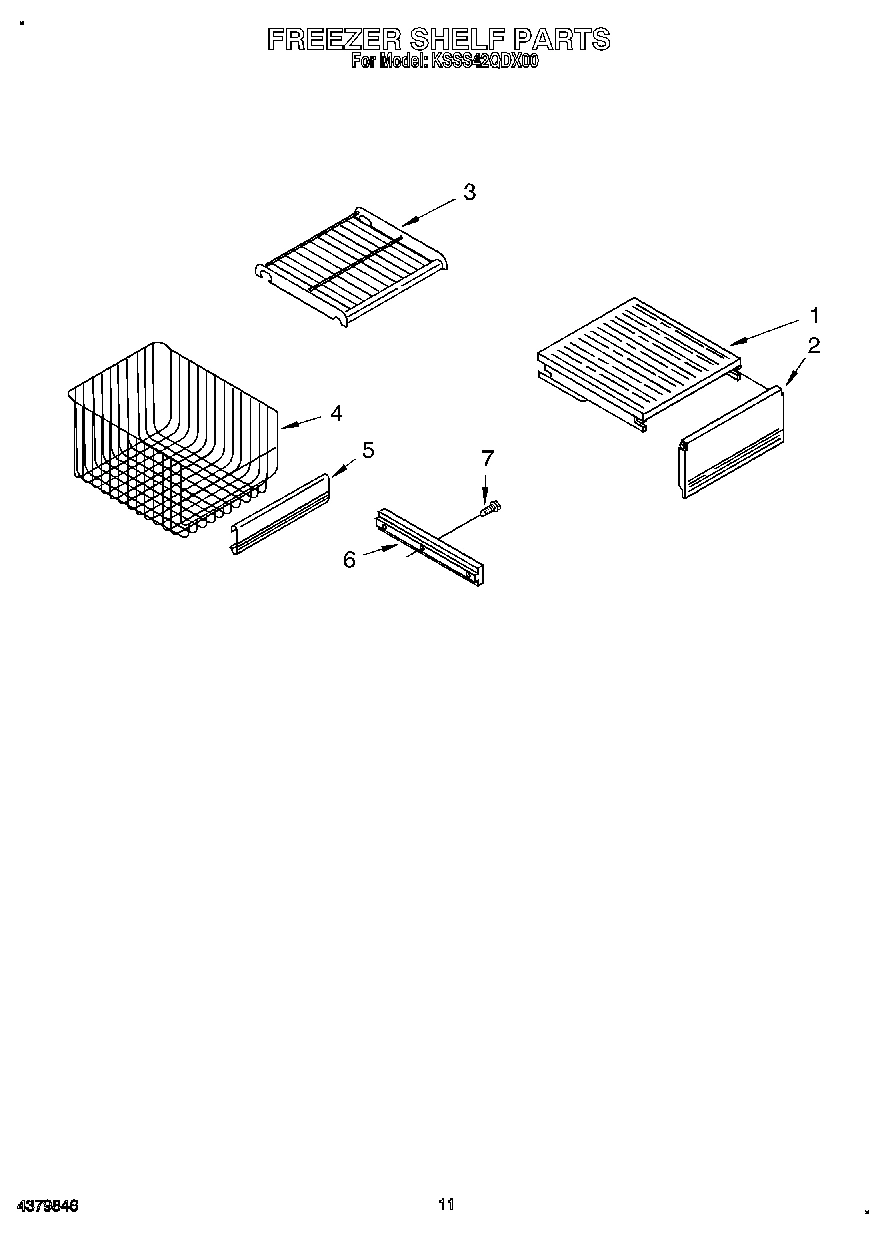

08 - FREEZER SHELF

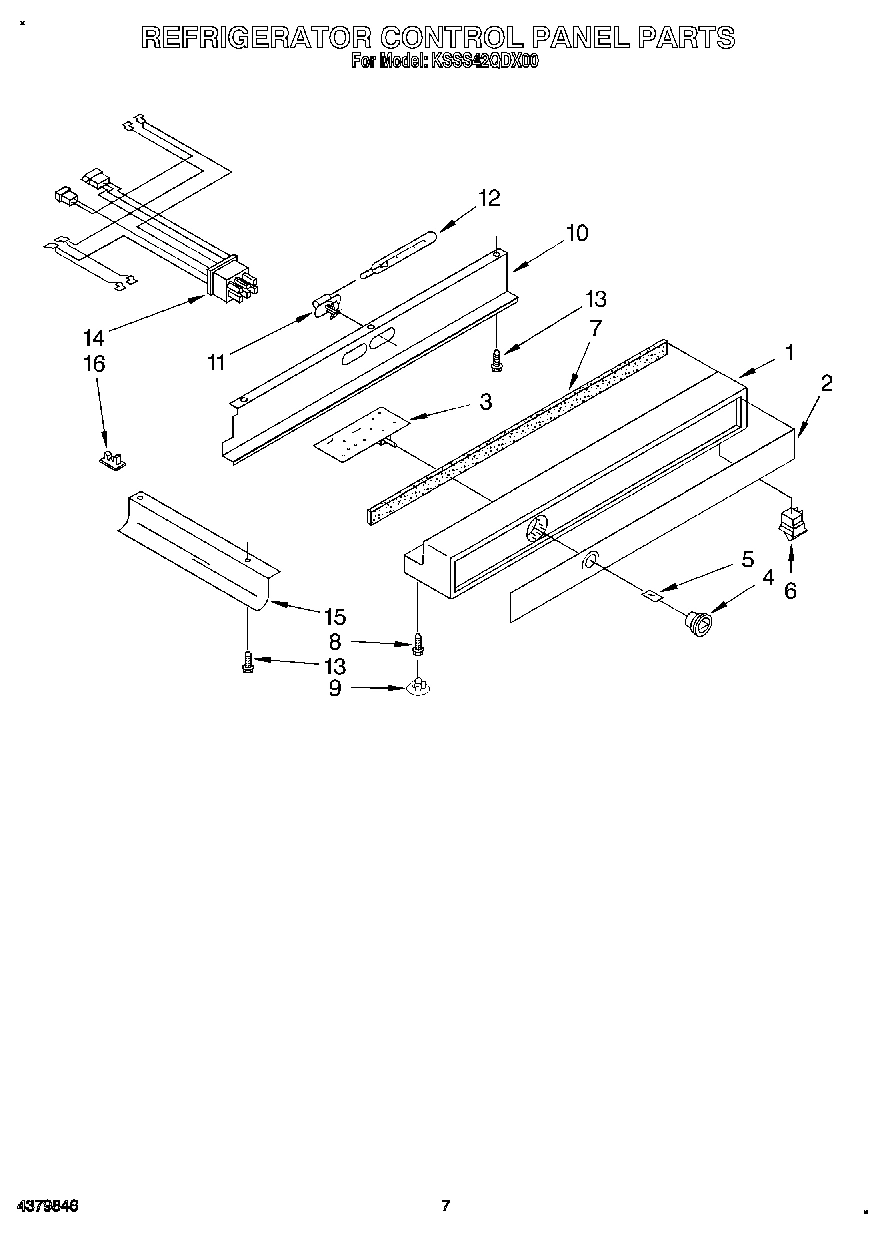

05 - REFRIGERATOR CONTROL PANEL

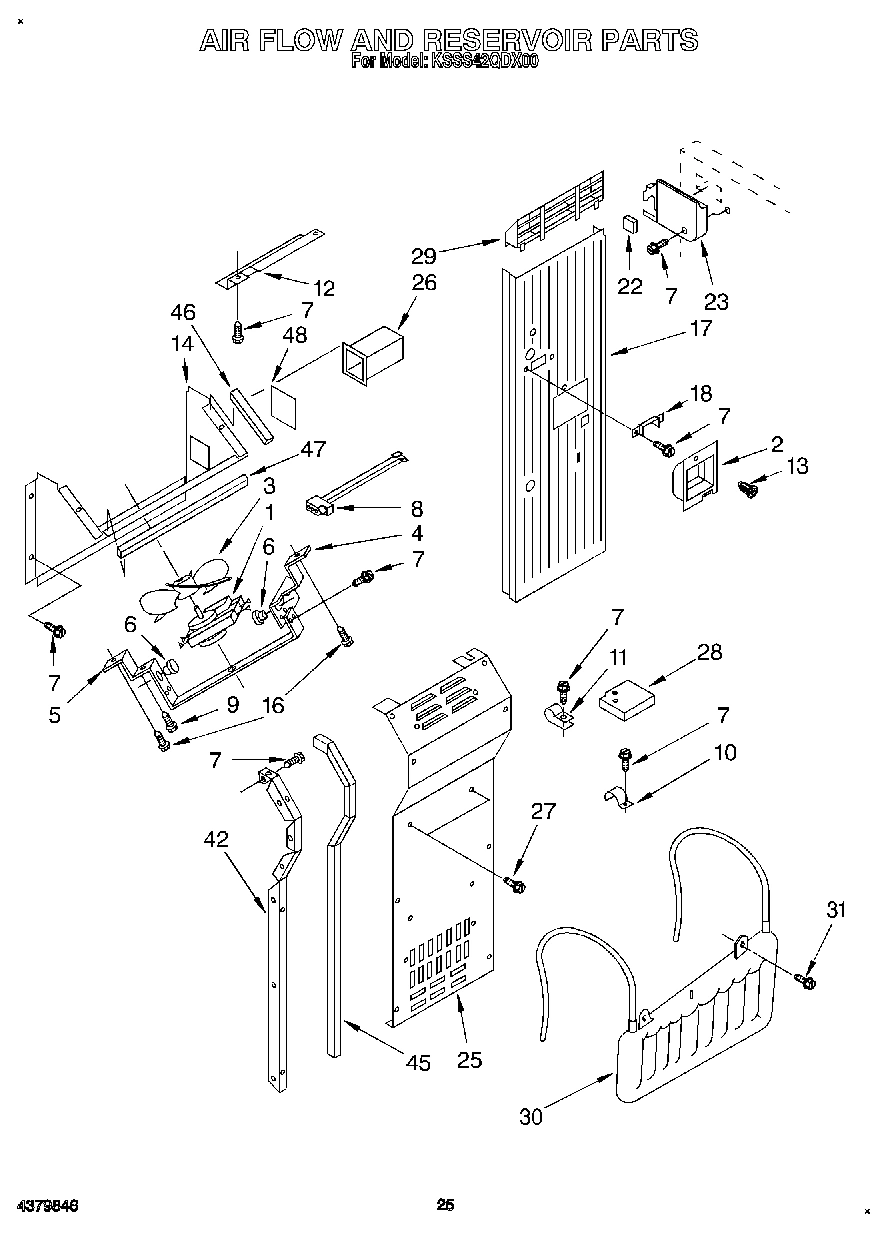

16 - AIR FLOW AND RESERVOIR

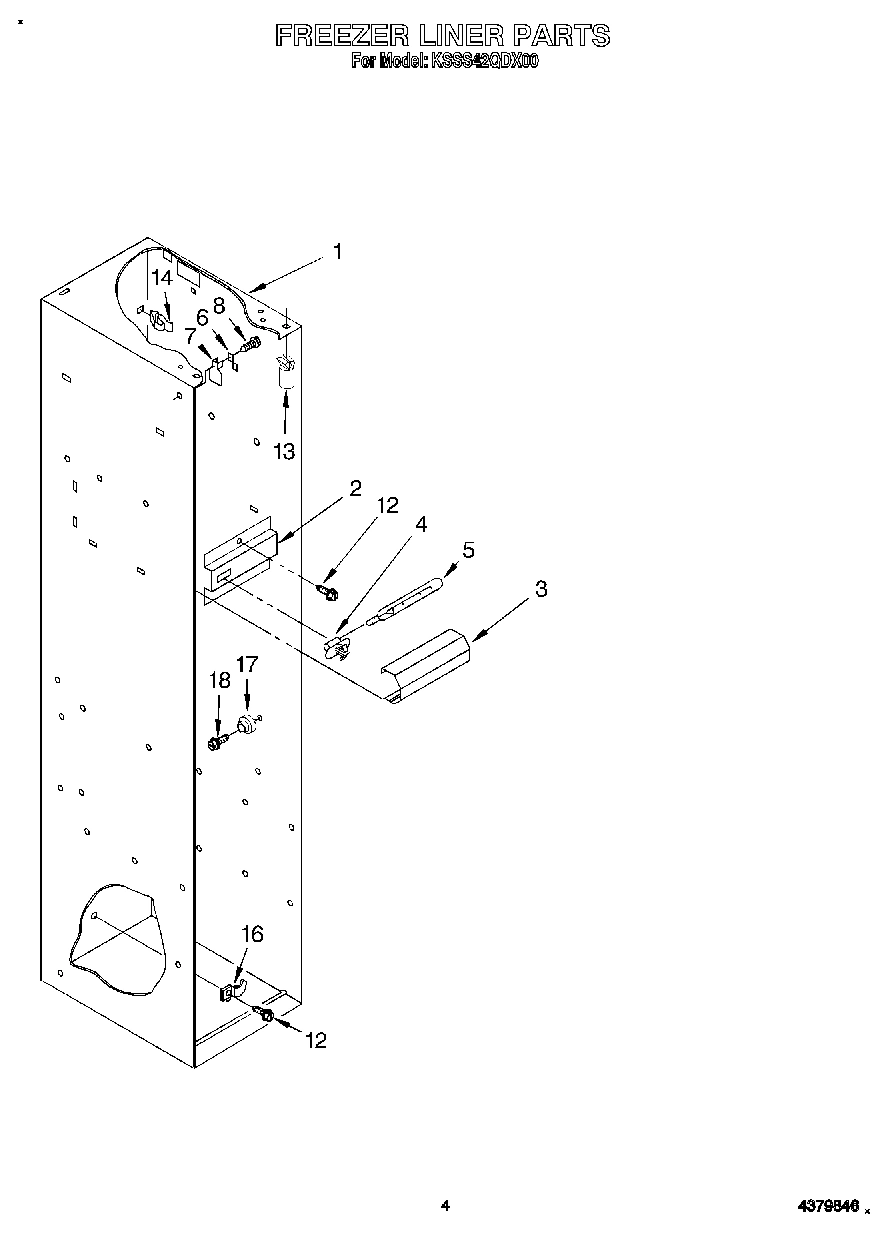

03 - FREEZER LINER

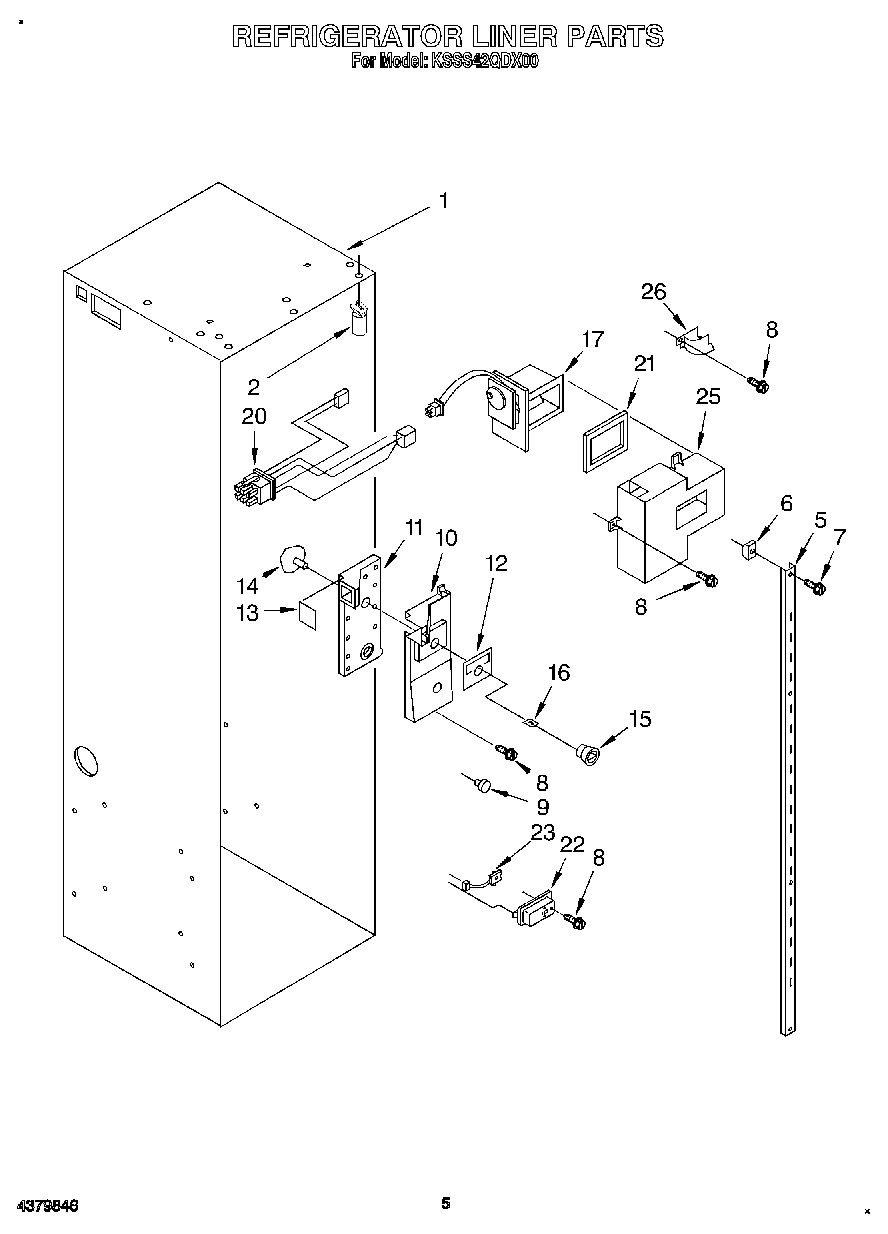

04 - REFRIGERATOR LINER

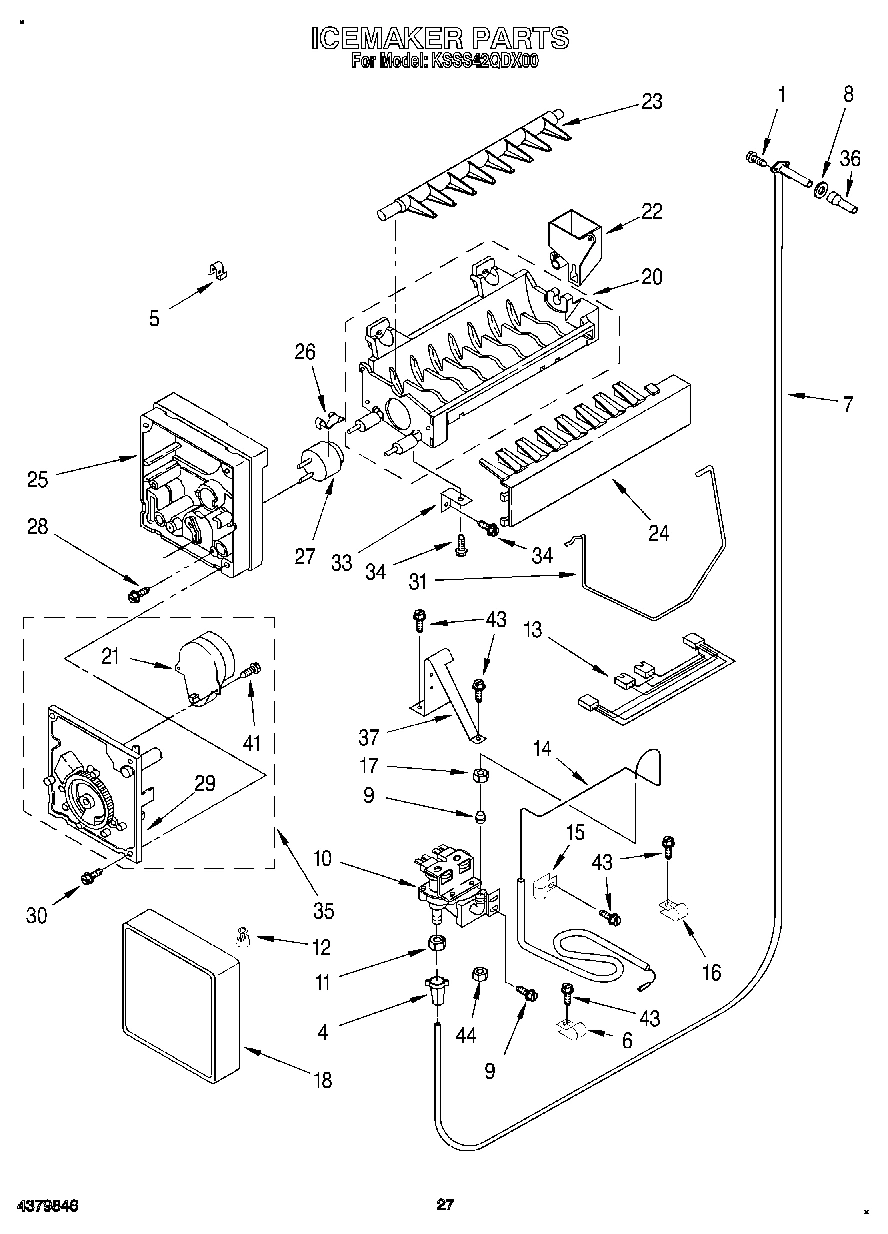

17 - ICEMAKER, LITERATURE

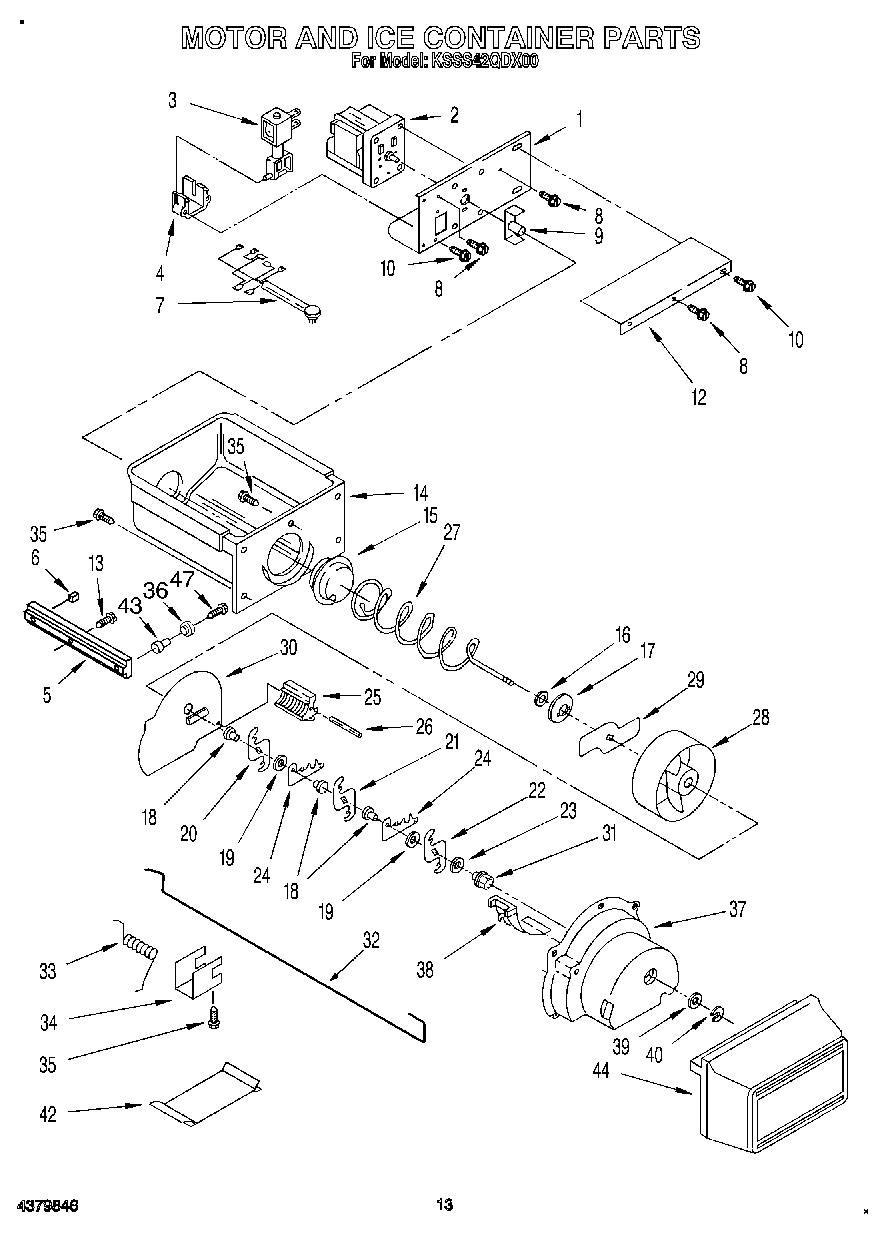

10 - MOTOR AND ICE CONTAINER

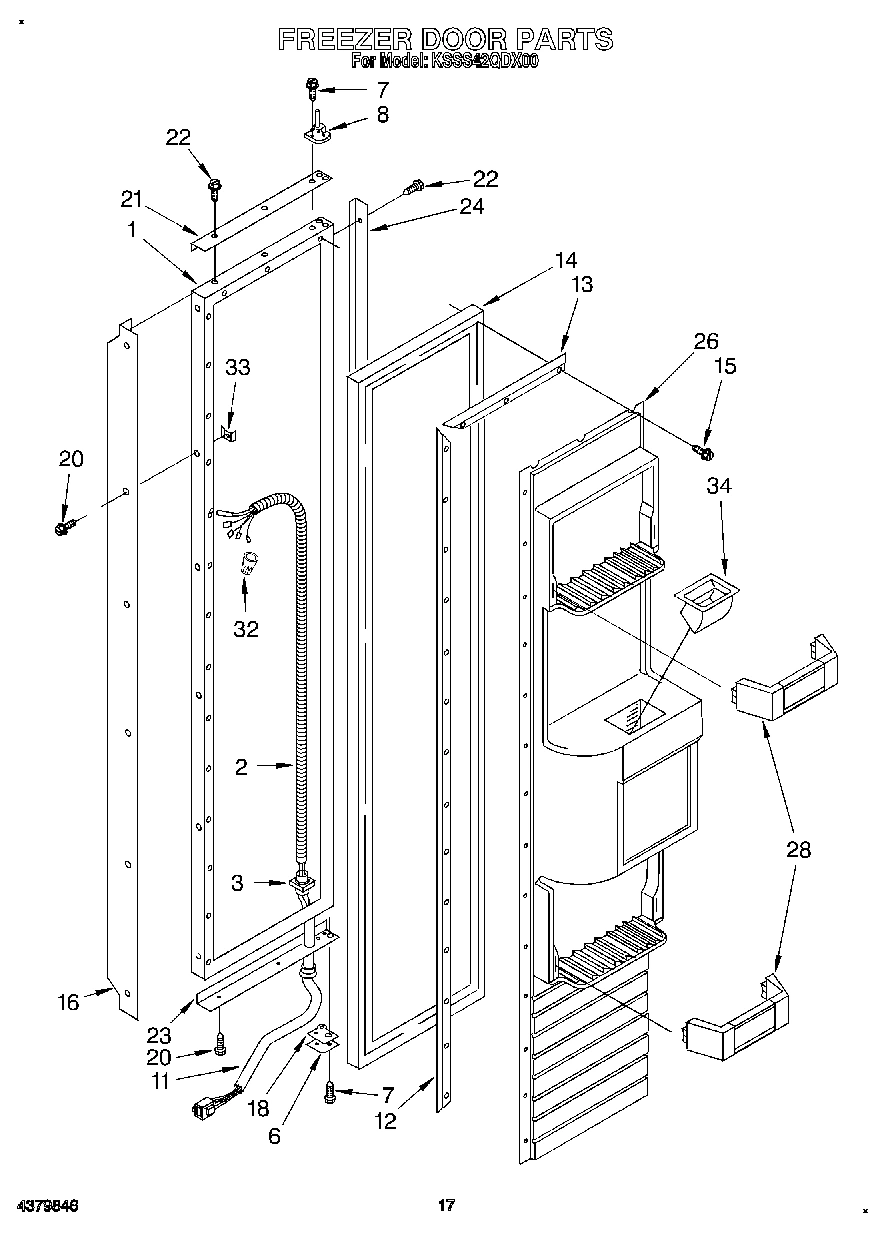

12 - FREEZER DOOR

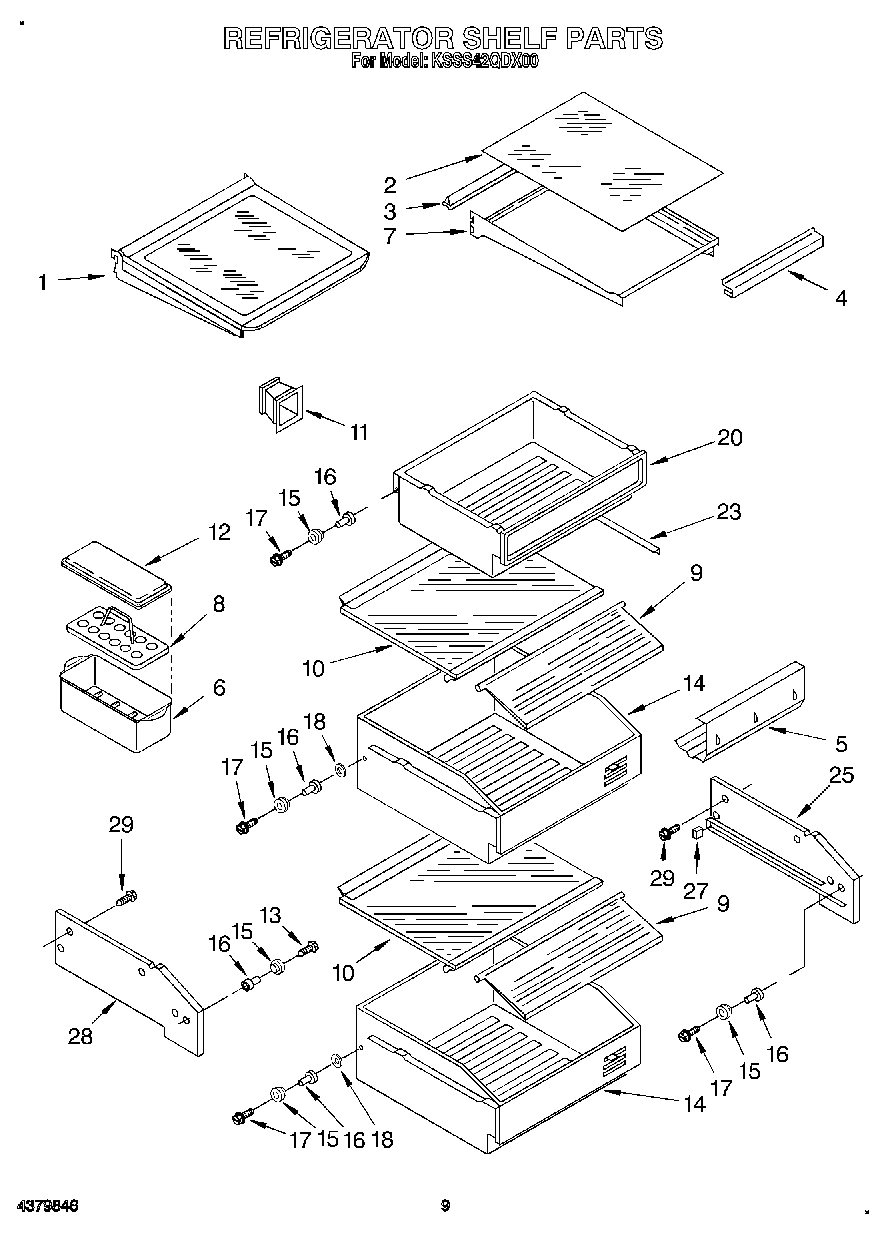

07 - REFRIGERATOR SHELF

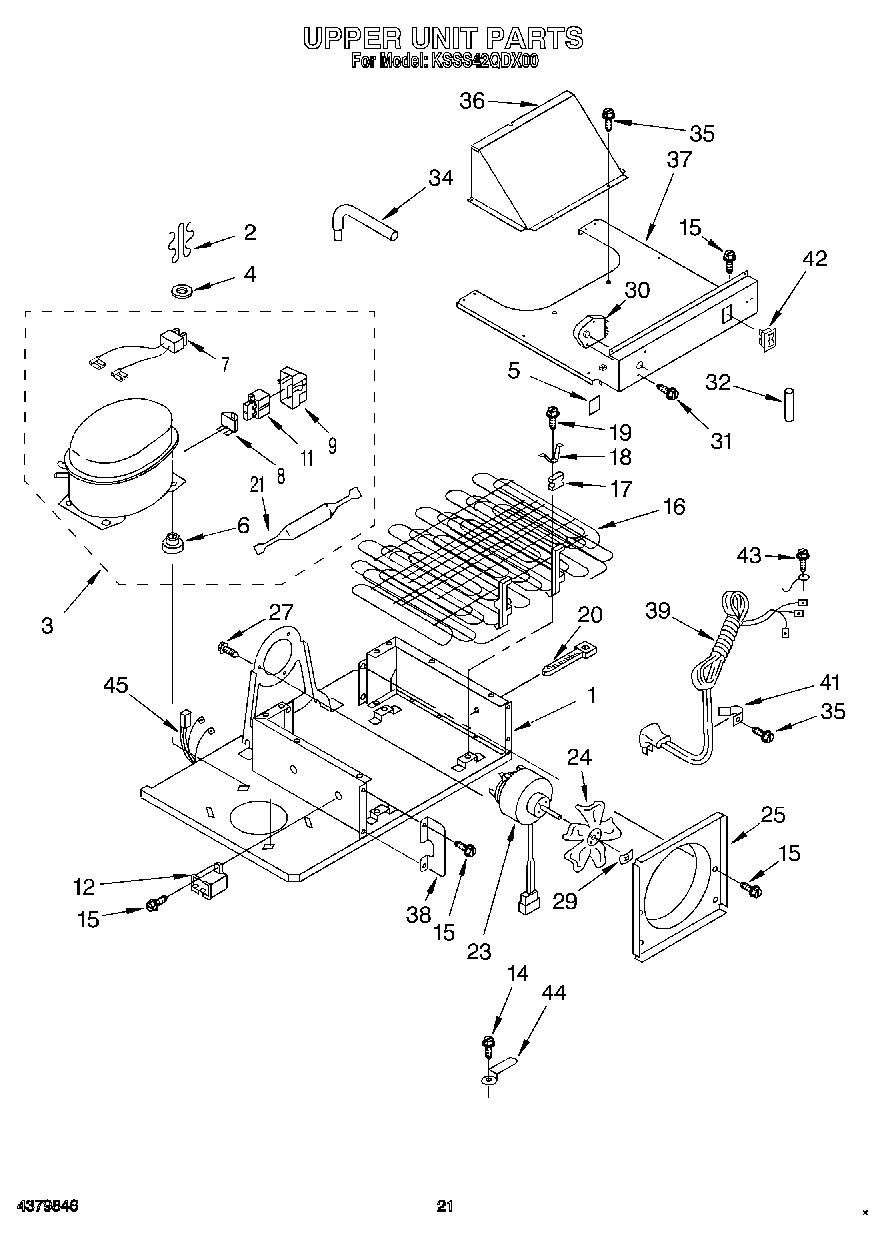

14 - UPPER UNIT

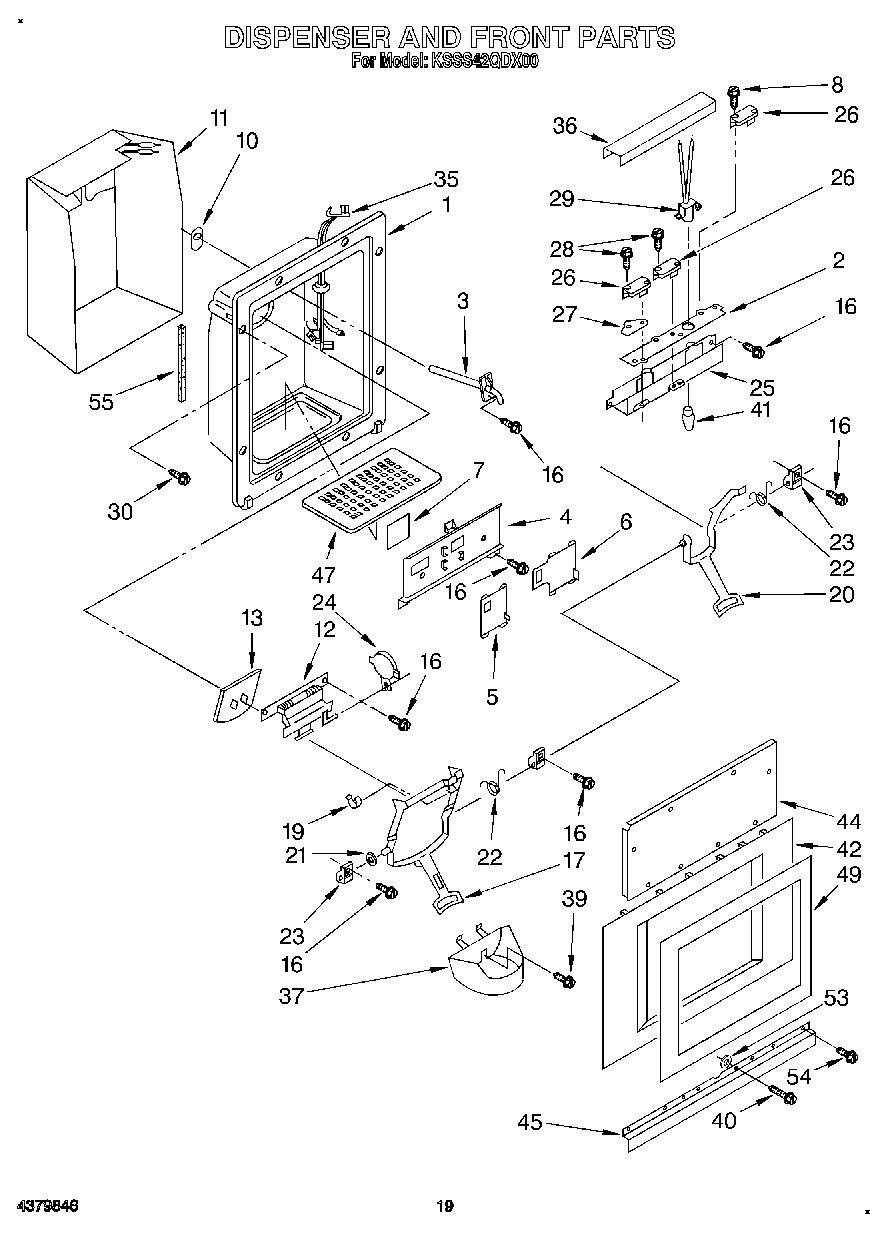

13 - DISPENSER AND FRONT
15 - LOWER UNIT AND TUBE
Common parts from model Whirlpool KSSS42QDX00 BUILT IN REFRIGERATOR
Front Panel Kit (White) WPL 4378651 Contact Us For Availability
Front Panel Kit (Black) WPL 4378654 Contact Us For Availability
Front Panel Kit (Almond) WPL 4378657 Contact Us For Availability
Front Panel Kit (Stainless Steel) WPL 4378660 Contact Us For Availability
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
Use & Care Guide WPL LIT2002906 Contact Us For Availability
Energy Label WPL LIT2002911 Contact Us For Availability
Service & Wiring Sheet WPL LIT2002934 Contact Us For Availability
Installation Instructions WPL LIT2002941 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Control Panel WPL 1113626 Contact Us For Availability
1
Solid Shelf WPL 2003143 Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107360A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107361A Contact Us For Availability
1
Bracket, Motor WPL 2002758 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 2002863 Contact Us For Availability
1
Frame, Shelf WPL 2174403 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Housing, Dispenser WPL 1107943 Contact Us For Availability
2
Inlay, Control Panel WPL 2003308 Contact Us For Availability
2
Front, Ice Compartment WPL 2003134 Contact Us For Availability
2
Inlay, Control Panel WPL 2003302 Contact Us For Availability
2
Cup, Clearance WPL 2002732 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
2
Glass, Shelf WPL 2003376 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Insulator, Bracket Control WPL 2147164 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
3
Screw WPL 2001297 Contact Us For Availability
3
Shelf, Deep WPL 1113565 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113637 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2001189 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Light, Socket WPL 1112613 Contact Us For Availability
4
Basket WPL 2001625 Contact Us For Availability
4
Control Knob WPL 2001738 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Gasket, Glass WPL 1113791 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Frame, Slides WPL 2152716 Contact Us For Availability
5
Trim, Basket WPL 2003113 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
5
Bushing, Foam WPL 2003389 Contact Us For Availability
5
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
5
Sleeve WPL 2002171 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Cabinet, Trim Top WPL 2002229 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2000061 Contact Us For Availability
6
Slide, Basket (Left Side) WPL 2000062 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Hinge, Bottom WPL 2002074 Contact Us For Availability
6
Slide, Light Switch WPL 2152724 Contact Us For Availability
7
Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2001606 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2002719 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2003326 Contact Us For Availability
7
Heat Shield, Frame WPL 2147172 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Motor, Wiring WPL 2000618 Contact Us For Availability
8
Hinge, Top WPL 2001984 Contact Us For Availability
8
Screw (2) WPL 488361 Contact Us For Availability
9
Heater, Drain Pan WPL 2002993 Contact Us For Availability
9
Retainer Clip WPL 2002474 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
10
Shield, Control Panel WPL 1113768 Contact Us For Availability
10
Shield, Control Panel WPL 1113774 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2000740 Contact Us For Availability
10
Glass, Crisper (Includes No.9) WPL 2003379 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2003475 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Relay (See Overload) WPL ARI107362A Contact Us For Availability
11
Heater, Ice Dispenser WPL 2149097 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Channel, Wiring WPL 2001145 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Cover, Motor WPL 1113129 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Cover WPL 2164374 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Fastner WPL 1112871 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Water Valve, Harness WPL 2003477 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
14
Channel, Wiring WPL 2001973 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Inlet Water Line WPL 2001354 Contact Us For Availability
14
Ice Container WPL 2002726 Contact Us For Availability
14
Crisper Pan (2) WPL 2003316 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
15
Heat Exchanger WPL 2003002 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2001735 Contact Us For Availability
15
Roller WPL 2174388 Contact Us For Availability
16
Knob, Thermostat WPL 2001737 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Handle, Door WPL 2002226 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Assembly, Air Duct WPL 2002961 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Door, Spacer WPL 2002007 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Meat Pan WPL 2003321 Contact Us For Availability
20
Lever, Water Dispenser WPL 2159196 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Washer WPL 488307 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Screw WPL 489112 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Trim (Bottom) WPL 2002949 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Trim (Side) WPL 2002198 Contact Us For Availability
25
Cover, Evaporator WPL 2000341 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Bracket, Control WPL 2147163 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000795 Contact Us For Availability
26
Panel, Interior Door WPL 2002839 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Insulation, Switch WPL 625834 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
28
Screw, WPL 489155 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112852 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Control Arm WPL 2002728 Contact Us For Availability
32
Wire Connector WPL 547217 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
34
Ice Chute WPL 2002733 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
35
Wiring Harness, Door WPL 2147166 Contact Us For Availability
36
Water Inlet Tube WPL 2001098 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
36
Shield, Wiring WPL 2147165 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Cover, Condenser WPL 2003355 Contact Us For Availability
37
Guiding, Ice WPL 1119035 Contact Us For Availability
38
Air Vane WPL 2003263 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
39
Screw WPL 489197 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Front Cover, Housing (Includes No.49) WPL 2002877 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2002723 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Cover, Dispenser Opening WPL 2002730 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Trim, Front (2) WPL 2001476 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Grille, Overflow WPL 983900 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
49
Overlay, Cover WPL 2002889 Contact Us For Availability
53
Washer (2) WPL 487944 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
× ![]()
