Model Whirlpool KSSS42FJB00 BUILT IN REFRIGERATOR – Common Parts & Diagrams

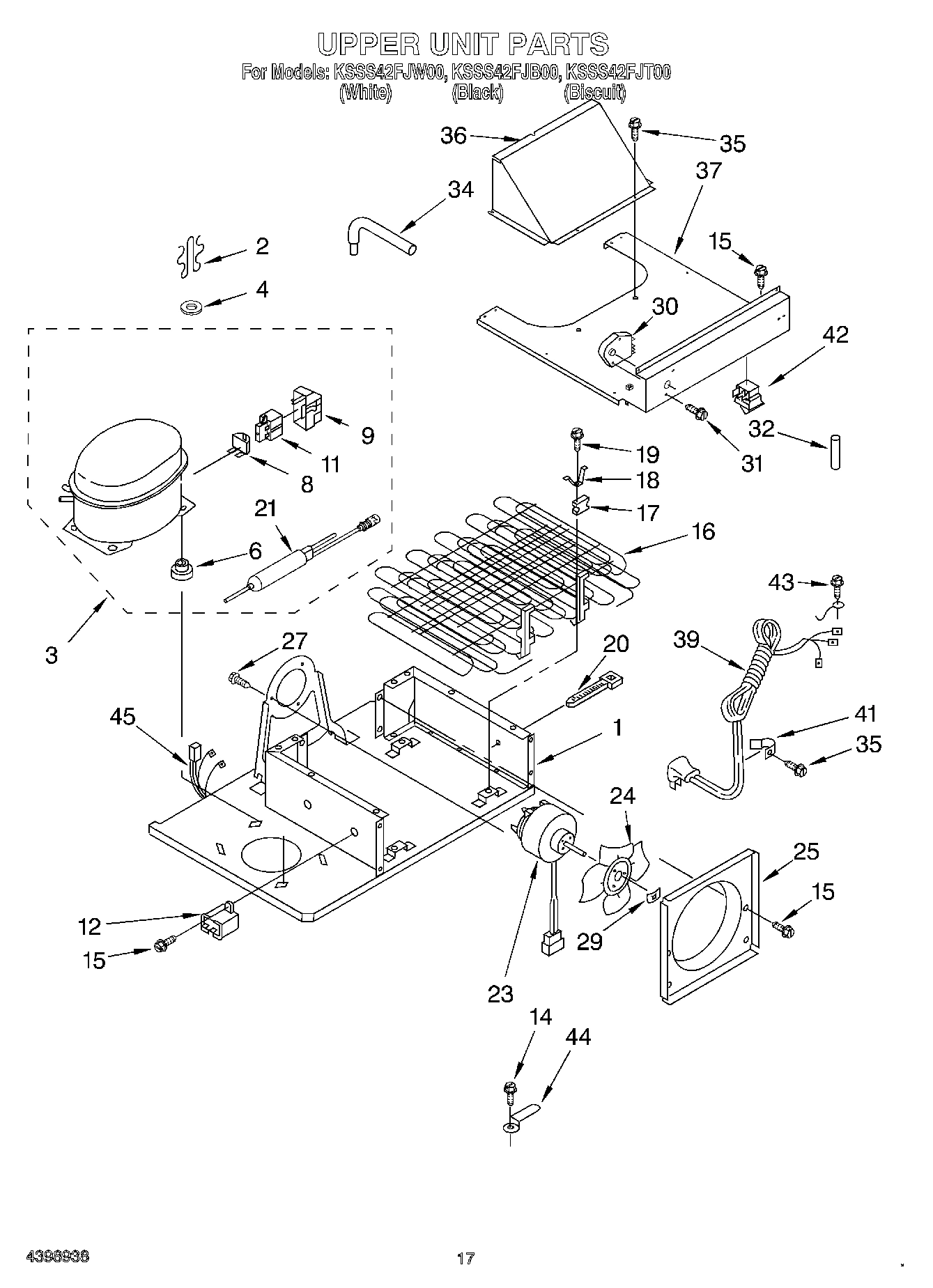

12 - UPPER UNIT

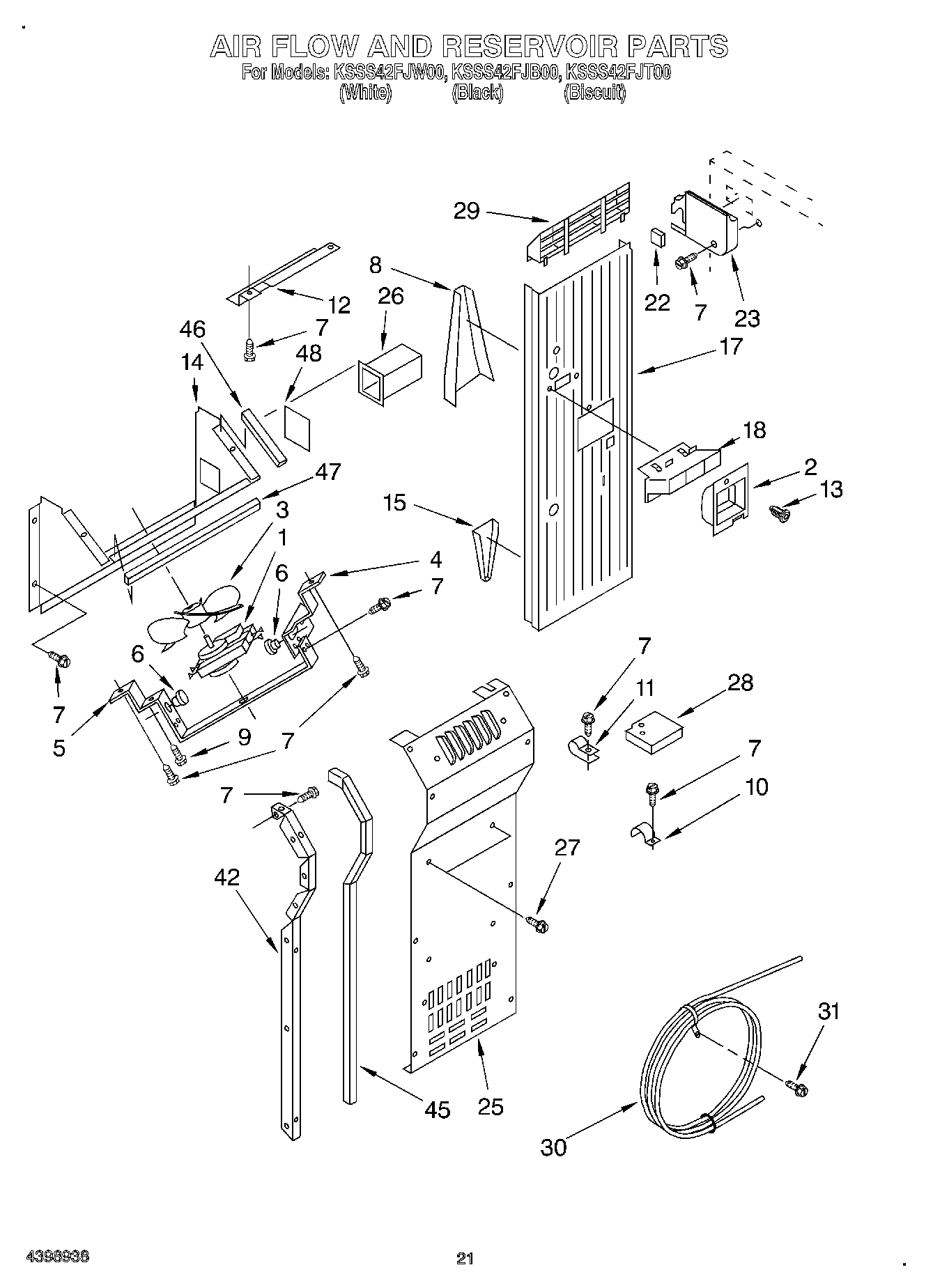

14 - AIR FLOW AND RESERVOIR

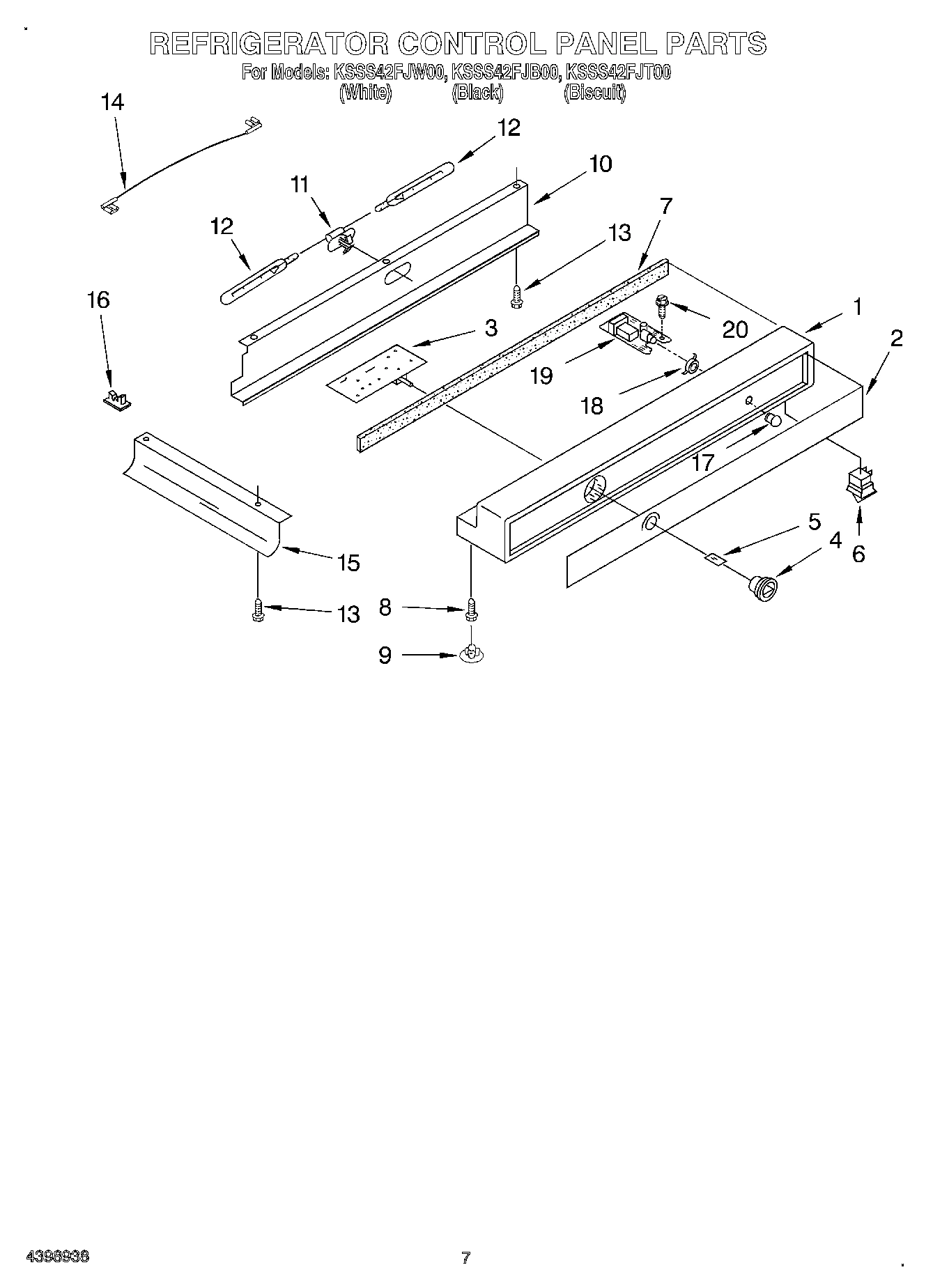

05 - REFRIGERATOR CONTROL PANEL

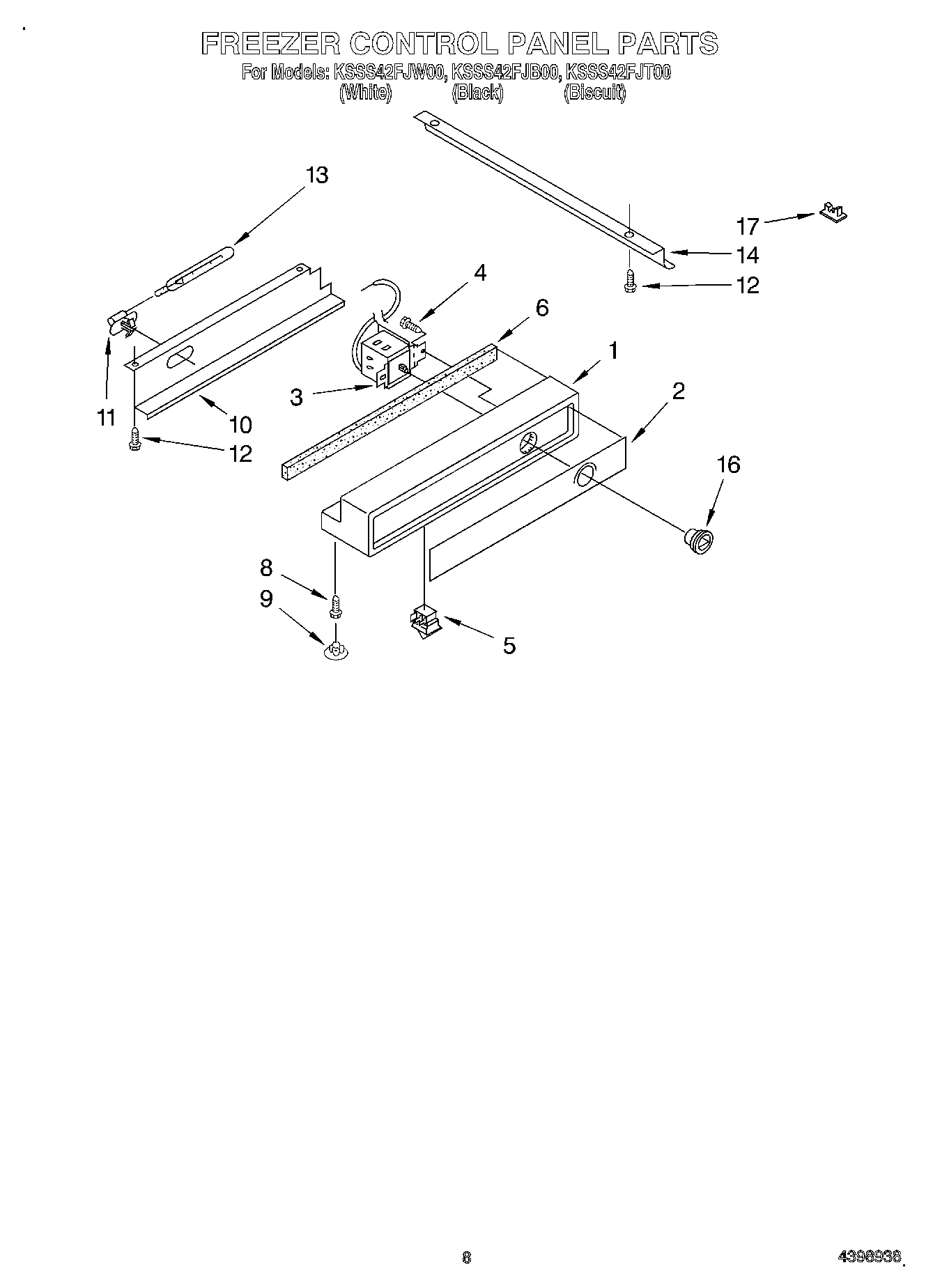

06 - FREEZER CONTROL PANEL

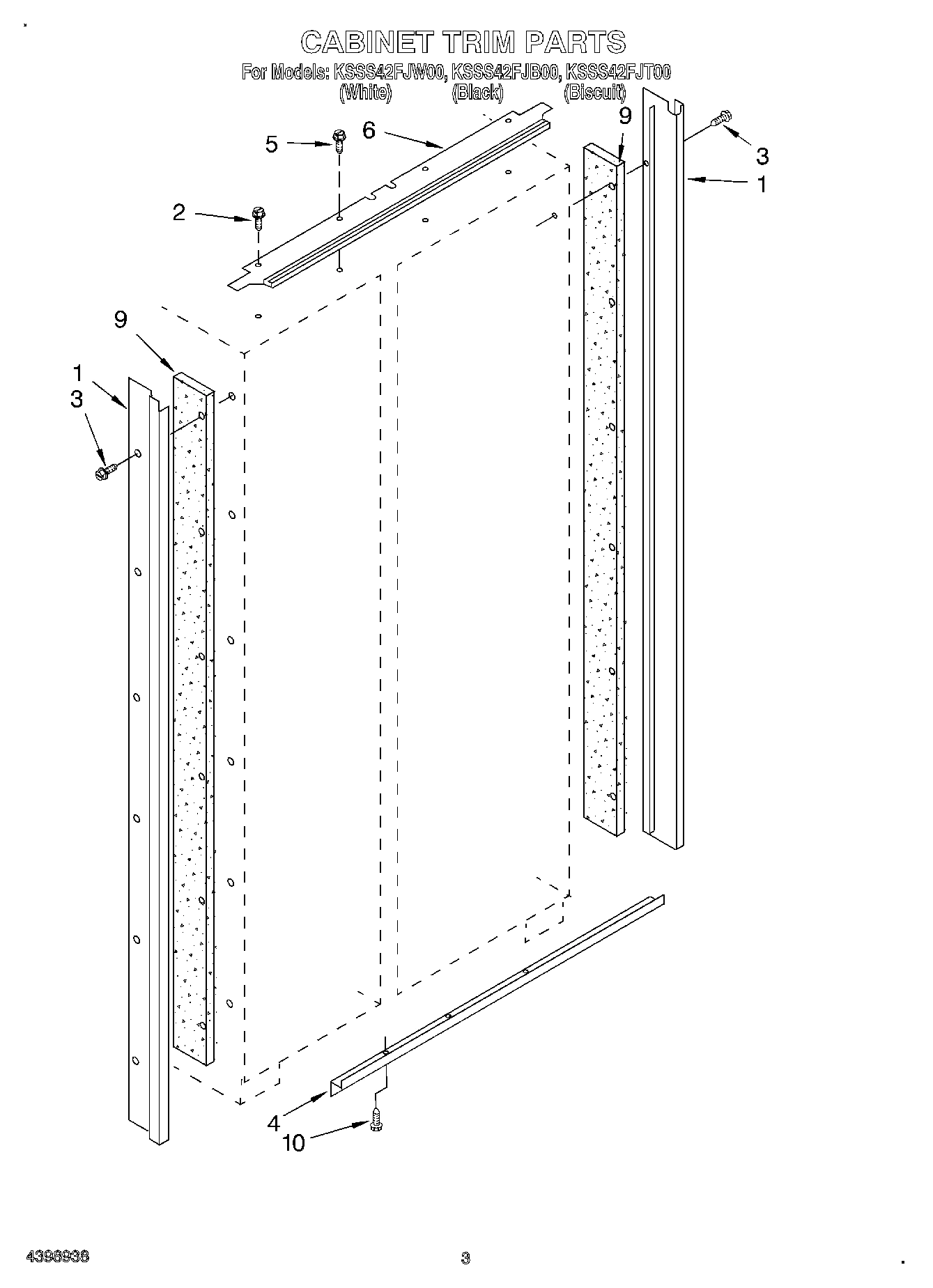

02 - CABINET TRIM

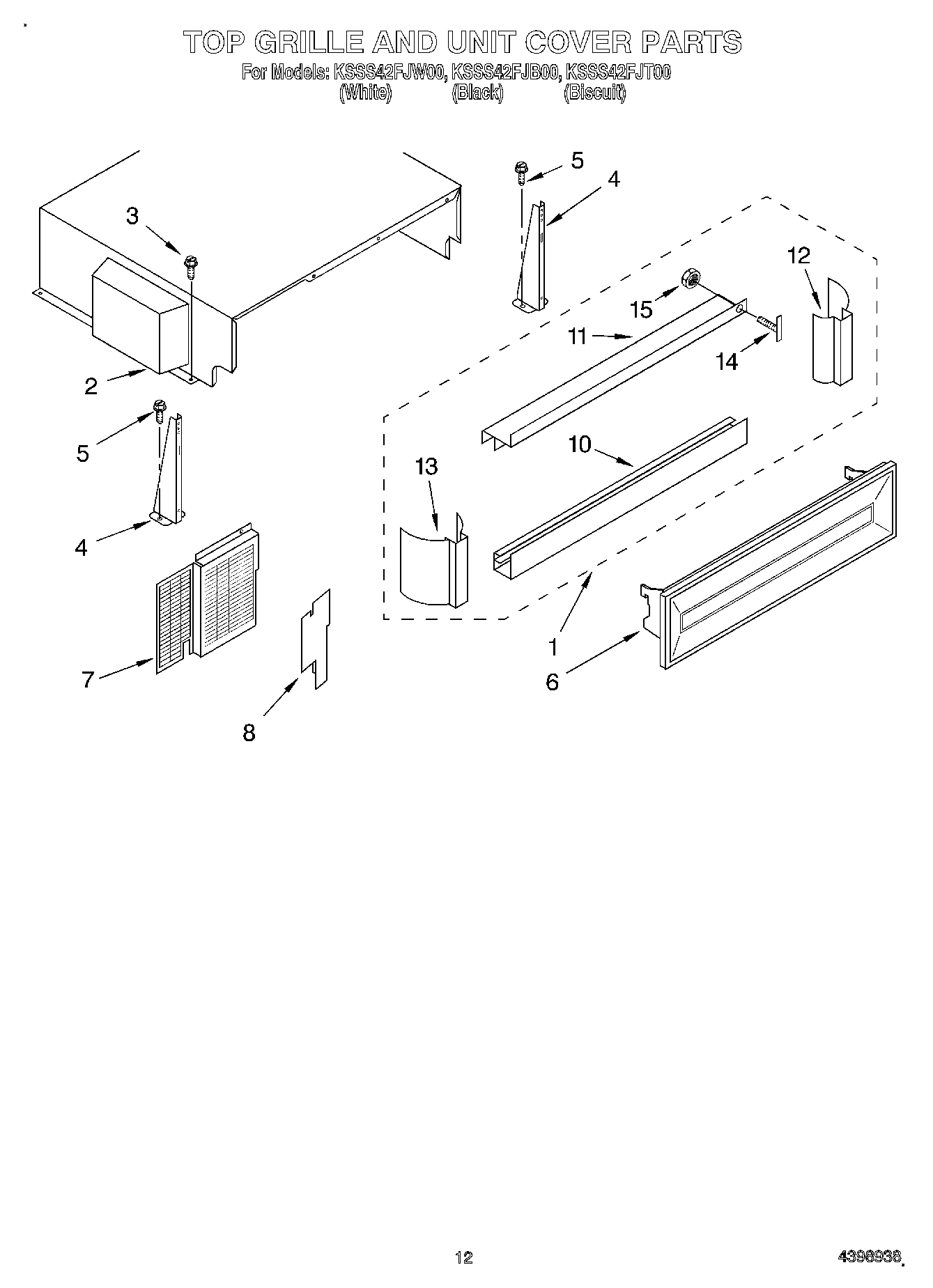

09 - TOP GRILLE AND UNIT COVER

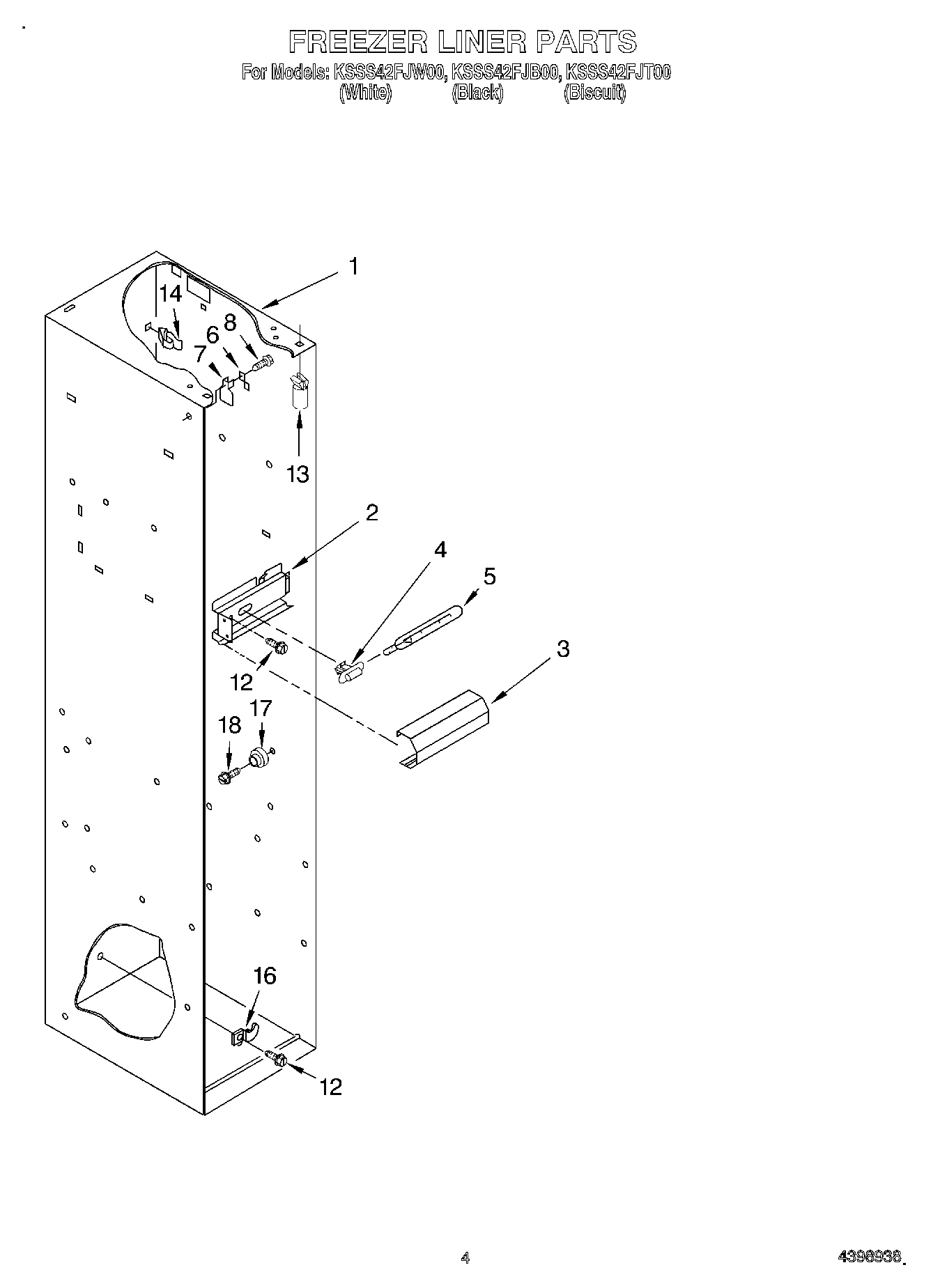

03 - FREEZER LINER

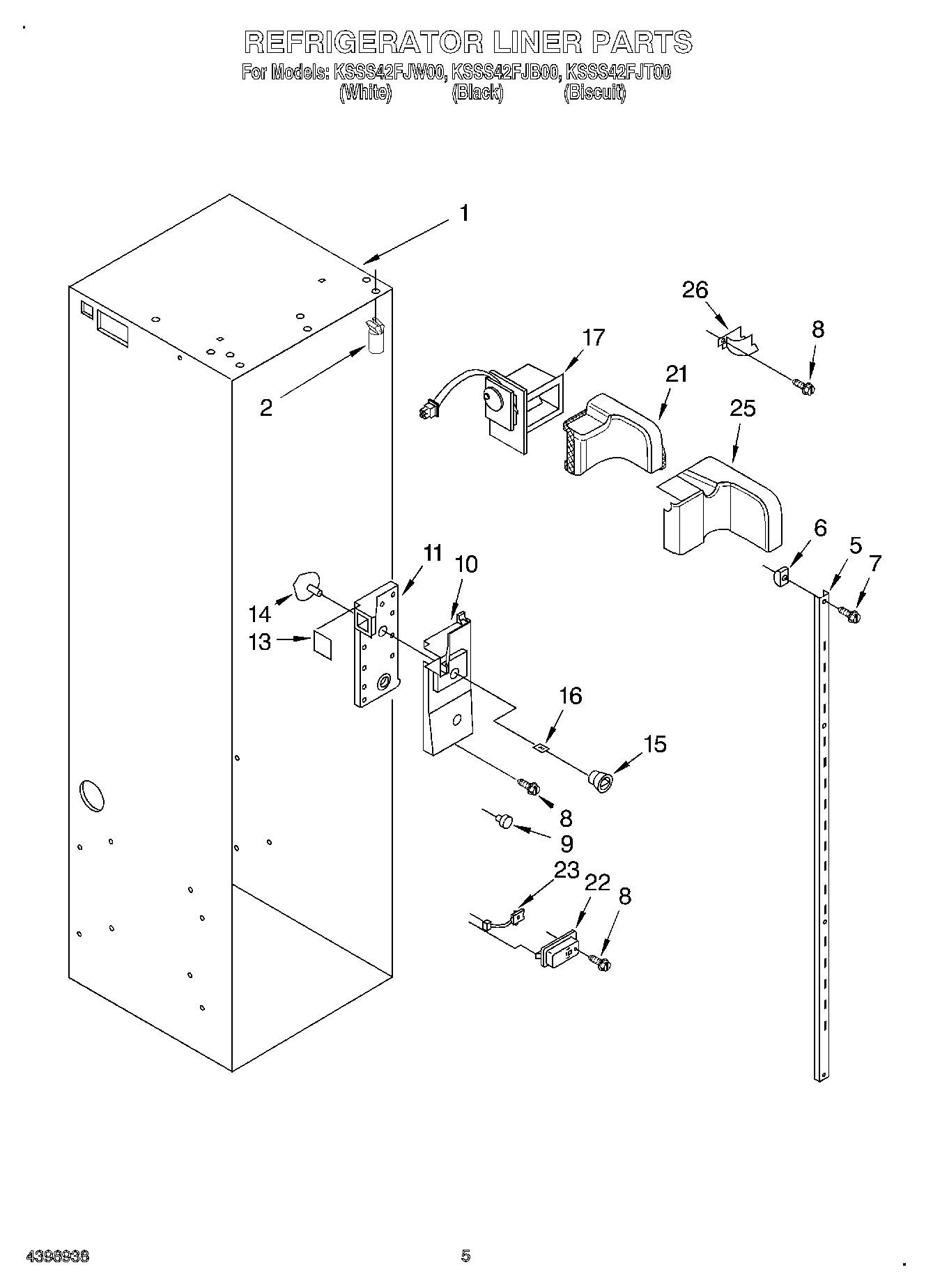

04 - REFRIGERATOR LINER

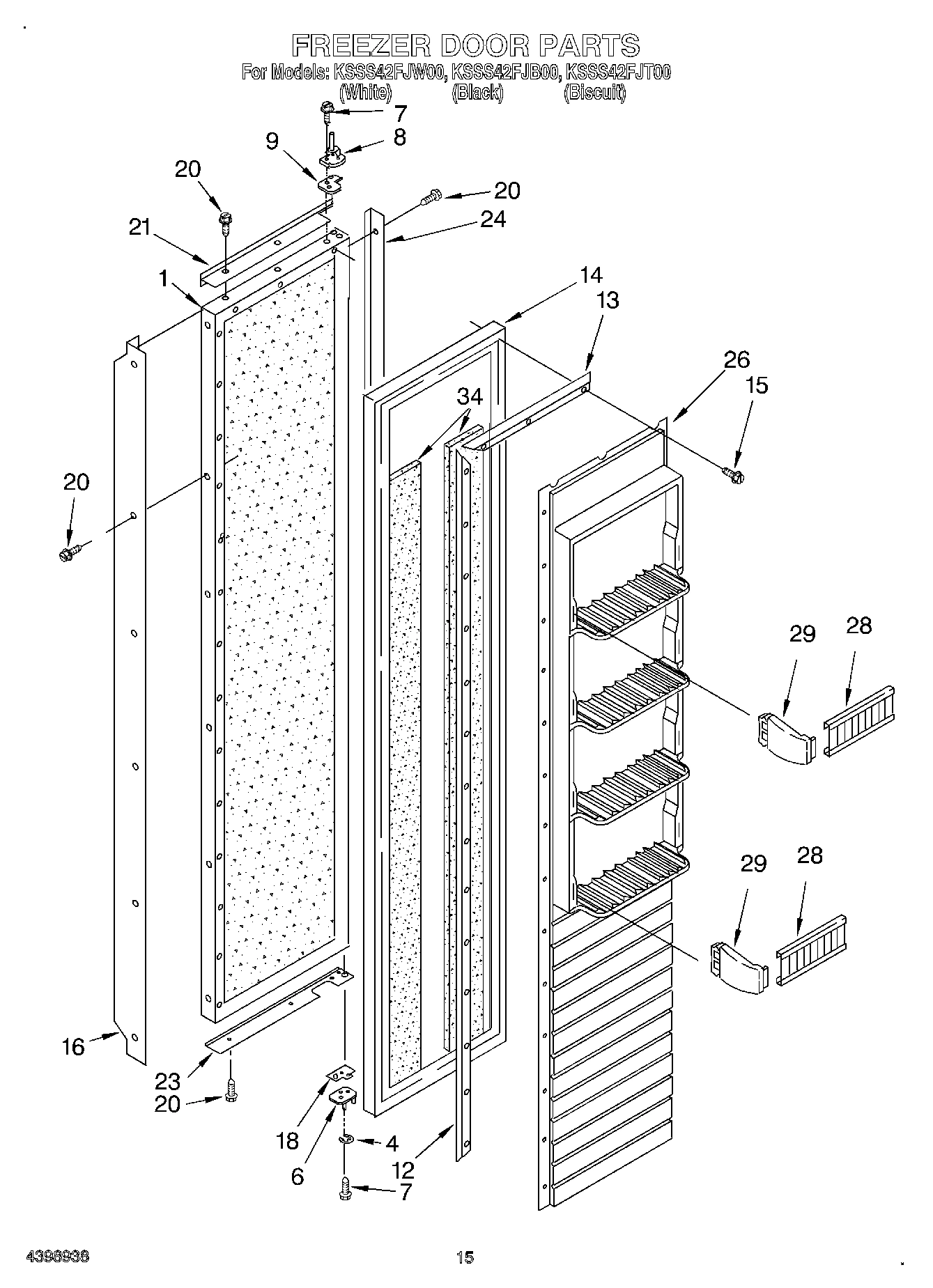

11 - FREEZER DOOR

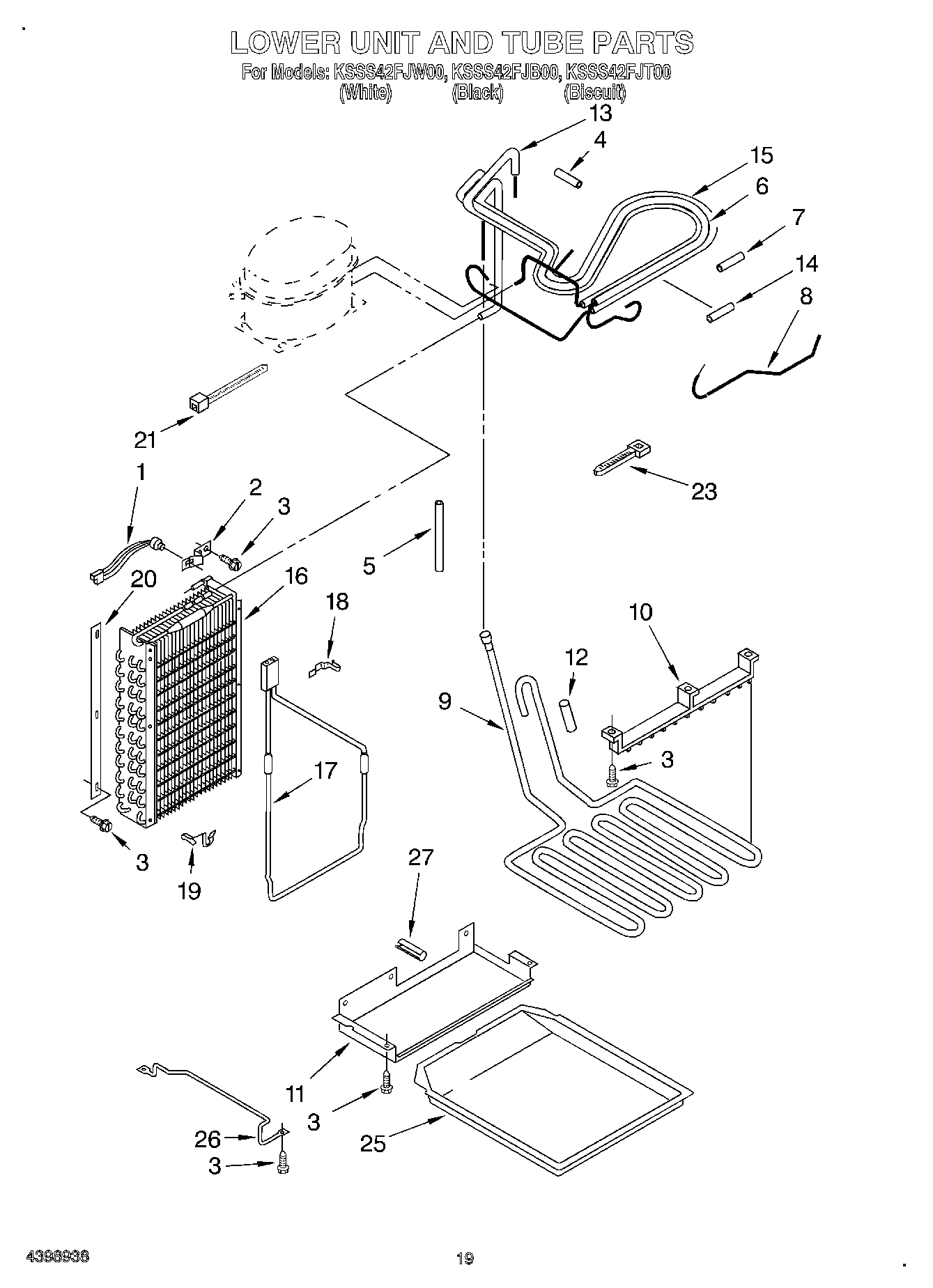

13 - LOWER UNIT AND TUBE

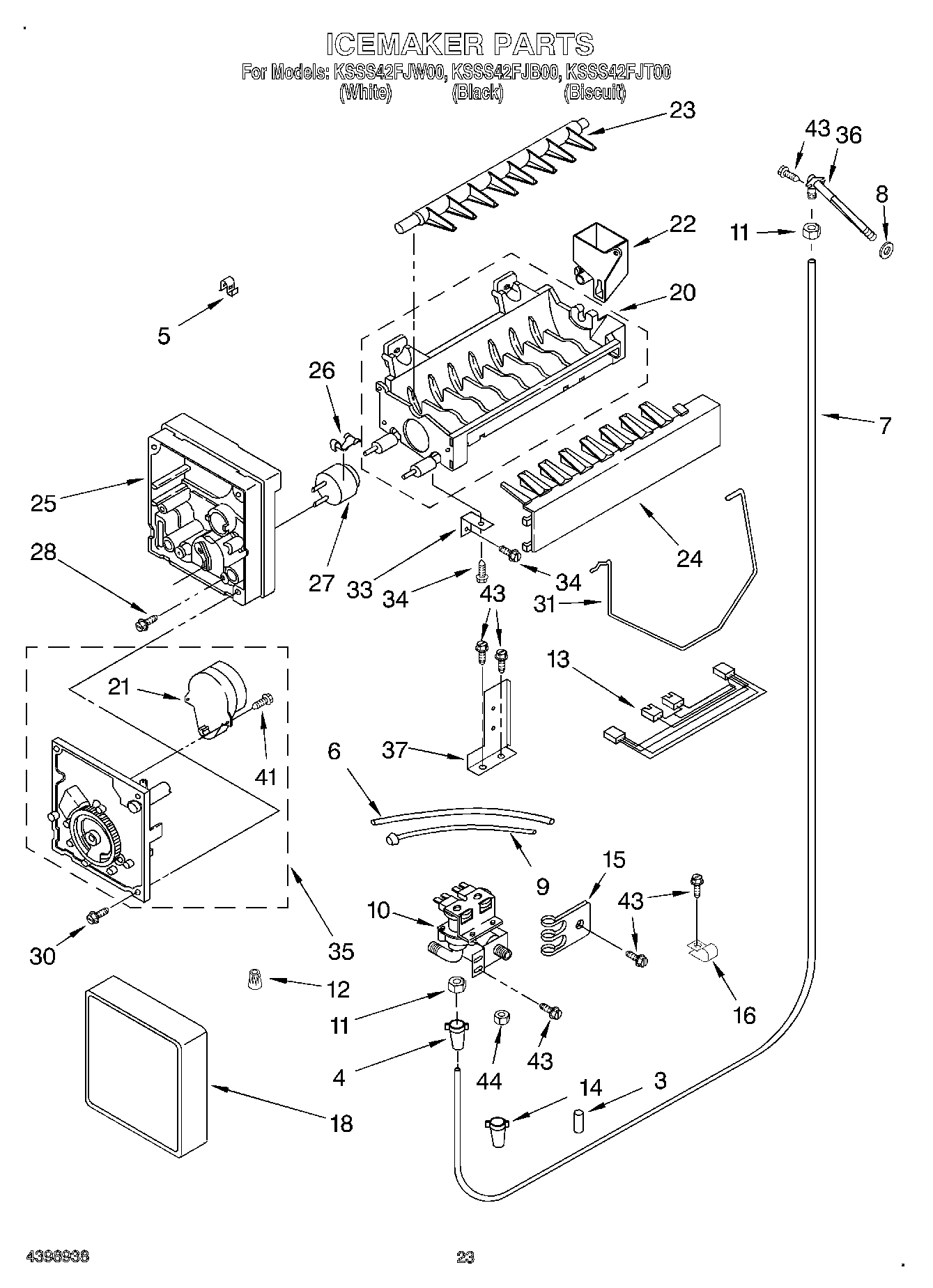

15 - ICE MAKER, OPTIONAL

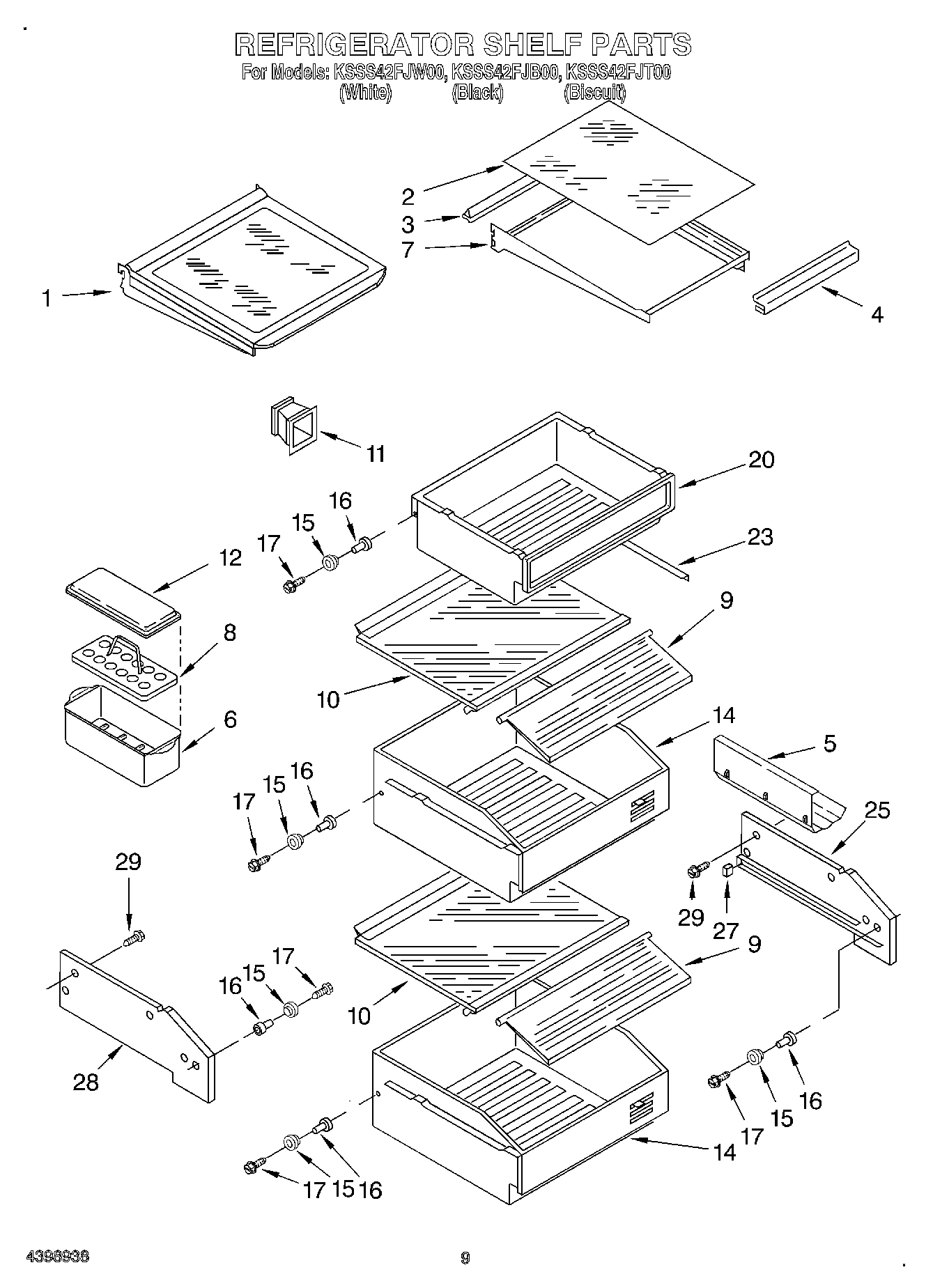

07 - REFRIGERATOR SHELF

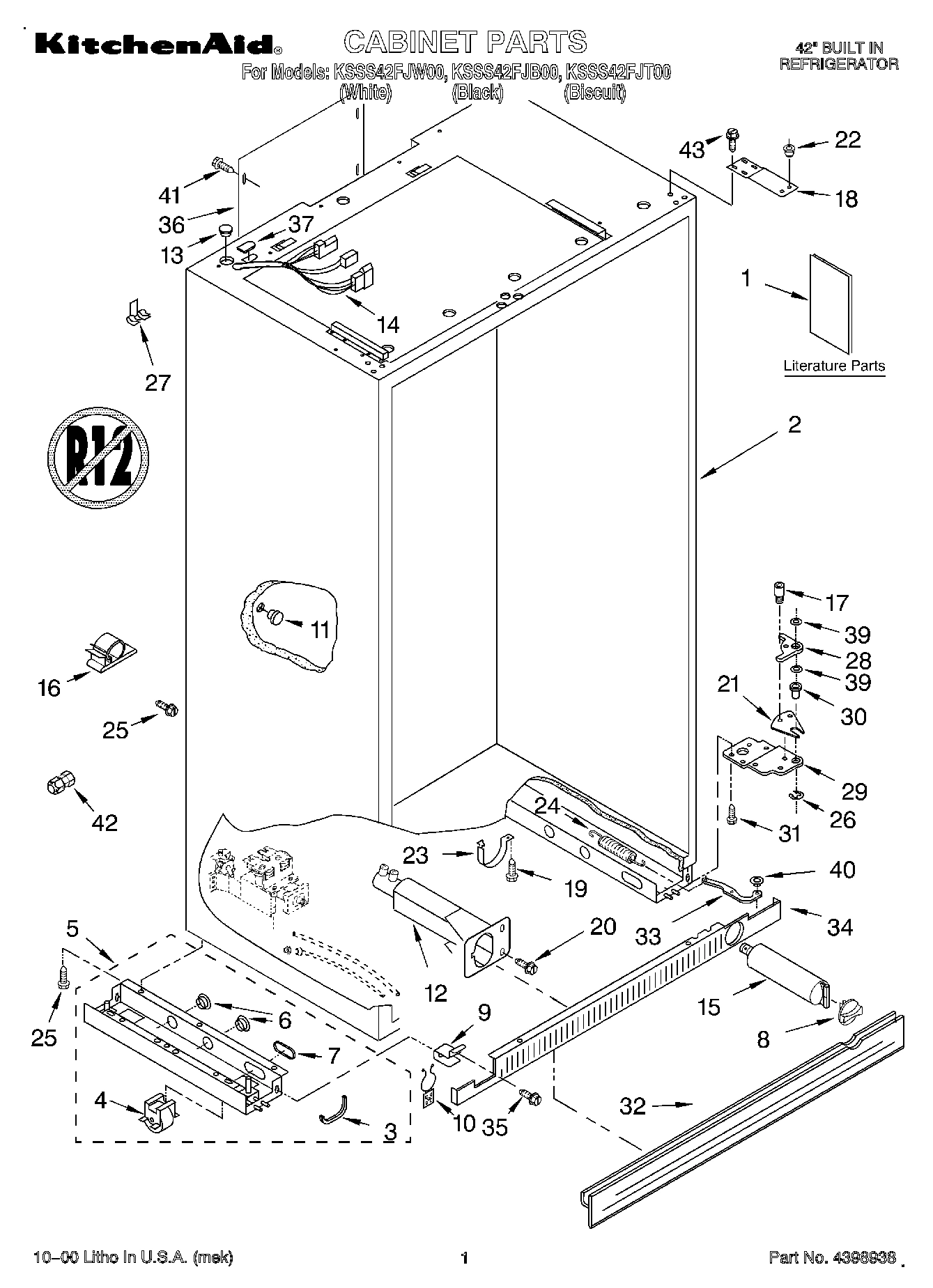

01 - CABINET, LITERATURE

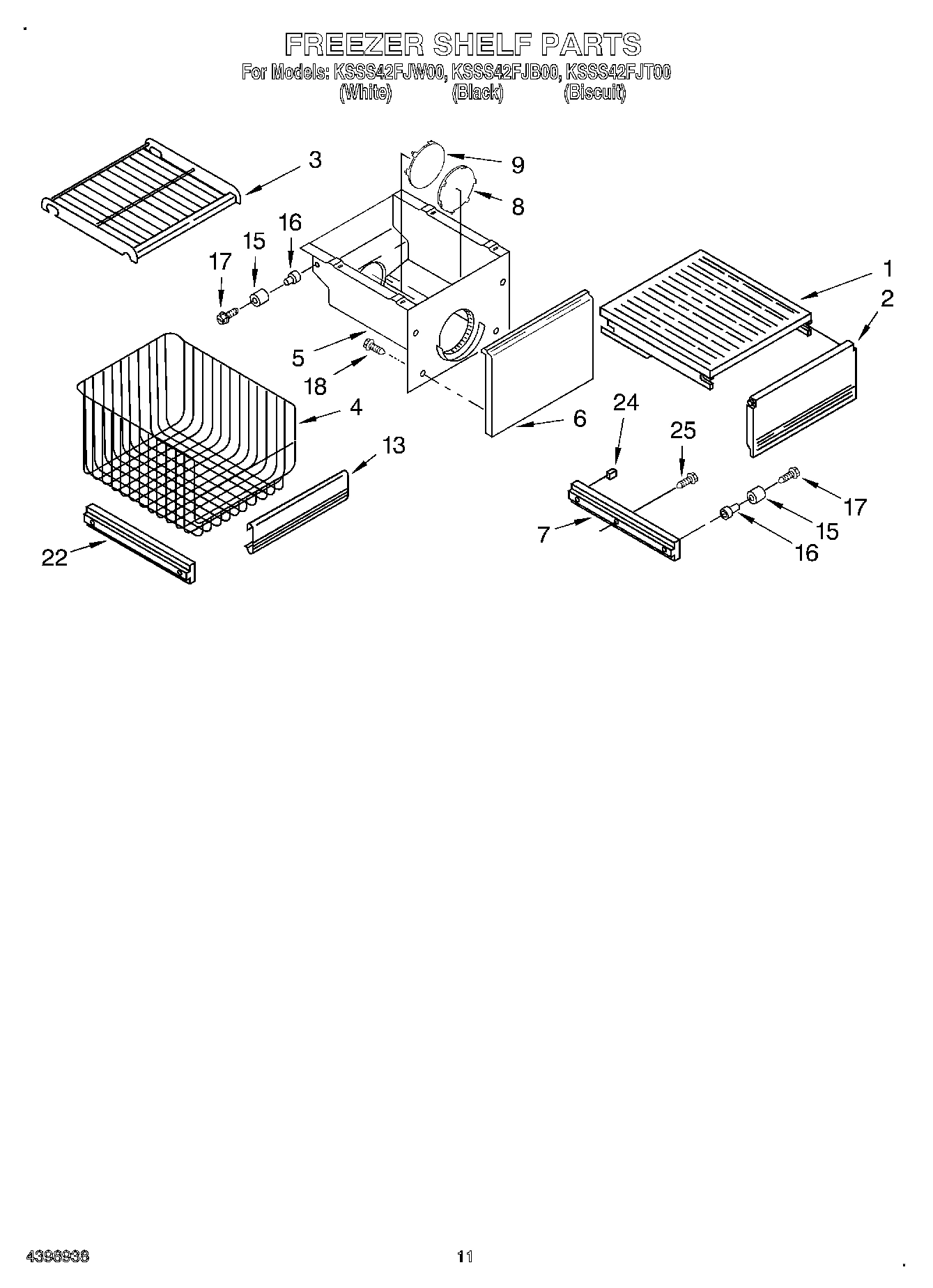

08 - FREEZER SHELF

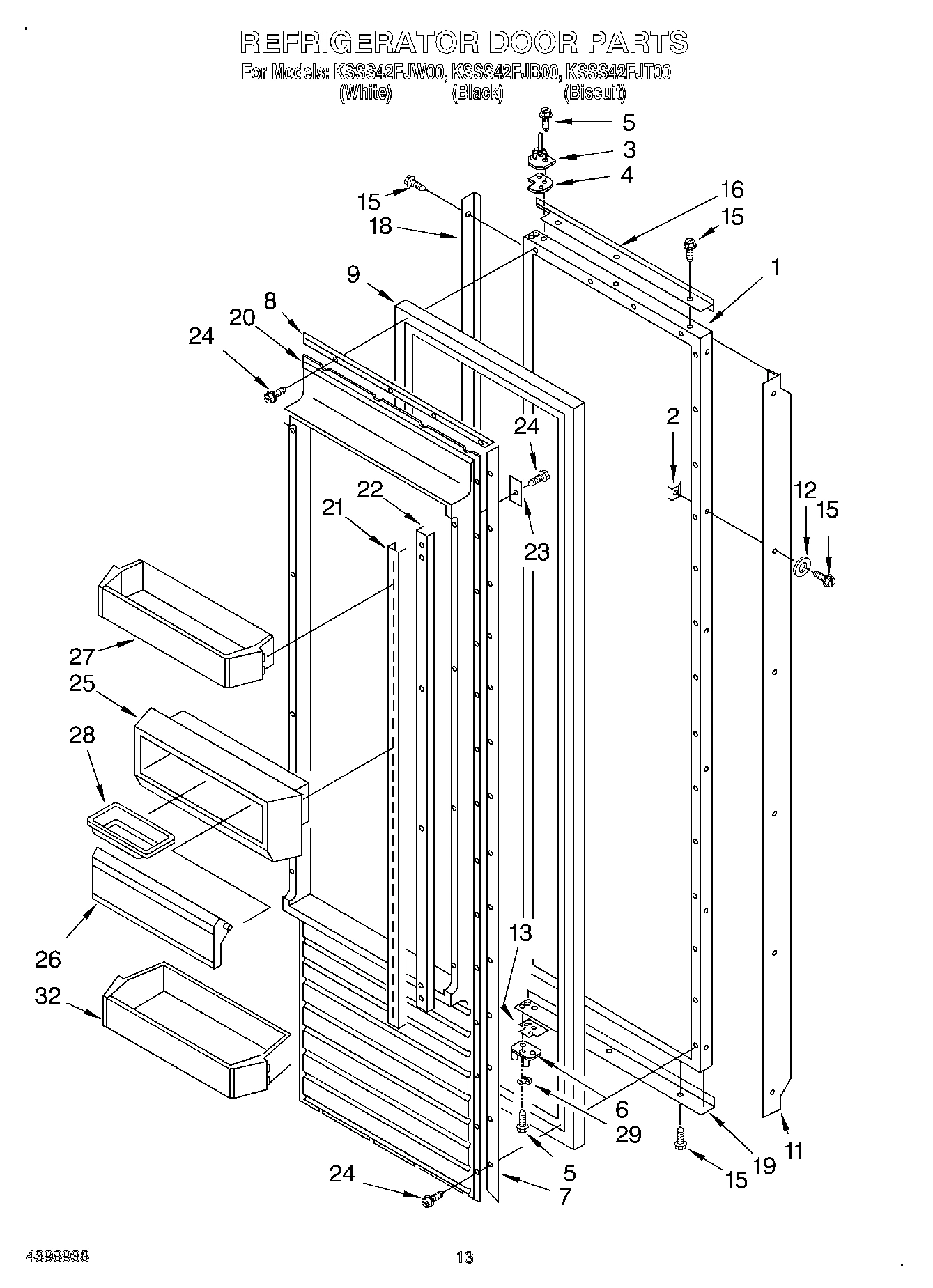

10 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSSS42FJB00 BUILT IN REFRIGERATOR
1
Defrost Bi-Metal WPL 2006755 Contact Us For Availability
1
Control Panel WPL 1113626 Contact Us For Availability
1
Cabinet, Trim (2) (White) WPL 2006790 Contact Us For Availability
1
Cabinet, Trim (2) (Biscuit) WPL 2006792 Contact Us For Availability
1
Cabinet, Trim (2) (Black) WPL 2006793 Contact Us For Availability
1
Top Grille Assembly (White) WPL 2003717 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2005902 Contact Us For Availability
1
Top Grille Assembly (Biscuit) WPL 2006396 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107142A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107143A Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 2003877 Contact Us For Availability
1
Frame, Shelf WPL 2174403 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2209309 Contact Us For Availability
1
Energy Label WPL LIT2209472 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT2209477 Contact Us For Availability
1
LITERATURE PARTS (Installation Instructions) WPL LIT2209478 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Solid Shelf WPL 2003143 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003871 Contact Us For Availability
2
Inlay, Control Panel WPL 2003308 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Cover, Unit WPL 2005549 Contact Us For Availability
2
Bracket, Light WPL 2005567 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Glass, Shelf WPL 2003376 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI107141A Contact Us For Availability
2
Front, Ice Compartment WPL 2188382 Contact Us For Availability
3
Circuit Board WPL 2208995 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Hinge Assembly, Top WPL 2005329 Contact Us For Availability
3
Plug, Water Valve WPL 2005038 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
3
Shelf, Fixed WPL 1113565 Contact Us For Availability
3
Shelf, Deep WPL 1113637 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Trim, Cabinet (Bottom) WPL 2209074 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Spacer-Door, Top WPL 2004520 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113791 Contact Us For Availability
4
Basket WPL 2208194 Contact Us For Availability
5
Ice Container WPL 2208907 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Trim, Cabinet Top WPL 2003646 Contact Us For Availability
6
Decortive Panel Assembly (White) WPL 2003726 Contact Us For Availability
6
Decortive Panel Assembly (Black) WPL 2005905 Contact Us For Availability
6
Decortive Panel Assembly (Biscuit) WPL 2006399 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Hinge, Bottom WPL 2004524 Contact Us For Availability
6
Tube, Filter Inlet WPL 2203198 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Front Cover WPL 2003044 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2005534 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2006524 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Baffle-Air, Condenser WPL 2006440 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Tube, Filter Outlet WPL 2209430 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
10
Shield, Control Panel WPL 2209253 Contact Us For Availability
10
Trim, Grille Bottom (White) WPL 2003615 Contact Us For Availability
10
Trim, Grille Bottom (Biscuit) WPL 2005752 Contact Us For Availability
10
Trim, Grille Bottom (Black) WPL 2005831 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2188392 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Valve, Solenoid WPL 2006766 Contact Us For Availability
10
Glass, Crisper (Includes No.9) WPL 2003379 Contact Us For Availability
10
Clip, Wire WPL 2005237 Contact Us For Availability
11
Socket, Light WPL 2005042 Contact Us For Availability
11
Trim, Grille Top (White) WPL 2003621 Contact Us For Availability
11
Trim, Grille Top (Biscuit) WPL 2005753 Contact Us For Availability
11
Trim, Grille Top (Black) WPL 2005828 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Handle, Door (White) WPL 2005953 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2005955 Contact Us For Availability
11
Handle, Door (Black) WPL 2005956 Contact Us For Availability
12
Trim, Grille Right Side (White) WPL 2003602 Contact Us For Availability
12
Trim, Grille Right Side (Biscuit) WPL 2005732 Contact Us For Availability
12
Trim, Grille Right Side (Black) WPL 2005821 Contact Us For Availability
12
Sleeve WPL 2002448 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
13
Trim, Grille Left Side (White) WPL 2003608 Contact Us For Availability
13
Trim, Grille Left Side (Biscuit) WPL 2005733 Contact Us For Availability
13
Trim, Grille Left Side (Black) WPL 2005824 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
13
Door, Spacer Bottom WPL 2004549 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
13
Water Valve, Harness WPL 2209072 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Trim, Basket WPL 2003113 Contact Us For Availability
14
Channel, Wiring WPL 2001973 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Insert, Tube WPL 1129177 Contact Us For Availability
14
Crisper Pan (2) WPL 2006545 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2209060 Contact Us For Availability
15
Heat Exchanger WPL 2003002 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
15
Screw (White) WPL 2001208 Contact Us For Availability
15
Screw (Biscuit) WPL 3400877 Contact Us For Availability
15
Screw (Black) WPL 3400878 Contact Us For Availability
15
Roller WPL 2188212 Contact Us For Availability
16
Eyelet, Roller WPL 2174478 Contact Us For Availability
16
Knob, Thermostat WPL 2182112 Contact Us For Availability
16
Retainer, Knob WPL 2003841 Contact Us For Availability
16
Handle, Door (White) WPL 2005943 Contact Us For Availability
16
Handle, Door (Biscuit) WPL 2005945 Contact Us For Availability
16
Handle, Door (Black) WPL 2005946 Contact Us For Availability
16
Clamp, Tube WPL 488937 Contact Us For Availability
16
Tube, Clamp WPL 2004514 Contact Us For Availability
16
Trim (Top) (White) WPL 2005014 Contact Us For Availability
16
Trim (Top) (Biscuit) WPL 2005757 Contact Us For Availability
16
Trim (Top) (Black) WPL 2005840 Contact Us For Availability
17
Lens, Indicator Light WPL 2200096 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
17
Air Baffle Assembly WPL 2004484 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Trim (Side) (White) WPL 2005968 Contact Us For Availability
18
Trim (Side) (Biscuit) WPL 2005970 Contact Us For Availability
18
Trim, Side (Black) WPL 2005971 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
19
Trim (Bottom) (Black) WPL 2209418B Contact Us For Availability
19
Trim (Bottom) (Biscuit) WPL 2209418T Contact Us For Availability
19
Trim (Bottom) (White) WPL 2209418W Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Meat Pan WPL 2006530 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
21
Seal WPL 2208996 Contact Us For Availability
21
Trim (Top) (White) WPL 2005023 Contact Us For Availability
21
Trim (Top) (Biscuit) WPL 2005760 Contact Us For Availability
21
Trim (Top) (Black) WPL 2005886 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Basket Slide (Left Side) WPL 2208197 Contact Us For Availability
22
Basket Slide (Right Side) WPL 2208198 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Trim (Bottom) (Black) WPL 2209421B Contact Us For Availability
23
Trim (Bottom) (Biscuit) WPL 2209421T Contact Us For Availability
23
Trim (Bottom) (White) WPL 2209421W Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Stop, Roller WPL 1113169 Contact Us For Availability
24
Trim (Side) (White) WPL 2005963 Contact Us For Availability
24
Trim (Side) (Biscuit) WPL 2005965 Contact Us For Availability
24
Trim (Side) (Black) WPL 2005966 Contact Us For Availability
24
Spring, Door Closure (Refrigerator Side) WPL 2004566 Contact Us For Availability
24
Spring, Door Closure (Freezer Side) WPL 2004567 Contact Us For Availability
25
Air Baffle Cover WPL 2208953 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
26
Panel, Interior Door WPL 2209031 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Door, Utility Bin WPL 2003464 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Door Shelf (3) WPL 1113973 Contact Us For Availability
28
Shelf Bin WPL 2188515 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
28
Tray, Butter WPL 2165792 Contact Us For Availability
29
Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability
29
Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability
29
Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability
32
Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability
32
Skirt-Grille, Bottom (Biscuit) WPL 2209025T Contact Us For Availability
32
Skirt-Grille, Bottom (White) WPL 2209025W Contact Us For Availability
32
Shelf, Gallon Door WPL 2188332 Contact Us For Availability
33
Linka WPL 2004516 Contact Us For Availability
34
WPL 2209428W WPL 2209428W Contact Us For Availability
34
Seal WPL 2005610 Contact Us For Availability
34
WPL 2209428B WPL 2209428B Contact Us For Availability
34
WPL 2209428T WPL 2209428T Contact Us For Availability
36
Fitting, Water Tube WPL 2185988 Contact Us For Availability
36
WPL 2004512 WPL 2004512 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
37
WPL 2209203 WPL 2209203 Contact Us For Availability
40
WPL 2004565 WPL 2004565 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318633 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318636 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318639 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4318642 Contact Us For Availability
100
Front Panel Kit (Biscuit) WPL 4392880 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
