Model Whirlpool KSSS42DBW00 BUILT IN REFRIGERATOR – Common Parts & Diagrams
14 - UPPER UNIT
16 - AIR FLOW AND RESERVOIR

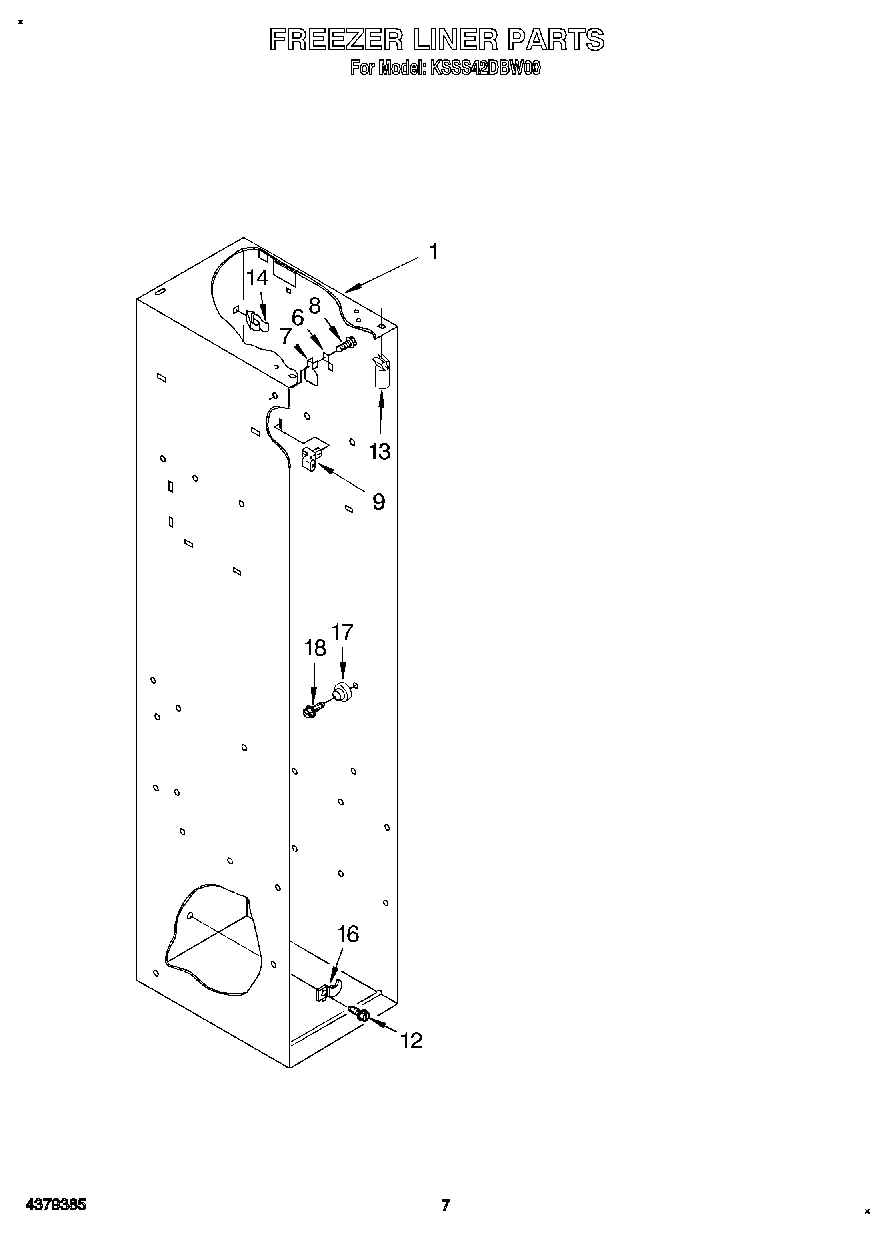

05 - FREEZER LINER
06 - ICE CONTAINER

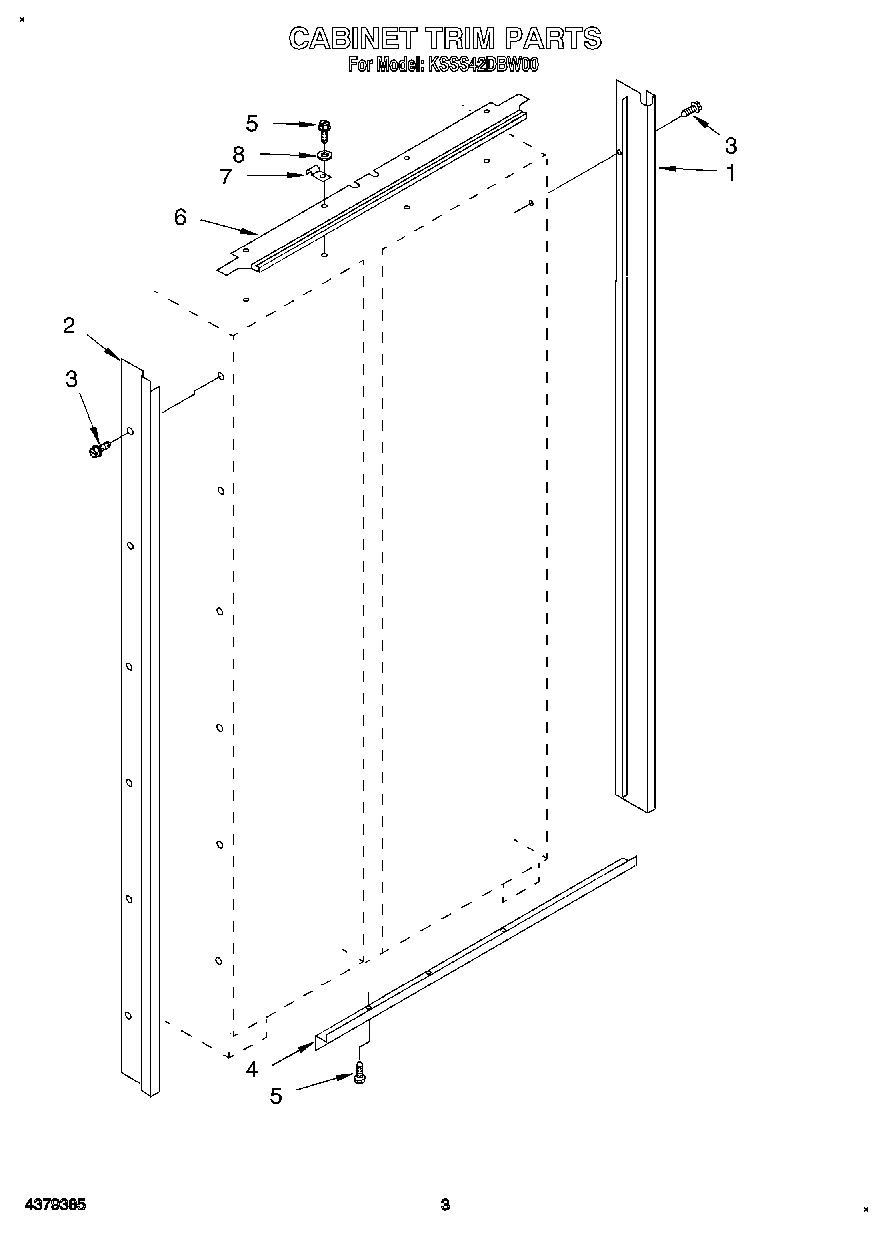

02 - CABINET TRIM
09 - REFRIGERATOR SHELF

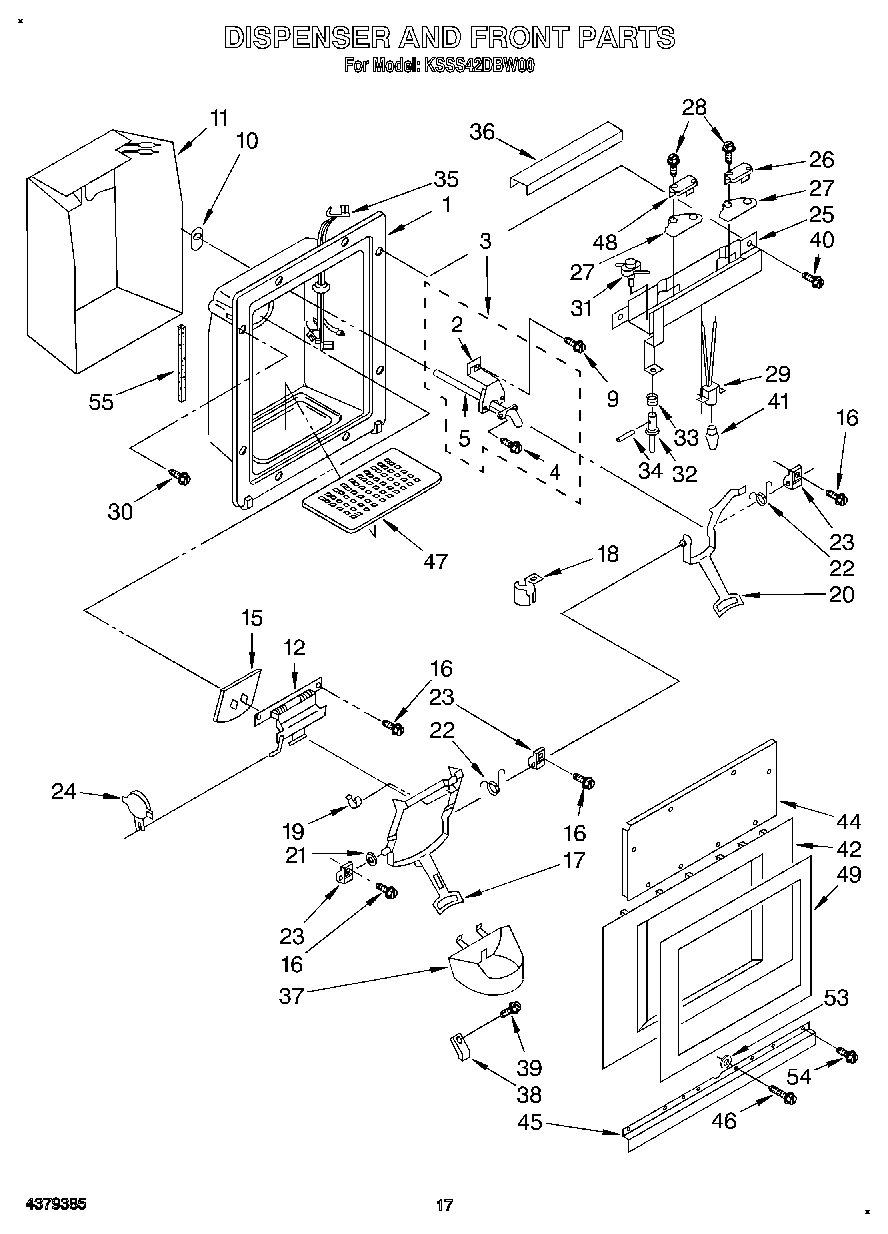

13 - DISPENSER AND FRONT

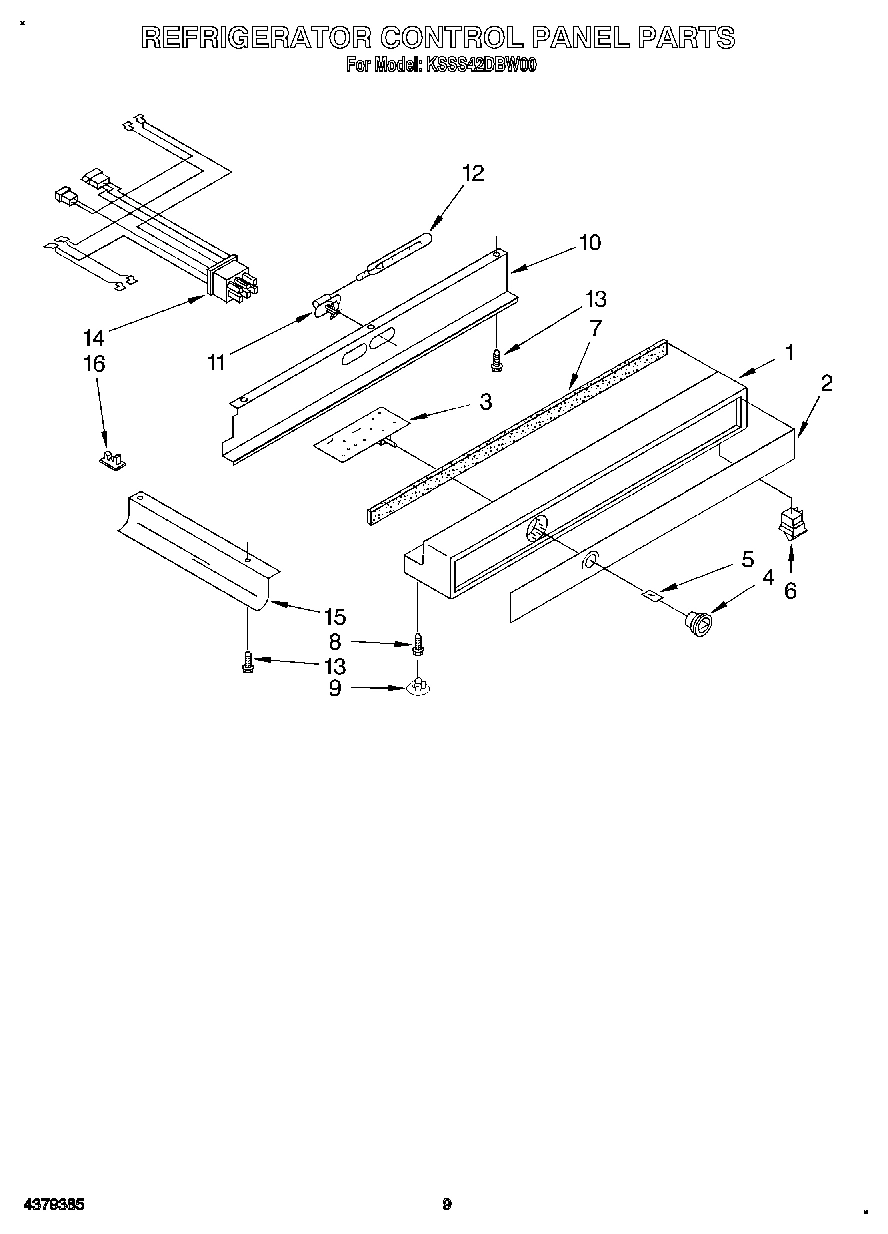

07 - REFRIGERATOR CONTROL PANEL

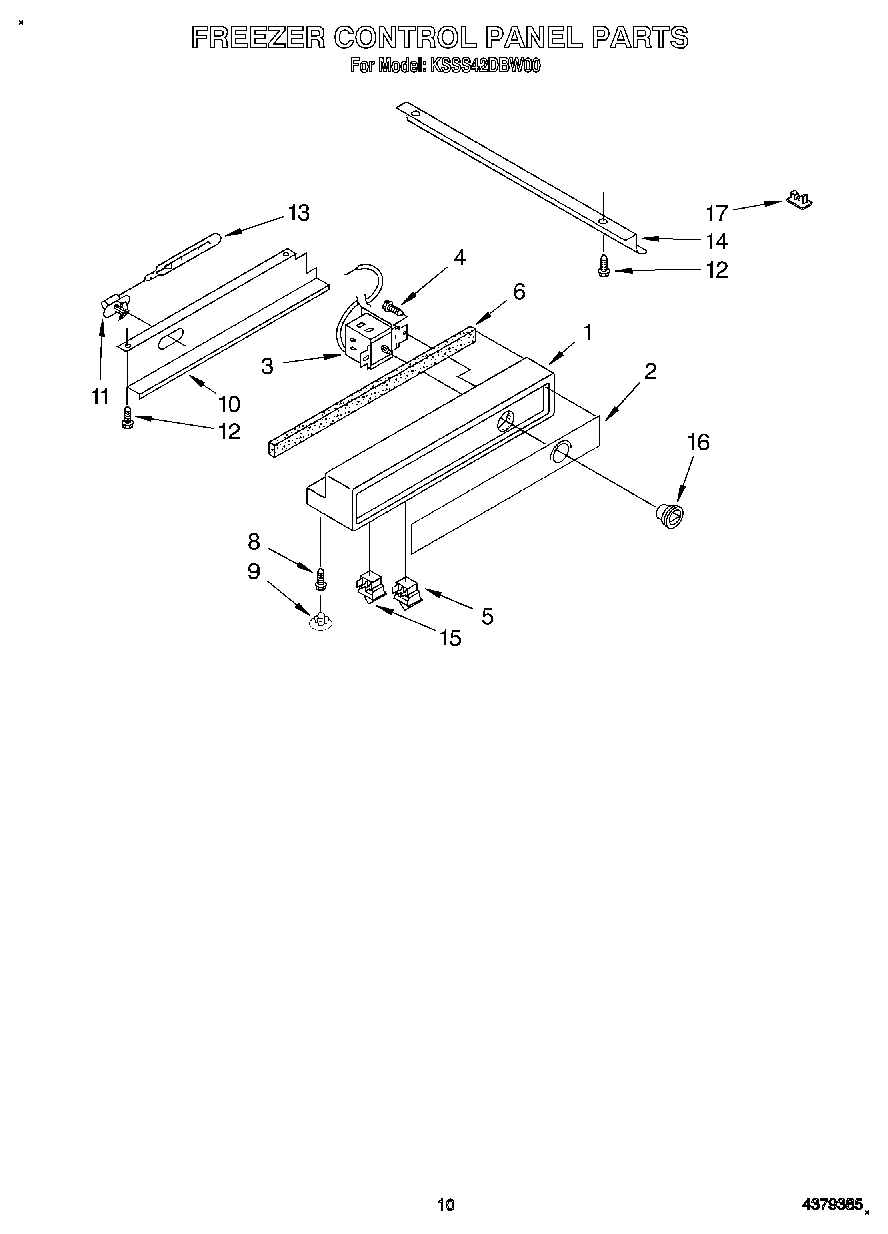

08 - FREEZER CONTROL PANEL

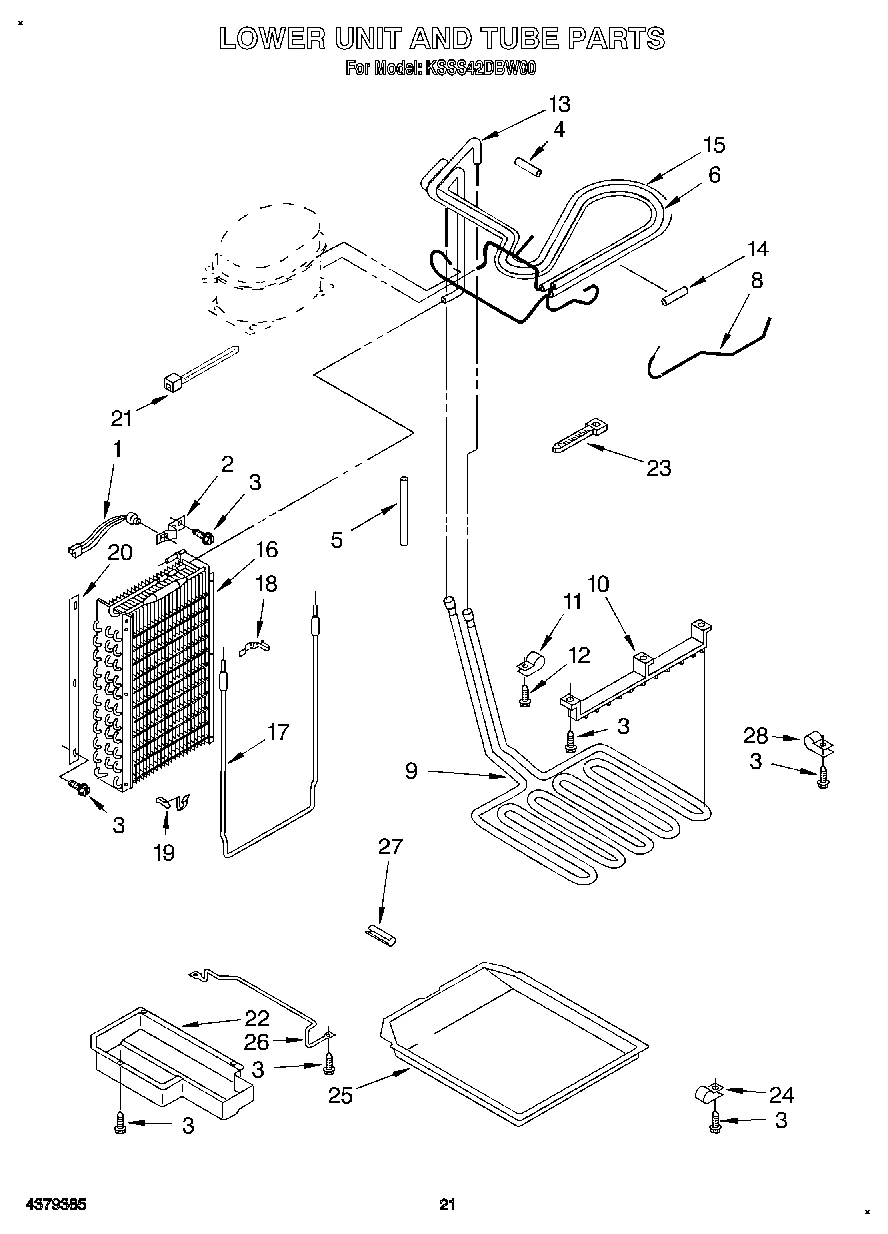

15 - LOWER UNIT AND TUBE

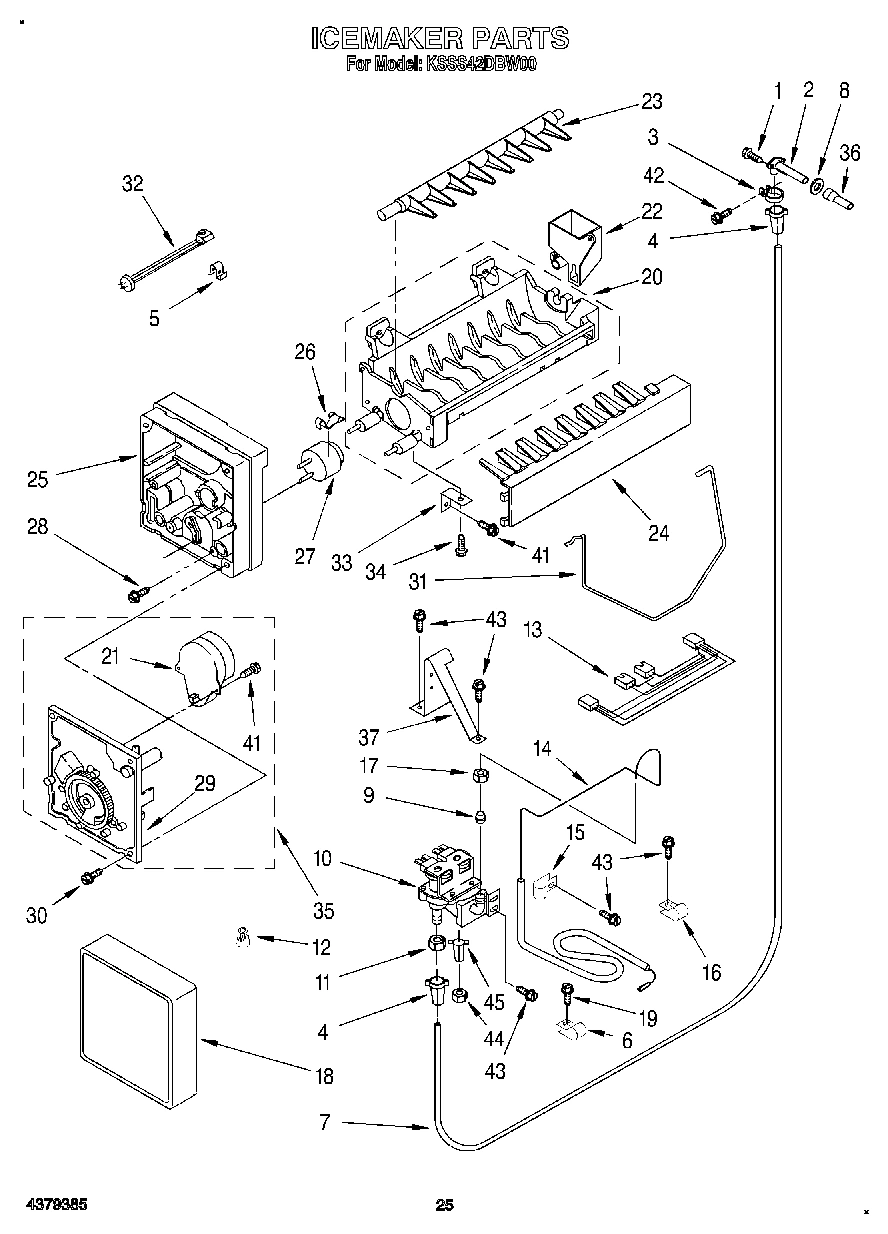

17 - ICEMAKER, LITERATURE
04 - REFRIGERATOR LINER

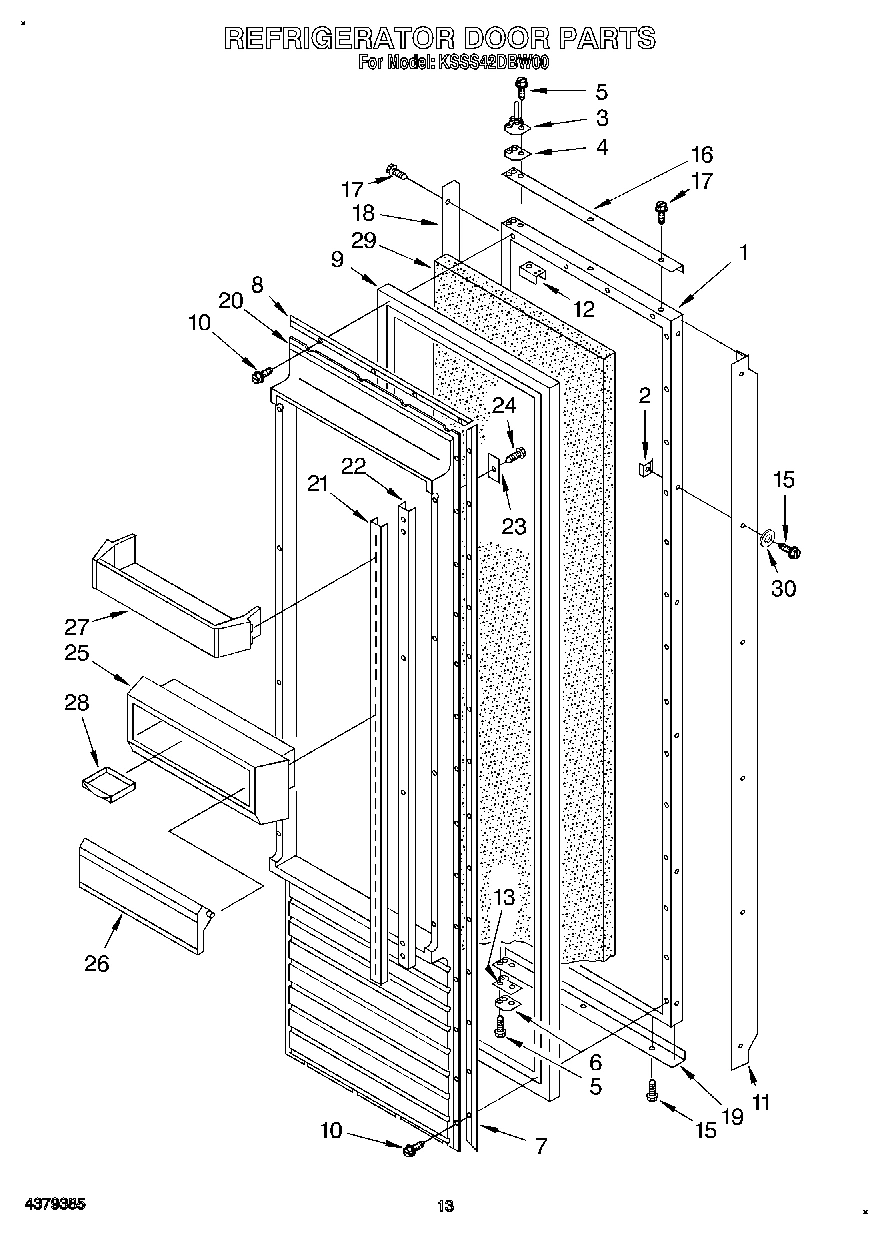

11 - REFRIGERATOR DOOR

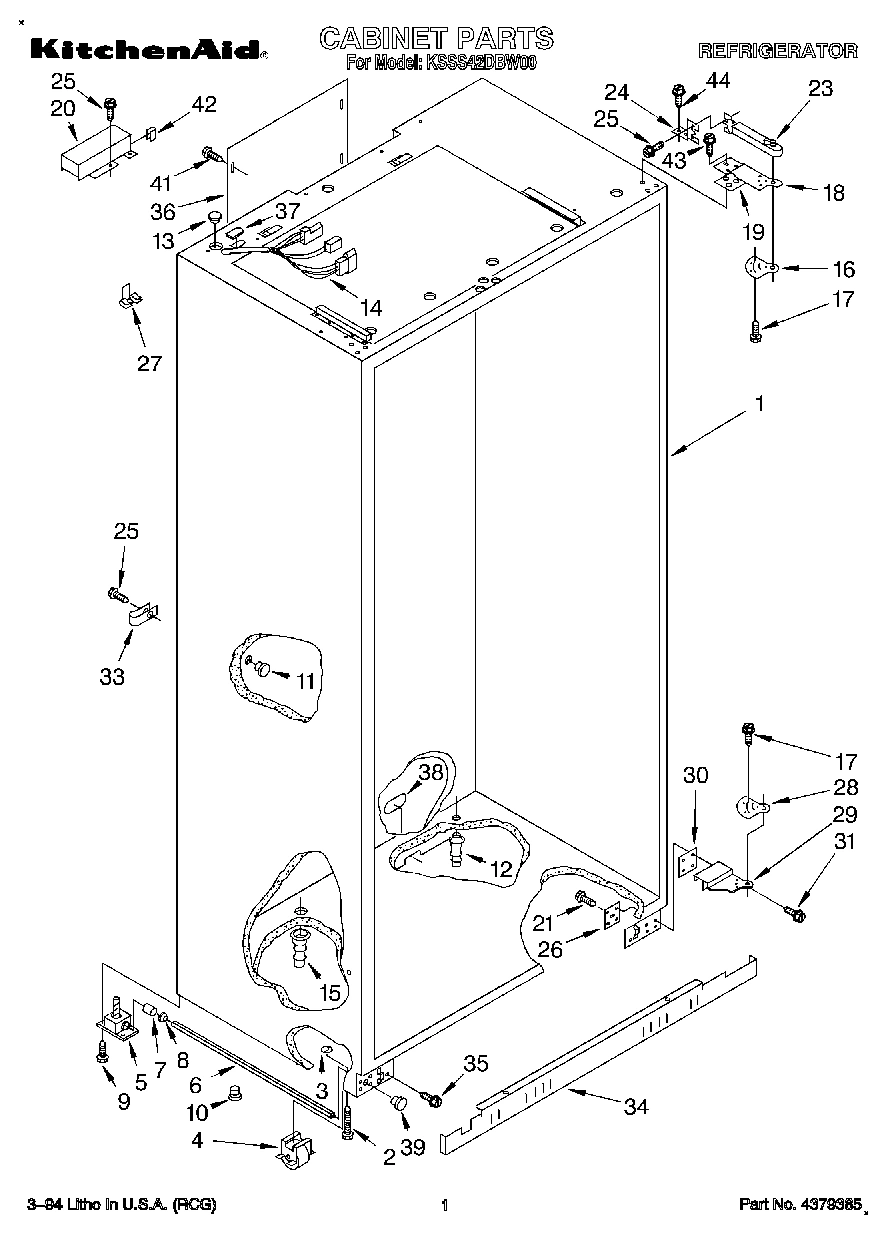

01 - CABINET

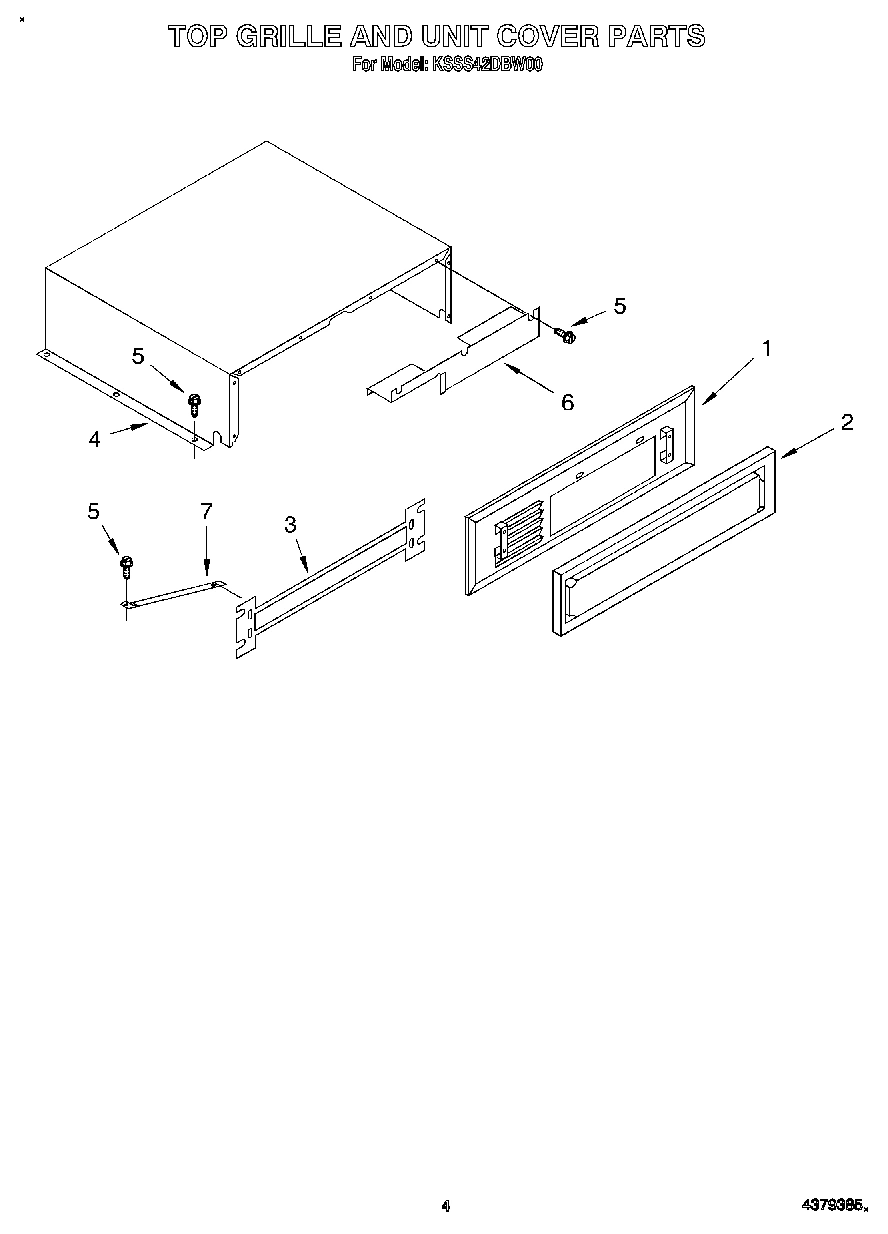

03 - TOP GRILLE AND UNIT COVER

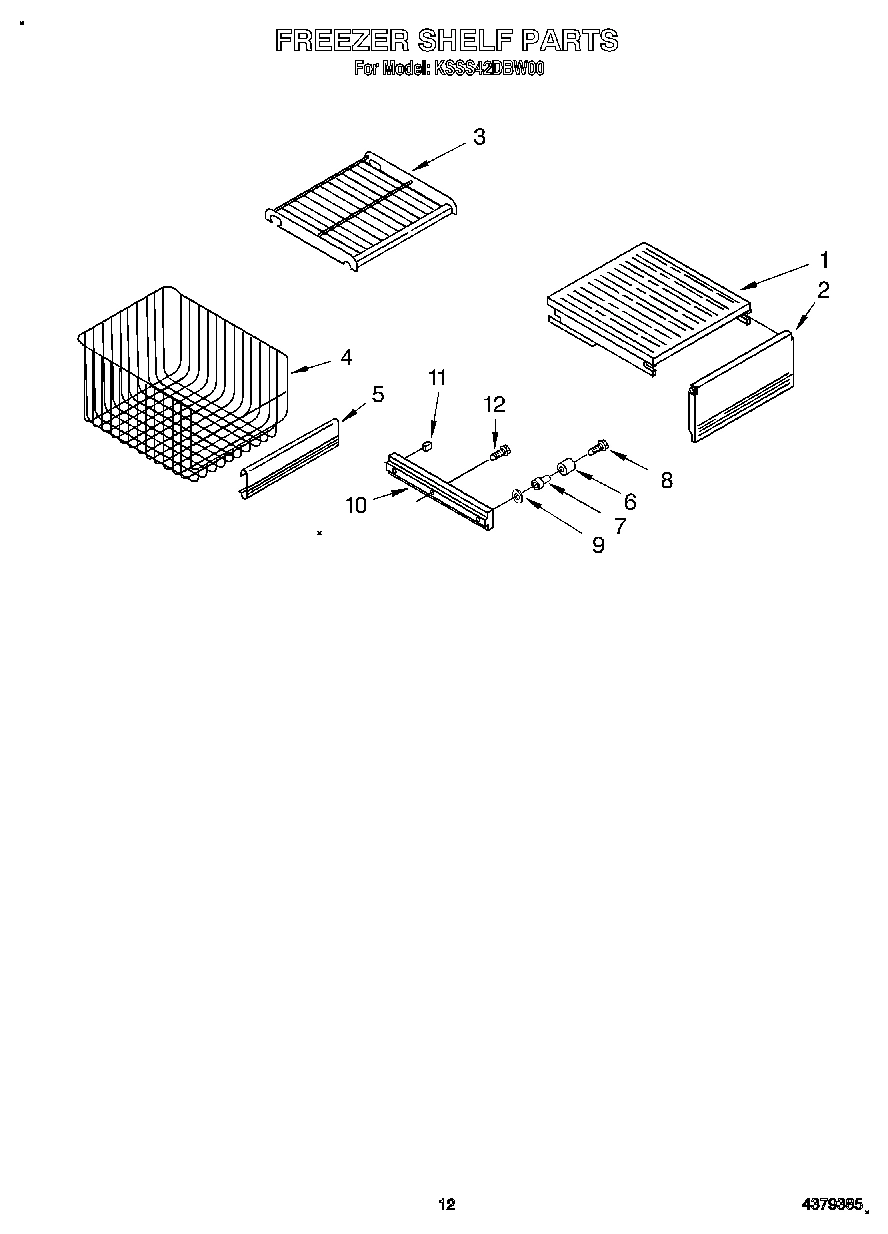

10 - FREEZER SHELF

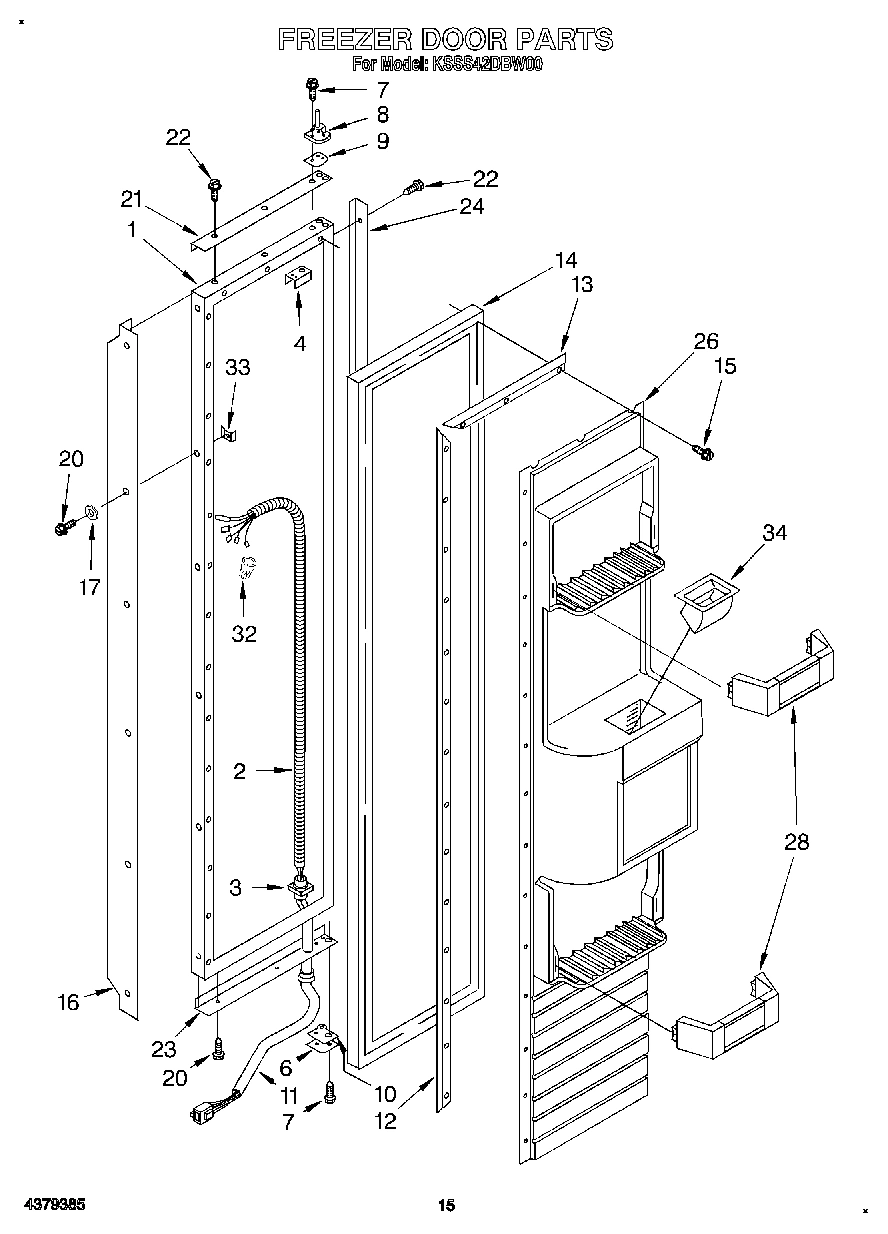

12 - FREEZER DOOR
Common parts from model Whirlpool KSSS42DBW00 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2002160 Contact Us For Availability
Use & Care Guide WPL LIT2002424 Contact Us For Availability
Energy Label WPL LIT2002435 Contact Us For Availability
Installation Instructions WPL LIT2002469 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107115A Contact Us For Availability
1
Spacer, Track (Right Side) WPL 1112281 Contact Us For Availability
1
Spacer, Track (Left Side) WPL 1112282 Contact Us For Availability
1
Cabinet, Trim R.S WPL 2001390 Contact Us For Availability
1
Frame, Shelf WPL 1113543 Contact Us For Availability
1
Housing, Dispenser WPL 1124715 Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Control Panel WPL 1112596 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107114A Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000694 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107113A Contact Us For Availability
1
Top Grille Assembly WPL 2002675 Contact Us For Availability
1
Solid Shelf WPL 1112366 Contact Us For Availability
1
Exterior Door Panel, Freezer (Includes Insula WPL 2001137 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Cabinet, Trim L.S WPL 2001391 Contact Us For Availability
2
Glass, Shelf WPL 1112318 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Inlay, Control Panel WPL 2000975 Contact Us For Availability
2
Inlay, Control Panel WPL 1113964 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Fitting, Water Tube WPL 2000829 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Decorative Panel Assembly WPL 2001313 Contact Us For Availability
2
Front, Ice Compartment WPL 2000886 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
3
Screw WPL 2001297 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Grommet, Screw WPL 502037 Contact Us For Availability
3
Hinge Assembly, Top WPL 2000696 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Back Up Panel WPL 1113355 Contact Us For Availability
3
Shelf, Bottom (2) WPL 1113565 Contact Us For Availability
3
Shelf, Top (1) WPL 1113637 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2001189 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113791 Contact Us For Availability
4
Control Knob WPL 2001738 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Spacer, Top WPL 2000303 Contact Us For Availability
4
Tap, Plate WPL 2002314 Contact Us For Availability
4
Cover, Unit WPL 2001883 Contact Us For Availability
4
Basket WPL 2001625 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Water Tube (See Item No.3) WPL ARI107116A Contact Us For Availability
5
Sleeve WPL 2002171 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Trim, Basket WPL 1113643 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Roller WPL 1113870 Contact Us For Availability
6
Cabinet, Trim Top WPL 2001388 Contact Us For Availability
6
Retainer, Glass WPL 2002181 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002184 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2000698 Contact Us For Availability
6
Adjusting Rod (2) WPL 2000670 Contact Us For Availability
6
Cover, Component Assembly WPL 2001874 Contact Us For Availability
6
Hinge, Bottom WPL 2000720 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Eyelet, Roller WPL 1113871 Contact Us For Availability
7
Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability
7
Frame Assembly WPL 1113551 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Tube, Water (To Ice Maker) WPL 2001260 Contact Us For Availability
7
Screw (8) WPL 488357 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Brace WPL 1113317 Contact Us For Availability
8
Bracket, Motor WPL 1113126 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2002408 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Hinge, Top WPL 2000721 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
9
Washer WPL 488307 Contact Us For Availability
9
Motor Assembly WPL 2155262 Contact Us For Availability
9
Screw WPL 488316 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Heater, Drain Pan WPL 2000755 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Spacer Plate WPL 2001396 Contact Us For Availability
10
Glass, Crisper WPL 2002147 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Shield, Control Panel WPL 1113774 Contact Us For Availability
10
Shield, Control Panel WPL 1113768 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Meat Pan, Air Duct Cover (Also Order 12) WPL 2000740 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Slide, Basket R.S. WPL 2000061 Contact Us For Availability
10
Slide, Basket L.S. WPL 2000062 Contact Us For Availability
10
Spacer, Bottom WPL 2001395 Contact Us For Availability
11
Stop, Roller WPL 1113169 Contact Us For Availability
11
Socket, Light WPL 1112613 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2001334 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Handle, Door WPL 2000388 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2001323 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Channel, Wiring WPL 2001257 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2001302 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
13
Cover, Motor WPL 1113129 Contact Us For Availability
13
Cover WPL 2164374 Contact Us For Availability
13
Tube, Discharge WPL 2002381 Contact Us For Availability
13
Water Valve, Harness WPL 2000836 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Spacer, Bottom WPL 2000697 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
14
Pan, Crisper WPL 2000888 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Copper, Water Line WPL 2001354 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2001999 Contact Us For Availability
15
Door, Ice WPL 2147168 Contact Us For Availability
15
Ice Container WPL 1112286 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Heat Exchanger WPL 2001814 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2001735 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
16
Conveyor WPL 1112378 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Knob, Thermostat WPL 2001737 Contact Us For Availability
16
Clamp Tube WPL 1113066 Contact Us For Availability
16
Trim (Top) WPL 2001398 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Right Side) WPL 2000304 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Left Side) WPL 2000305 Contact Us For Availability
16
Handle, Door WPL 2000389 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Assembly, Air Duct WPL 2000745 Contact Us For Availability
17
Stud, Shelf (20) WPL 658944 Contact Us For Availability
17
Lever, Ice Dispenser WPL 2155815 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Washer WPL 2001230 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Screw (20) WPL 487559 Contact Us For Availability
18
Shroud, Control WPL 1129333 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Trim (Side) WPL 2000391 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2000306 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2000307 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Cup, Motor WPL 1112870 Contact Us For Availability
19
Nut, Bearing WPL 946195 Contact Us For Availability
19
Utility Pan WPL 2000892 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
19
Trim (Bottom) WPL 2001402 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
20
Meat Pan WPL 2000816 Contact Us For Availability
20
Lever, Water Dispenser WPL 2159199 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Screw WPL 2001208 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
21
Fastener (3) WPL 1112871 Contact Us For Availability
21
Baffle WPL 946194 Contact Us For Availability
21
Meat Pan, Connector WPL 2000742 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Trim (Top) WPL 2001407 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Overlay, Cover WPL 2001034 Contact Us For Availability
22
Guard, Hook-Up WPL 1113070 Contact Us For Availability
22
Screw WPL 2001209 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Front Cover WPL 1112381 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Trim (Bottom) WPL 2001410 Contact Us For Availability
24
Bracket, Door Closer WPL 2000333 Contact Us For Availability
24
Trim (Side) WPL 2000390 Contact Us For Availability
25
Cover, Evaporator WPL 2000341 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
25
Bracket, Control WPL 1107454 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000795 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Door, Utility Bin WPL 1112736 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Panel, Interior Door WPL 1113946 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Door Shelf (4) WPL 2000912 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Lens, Dispenser WPL 1113140 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2002180 Contact Us For Availability
28
Screw WPL 488361 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112852 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 2001732 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 2001733 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) Bottom (4) WPL 1112943 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
31
Screw WPL 2000490 Contact Us For Availability
32
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
32
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
32
Plunger, Extension WPL 1107457 Contact Us For Availability
32
Wire Connector WPL 227991 Contact Us For Availability
32
Harness, Wiring WPL 2002006 Contact Us For Availability
33
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
33
Tube clamp WPL 2001266 Contact Us For Availability
34
Gasket (2) WPL 2001079 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
Grille Base, Front WPL 2001960 Contact Us For Availability
34
Ice Chute WPL 2000798 Contact Us For Availability
35
Gasket WPL 2001080 Contact Us For Availability
35
Wiring Harness, Door WPL 2001350 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
36
Gasket WPL 2001081 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
36
Water Inlet Tube WPL 2001098 Contact Us For Availability
36
Cover, Rear WPL 2000684 Contact Us For Availability
37
Guide, Ice WPL 2147479 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Glass Stop WPL 2147480 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
39
Screw WPL 488892 Contact Us For Availability
39
Grommet, Tube WPL 1112926 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
42
Front Cover, Housing Assembly (Includes Item WPL 2001414 Contact Us For Availability
42
Grommet WPL 2000530 Contact Us For Availability
44
Cover, Dispenser Opening WPL 1112836 Contact Us For Availability
44
Compression Nut WPL 1129179 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
45
Trim, Front (2) WPL 2001160 Contact Us For Availability
45
Insert, Tube WPL 1129177 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
Grille, Overflow WPL 1126120 Contact Us For Availability
48
Switch WPL 934316 Contact Us For Availability
49
Overlay, Cover WPL 2001176 Contact Us For Availability
53
Washer (2) WPL 487944 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4210569 Contact Us For Availability
100
Front Panel Kit (White) WPL 4210570 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4210594 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4211160 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
