Model Whirlpool KSSS42DAX01 BUILT IN REFRIGERATOR – Common Parts & Diagrams

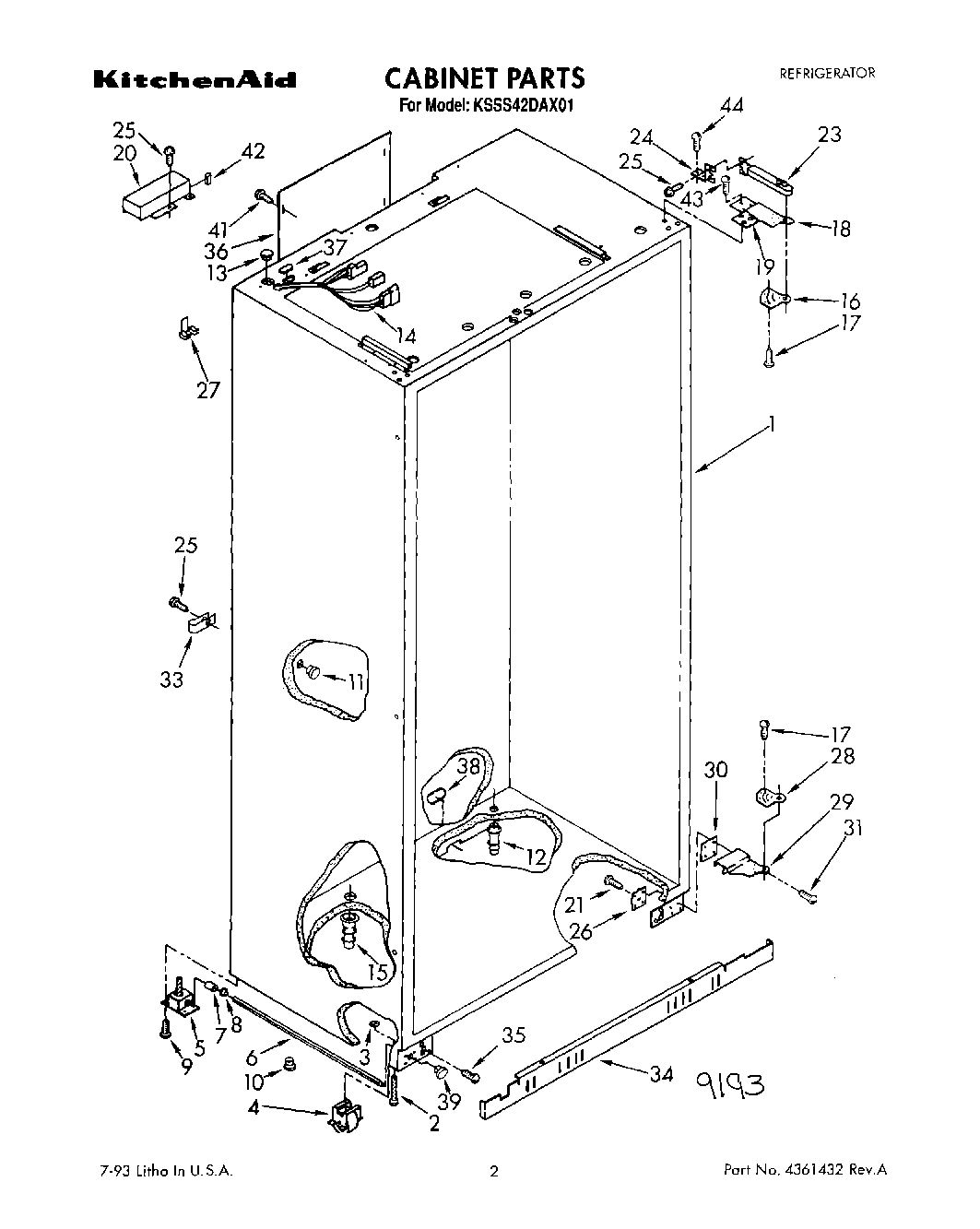

01 - CABINET

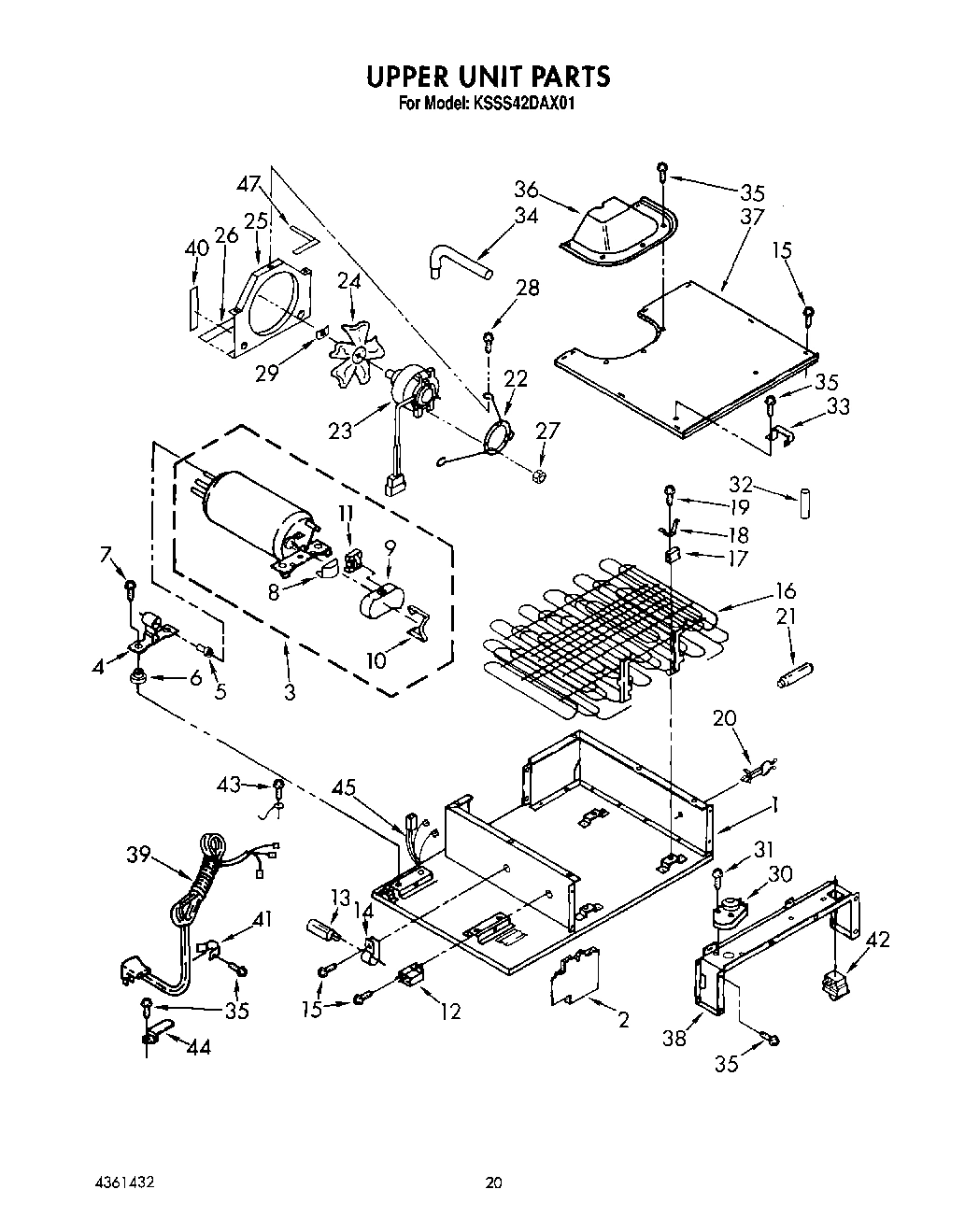

14 - UPPER UNIT
16 - AIR FLOW AND RESERVOIR
07 - REFRIGERATOR CONTROL PANEL
08 - FREEZER CONTROL PANEL
04 - REFRIGERATOR LINER
11 - REFRIGERATOR DOOR
06 - ICE CONTAINER
09 - REFRIGERATOR SHELF
15 - LOWER UNIT AND TUBE
17 - ICEMAKER, LIT/OPTIONAL
02 - CABINET TRIMS AND BREAKER TRIM
13 - DISPENSER AND FRONT
03 - TOP GRILLE AND UNIT COVER
05 - FREEZER LINER
10 - FREEZER SHELF
12 - FREEZER DOOR
Common parts from model Whirlpool KSSS42DAX01 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2000850 Contact Us For Availability
Installation Instructions WPL LIT2001094 Contact Us For Availability
Use & Care Guide WPL LIT2001362 Contact Us For Availability
Energy Label WPL LIT2001673 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Control Panel WPL 1112596 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107106A Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000694 Contact Us For Availability
1
Spacer, Track (Right Side) WPL 1112281 Contact Us For Availability
1
Spacer, Track (Left Side) WPL 1112282 Contact Us For Availability
1
Frame, Shelf WPL 1113543 Contact Us For Availability
1
Breaker Trim & Retainer Assembly WPL 2000651 Contact Us For Availability
1
Housing, Dispenser WPL 1107943 Contact Us For Availability
1
Top Grille Assembly WPL 2001578 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107107A Contact Us For Availability
1
Solid Shelf WPL 1112366 Contact Us For Availability
1
Exterior Door Panel, Freezer (Includes Insula WPL 2001137 Contact Us For Availability
2
Inlay, Control Panel WPL 2000975 Contact Us For Availability
2
Inlay, Control Panel WPL 1113964 Contact Us For Availability
2
Glass, Shelf WPL 1112318 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Fitting, Water Tube WPL 2000829 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Decorative Panel Assembly WPL 2001316 Contact Us For Availability
2
Front, Ice Compartment WPL 2000886 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Grommet, Screw (3) WPL 843436 Contact Us For Availability
3
Hinge Assembly, Top WPL 2000696 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
3
Back Up Panel WPL 1113355 Contact Us For Availability
3
Shelf, Bottom (2) WPL 1113565 Contact Us For Availability
3
Shelf, Top (1) WPL 1113637 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113791 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113293 Contact Us For Availability
4
Cover, Unit WPL 2001088 Contact Us For Availability
4
Basket WPL 2001625 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Water Tube (See Item No.3) WPL ARI107108A Contact Us For Availability
5
Trim, Basket WPL 1113643 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2000698 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112684 Contact Us For Availability
6
Cover, Component Assembly WPL 1113300 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Hinge, Bottom WPL 2000720 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
7
Frame Assembly WPL 1113551 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Tube, Water (To Ice Maker) WPL 2001336 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112680 Contact Us For Availability
7
Brace WPL 1113317 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
8
Overload WPL 2154947 Contact Us For Availability
8
Motor, Wiring WPL 2000618 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
8
Bracket, Motor WPL 1113126 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2001727 Contact Us For Availability
8
Hinge, Top WPL 2000721 Contact Us For Availability
9
Terminal Cover WPL 2154452 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Spacer Plate WPL 2000303 Contact Us For Availability
9
Motor Assembly WPL 2155271 Contact Us For Availability
9
Heater, Drain Pan WPL 2000755 Contact Us For Availability
9
Cabinet, Trim R.S WPL 2000321 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Shield, Control Panel WPL 1113774 Contact Us For Availability
10
Shield, Control Panel WPL 1113768 Contact Us For Availability
10
Meat Pan, Air Duct Cover (Also Order 12) WPL 2000740 Contact Us For Availability
10
Spacer, Bottom WPL 2000697 Contact Us For Availability
10
Glass, Crisper WPL 2000155 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Cabinet, Trim L.S WPL 2000322 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
11
Relay WPL 1118797 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Handle, Door WPL 2000323 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Screw WPL 2001297 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2001334 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2001323 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Running Capacitor WPL 2149684 Contact Us For Availability
12
Channel, Wiring WPL 2001257 Contact Us For Availability
12
Socket, Light WPL 1112613 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2001302 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Tap, Plate WPL 2000349 Contact Us For Availability
12
Cabinet, Trim (Bottom) WPL 1112801 Contact Us For Availability
13
Starting Capacitor WPL 2154949 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Cover, Motor WPL 1113129 Contact Us For Availability
13
Tube, Discharge WPL 2000857 Contact Us For Availability
13
Water Valve, Harness WPL 2000836 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Pan, Crisper WPL 2000888 Contact Us For Availability
14
Copper, Water Line WPL 2001354 Contact Us For Availability
14
Cabinet, Trim Top WPL 2001310 Contact Us For Availability
15
Door, Ice WPL 2147168 Contact Us For Availability
15
Elbow WPL 2001791 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Ice Container WPL 1112286 Contact Us For Availability
15
Heat Exchanger WPL 2000723 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Clamp Tube WPL 1113066 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Trim (Top) WPL 2000316 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Conveyor WPL 1112378 Contact Us For Availability
16
Handle, Door WPL 2000324 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Assembly, Air Duct WPL 2000745 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
17
Stud, Shelf (20) WPL 658944 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Trim (Side) WPL 2000314 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Shroud, Control WPL 1129333 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (20) WPL 487559 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Cup, Motor WPL 1112870 Contact Us For Availability
19
Trim (Bottom) WPL 2000319 Contact Us For Availability
19
Nut, Bearing WPL 946195 Contact Us For Availability
19
Utility Pan WPL 2000892 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
20
Meat Pan WPL 2000816 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Lever, Water Dispenser WPL 2159196 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Fastener (3) WPL 1112871 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Baffle WPL 946194 Contact Us For Availability
21
Meat Pan, Connector WPL 2000742 Contact Us For Availability
21
Trim (Top) WPL 2000327 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Mounting Bracket, Motor WPL 2000358 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Screw, 6-32 x 1/2 WPL 489112 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Overlay, Cover WPL 2001034 Contact Us For Availability
22
Guard, Hook-Up WPL 1113070 Contact Us For Availability
22
Slide, Basket R.S. WPL 2000061 Contact Us For Availability
22
Slide, Basket L.S. WPL 2000062 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Front Cover WPL 1112381 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Trim (Bottom) WPL 2000330 Contact Us For Availability
24
Blade, Fan WPL 2000352 Contact Us For Availability
24
Trim (Side) WPL 2000325 Contact Us For Availability
25
Orifice, Fan WPL 2000351 Contact Us For Availability
25
Cover, Evaporator WPL 2000341 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
25
Bracket, Control WPL 1107454 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000795 Contact Us For Availability
26
Door, Utility Bin WPL 1112736 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Panel, Interior Door WPL 1113946 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Door Shelf (4) WPL 2000912 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
28
Screw, 8 x 1/2 (3) WPL 489368 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Lens, Dispenser WPL 1113140 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
28
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112852 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
32
Wire Connector WPL 227991 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
32
Plunger, Extension WPL 1107457 Contact Us For Availability
33
``O`` Ring Seal WPL 488819 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
34
Process, Tube WPL 1113059 Contact Us For Availability
34
Compression Nut WPL 488795 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
Ice Chute WPL 2000798 Contact Us For Availability
35
Wiring Harness, Door WPL 2001350 Contact Us For Availability
36
Cover, Fan WPL 2000853 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Guiding, Ice WPL 1118269 Contact Us For Availability
38
Glass Stop WPL 1119056 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Water Inlet Tube WPL 2001098 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
39
Screw WPL 489197 Contact Us For Availability
40
Seal Strip (2) WPL 2001503 Contact Us For Availability
40
Screw WPL 488775 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
42
Front Cover, Housing Assembly (Includes Item WPL 2001479 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compression Nut WPL 1129179 Contact Us For Availability
44
Cover, Dispenser Opening WPL 1112836 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2001078 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
45
Insert, Tube WPL 1129177 Contact Us For Availability
45
Trim, Front (2) WPL 2001476 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
46
Water, Tube (From Water Reservior) WPL 2001151 Contact Us For Availability
47
Grille, Overflow WPL 983900 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
48
Switch WPL 934316 Contact Us For Availability
49
Overlay, Cover WPL 2001482 Contact Us For Availability
52
``O`` RING SEAL WPL 488794 Contact Us For Availability
53
Washer (2) WPL 487944 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4210569 Contact Us For Availability
100
Front Panel Kit (White) WPL 4210570 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4210594 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4211160 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
