Model Whirlpool KSSS36QDX03 BUILT IN REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
15 - LOWER UNIT AND TUBE

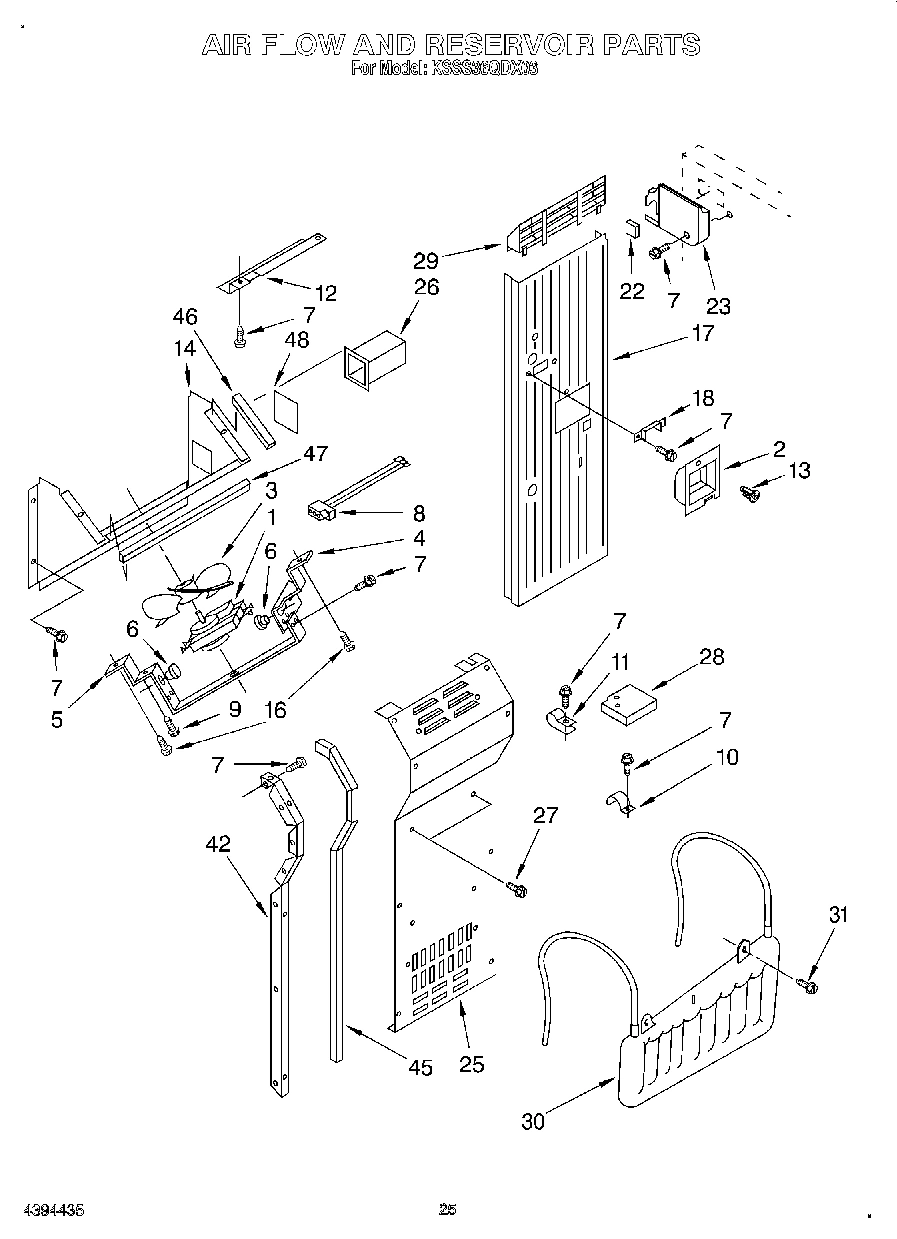

16 - AIRFLOW AND RESERVOIR

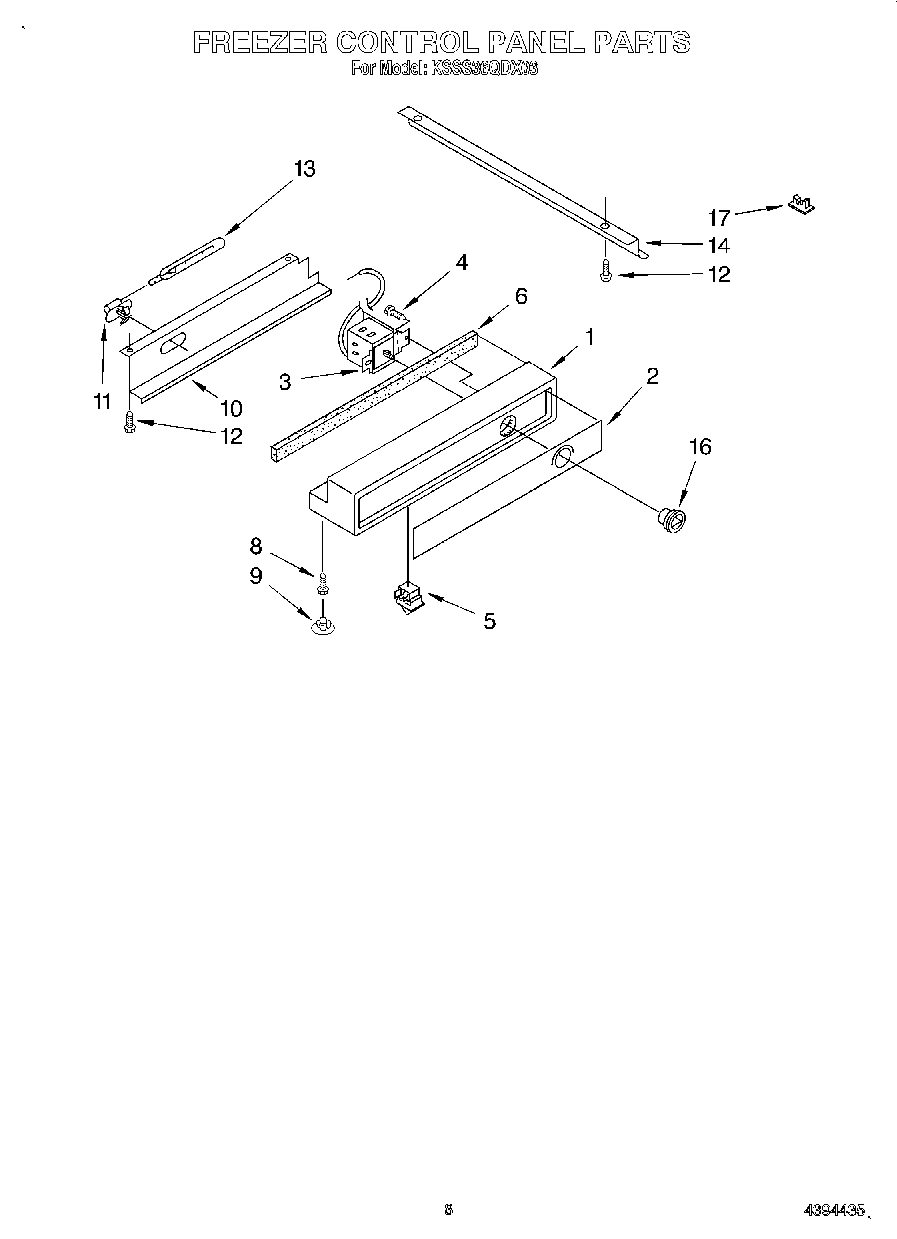

06 - FREEZER CONTROL PANEL

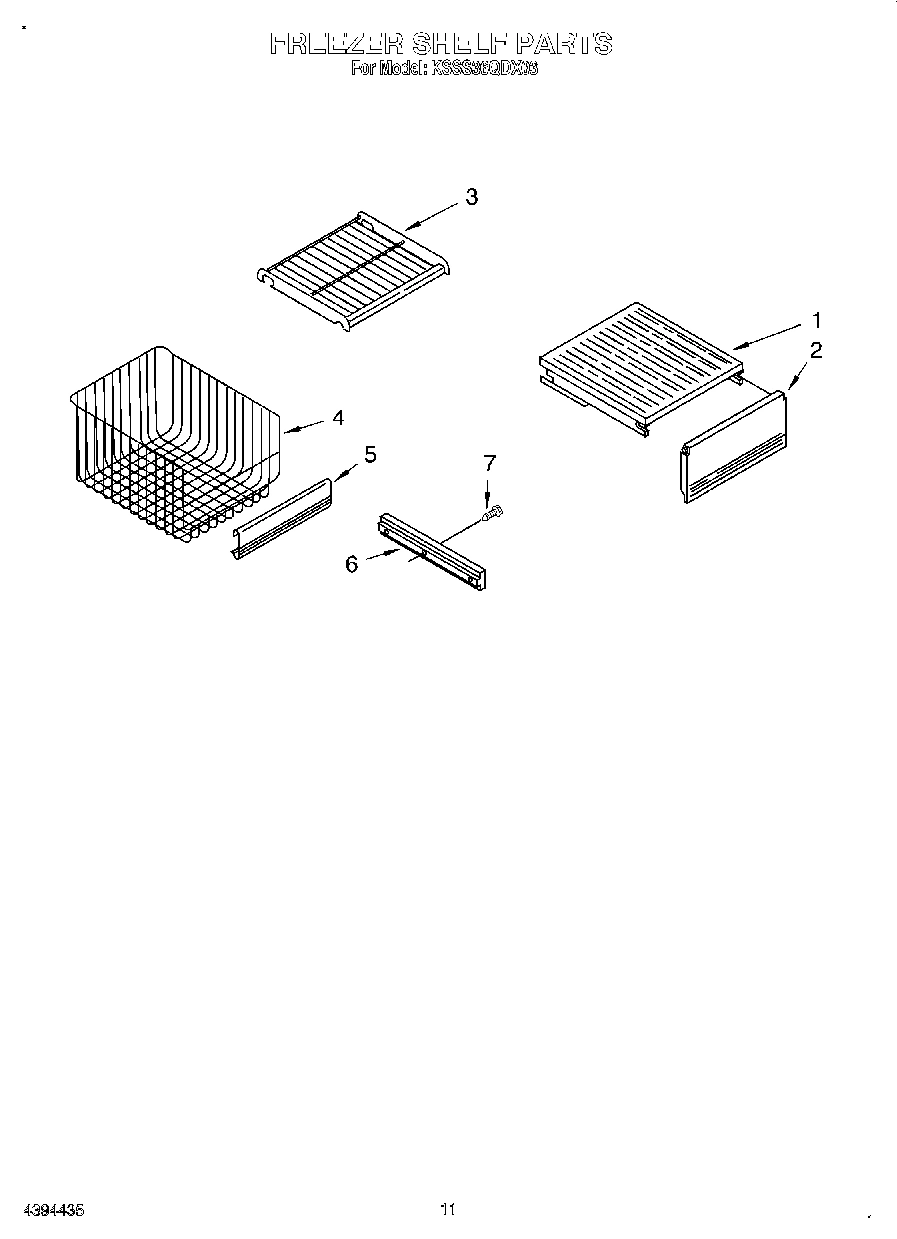

08 - FREEZER SHELF

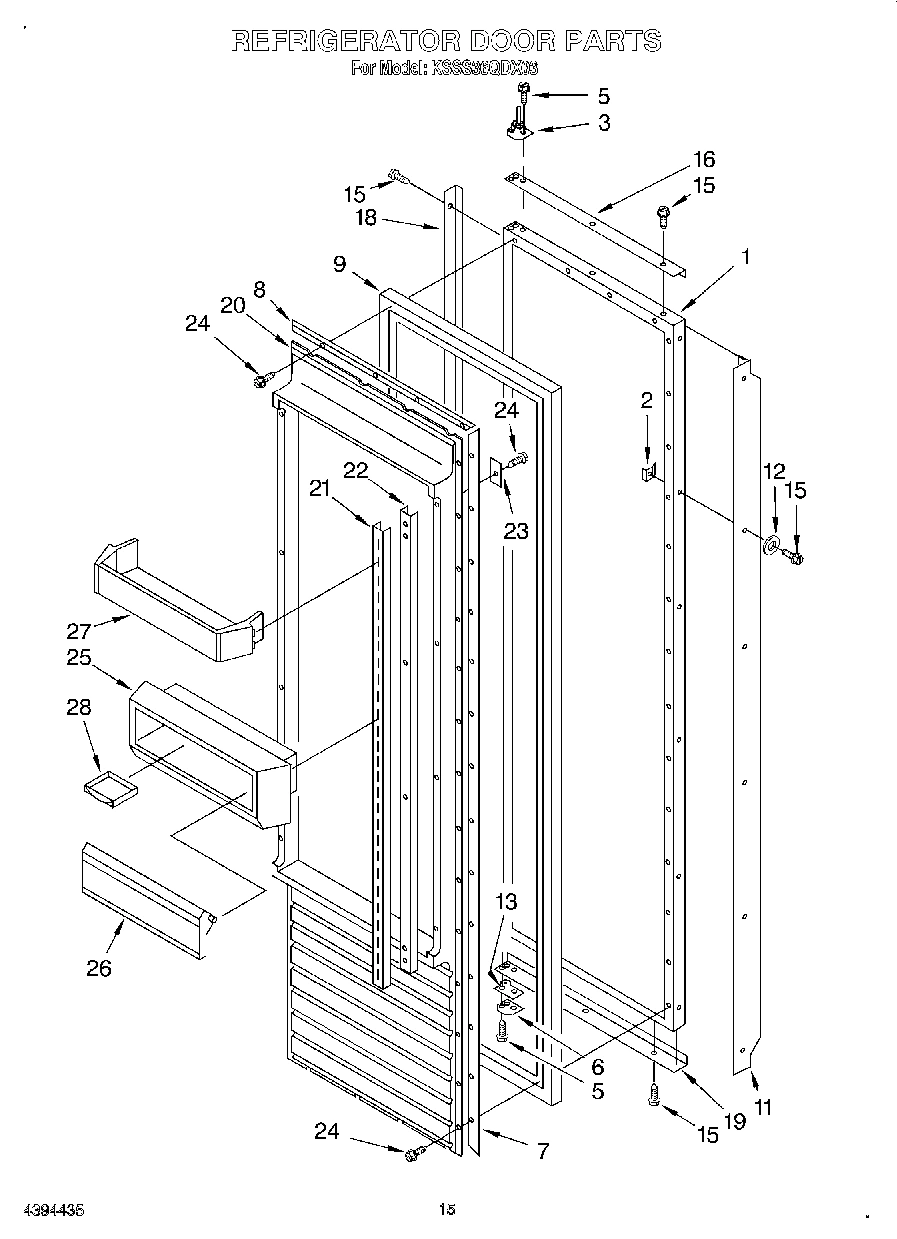

11 - REFRIGERATOR DOOR

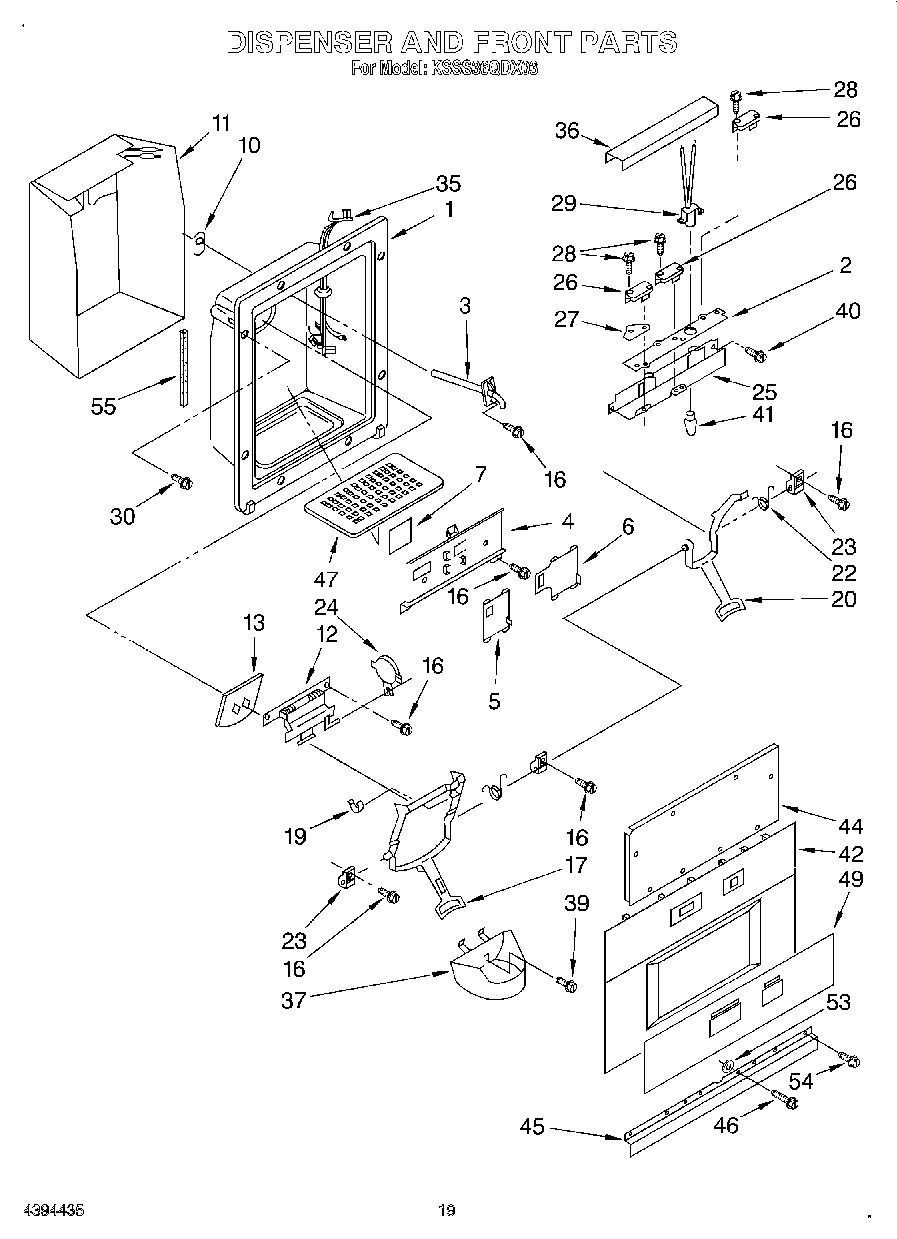

13 - DISPENSER AND FRONT

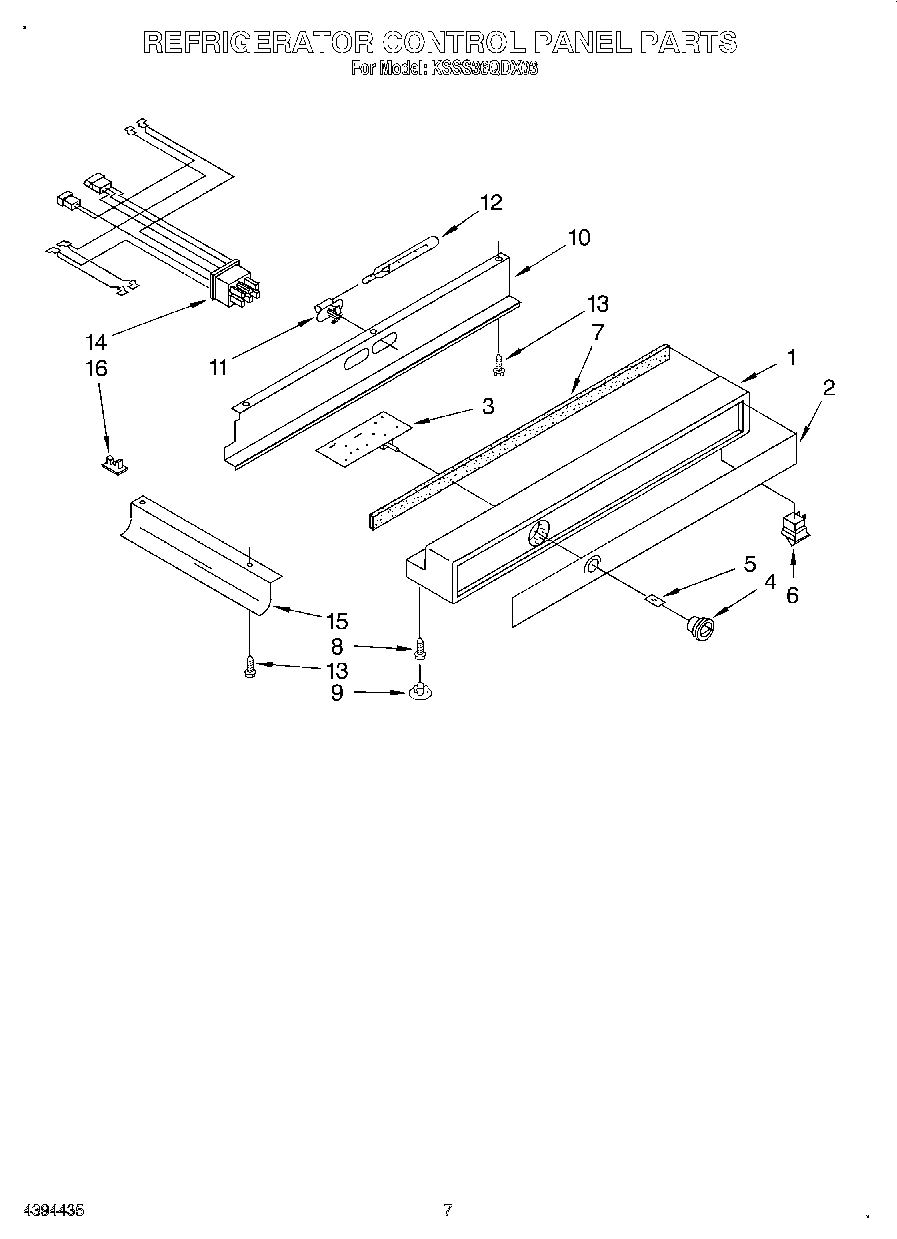

05 - REFRIGERATOR CONTROL PANEL

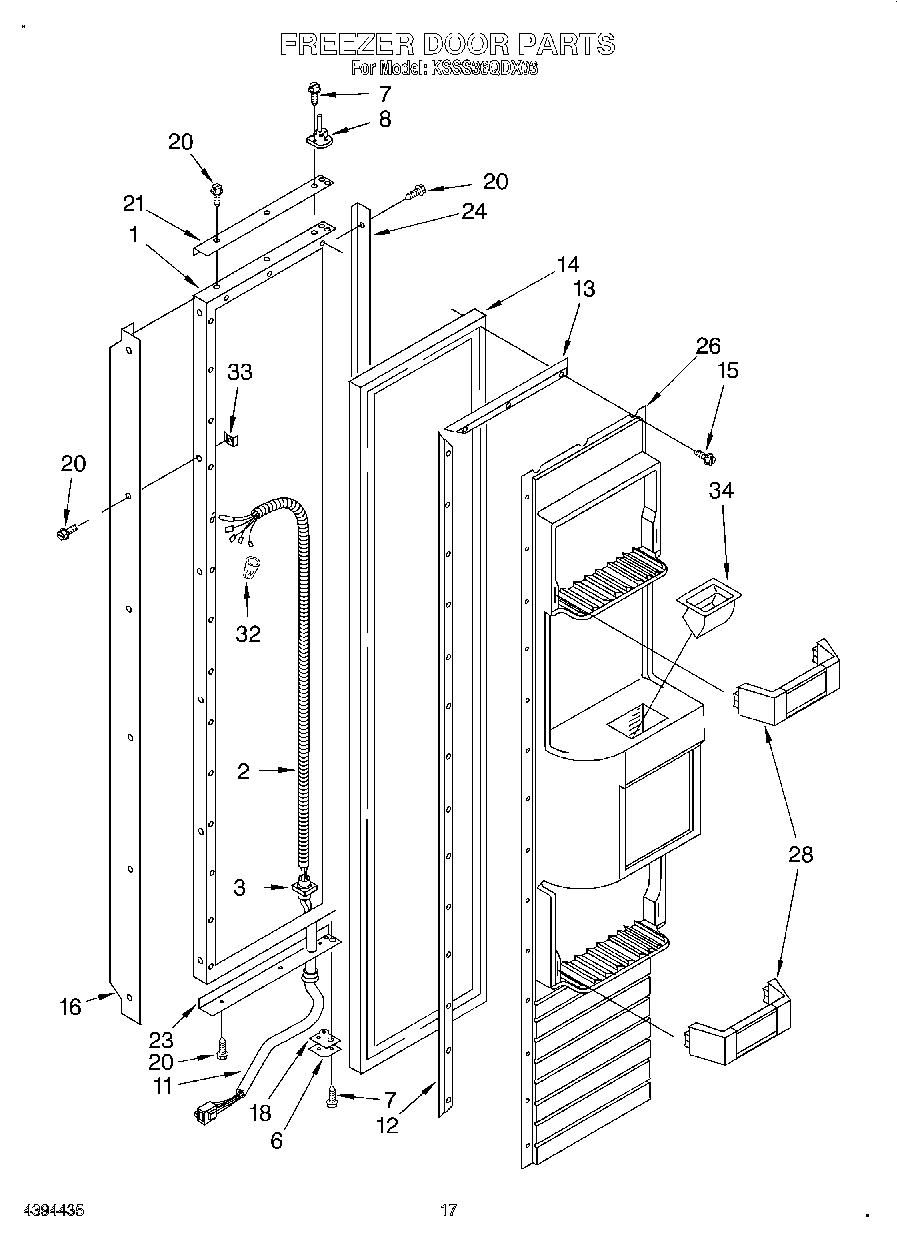

12 - FREEZER DOOR

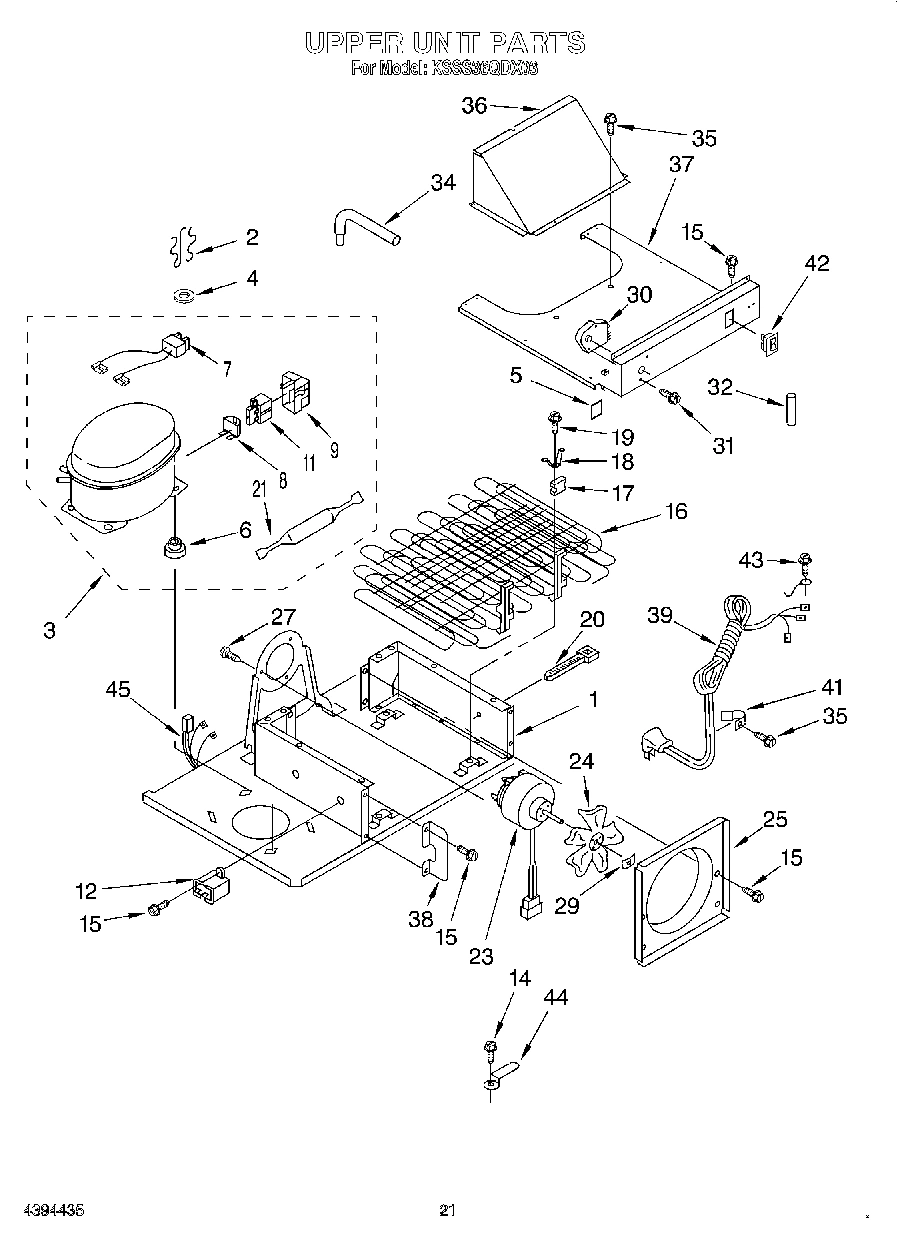

14 - UPPER UNIT

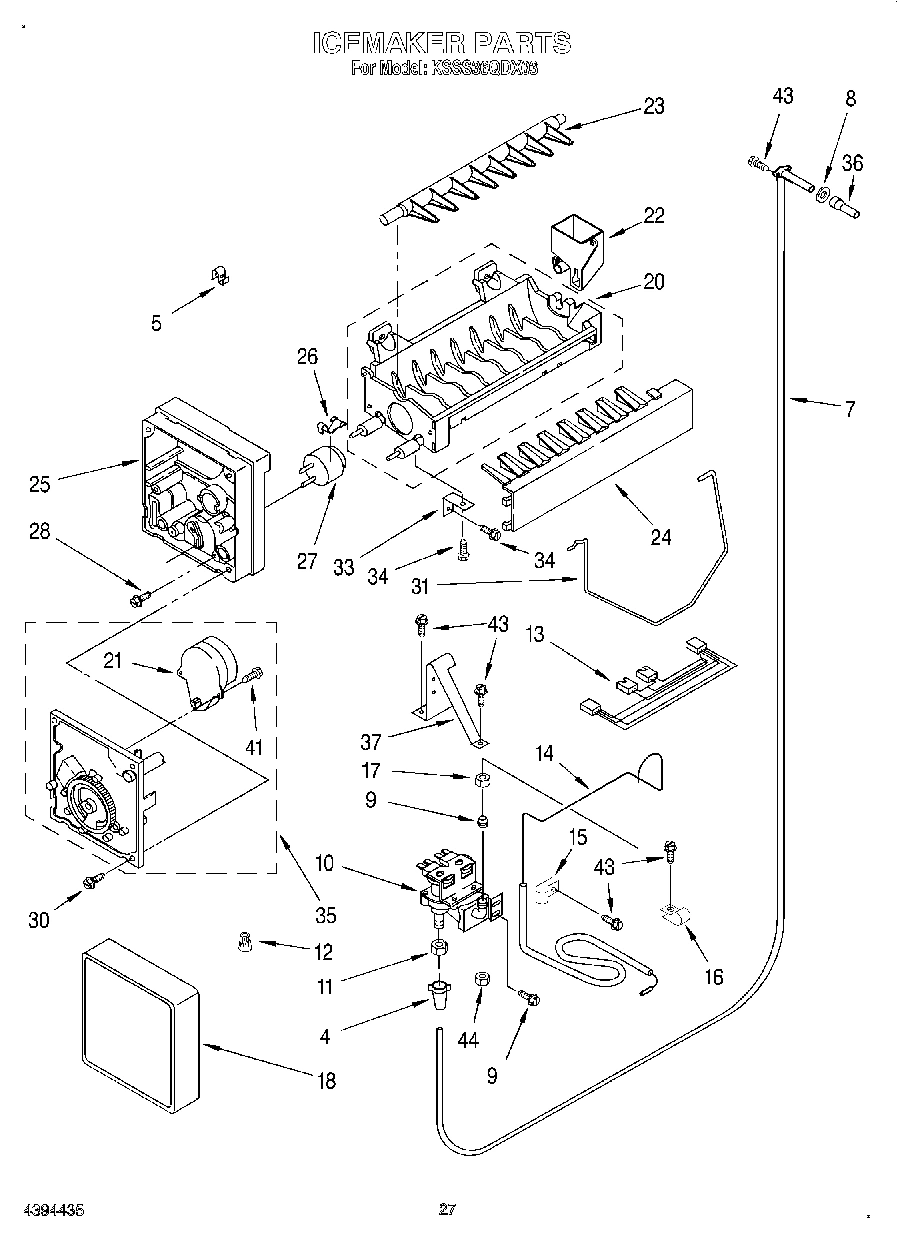

17 - ICEMAKER, LIT/OPTIONAL
07 - REFRIGERATOR SHELF

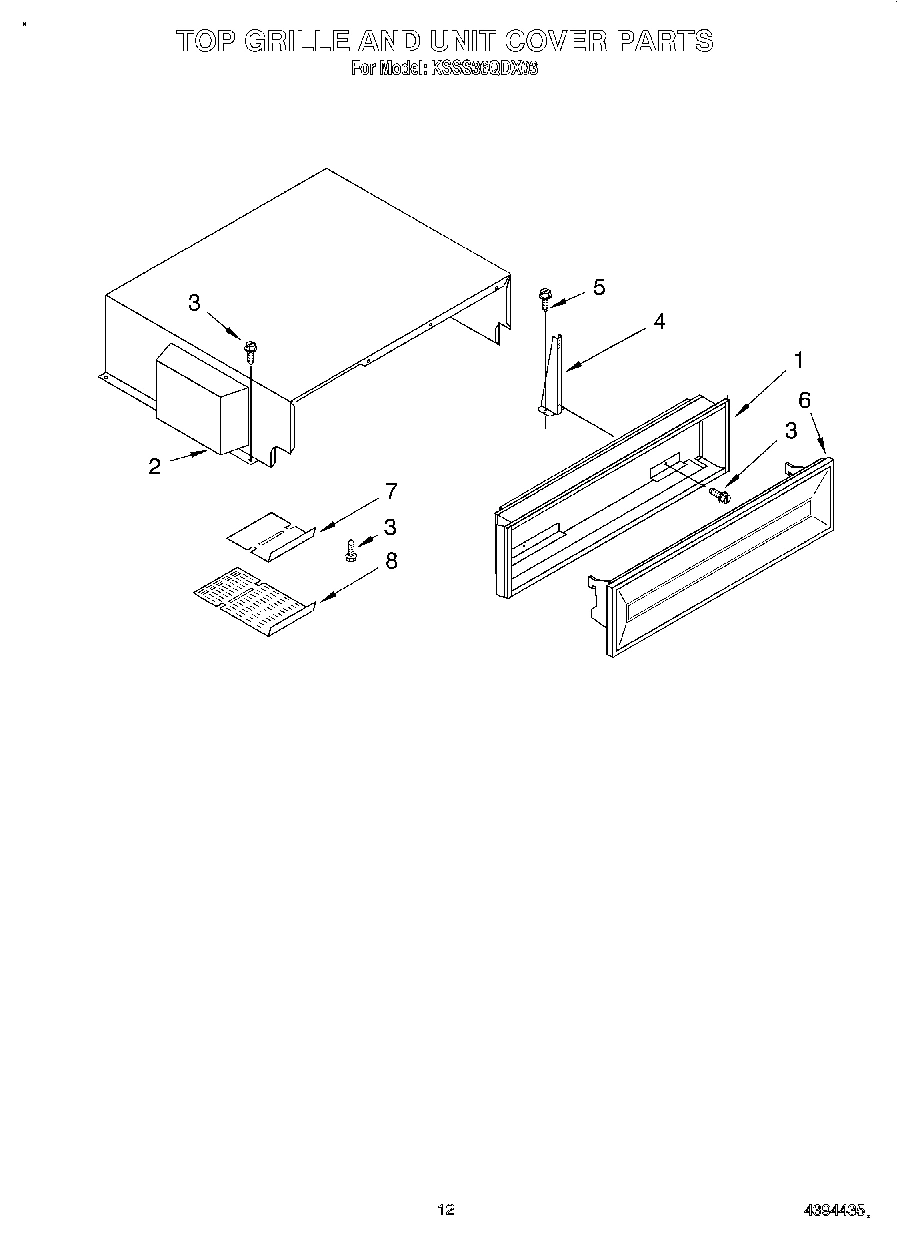

09 - TOP GRILLE AND UNIT COVER

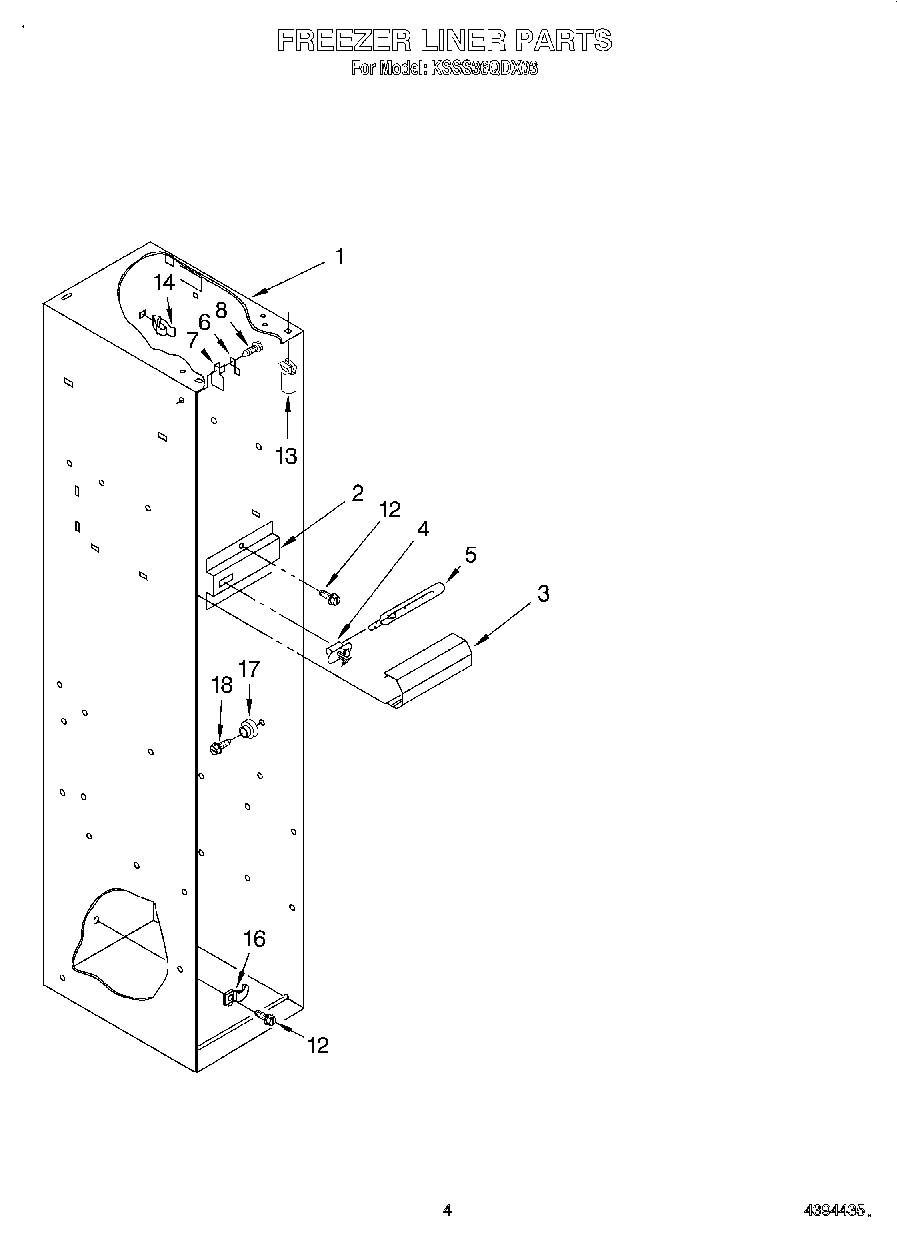

03 - FREEZER LINER

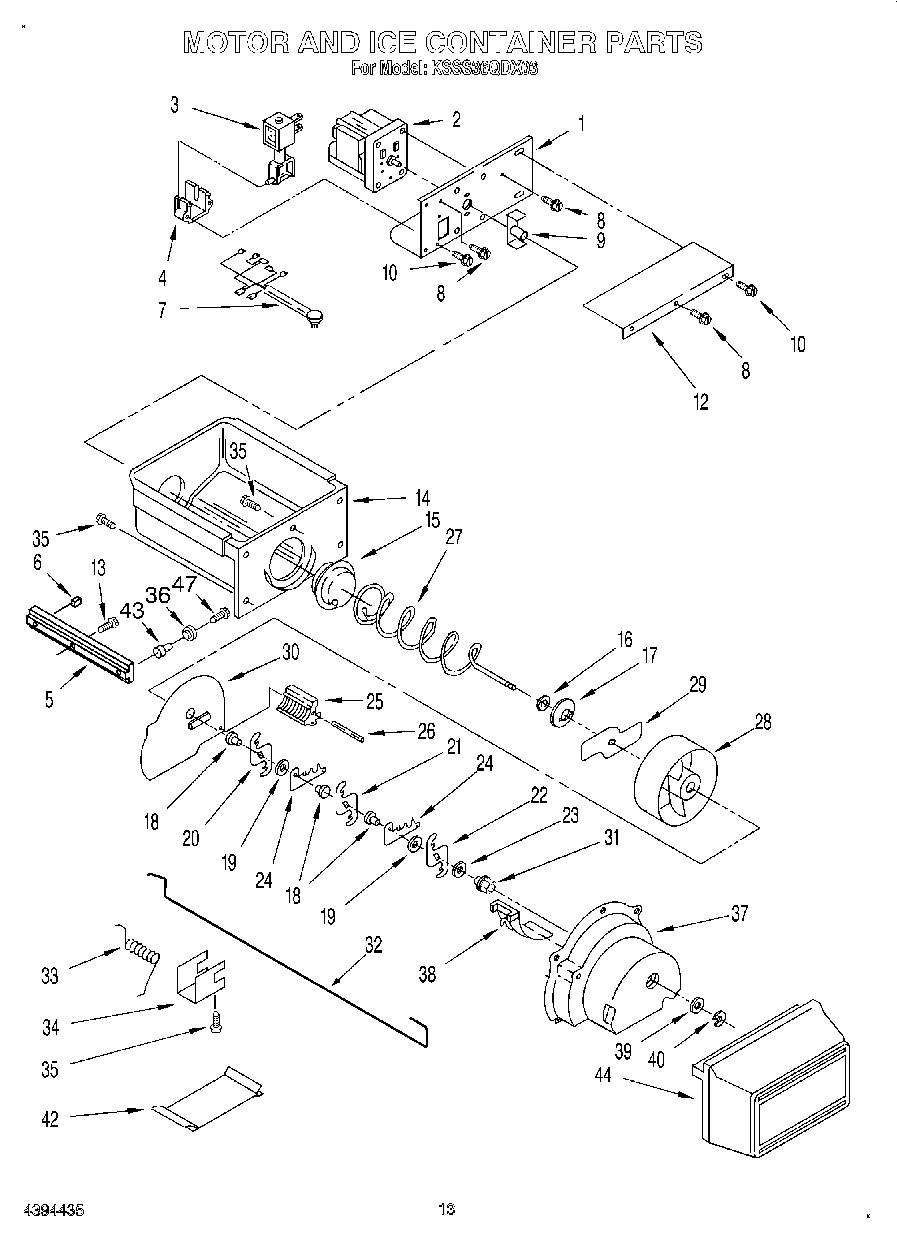

10 - MOTOR AND ICE CONTAINER

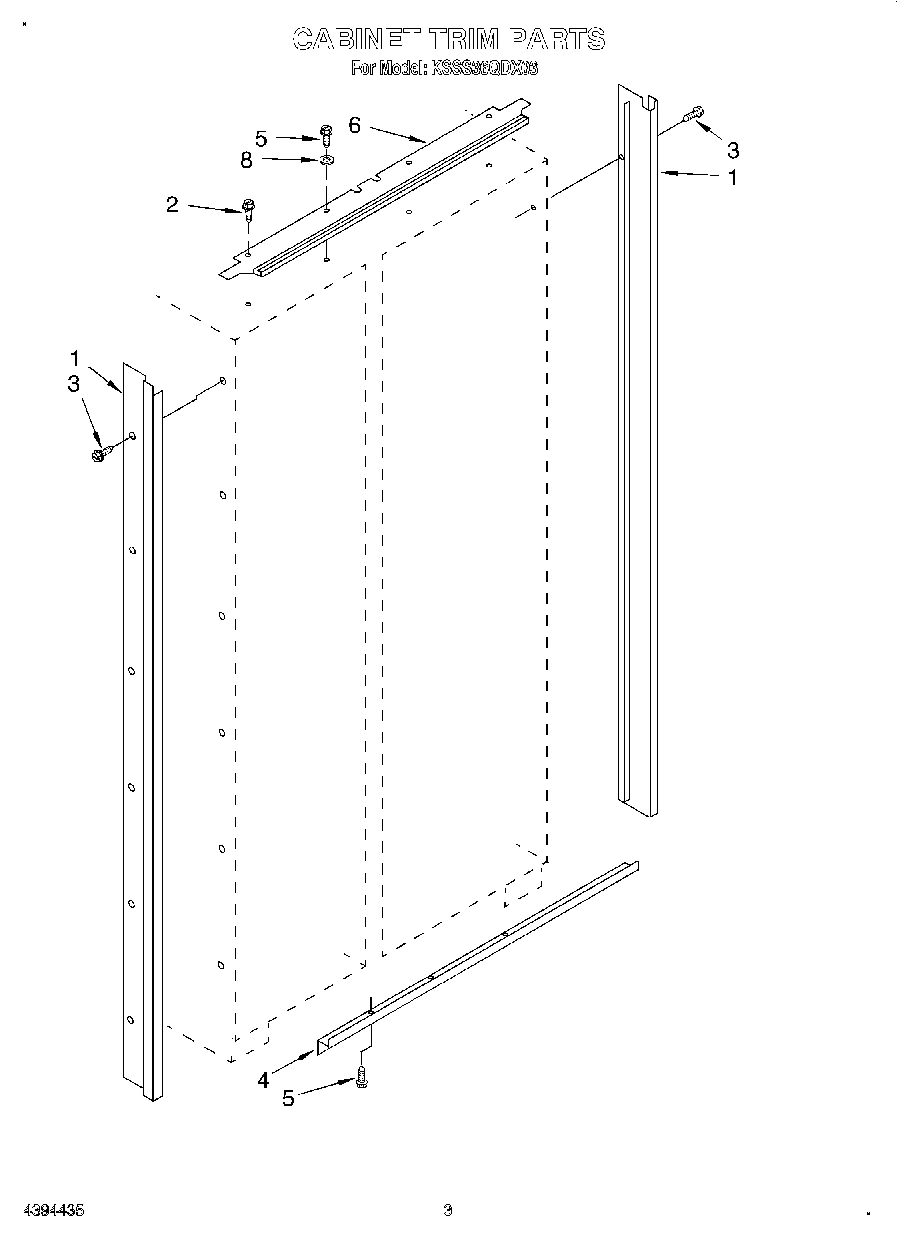

02 - CABINET TRIM

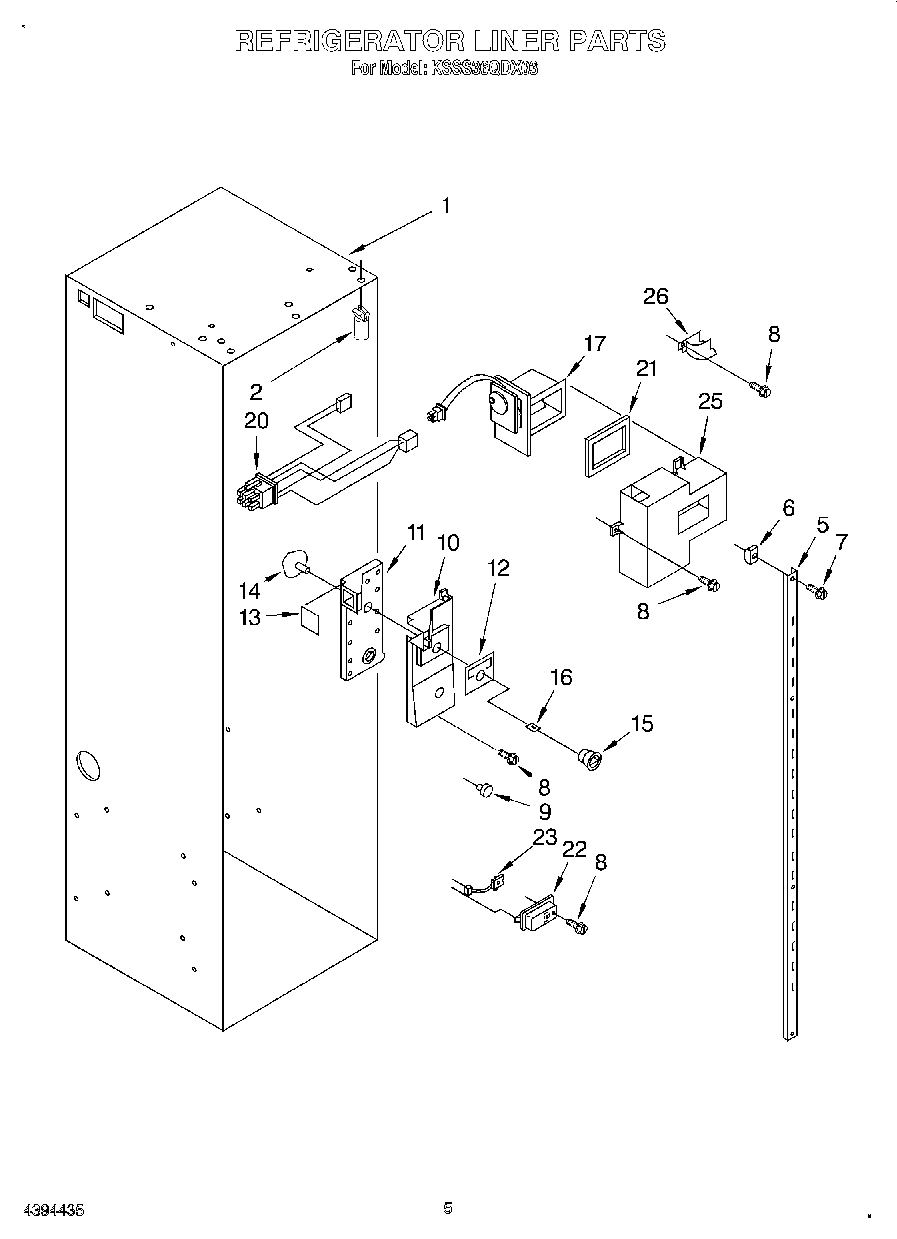

04 - REFRIGERATOR LINER
Common parts from model Whirlpool KSSS36QDX03 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2002934 Contact Us For Availability
Energy Label WPL LIT2003583 Contact Us For Availability
Use & Care Guide WPL LIT2003755 Contact Us For Availability
Installation Instructions WPL LIT2003757 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Control Panel WPL 1113625 Contact Us For Availability
1
Solid Shelf WPL 2003142 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003870 Contact Us For Availability
1
Housing, Dispenser WPL 1107943 Contact Us For Availability
1
Control Panel WPL 1112640 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 2003873 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Frame, Shelf WPL 2174402 Contact Us For Availability
1
Top Grille Assembly WPL 2003713 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106720A Contact Us For Availability
1
Bracket, Motor WPL 2003939 Contact Us For Availability
1
Cabinet, Trim (2) WPL 2003643 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106721A Contact Us For Availability
2
Inlay, Control Panel WPL 2003307 Contact Us For Availability
2
Front, Ice Compartment WPL 2003133 Contact Us For Availability
2
Insulator, Bracket Control WPL 2147164 Contact Us For Availability
2
Inlay, Control Panel WPL 2003301 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Glass, Shelf WPL 2003375 Contact Us For Availability
2
Cover, Unit WPL 2003267 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113564 Contact Us For Availability
3
Shelf, Deep WPL 1113636 Contact Us For Availability
3
Hinge Assembly, Top WPL 2001983 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
3
Reflector, Shelf WPL 1113546 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Screw WPL 2001297 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Light, Socket WPL 1112613 Contact Us For Availability
4
Basket WPL 2004590 Contact Us For Availability
4
Frame, Slides WPL 2152716 Contact Us For Availability
4
Control Knob WPL 2182110 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113790 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2003590 Contact Us For Availability
5
Trim, Basket WPL 2003112 Contact Us For Availability
5
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
5
Bushing, Foam WPL 2003389 Contact Us For Availability
5
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Stop, Roller WPL 1113169 Contact Us For Availability
6
Seal, Control Panel WPL 1113132 Contact Us For Availability
6
Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2003986 Contact Us For Availability
6
Slide, Light Switch WPL 2152724 Contact Us For Availability
6
Hinge, Bottom WPL 2003985 Contact Us For Availability
6
Decortive Panel Assembly WPL 2003722 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
7
Heat Shield, Frame WPL 2147172 Contact Us For Availability
7
Seal, Control Panel WPL 1113133 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2003814 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2003325 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2003480 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2002719 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Hinge, Top WPL 2001984 Contact Us For Availability
8
Guard, Water Valve Wiring WPL 2003481 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Cover, Crisper WPL 1113893 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
10
Shield, Control Panel WPL 1113767 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Shield, Control Panel WPL 1113773 Contact Us For Availability
10
Glass, Crisper WPL 2003378 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
11
Handle, Door WPL 2003679 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2149097 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2003475 Contact Us For Availability
11
Relay (See Overload) WPL ARI106722A Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Cover, Motor WPL 1113128 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability
13
Water Valve, Harness WPL 2003477 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
14
Channel, Wiring WPL 2001142 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Door Gasket, Magnetic WPL 2000877 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Crisper Pan (2) WPL 2003315 Contact Us For Availability
14
Ice Container WPL 2002725 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
16
Knob, Thermostat WPL 2182112 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Trim (Top) WPL 2003651 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Handle, Door WPL 2003681 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Heater, Defrost WPL 2000630 Contact Us For Availability
17
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
18
Door, Spacer WPL 2003982 Contact Us For Availability
18
Trim (Side) WPL 2003675 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim (Bottom) WPL 2003663 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
20
Panel, Interior Door WPL 1113952 Contact Us For Availability
20
Lever, Water Dispenser WPL 2159196 Contact Us For Availability
20
Wire Tie (2) WPL 851095 Contact Us For Availability
20
Meat Pan WPL 2003320 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Trim (Top) WPL 2003657 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Trim (Bottom) WPL 2003669 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
Trim (Side) WPL 2003677 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Cover, Evaporator WPL 2000339 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Bracket, Control WPL 2147163 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Air Baffle Cover WPL 2003578 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000797 Contact Us For Availability
26
Door, Utility Bin WPL 2003463 Contact Us For Availability
26
Panel, Interior Door WPL 2002838 Contact Us For Availability
27
Insulation, Switch WPL 625834 Contact Us For Availability
27
Door Shelf (4) WPL 2003130 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Screw, WPL 489155 Contact Us For Availability
28
Shelf Bin (2) WPL 2003127 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Wire Connector WPL 547217 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Control Arm WPL 2002728 Contact Us For Availability
34
Ice Chute WPL 2002733 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
35
Wiring Harness, Door WPL 2147166 Contact Us For Availability
36
Shield, Wiring WPL 2147165 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
36
Water Inlet Tube WPL 2003812 Contact Us For Availability
36
Roller WPL 2174388 Contact Us For Availability
37
Guiding, Ice WPL 1119035 Contact Us For Availability
37
Cover, Condenser WPL 2003355 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
38
Air Vane WPL 2003263 Contact Us For Availability
39
Screw WPL 489197 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
42
Front Cover, Housing (Includes No.49) WPL 2002876 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Eyelet, Roller WPL 2174478 Contact Us For Availability
44
Cover, Dispenser Opening WPL 2002730 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2002722 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
45
Trim, Front (2) WPL 2003593 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Grille, Overflow WPL 983900 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
49
Overlay, Cover WPL 2002888 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
100
Front Panel Kit (White) WPL 4378650 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4378653 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4378656 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4378659 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
