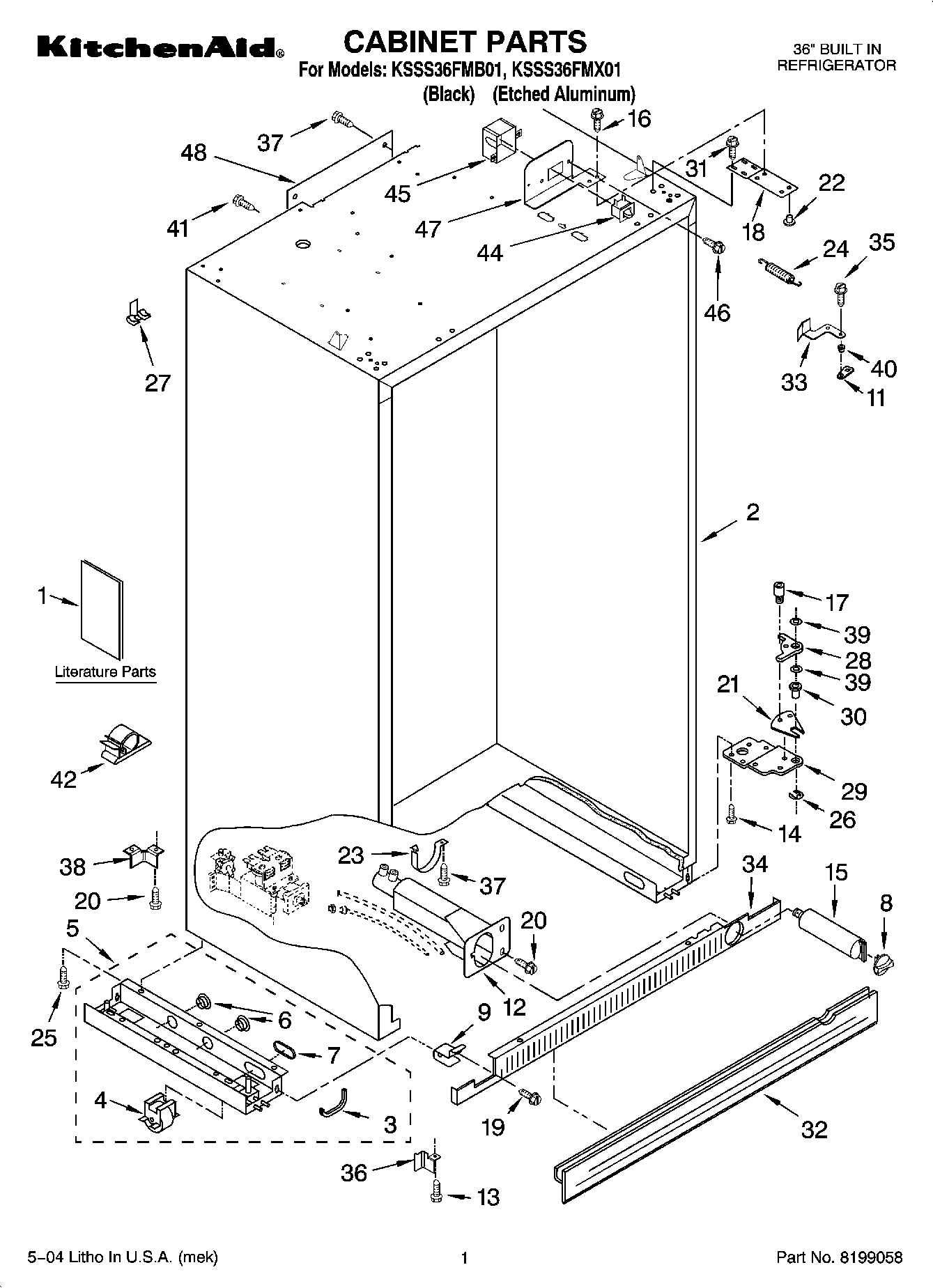

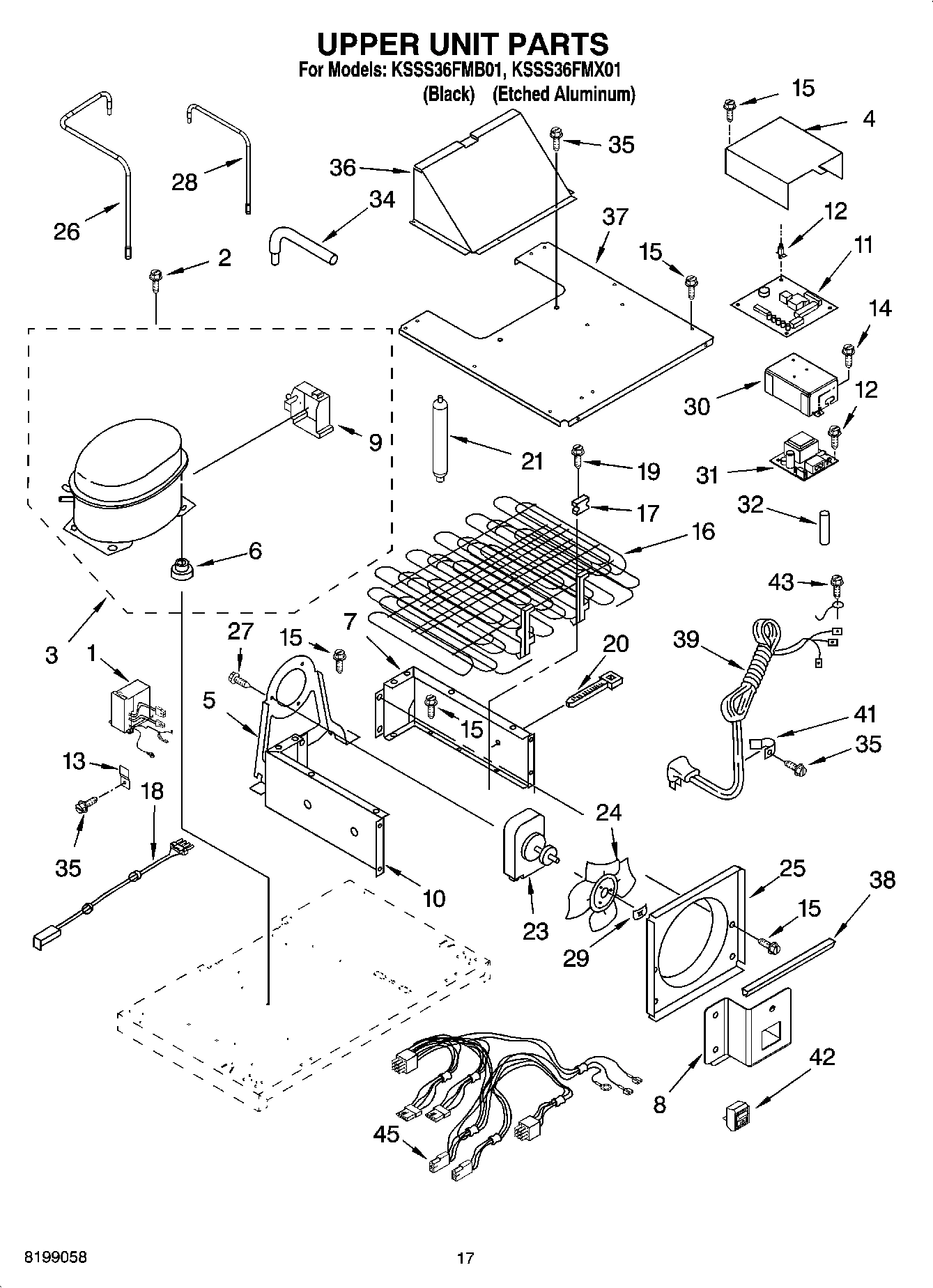

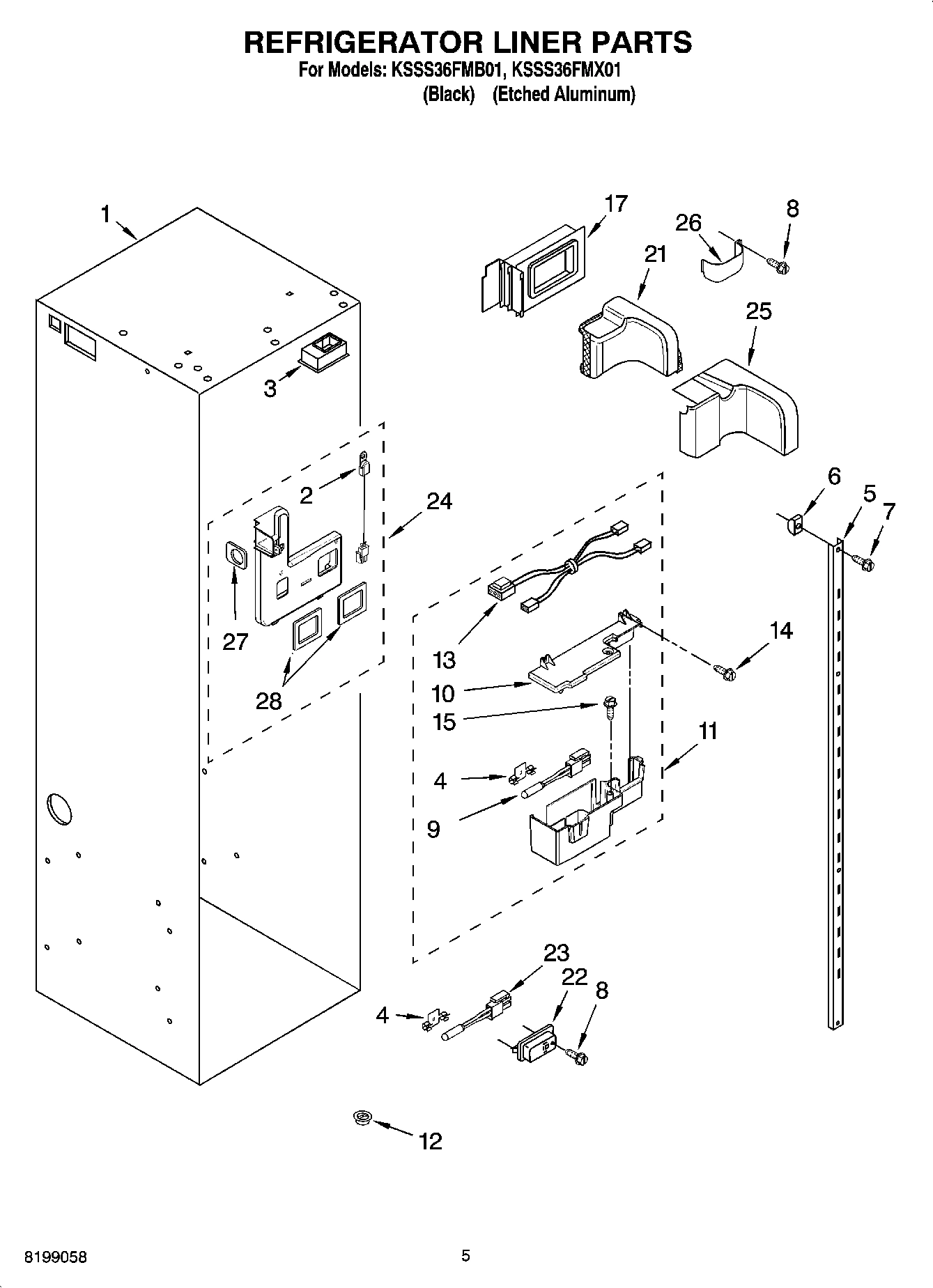

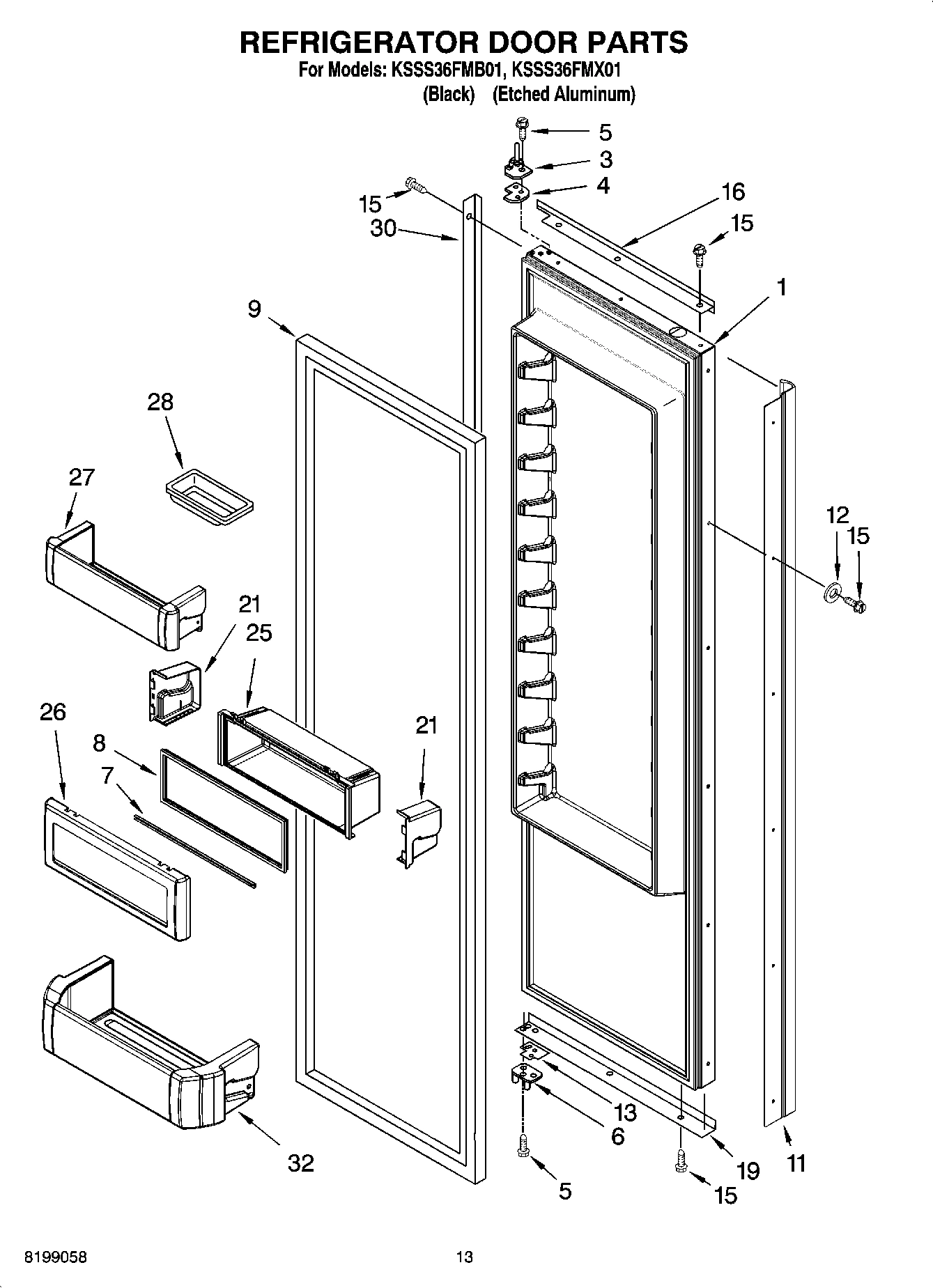

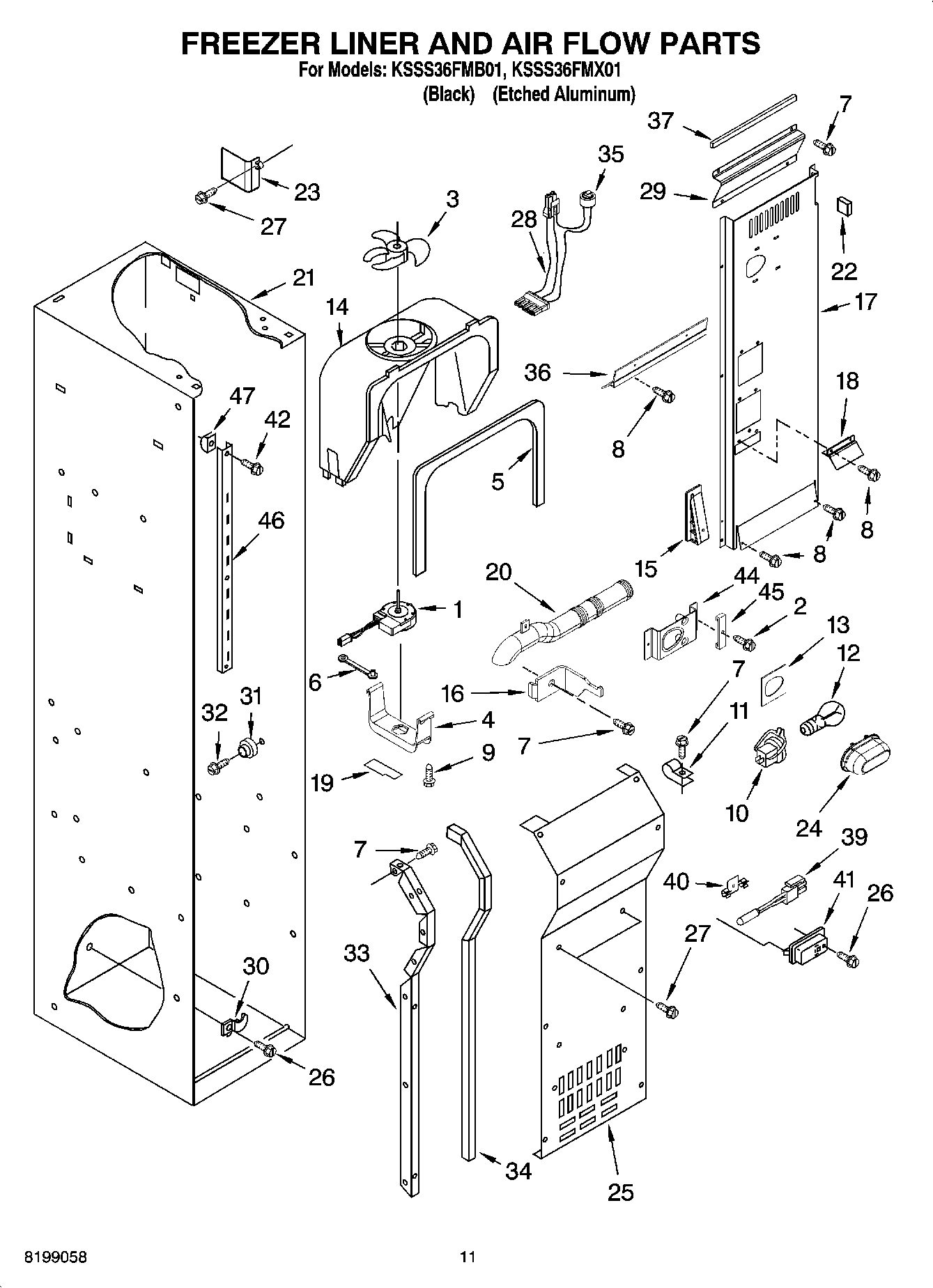

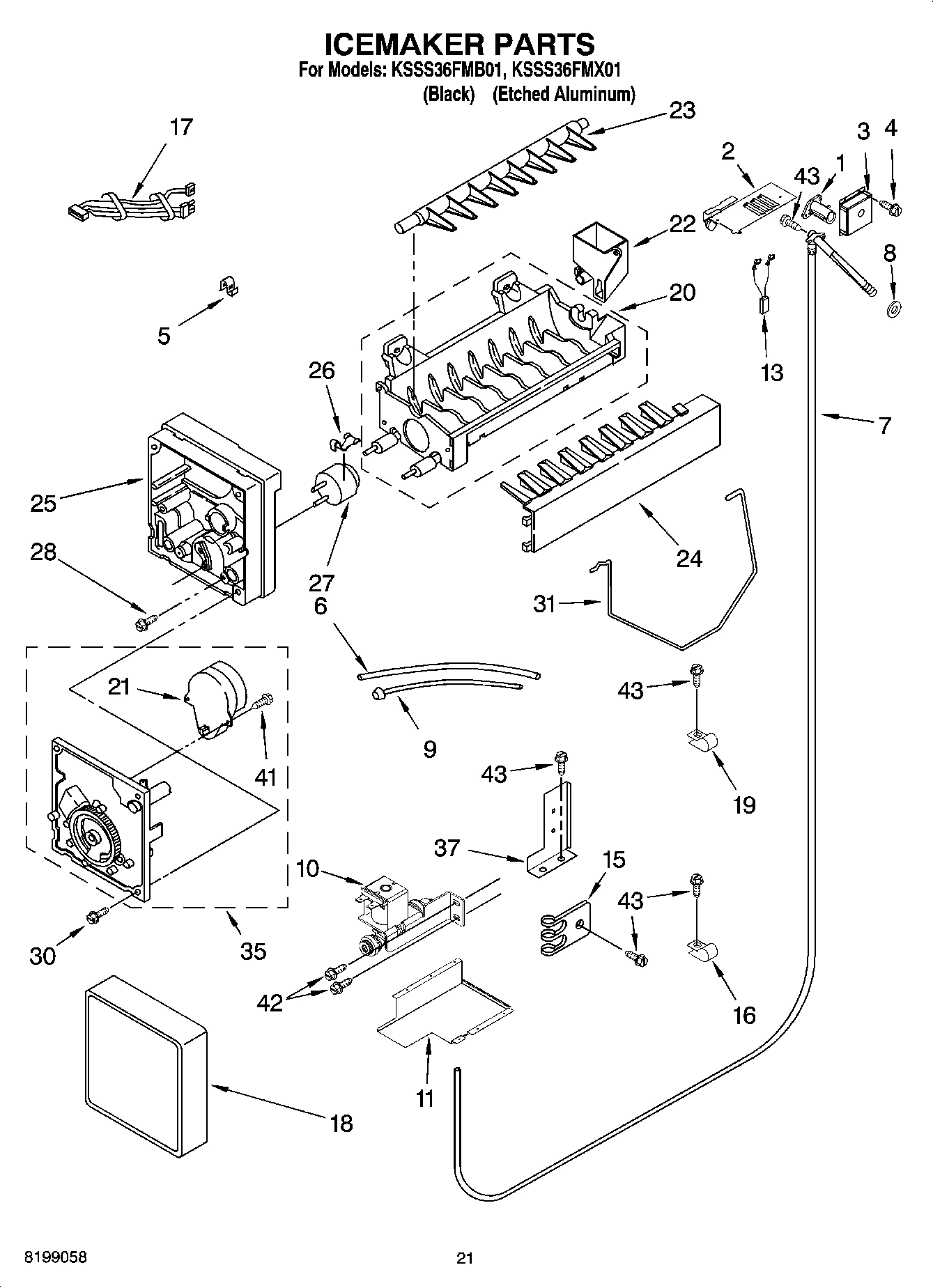

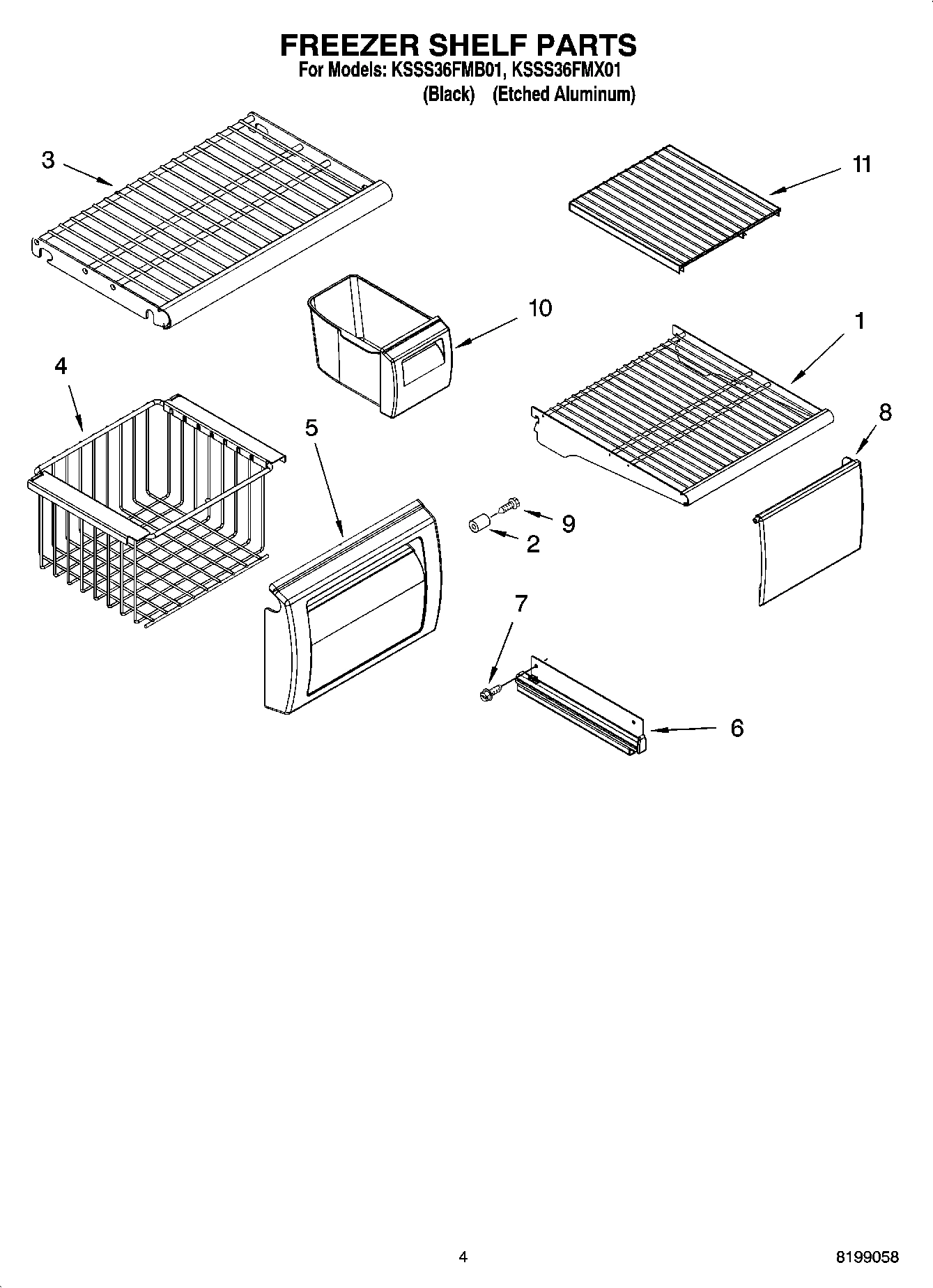

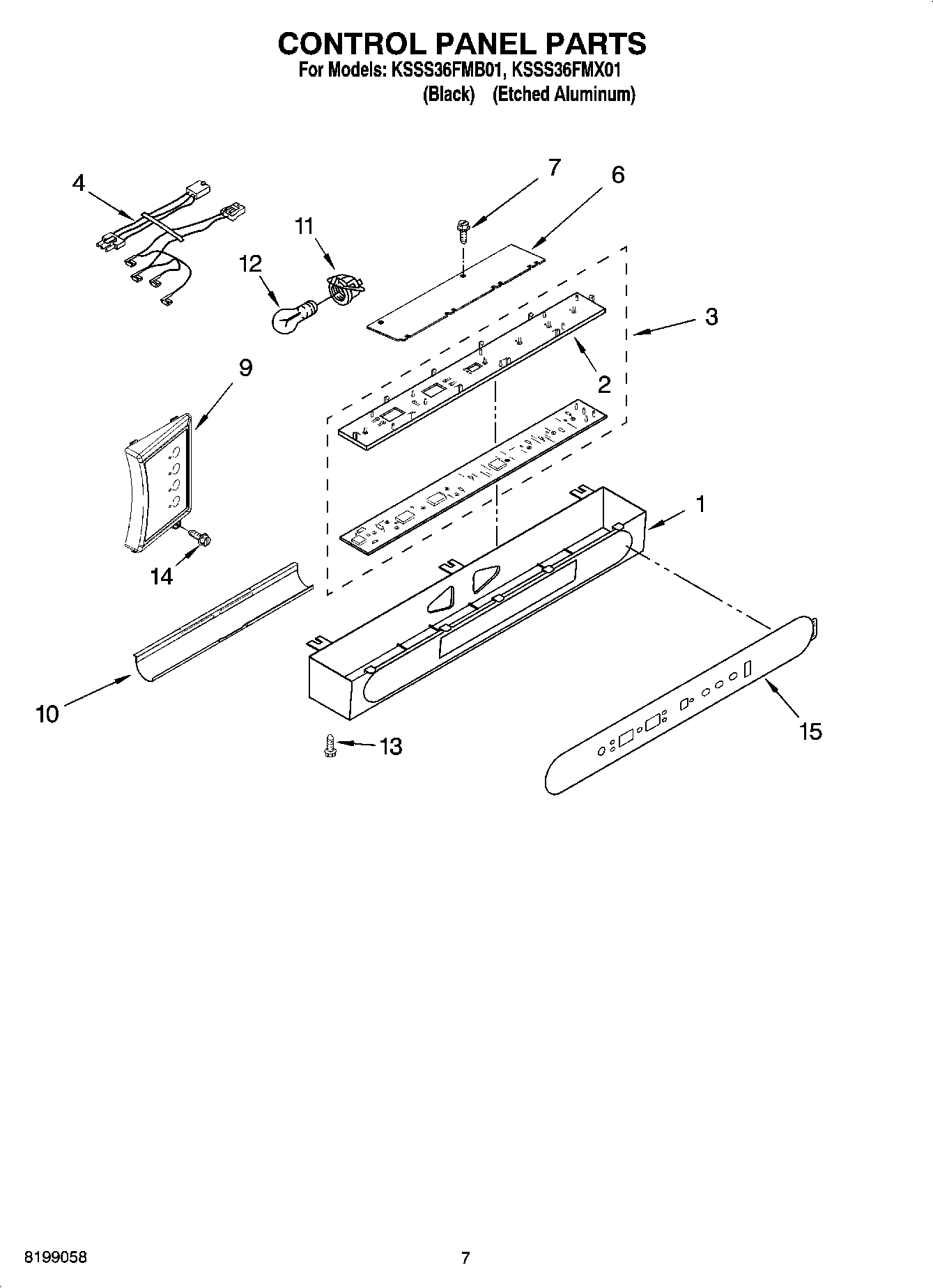

Model Whirlpool KSSS36FMB01 36`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $238.39

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

1

Fan Motor WPL 2259385 Contact Us For Availability

1

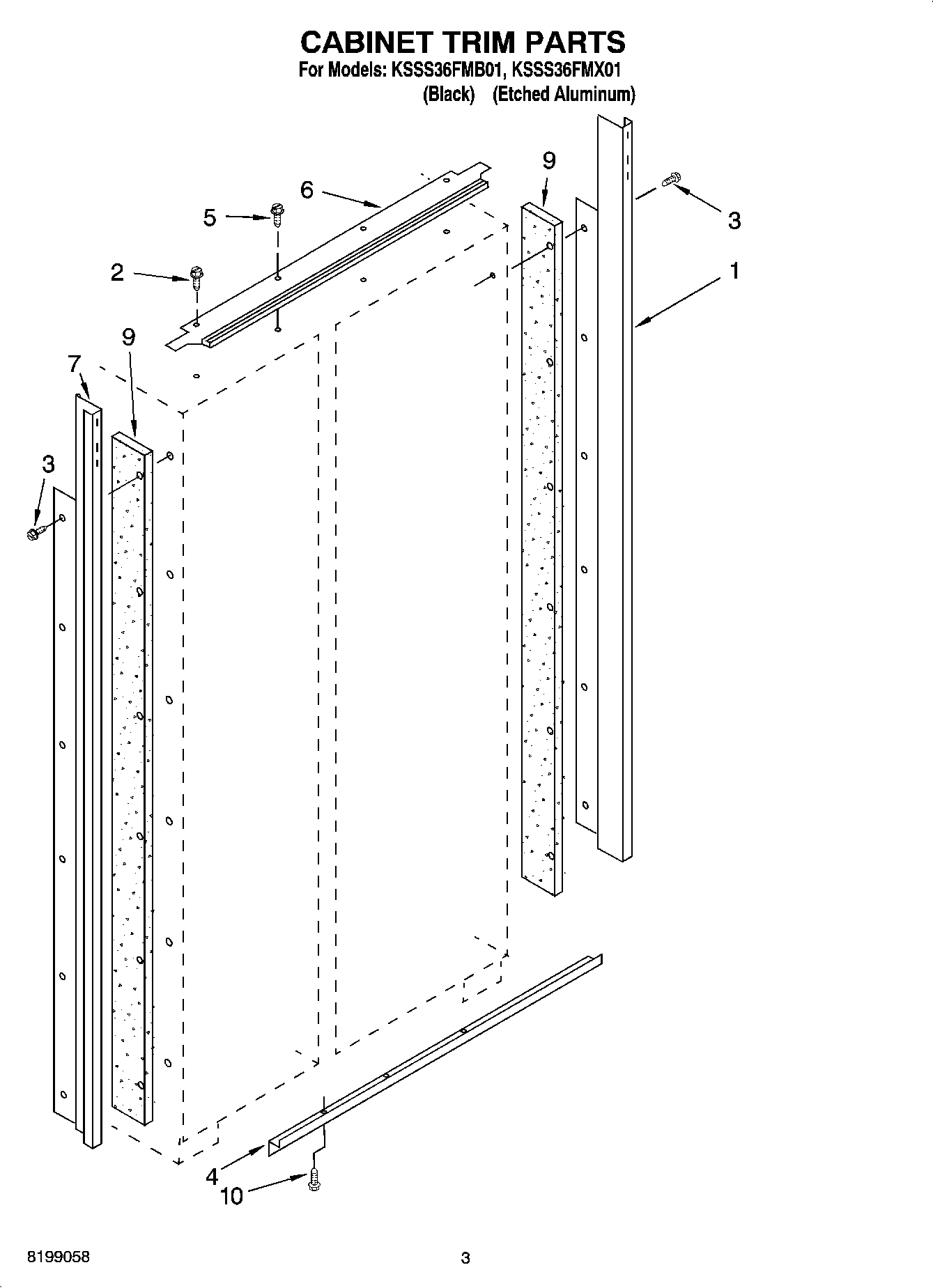

Cabinet, Trim (Right Side) (Black) WPL 2222552B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Etched Aluminum) WPL 2222552X Contact Us For Availability

1

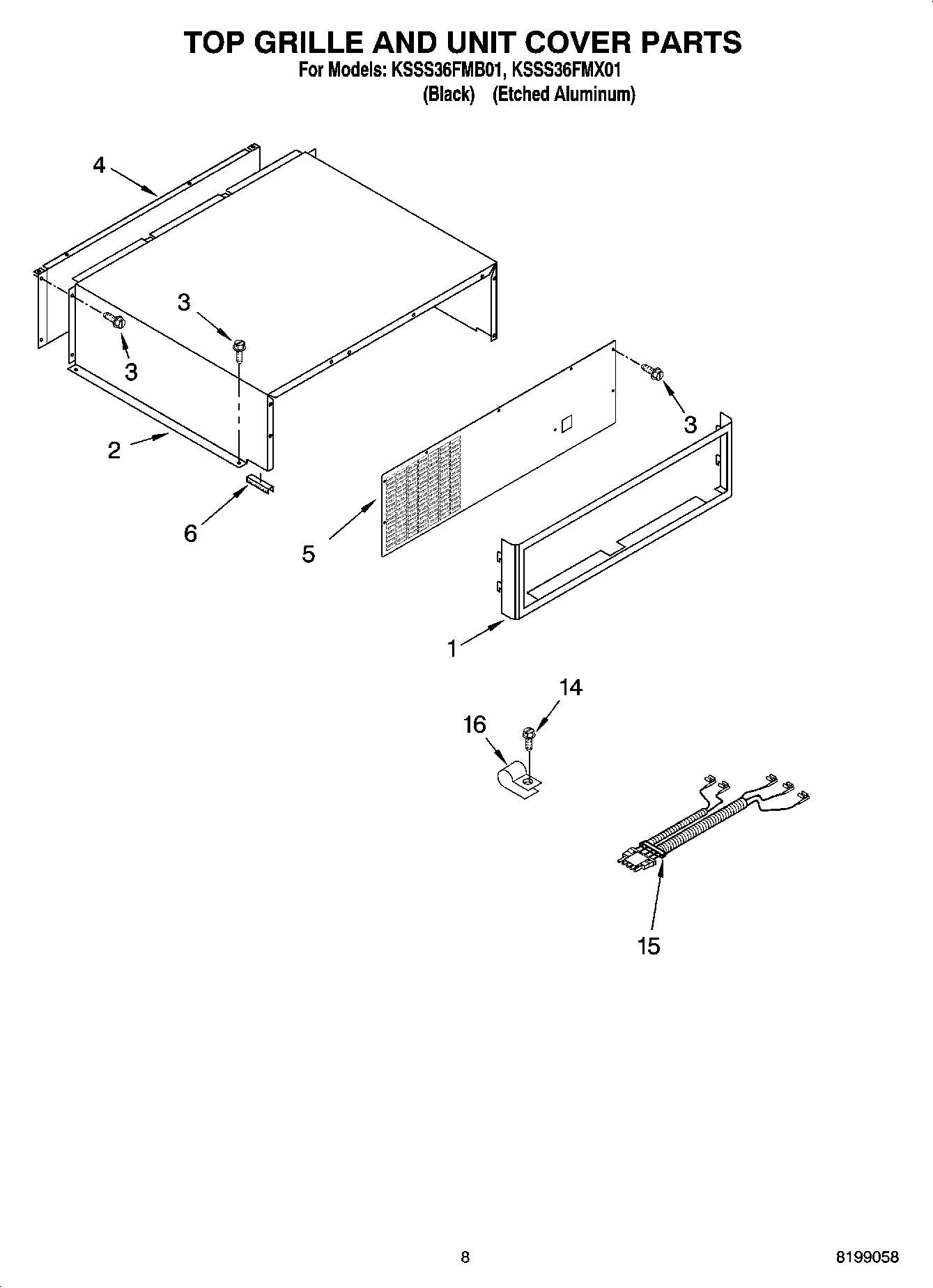

Top Grille Assembly (Black) WPL 2257401B Contact Us For Availability

1

Top Grille Assembly (Etched Aluminum) WPL 2257401X Contact Us For Availability

2

2266955 Whirlpool Spacer Backorder WPL 2266955 $8.00

2

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

2

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $40.50

2

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $32.48

2

Cover, Unit WPL 2259320 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $336.32

3

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $24.30

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

Shelf, Fixed (2) WPL 2302882 Contact Us For Availability

3

Cover, Fill Tube WPL 2259064 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

2259081 Whirlpool Refrigerator Basket Backorder WPL 2259081 $139.50

4

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

4

Spacer-Door, Top WPL 2256381 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

5

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.33

5

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $118.26

5

WP2256269 Whirlpool Refrigerator Front Basket Backorder WPL WP2256269 $64.07

5

WP2302817 Whirlpool Refrigerator Gasket Backorder WPL WP2302817 $33.67

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

5

Cover, Unit Front WPL 2302974 Contact Us For Availability

6

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $30.25

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.51

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Cabinet, Trim Top WPL 2257366 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

7

2222795 Whirlpool Refrigerator Rail Backorder WPL 2222795 $33.31

7

Cabinet Trim (Left Side) (Black) WPL 2222553B Contact Us For Availability

7

Cabinet Trim (Left Side) (Etched Aluminum) WPL 2222553X Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

WP2222981 Whirlpool Refrigerator Gasket In Stock WPL WP2222981 $93.11

8

Door, Ice WPL 2266933 Contact Us For Availability

8

Bracket, Mounting Switch WPL 2302969 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $12.11

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $44.95

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

2266930 Whirlpool Container Backorder WPL 2266930 $100.06

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $95.19

Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability

W10219463-includeCORE Whirlpool W10219463 Con Backorder WPL W10219463-includeCORE $254.73

W10221296 Whirlpool Refrigerator Shelf In Stock WPL W10221296 $41.49

Cam, Door Closer WPL 2005783 Contact Us For Availability

Trim, Side Glass WPL 2257611 Contact Us For Availability

Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $97.12

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $29.61

Spacer, Bottom Door WPL 2257637 Contact Us For Availability

Seal-Light, Socket WPL 2302777 Contact Us For Availability

Jumper, Fill Tube Heater WPL 2187683 Contact Us For Availability

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

Screw WPL 3400525 Contact Us For Availability

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

2259465 Whirlpool Refrigerator Wedge Backorder WPL 2259465 $36.07

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $5.38

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2306092 Whirlpool Refrigerator Evaporator Backorder WPL WP2306092 $174.42

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

CONDENSER WPL 2259307 Contact Us For Availability

Clamp, Tube WPL 488937 Contact Us For Availability

Bracket, Vent Tube WPL 2302925 Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $127.84

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $176.19

Heater, Defrost WPL 2306387 Contact Us For Availability

Air Duct WPL 2306042 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

Wire Assembly, Icemaker WPL 2187715 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $39.49

Deflector, Air WPL 2266801 Contact Us For Availability

Cover WPL 2257538 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $83.71

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

Screw WPL 487522 Contact Us For Availability

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Tube, Vent WPL 2302933 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $55.08

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

Liner (Not A Serviceable Part) WPL ARI106580A Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

22

Bushing WPL 2002903 Contact Us For Availability

22

Pad WPL 2306055 Contact Us For Availability

23

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

23

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $137.10

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $31.04

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $129.41

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $33.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Light Shield WPL 2259367 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $32.19

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $94.21

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Cover, Evaporator WPL 2306048 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Tube, Transfer Drier WPL 2300190 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

Harness, Wire (Includes Item 35) WPL 2187673 Contact Us For Availability

Tube, Transfer Heat Loop WPL 2259301 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $3.33

Deflector, Air Duct WPL 2306037 Contact Us For Availability

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $28.40

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

Housing, Power Supply WPL 2259349 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $71.39

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $71.24

32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

2259355 Whirlpool Refrigerator Evaporator Rai Backorder WPL 2259355 $47.78

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP2306462 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2306462 $71.46

35

Screw WPL 2005921 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

36

Support, Air Duct WPL 2302849 Contact Us For Availability

36

Cover, Fan WPL 2209495 Contact Us For Availability

37

Gasket, Air Duct WPL 2306051 Contact Us For Availability

37

Cover, Condenser WPL 2259092 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

Grommet, Edge WPL 2307907 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $5.42

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

39

Service Cord WPL 2259197 Contact Us For Availability

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $24.52

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

42

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

43

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.68

44

Bracket, Light WPL 2257571 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $30.25

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Spacer, Light Bracket WPL 2259446 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187900 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI106581A Contact Us For Availability

and Optional Parts Not Included WPL ARI106582A Contact Us For Availability

REFRIGERANT CHARGE 6.25 oz. (R-134A) WPL ARI106583A Contact Us For Availability

46

WP2259032 Whirlpool Ladder Backorder WPL WP2259032 $27.52

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $30.89

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $30.89

47

Support, Screw WPL 2259397 Contact Us For Availability

48

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $33.31

100

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $169.15
