Model Whirlpool KSSS36DAX00 BUILT IN REFRIGERATOR – Common Parts & Diagrams

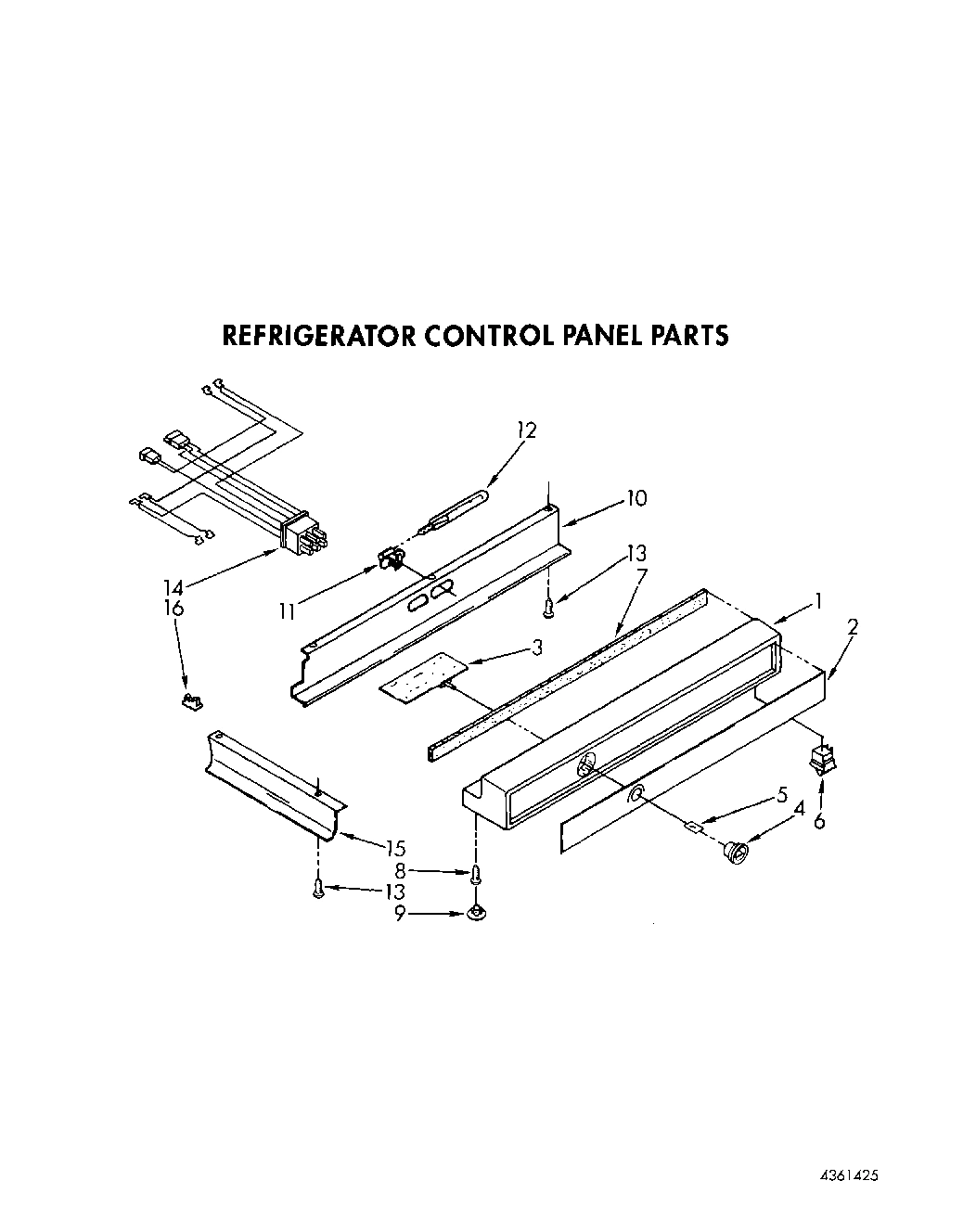

04 - REFRIGERATOR CONTROL PANEL

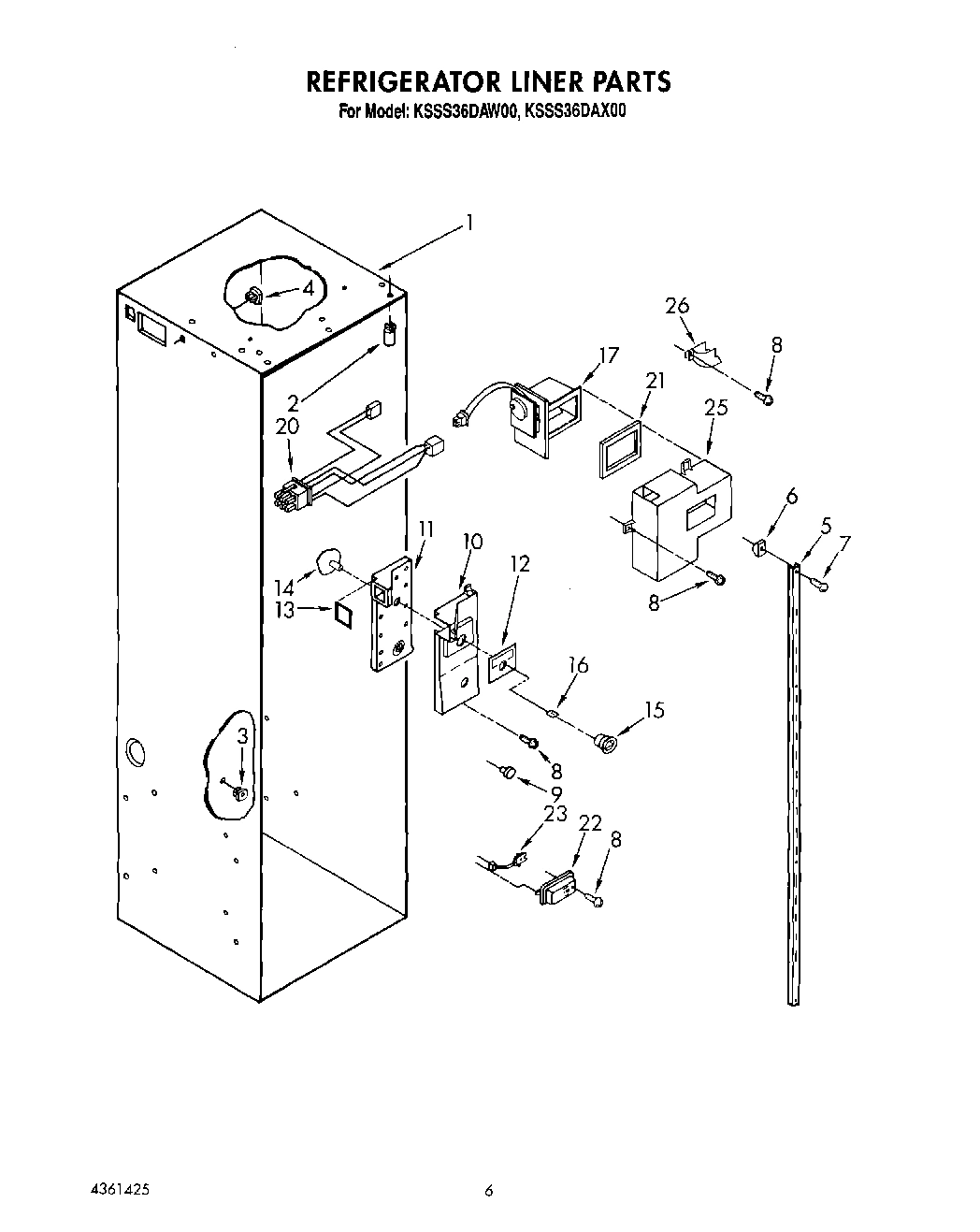

05 - REFRIGERATOR LINER
10 - TOP GRILLE AND UNIT COVER
12 - FREEZER DOOR
14 - UPPER UNIT
07 - FREEZER LINER
09 - REFRIGERATOR SHELF
08 - FREEZER SHELF
15 - LOWER UNIT AND TUBE
02 - CABINET
03 - CABINET TRIMS AND BREAKER TRIM
11 - REFRIGERATOR DOOR
13 - DISPENSER AND FRONT
06 - FREEZER CONTROL PANEL
17 - ICEMAKER, LIT/OPTIONAL
16 - AIR FLOW AND RESERVOIR
18 - ICE CONTAINER
Common parts from model Whirlpool KSSS36DAX00 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2000850 Contact Us For Availability
Energy Label WPL LIT2000872 Contact Us For Availability
Installation Instructions WPL LIT2001094 Contact Us For Availability
Use & Care Guide WPL LIT2001362 Contact Us For Availability
Parts List WPL LIT4361425 Contact Us For Availability
Modul WPL LIT628370 Contact Us For Availability
1
Assembly, Unit Base WPL 2000681 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106445A Contact Us For Availability
1
Frame, Shelf WPL 1113542 Contact Us For Availability
1
Solid Shelf WPL 1112365 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI106443A Contact Us For Availability
1
Breaker Trim & Retainer Assembly WPL 2000650 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000043 Contact Us For Availability
1
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
1
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
1
Control Panel WPL 1112595 Contact Us For Availability
1
Spacer, Track (Right Side) WPL 1112281 Contact Us For Availability
1
Spacer, Track (Left Side) WPL 1112282 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
2
Glass, Shelf WPL 1112297 Contact Us For Availability
2
Roller WPL 1113870 Contact Us For Availability
2
Front, Ice Compartment WPL 2000885 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Inlay, Control Panel WPL 1113963 Contact Us For Availability
2
Fitting, Water Tube WPL 2000829 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10 & 11) (Al WPL 4318031 Contact Us For Availability
3
Reflector, Shelf WPL 1113546 Contact Us For Availability
3
Eyelet, Roller WPL 1113871 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113564 Contact Us For Availability
3
Shelf, Deep WPL 1113636 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Hinge Assembly, Top WPL 2000696 Contact Us For Availability
4
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
4
Spacer WPL 2000303 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113790 Contact Us For Availability
4
Basket WPL 1113639 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113293 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
5
Stop, Roller WPL 1113169 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Trim, Basket WPL 1113642 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Washer WPL 488307 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Adjusting Rod (2) WPL 2000670 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112683 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2000698 Contact Us For Availability
6
Seal, Control Panel WPL 1113132 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Screw WPL 489334 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Frame, Assembly WPL 1113550 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112679 Contact Us For Availability
7
Tube, Water (To Ice Maker) WPL 2001336 Contact Us For Availability
8
Overload (Replacement Compressor Only) WPL 2149961 Contact Us For Availability
8
Overload (Production Compressor Only) WPL 2154946 Contact Us For Availability
8
Tube, Connect (Drier) WPL 1113294 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Motor, Wiring WPL 2000618 Contact Us For Availability
8
Bracket, Motor WPL 1112291 Contact Us For Availability
9
Terminal Cover WPL 2154452 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
9
Cover, Crisper WPL 1113893 Contact Us For Availability
9
Heater, Drain Pan WPL 2000754 Contact Us For Availability
9
Cabinet, Trim R.S WPL 2000321 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Motor Assembly WPL 1113960 Contact Us For Availability
10
Overlay, Shelf WPL 2001031 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Glass, Crisper WPL 2000154 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Cabinet, Trim L.S WPL 2000322 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Shield, Control Panel WPL 1113767 Contact Us For Availability
10
Nut, WPL 1129179 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2001323 Contact Us For Availability
11
Relay WPL 1108066 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Screw WPL 2001297 Contact Us For Availability
11
Handle, Door WPL 2000323 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2001334 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Tap, Plate WPL 2000349 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
12
Cabinet, Trim (Bottom) WPL 1112800 Contact Us For Availability
12
Socket, Light WPL 1112613 Contact Us For Availability
12
Channel, Wiring WPL 2001256 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability
13
Door, Spacer Bottom WPL 2000697 Contact Us For Availability
13
Capacitor, Start WPL 1108065 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Tube, Discharge WPL 2000857 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Water Valve, Harness WPL 2000836 Contact Us For Availability
13
Cover, Motor WPL 1113128 Contact Us For Availability
14
Door Gasket, Magnetic WPL 2000877 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Pan, Crisper WPL 2000887 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2000830 Contact Us For Availability
14
Cabinet, Trim Top WPL 2000780 Contact Us For Availability
14
Shroud WPL 1129333 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
15
Grommet (15) WPL 842339 Contact Us For Availability
15
Heat Exchanger WPL 2000722 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability
15
Ice Container WPL 1112285 Contact Us For Availability
16
Handle, Door WPL 2000324 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Clamp Tube WPL 1113066 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Right Side) WPL 2000304 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Left Side) WPL 2000305 Contact Us For Availability
16
Trim (Top) WPL 2000315 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Conveyor WPL 1112378 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Heater, Defrost WPL 2000630 Contact Us For Availability
17
Screw WPL 489112 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
17
Lever, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
17
Lever, Ice Dispenser (White) WPL 2147476 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Assembly, Air Duct WPL 2000744 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2000306 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2000307 Contact Us For Availability
18
Trim (Side) WPL 2000314 Contact Us For Availability
18
Thermostat Barrier WPL 1105570 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Utility Pan WPL 2000891 Contact Us For Availability
19
Clamp, Heater (2) WPL 549419 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Trim (Bottom) WPL 2000318 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Cup, Motor WPL 1112870 Contact Us For Availability
19
Nut, Bearing WPL 946195 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Meat Pan WPL 2000815 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Panel, Interior Door WPL 1113952 Contact Us For Availability
20
Lever, Water Dispenser (Black) WPL 1115349 Contact Us For Availability
20
Lever, Water Dispenser (White) WPL 2147478 Contact Us For Availability
21
Trim (Top) WPL 2000326 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Fastener (3) WPL 1112871 Contact Us For Availability
21
Baffle WPL 946194 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Mounting Bracket, Motor WPL 2000358 Contact Us For Availability
22
Slide, Basket R.S. WPL 2000061 Contact Us For Availability
22
Slide, Basket L.S. WPL 2000062 Contact Us For Availability
22
Guard, Hook-Up WPL 1113070 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Overlay, Cover WPL 2001034 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Trim (Bottom) WPL 2000329 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Retainer, Glass WPL 1112324 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Front Cover WPL 1112380 Contact Us For Availability
24
Trim (Side) WPL 2000325 Contact Us For Availability
24
Blade, Fan WPL 2000352 Contact Us For Availability
24
Bracket, Door Closer WPL 2000333 Contact Us For Availability
25
Orifice, Fan WPL 2000351 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Bracket, Control WPL 1107454 Contact Us For Availability
25
Cover, Evaporator WPL 2000339 Contact Us For Availability
26
Panel, Interior Door WPL 1113945 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Door, Utility Bin WPL 1112735 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000797 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Door Shelf (4) WPL 2000911 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
28
Door Shelf, Outer Trim WPL 1112765 Contact Us For Availability
28
Screw, 8 x 1/2 (3) WPL 489368 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Lens, Dispenser WPL 1113140 Contact Us For Availability
29
Door Shelf, Inner Trim WPL 1112770 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 2000308 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 2000309 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) Bottom (4) WPL 1112943 Contact Us For Availability
31
Support, Trim Ends WPL 1112763 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
31
Screw, 1/4-28 x 3/4 WPL 2000490 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
31
Water Tube (Inlet) WPL 2001150 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
32
Spacer, Lower Door Hinge WPL 2000854 Contact Us For Availability
32
Plunger, Extension WPL 1107457 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
33
Tube clamp WPL 2001266 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
33
``O`` Ring Seal WPL 488819 Contact Us For Availability
34
Ice Chute WPL 2000798 Contact Us For Availability
34
Process, Tube WPL 1113059 Contact Us For Availability
34
Grille Base, Front WPL 1112137 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Compression Nut WPL 488795 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
35
Wiring Harness, Door WPL 2001350 Contact Us For Availability
36
Cover, Fan WPL 2000853 Contact Us For Availability
36
Cover, Rear WPL 2000727 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Guiding, Ice (Black) WPL 1118269 Contact Us For Availability
37
Guiding, Ice (White) WPL 2147479 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
38
Glass Top (Black) WPL 1119056 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Glass Stop (White) WPL 2147480 Contact Us For Availability
38
Water Inlet Tube WPL 2001098 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
39
Grommet, Tube WPL 1112926 Contact Us For Availability
39
Screw (Chrome) WPL 488892 Contact Us For Availability
39
Screw (Black) WPL 489197 Contact Us For Availability
40
Seal Strip (2) WPL 2001503 Contact Us For Availability
40
Grommet (2) WPL 1113078 Contact Us For Availability
40
Screw WPL 488775 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
42
Grommet WPL 2000530 Contact Us For Availability
42
Front Cover, Housing (For Model KSSS36DAX00) WPL 1113366 Contact Us For Availability
42
Front Cover, Housing WPL 1113986 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
43
Screw (4) WPL 2000671 Contact Us For Availability
43
Water Tube (Outlet) WPL 2001153 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
44
Cover, Dispenser Opening WPL 1112836 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2001078 Contact Us For Availability
45
Trim, Front (2) WPL 2000067 Contact Us For Availability
45
Insert, Tube WPL 1129177 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Grille, Overflow (Chrome) WPL 983900 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Switch WPL 934316 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
49
Overlay, Cover WPL 1113381 Contact Us For Availability
52
``O` WPL 488794 Contact Us For Availability
55
WPL 482672 WPL 482672 Contact Us For Availability
100
Front Panel Kit (White) WPL 4210464 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4210469 Contact Us For Availability
100
Top Grille Trim Kit (8``) WPL 4210545 Contact Us For Availability
100
Top Grille Trim Kit (7-1/2``) WPL 4210546 Contact Us For Availability
100
Stainless Steel WPL 4210593 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4211168 Contact Us For Availability
100
Cleaner WPL 978849 Contact Us For Availability
× ![]()
