Model Whirlpool KSSP42QFW05 BUILT IN REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER CONTROL PANEL
07 - REFRIGERATOR SHELF

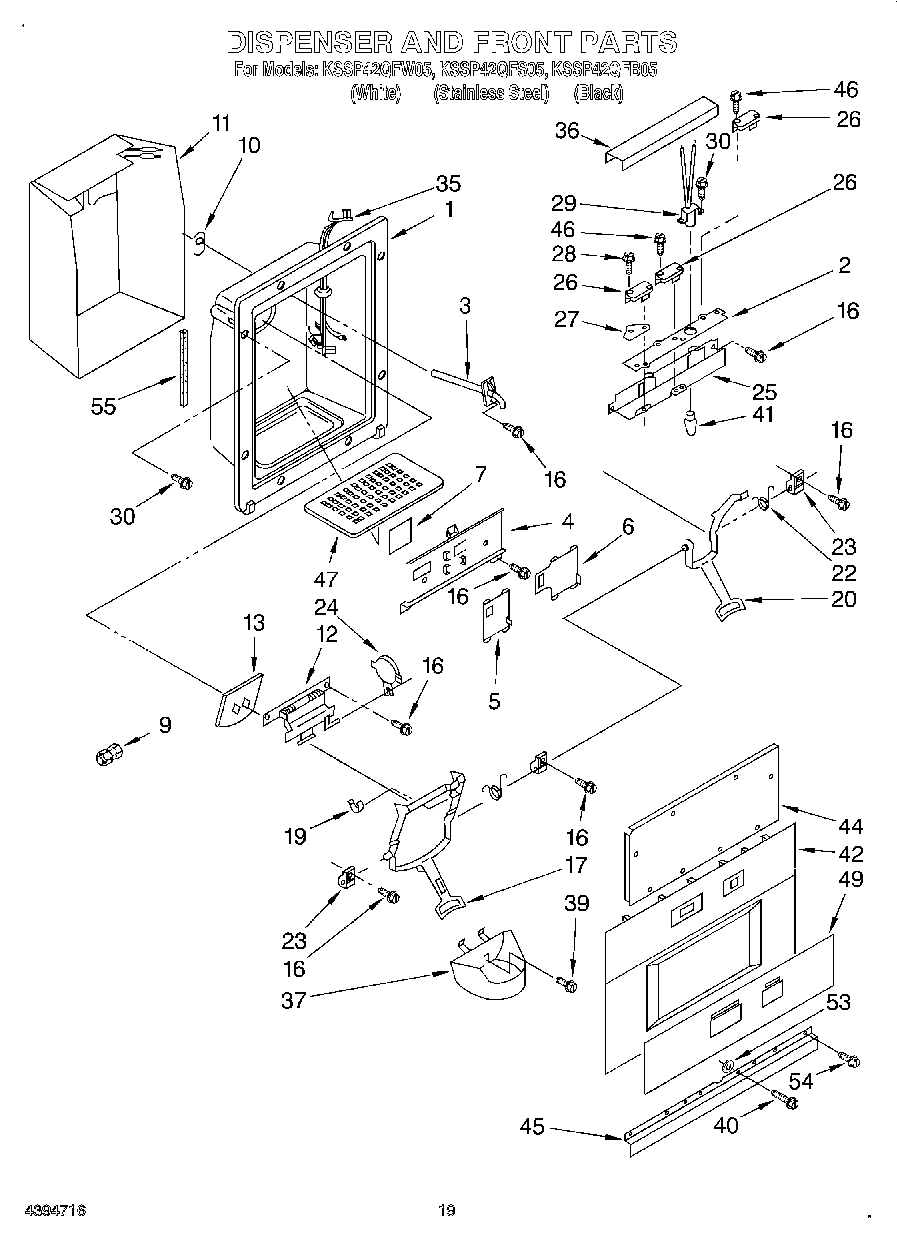

13 - DISPENSER FRONT

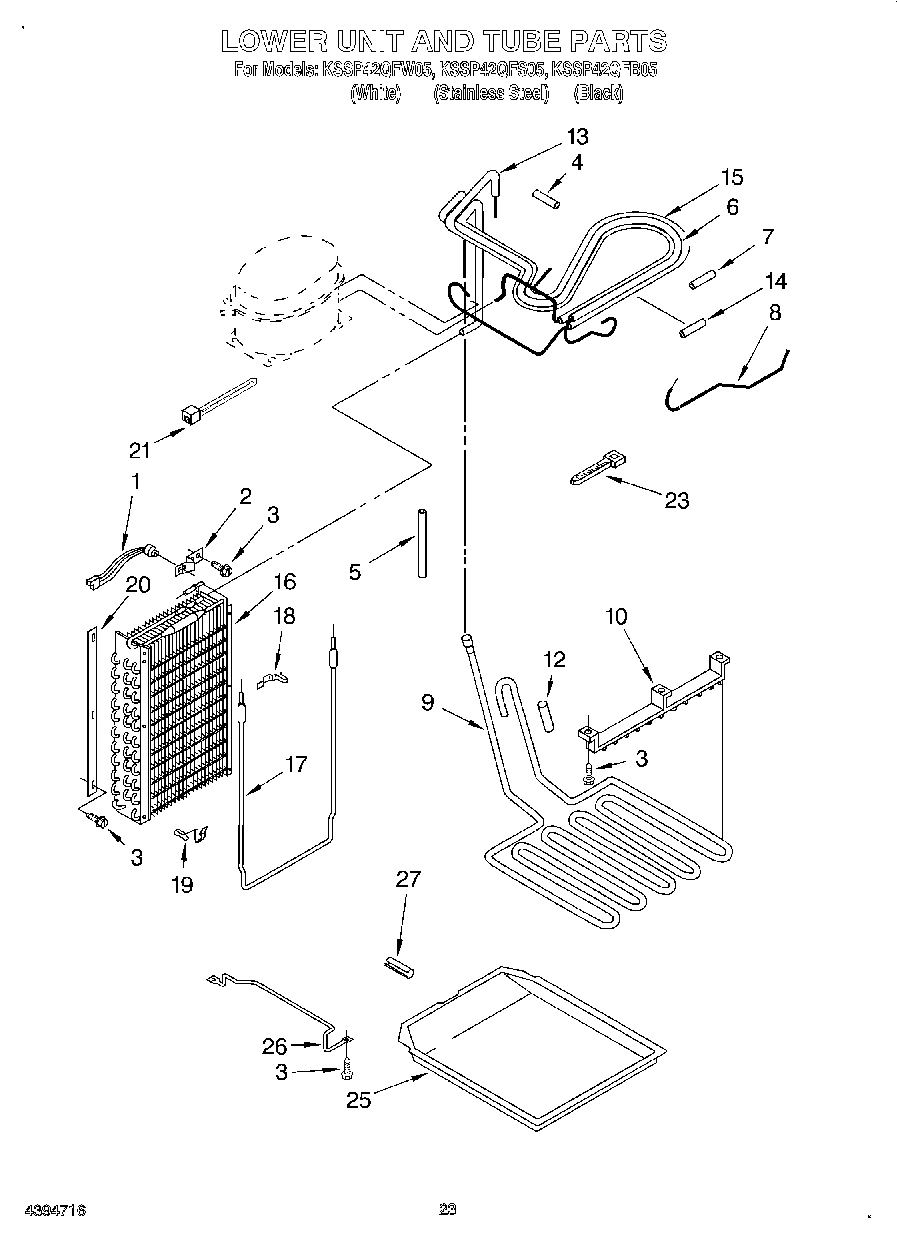

15 - LOWER UNIT AND TUBE

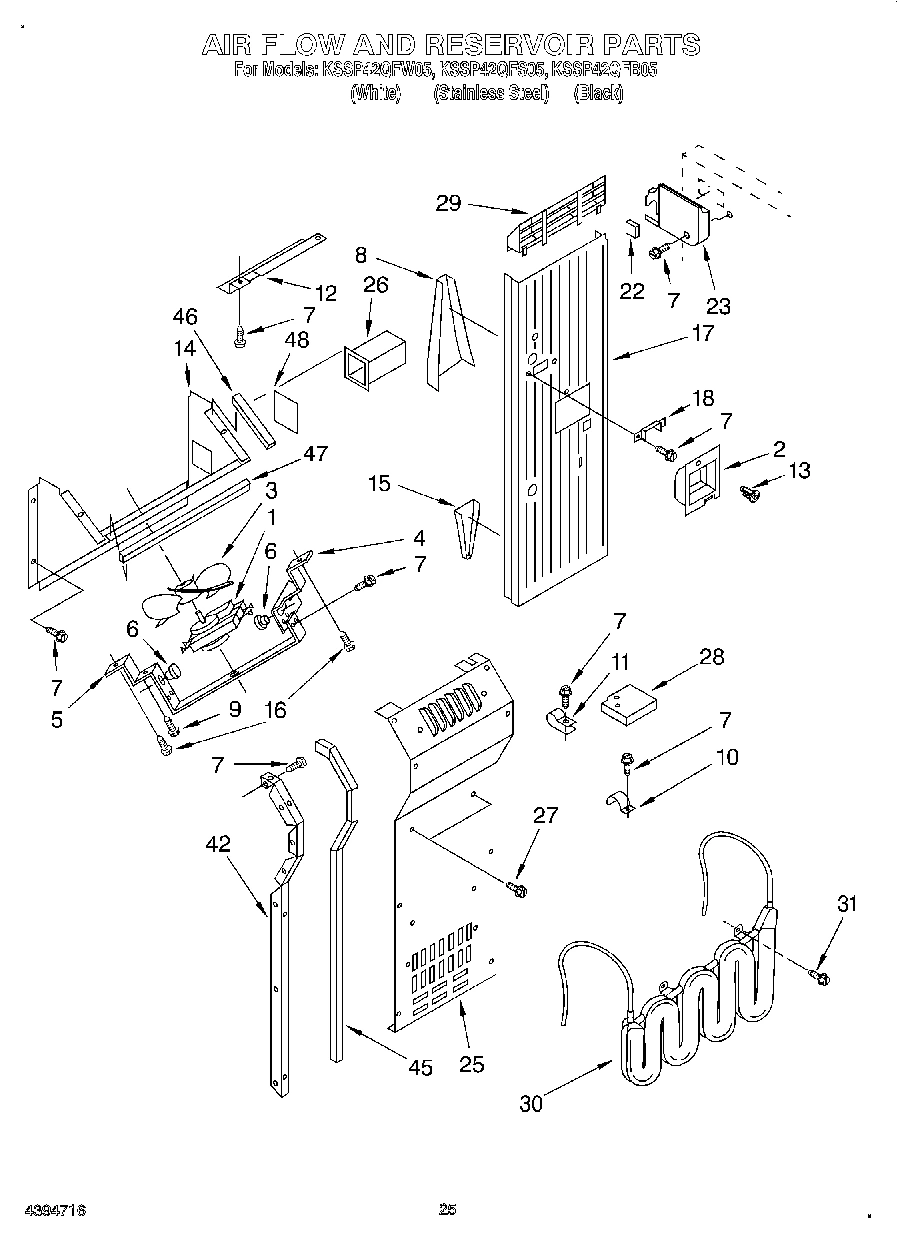

16 - AIR FLOW AND RESERVOIR

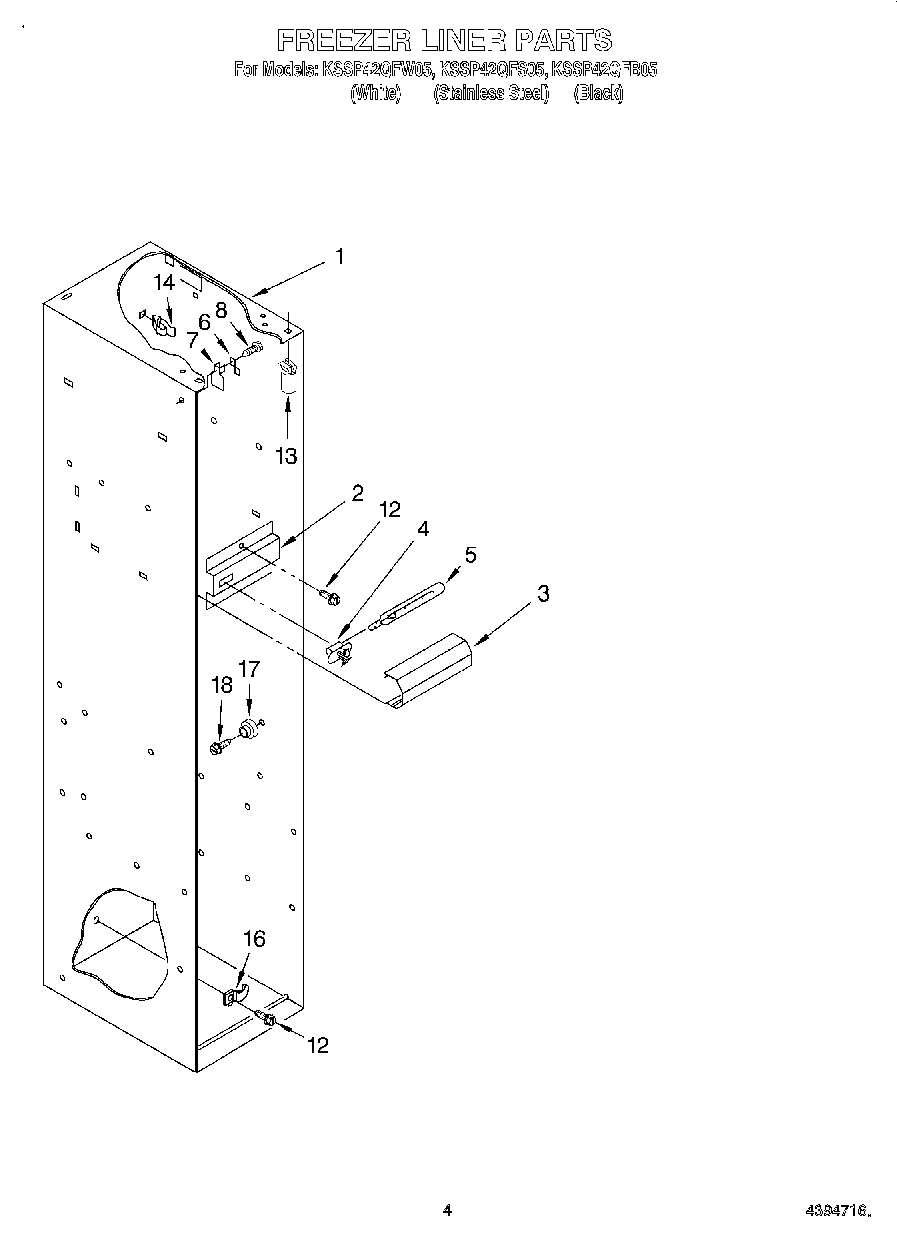

03 - FREEZER LINER

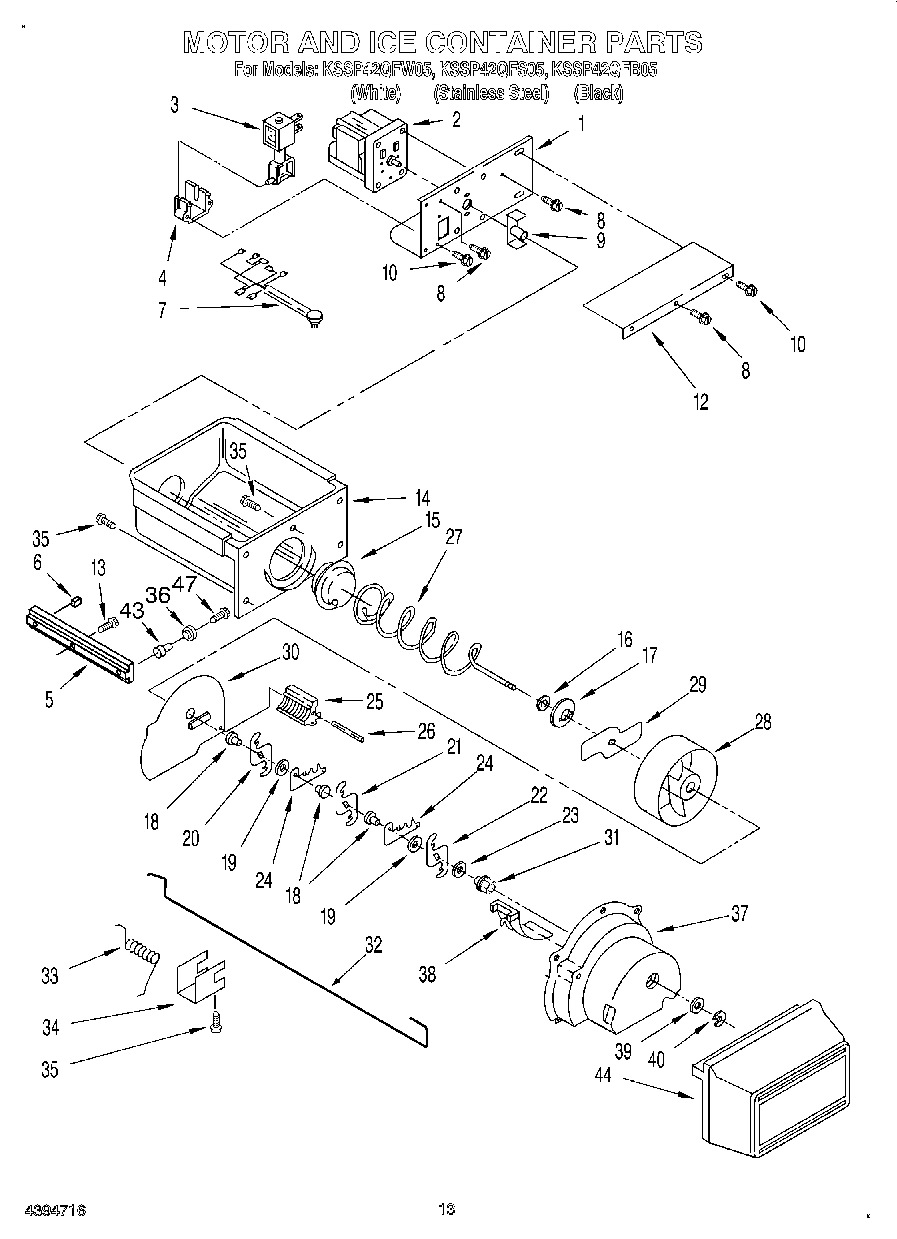

10 - MOTOR AND ICE CONTAINER
17 - ICEMAKER, LITERATURE

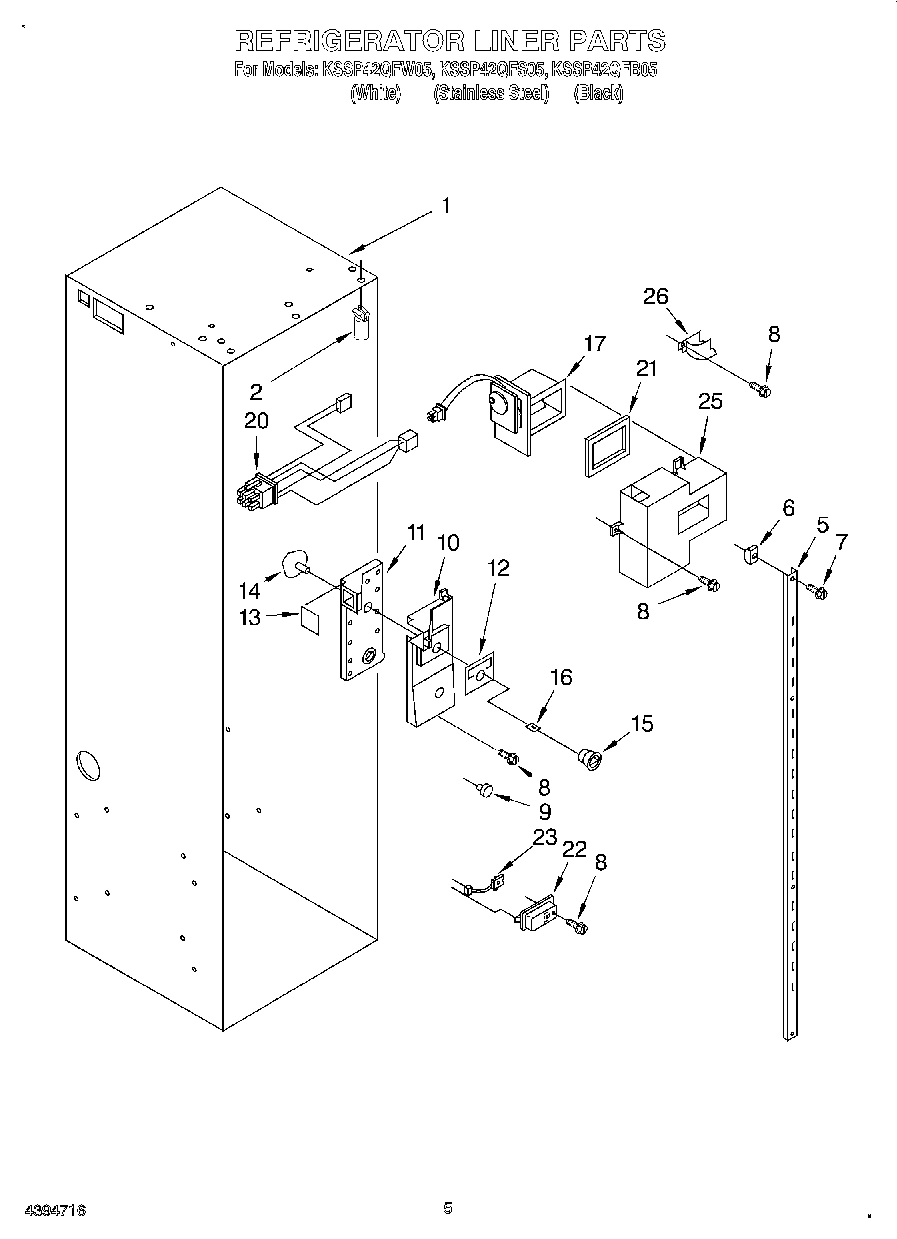

04 - REFRIGERATOR LINER

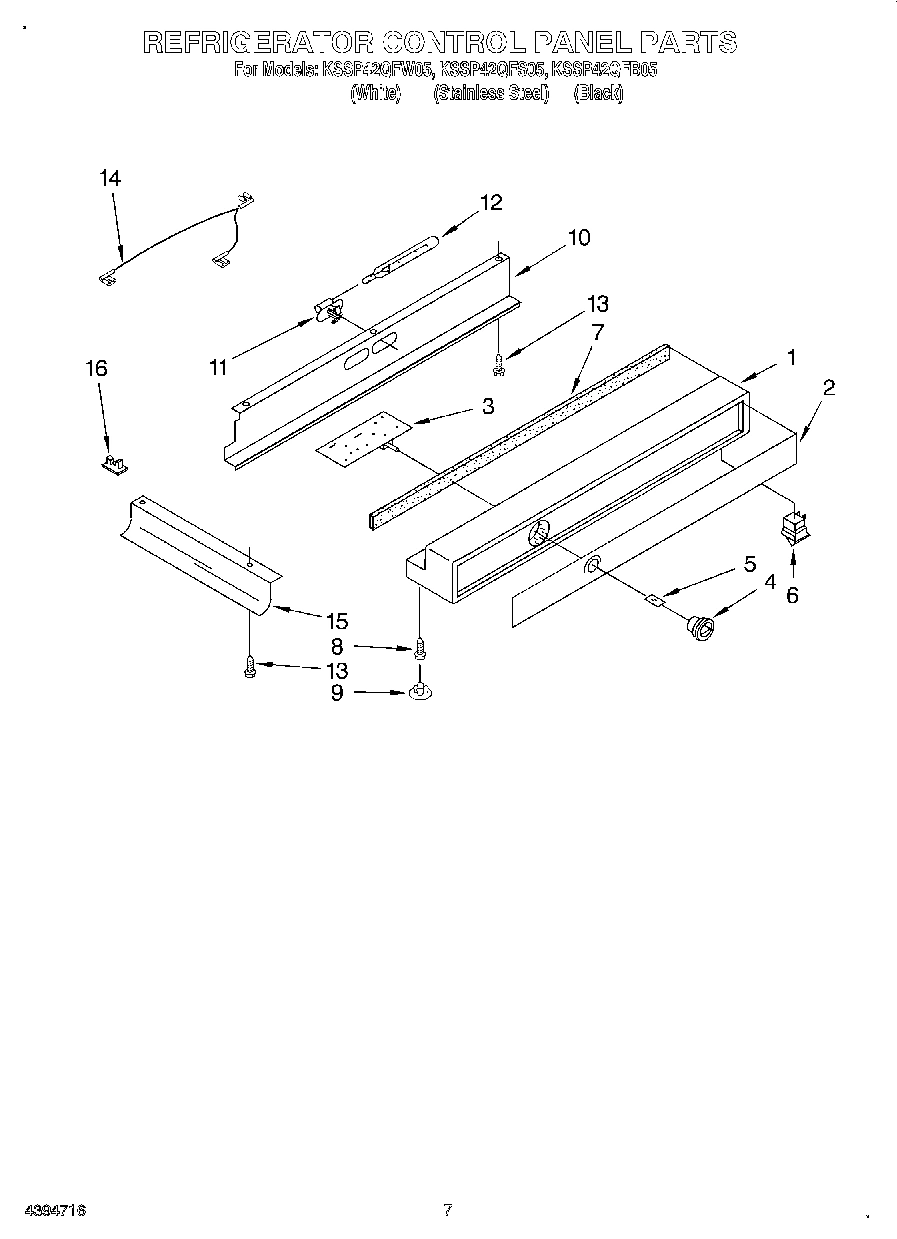

05 - REFRIGERATOR CONTROL PANEL

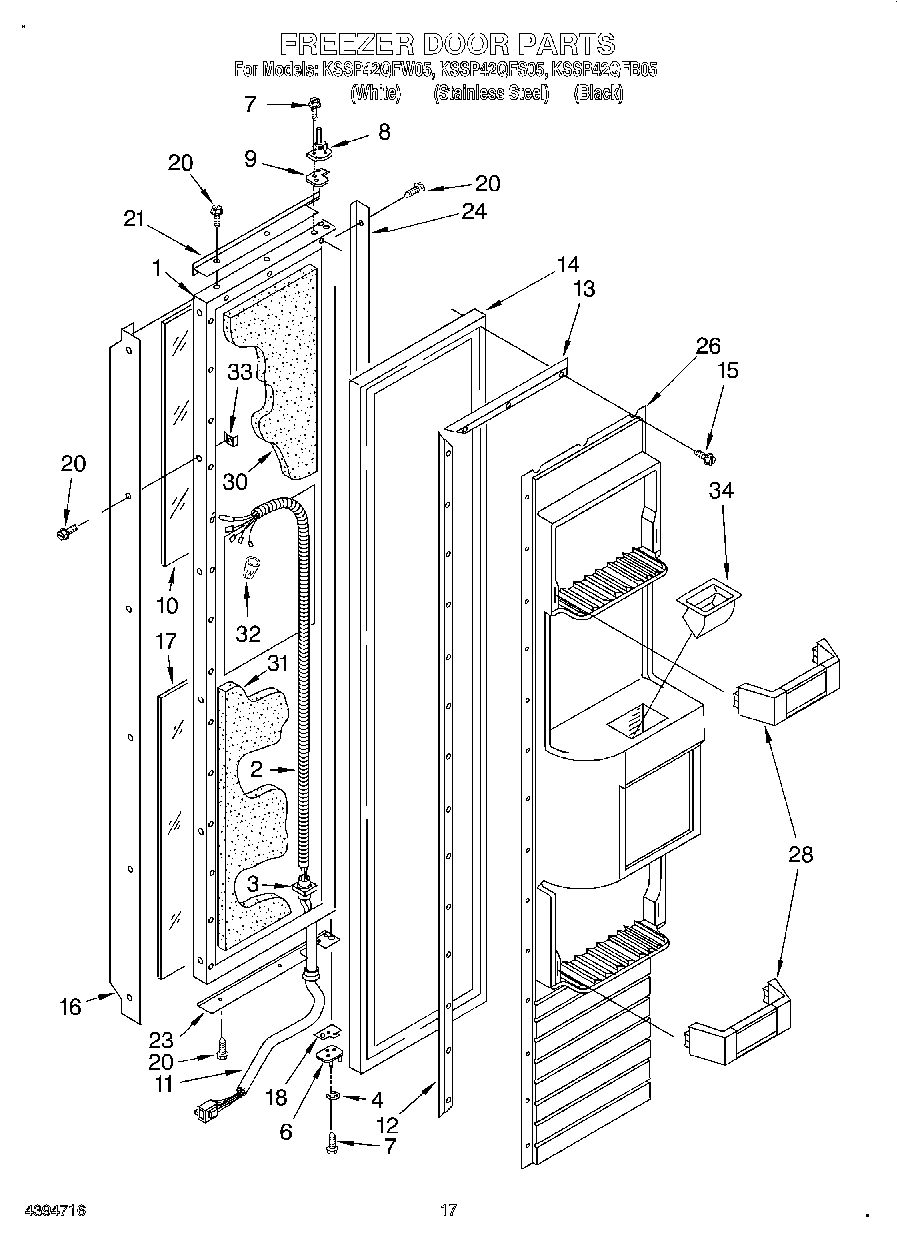

12 - FREEZER DOOR

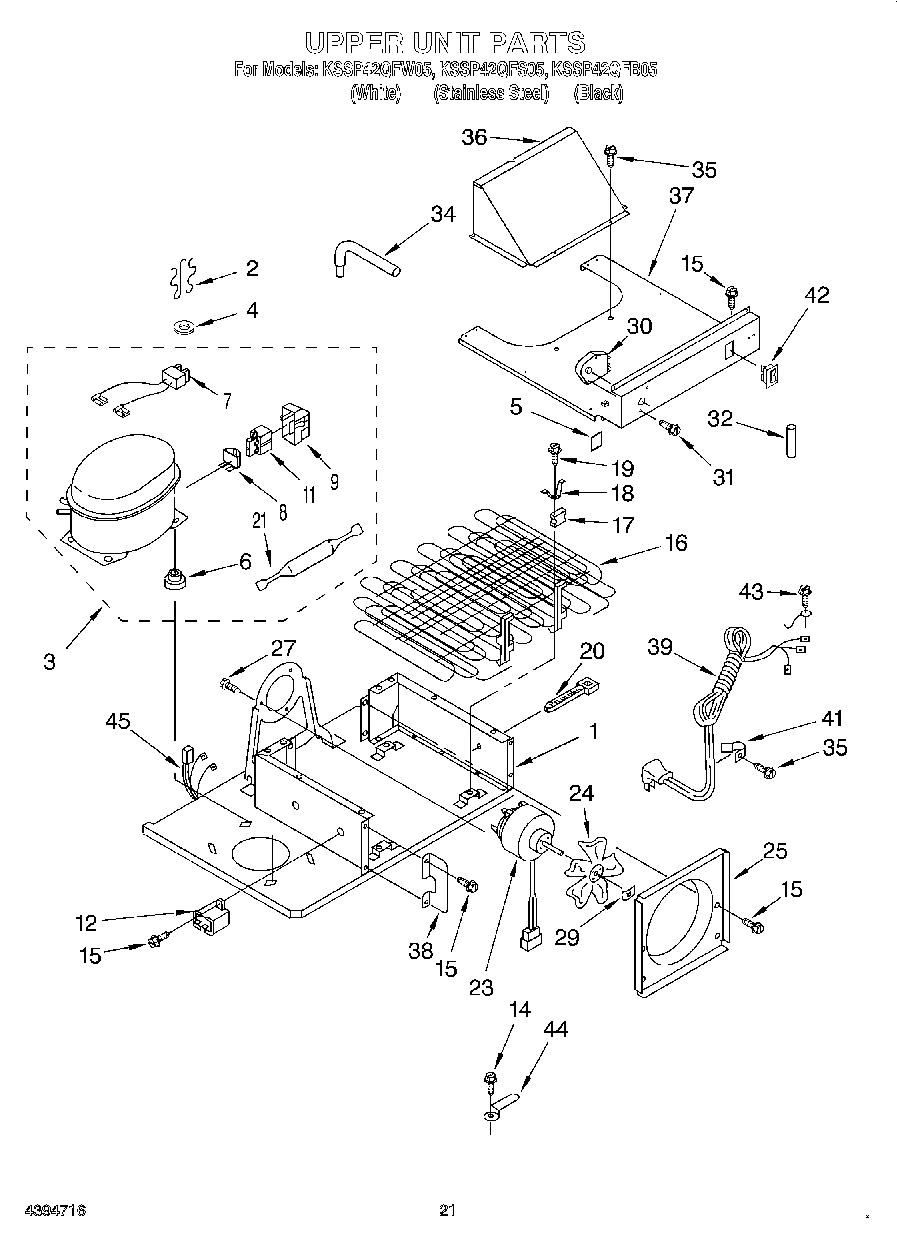

14 - UPPER UNIT

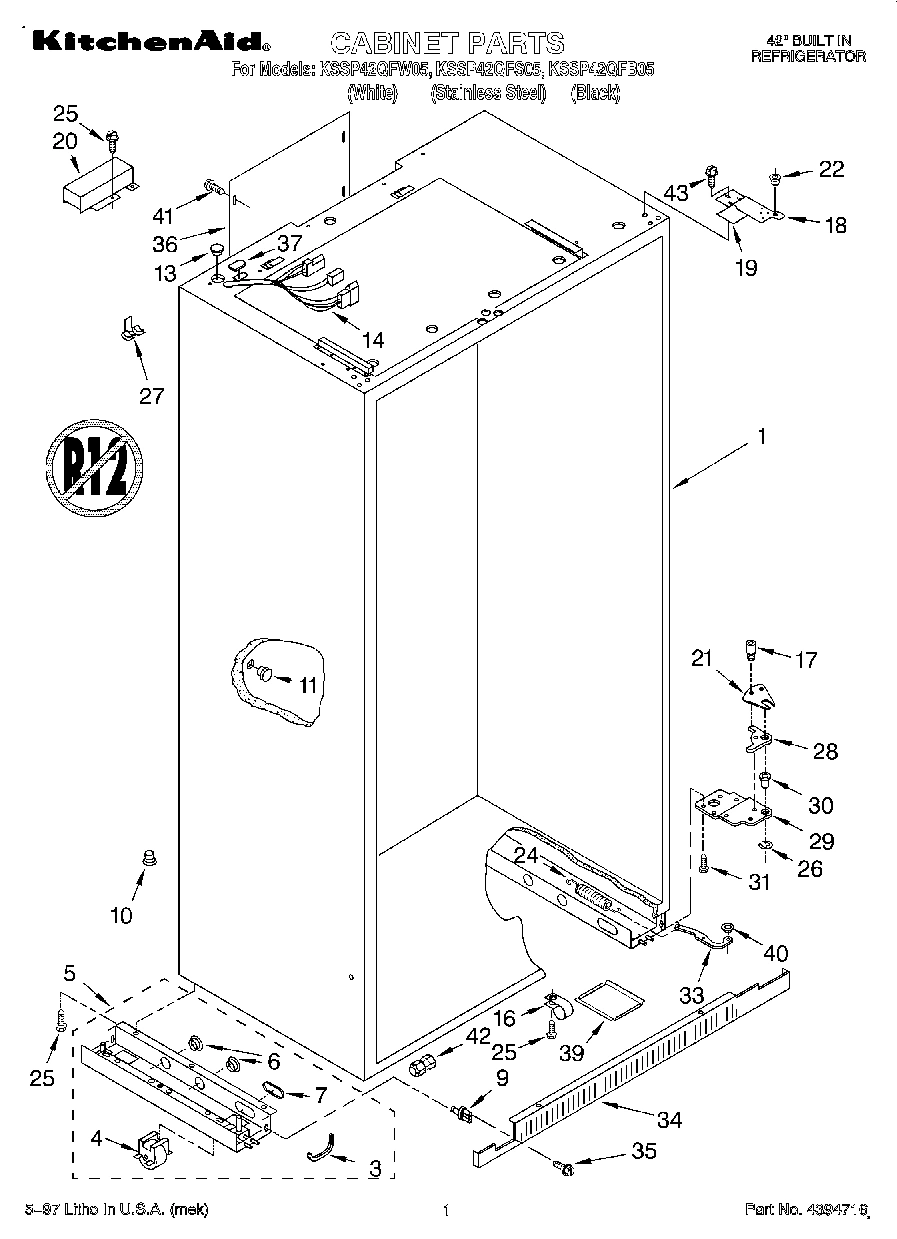

01 - CABINET

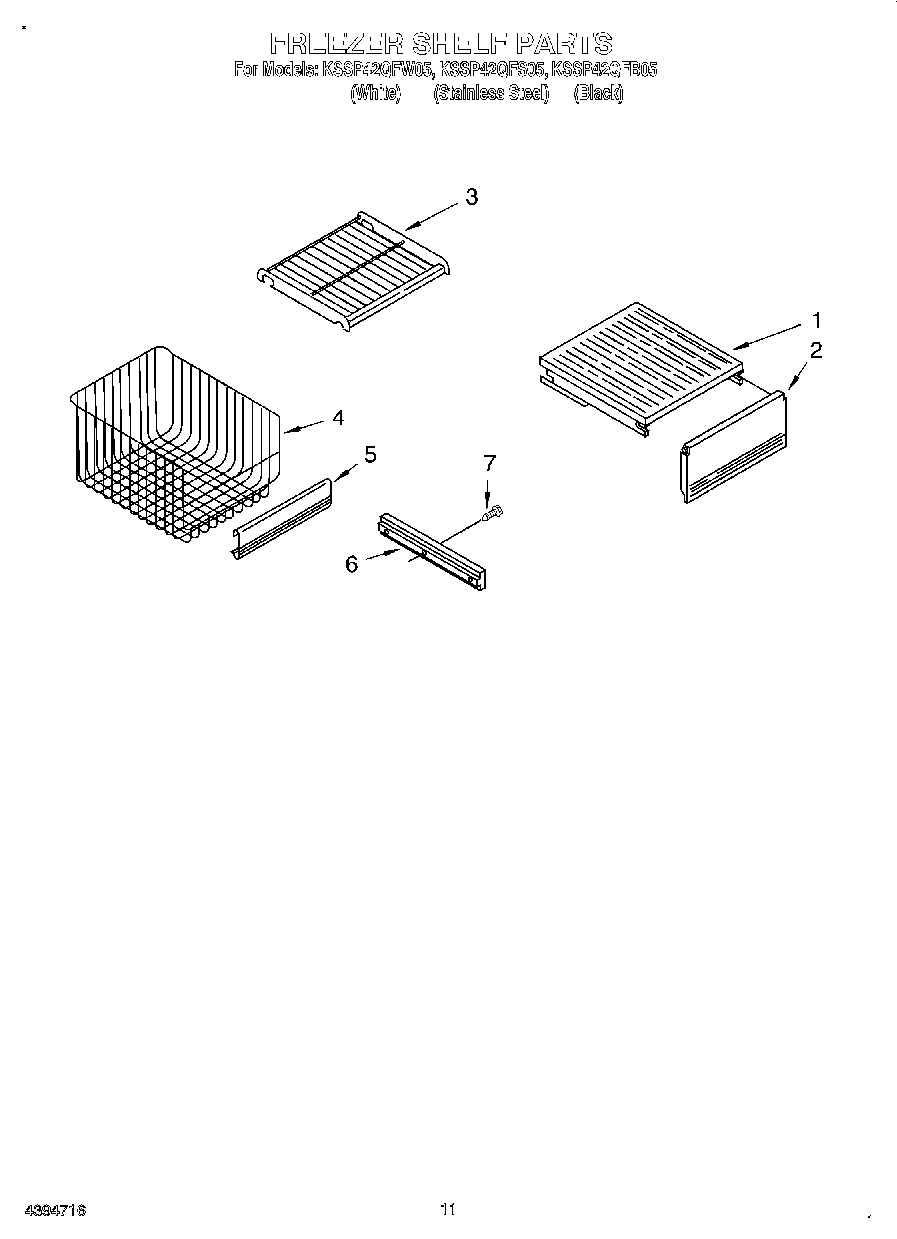

08 - FREEZER SHELF

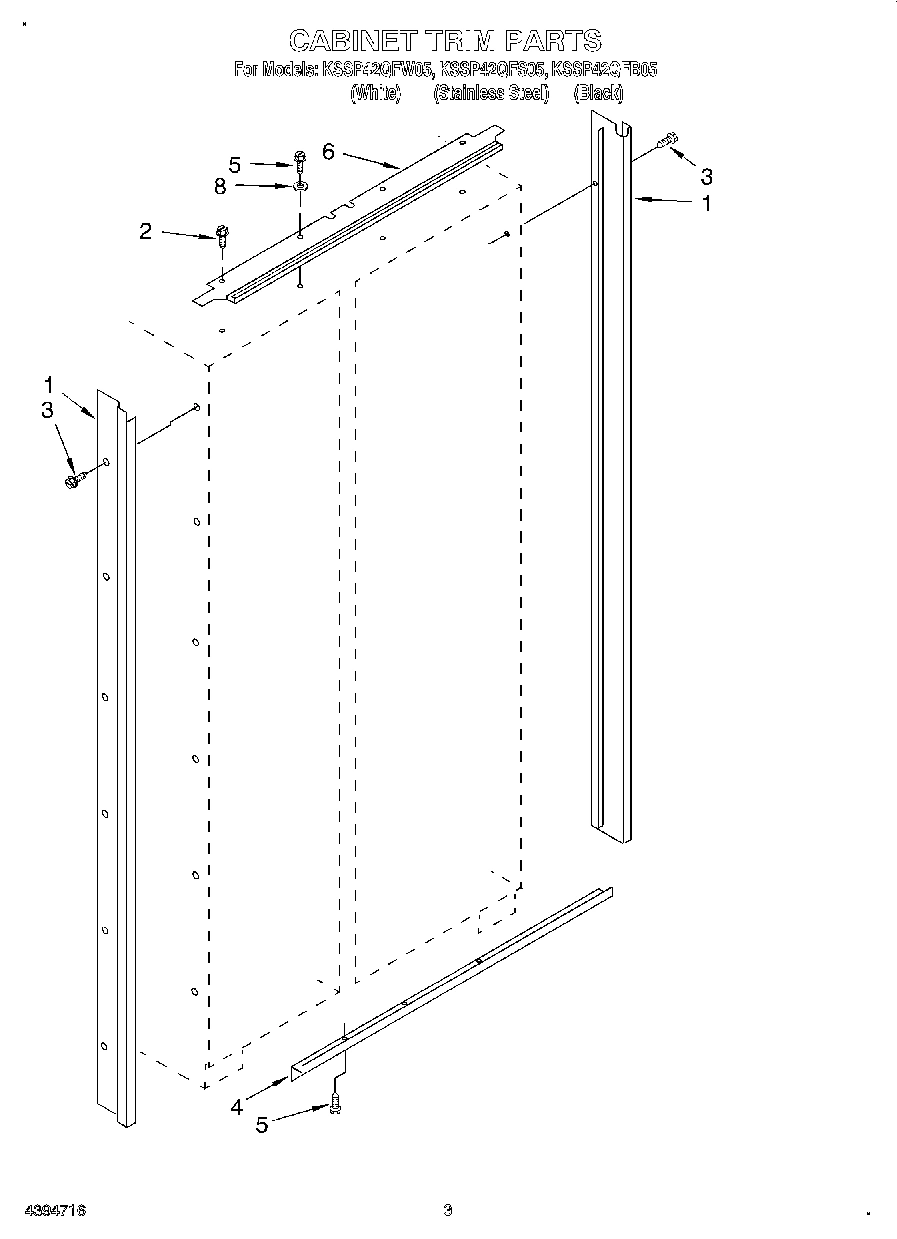

02 - CABINET TRIM

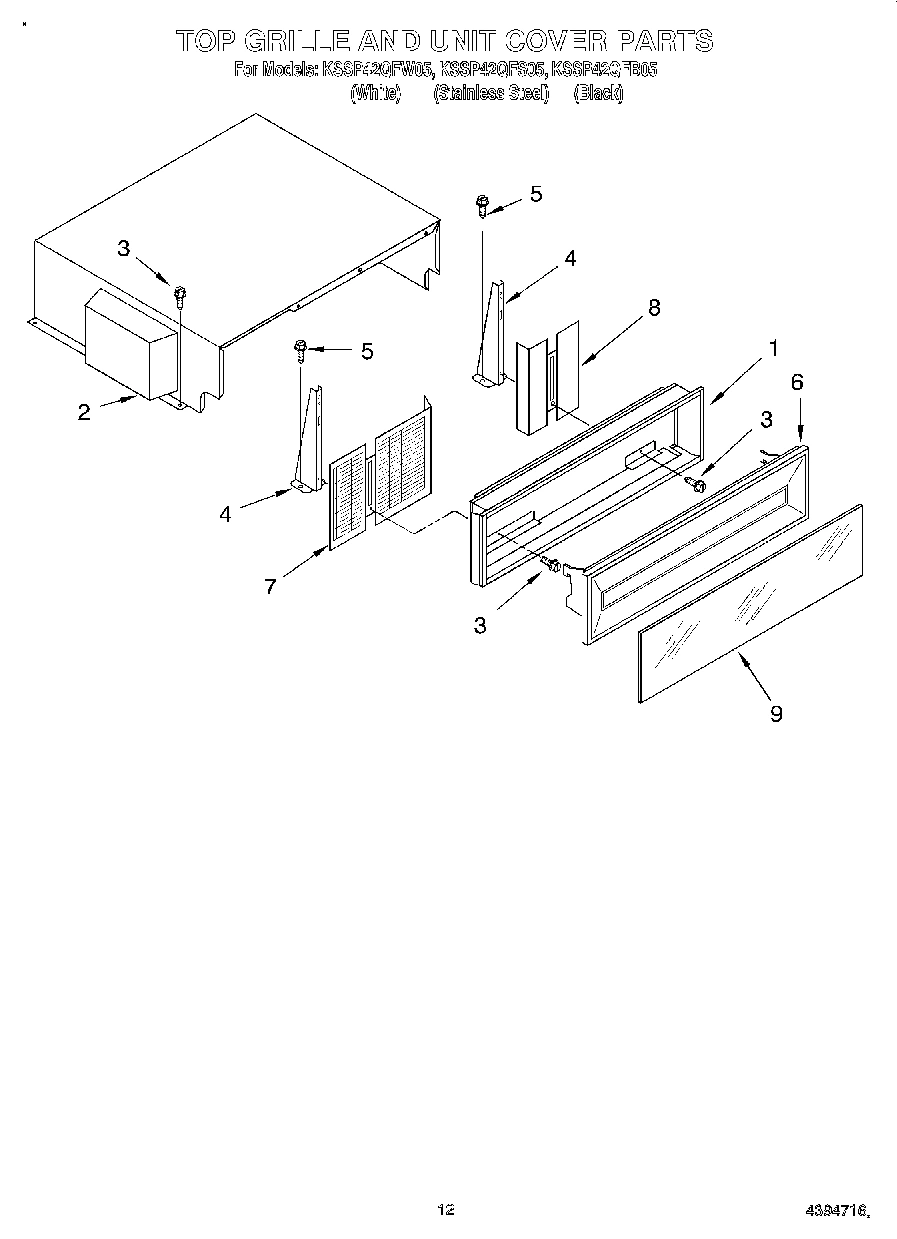

09 - TOP GRILLE AND UNIT COVER

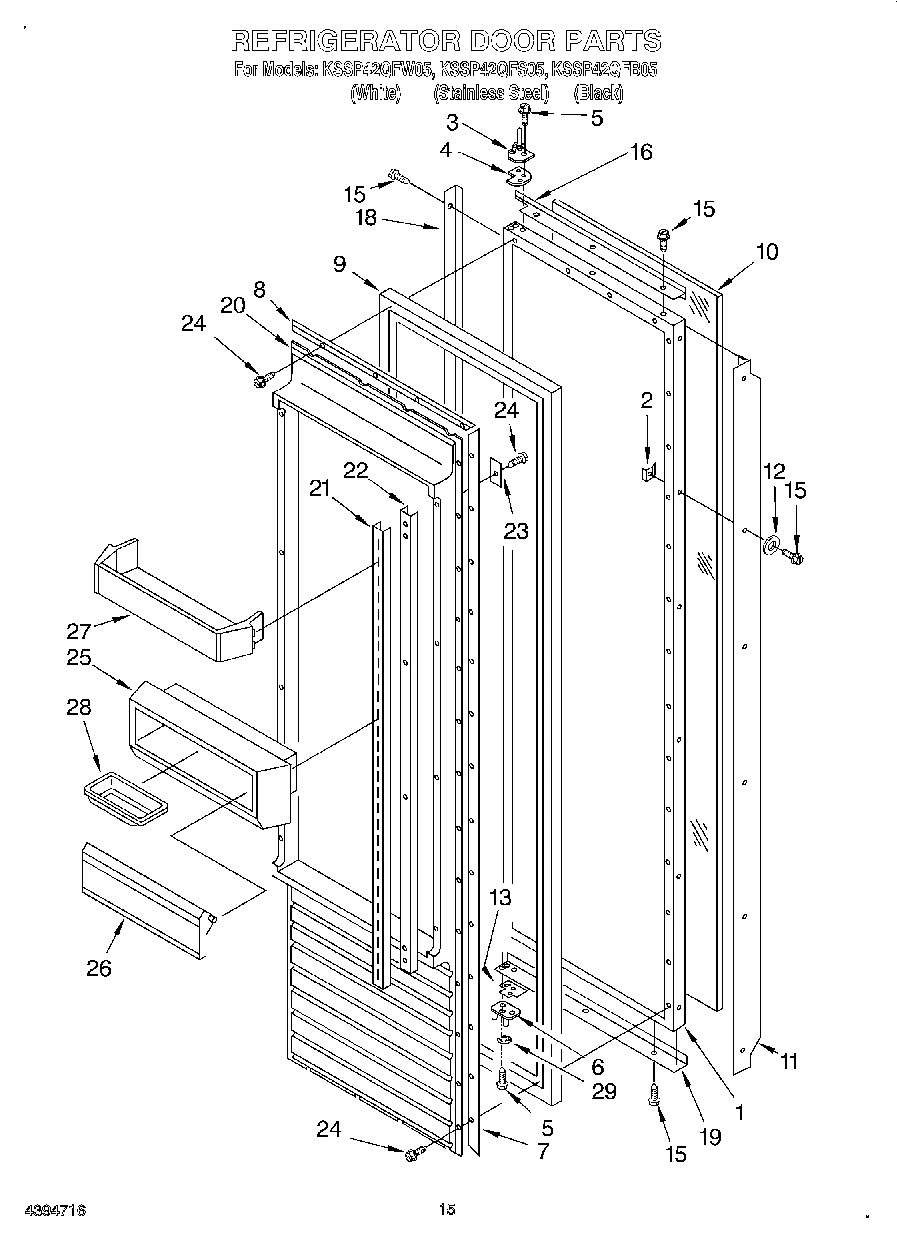

11 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSSP42QFW05 BUILT IN REFRIGERATOR
Use & Care Guide WPL LIT2004846 Contact Us For Availability
Service & Wiring Sheet WPL LIT2004863 Contact Us For Availability
Installation Instructions WPL LIT2004864 Contact Us For Availability
Energy Label WPL LIT2004990 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106242A Contact Us For Availability
1
Bracket, Motor WPL 2003940 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106243A Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 2004885 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI106241A Contact Us For Availability
1
Solid Shelf WPL 2003143 Contact Us For Availability
1
Cabinet, Trim (2) (Black Model) WPL 2004553 Contact Us For Availability
1
Cabinet, Trim (2) (Stainless Steel) WPL 2004621 Contact Us For Availability
1
Cabinet, Trim (2) (White) WPL 2004668 Contact Us For Availability
1
Top Grille Assembly (Black Models) WPL 2003714 Contact Us For Availability
1
Top Grille Assembly (White Models) WPL 2003717 Contact Us For Availability
1
Top Grille Assembly (Stainless Steel) WPL 2004956 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003871 Contact Us For Availability
2
Cup, Clearance WPL 2002732 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Inlay, Control Panel WPL 2003302 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Front, Ice Compartment WPL 2003134 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Cover, Unit WPL 2004946 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Soleniod Assembly WPL 2003979 Contact Us For Availability
3
Circuit Board WPL 2004005 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
3
Hinge Assembly, Top WPL 2004521 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
3
Shelf, Deep WPL 1113565 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113637 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Control Knob WPL 2003842 Contact Us For Availability
4
Spacer-Door, Top WPL 2004520 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Basket WPL 2001625 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2004537 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Retainer, Knob WPL 2003841 Contact Us For Availability
5
Bushing, Foam WPL 2003389 Contact Us For Availability
5
Trim, Basket WPL 2003113 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2004523 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Hinge, Bottom WPL 2004524 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2000061 Contact Us For Availability
6
Slide, Basket (Left Side) WPL 2000062 Contact Us For Availability
6
Trim, Cabinet Top WPL 2003646 Contact Us For Availability
6
Decortive Panel Assembly (Black Models) WPL 2003723 Contact Us For Availability
6
Decortive Panel Assembly (White Models) WPL 2003726 Contact Us For Availability
6
Decortive Panel Assembly (Stainless Steel Mod WPL 2004959 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2004006 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2005009 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2003480 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Deflector, Air Duct WPL 2003925 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Washer (2) WPL 487944 Contact Us For Availability
8
Guard, Water Valve Wiring WPL 2003482 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Mounting Stud, Grill WPL 2004852 Contact Us For Availability
9
Panel, Decorative (Black Models) WPL 4210610 Contact Us For Availability
9
Panel, Decorative (White Models) WPL 4210802 Contact Us For Availability
9
Panel, Decorative (Stainless Steel Models) WPL 4378757 Contact Us For Availability
10
Valve, Solenoid WPL 2003791 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
10
Shield, Control Panel WPL 1113774 Contact Us For Availability
10
Panel, Decorative Upper (White) WPL 4378738 Contact Us For Availability
10
Panel, Decorative Upper (Black) WPL 4378739 Contact Us For Availability
10
Panel, Decorative Upper (Stainless Steel) WPL 4378754 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Panel, Decorative (Black) WPL 4210600 Contact Us For Availability
10
Panel, Decorative (White) WPL 4210797 Contact Us For Availability
10
Panel, Decorative (Stainless Steel) WPL 4378756 Contact Us For Availability
11
Socket, Light (2) WPL 1112613 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2004924 Contact Us For Availability
11
Relay (See Overload) WPL ARI106244A Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Handle, Door (Black) WPL 2003679 Contact Us For Availability
11
Handle, Door (White) WPL 2003680 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2004636 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Channel, Wiring WPL 2001145 Contact Us For Availability
12
Cover, Motor WPL 1113129 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Fastner WPL 1112871 Contact Us For Availability
13
Water Valve, Harness WPL 2004547 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
13
Door, Spacer Bottom WPL 2004549 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
14
Ice Container WPL 2002726 Contact Us For Availability
14
Insert, Tube WPL 1129177 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Wire, Light WPL 2003758 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2004912 Contact Us For Availability
15
Heat Exchanger WPL 2003002 Contact Us For Availability
15
Deflector, Air Duct WPL 2003928 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Screw (White) WPL 2001208 Contact Us For Availability
16
Eyelet, Roller WPL 2174478 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Handle, Door (Black) WPL 2003681 Contact Us For Availability
16
Handle, Door (White) WPL 2003682 Contact Us For Availability
16
Handle, Door (Stainless Steel) WPL 2004637 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
16
Trim (Top) (Black) WPL 2005011 Contact Us For Availability
16
Trim (Top) (White) WPL 2005014 Contact Us For Availability
16
Trim (Top) (Stainless Steel) WPL 2005017 Contact Us For Availability
17
Assembly, Air Duct WPL 2004906 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Panel, Decorative Lower (Black) WPL 4210604 Contact Us For Availability
17
Panel, Decorative Lower (White) WPL 4210799 Contact Us For Availability
17
Panel, Decorative Lower (Stainless Steel) WPL 4378755 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2001975 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2001976 Contact Us For Availability
18
Trim (Side) (Black) WPL 2003675 Contact Us For Availability
18
Trim (Side) (White) WPL 2003676 Contact Us For Availability
18
Trim (Side) (Stainless Steel) WPL 2004634 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Trim (Bottom) (Black) WPL 2003664 Contact Us For Availability
19
Trim (Bottom) (White) WPL 2003667 Contact Us For Availability
19
Trim (Bottom) (Stainless Steel) WPL 2004629 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Wire Tie (2) WPL 851095 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Trim (Top) (Black) WPL 2005020 Contact Us For Availability
21
Trim (Top) (White) WPL 2005023 Contact Us For Availability
21
Trim (Top) (Stainless Steel) WPL 2005026 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Cover, Air Outlet WPL 2003576 Contact Us For Availability
23
Trim (Bottom) (Black) WPL 2004561 Contact Us For Availability
23
Trim (Bottom) (Stainless Steel) WPL 2004632 Contact Us For Availability
23
Trim (Bottom) (White) WPL 2004670 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Trim (Side) (Black) WPL 2003677 Contact Us For Availability
24
Trim (Side) (White) WPL 2003678 Contact Us For Availability
24
Trim (Side) (Stainless Steel) WPL 2004635 Contact Us For Availability
24
Spring, Door Closure (Refrigerator Side) WPL 2004566 Contact Us For Availability
24
Spring, Door Closure (Freezer Side) WPL 2004567 Contact Us For Availability
25
Cover, Evaporator WPL 2005036 Contact Us For Availability
25
Air Baffle Cover WPL 2003578 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000795 Contact Us For Availability
26
Panel, Interior Door WPL 2002839 Contact Us For Availability
26
Door, Utility Bin WPL 2003464 Contact Us For Availability
27
Insulation, Switch WPL 625834 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Door Shelf (4) WPL 2003131 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2004867 Contact Us For Availability
28
Tray, Butter WPL 2165792 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112852 Contact Us For Availability
29
Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability
30
Insulation, Upper WPL 2005061 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
31
Insulation, Lower WPL 2005062 Contact Us For Availability
32
Control Arm WPL 2002728 Contact Us For Availability
32
Wire Connector WPL 547217 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
33
Linkage, Door Closure WPL 2004516 Contact Us For Availability
34
Ice Chute WPL 2002733 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
34
Grille Base, Front (Stainless Steel and Black WPL 2004531 Contact Us For Availability
34
Grille Base, Front (White) WPL 2004534 Contact Us For Availability
35
Screw WPL 489238 Contact Us For Availability
36
Roller WPL 2174388 Contact Us For Availability
36
Heater, Fill Tube WPL 2005034 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
36
Cover, Rear WPL 2004512 Contact Us For Availability
37
Guiding, Ice (White Models) WPL 1124730 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
37
Cover, Condenser WPL 2003355 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Air Vane WPL 2003263 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
39
Cup, Wiring WPL 2004595 Contact Us For Availability
40
Bushing, Door Closure WPL 2004565 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Screw WPL 489387 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
44
Front Cover, Ice Container WPL 2002723 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
100
Complete Ice Container Assembly WPL 2002926 Contact Us For Availability
100
Front Panel Kit (White) WPL 4378651 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4378654 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4378657 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4378660 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
