Model Whirlpool KSSP36QFB05 BUILT IN REFRIGERATOR – Common Parts & Diagrams

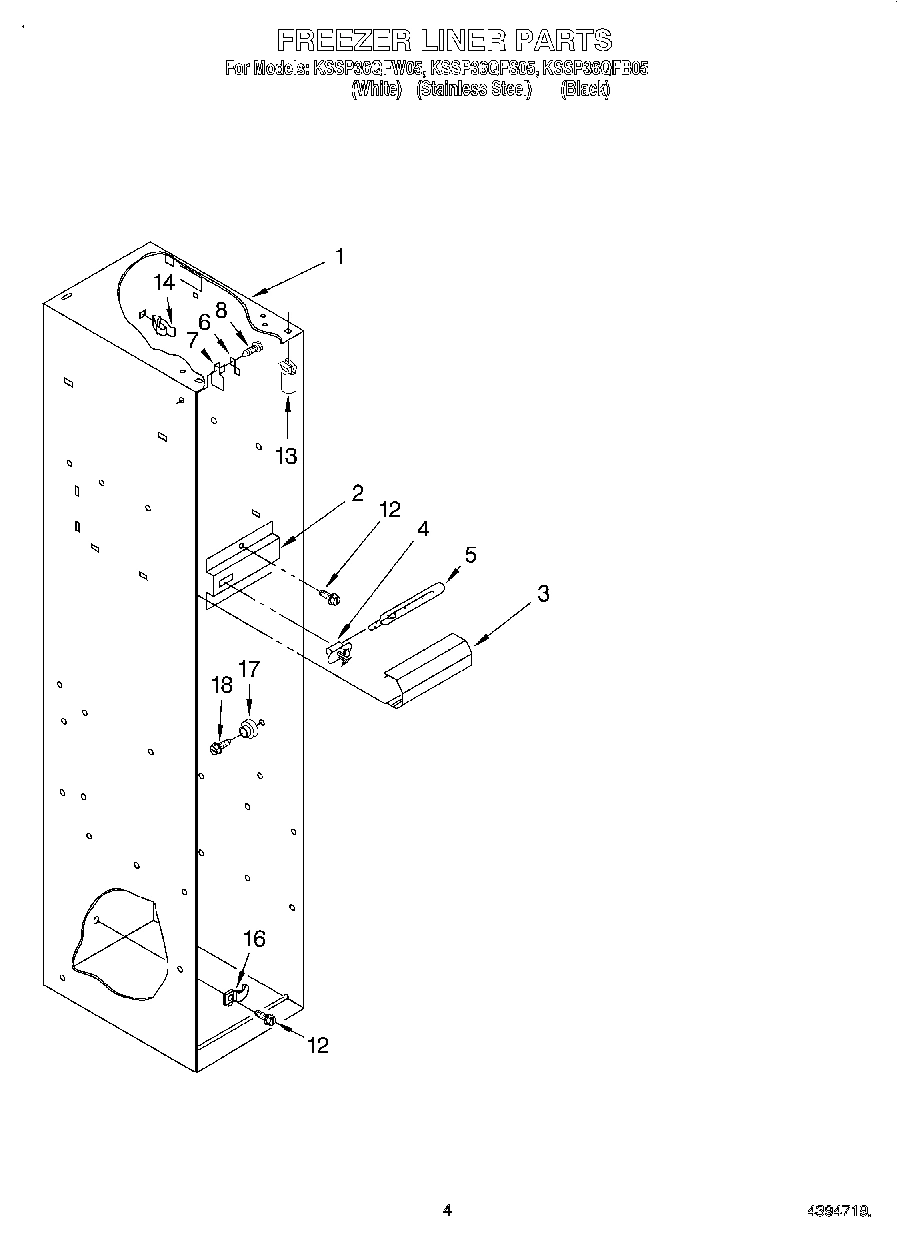

03 - FREEZER LINER

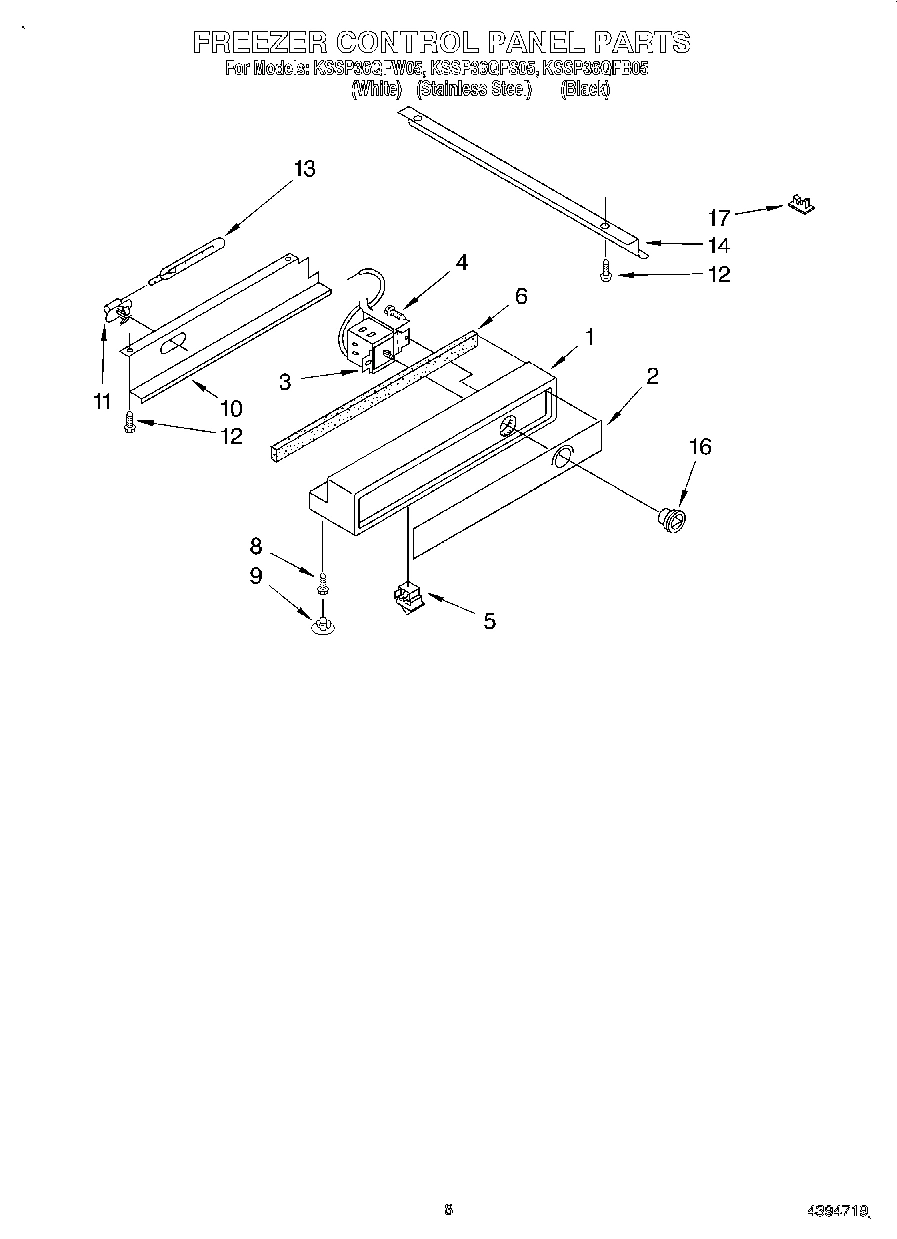

06 - FREEZER CONTROL PANEL
12 - FREEZER DOOR
14 - UPPER UNIT
02 - CABINET TRIM
07 - REFRIGERATOR SHELF
09 - TOP GRILLE AND UNIT COVER
10 - MOTOR AND ICE CONTAINER
17 - ICEMAKER, LIT/OPTIONAL
04 - REFRIGERATOR LINER
05 - REFRIGERATOR CONTROL PANEL
11 - REFRIGERATOR DOOR
13 - DISPENSER FRONT
01 - CABINET
08 - FREEZER SHELF
15 - LOWER UNIT AND TUBE
16 - AIR FLOW AND RESERVOIR
Common parts from model Whirlpool KSSP36QFB05 BUILT IN REFRIGERATOR
Use & Care Guide WPL LIT2004846 Contact Us For Availability
Service & Wiring Sheet WPL LIT2004863 Contact Us For Availability
Installation Instructions WPL LIT2004864 Contact Us For Availability
Energy Label WPL LIT2004989 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Cabinet, Trim (2) (Black) WPL 2004553 Contact Us For Availability
1
Cabinet, Trim (2) (Stainless Steel) WPL 2004621 Contact Us For Availability
1
Cabinet, Trim (2) (White) WPL 2004668 Contact Us For Availability
1
Frame, Shelf WPL 2174402 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2003713 Contact Us For Availability
1
Top Grille Assembly (White Model) WPL 2003716 Contact Us For Availability
1
Top Grille Assembly (Stainless Steel) WPL 2004955 Contact Us For Availability
1
Bracket, Motor WPL 2003939 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106096A Contact Us For Availability
1
Control Panel WPL 1112640 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003870 Contact Us For Availability
1
Housing, Dispenser (Stainless Steel and Black WPL 1107943 Contact Us For Availability
1
Housing, Dispenser (White Model) WPL 1124715 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI106094A Contact Us For Availability
1
Solid Shelf WPL 2003142 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Glass, Shelf WPL 2003375 Contact Us For Availability
2
Cover, Unit WPL 2004946 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Inlay, Control Panel WPL 2003301 Contact Us For Availability
2
Insulator, Bracket Control WPL 2147164 Contact Us For Availability
2
Front, Ice Compartment WPL 2003133 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Cup, Clearance WPL 2002732 Contact Us For Availability
3
Reflector, Shelf WPL 1113546 Contact Us For Availability
3
Soleniod Assembly WPL 2003979 Contact Us For Availability
3
Circuit Board WPL 2004005 Contact Us For Availability
3
Hinge Assembly, Top WPL 2004521 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
3
Shelf, Fixed (1) WPL 1113564 Contact Us For Availability
3
Shelf, Deep (2) WPL 1113636 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2004536 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113790 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Control Knob WPL 2003842 Contact Us For Availability
4
Spacer-Door, Top WPL 2004520 Contact Us For Availability
4
Frame, Slides (Stainless Steel and Black Mode WPL 2152716 Contact Us For Availability
4
Frame, Slides (White Models) WPL 2152717 Contact Us For Availability
4
Basket WPL 2001551 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
5
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Retainer, Knob WPL 2003841 Contact Us For Availability
5
Slide, Cube/Crush Switch (Stainless Steel and WPL 2152719 Contact Us For Availability
5
Slide, Cube/Crush Switch (White Model) WPL 2152720 Contact Us For Availability
5
Trim, Basket WPL 2003112 Contact Us For Availability
5
Sleeve WPL 2002171 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2004523 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
6
Decortive Panel Assembly (Black) WPL 2003722 Contact Us For Availability
6
Decortive Panel Assembly (White) WPL 2003725 Contact Us For Availability
6
Decortive Panel Assembly (Stainless Steel) WPL 2004958 Contact Us For Availability
6
Slide, Light Switch (Stainless Steel and Blac WPL 2152724 Contact Us For Availability
6
Slide, Light Switch (White Model) WPL 2152726 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2000061 Contact Us For Availability
6
Slide, Basket (Left Side) WPL 2000062 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2003325 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2003480 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2004006 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2005009 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Seal, Control Panel WPL 1113133 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Heat Shield, Frame WPL 2147172 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Guard, Water Valve Wiring WPL 2003481 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Deflector, Air Duct WPL 2003924 Contact Us For Availability
9
Cover, Crisper WPL 1113893 Contact Us For Availability
9
Panel, Decorative Acrylic (Black) WPL 4210650 Contact Us For Availability
9
Panel, Decorative Acrylic (Stainless Steel) WPL 4210710 Contact Us For Availability
9
Panel, Decorative Acrylic (White) WPL 4210796 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Mounting Stud, Grill WPL 2004852 Contact Us For Availability
10
Glass, Crisper WPL 2003378 Contact Us For Availability
10
Valve, Solenoid WPL 2003791 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
10
Shield, Control Panel WPL 1113773 Contact Us For Availability
10
Panel, Decorative (Black) WPL 4210535 Contact Us For Availability
10
Panel, Decorative (White) WPL 4210790 Contact Us For Availability
10
Panel, Decorative (Stainless Steel) WPL 4378750 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Socket, Light (2) WPL 1112613 Contact Us For Availability
11
Handle, Door (Black) WPL 2003679 Contact Us For Availability
11
Handle, Door (White) WPL 2003680 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2004636 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2149097 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Cover, Motor WPL 1113128 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
12
Sleeve WPL 2002448 Contact Us For Availability
12
Channel, Wiring WPL 2001145 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Water Valve, Harness WPL 2004547 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Door, Spacer Bottom WPL 2004549 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
13
Fastner WPL 1112871 Contact Us For Availability
14
Crisper Pan (2) WPL 2003315 Contact Us For Availability
14
Ice Container WPL 2002725 Contact Us For Availability
14
Insert, Tube WPL 1129177 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Wire, Light WPL 2003758 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2004911 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
15
Heat Exchanger WPL 2003001 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Screw (White) WPL 2001208 Contact Us For Availability
15
Deflector, Air Duct WPL 2003927 Contact Us For Availability
16
Eyelet, Roller WPL 2174478 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Trim (Top) (Black) WPL 2005010 Contact Us For Availability
16
Trim (Top) (White) WPL 2005013 Contact Us For Availability
16
Trim (Top) (Stainless Steel) WPL 2005016 Contact Us For Availability
17
Heater, Defrost WPL 2000630 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Lever, Ice Dispenser (White Model) WPL 1124718 Contact Us For Availability
17
Lever, Ice Dispenser (Stainless Steel and Bla WPL 1127421 Contact Us For Availability
17
Assembly, Air Duct (Also Order Items 8 & 15) WPL 2004905 Contact Us For Availability
18
Trim (Side) (Black) WPL 2003675 Contact Us For Availability
18
Trim (Side) (White) WPL 2003676 Contact Us For Availability
18
Trim (Side) (Stainless Steel) WPL 2004634 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2001975 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2001976 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim (Bottom) (Black) WPL 2003663 Contact Us For Availability
19
Trim (Bottom) (White) WPL 2003666 Contact Us For Availability
19
Trim (Bottom) (Stainless Steel) WPL 2004628 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
20
Meat Pan WPL 2003320 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Panel, Interior Door WPL 1113952 Contact Us For Availability
20
Lever, Water Dispenser (Stainless Steel and B WPL 2159196 Contact Us For Availability
20
Lever, Water Dispenser (White Model) WPL 2159197 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Cover, Air Outlet WPL 2003576 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Spring, Door Closure WPL 2004567 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Air Baffle Cover WPL 2003578 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Bracket, Control WPL 2147163 Contact Us For Availability
25
Cover, Evaporator WPL 2005035 Contact Us For Availability
26
Door, Utility Bin WPL 2003463 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000797 Contact Us For Availability
27
Insulation, Switch WPL 625834 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Door Shelf (4) WPL 2003130 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
28
Tray, Butter WPL 2165792 Contact Us For Availability
28
Screw WPL 488361 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2004867 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
29
Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Control Arm WPL 2002728 Contact Us For Availability
33
Linkage, Door Closure WPL 2004516 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
34
Grille Base, Front (Stainless Steel and Black WPL 2004530 Contact Us For Availability
34
Grille Base, Front (White) WPL 2004533 Contact Us For Availability
35
Wiring Harness, Door WPL 2147166 Contact Us For Availability
35
Screw WPL 489238 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
36
Roller WPL 2174388 Contact Us For Availability
36
Heater, Fill Tube WPL 2005034 Contact Us For Availability
36
Shield, Wiring WPL 2147165 Contact Us For Availability
36
Cover, Rear WPL 2004512 Contact Us For Availability
37
Guiding, Ice (White Model) WPL 1124730 Contact Us For Availability
37
Cover, Condenser WPL 2003355 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
37
Guiding, Ice (Stainless Steel and Black Model WPL 1119035 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Air Vane WPL 2003263 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
39
Screw (White Model) WPL 488892 Contact Us For Availability
39
Screw (Stainless Steel and Black Models) WPL 489197 Contact Us For Availability
39
Cup, Wiring WPL 2004595 Contact Us For Availability
40
Bushing, Door Closure WPL 2004565 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Fron WPL 2002876 Contact Us For Availability
42
WPL 2002879 WPL 2002879 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Front Cover, Ice Container WPL 2002722 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
44
WPL 2002730 WPL 2002730 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
WPL 2003593 WPL 2003593 Contact Us For Availability
45
WPL 2003596 WPL 2003596 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
46
WPL 489155 WPL 489155 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
WPL 1126120 WPL 1126120 Contact Us For Availability
47
WPL 2152678 WPL 2152678 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
49
WPL 2002888 WPL 2002888 Contact Us For Availability
49
WPL 2002891 WPL 2002891 Contact Us For Availability
53
WPL 487944 WPL 487944 Contact Us For Availability
55
WPL 482672 WPL 482672 Contact Us For Availability
100
Complete Ice Container Assembly WPL 2002925 Contact Us For Availability
100
Front Panel Kit (White) WPL 4378650 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4378653 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4378656 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4378659 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
