Model Whirlpool KSSC48FTS00 48`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

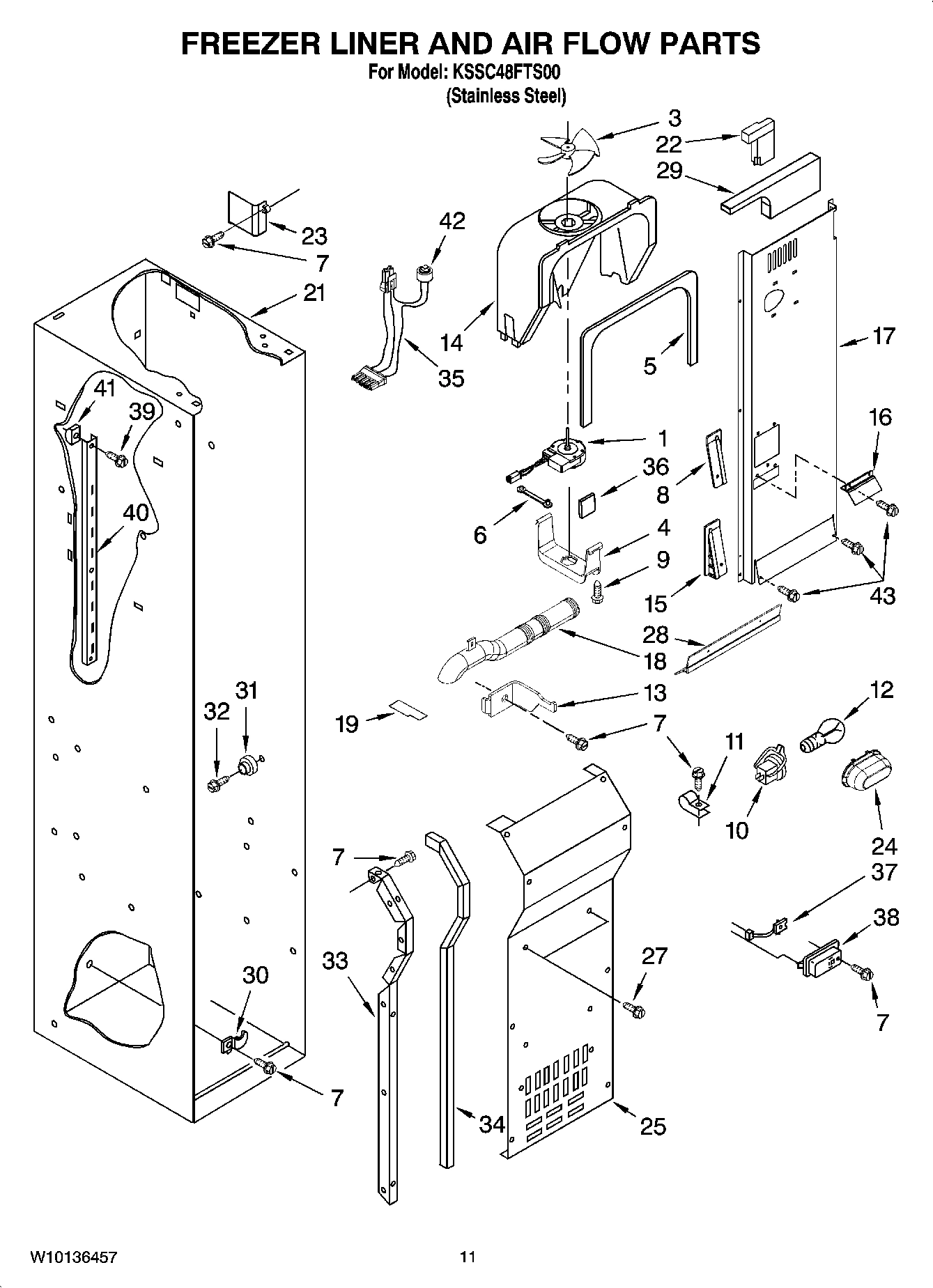

08 - FREEZER LINER AND AIR FLOW PARTS

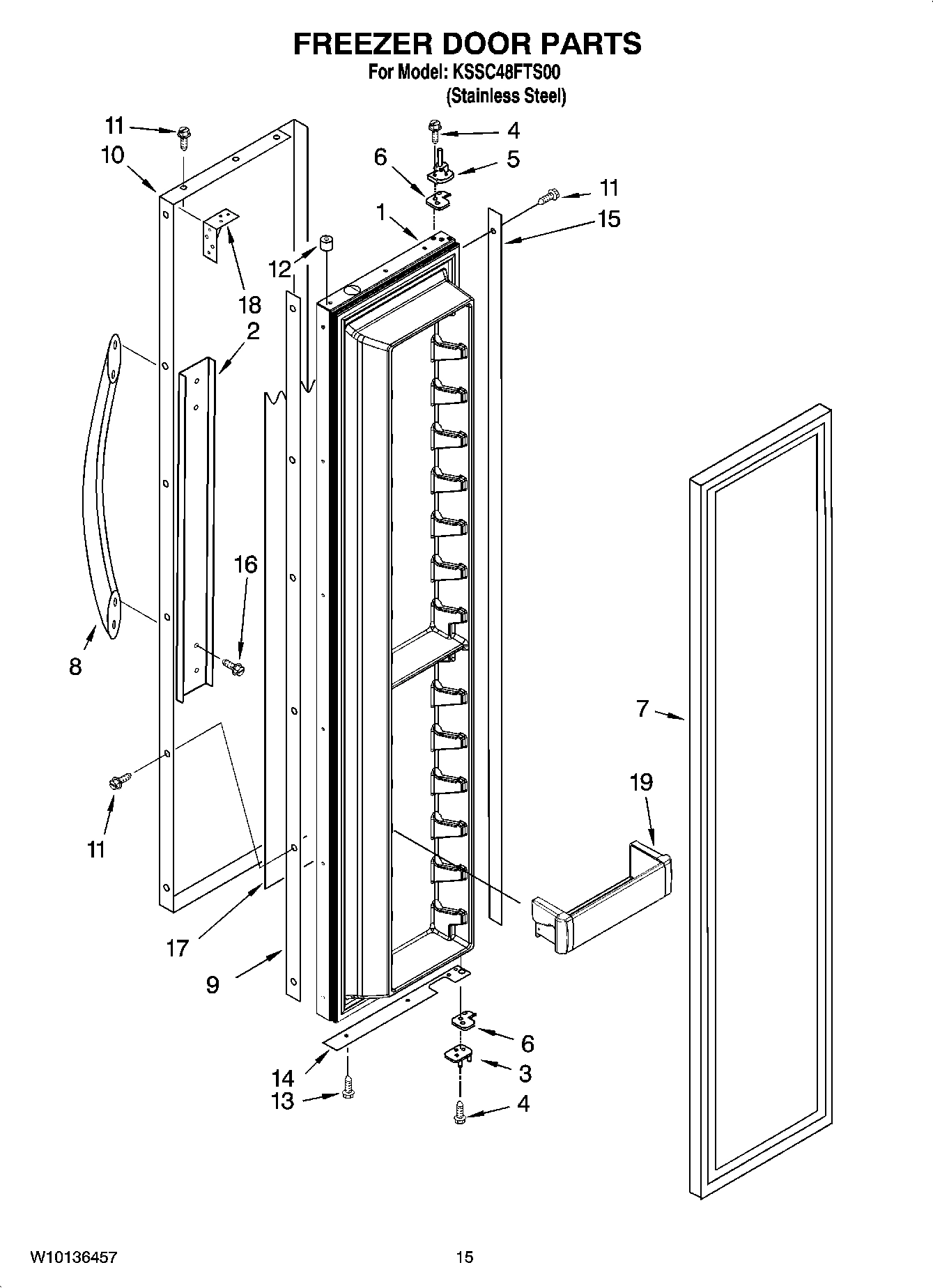

10 - FREEZER DOOR PARTS

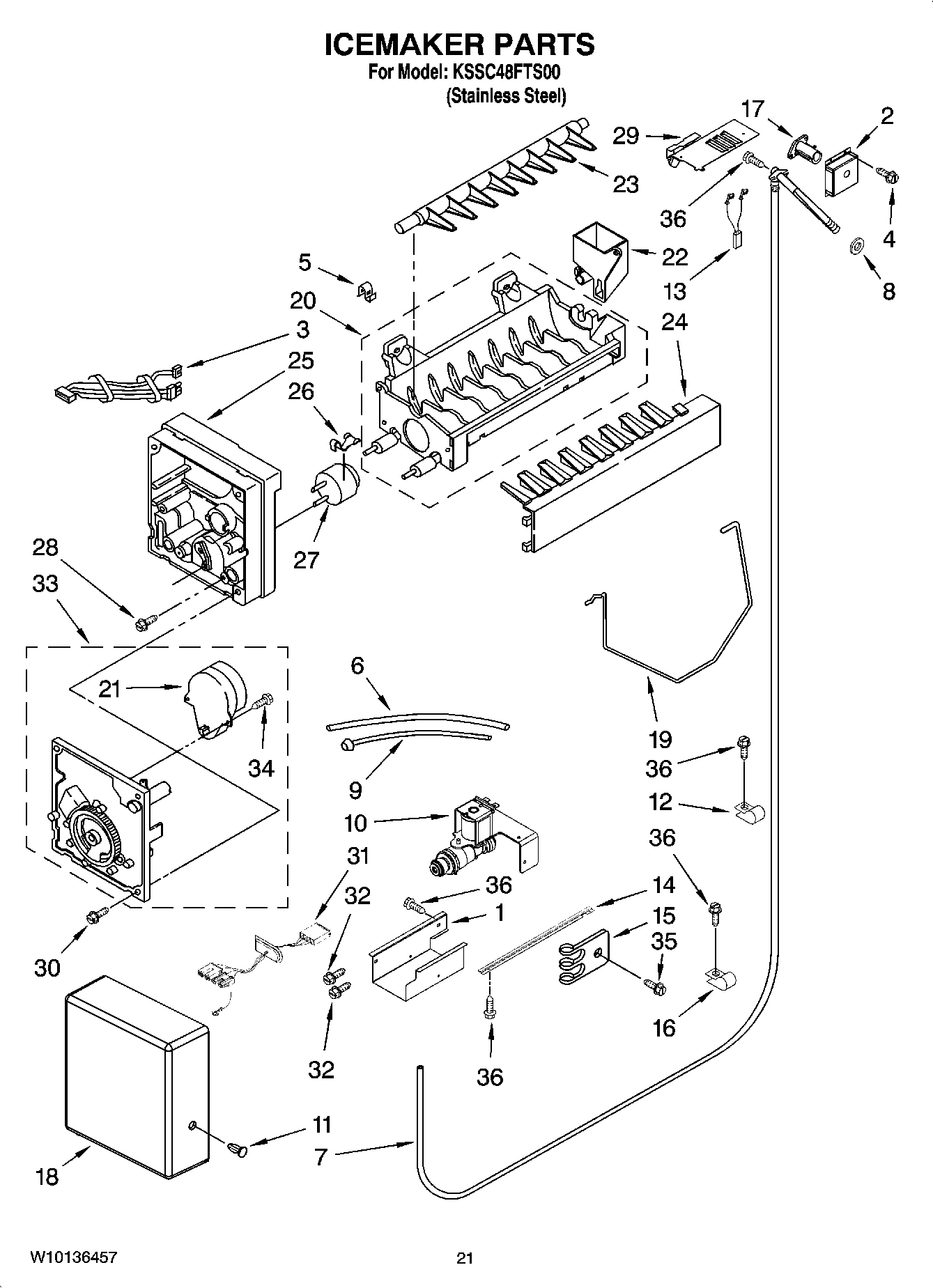

13 - ICEMAKER PARTS

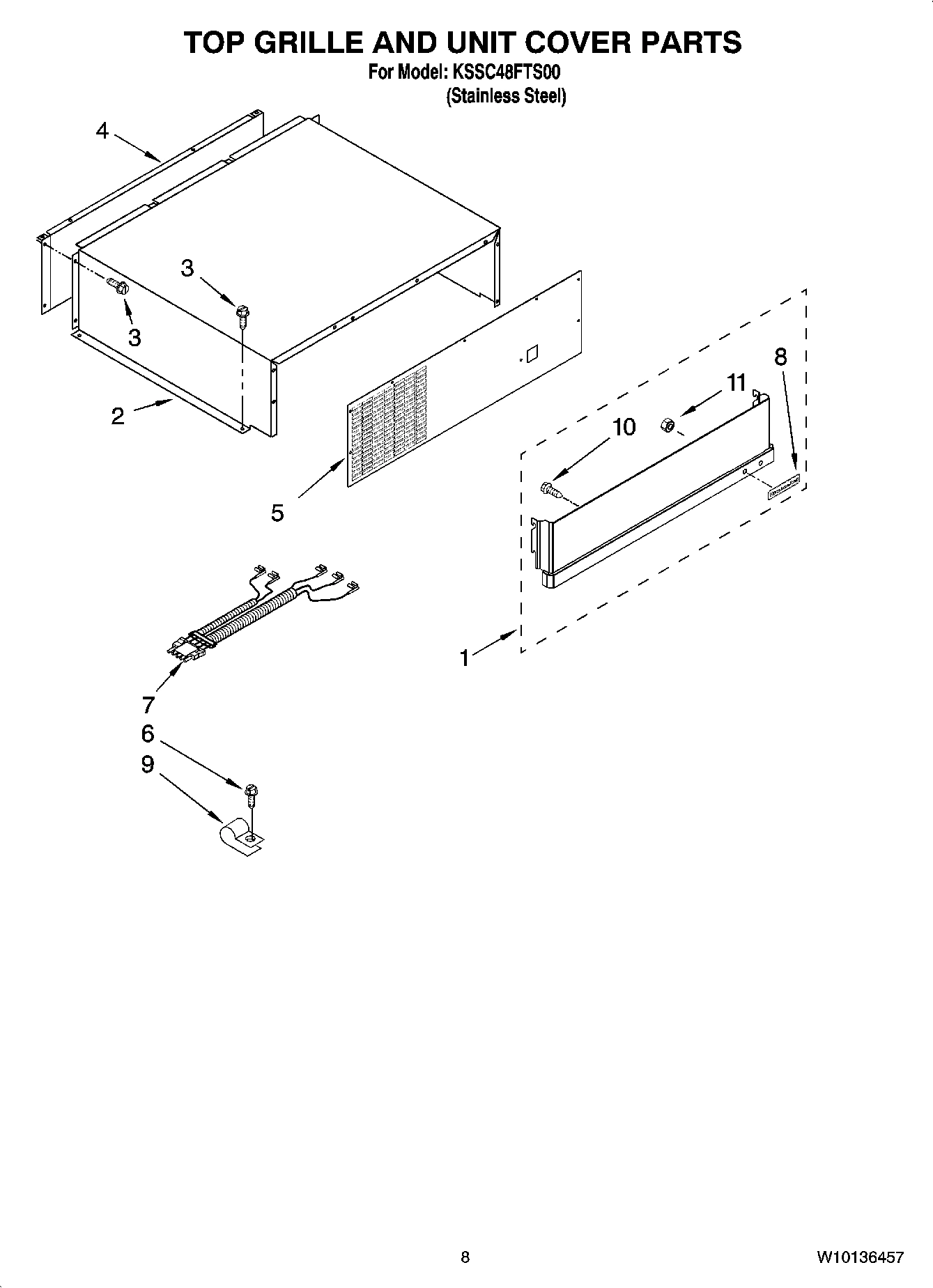

06 - TOP GRILLE AND UNIT COVER PARTS

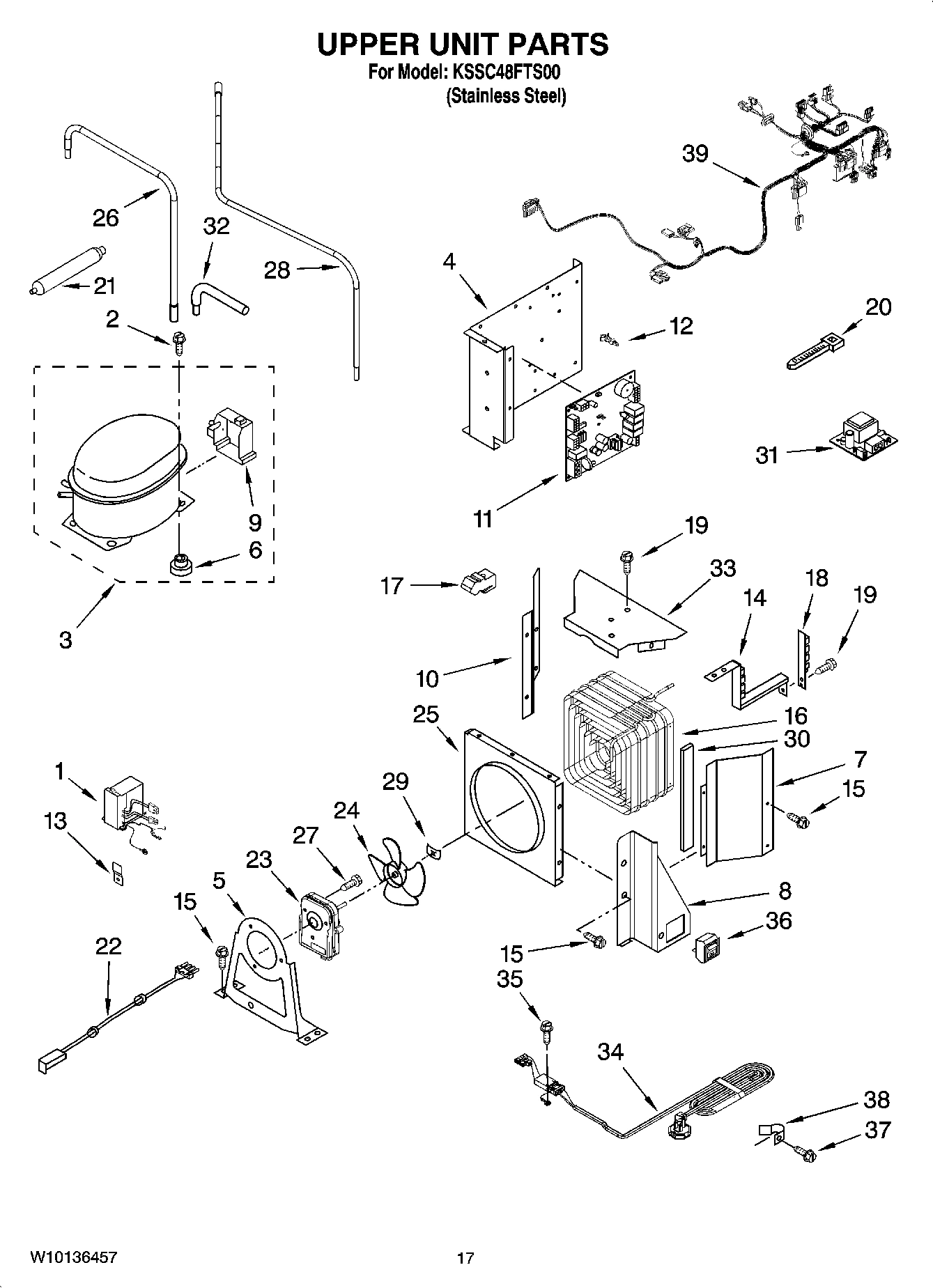

11 - UPPER UNIT PARTS

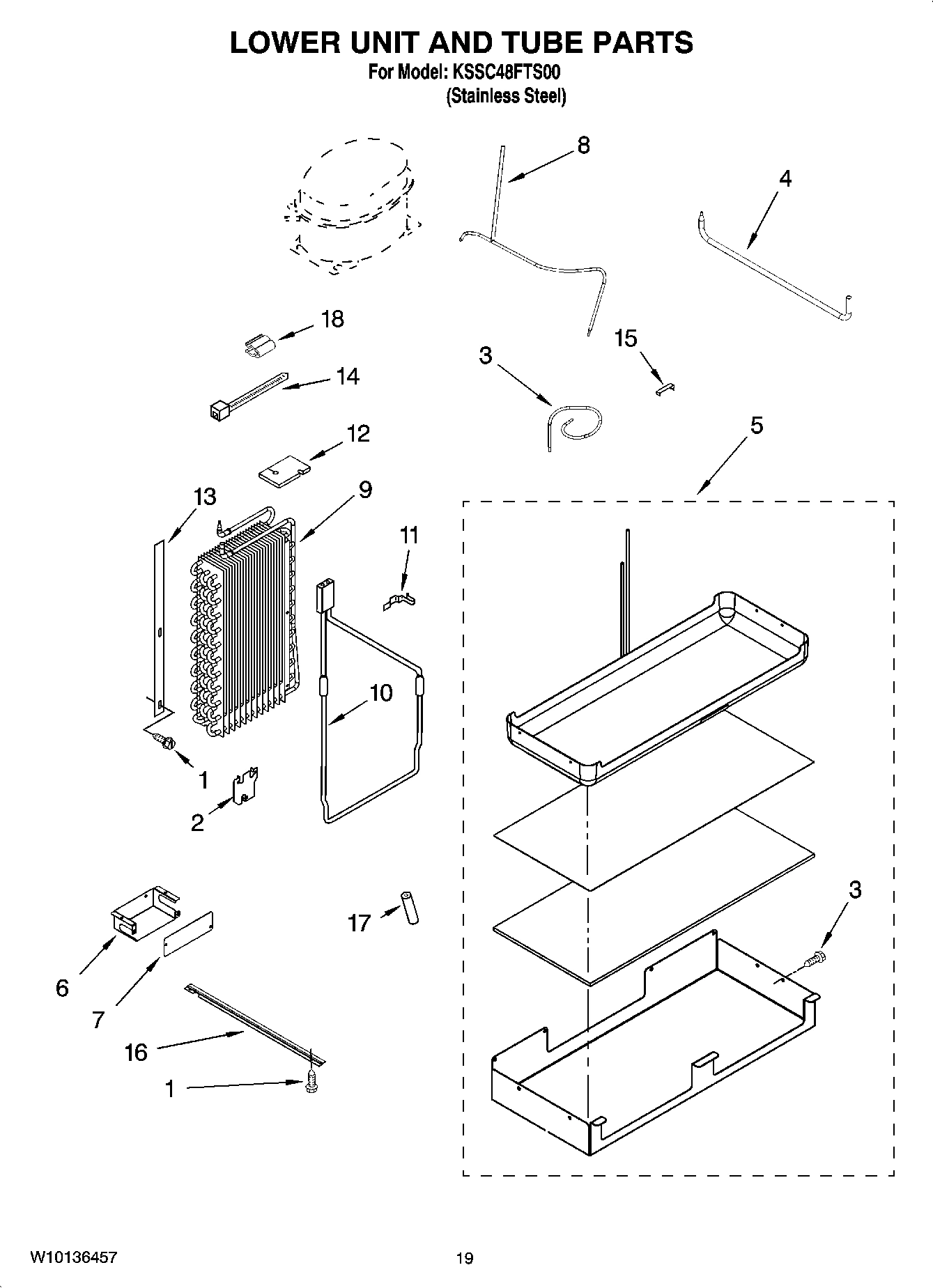

12 - LOWER UNIT AND TUBE PARTS
02 - CABINET TRIM PARTS

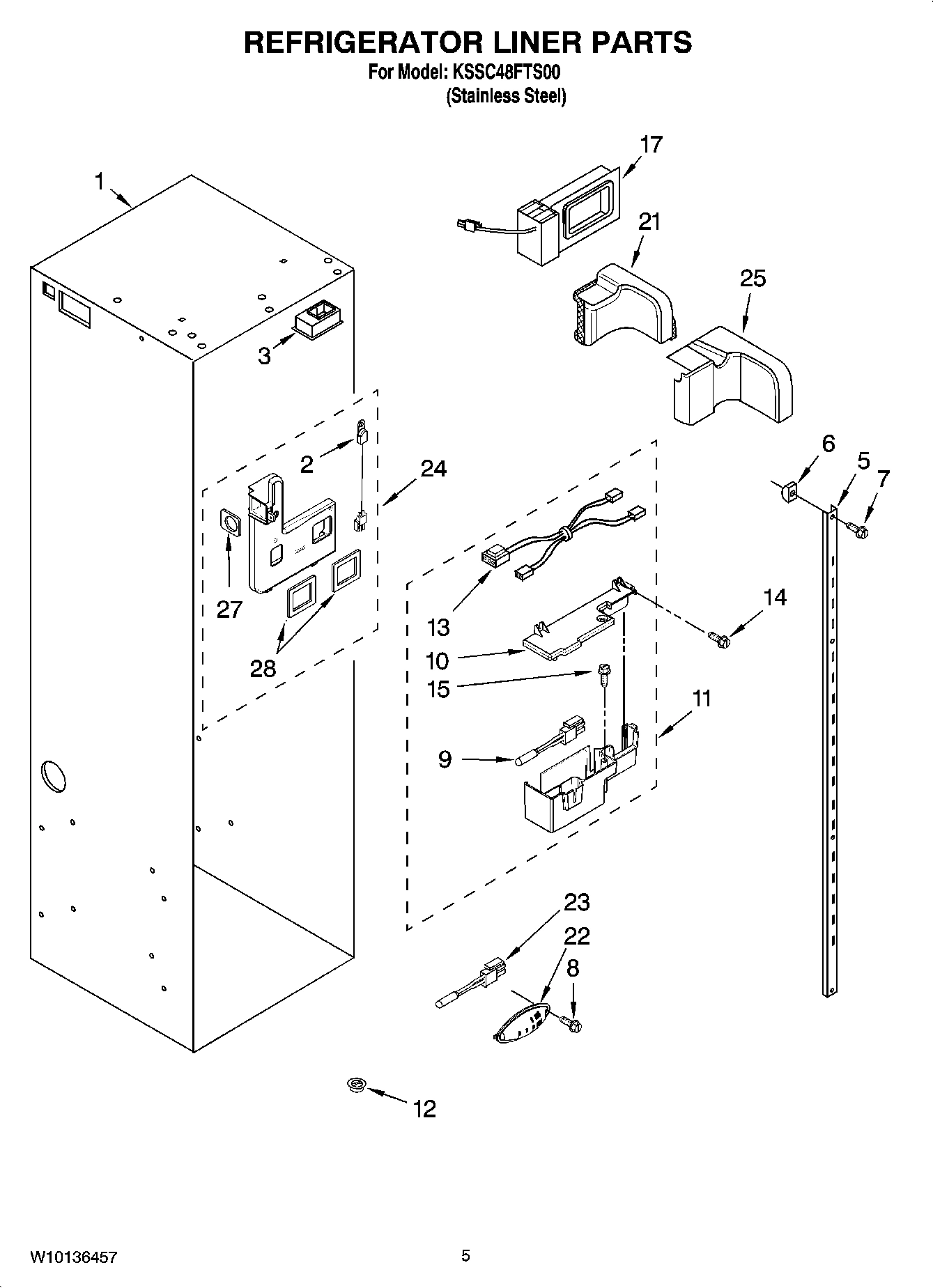

04 - REFRIGERATOR LINER PARTS

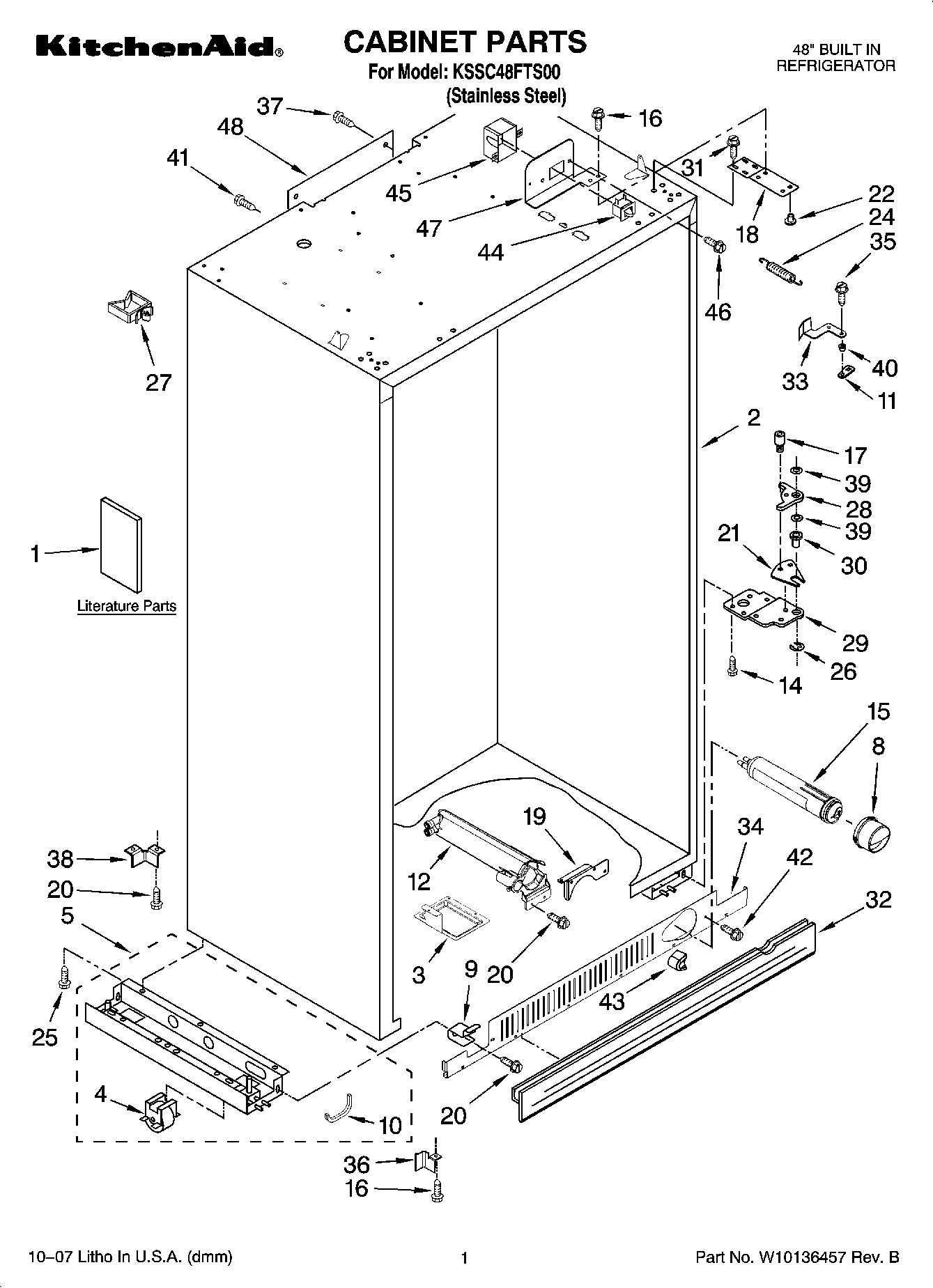

01 - CABINET PARTS

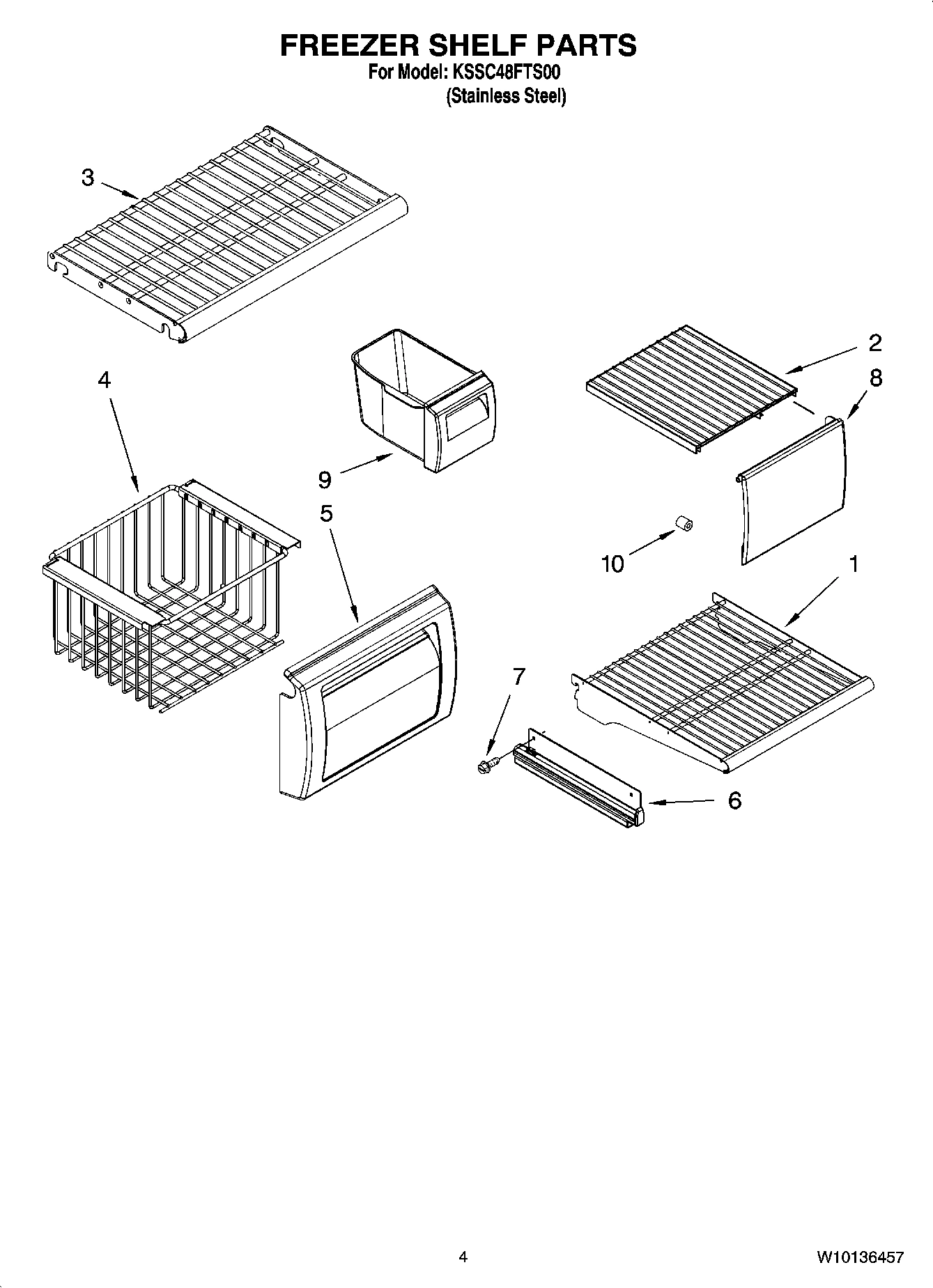

03 - FREEZER SHELF PARTS

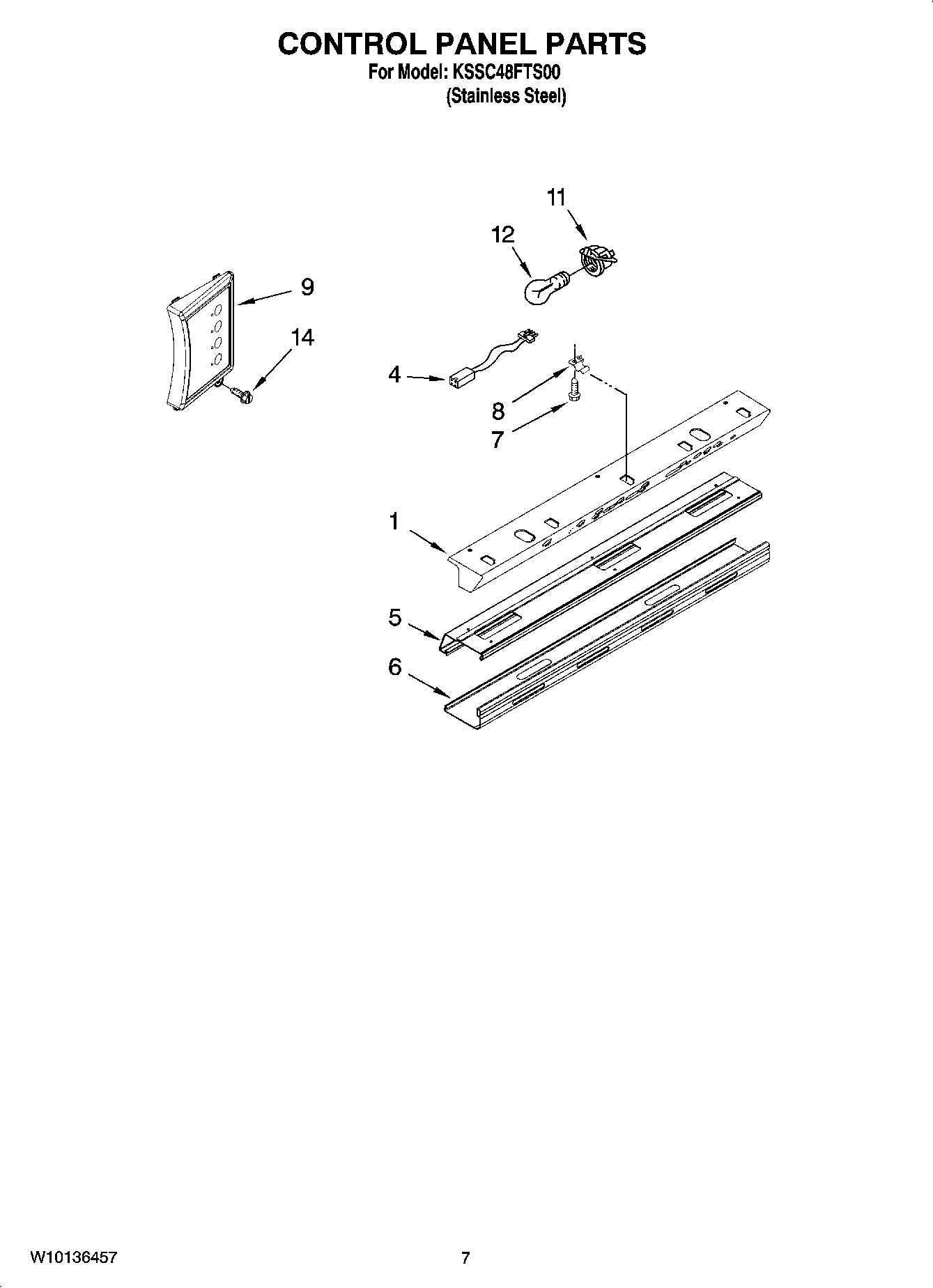

05 - CONTROL PANEL PARTS

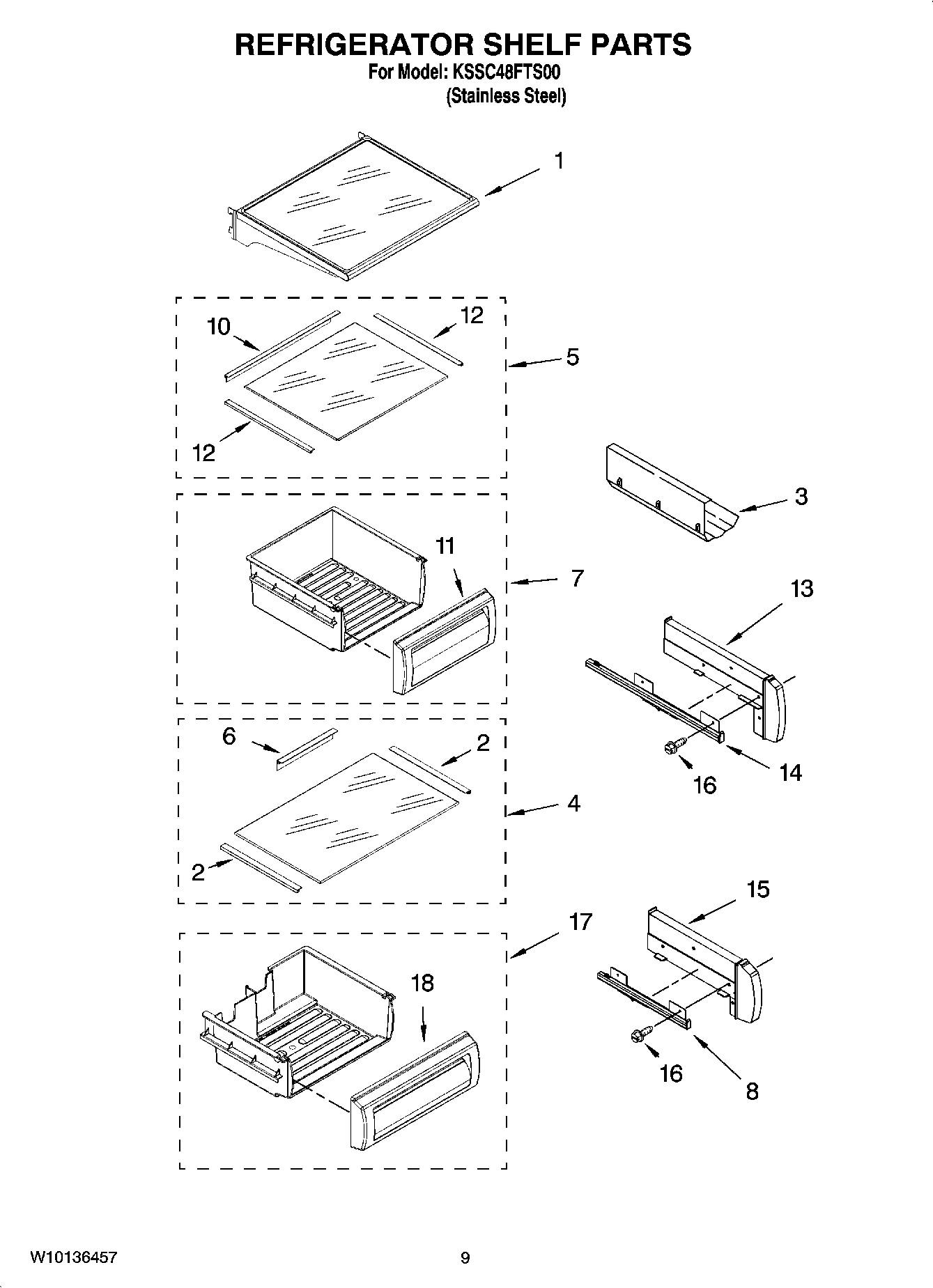

07 - REFRIGERATOR SHELF PARTS

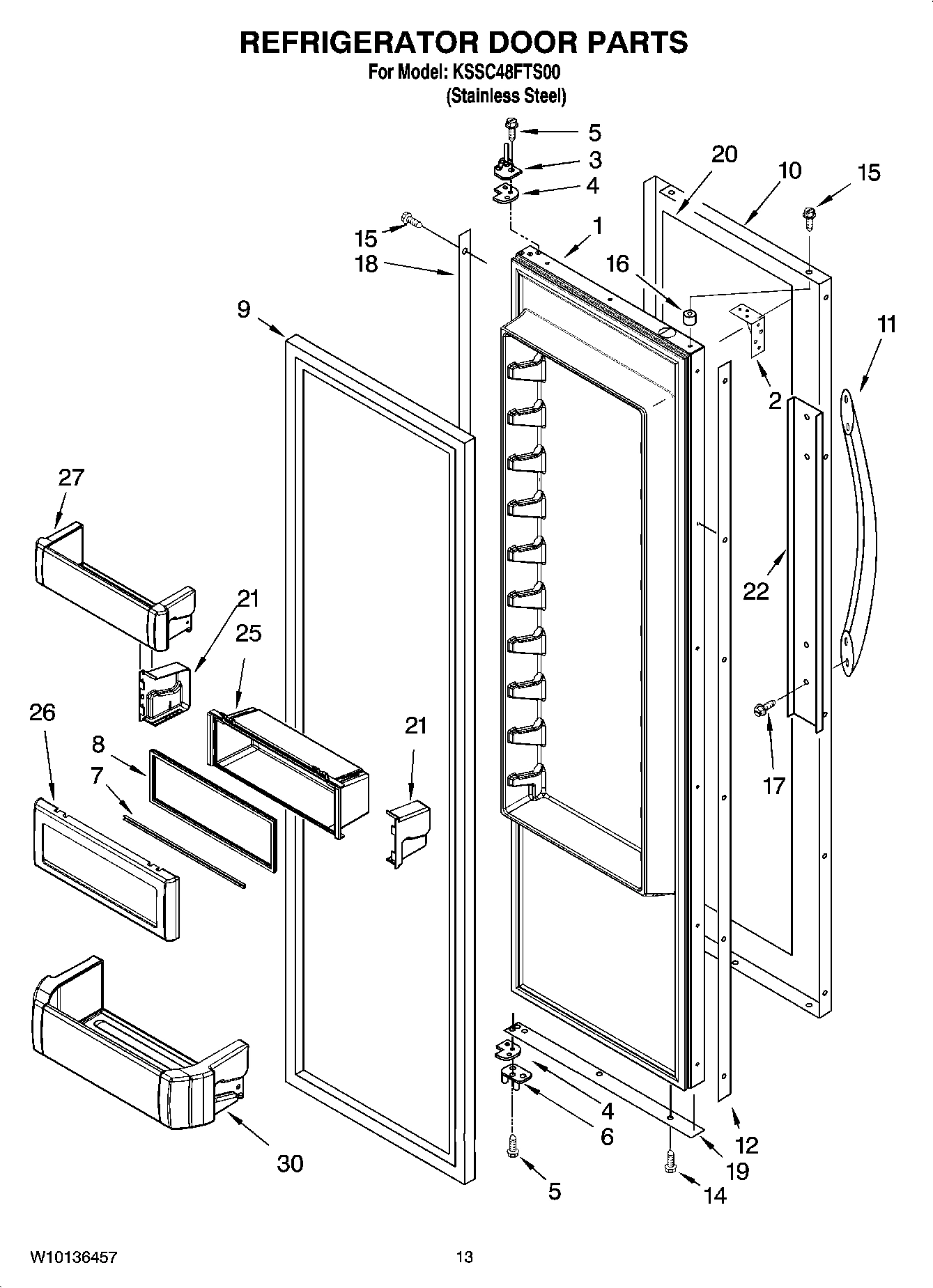

09 - REFRIGERATOR DOOR PARTS
Common parts from model Whirlpool KSSC48FTS00 48`` BUILT IN REFRIGERATOR
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
1
Panel, Decorative WPL 2316738S Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI154861A Contact Us For Availability
1
Icemaker and Ingredient Care Center Service S WPL 2306337 Contact Us For Availability
1
Installation Instructions WPL 2316565 Contact Us For Availability
1
Use & Care Guide WPL 2316571 Contact Us For Availability
1
Energy Guide WPL 2316577 Contact Us For Availability
1
Main Control Service Sheet WPL 2318069 Contact Us For Availability
1
Service & Wiring Sheet WPL 2318165 Contact Us For Availability
1
Wire, Shelf (2) WPL 2302869 Contact Us For Availability
1
Refrigerator Door (Includes 9) WPL 2252331 Contact Us For Availability
2
TRIM, GLASS SIDE MEAT PAN WPL 2256250 Contact Us For Availability
2
Cabinet, (Not A Serviceable Part) WPL ARI154860A Contact Us For Availability
3
Suction Tube WPL 2309076 Contact Us For Availability
3
Wire Assembly, Icemaker WPL 2310136 Contact Us For Availability
3
Tray, Drip Filter WPL 2318189 Contact Us For Availability
3
Shelf, Fixed (2) WPL 2302884 Contact Us For Availability
4
Housing, Control Board WPL 2318087 Contact Us For Availability
4
Meat Pan Cover Assembly WPL 2302843 Contact Us For Availability
4
CABINET TRIM,BOTTOM WPL 2316688 Contact Us For Availability
4
Wire, Jumper WPL 2310164 Contact Us For Availability
4
Basket WPL 2259086 Contact Us For Availability
5
Crisper Cover Assembly WPL 2302836 Contact Us For Availability
5
Bracket, Control Box WPL 2324973 Contact Us For Availability
6
Tube, Filter Inlet WPL 2325170 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2302878 Contact Us For Availability
6
Trim, Glass Rear WPL 2257583 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2259317 Contact Us For Availability
6
Shield, Light WPL 2307596 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2314048 Contact Us For Availability
7
SCREW WPL 2006475 Contact Us For Availability
8
NAMEPLATE WPL 2317923S Contact Us For Availability
8
Bracket, Switch WPL 2307684 Contact Us For Availability
8
Wedge, Air Duct WPL 2259464 Contact Us For Availability
8
Door, Ice WPL 2266935 Contact Us For Availability
8
Clip, Control Box WPL 2317000 Contact Us For Availability
9
Terminal Cover WPL 2215676 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Clamp WPL 489348 Contact Us For Availability
10
Grommet, Crossover Tube WPL 2307584 Contact Us For Availability
10
Lid, Air Baffle WPL 2302986 Contact Us For Availability
10
Spacer WPL 2266955 Contact Us For Availability
10
Trim, Glass Rear WPL 2256255 Contact Us For Availability
10
Skin, Door WPL 2307754 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Clamp, Heater (2) WPL 1113048 Contact Us For Availability
12
Release Valve WPL 2171846 Contact Us For Availability
12
Spacer, Door (Handle Side) WPL 2309060 Contact Us For Availability
12
Trim, Glass Side WPL 2252255 Contact Us For Availability
13
SPACER, CRISPER (LEFT SIDE (2)) WPL 2256223 Contact Us For Availability
13
Gasket, Evaporator WPL 2220832 Contact Us For Availability
13
SPACER, CRISPER (RIGHT SIDE (2)) WPL 2256222 Contact Us For Availability
13
Jumper, Air Baffle WPL 2310205 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
SLIDE, CRISPER (LEFT SIDE) (2) WPL 2302956 Contact Us For Availability
14
SLIDE, CRISPER (RIGHT SIDE) (2) WPL 2302957 Contact Us For Availability
14
Screw WPL 488357 Contact Us For Availability
15
Spacer, Meat Pan (Left Side) WPL 2256243 Contact Us For Availability
16
CONDENSER WPL 2307998 Contact Us For Availability
17
Damper, Heater WPL 2215648 Contact Us For Availability
18
BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability
18
Spacer, Door Hinge Side WPL 2005030 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Block, Fan Scroll (Left) WPL 2209066 Contact Us For Availability
20
Filler, Door WPL 2005327 Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
22
PLATE, DOOR HANDLE WPL 2306398 Contact Us For Availability
23
Cover, Air Outlet WPL 2259025 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Light Shield WPL 2307751 Contact Us For Availability
25
Cover, Diffuser WPL 2309087 Contact Us For Availability
27
Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability
27
Wire Clip (5) WPL W10129069 Contact Us For Availability
28
Screw WPL 8533917 Contact Us For Availability
28
Seal, Air Duct (Square Hole) WPL 2259398 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
32
SKIRT, GRILLE BOTTOM (BLACK) WPL 2209026B Contact Us For Availability
34
Grille Bottom, Front (Black) WPL 2325186B Contact Us For Availability
34
Gasket (2) Evaporator Cover WPL 2220904 Contact Us For Availability
34
Screw, (2) WPL 489136 Contact Us For Availability
35
Screw WPL 2005921 Contact Us For Availability
36
Bracket, Support Base (Front) (Left) WPL 2006616 Contact Us For Availability
36
Bracket, Support Base (Front) (Right) WPL 2006556 Contact Us For Availability
38
B WPL 2006617 Contact Us For Availability
45
WPL 2215938 WPL 2215938 Contact Us For Availability
48
WPL 2215612 WPL 2215612 Contact Us For Availability
× ![]()
