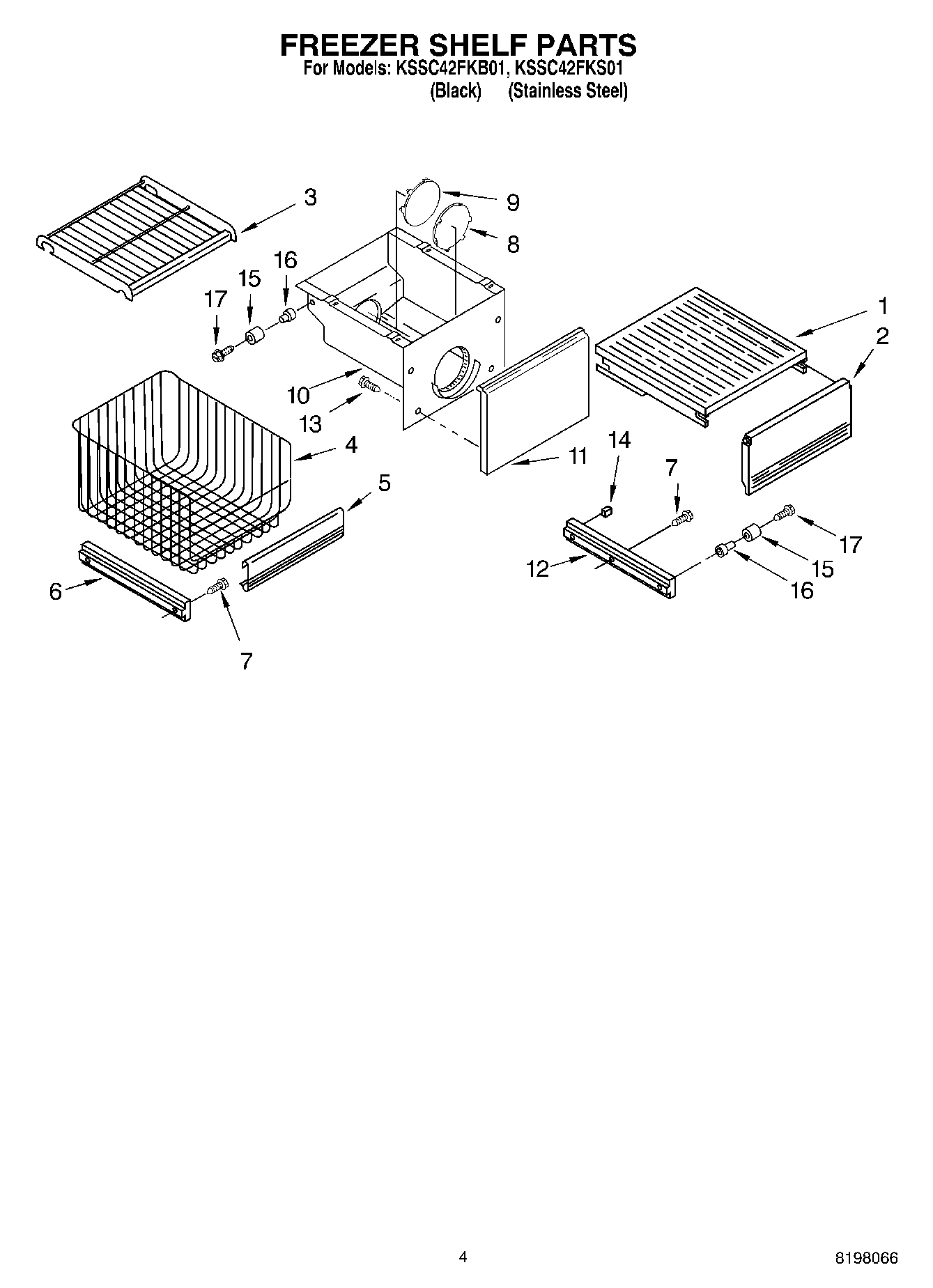

Model Whirlpool KSSC42FKS01 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $67.89

1

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

1

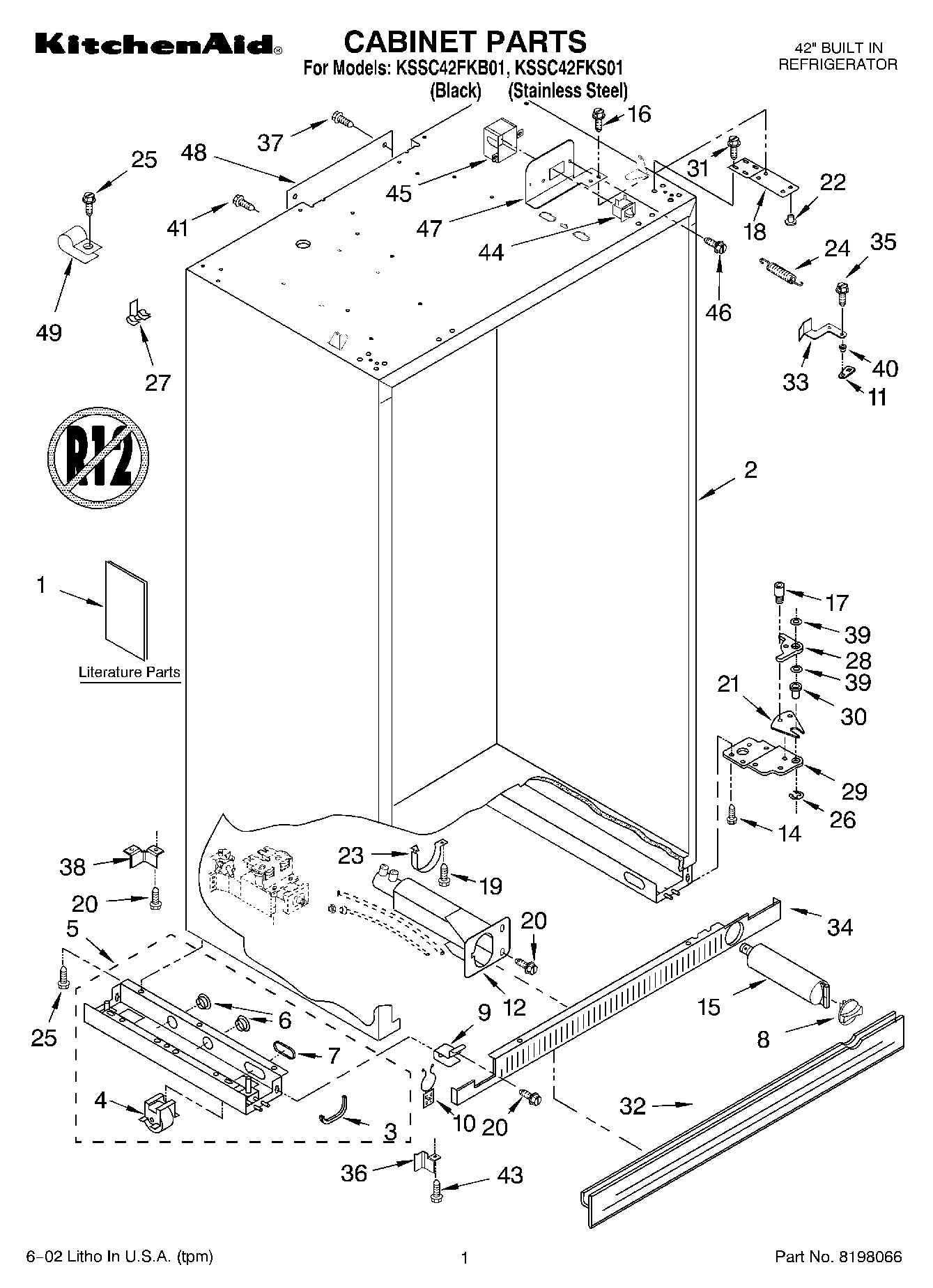

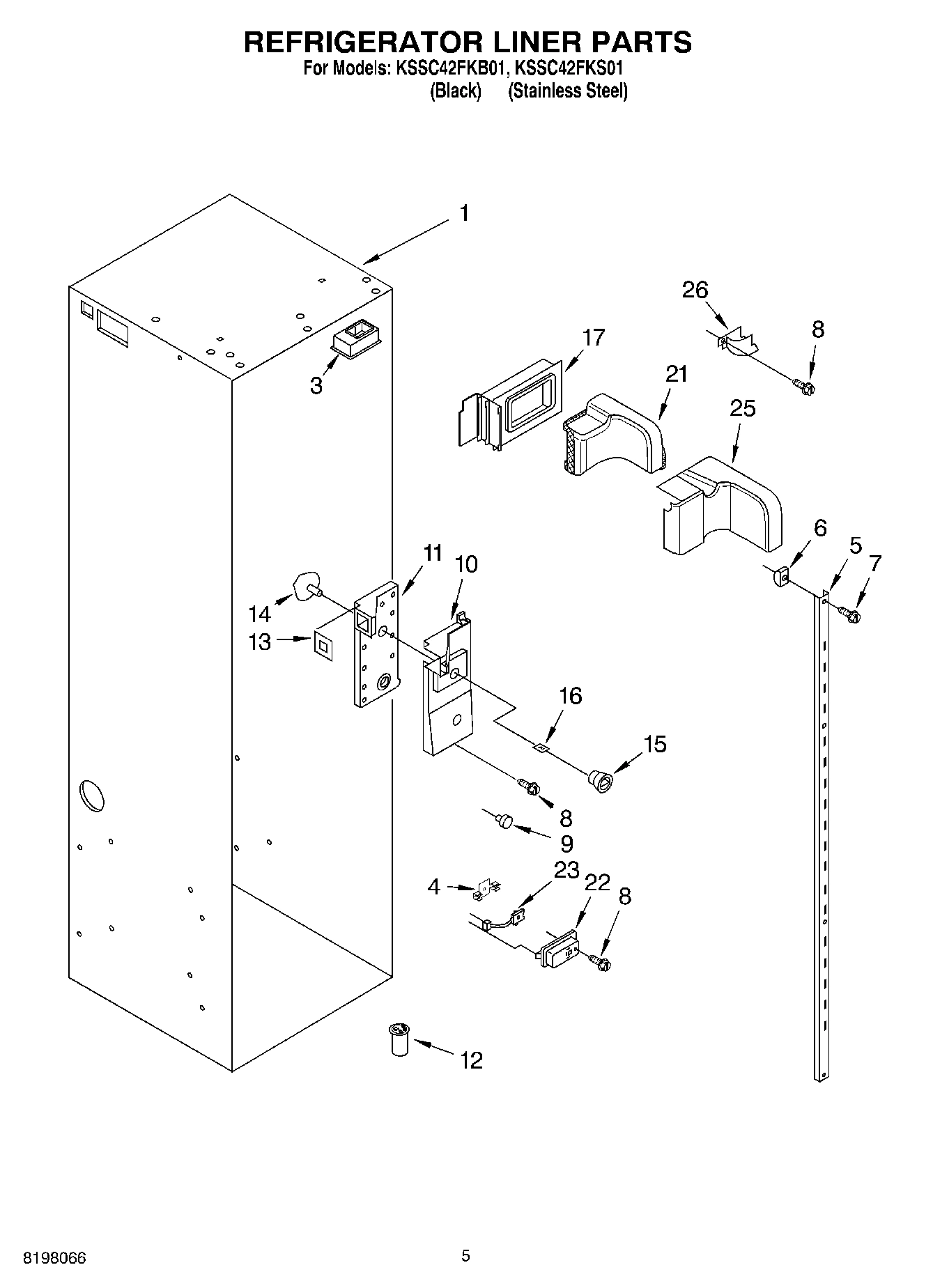

Liner (Not A Serviceable Part) WPL ARI105354A Contact Us For Availability

1

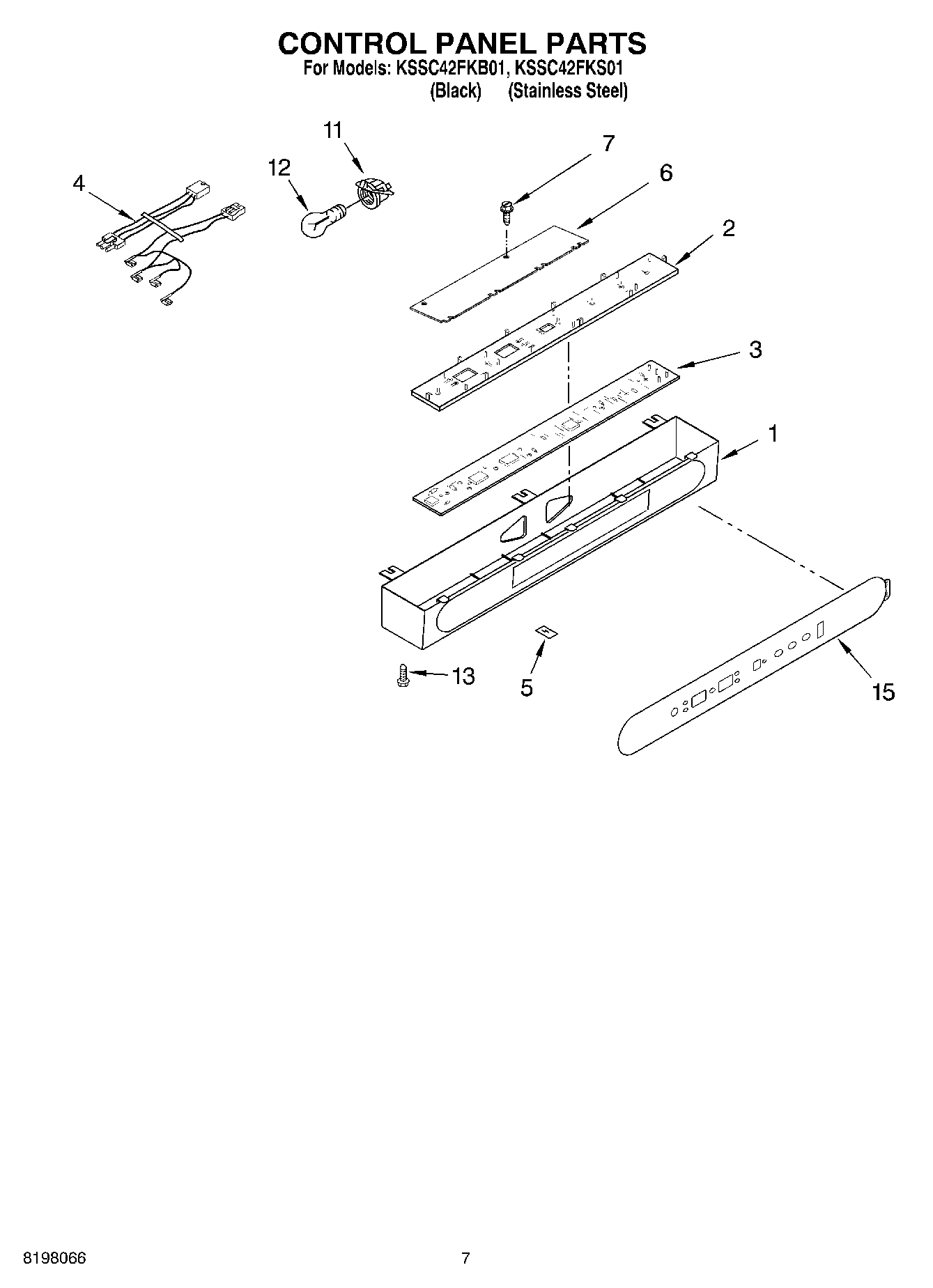

Control Box WPL 2215716 Contact Us For Availability

1

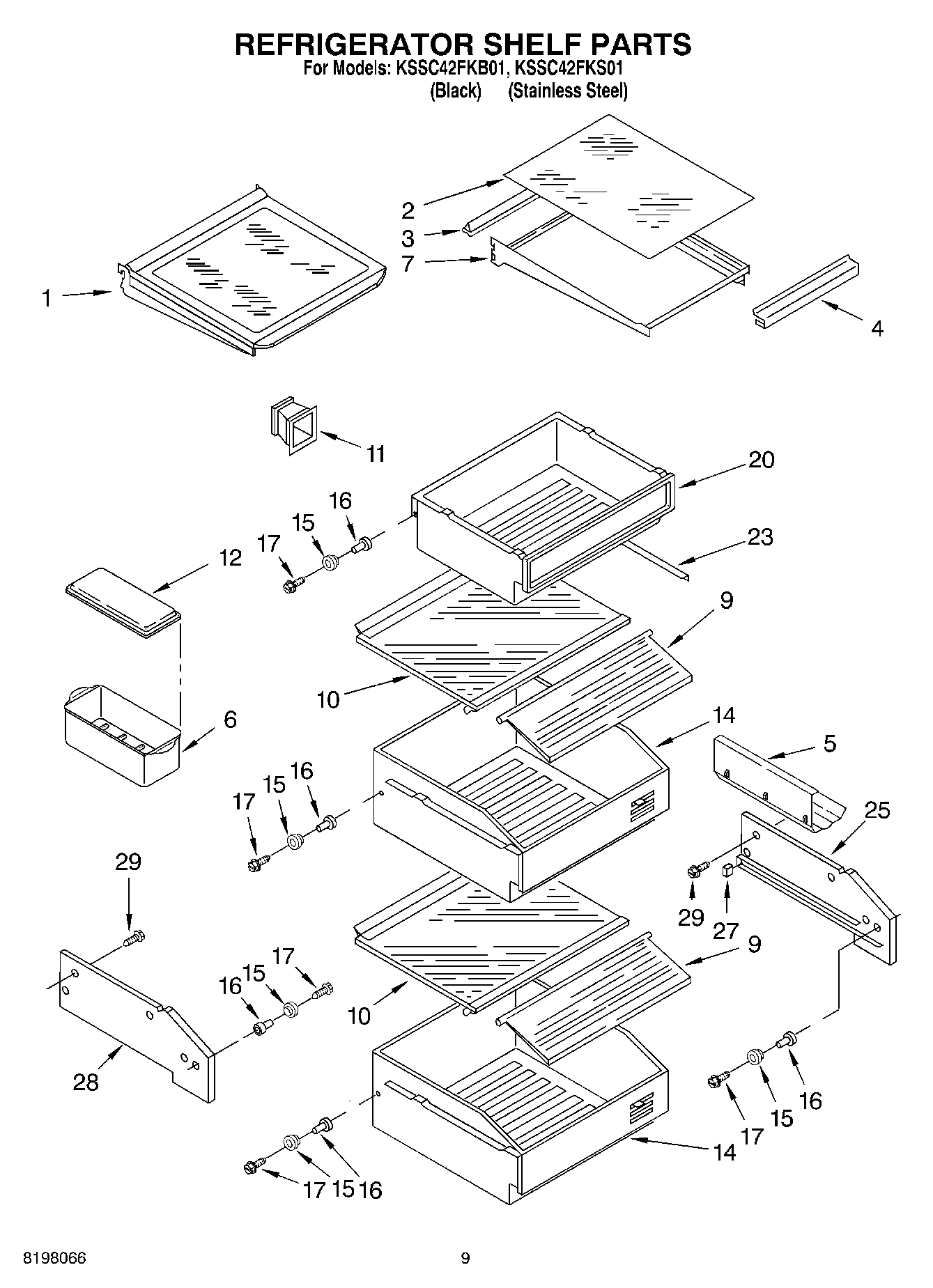

Frame, Shelf WPL 2174403 Contact Us For Availability

1

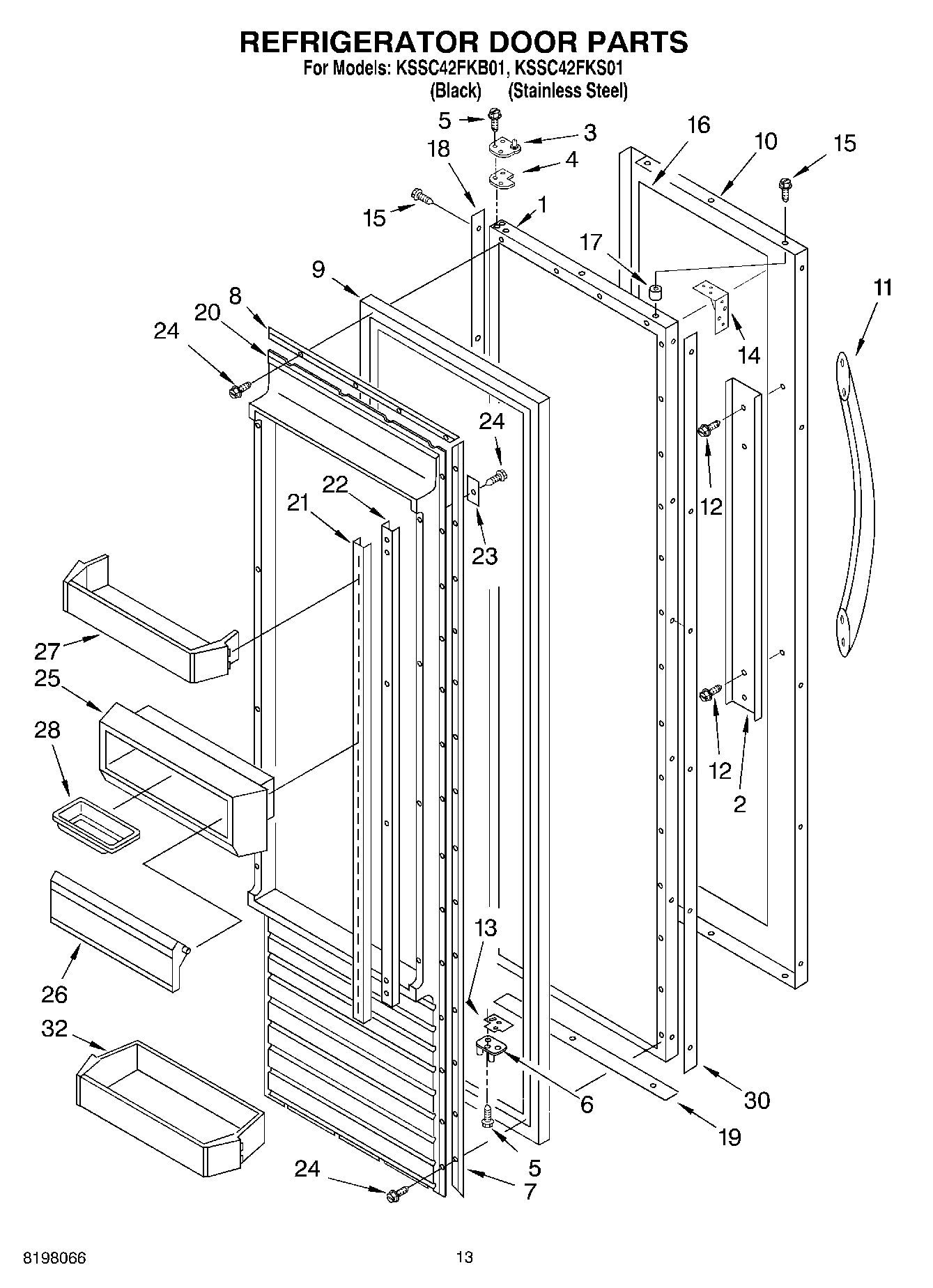

Refrigerator Door Panel (Includes Insulation) WPL 2215988 Contact Us For Availability

1

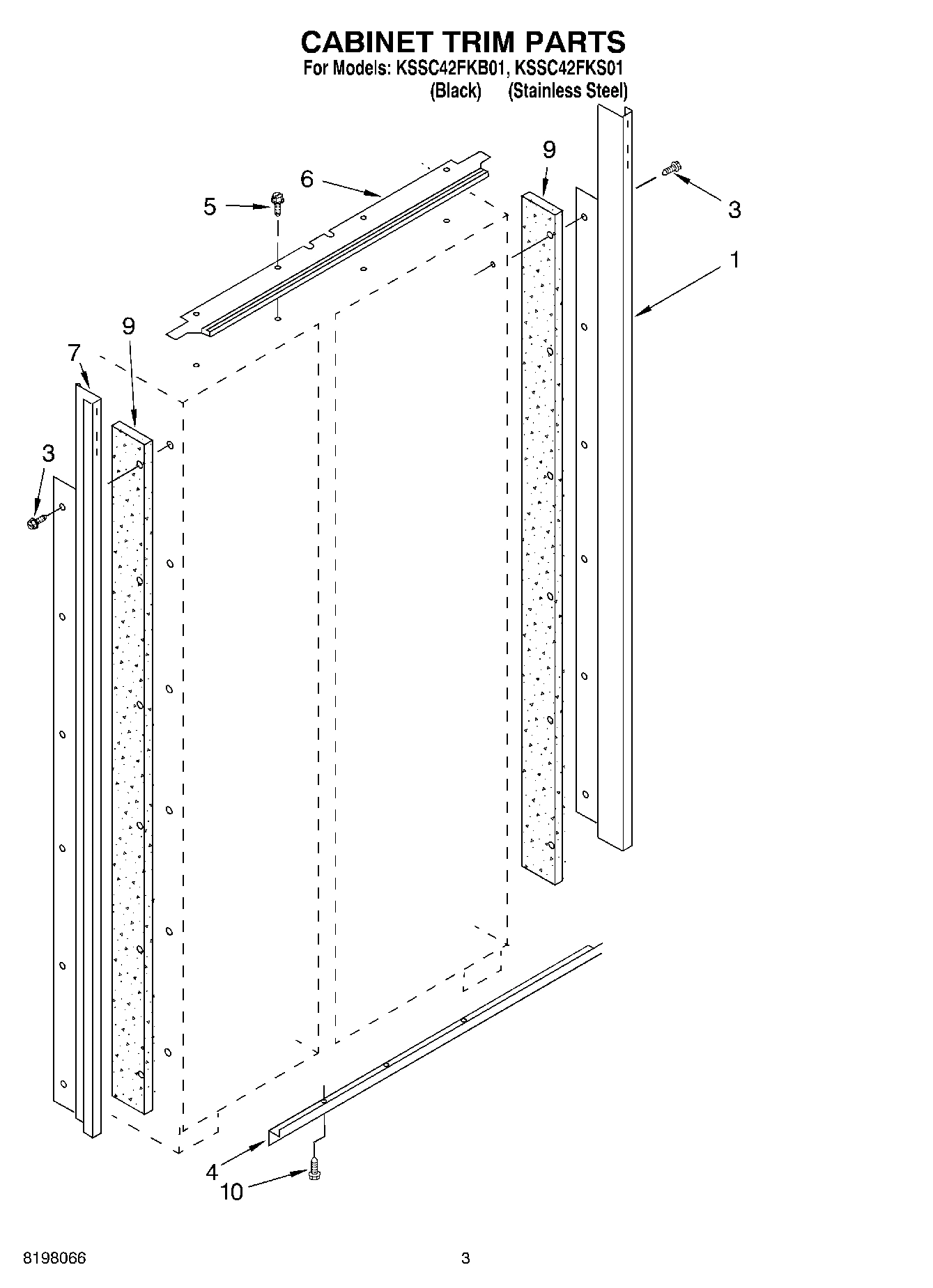

Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Stainless Steel) WPL 2215919S Contact Us For Availability

1

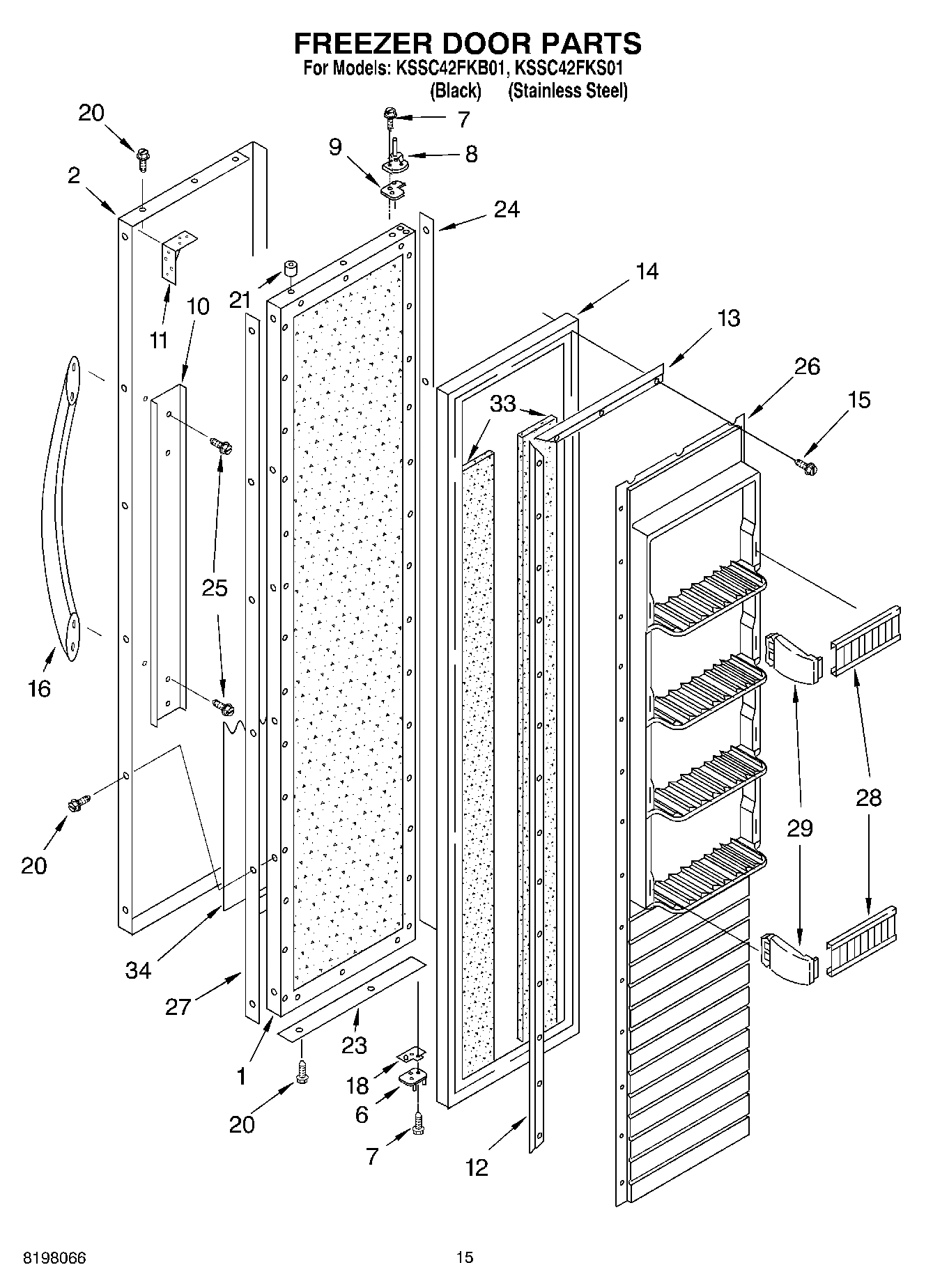

Freezer Door Panel (Includes Insulation) WPL 2215976 Contact Us For Availability

2

WP2221231 Whirlpool Refrigerator Shield Backorder WPL WP2221231 $38.58

2

Insert, Control Box WPL 2215670 Contact Us For Availability

2

Glass, Shelf WPL 2003376 Contact Us For Availability

2

Skin, Door (Stainless Steel) WPL 2006775 Contact Us For Availability

2

Skin, Door (Black) WPL 2209100B Contact Us For Availability

2

Wire Harness WPL 2209119 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct Backorder WPL 2208970 $51.19

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

3

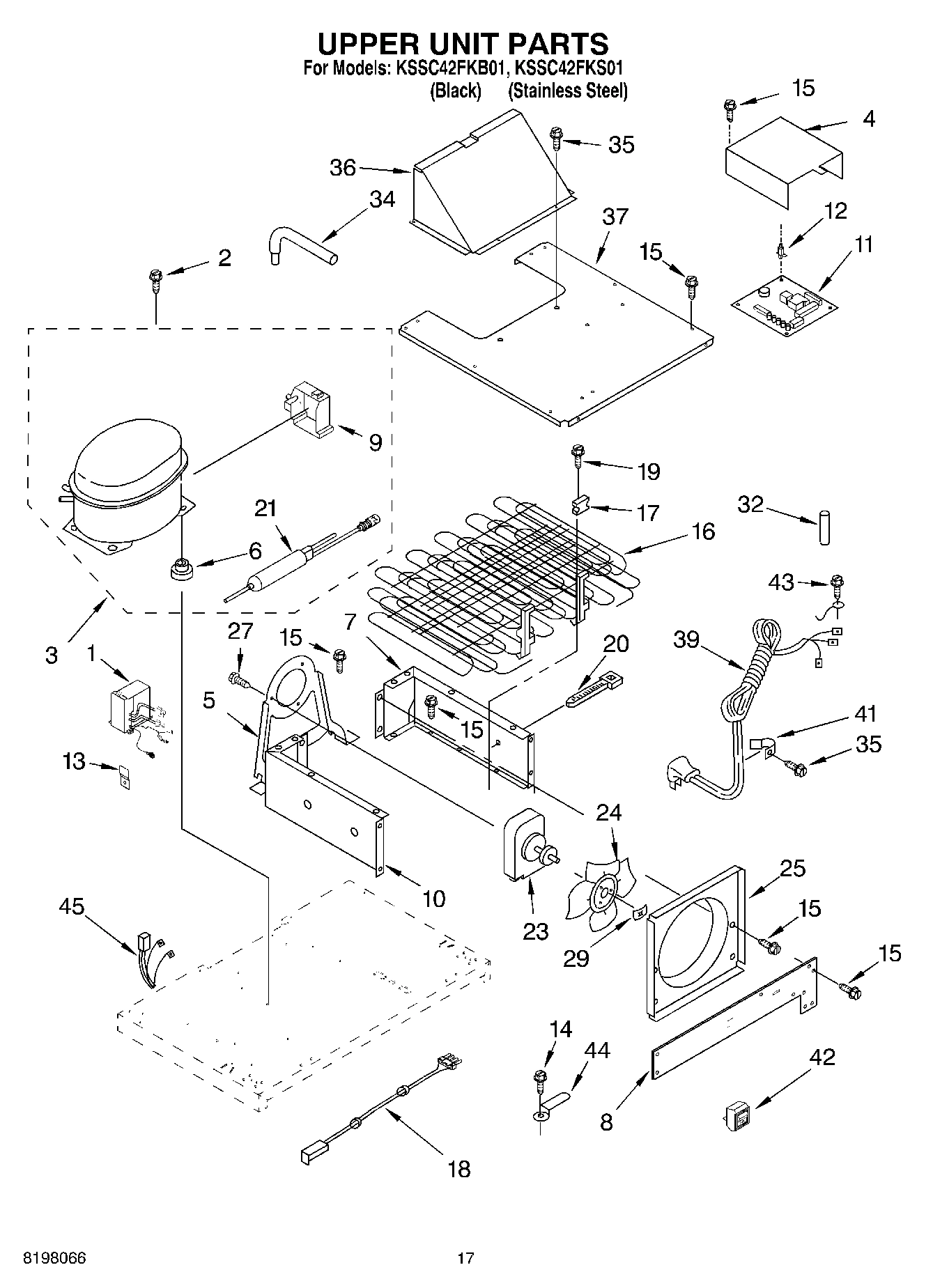

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $319.55

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Circuit Board, Housing Control WPL 2209159 Contact Us For Availability

3

Reflector, Shelf WPL 1113547 Contact Us For Availability

3

Plug, Water Valve WPL 2005038 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Housing, Control Board WPL 2199929 Contact Us For Availability

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113791 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254725 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

5

Backorder WPL 2179404 $8.47

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Ladder, Shelf (2) WPL 2221211 Contact Us For Availability

5

Retainer, Knob WPL 2003841 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

5

Side Support WPL 2209067 Contact Us For Availability

6

2221121 Whirlpool Refrigerator Support Backorder WPL 2221121 $32.68

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

6

Hinge Assembly, Bottom WPL 2220809 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003646 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Hinge, Bottom WPL 2220810 Contact Us For Availability

6

Suction Tube WPL 2209035 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

7

Shroud, Condenser (Right) WPL 2209038 Contact Us For Availability

7

Frame, Assembly Meat Pan WPL 2006524 Contact Us For Availability

7

Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability

7

Cabinet Trim (Left Side) (Stainless Steel) WPL 2215936S Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $26.75

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

8

Panel, Condenser Front WPL 2215665 Contact Us For Availability

8

Hinge, Top WPL 2220922 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $12.81

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

WP1113894 Whirlpool Refrigerator Cover Backorder WPL WP1113894 $43.11

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Spacer-Door, Top WPL 2004520 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188498 Contact Us For Availability

9

Tube, Filter Outlet WPL 2209430 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $89.88

Ice Container WPL 2208907 Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability

Shroud, Condenser (Left) WPL 2209037 Contact Us For Availability

Glass, Crisper (Includes No.9) WPL 2003379 Contact Us For Availability

Plate, Door Handle WPL 2209202 Contact Us For Availability

Door Skin (Stainless Steel) WPL 2006772 Contact Us For Availability

Door Skin (Black) WPL 2209099B Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W10823805-includeCORE Whirlpool W10823805 Ref Backorder WPL W10823805-includeCORE $380.03

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Cam, Door Closer WPL 2005783 Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Meat Pan, Connector WPL 2000742 Contact Us For Availability

Brace, Door Corner WPL 2004447 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

Release Valve WPL 2220993 Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $28.20

Seal, Air Duct WPL 2221175 Contact Us For Availability

Water Valve, Harness WPL 2254711 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability

Tube, Discharge WPL 2209036 Contact Us For Availability

2188496A Whirlpool Refrigerator Door Gasket Backorder WPL 2188496A $136.26

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

Screw WPL 3400525 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

Crisper Pan (2) WPL 2220896 Contact Us For Availability

Insert, Tube WPL 1129177 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Roller WPL 2188212 Contact Us For Availability

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

Overlay WPL 2221066 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2306093 Whirlpool Evaporator In Stock WPL WP2306093 $213.36

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

Condenser WPL 2209062 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Handle, Door (Black) WPL 2209095B Contact Us For Availability

Filler, Door WPL 2005326 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw Backorder WPL WP2005378 $4.58

WP2006750 Whirlpool Refrigerator Heater In Stock WPL WP2006750 $48.56

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Grommet (4) WPL 943447 Contact Us For Availability

Compression Nut WPL 2204357 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

Jumper, Wire WPL 2187422 Contact Us For Availability

Door, Spacer WPL 2004549 Contact Us For Availability

Cover WPL 2221232 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $28.80

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Screw WPL 487522 Contact Us For Availability

Spacer, Door Bottom WPL 2004934 Contact Us For Availability

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

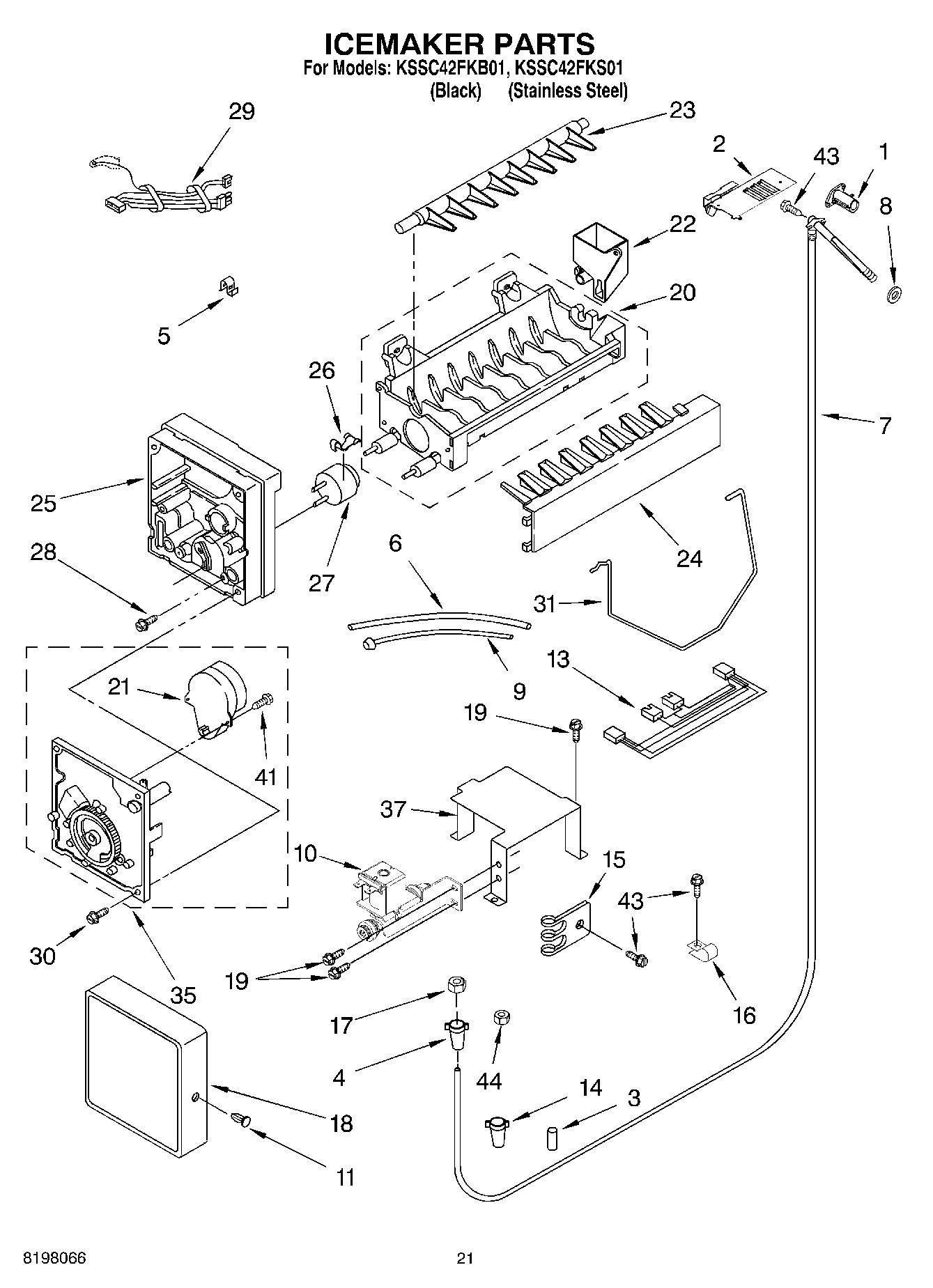

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Meat Pan WPL 2220902 Contact Us For Availability

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Panel, Interior Door WPL 1113953 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Diffuser Assembly WPL 2208997 Contact Us For Availability

Ladder, Shelf (2) WPL 1113951 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

Spacer, Door Bottom WPL 2004932 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Blade, Fan WPL 2190685 Contact Us For Availability

Spacer, Hinge Side WPL 2005030 Contact Us For Availability

Grommet, Water Tube WPL 2209444 Contact Us For Availability

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

Bin, Utility WPL 1112721 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Door, Utility Bin WPL 2003464 Contact Us For Availability

Panel, Interior Door WPL 2209031 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stop, Roller WPL 1113169 Contact Us For Availability

Door Shelf (3) WPL 1113973 Contact Us For Availability

Spacer, Handle Side WPL 2221012 Contact Us For Availability

Cement Alumilastic) WPL 542639 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

Shelf Bin WPL 2188515 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

Wire Assembly, Icemaker WPL 2254737 Contact Us For Availability

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

31

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

32

SKIRT, GRILLE (BOTTOM) WPL 2209025B Contact Us For Availability

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

32

Shelf, Gallon Door WPL 2188332 Contact Us For Availability

33

Seal WPL 2005610 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Filler, Door WPL 2005325 Contact Us For Availability

35

Screw WPL 2005921 Contact Us For Availability

35

Wire, Jumper WPL 2221077 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

36

Cover, Fan WPL 2209495 Contact Us For Availability

37

Cover, Condenser WPL 2215628 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

38

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

39

Service Cord WPL 2003381 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

44

Compresion Nut WPL 1129179 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187417 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
