Model Whirlpool KSSC42FJW00 BUILT IN REFRIGERATOR – Common Parts & Diagrams
05 - REFRIGERATOR CONTROL PANEL
07 - REFRIGERATOR SHELF

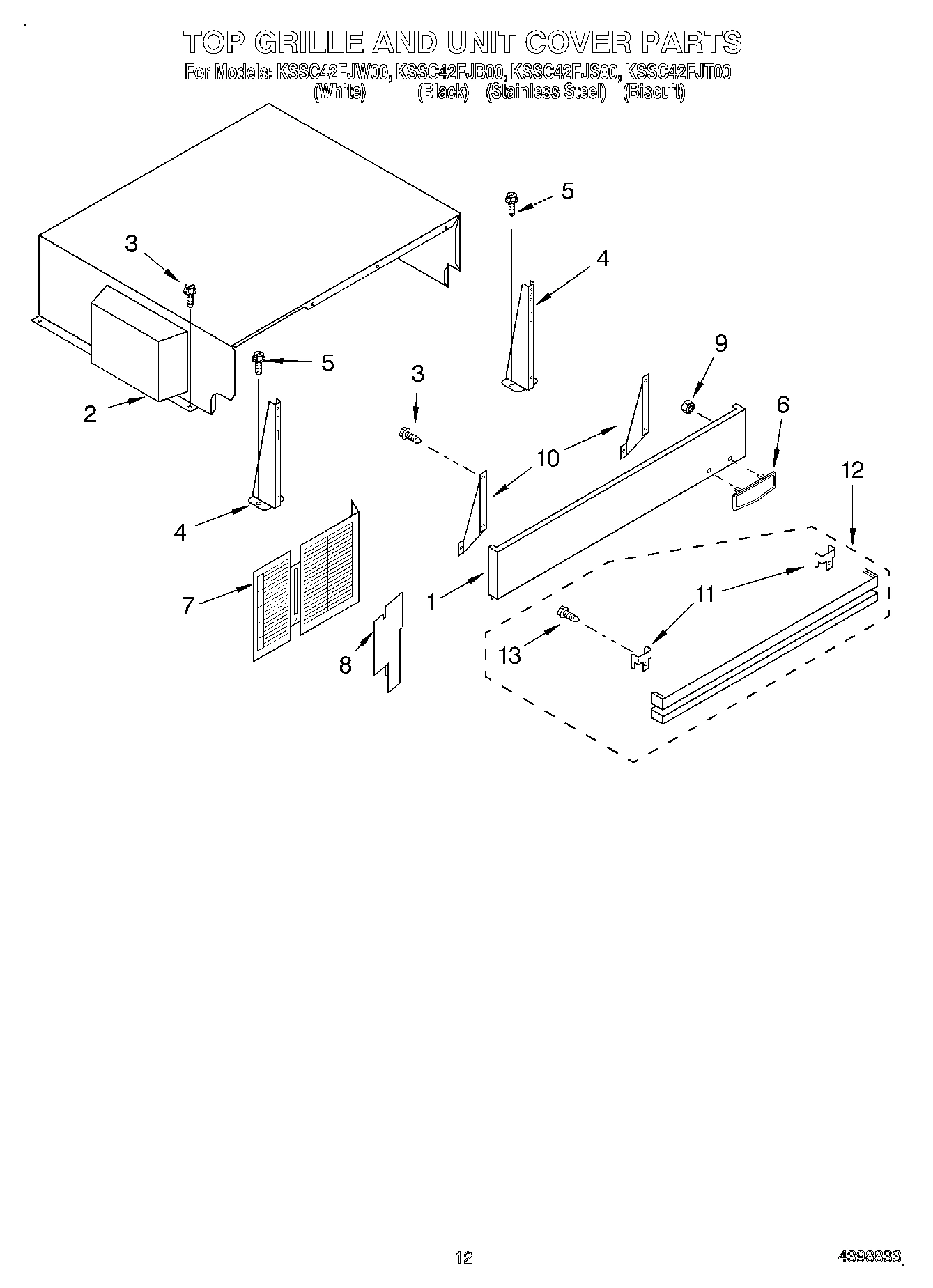

09 - TOP GRILLE AND UNIT COVER

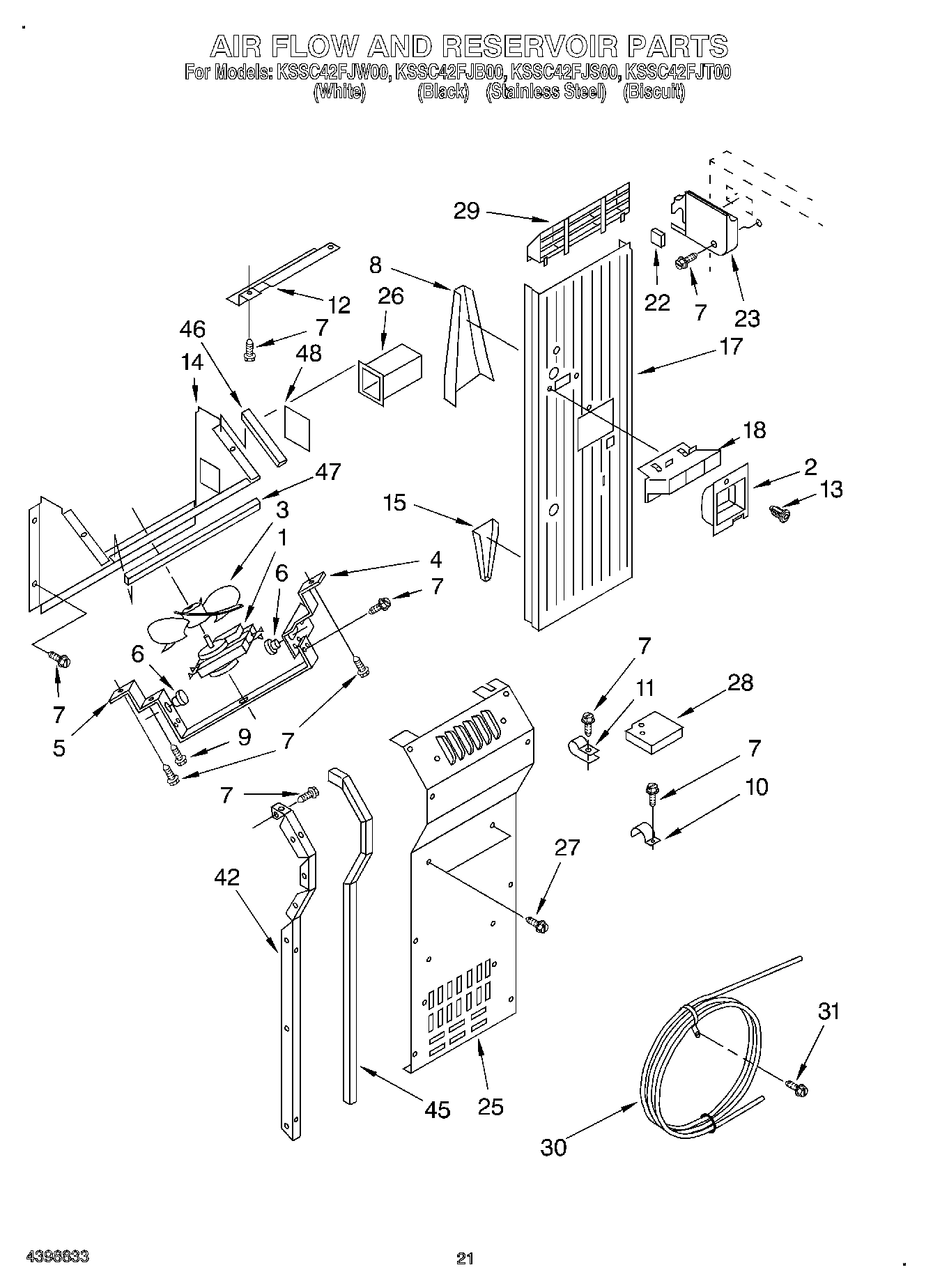

14 - AIR FLOW AND RESERVOIR

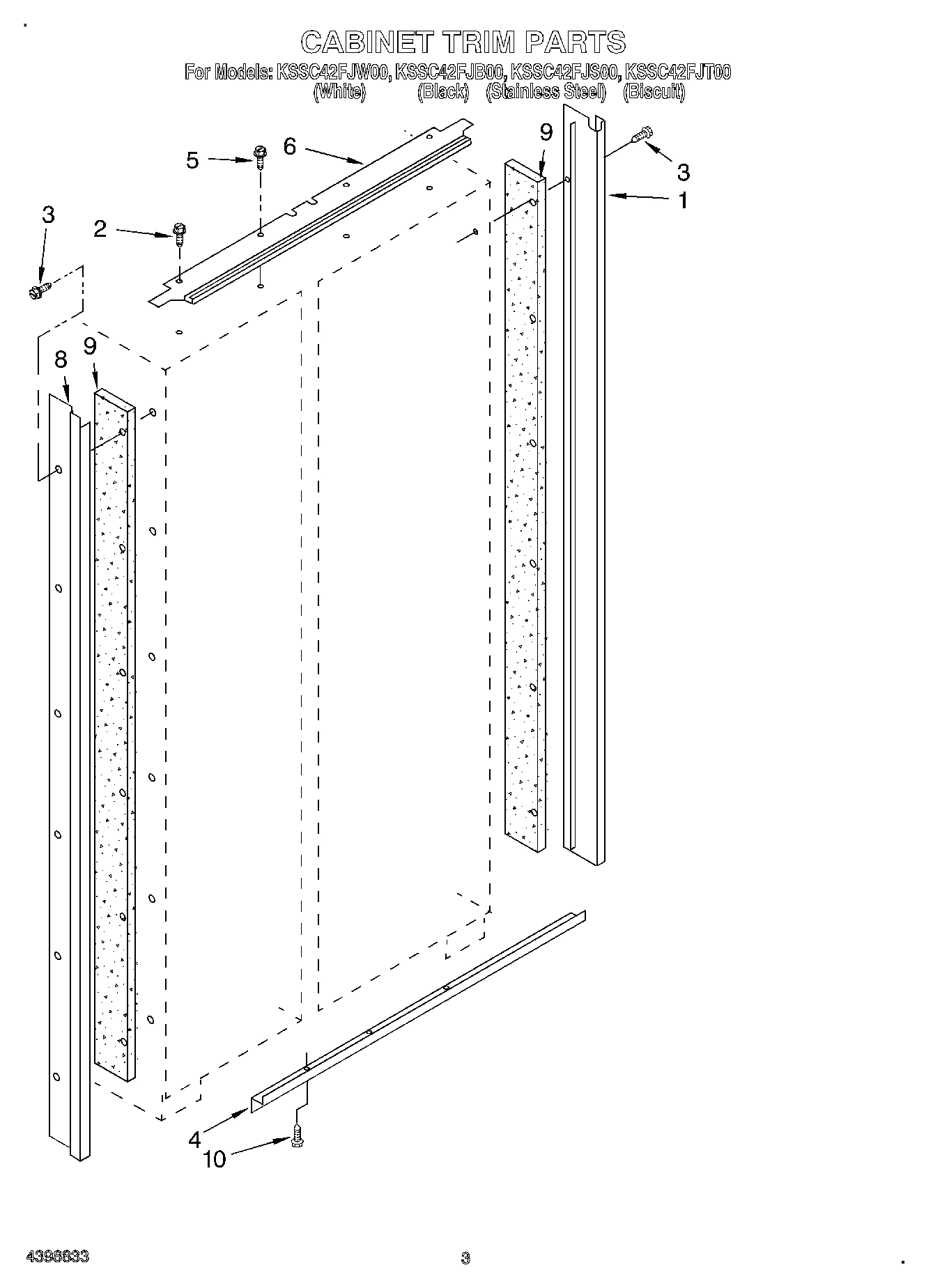

02 - CABINET TRIM

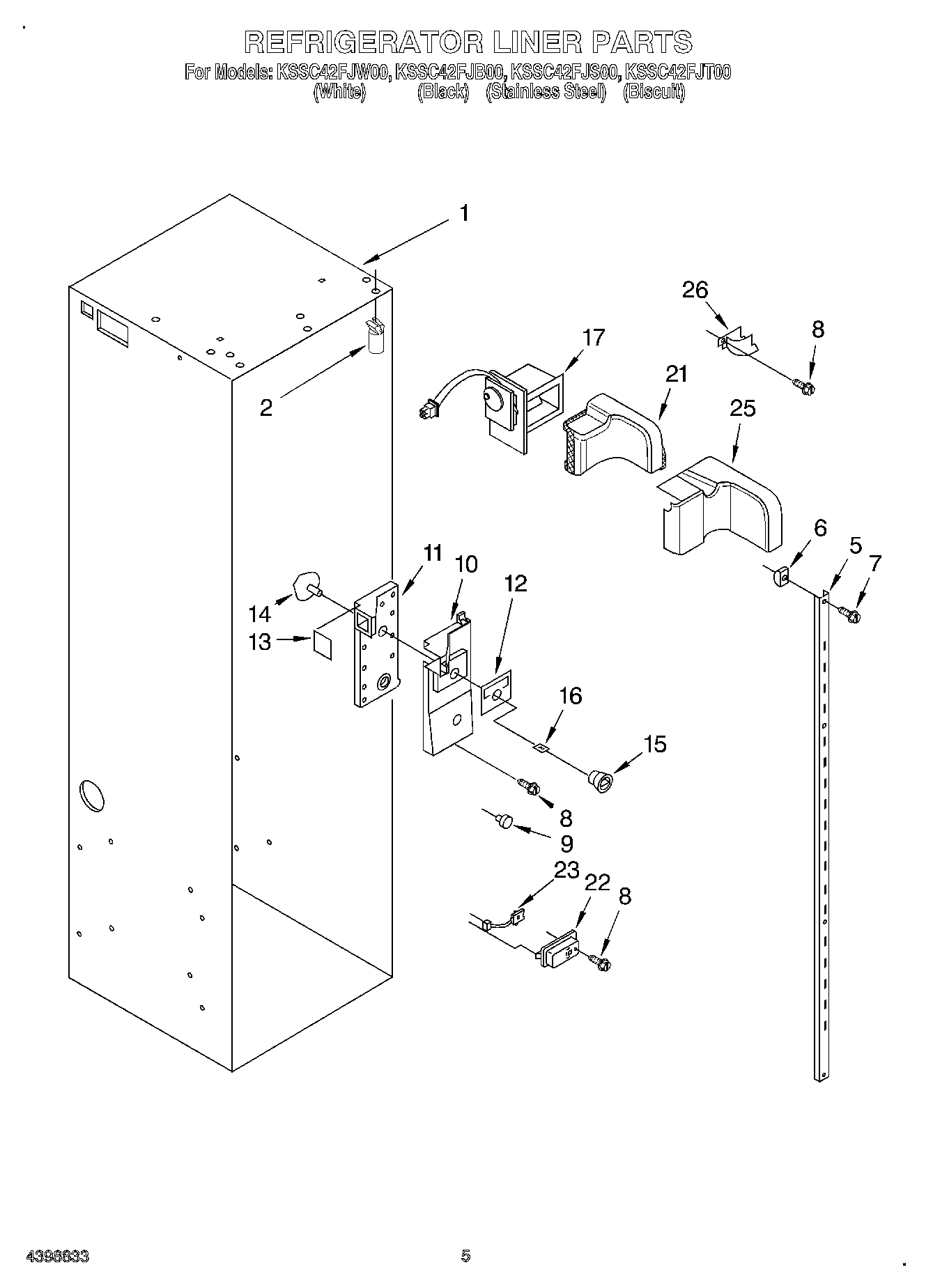

04 - REFRIGERATOR LINER

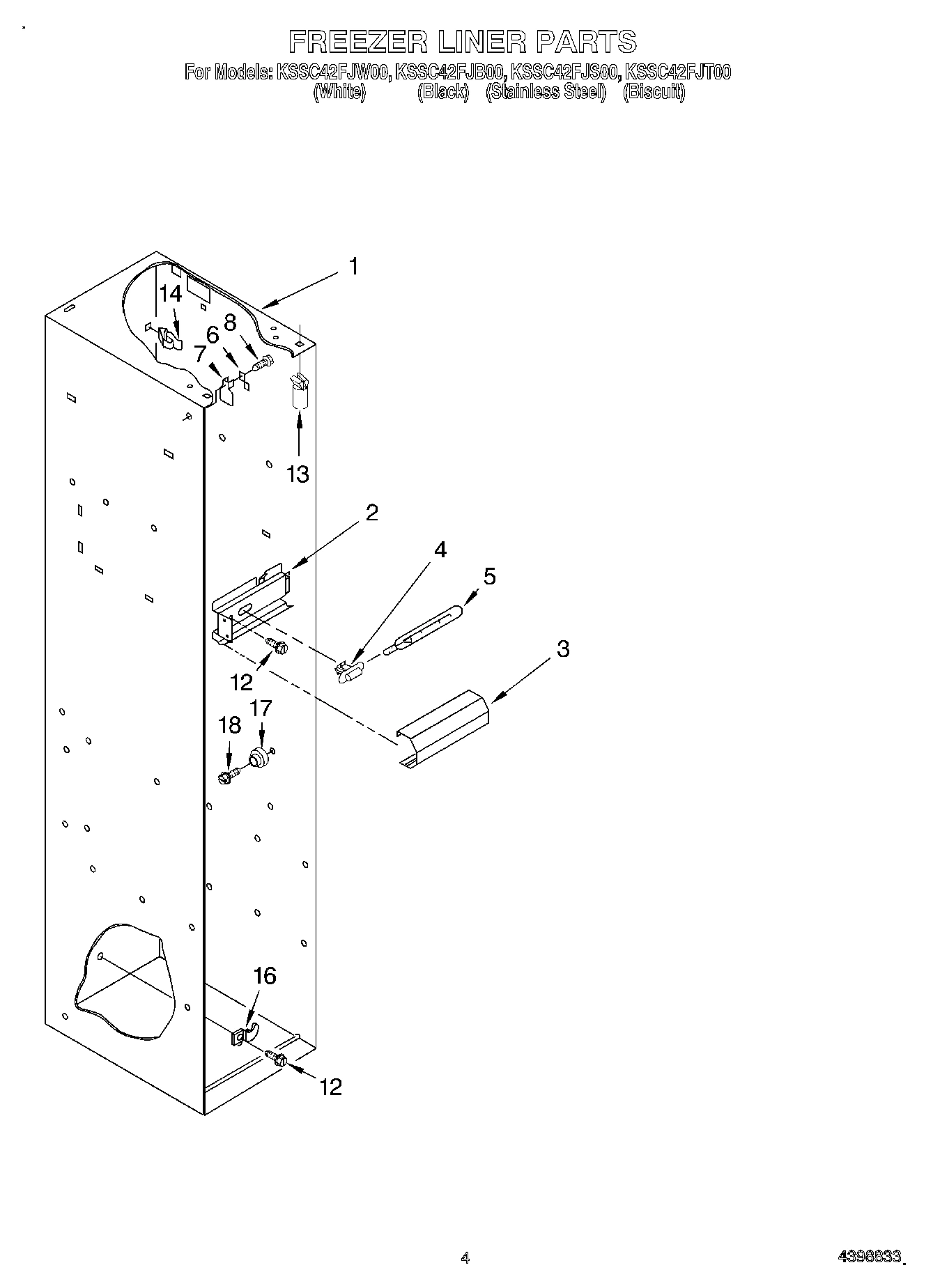

03 - FREEZER LINER

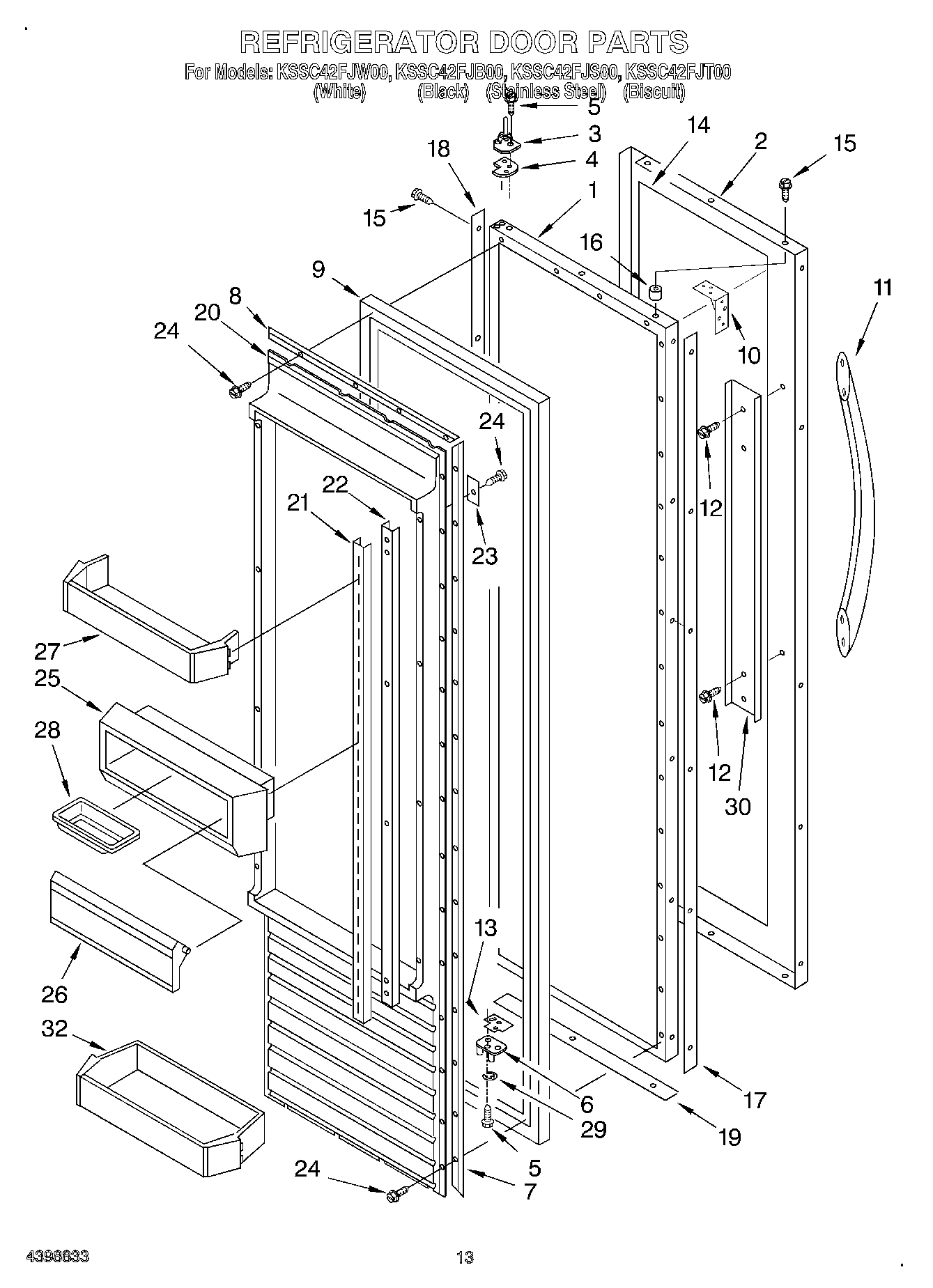

10 - REFRIGERATOR DOOR

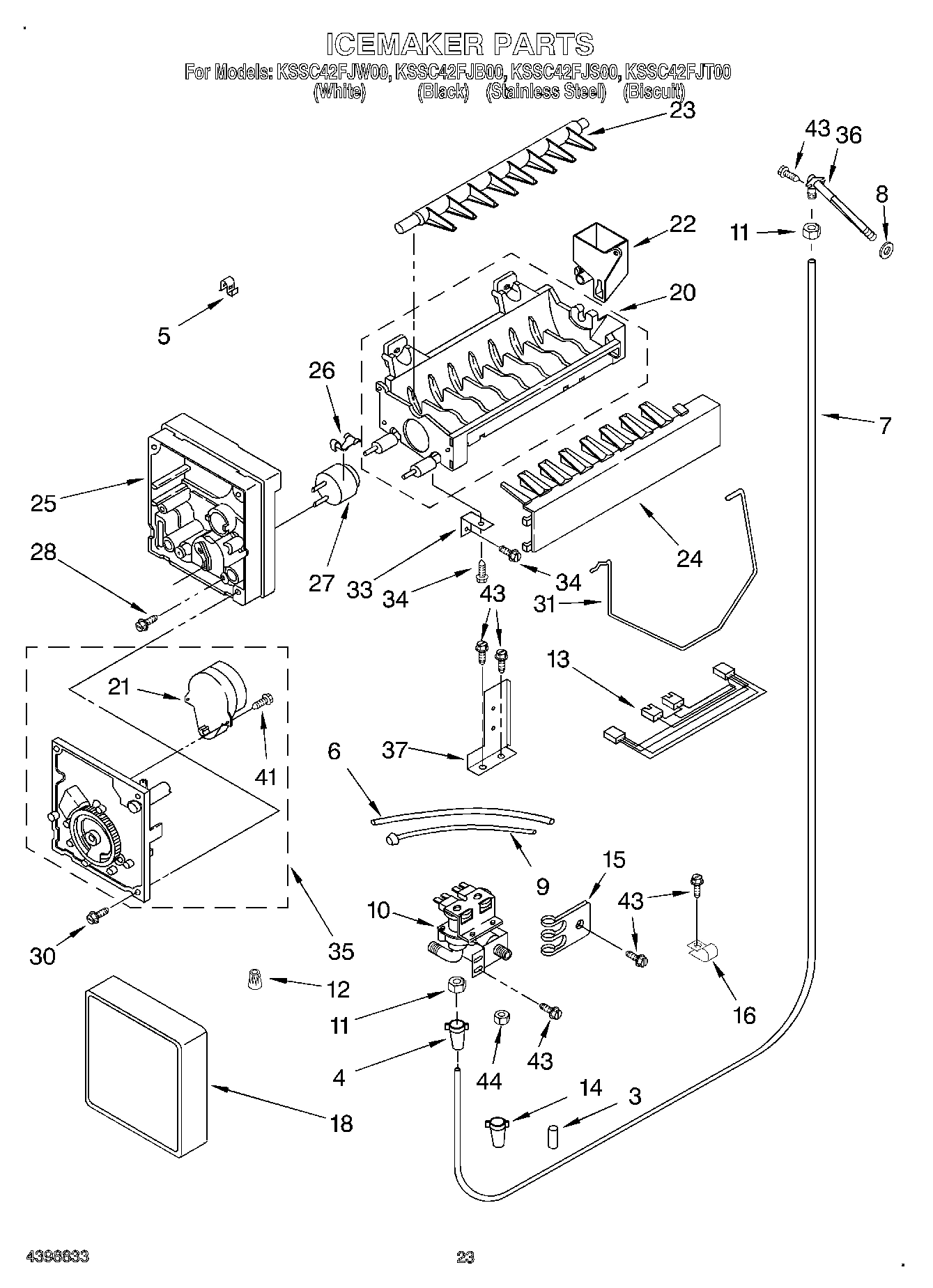

15 - ICE MAKER, OPTIONAL
06 - FREEZER CONTROL PANEL
08 - FREEZER SHELF

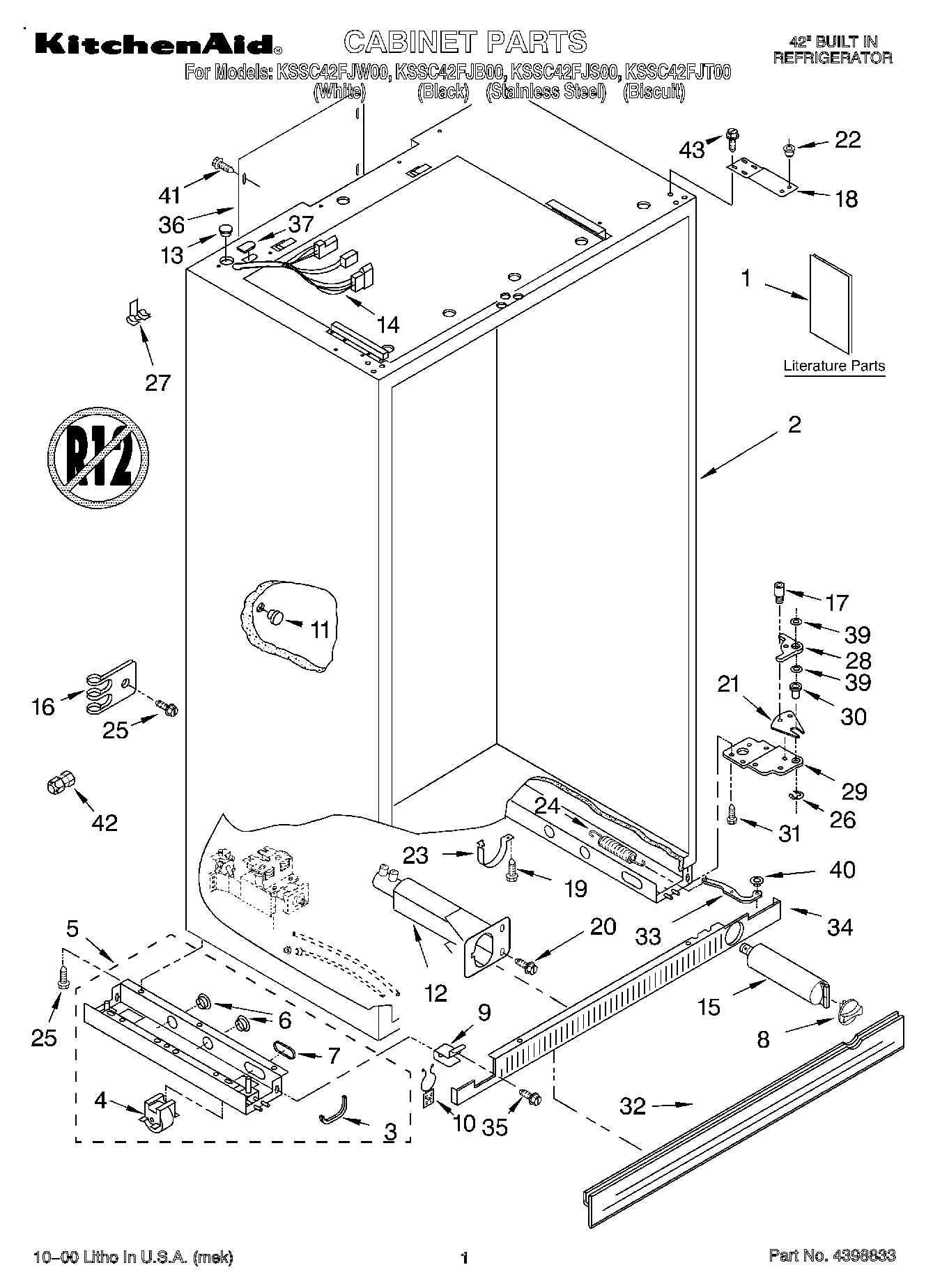

01 - CABINET, LITERATURE
12 - UPPER UNIT

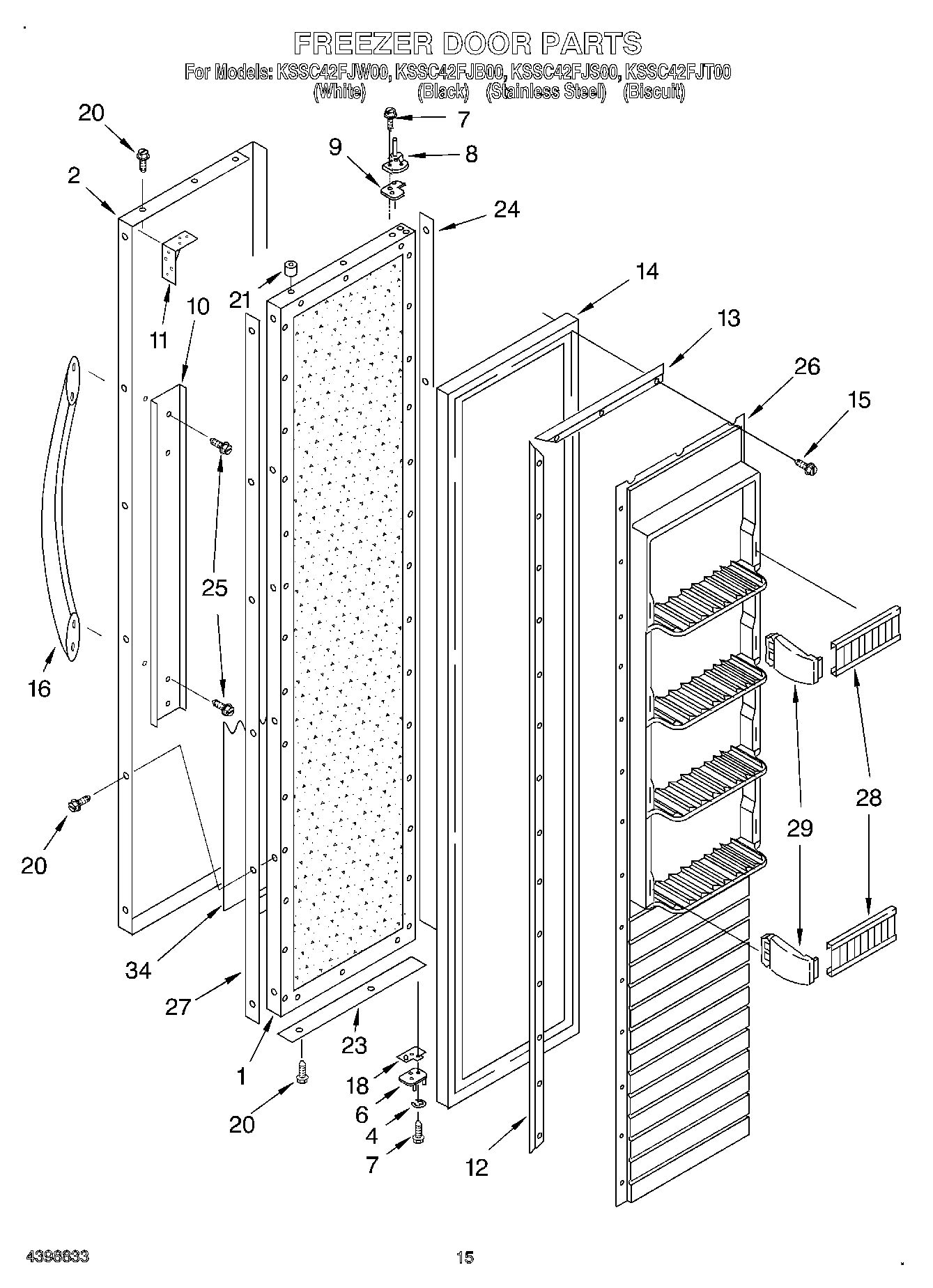

11 - FREEZER DOOR

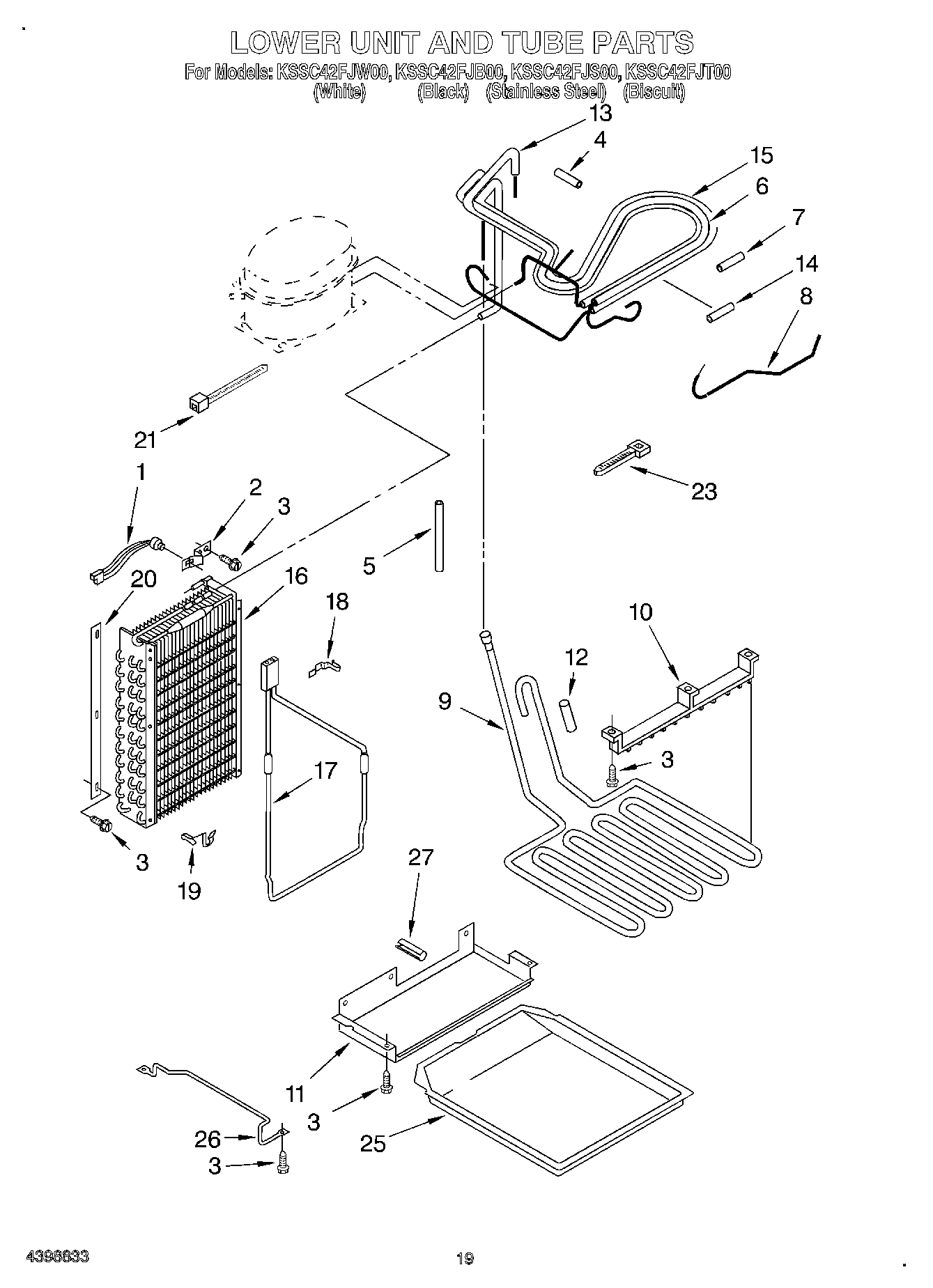

13 - LOWER UNIT AND TUBE
Common parts from model Whirlpool KSSC42FJW00 BUILT IN REFRIGERATOR
1
Defrost Bi-Metal WPL 2006755 Contact Us For Availability
1
Cabinet, Trim Right Side (Black) WPL 2209475B Contact Us For Availability
1
Trim, Cabinet Right Side (Stainless Steel) WPL 2209475S Contact Us For Availability
1
Cabinet, Trim Right Side (Biscuit) WPL 2209475T Contact Us For Availability
1
Cabinet, Trim Right Side (White) WPL 2209475W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105337A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105336A Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003871 Contact Us For Availability
1
Control Panel WPL 1113626 Contact Us For Availability
1
Solid Shelf WPL 2003143 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT2209249 Contact Us For Availability
1
LITERATURE PARTS (Installation Instructions) WPL LIT2209250 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2209309 Contact Us For Availability
1
Energy Label WPL LIT2209472 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 2003877 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Bracket, Light WPL 2005567 Contact Us For Availability
2
Skin, Door (Stainless Steel) WPL 2006772 Contact Us For Availability
2
Skin, Door (Black) WPL 2209099B Contact Us For Availability
2
Skin, Door (Biscuit) WPL 2209099T Contact Us For Availability
2
Skin, Door (White) WPL 2209099W Contact Us For Availability
2
Inlay, Control Panel WPL 2003308 Contact Us For Availability
2
Front, Ice Compartment WPL 2188382 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI105335A Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Skin, Door (Stainless Steel) WPL 2006775 Contact Us For Availability
2
Skin, Door (Black) WPL 2209100B Contact Us For Availability
2
Skin, Door (Biscuit) WPL 2209100T Contact Us For Availability
2
Skin, Door (White) WPL 2209100W Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
3
Circuit Board WPL 2208995 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Plug, Water Valve WPL 2005038 Contact Us For Availability
3
Shelf, Deep WPL 1113565 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113637 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
4
Trim, Cabinet (Bottom) WPL 2209074 Contact Us For Availability
4
Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Basket WPL 2208194 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
5
Ice Container WPL 2208907 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Trim, Cabinet Top WPL 2003646 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Tube, Filter Inlet WPL 2203198 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Front Cover WPL 2003044 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Hinge, Bottom WPL 2004524 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Cabinet, Trim Left Side (Black) WPL 2209485B Contact Us For Availability
8
Trim, Cabinet Left Side (Stainless Steel) WPL 2209485S Contact Us For Availability
8
Cabinet, Trim Left Side (Biscuit) WPL 2209485T Contact Us For Availability
8
Cabinet, Trim Left Side (White) WPL 2209485W Contact Us For Availability
8
Hinge, Top WPL 2005329 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Spacer-Door, Top WPL 2004520 Contact Us For Availability
9
Tube, Filter Outlet WPL 2209430 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
10
Plate, Door Handle WPL 2209202 Contact Us For Availability
10
Valve, Solenoid WPL 2006766 Contact Us For Availability
10
Shield, Control Panel WPL 2209253 Contact Us For Availability
10
Clip, Wire WPL 2005237 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
11
Socket, Light WPL 2005042 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Brace, Door Corner WPL 2004447 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Sleeve WPL 2002448 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Water Valve, Harness WPL 2209072 Contact Us For Availability
13
Trim, Basket WPL 2003113 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Filler, Door WPL 2005326 Contact Us For Availability
14
Insert, Tube WPL 1129177 Contact Us For Availability
14
Channel, Wiring WPL 2001973 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2209060 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
15
Heat Exchanger WPL 2003002 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
15
Roller WPL 2188212 Contact Us For Availability
16
Eyelet, Roller WPL 2174478 Contact Us For Availability
16
Retainer, Knob WPL 2003841 Contact Us For Availability
16
Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability
16
Handle, Door (Black) WPL 2209095B Contact Us For Availability
16
Handle, Door (Biscuit) WPL 2209095T Contact Us For Availability
16
Handle, Door (White) WPL 2209095W Contact Us For Availability
16
Clamp, Tube WPL 488937 Contact Us For Availability
16
Knob, Thermostat WPL 2182112 Contact Us For Availability
16
Tube, Clamp WPL 934011 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
17
Lens, Indicator Light WPL 2200096 Contact Us For Availability
17
Air Baffle Assembly WPL 2004484 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Door, Spacer WPL 2004549 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Spacer, Door Bottom WPL 2004934 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
20
Screw (White) WPL 2001208 Contact Us For Availability
20
Screw (Biscuit) WPL 3400877 Contact Us For Availability
20
Screw (Black) WPL 3400878 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
21
Seal WPL 2208996 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Basket Slide (Left Side) WPL 2208197 Contact Us For Availability
22
Basket Slide (Right Side) WPL 2208198 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Motor, Fan WPL 2208903 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Stop, Roller WPL 1113169 Contact Us For Availability
24
Spacer, Hinge Side WPL 2005030 Contact Us For Availability
24
Spring, Door Closure (Refrigerator Side) WPL 2004566 Contact Us For Availability
24
Spring, Door Closure (Freezer Side) WPL 2004567 Contact Us For Availability
25
Air Baffle Cover WPL 2208953 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
26
Door, Utility Bin WPL 2003464 Contact Us For Availability
26
Panel, Interior Door WPL 2209031 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Spacer, Handle Side WPL 2005330 Contact Us For Availability
27
Door Shelf (3) WPL 1113973 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Tray, Butter WPL 2165792 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
28
Shelf Bin WPL 2188515 Contact Us For Availability
29
Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability
29
Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability
32
Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability
32
Shelf, Gallon Door WPL 2188332 Contact Us For Availability
32
Skirt-Grille, Bottom (Biscuit) WPL 2209025T Contact Us For Availability
32
Skirt-Grille, Bottom (White) WPL 2209025W Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
33
Linka WPL 2004516 Contact Us For Availability
34
WPL 2209428W WPL 2209428W Contact Us For Availability
34
WPL 2209428B WPL 2209428B Contact Us For Availability
34
WPL 2209428T WPL 2209428T Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
34
Filler, Door WPL 2005325 Contact Us For Availability
35
WPL 489238 WPL 489238 Contact Us For Availability
36
Fitting, Water Tube WPL 2185988 Contact Us For Availability
36
WPL 2004512 WPL 2004512 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
37
WPL 2209203 WPL 2209203 Contact Us For Availability
37
Cover, Condenser WPL 2005535 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
40
WPL 2004565 WPL 2004565 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2207479 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318633 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318636 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318639 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4318642 Contact Us For Availability
100
Front Panel Kit (Biscuit) WPL 4392881 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
