Model Whirlpool KSSC36FTS02 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

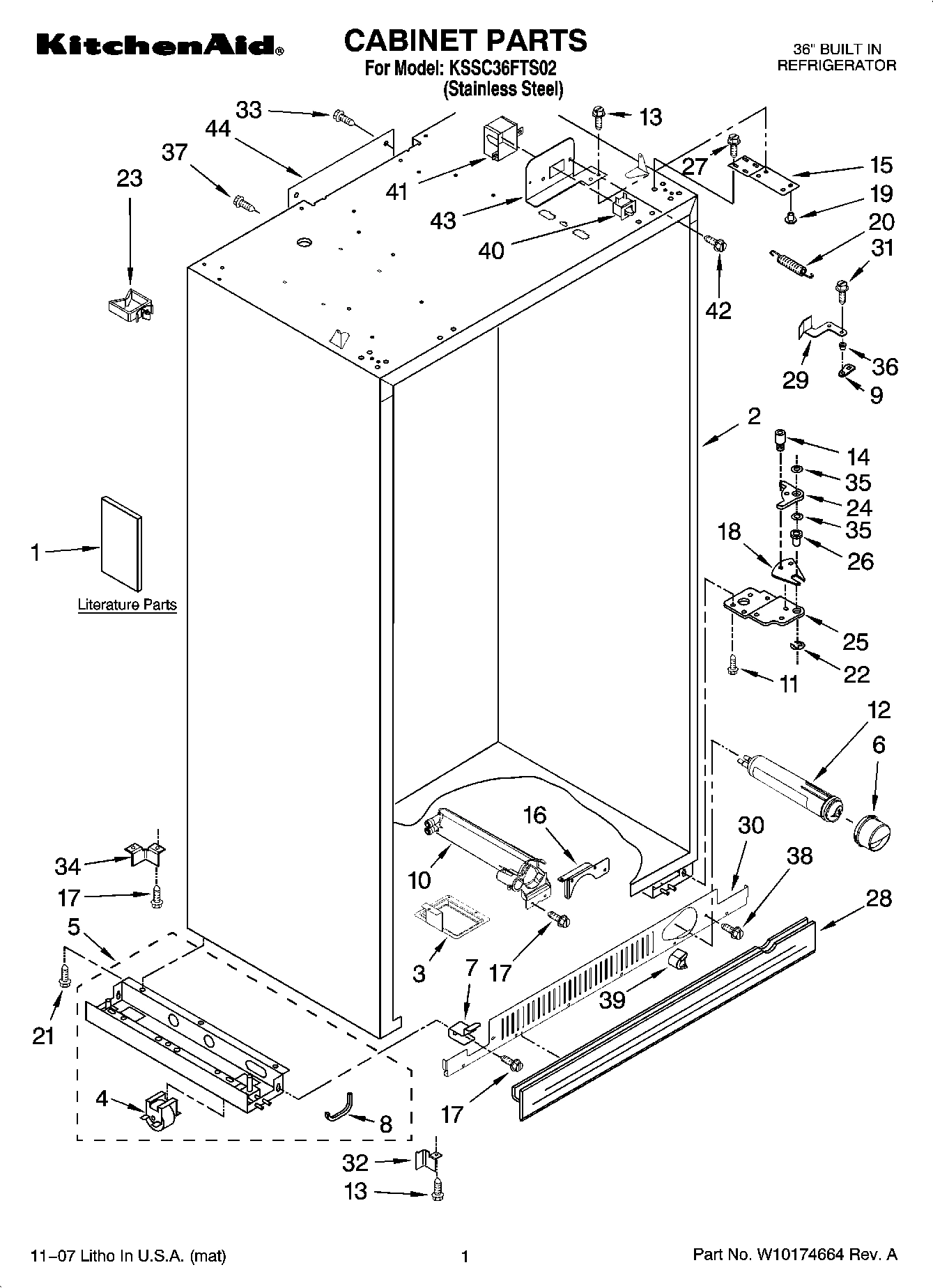

01 - CABINET PARTS

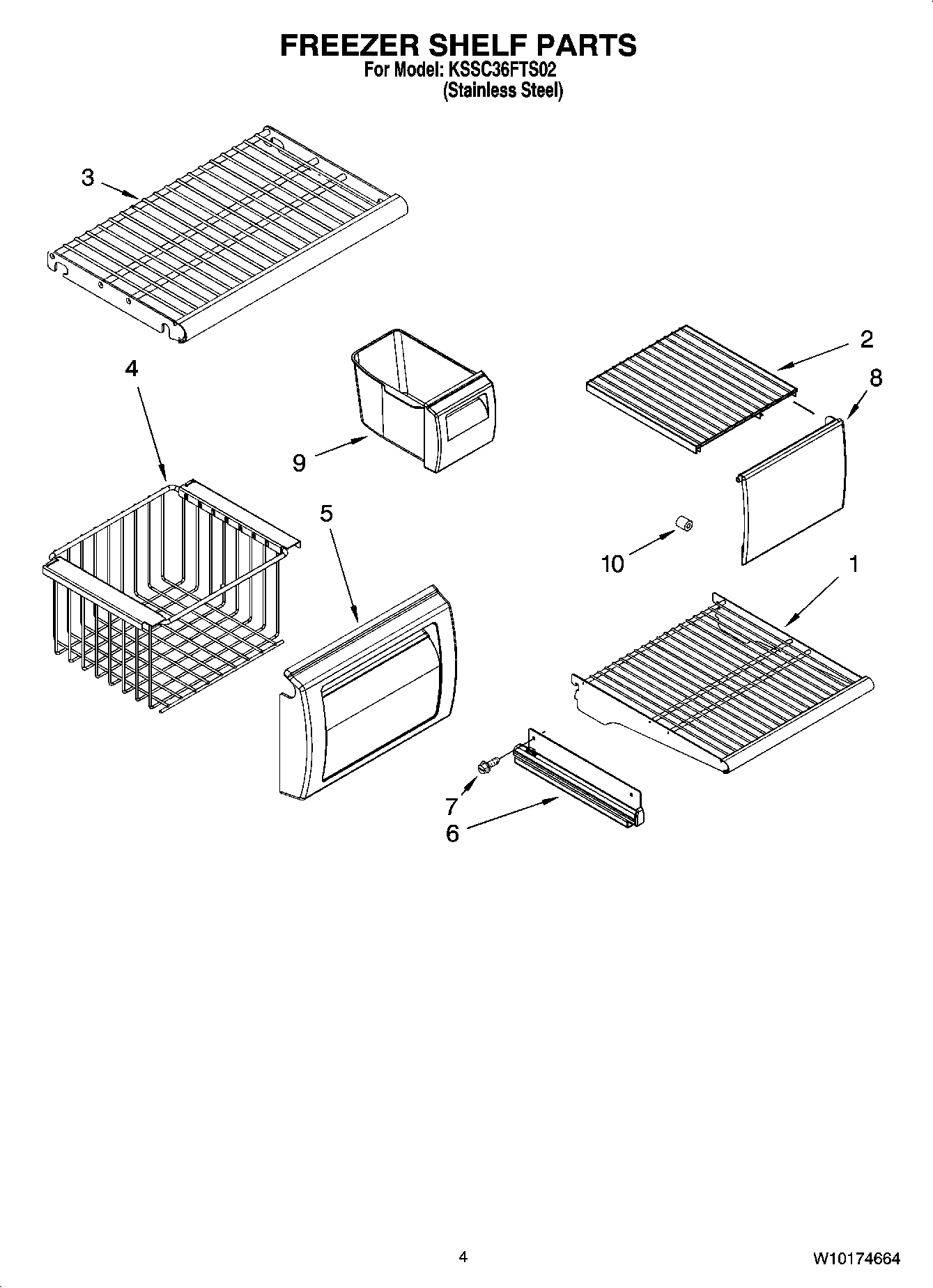

03 - FREEZER SHELF PARTS
09 - REFRIGERATOR DOOR PARTS
12 - LOWER UNIT AND TUBE PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
08 - FREEZER LINER AND AIR FLOW PARTS
13 - ICEMAKER PARTS
05 - CONTROL PANEL PARTS
10 - FREEZER DOOR PARTS
11 - UPPER UNIT PARTS
02 - CABINET TRIM PARTS
04 - REFRIGERATOR LINER PARTS
07 - REFRIGERATOR SHELF PARTS
Common parts from model Whirlpool KSSC36FTS02 36`` BUILT IN REFRIGERATOR
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
Following Parts Not Illustrated and Optional WPL ARI105225A Contact Us For Availability
REFRIGERANT CHARGE 6.25 oz. (R-134A) WPL ARI105226A Contact Us For Availability
1
CABINET TRIM, RIGHT SIDE WPL W10132472 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105222A Contact Us For Availability
1
Shelf Assembly WPL 2222591 Contact Us For Availability
2
Wire, Jumper WPL 2310164 Contact Us For Availability
2
TRIM, GLASS SIDE MEAT PAN WPL 2256250 Contact Us For Availability
2
BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability
3
Suction Tube WPL 2309076 Contact Us For Availability
3
Wire Assembly, Icemaker WPL 2310136 Contact Us For Availability
3
Tray, Drip Filter WPL 2318189 Contact Us For Availability
4
Housing, Control Board WPL 2318087 Contact Us For Availability
4
Guard, Air Return WPL 2003577 Contact Us For Availability
4
CABINET TRIM, BOTTOM WPL 2316686 Contact Us For Availability
4
Meat Pan Cover Assembly WPL 2302841 Contact Us For Availability
5
Crisper Cover Assembly WPL 2302834 Contact Us For Availability
6
Tube, Filter Inlet WPL 2325170 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2302878 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2259317 Contact Us For Availability
6
Cabinet, Trim Top WPL 2314016 Contact Us For Availability
6
Trim, Glass Rear WPL 2257581 Contact Us For Availability
7
Rail, Lid WPL 2222795 Contact Us For Availability
7
Wedge, Air Duct WPL 2259464 Contact Us For Availability
7
Support, Condenser (Right) WPL 2309002 Contact Us For Availability
7
CABINET TRIM, LEFT SIDE WPL W10132541 Contact Us For Availability
7
SCREW WPL 2006475 Contact Us For Availability
8
Grommet, Crossover Tube WPL 2307584 Contact Us For Availability
8
NAMEPLATE WPL 2317923S Contact Us For Availability
8
Bracket, Switch WPL 2307684 Contact Us For Availability
9
Cam, Door Closer WPL 2005783 Contact Us For Availability
9
Terminal Cover WPL 2215676 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Clamp WPL 489348 Contact Us For Availability
9
Spacer, Door-Skin (Handle Side) WPL 2309056 Contact Us For Availability
9
Trim, Glass Front (Not Serviceable) WPL ARI105223A Contact Us For Availability
10
Heater, Defrost WPL W10140160 Contact Us For Availability
10
Skin, Door WPL 2307755 Contact Us For Availability
10
Support, Condenser (Left) WPL 2309001 Contact Us For Availability
10
Lid, Air Baffle WPL 2302986 Contact Us For Availability
10
Trim, Glass Rear WPL 2256253 Contact Us For Availability
11
Clamp, Heater (2) WPL 1113048 Contact Us For Availability
11
Screw WPL 3400525 Contact Us For Availability
12
Release Valve WPL 2171846 Contact Us For Availability
12
Spacer, Door (Handle Side) WPL 2309060 Contact Us For Availability
12
Trim, Glass Side WPL 2252255 Contact Us For Availability
13
SPACER, CRISPER (LEFT SIDE (2)) WPL 2256223 Contact Us For Availability
13
Gasket, Evaporator WPL 2220832 Contact Us For Availability
13
SPACER, CRISPER (RIGHT SIDE (2)) WPL 2256222 Contact Us For Availability
13
Bracket, Inverter Box WPL 2256328 Contact Us For Availability
13
Jumper, Air Baffle WPL 2310205 Contact Us For Availability
14
SLIDE, CRISPER (LEFT SIDE) (2) WPL 2302956 Contact Us For Availability
14
SLIDE, CRISPER (RIGHT SIDE) (2) WPL 2302957 Contact Us For Availability
14
Spacer, Door Skin Bottom WPL 2004931 Contact Us For Availability
14
BRACKET, VIBRATION (CONDENSER) WPL 2317031 Contact Us For Availability
14
Screw WPL 488357 Contact Us For Availability
15
SPACER, DOOR-SKIN HINGE SIDE) WPL 2005030 Contact Us For Availability
15
Spacer, Meat Pan (Left Side) WPL 2256243 Contact Us For Availability
16
CONDENSER WPL 2307998 Contact Us For Availability
16
Block, Fan Scroll (Left) WPL 2209066 Contact Us For Availability
17
Filler, Door WPL 2005324 Contact Us For Availability
17
Grommet (4) WPL 2309431 Contact Us For Availability
18
Cover, Air Outlet WPL 2259025 Contact Us For Availability
18
ARM, VIBRATION (CONDENSER) WPL 2317030 Contact Us For Availability
19
Bushing WPL 2300082 Contact Us For Availability
19
Light Shield WPL 2307751 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
21
Cover, Diffuser WPL 2309087 Contact Us For Availability
22
PLATE, DOOR HANDLE WPL W10127710 Contact Us For Availability
22
WIRE ASSEMBLY,CONDENSER FAN WPL 2310207 Contact Us For Availability
22
Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability
23
Seal, Air Duct (Square Hole) WPL 2259398 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
27
Gasket (2) Evaporator Cover WPL 2220904 Contact Us For Availability
28
Harness, Evap Fan (Includes Item 35) WPL W10139189 Contact Us For Availability
28
Tube, Heat Loop Transition WPL 2307692 Contact Us For Availability
28
Screw WPL 8533917 Contact Us For Availability
30
Gasket, Condenser WPL 2309432 Contact Us For Availability
31
Screw WPL 2005921 Contact Us For Availability
32
Bracket, Support Base (Front) (Left) WPL 2006616 Contact Us For Availability
33
Cover, Condenser WPL 2309000 Contact Us For Availability
34
B WPL 2006617 Contact Us For Availability
34
Screw, (2) WPL 489136 Contact Us For Availability
38
CLAMP, CORD WPL 549193 Contact Us For Availability
× ![]()
