Model Whirlpool KSSC36FMS03 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

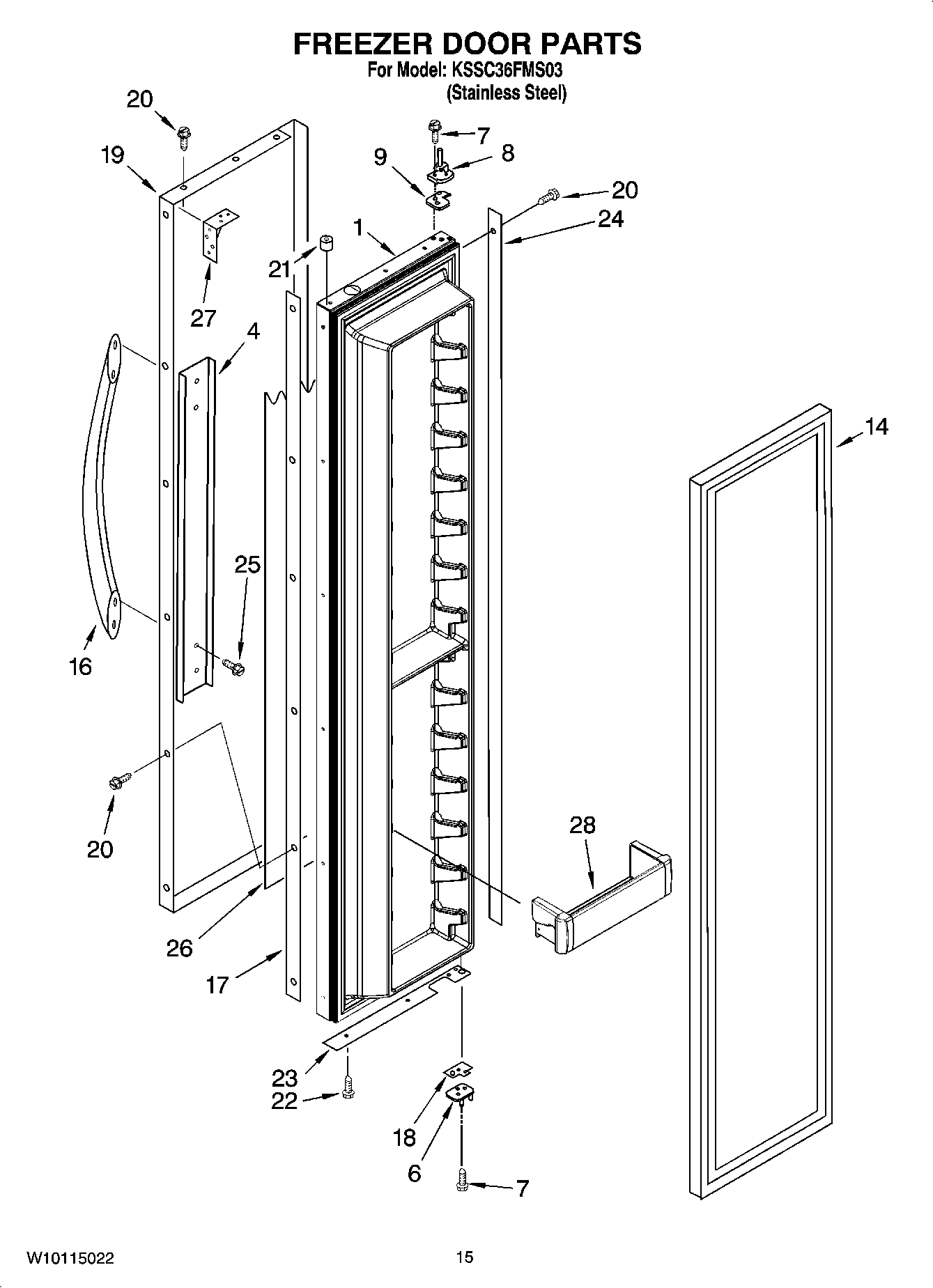

10 - FREEZER DOOR PARTS

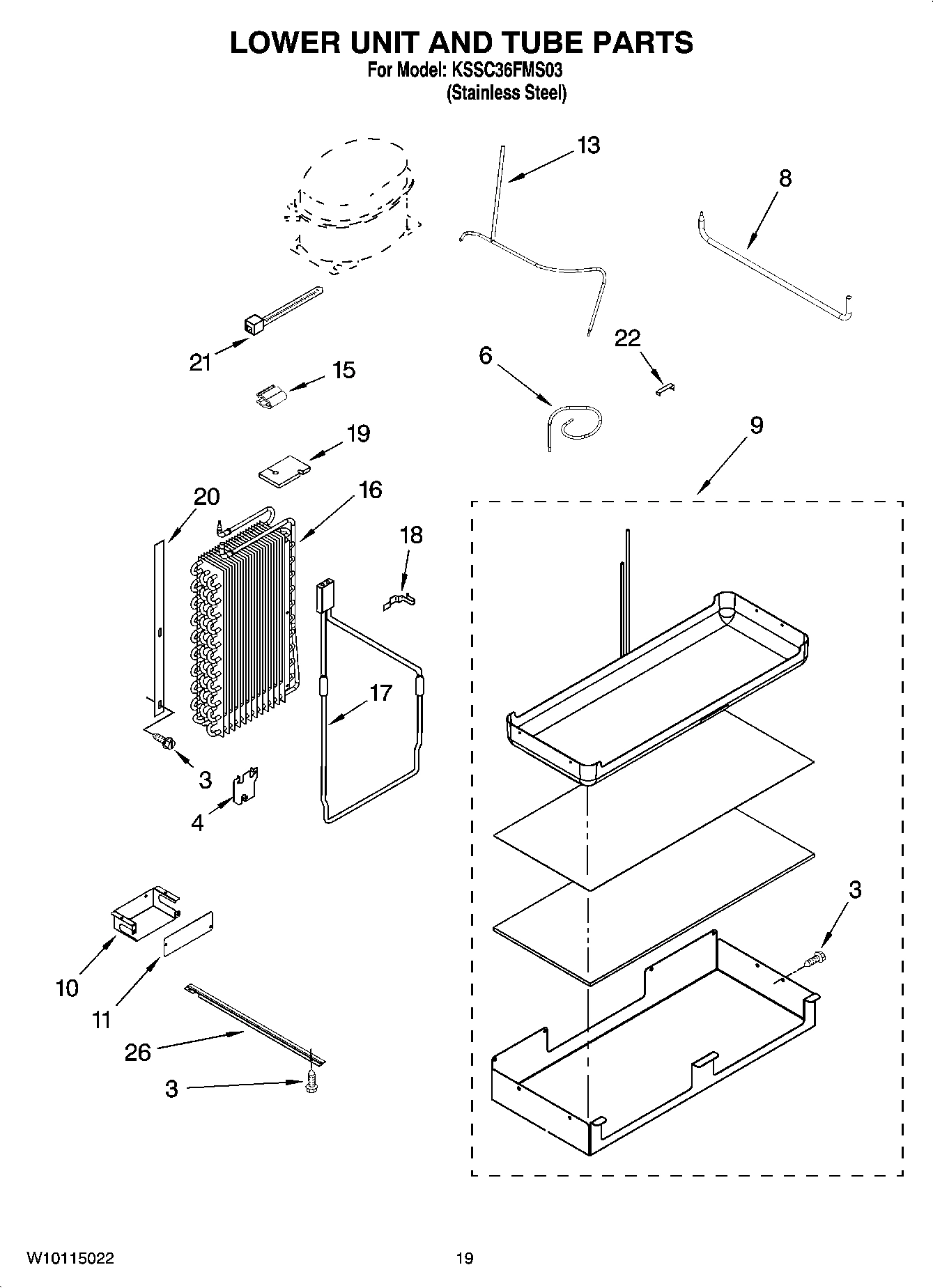

12 - LOWER UNIT AND TUBE PARTS
02 - CABINET TRIM PARTS

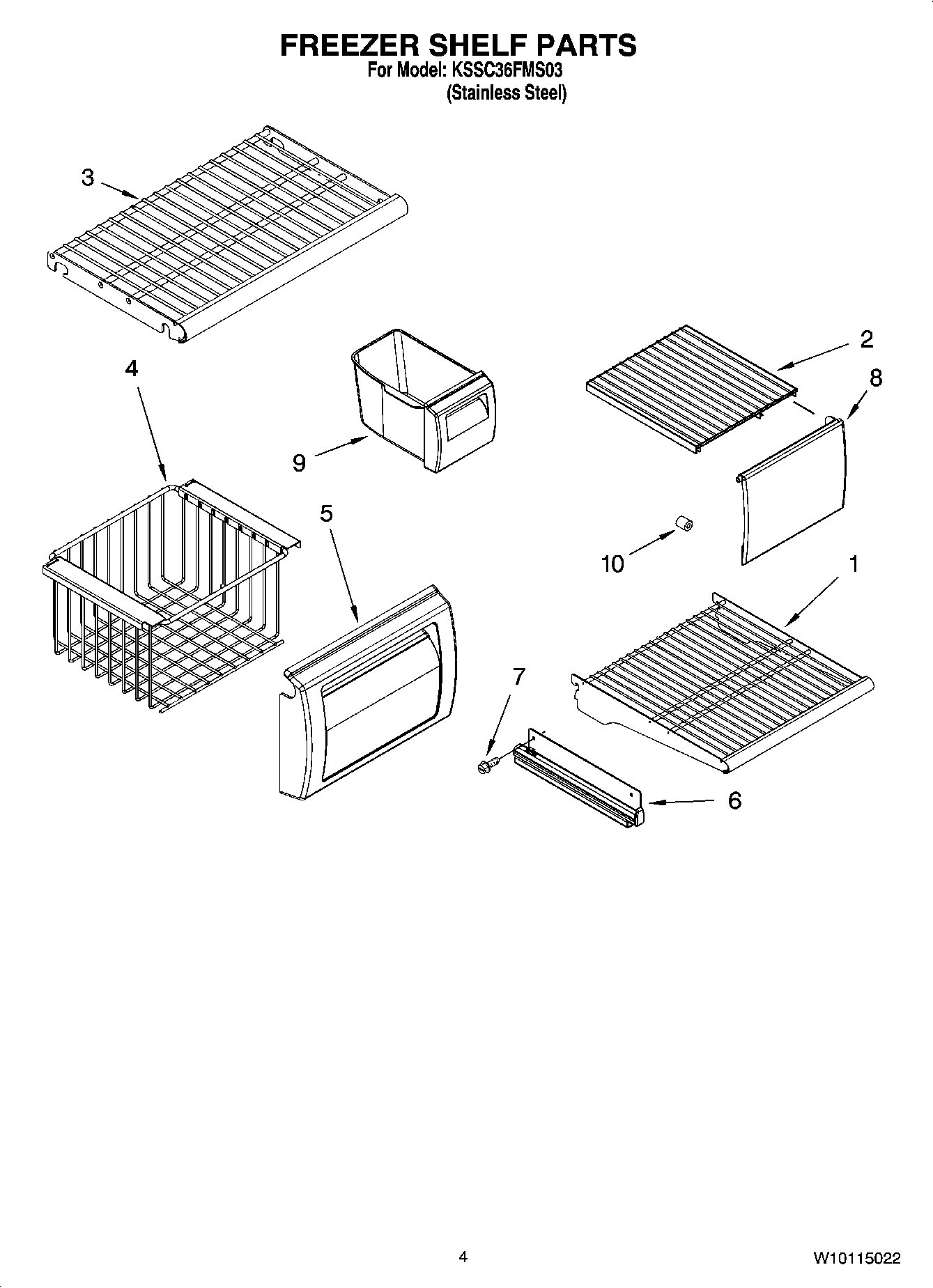

03 - FREEZER SHELF PARTS

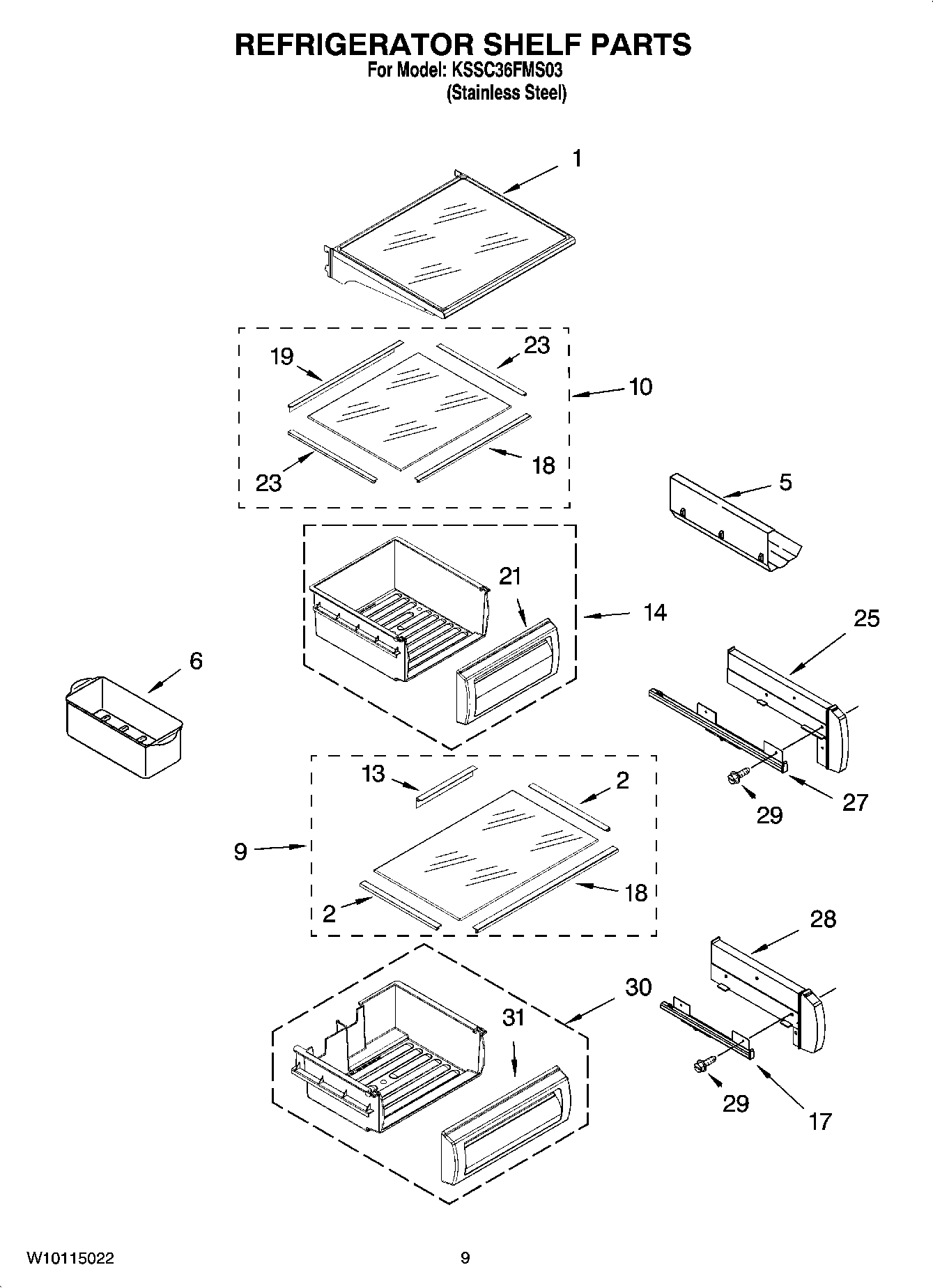

07 - REFRIGERATOR SHELF PARTS

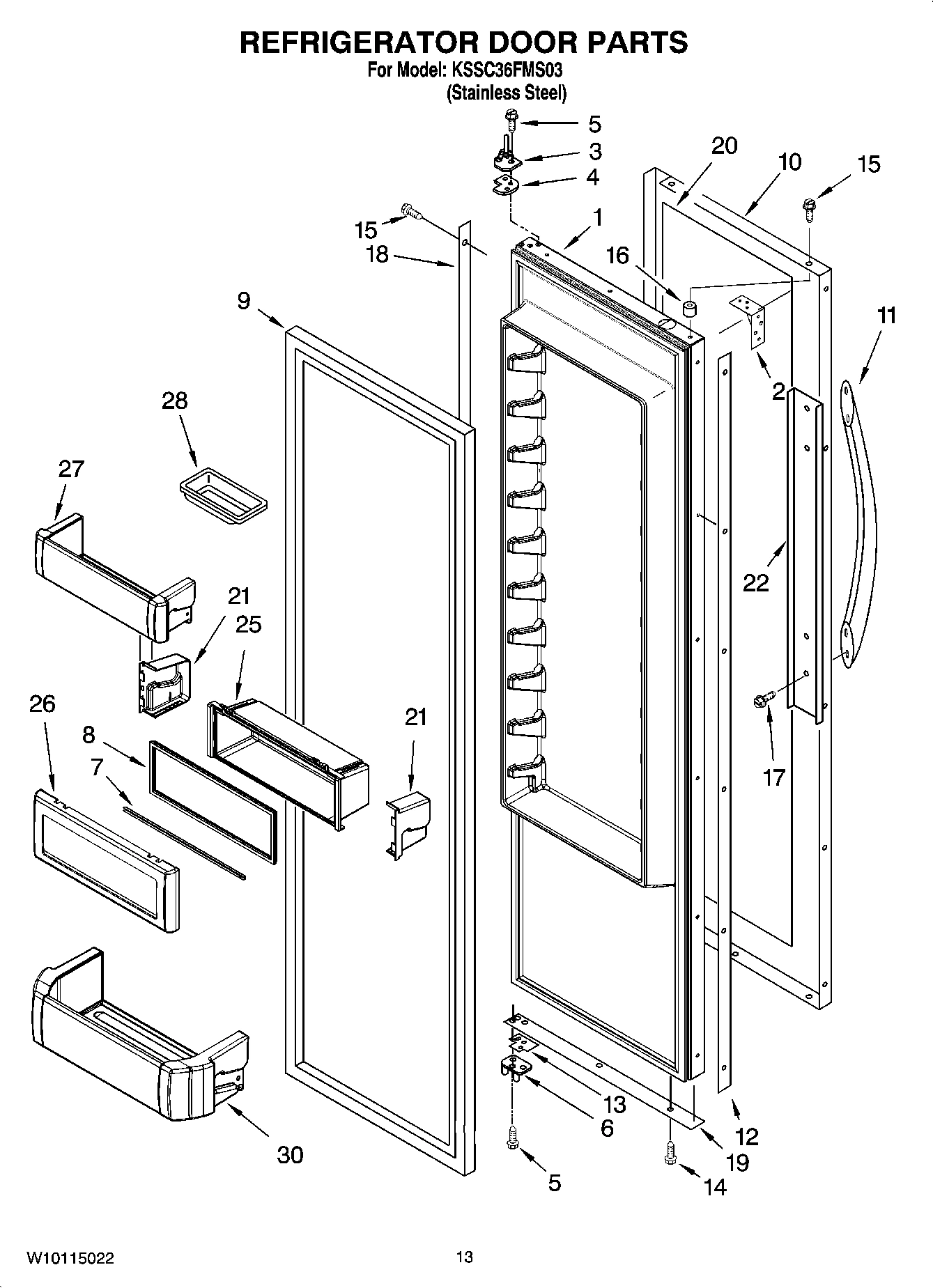

09 - REFRIGERATOR DOOR PARTS

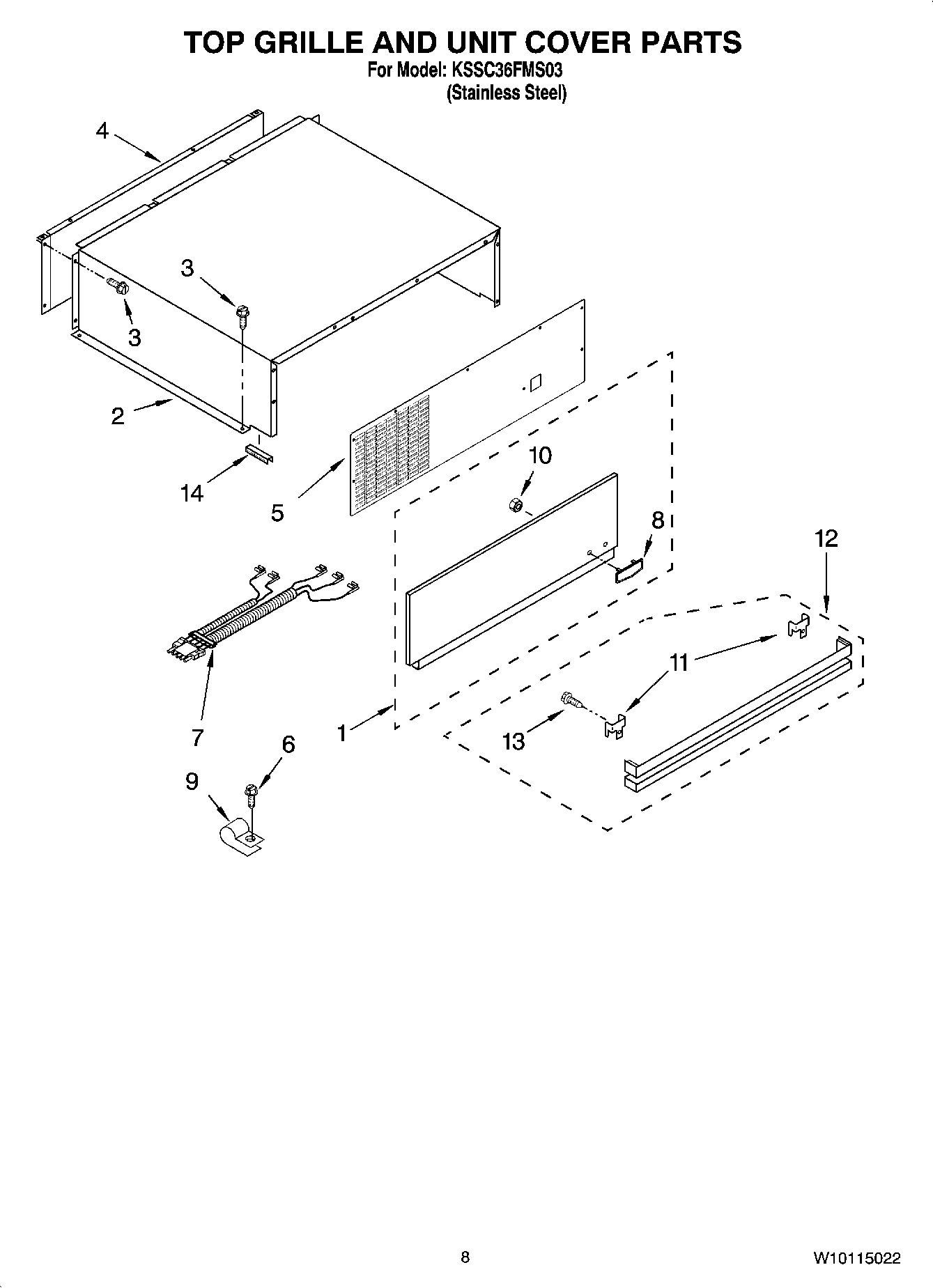

06 - TOP GRILLE AND UNIT COVER PARTS

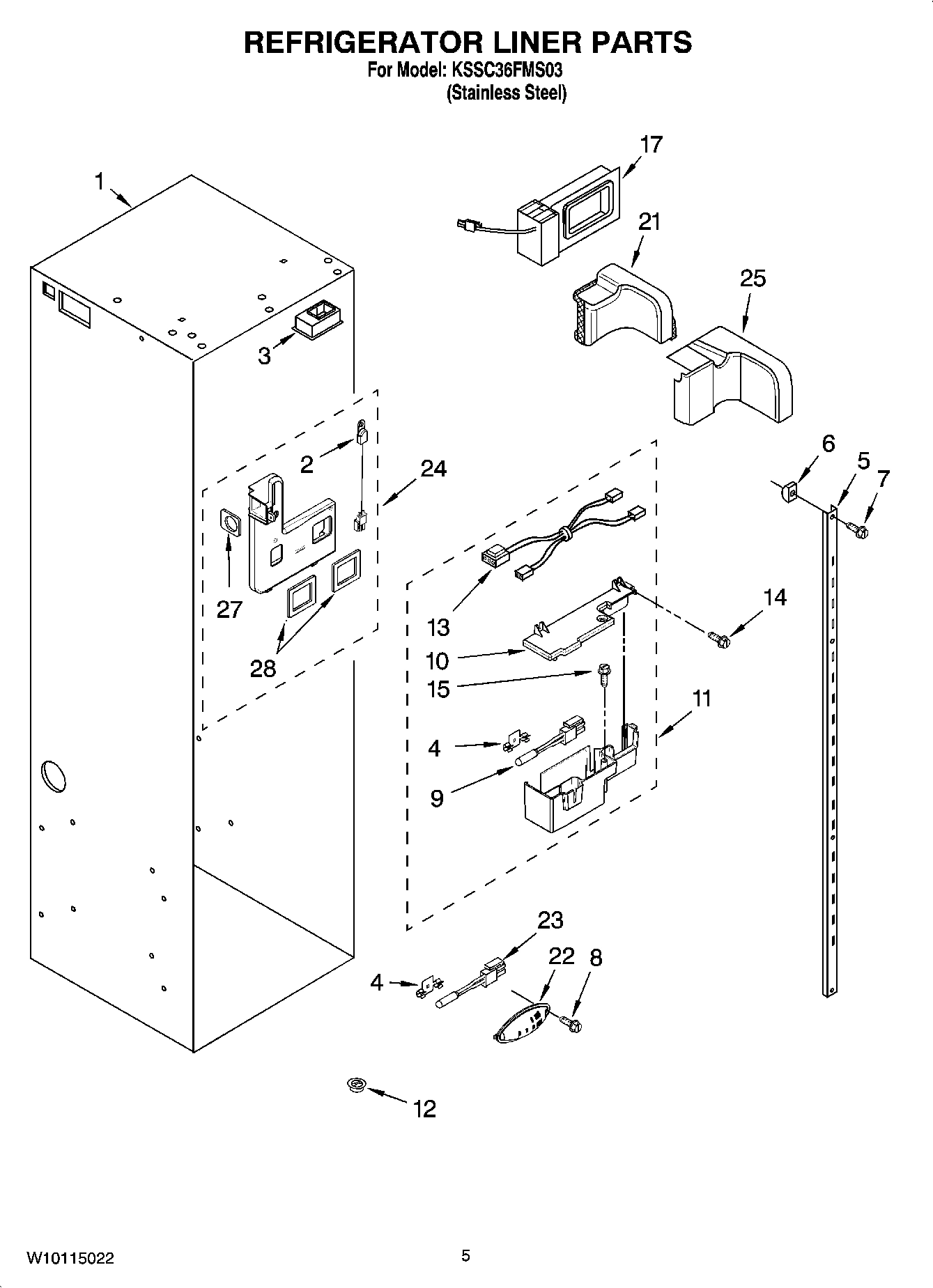

04 - REFRIGERATOR LINER PARTS

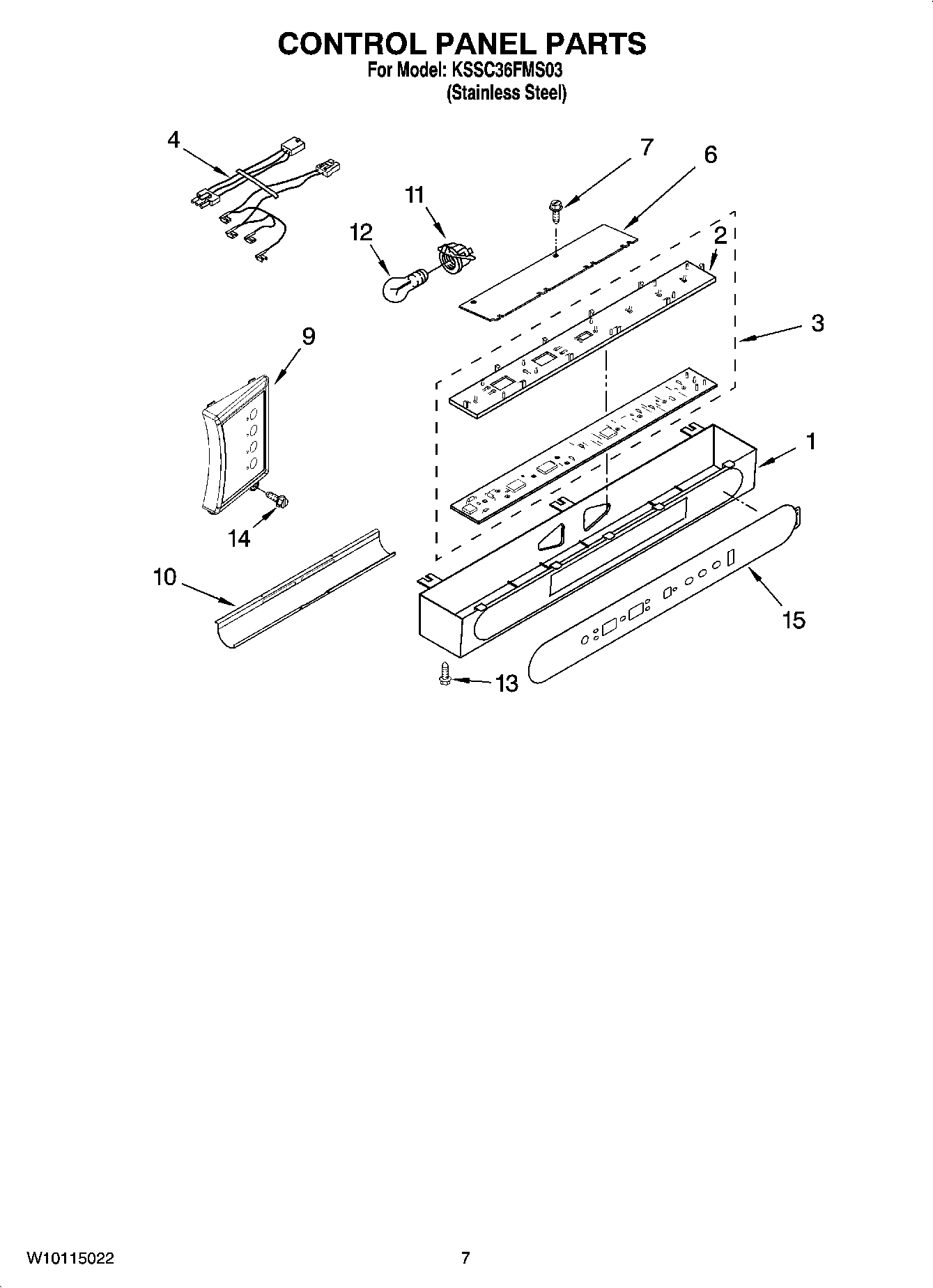

05 - CONTROL PANEL PARTS

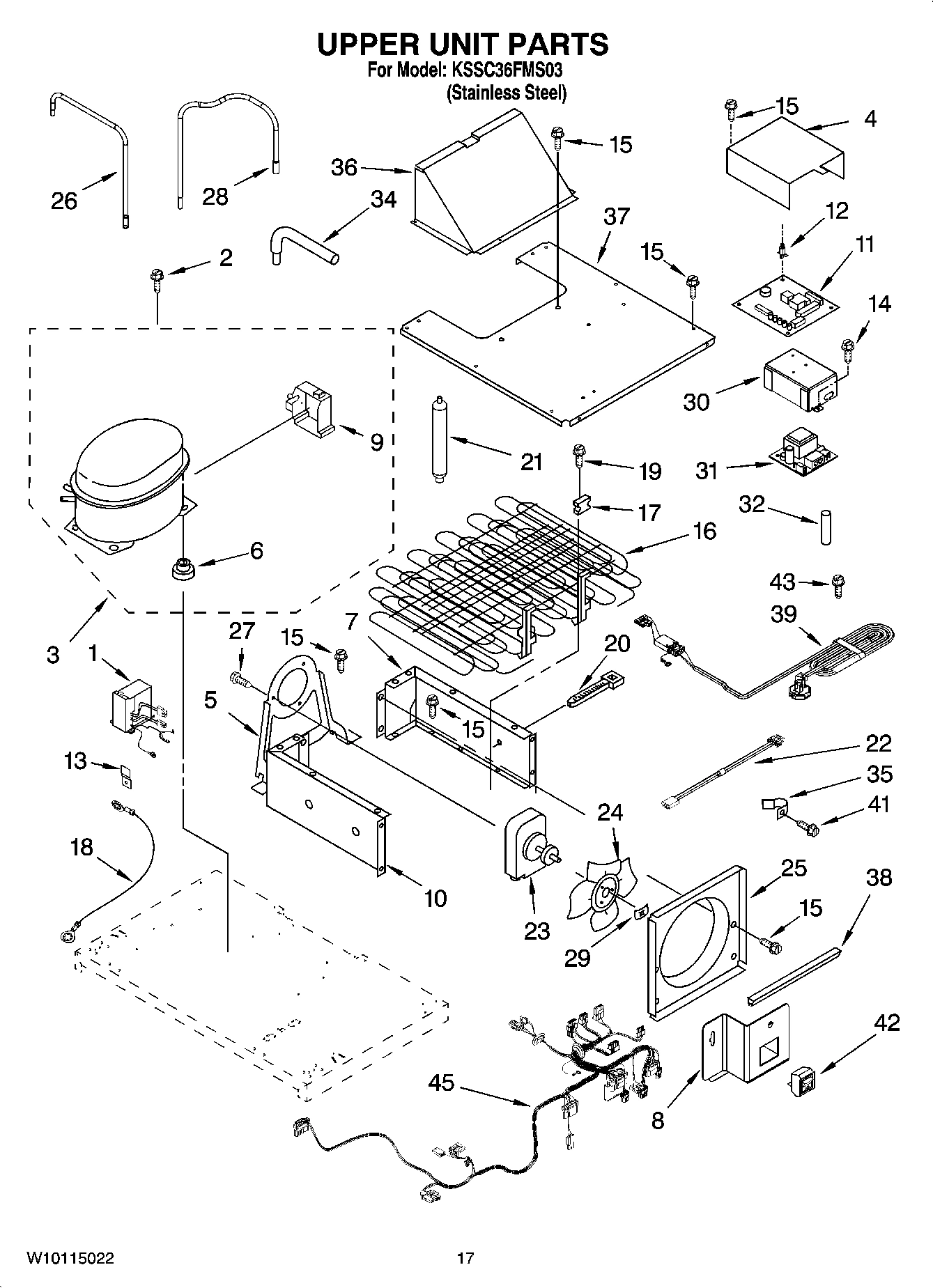

11 - UPPER UNIT PARTS

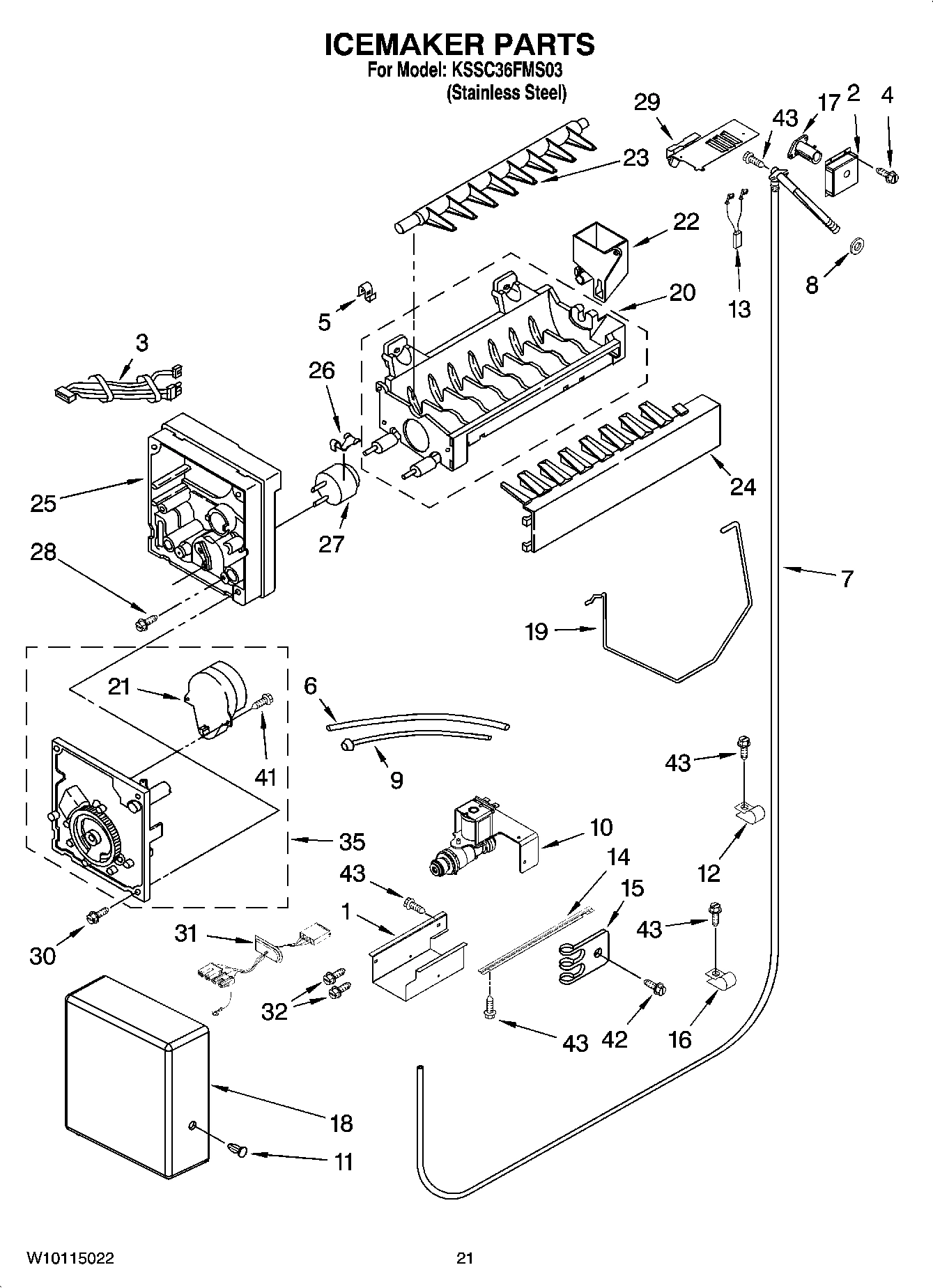

13 - ICEMAKER PARTS

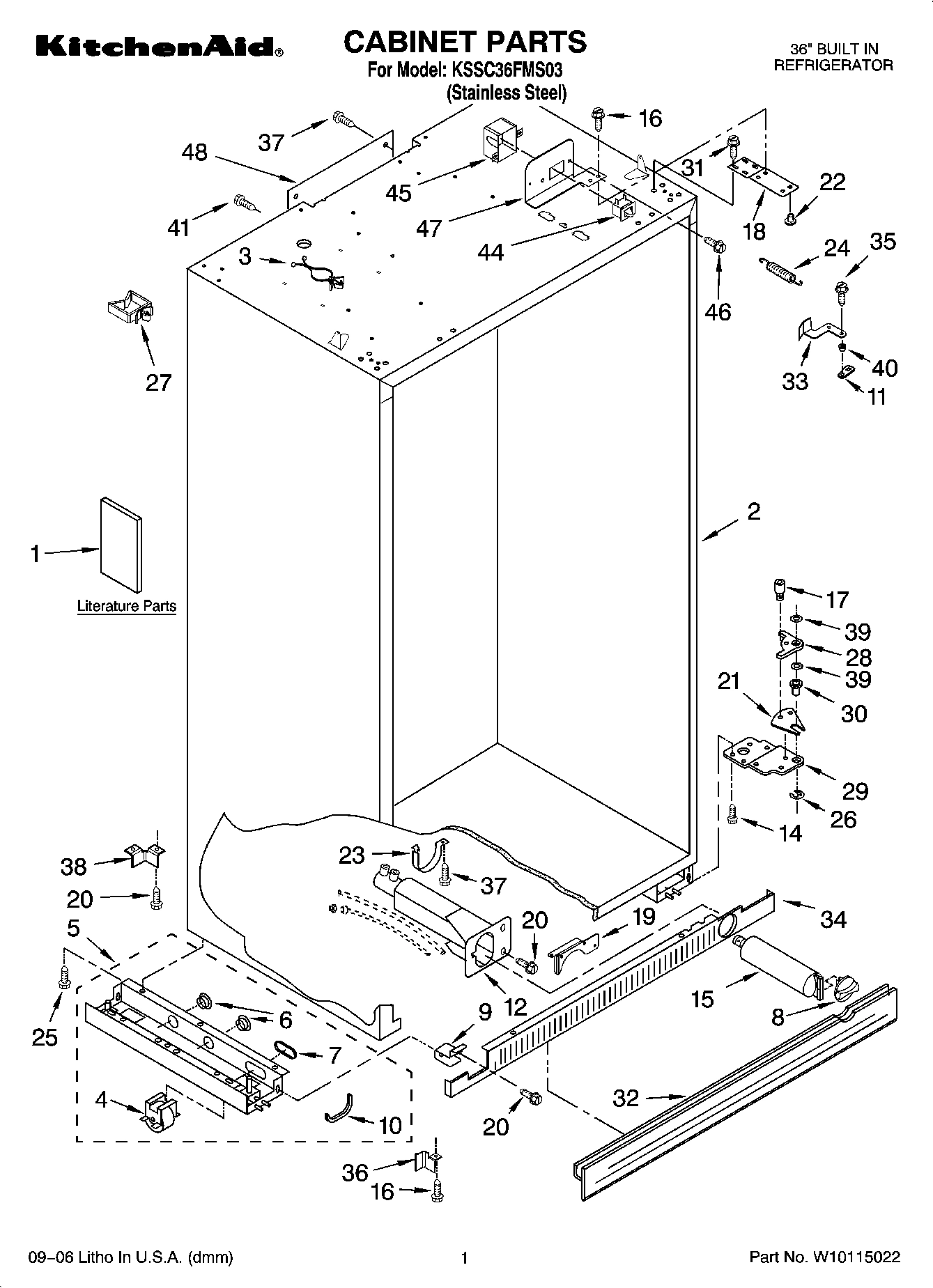

01 - CABINET PARTS

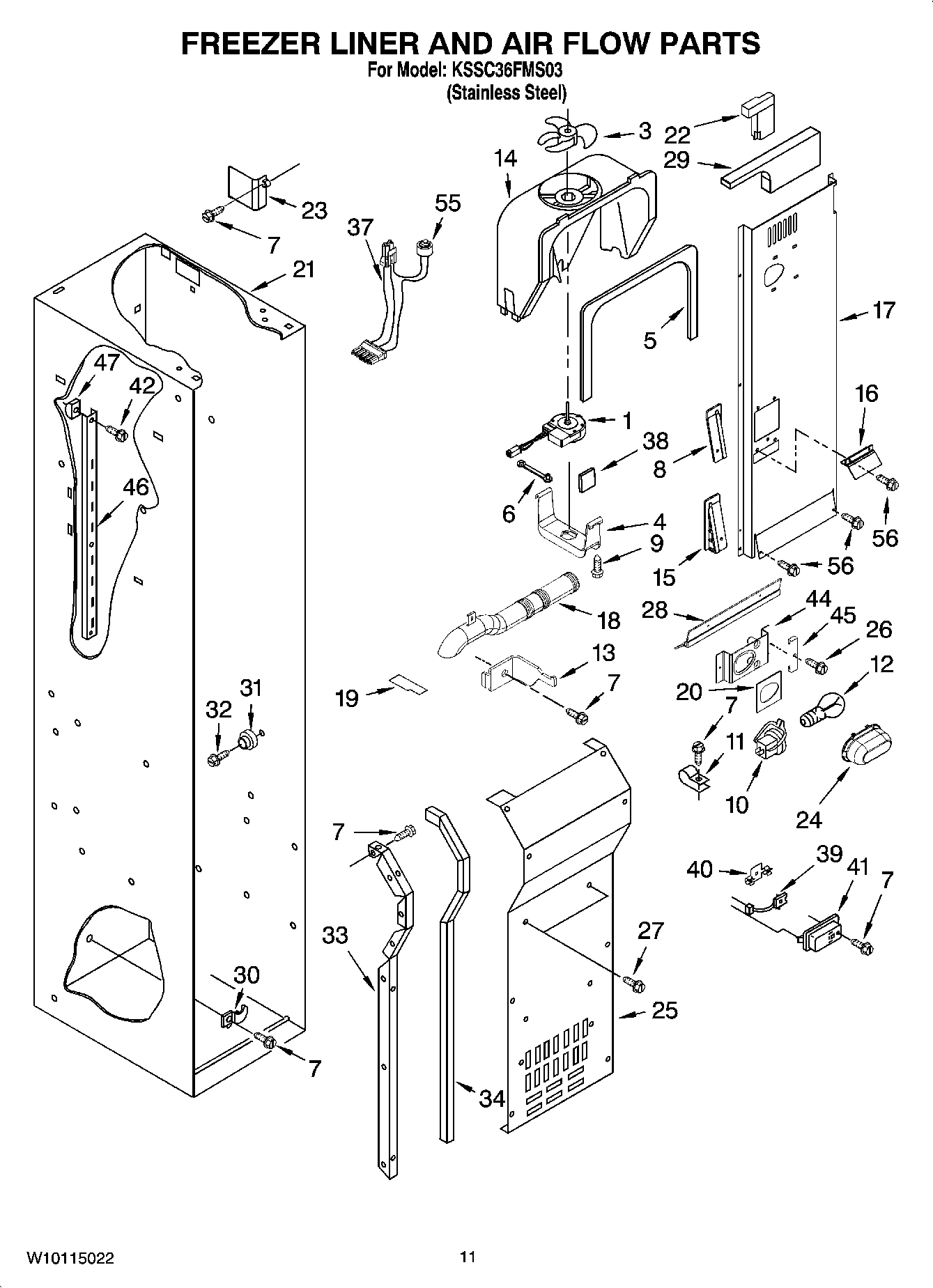

08 - FREEZER LINER AND AIR FLOW PARTS
Common parts from model Whirlpool KSSC36FMS03 36`` BUILT IN REFRIGERATOR
1
Shield, Valve WPL 2320597 Contact Us For Availability
1
Main Control Service Sheet WPL 2302865 Contact Us For Availability
1
Icemaker and Ingredient Care Center Service S WPL 2306337 Contact Us For Availability
1
Energy Label WPL 2307362 Contact Us For Availability
1
Installation Instructions WPL 2309069 Contact Us For Availability
1
Use & Care Guide WPL 2320531 Contact Us For Availability
1
Service & Wiring Sheet WPL 2320619 Contact Us For Availability
1
Fan Motor WPL 2259385 Contact Us For Availability
2
TRIM, GLASS SIDE MEAT PAN WPL 2256250 Contact Us For Availability
2
BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability
2
Cover, Fill Tube Heater WPL 2259064 Contact Us For Availability
2
Cabinet, (Not A Serviceable Part) WPL ARI105207A Contact Us For Availability
3
Wire Assembly, Icemaker WPL 2310136 Contact Us For Availability
3
Clamp, Tube WPL 2320650 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
Housing, Control Board WPL 2257354 Contact Us For Availability
5
Bracket, Fan Motor WPL 2215641 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2302878 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2259317 Contact Us For Availability
6
Tube, Filter Inlet WPL 2320654 Contact Us For Availability
6
Support, Control Box WPL 2221121 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
7
Rail, Lid WPL 2222795 Contact Us For Availability
7
Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2320670 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
8
Wedge, Air Duct WPL 2259464 Contact Us For Availability
8
Bracket, Switch WPL 2302969 Contact Us For Availability
9
Terminal Cover WPL 2215676 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Clamp WPL 489348 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
10
Shield, Light WPL 2302727 Contact Us For Availability
10
Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability
10
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Clamp, Nylon WPL 488937 Contact Us For Availability
12
Release Valve WPL 2171846 Contact Us For Availability
12
Spacer, Door (Handle Side) WPL 2309060 Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
13
Bracket, Inverter Box WPL 2256328 Contact Us For Availability
13
Jumper, Fill Tube Heater WPL 2310108 Contact Us For Availability
13
Bracket, Vent Tube WPL 2302925 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Support, Valve WPL 2320559 Contact Us For Availability
15
OVERLAY WPL 2257518 Contact Us For Availability
15
Wedge, Air Duct WPL 2259465 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Deflector, Air WPL 2266801 Contact Us For Availability
17
Heater, Defrost WPL 2306387 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Air Duct WPL 2306042 Contact Us For Availability
18
Clamp, Heater (2) WPL 1113048 Contact Us For Availability
18
Wire, Jumper WPL 2310243 Contact Us For Availability
18
Cover WPL 2221232 Contact Us For Availability
18
Tube, Vent WPL 2302933 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Block, Fan Scroll (Left) WPL 2209066 Contact Us For Availability
19
Bracket, Mount (Water Filter) WPL 2307582 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
20
Seal-Light, Socket WPL 2302777 Contact Us For Availability
21
Liner (Not A Serviceable Part) WPL ARI105210A Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
22
WIRE ASSEMBLY,CONDENSER FAN WPL 2310207 Contact Us For Availability
23
Cover, Air Outlet WPL 2259025 Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Light Shield WPL 2259367 Contact Us For Availability
25
Cover, Diffuser WPL 2309087 Contact Us For Availability
25
SPACER, CRISPER (LEFT SIDE (2)) WPL 2256223 Contact Us For Availability
25
SPACER, CRISPER (RIGHT SIDE (2)) WPL 2256222 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Cover, Evaporator WPL 2314042 Contact Us For Availability
26
Tube, Drier Transition WPL 2300190 Contact Us For Availability
27
SLIDE, CRISPER (LEFT SIDE) (2) WPL 2302956 Contact Us For Availability
27
SLIDE, CRISPER (RIGHT SIDE) (2) WPL 2302957 Contact Us For Availability
27
Screw WPL 8281160 Contact Us For Availability
27
Wire clip (5) WPL 2320677 Contact Us For Availability
28
Screw WPL 8533917 Contact Us For Availability
28
Seal, Air Duct (Square Hole) WPL 2259398 Contact Us For Availability
28
Tube, Heat Loop Transition WPL 2259301 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
28
Support, Air Duct WPL 2302849 Contact Us For Availability
29
Deflector, Air Duct WPL 2309282 Contact Us For Availability
30
Housing, Power Supply WPL 2259349 Contact Us For Availability
30
SUPPORT, EVAPORATOR WPL 1112260 Contact Us For Availability
31
Wire Assembly (Water Valve) WPL 2310193 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability
33
Evaporator, Cover Rail (Right Side) WPL 2259355 Contact Us For Availability
34
Gasket (2) Evaporator Cover WPL 2220904 Contact Us For Availability
34
Grille Bottom, Front (Black) WPL 2209425B Contact Us For Availability
35
Screw WPL 2005921 Contact Us For Availability
35
Clamp WPL 549193 Contact Us For Availability
36
WPL 2006616 WPL 2006616 Contact Us For Availability
36
Cover, Fan WPL 2209495 Contact Us For Availability
36
Bracket, Support Base (Front) (Ri WPL 2006556 Contact Us For Availability
37
Cover, Condenser WPL 2259092 Contact Us For Availability
37
Harness, Evap Fan (Includes Item 55) WPL 2317088 Contact Us For Availability
38
WPL 2006617 WPL 2006617 Contact Us For Availability
38
Grommet, Edge WPL 2307907 Contact Us For Availability
40
Clip, Thermistor WPL 2209204 Contact Us For Availability
41
Screw, (2) WPL 489136 Contact Us For Availability
41
Cover, Thermistor WPL 1116793 Contact Us For Availability
42
SCREW WPL 2006475 Contact Us For Availability
44
Bracket, Light WPL 2257571 Contact Us For Availability
45
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
45
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
45
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2310217 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Following Parts Not Illustrated and Optional WPL ARI105211A Contact Us For Availability
45
REFRIGERANT CHARGE 6.50 oz. (R-134A) WPL ARI105212A Contact Us For Availability
45
WPL 2215938 WPL 2215938 Contact Us For Availability
45
Spacer, Light Bracket WPL 2259446 Contact Us For Availability
47
Support, Screw WPL 2259397 Contact Us For Availability
48
WPL 2215612 WPL 2215612 Contact Us For Availability
100
Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability
100
Following Parts Not Illustrated (Optional Par WPL ARI105213A Contact Us For Availability
× ![]()
