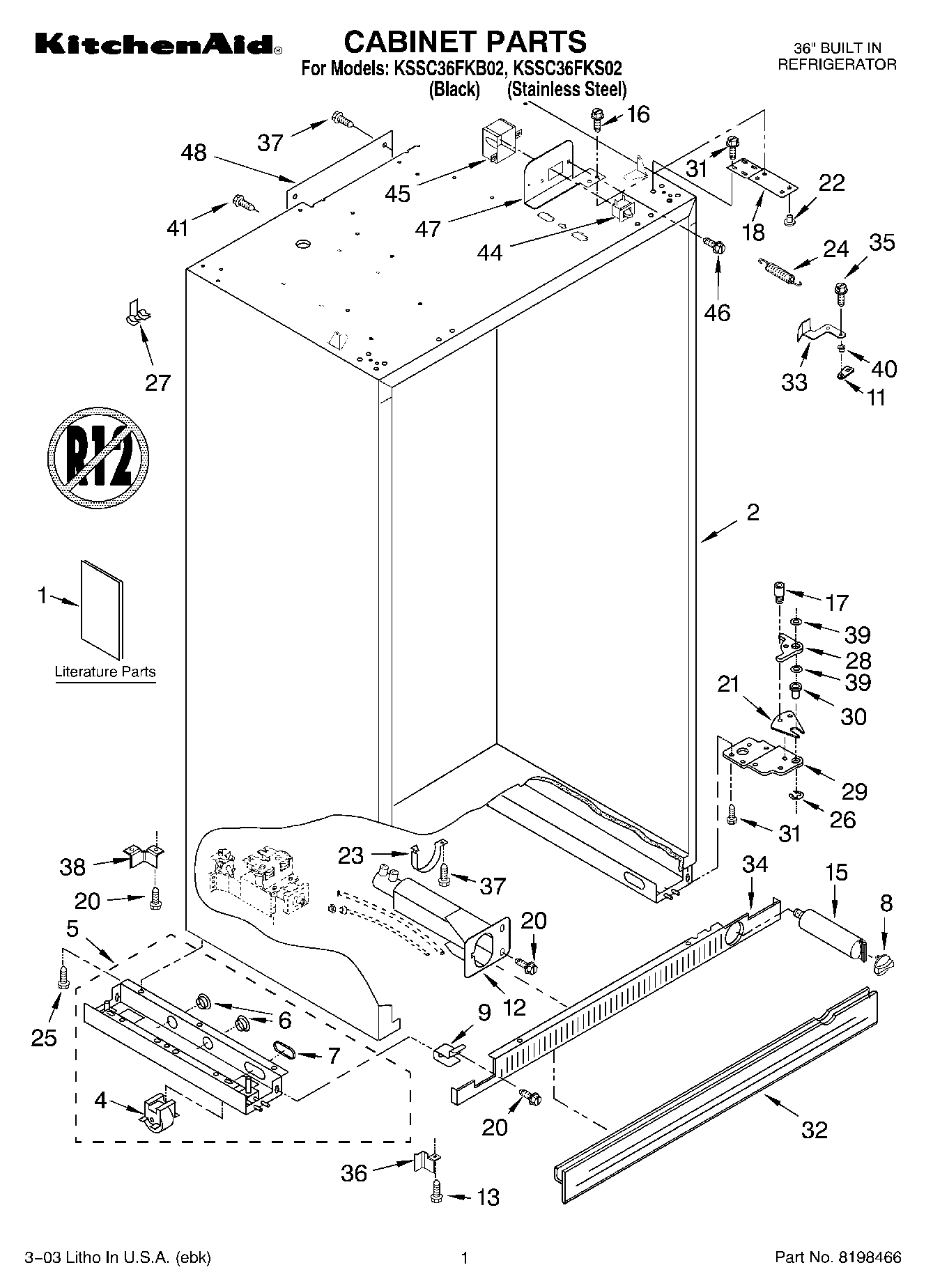

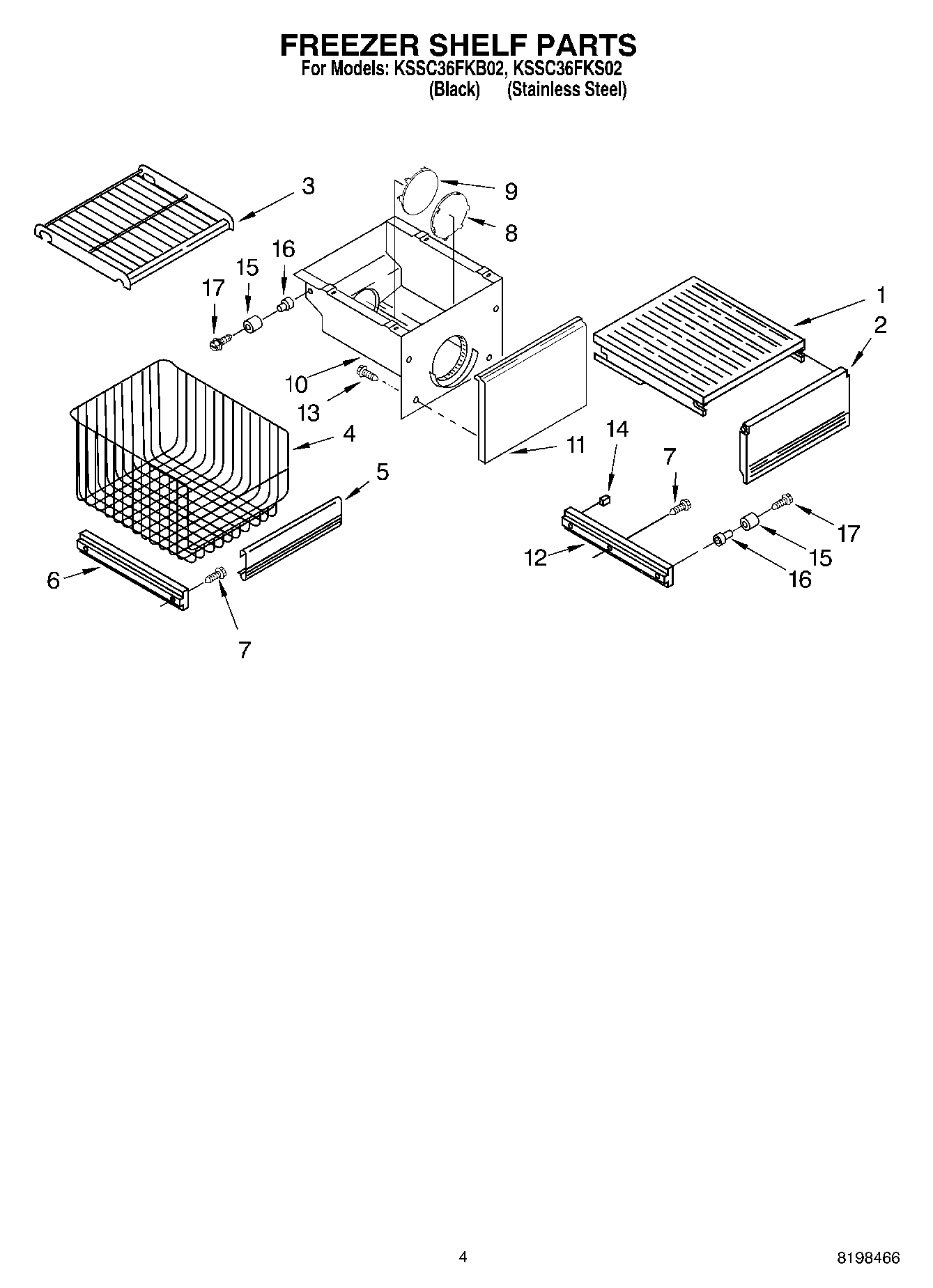

Model Whirlpool KSSC36FKB02 36`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

1

Refrigerator Door Panel (Includes Insulation) WPL 2259180 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) WPL 2259162 Contact Us For Availability

1

Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Stainless Steel) WPL 2215919S Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI105161A Contact Us For Availability

1

Panel, Decorator (Black) WPL 2215952B Contact Us For Availability

1

Panel, Decorator (Stainless Steel) WPL 2215952S Contact Us For Availability

1

Control Box WPL 2215715 Contact Us For Availability

1

Frame, Shelf WPL 2174402 Contact Us For Availability

2

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $40.50

2

Cup, Clearance WPL 2002732 Contact Us For Availability

2

Cover, Unit WPL 2209490 Contact Us For Availability

2

Insert, Control Box WPL 2215670 Contact Us For Availability

2

Glass, Shelf WPL 2003375 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $3.33

3

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $24.30

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

Circuit Board, Housing Control WPL 2209159 Contact Us For Availability

3

Reflector, Shelf WPL 1113546 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

Spacer-Door, Top WPL 2256381 Contact Us For Availability

4

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113790 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

5

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.33

5

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $118.26

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Ladder, Shelf (2) WPL 2221211 Contact Us For Availability

5

Retainer, Knob WPL 2003841 Contact Us For Availability

5

Guard, Wiring WPL 2209492 Contact Us For Availability

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003645 Contact Us For Availability

6

Nameplate WPL 2005292 Contact Us For Availability

6

Support, Control Box WPL 2221121 Contact Us For Availability

6

Egg Bin WPL 2221071 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

7

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

7

Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability

7

Cabinet Trim (Left Side) (Stainless Steel) WPL 2215936S Contact Us For Availability

7

Frame, Assembly Meat Pan WPL 2006523 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $28.09

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

Deflector, Air Duct WPL 2003924 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability

8

Baffle-Air, Condenser WPL 2215684 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $12.81

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188497 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188495 Contact Us For Availability

9

Tube, Filter Outlet WPL 2254800 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Cover, Crisper WPL 1113893 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $95.19

Door Skin (Stainless Steel) WPL 2006771 Contact Us For Availability

Door Skin (Black) WPL 2209096B Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability

Glass, Crisper (Includes 9) WPL 2003378 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

Cam, Door Closer WPL 2005783 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Handle, Door (Black) WPL 2209095B Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Bracket, Louver WPL 2254759 Contact Us For Availability

Meat Pan, Connector WPL 2000742 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.89

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $97.12

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Grille, Louver (Black) WPL 2215933B Contact Us For Availability

Grille, Louver (Stainless Steel) WPL 2215933S Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

Door Spacer, Bottom WPL 2257637 Contact Us For Availability

Fastner WPL 1112871 Contact Us For Availability

Water Valve, Harness WPL 2254711 Contact Us For Availability

Seal, Air Duct WPL 2221175 Contact Us For Availability

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

Door Brace, Corner WPL 2258951 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Crisper Pan (2) WPL 2220895 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $5.38

Deflector, Air Duct WPL 2003927 Contact Us For Availability

Spacer, Hinge Side WPL 2005030 Contact Us For Availability

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

Overlay WPL 2221067 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $33.31

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

Eyelet, Roller WPL 2174478 Contact Us For Availability

Clamp, Tube WPL 488937 Contact Us For Availability

Filler, Door WPL 2005323 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

WP2005378 Whirlpool Refrigerator Screw In Stock WPL WP2005378 $4.58

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $176.19

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

Heater, Defrost WPL 2006749 Contact Us For Availability

Assembly, Air Duct WPL 2209334 Contact Us For Availability

Spacer, Handle Side WPL 2221012 Contact Us For Availability

Wire Assembly, Icemaker WPL 2254792 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

Spacer, Door Skin Bottom WPL 2004931 Contact Us For Availability

Cover WPL 2257538 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $83.71

WP2257333 Whirlpool Spacer Backorder WPL WP2257333 $54.20

Screw WPL 487522 Contact Us For Availability

Interior Door Panel WPL 2209030 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Harness, Wire WPL 2221262 Contact Us For Availability

Panel, Interior Door WPL 1113952 Contact Us For Availability

Trim-Shelf, Door WPL 2209163 Contact Us For Availability

Meat Pan WPL 2220901 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $55.08

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Liner (Not A Serviceable Part) WPL ARI105162A Contact Us For Availability

Plate, Door Handle WPL 2209202 Contact Us For Availability

Ladder, Shelf (2) WPL 1113951 Contact Us For Availability

Diffuser Assembly WPL 2208997 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $30.25

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

Bushing WPL 2002903 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

Filler, Door WPL 2005324 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $33.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Light Shield (2) WPL 2198589 Contact Us For Availability

Door Skin (Stainless Steel) WPL 2006774 Contact Us For Availability

Door Skin (Black) WPL 2209097B Contact Us For Availability

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $94.21

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Cover, Evaporator WPL 2221104 Contact Us For Availability

Bin, Utility WPL 1112720 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Door, Utility Bin WPL 2003463 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Stop, Roller WPL 1113169 Contact Us For Availability

Door Shelf (3) WPL 1112745 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Diffuser, Air Duct WPL 1112851 Contact Us For Availability

30

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

31

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $71.24

32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

32

Shelf, Gallon Door WPL 2188331 Contact Us For Availability

33

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

33

Evaporator, Cover Rail (Right Side) WPL 2221108 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Seal WPL 2005610 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

Screw WPL 2005921 Contact Us For Availability

35

Wire, Jumper WPL 2221077 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

37

Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $5.42

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

43

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.41

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $90.29
