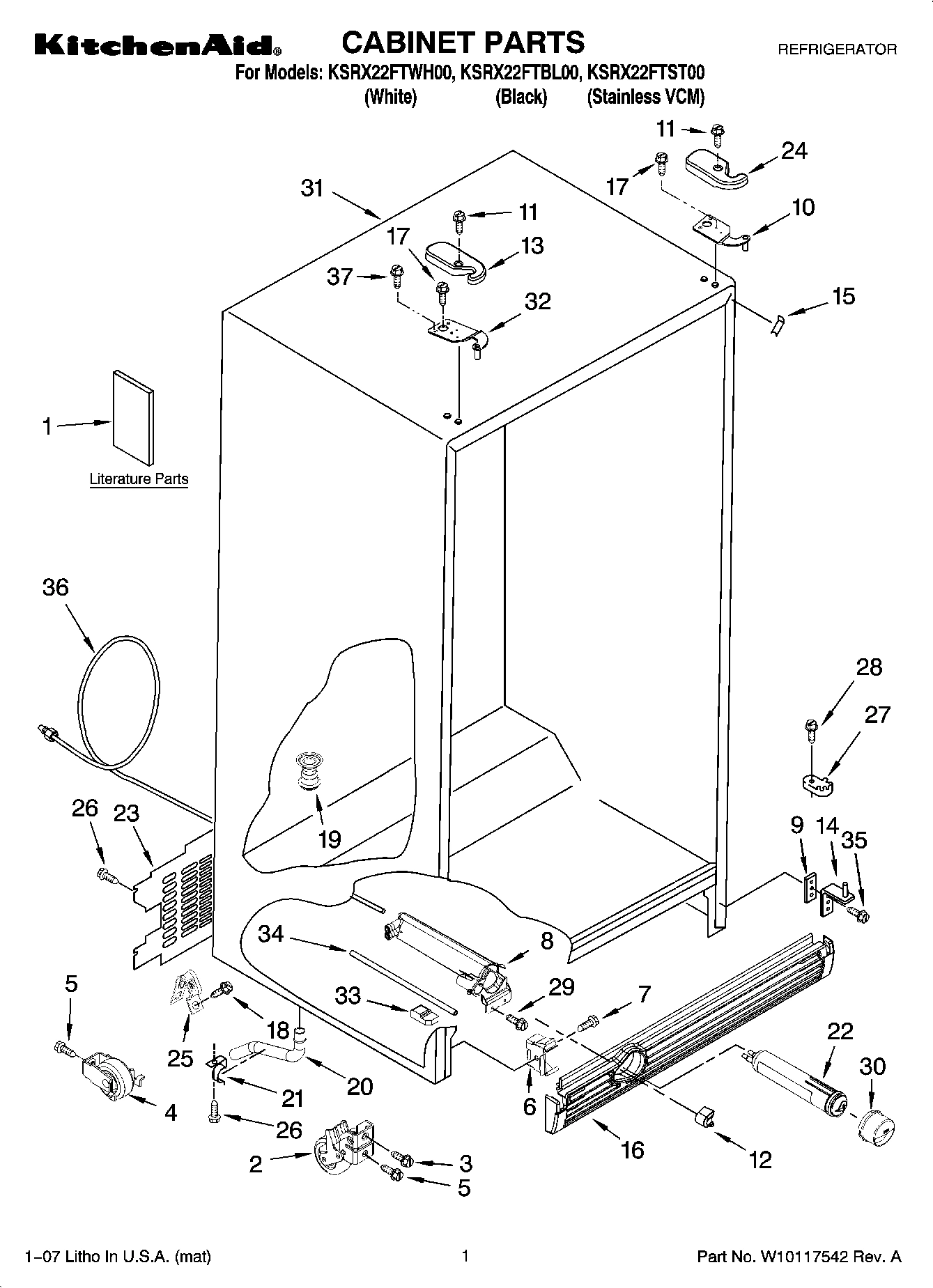

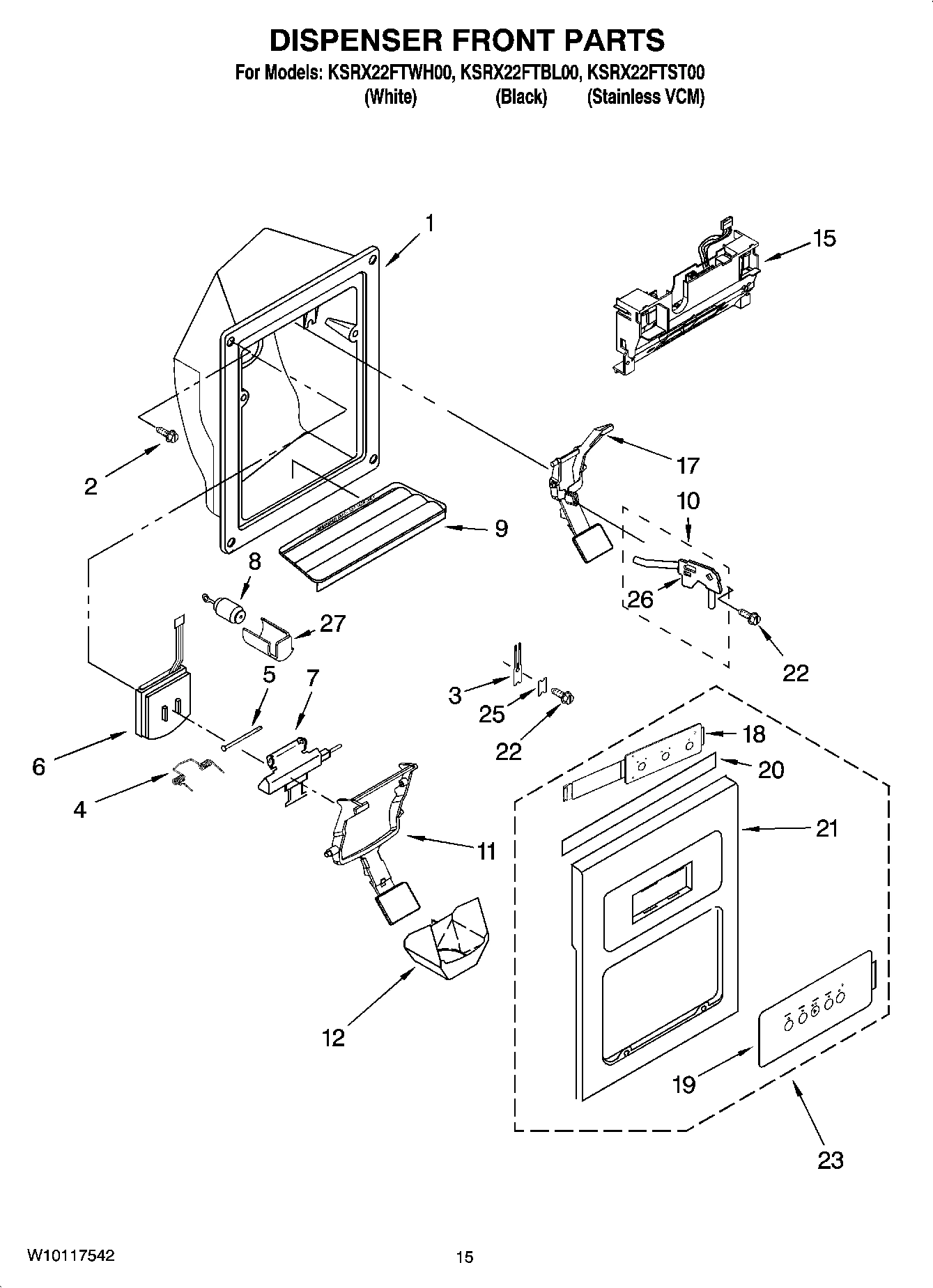

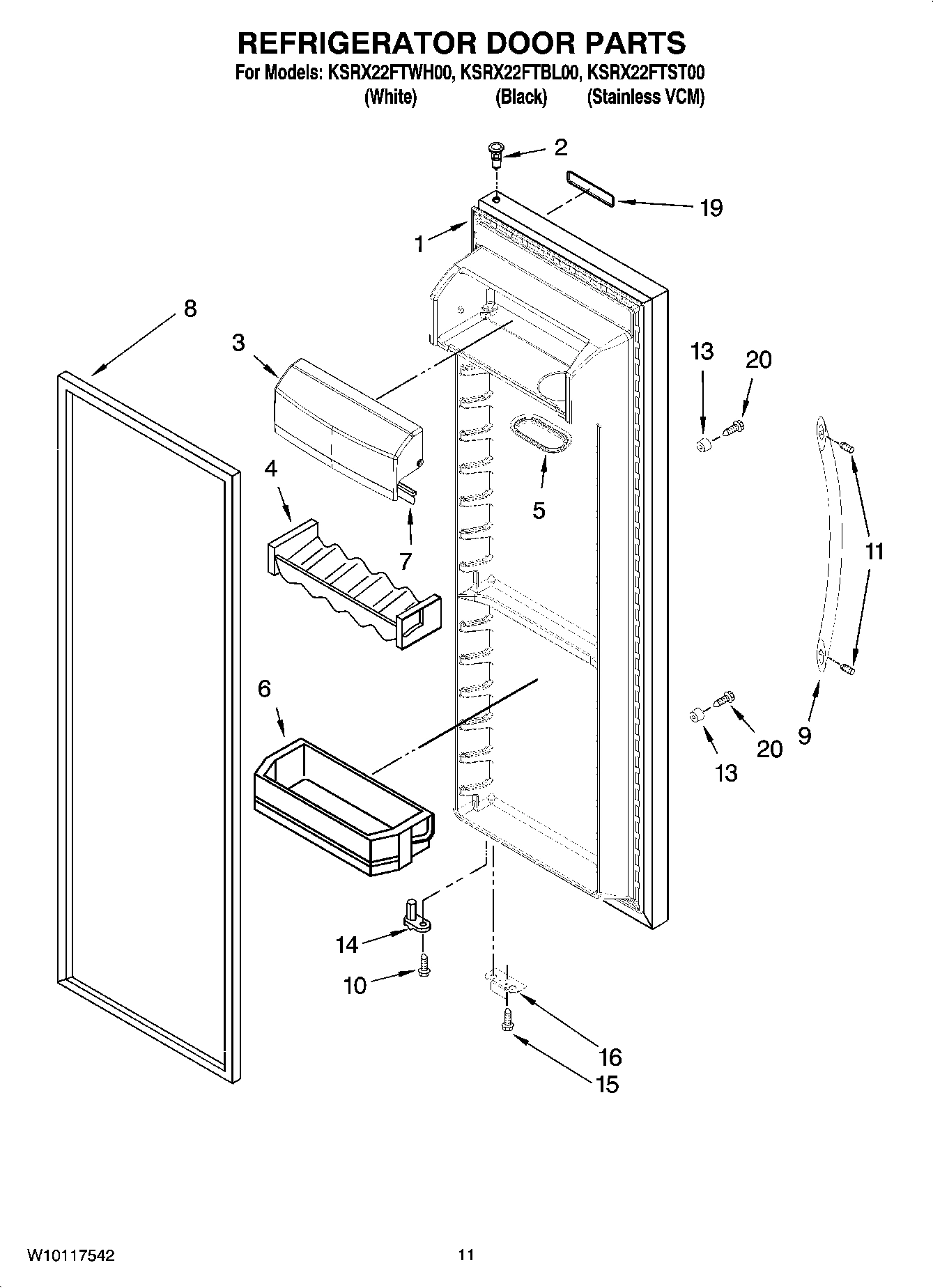

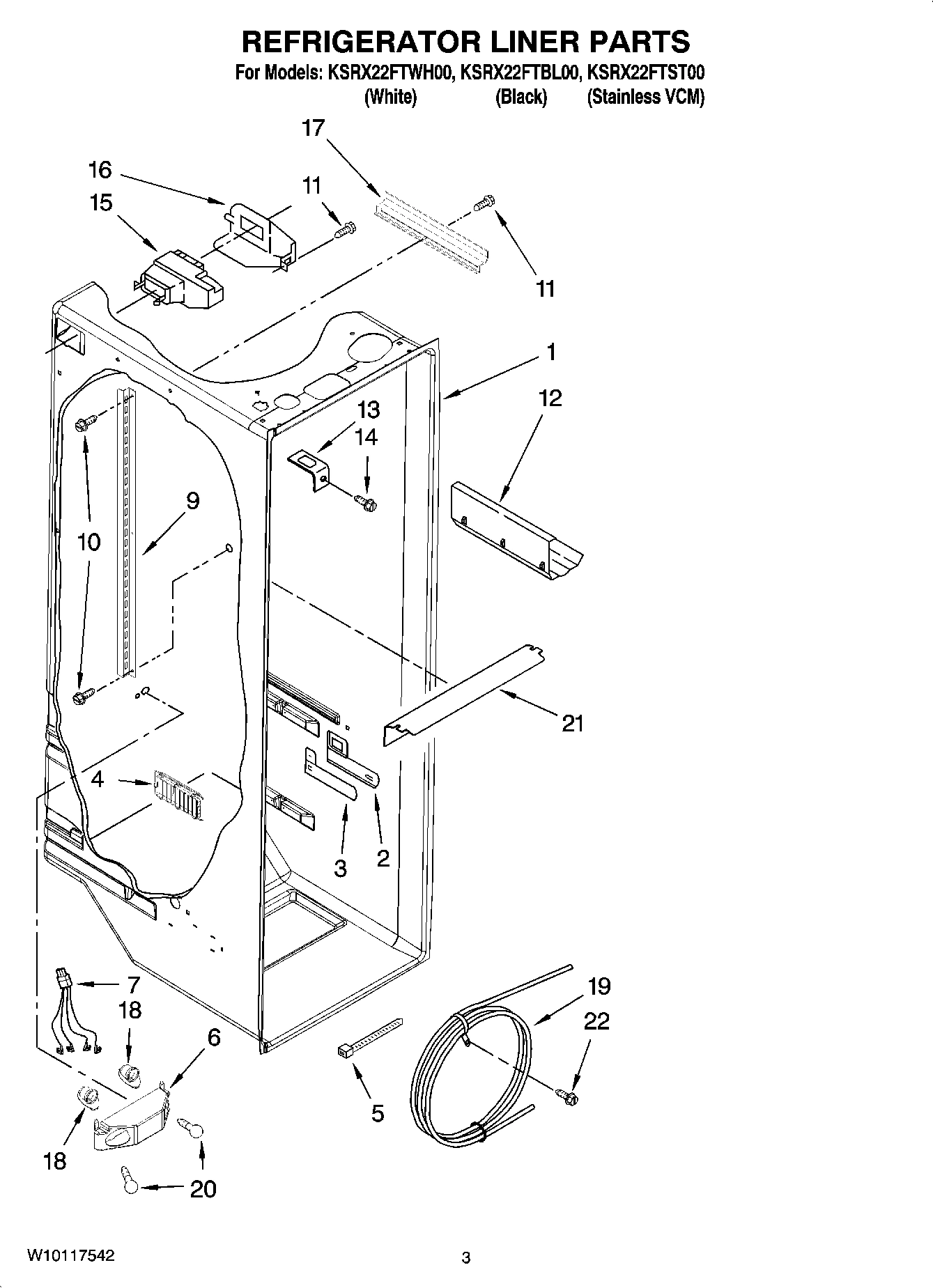

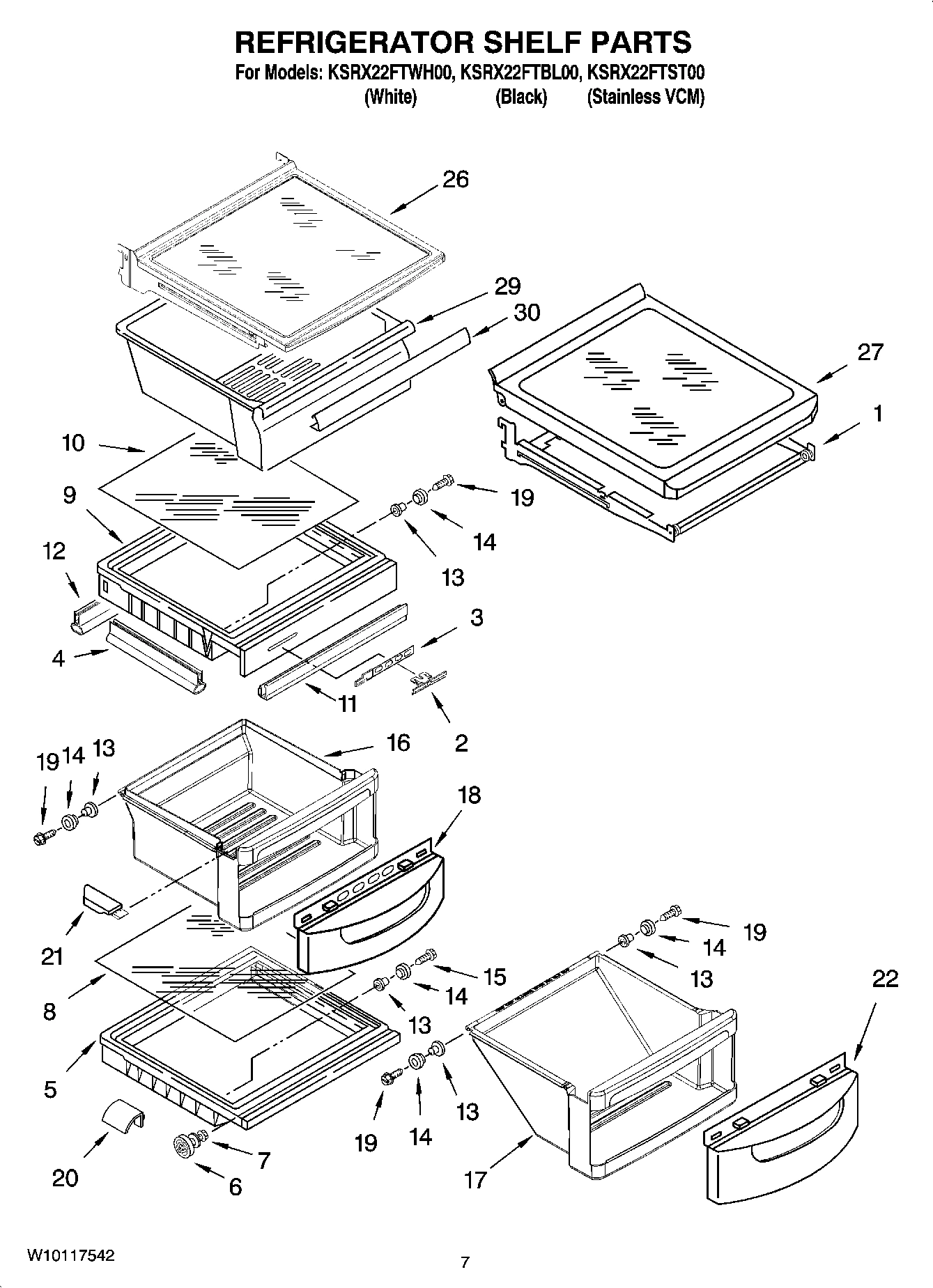

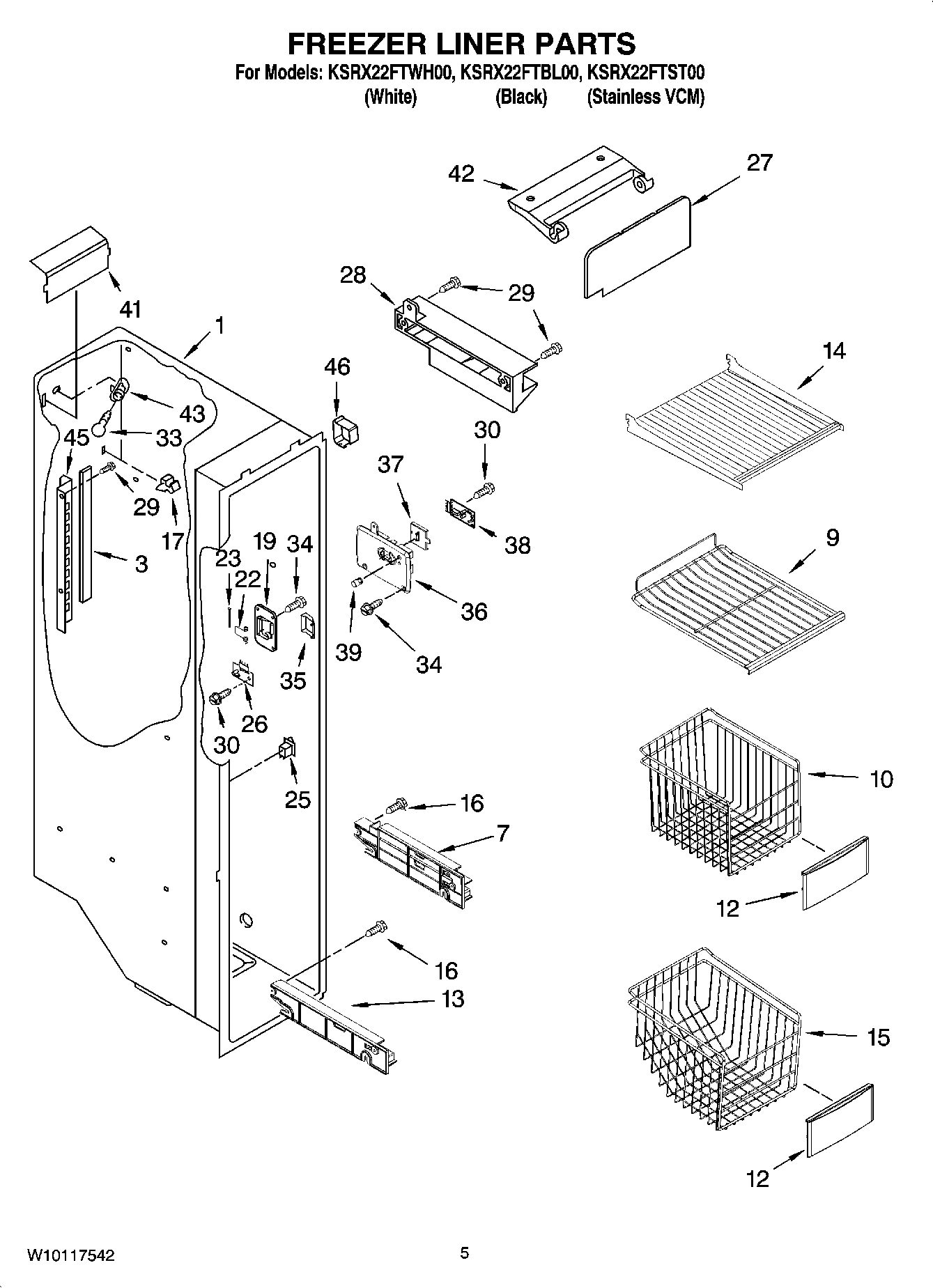

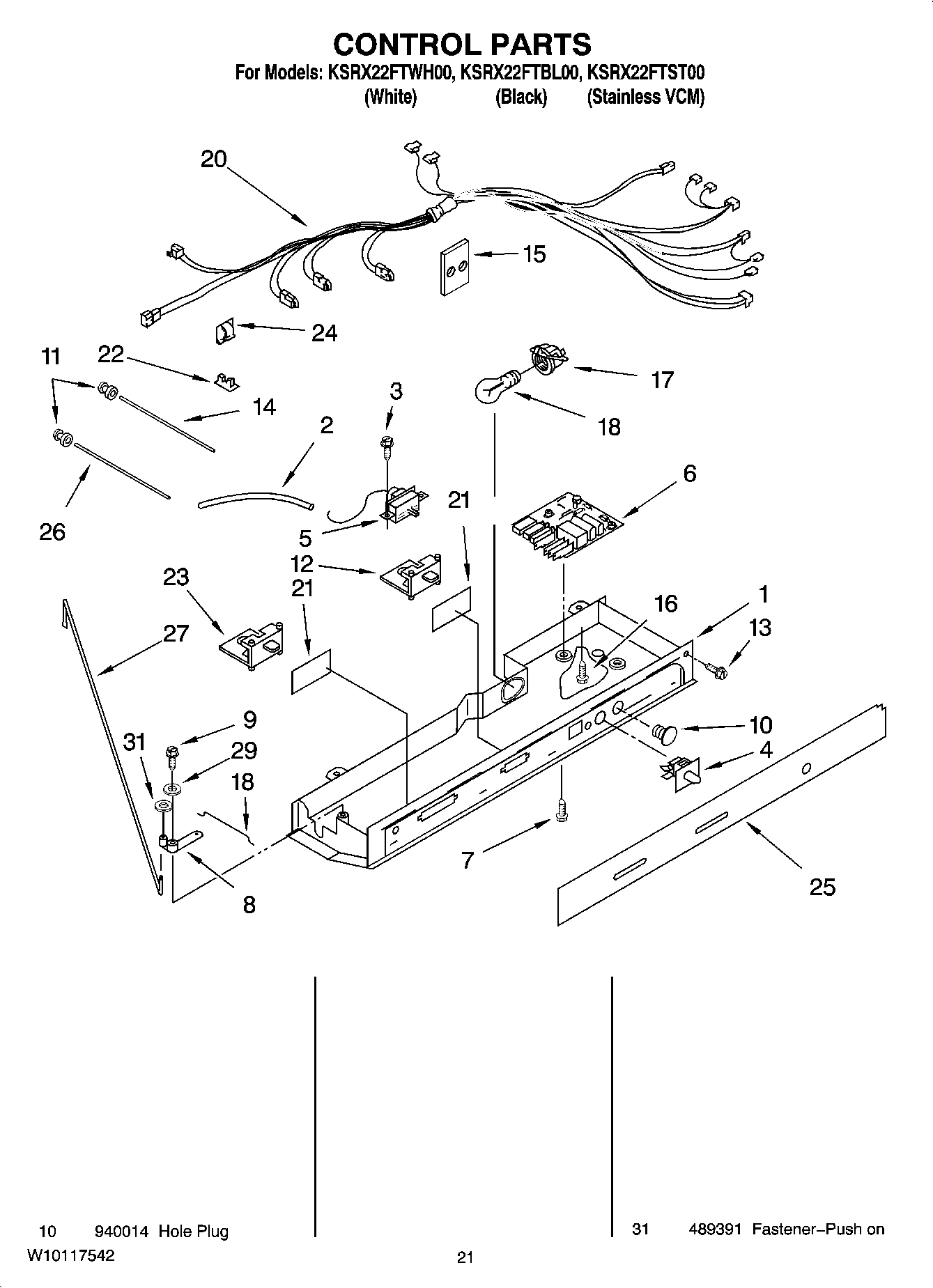

Model Whirlpool KSRX22FTWH00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Frame Assembly, Slide Out (2) WPL 2195975 Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI104729A Contact Us For Availability

1

Ice Bin WPL 2212302 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2326217B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2326217LG Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2326217W Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2319727W Whirlpool Refrigerator Handle Backorder WPL WP2319727W $111.68

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Crusher Bin WPL 2255583 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

3

Auger WPL 2258224 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $49.85

5

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Dish, Butter WPL 2165792K Contact Us For Availability

5

Air Duct Freezer WPL 2212313 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Shelf Bin (4) WPL 2171063K Contact Us For Availability

6

Cover, Crusher WPL 2255461 Contact Us For Availability

6

Trivet, Shelf (3) WPL 2171071K Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

9

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $122.04

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Handle (Stainless) WPL 2319727S Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301484 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Glass, Cover WPL 2255143 Contact Us For Availability

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $72.87

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

GASKET (REAR) WPL 2223362 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light, Bar WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Bracket, Control WPL 2323001 Contact Us For Availability

Safety Barrier WPL 2304896 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Cover, Evaporator (Includes 9) WPL 2304908 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Window, Crisper WPL 2174076 Contact Us For Availability

LED Display (Not Available Order 23) WPL ARI104730A Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

Nameplate (Gray) WPL W10046610 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI104731A Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $28.80

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $9.11

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Latch, Bin WPL 2301346 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI104732A Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Window, Meat Pan WPL 2174362 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 18, 19, WPL 2318948B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2318948W Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26

Shelf Assembly WPL 2206346 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

27

Shelf, Slide-Out Assembly (2) WPL 2216102 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

Snack Bin (Includes 30) WPL 2305595 Contact Us For Availability

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

31

Enclosure, Motor WPL 2256154 Contact Us For Availability

32

W10271509 Whirlpool Refrigerator Ice Maker Au In Stock WPL W10271509 $128.94

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

33

Cover WPL 2212305 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

37

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

Ice Container (Complete) WPL 2315941 Contact Us For Availability
