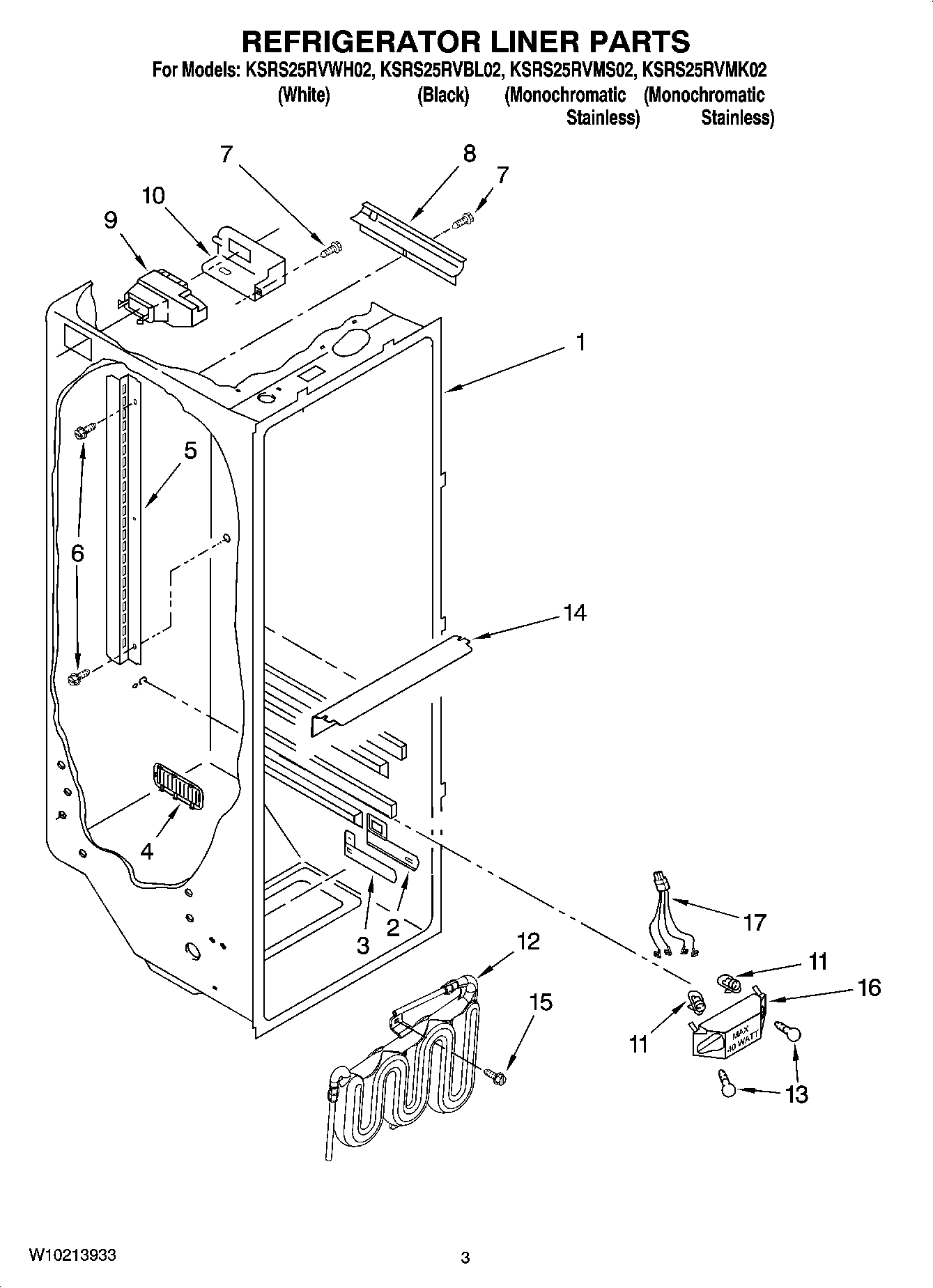

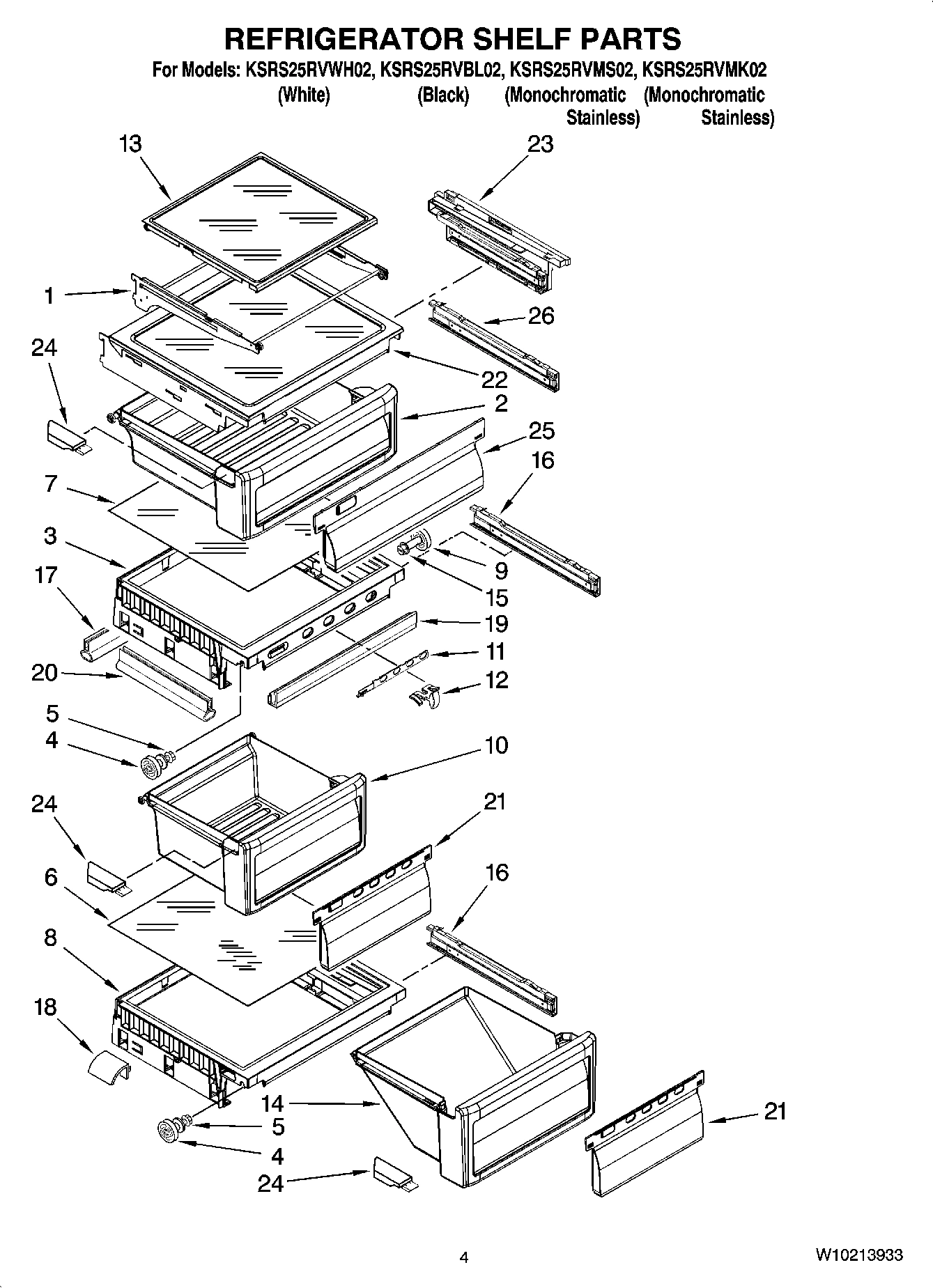

Model Whirlpool KSRS25RVMS02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Gra WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

1

Control Box WPL W10134300 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Instruction Sheet, Door Removal WPL 2308395 Contact Us For Availability

1

Owner`s Manual WPL W10162438 Contact Us For Availability

1

Service & Wiring Sheet WPL W10190568 Contact Us For Availability

1

Energy Guide WPL W10194144 Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI103074A Contact Us For Availability

2

W10178851 Whirlpool Refrigerator Jumper Wire Backorder WPL W10178851 $85.02

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (Includes 15) (Stainless) WPL 2319727S Contact Us For Availability

2

Handle (Includes 15) (Black) WPL 2319727B Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $61.75

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Cover, Crisper (Includes 11, 12, 16, 17, 19 & WPL 2301567 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $31.92

4

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $47.71

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

5

Electronic Control WPL W10141140 Contact Us For Availability

5

Shelf Ladder WPL 2319866 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

6

WPW10159839 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10159839 $167.30

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Glass, Cover WPL 2301028 Contact Us For Availability

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

9

Blade, Fixed WPL 2257020 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

Spigot WPL W10187441 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Separator Assembly WPL 2305456 Contact Us For Availability

2203407AP Whirlpool Refrigerator Cover Backorder WPL 2203407AP $36.89

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $206.48

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Pad, Water (For White Model) WPL 2305307CE Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

Filler, Wrapper (Apollo Gray) WPL W10143043 Contact Us For Availability

Lens, Front Cover WPL 2305287 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2321746 Whirlpool Refrigerator Electronic C Backorder WPL WP2321746 $163.94

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $61.29

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $78.41

Nameplate (Stainless) WPL W10046610 Contact Us For Availability

Grille (Midnight Gray) WPL 2303292MG Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10133603 Whirlpool Refrigerator Dispenser Ac In Stock WPL W10133603 $172.94

W10133606 Whirlpool Refrigerator Pad In Stock WPL W10133606 $195.40

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

Pad, Ice (For White Model) WPL 2305306CE Contact Us For Availability

Glide Assembly (Crisper Pan) (Right Side) WPL 2301548 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $30.25

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

18

W10222215 Whirlpool Refrigerator Light Indica In Stock WPL W10222215 $57.63

18

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

Extension Tube WPL 2304937 Contact Us For Availability

Harness, Unit WPL 2310229 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI103075A Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

Glide Assembly, Sloped/Bottom Basket (Right S WPL 2301289 Contact Us For Availability

Glide Assembly, Sloped/Bottom Basket (Left Si WPL 2301290 Contact Us For Availability

Clamp, Cord WPL 2305373 Contact Us For Availability

Tray, Housing (Black) WPL 2315111B Contact Us For Availability

Tray, Housing (White) WPL 2315111W Contact Us For Availability

Tray, Housing (Nickel One) WPL 2323096NO Contact Us For Availability

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.17

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Window, Crisper Pan & Meat Pan WPL 2301001 Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL 2305312B Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL 2305312W Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL W10190186 Contact Us For Availability

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

Cabinet, (Not A Serviceable Part) WPL ARI103070A Contact Us For Availability

2203408AP Whirlpool Refrigerator Cover Backorder WPL 2203408AP $35.32

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

NLA:SCREW Backorder WPL WPW10141645 $3.70

Window, Snack Pan WPL 2301006 Contact Us For Availability

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

27

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

29

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

Bracket, Motor WPL 2305208 Contact Us For Availability

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip, Heat WPL 2155547 Contact Us For Availability

32

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

32

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

33

2303141 Whirlpool Refrigerator Door Hinge Backorder WPL 2303141 $126.31

33

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

33

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $27.52

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

Wire Assy., IDI WPL 2187813 Contact Us For Availability

Block, Housing Support WPL 2260519 Contact Us For Availability

35

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

35

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $41.91

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

39

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability
