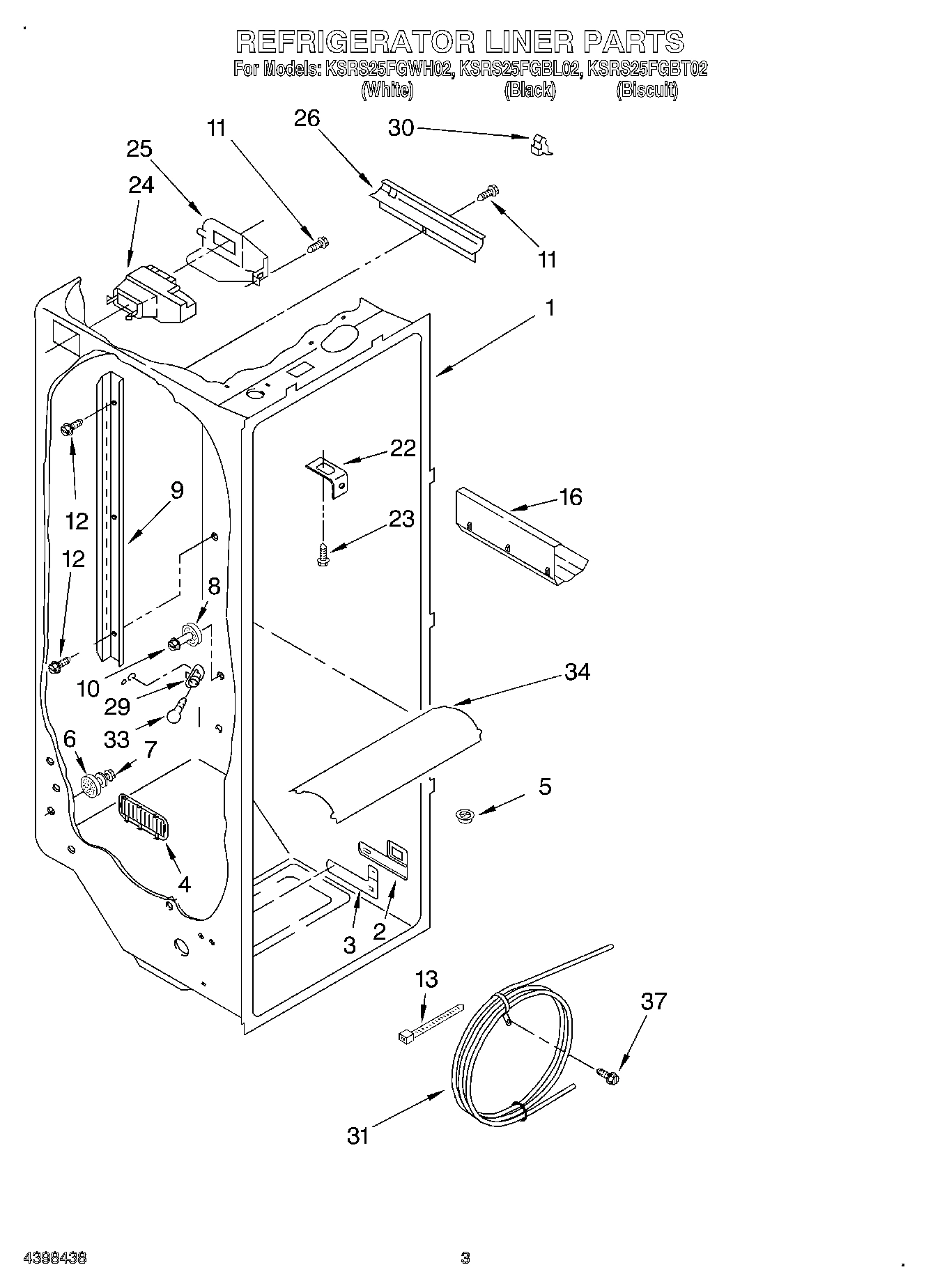

Model Whirlpool KSRS25FGBL02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI101595A Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Black) WPL 2194233B Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2194233T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Shelf, Top Compartment WPL 2174493 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2209606 Whirlpool Gasket Assembly Backorder WPL WP2209606 $27.52

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.14

5

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $121.72

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Tray, Butter WPL 2165792 Contact Us For Availability

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Adaptive Defrost Control WPL 2162046 Contact Us For Availability

6

Insert, Handle (White) WPL 2173825 Contact Us For Availability

6

Insert, Handle (Black) WPL 2173829 Contact Us For Availability

6

Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $136.44

7

4388405 Whirlpool Refrigerator Shelf Stud Backorder WPL 4388405 $4.36

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $165.68

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

End Cap, Handle (Black) WPL 2194778B Contact Us For Availability

8

End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability

8

End Cap, Handle (White) WPL 2194778W Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $144.70

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $40.99

9

WP2209607 Whirlpool Gasket Assembly Backorder WPL WP2209607 $27.52

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Glass, Cover WPL 2174148 Contact Us For Availability

Retainer, Insert (Black) WPL 2194777B Contact Us For Availability

Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability

Retainer, Insert (White) WPL 2194777W Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Gasket, (Rear) WPL 2174274 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

NLA:SCREW Backorder WPL WPW10141645 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Light Bar (RC) WPL 2179920 Contact Us For Availability

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Bracket, Door Stop (Black) WPL 2195950 Contact Us For Availability

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Relay, Production Alternate WPL 2188393 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

Start-Device, Combination (Production Alterna WPL 8201799 No Longer Available

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $133.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

Shelf Bin (4) WPL 2171063 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $36.47

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

Capacitor (Production Alternate) WPL 2169137 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

Window, Crisper WPL 2174076 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

Screw Grommet WPL 509812 Contact Us For Availability

20

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $30.25

20

Control Box Harness WPL 2200441 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

Retainer, Light Lens WPL 2200097 Contact Us For Availability

Basket, Shallow WPL 2181763 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $16.56

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Front, Basket WPL 2171767 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clamp WPL 2161324 Contact Us For Availability

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

Basket, Square WPL 2181765 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $29.92

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Screw WPL 489439 Contact Us For Availability

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

Basket, Sloped WPL 2181764 Contact Us For Availability

Tray, Evaporator WPL 1110674 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

Shelf, Snack Bin WPL 2208298 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

Stud, Rear WPL 2196207 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Unit, Harness WPL 2188346 Contact Us For Availability

32

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
