Model Whirlpool KSRS25FGBL02 REFRIGERATOR – Common Parts & Diagrams

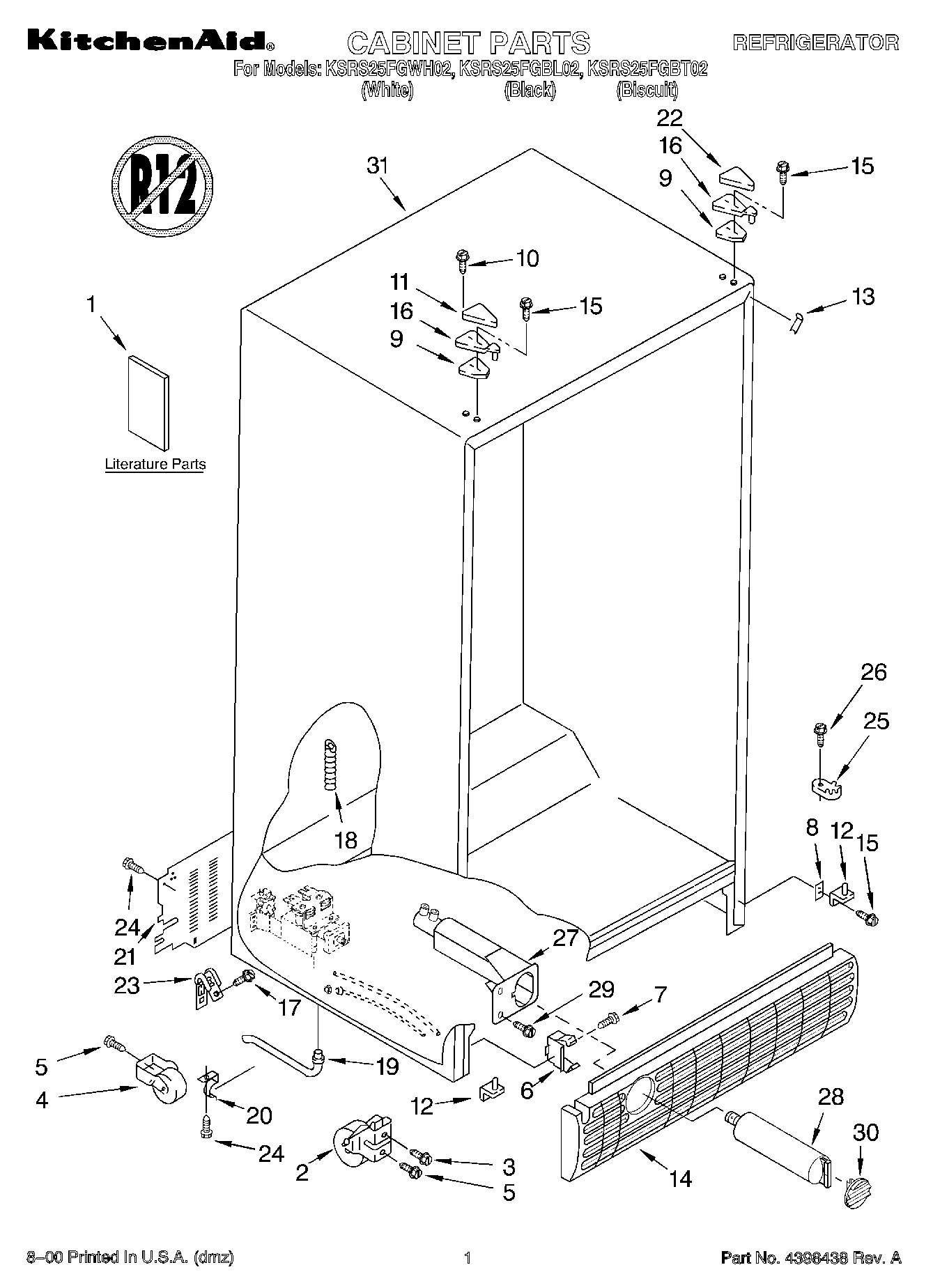

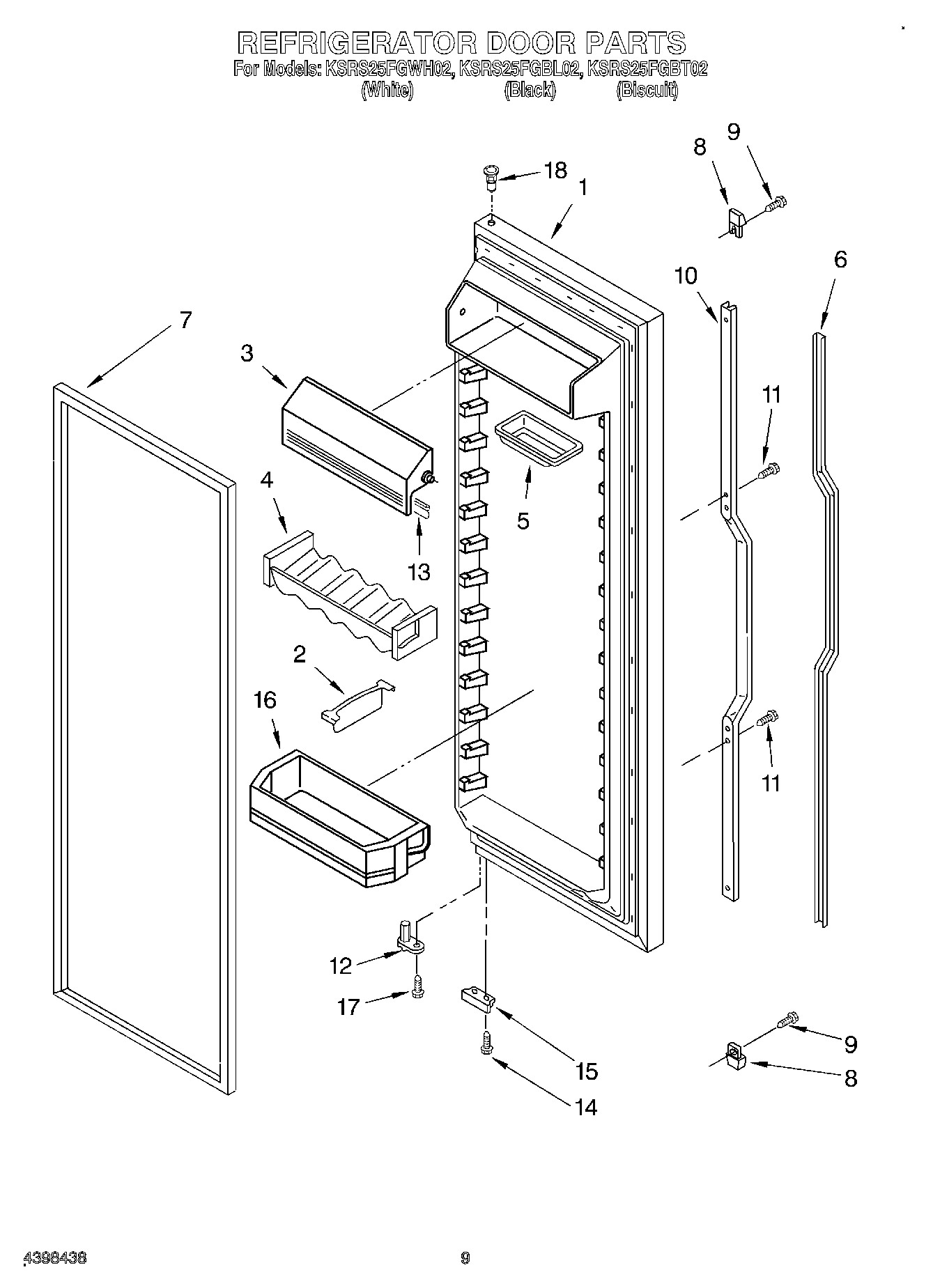

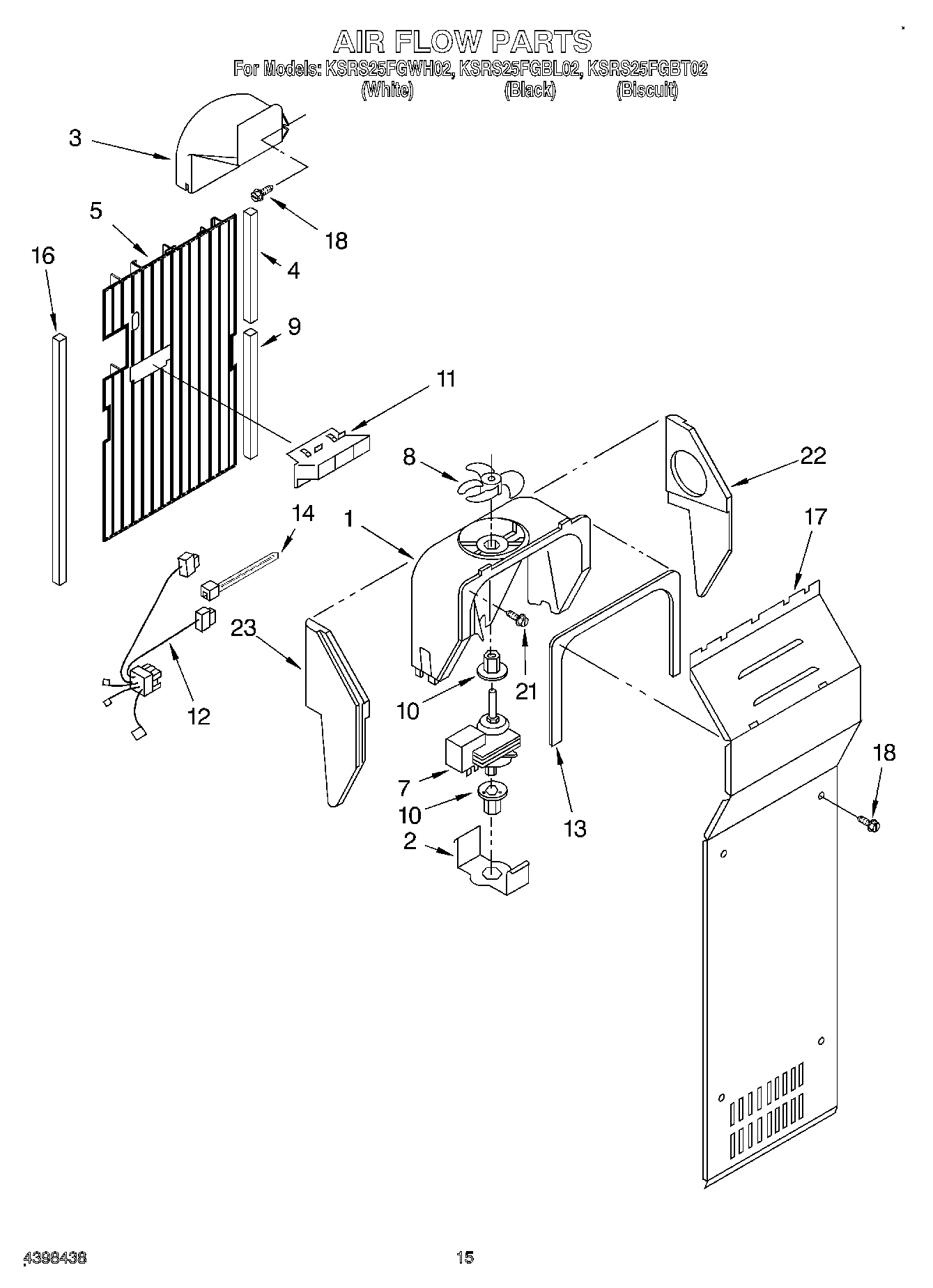

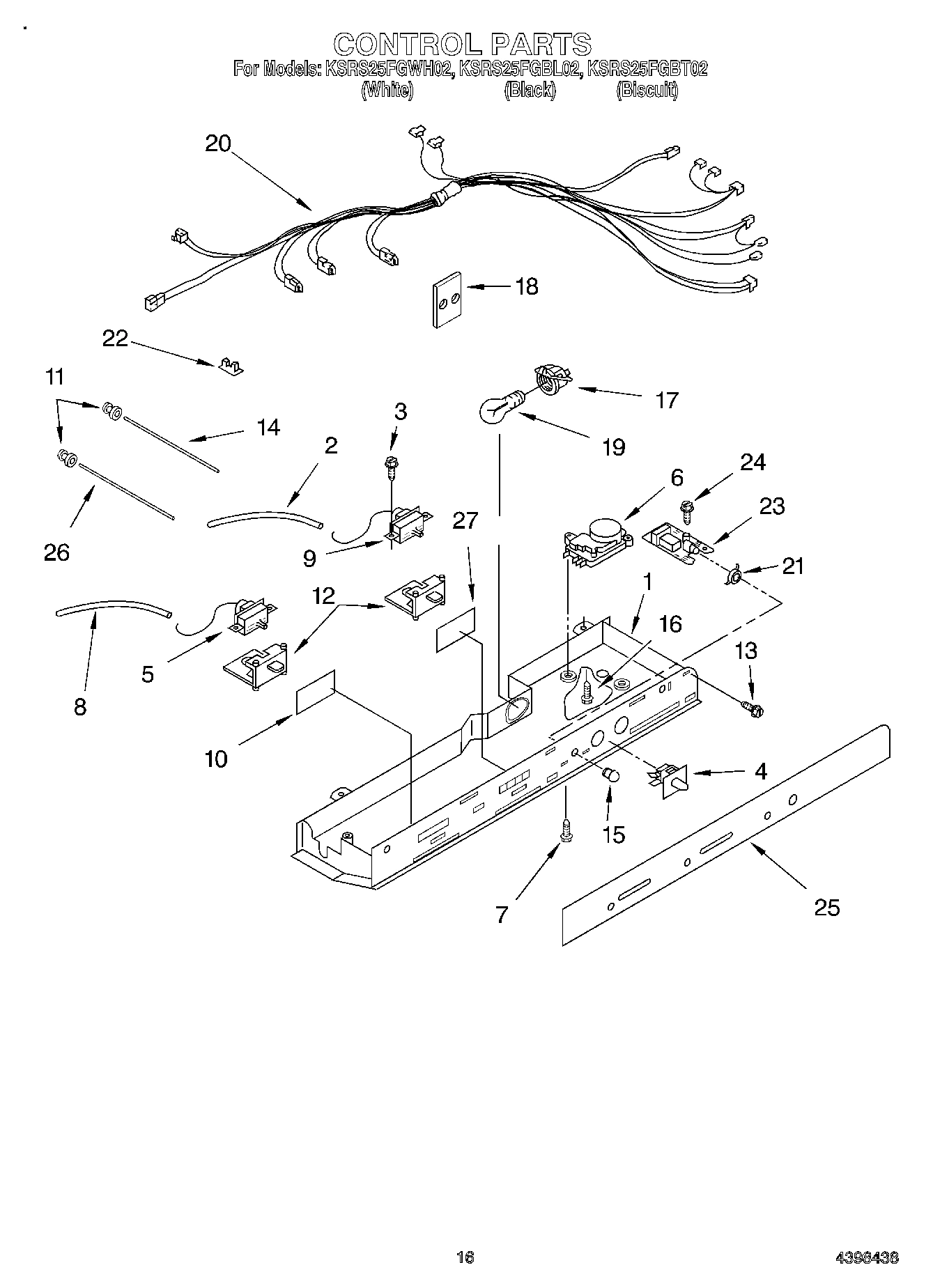

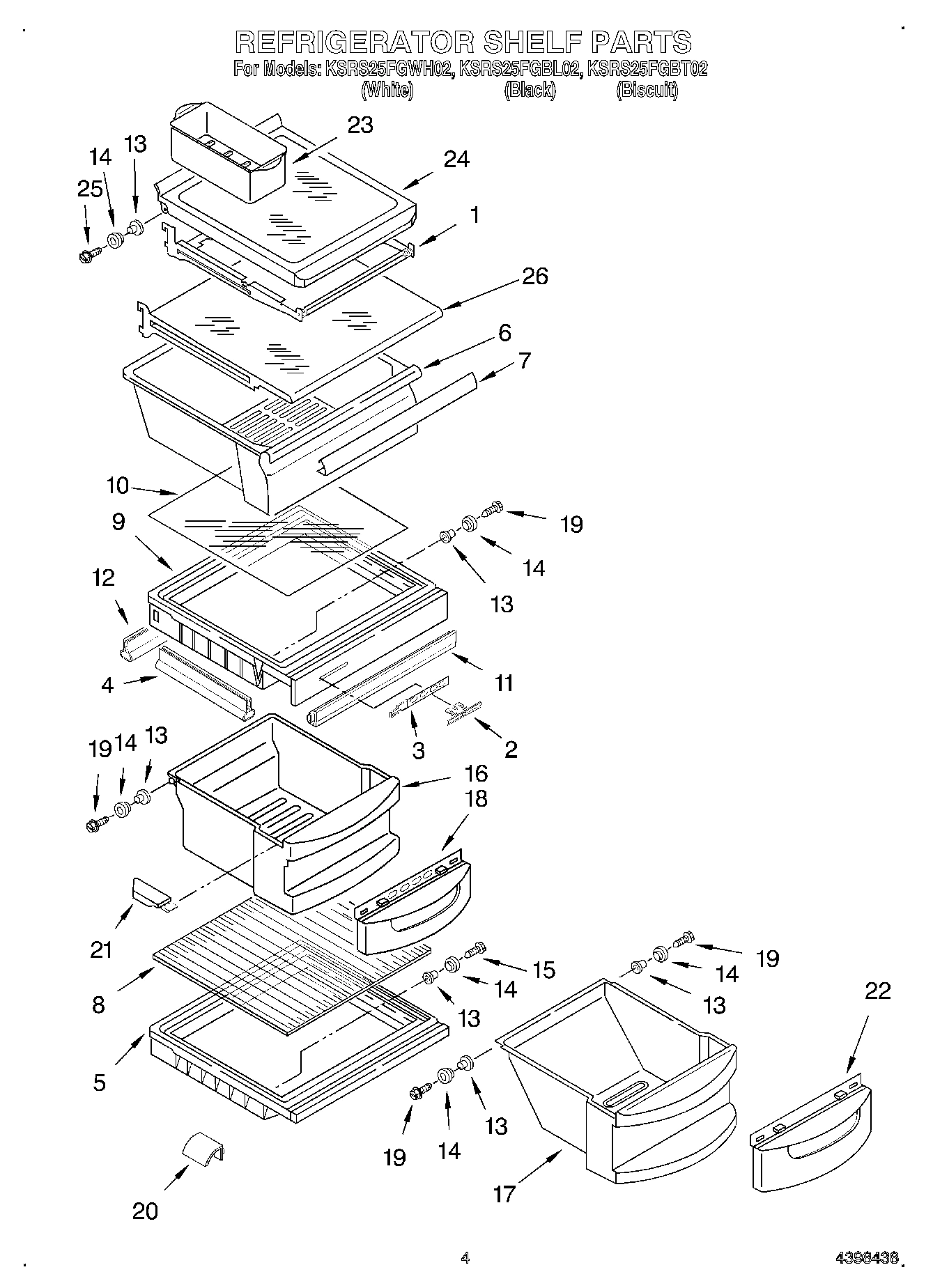

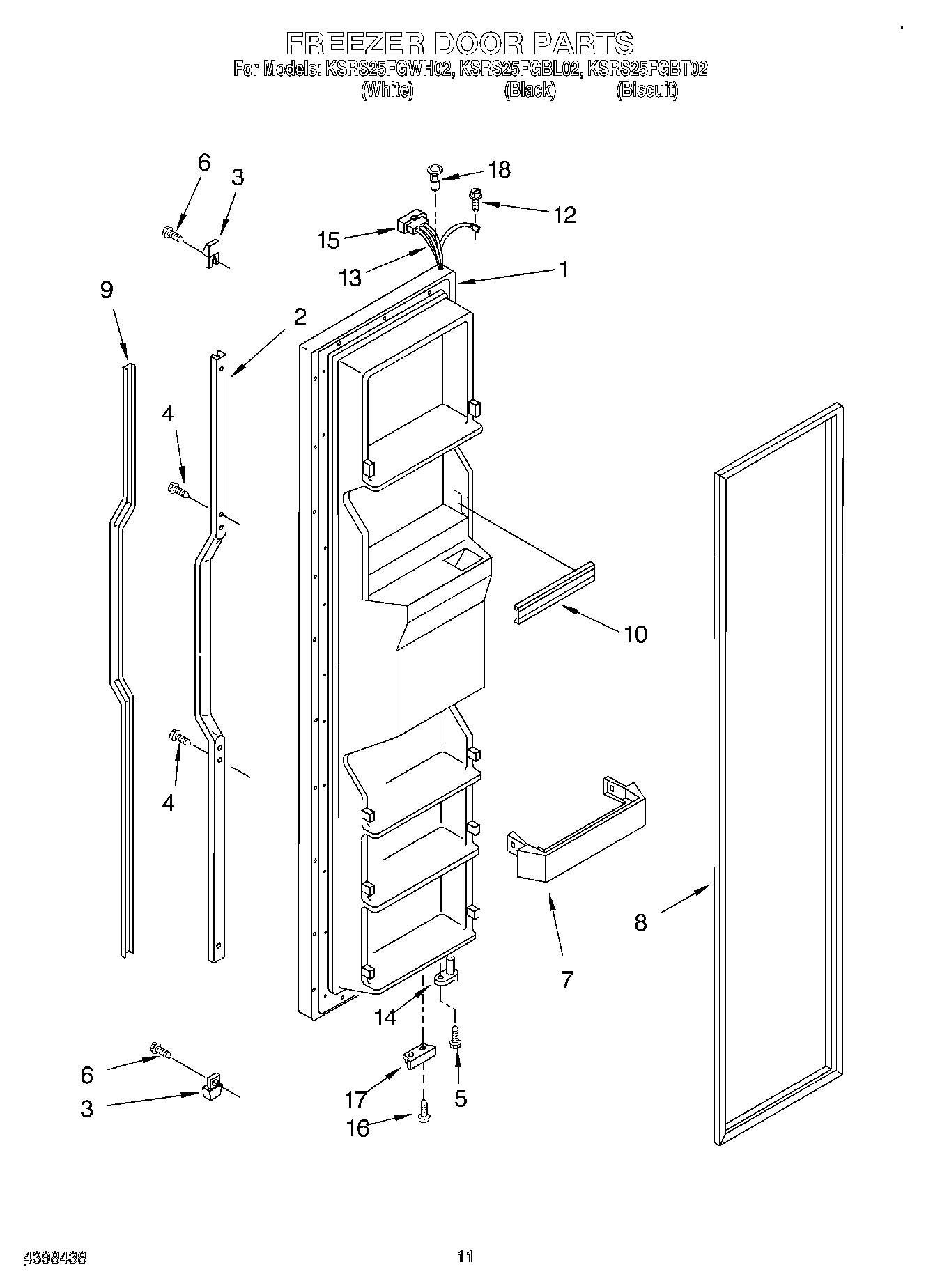

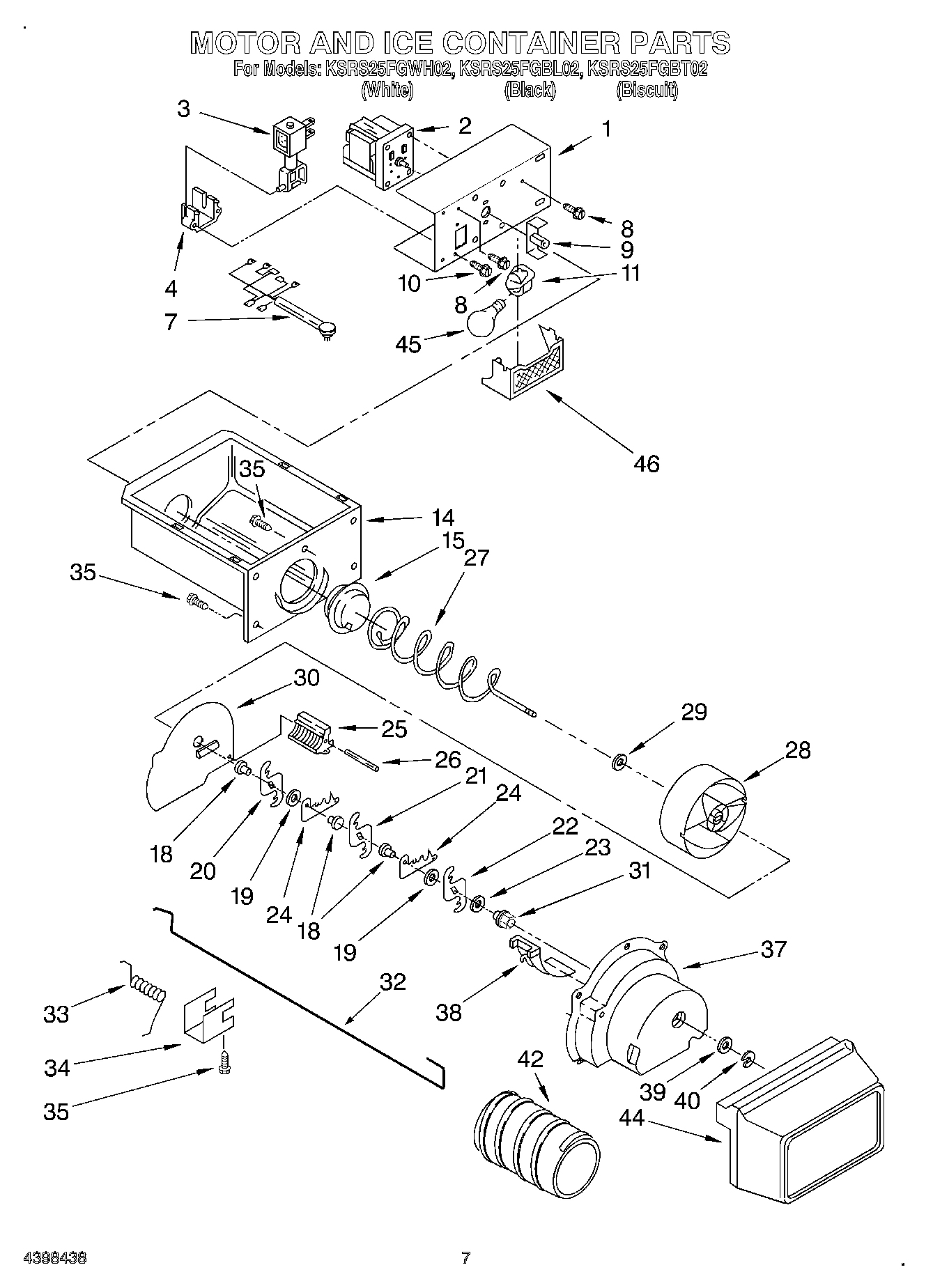

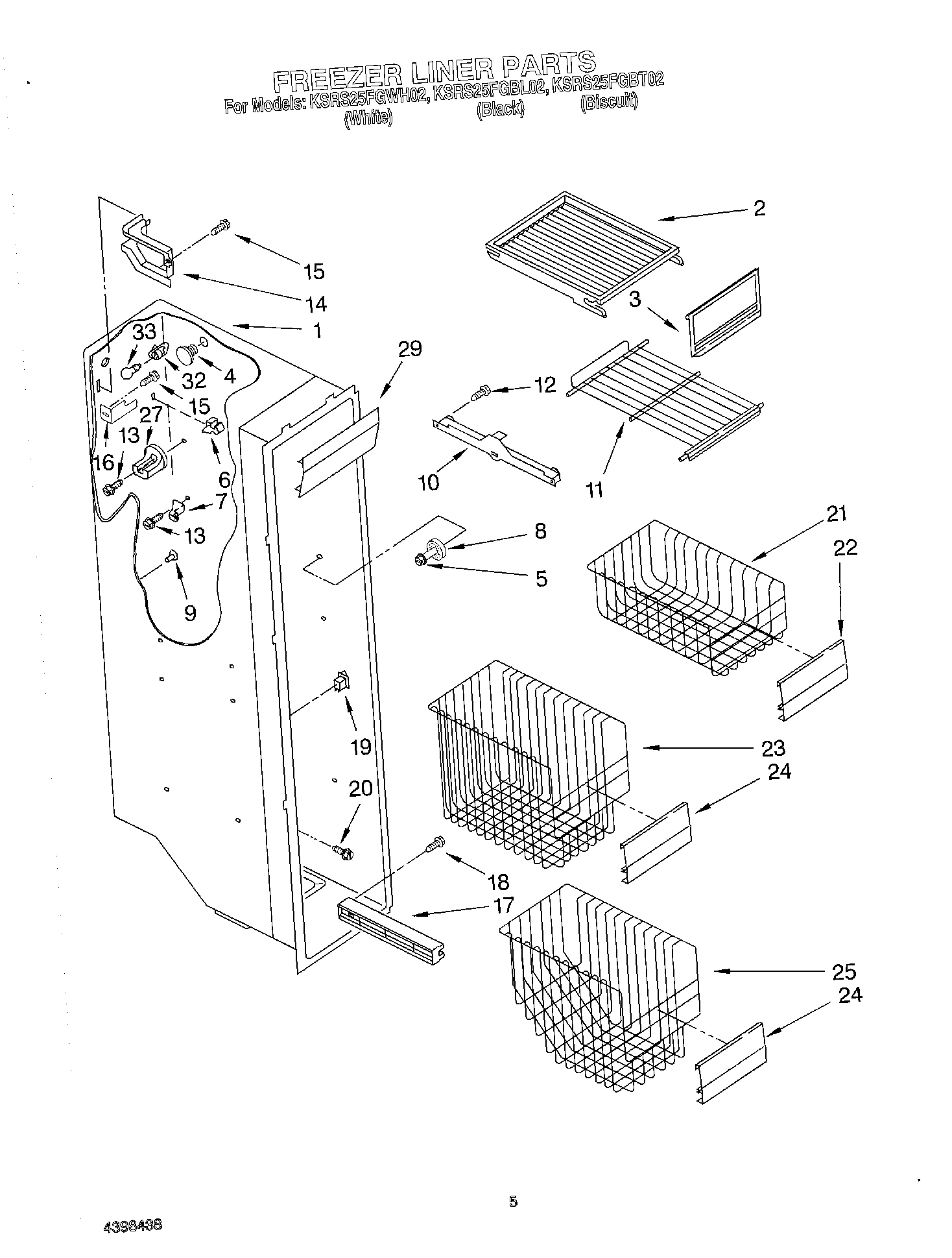

Common parts from model Whirlpool KSRS25FGBL02 REFRIGERATOR
1
Liner (Not A Serviceable Part) WPL ARI101595A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2194233B Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Biscuit) WPL 2194233T Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2204242B Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
5
Air Duct Freezer WPL 2203593 Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
6
Adaptive Defrost Control WPL 2162046 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
6
Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability
8
End Cap, Handle (Black) WPL 2194778B Contact Us For Availability
8
End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
10
Glass, Cover WPL 2174148 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2194777B Contact Us For Availability
10
Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability
10
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (Biscuit) WPL 2198468T Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Bracket, Door Stop (Black) WPL 2195950 Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
15
Relay, Production Alternate WPL 2188393 Contact Us For Availability
16
Start-Device, Combination (Production Alterna WPL 8201799 No Longer Available
16
Bracket, Fill Tube WPL 2209674 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2203841 Contact Us For Availability
17
Capacitor (Production Alternate) WPL 2169137 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2200441 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Retainer, Light Lens WPL 2200097 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Shelf, Snack Bin WPL 2208298 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
31
Unit, Harness WPL 2188346 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
