Model Whirlpool KSRS25FBAL00 REFRIGERATOR – Common Parts & Diagrams

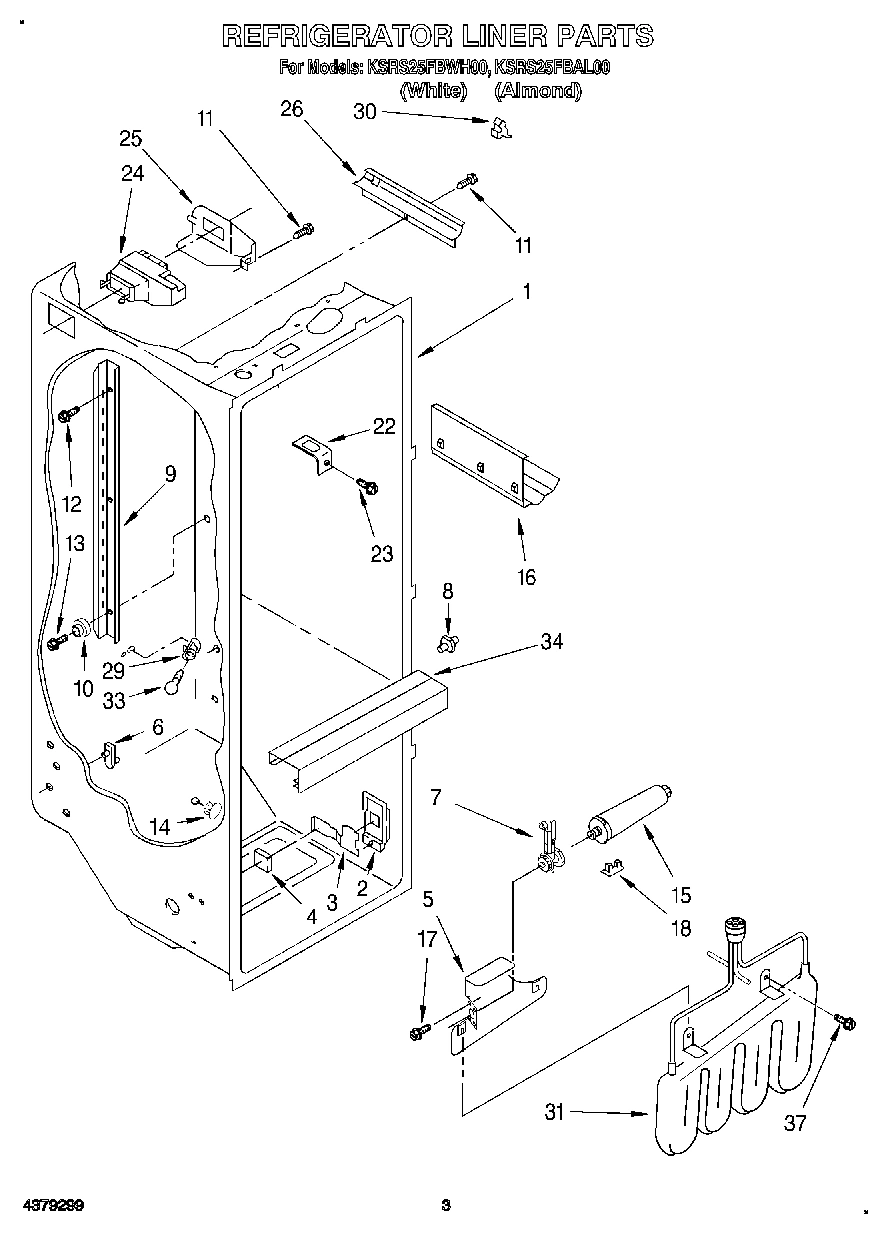

02 - REFRIGERATOR LINER

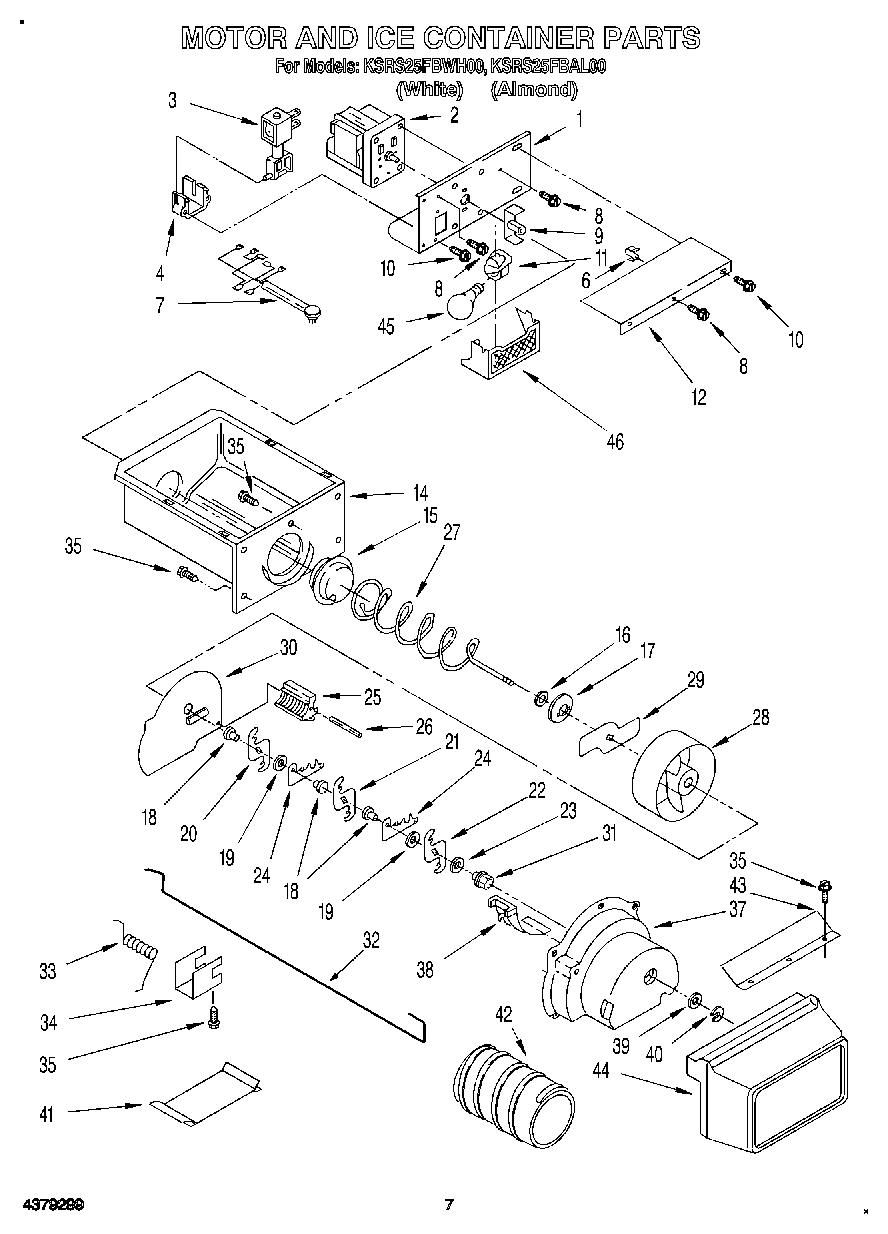

05 - MOTOR AND ICE CONTAINER

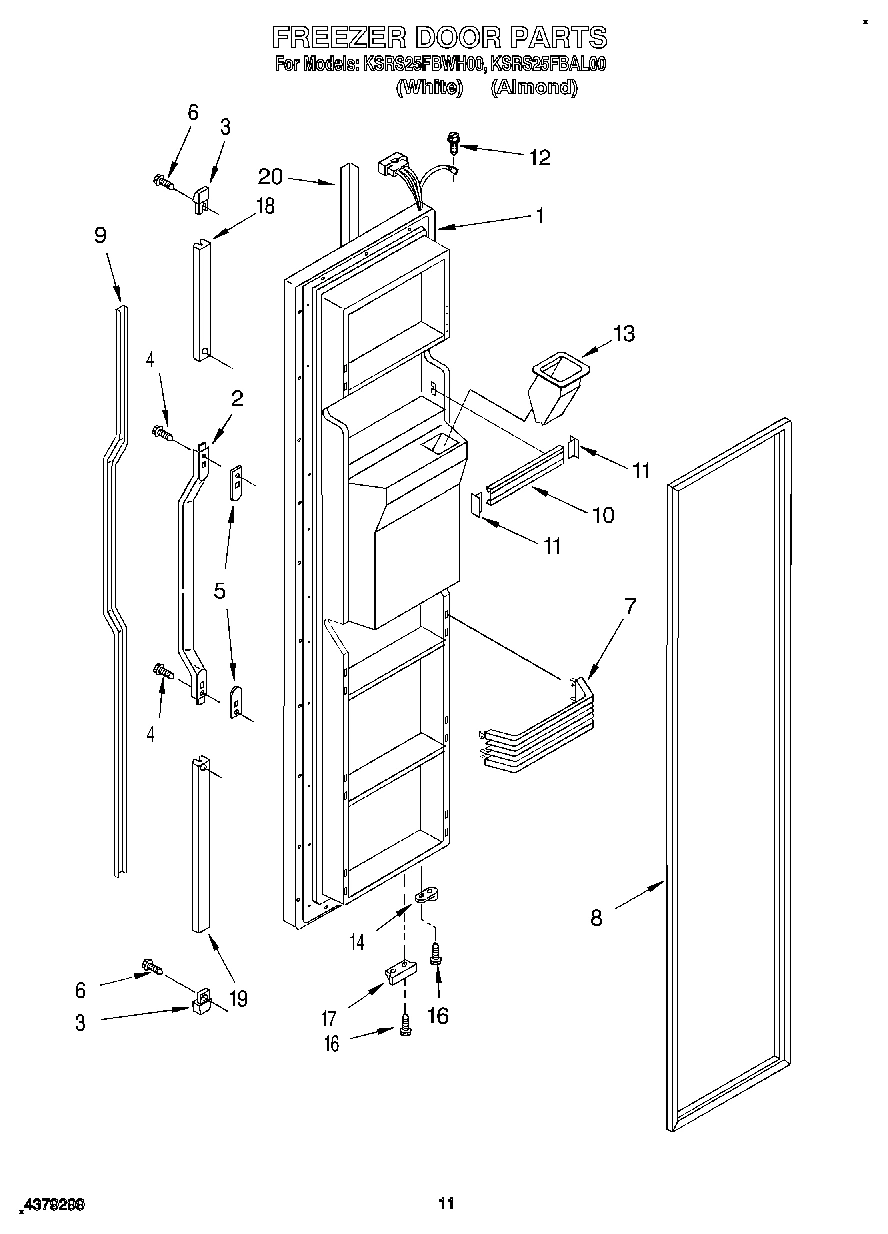

07 - FREEZER DOOR

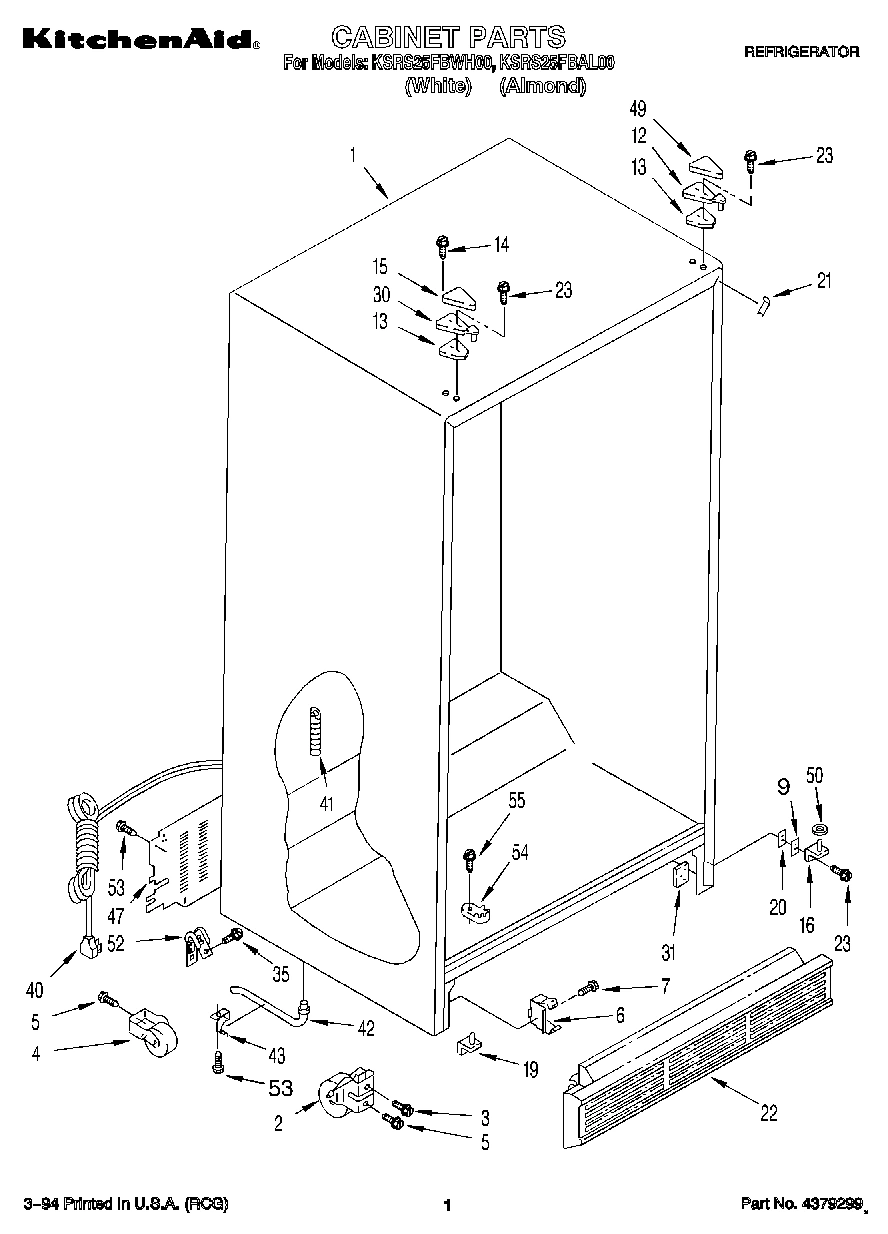

01 - CABINET

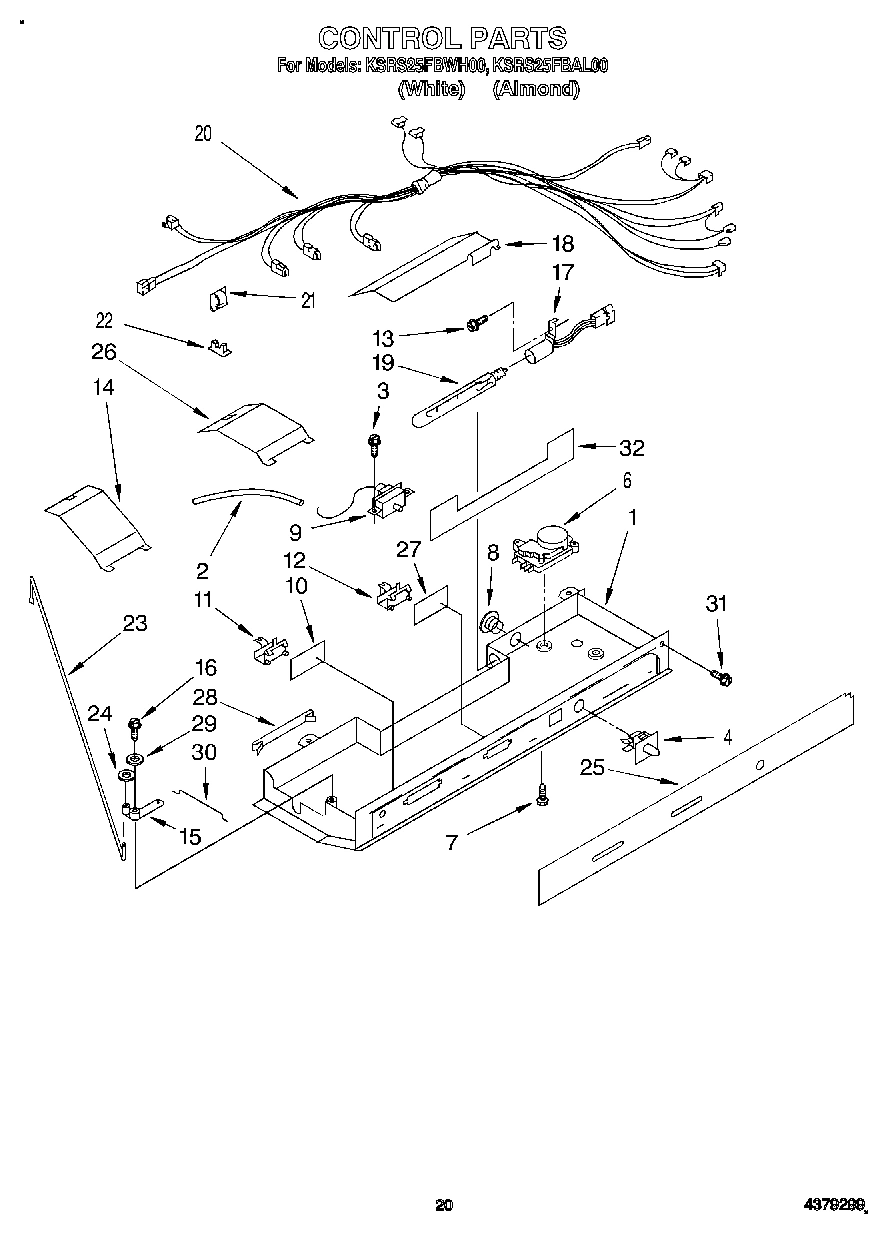

12 - CONTROL, LIT/OPTIONAL

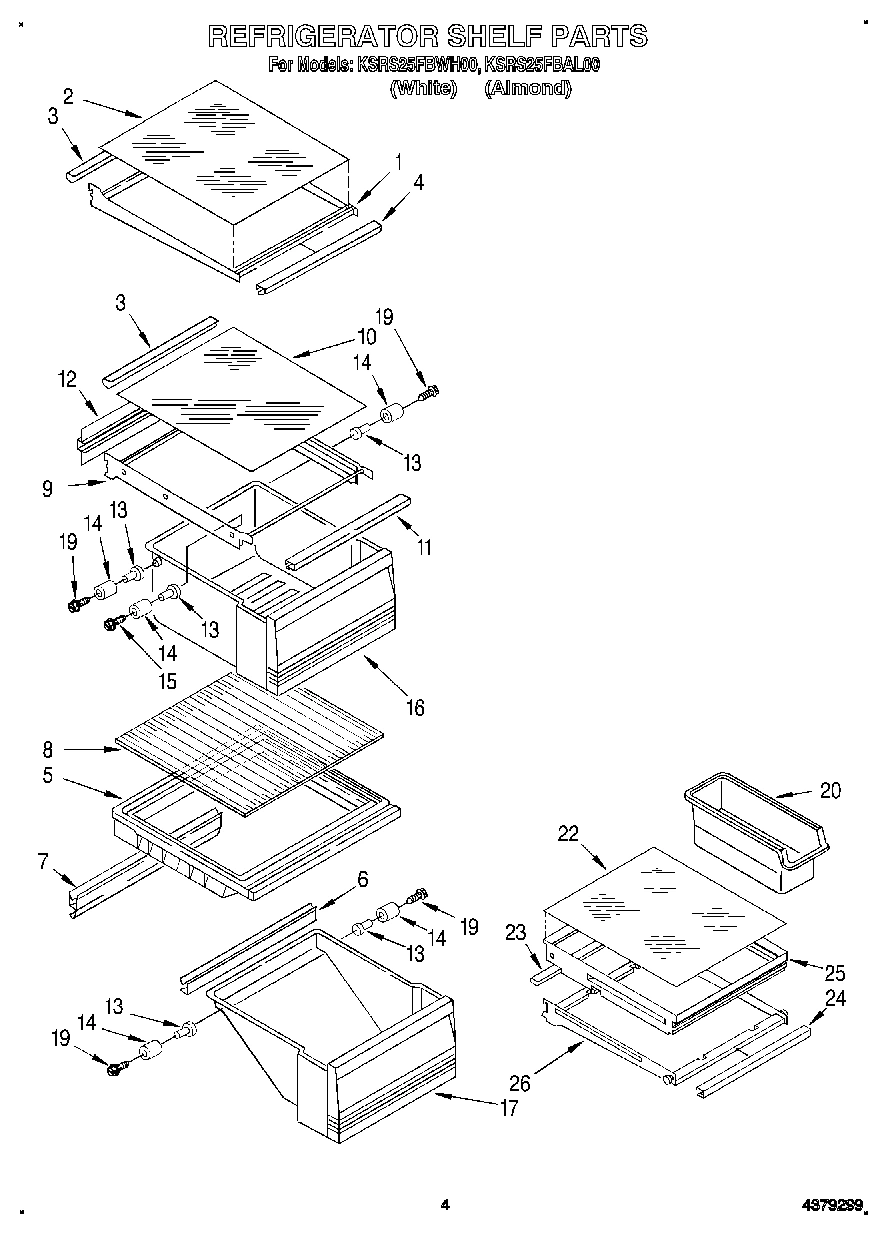

03 - REFRIGERATOR SHELF
10 - ICEMAKER

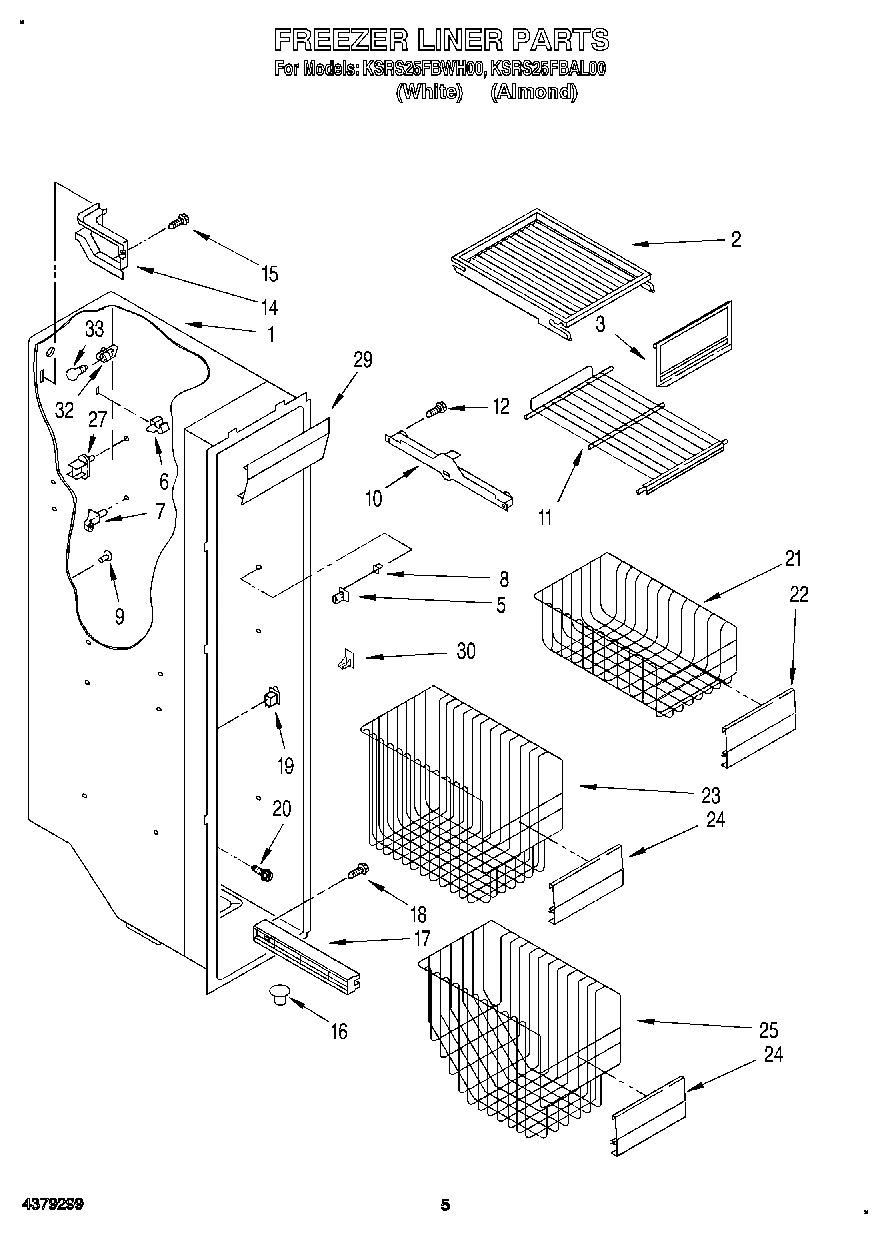

04 - FREEZER LINER

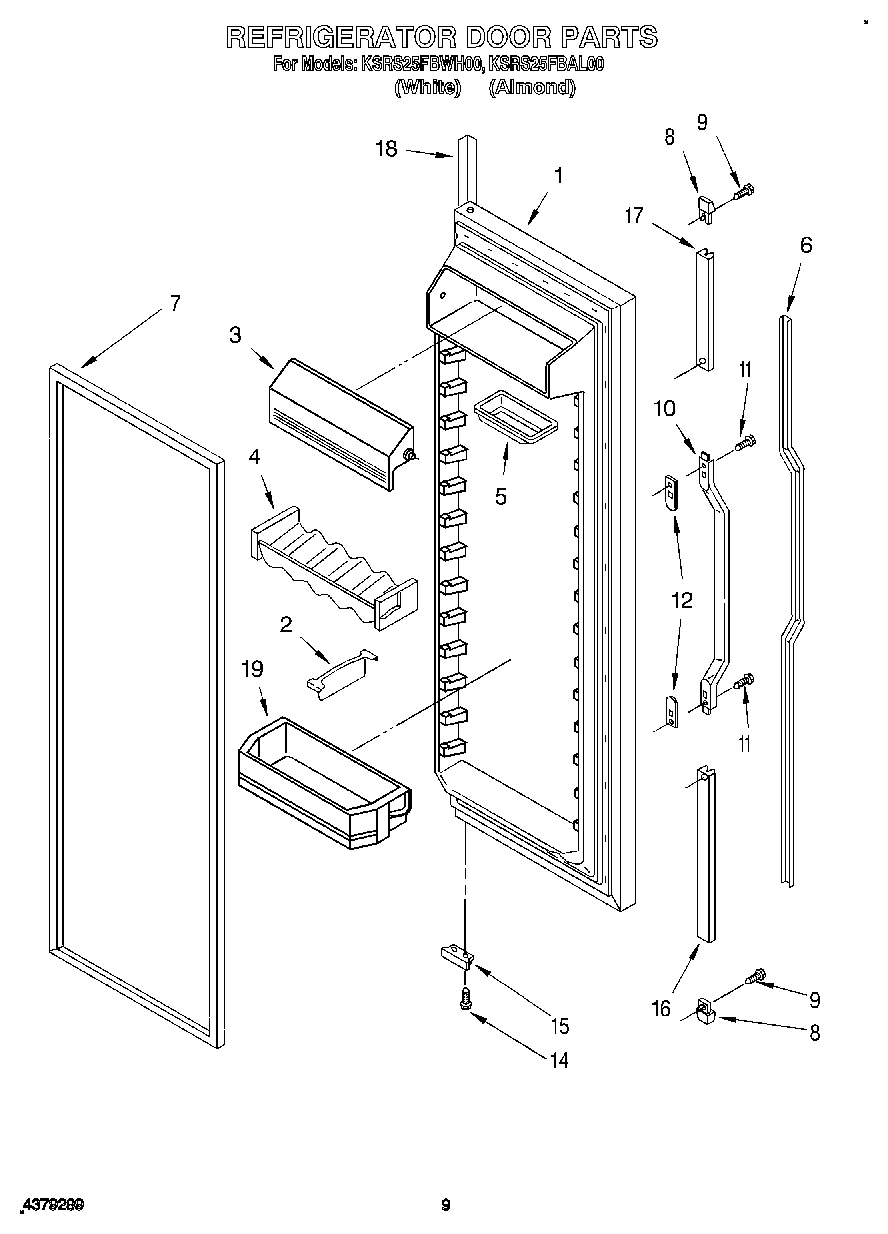

06 - REFRIGERATOR DOOR

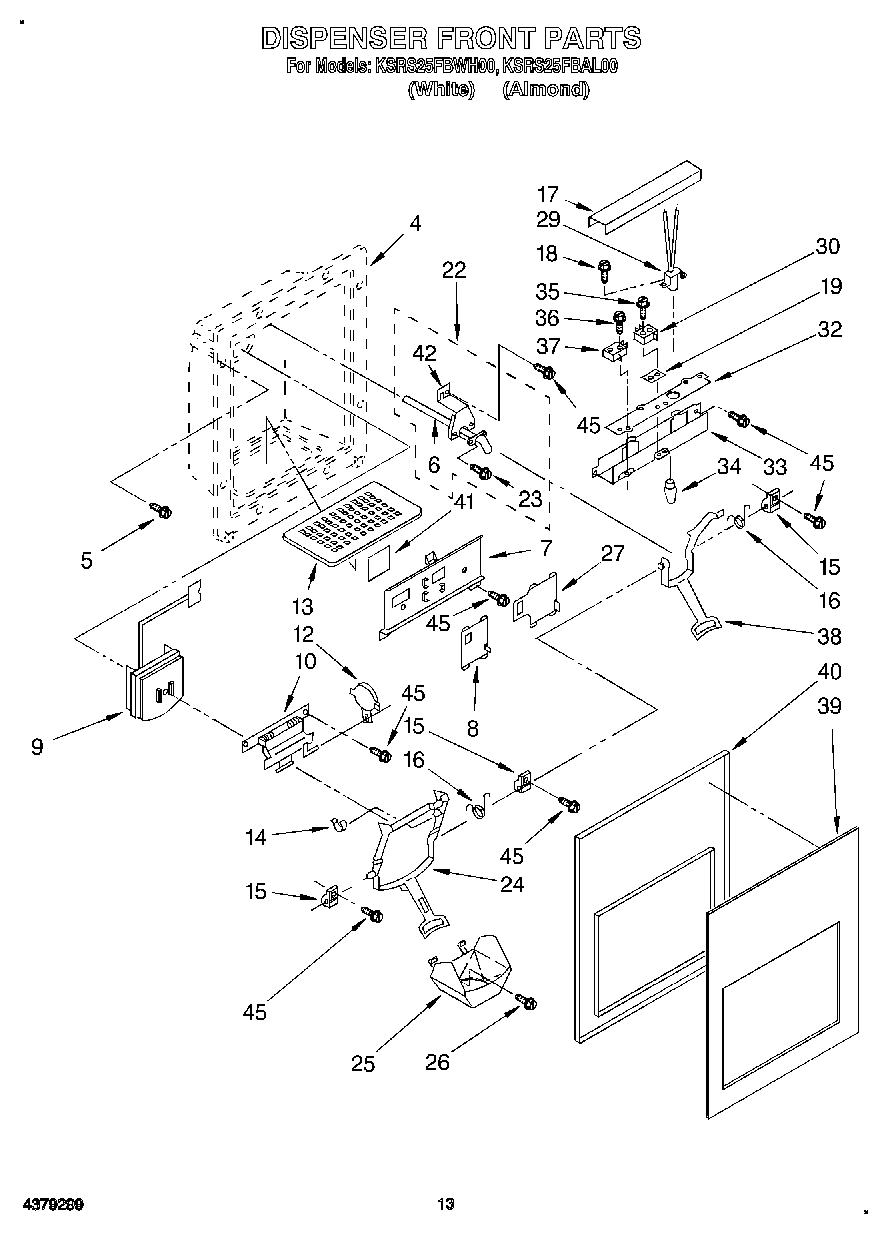

08 - DISPENSER FRONT
09 - UNIT
11 - AIR FLOW
Common parts from model Whirlpool KSRS25FBAL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155697 WPL LIT2155697 Contact Us For Availability
WPL LIT2168933 WPL LIT2168933 Contact Us For Availability
WPL LIT2168942 WPL LIT2168942 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169149 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101523A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2159404 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2159405 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Shelf, Top Compartment WPL 1125824 Contact Us For Availability
2
Load Lock (4) WPL 1117999 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Door, Ice Compartment WPL 1125657 Contact Us For Availability
3
Door, Compartment WPL 2159136 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI101524A Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Insert, Handle (White) WPL 1117948 Contact Us For Availability
6
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI101525A Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap, Handle WPL 1107341 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Pan Shelf & Slide Assembly (Includes 13, 14, WPL 2161760 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Handle Assembly WPL 1107215 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Shelf WPL 2155683 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Spacer, Handle WPL 1107651 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Bracket, Door Stop WPL 2155332 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI101526A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Crisper Pan (2) (Includes 13, 14 & 19) WPL 2161893 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Retainer, Insert (Bottom) WPL 1117952 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Utility Pan WPL 2161892 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Retainer, Insert WPL 1107243 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Trim, Door WPL 1119062 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Shelf Bin (4) WPL 1125555 Contact Us For Availability
19
Trim Kit Panels (Black) WPL 4210348 Contact Us For Availability
19
Almond Handle Inserts WPL 4211147 Contact Us For Availability
19
White WPL 4211148 Contact Us For Availability
19
Trim Kit Acrylic Panel Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Woodgrain WPL 4318340 Contact Us For Availability
19
Black Grille Kit WPL 4318417 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2155694 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Basket, Middle WPL 2155685 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
22
Front, Basket WPL 1125770 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
23
Basket, Upper WPL 2152093 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
26
Frame And Roller Assembly (Cantilever) WPL 2161806 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
32
WPL 876029 WPL 876029 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
32
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
32
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
32
WPL 799833 WPL 799833 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability
39
Insert, Cover (White) WPL 2168865 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2168866 Contact Us For Availability
39
Grommet (4) (Production) WPL 2162067 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 2168868 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 2168869 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Washer WPL 489366 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
