Model Whirlpool KSRS22QFWH00 – Common Parts & Diagrams
07 - DISPENSER FRONT
08 - UNIT

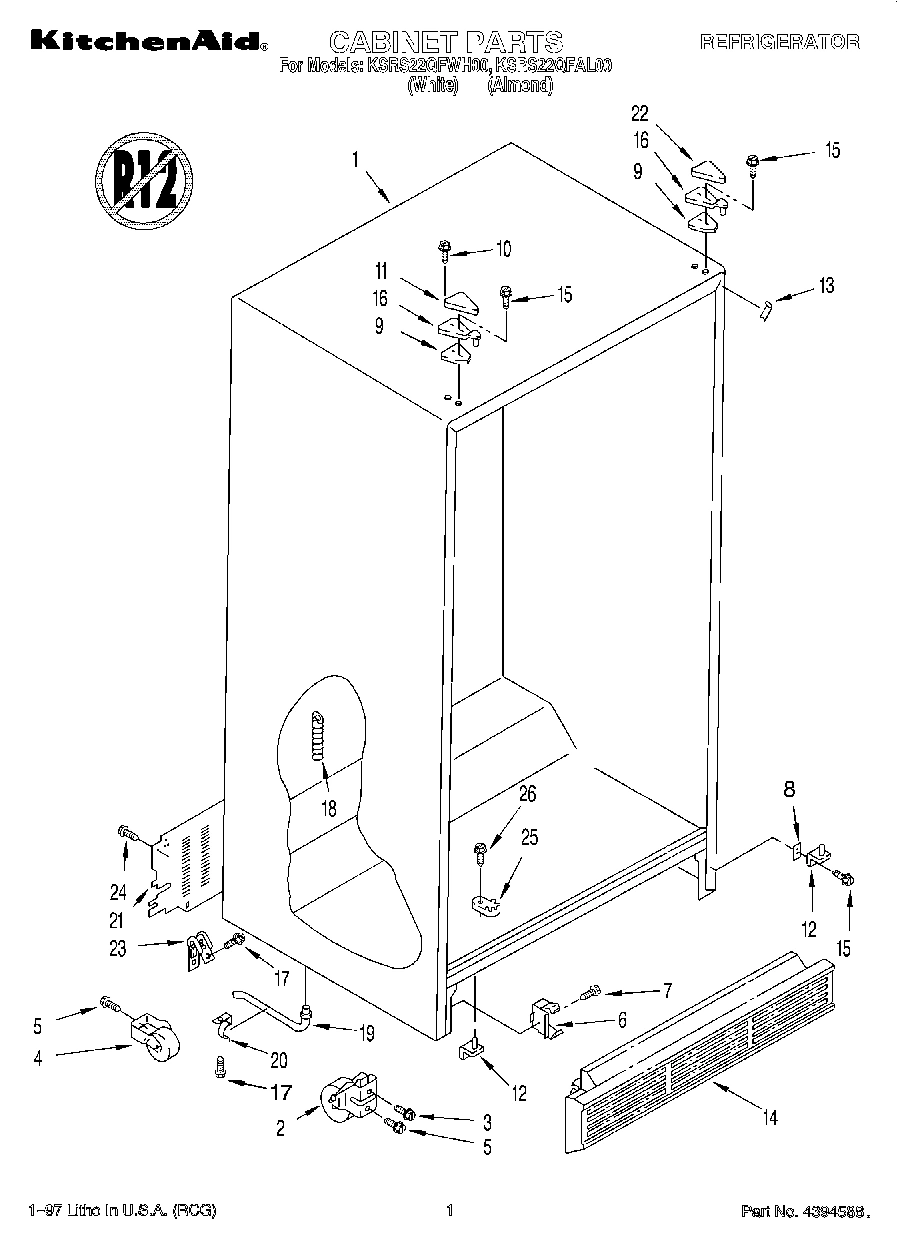

01 - CABINET
04 - MOTOR AND ICE CONTAINER
11 - ICEMAKER

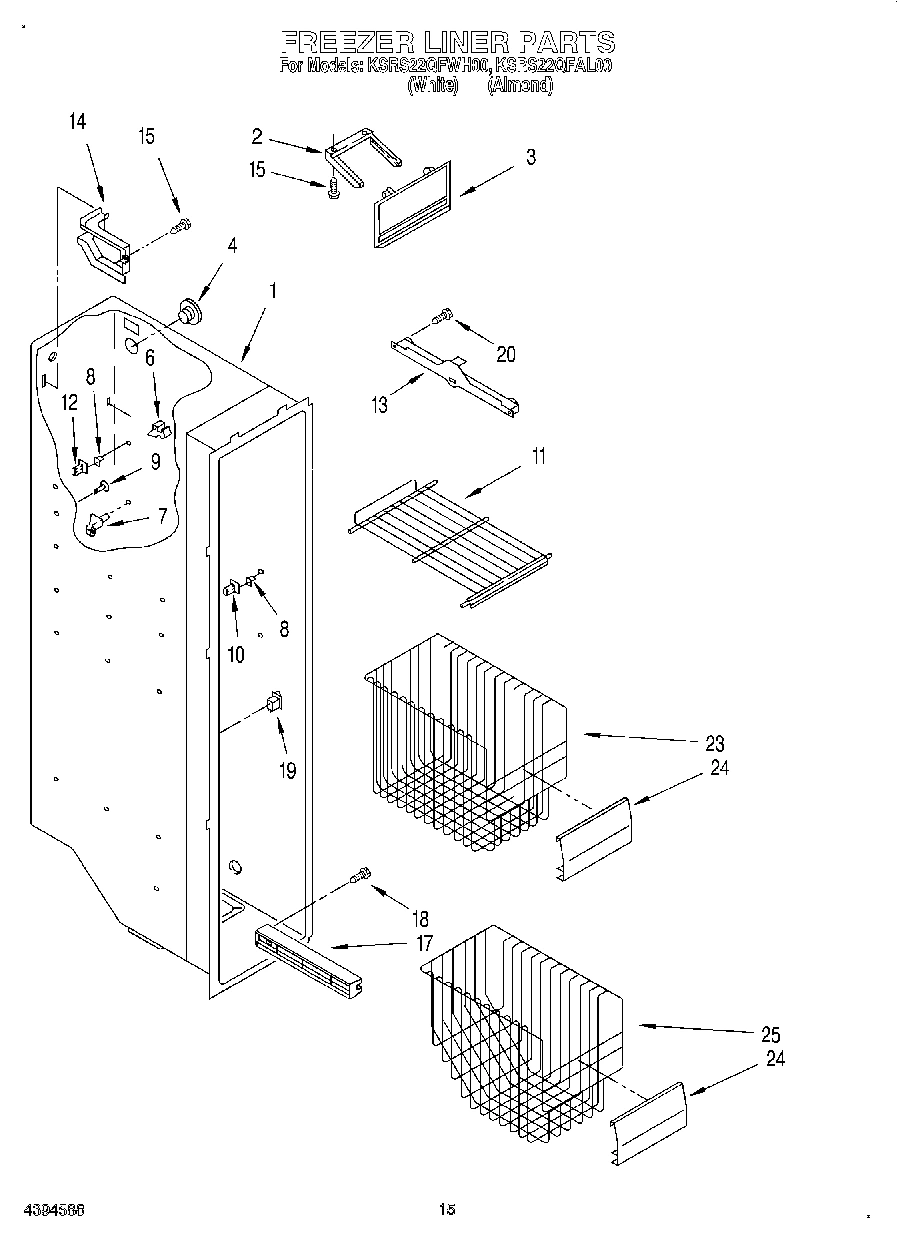

09 - FREEZER LINER
10 - AIRFLOW

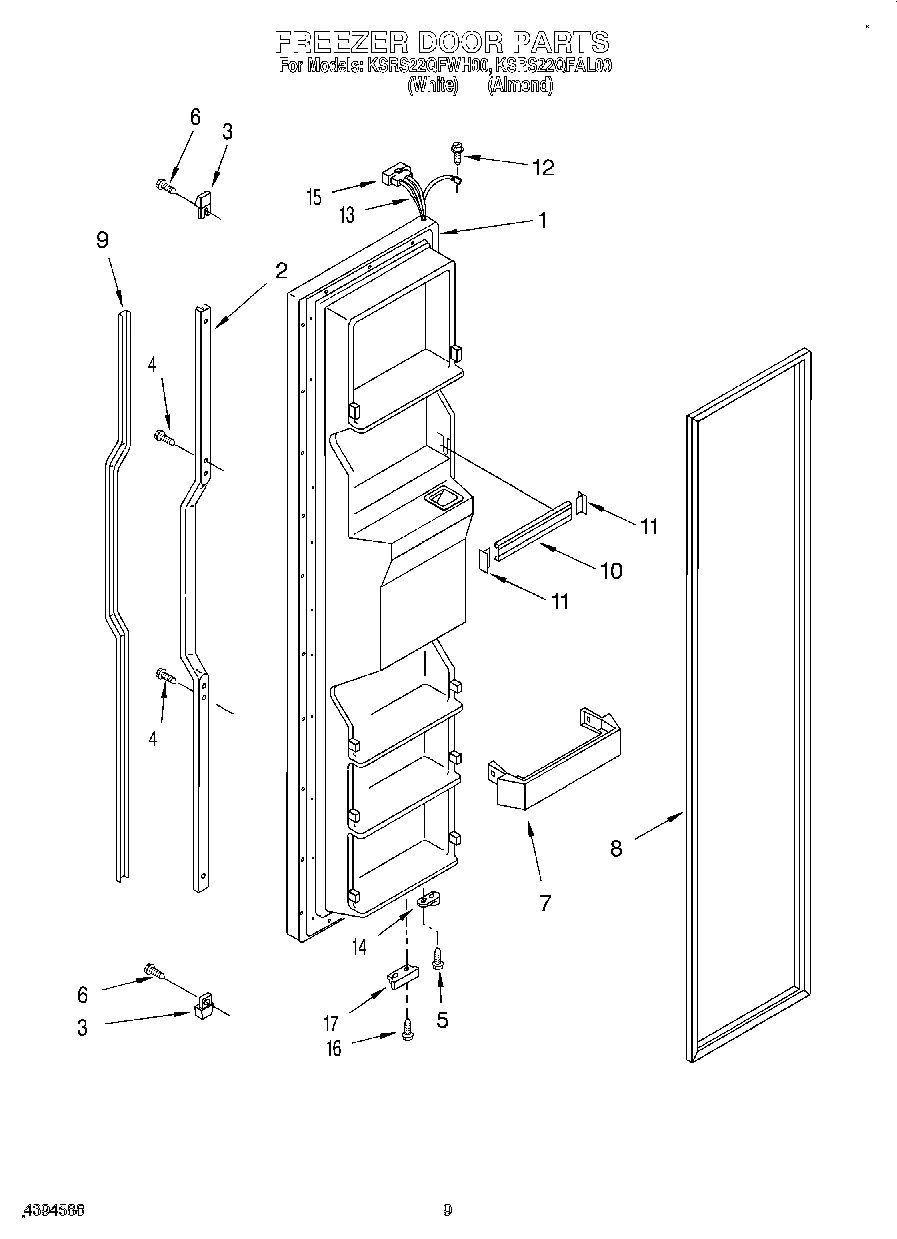

06 - FREEZER DOOR

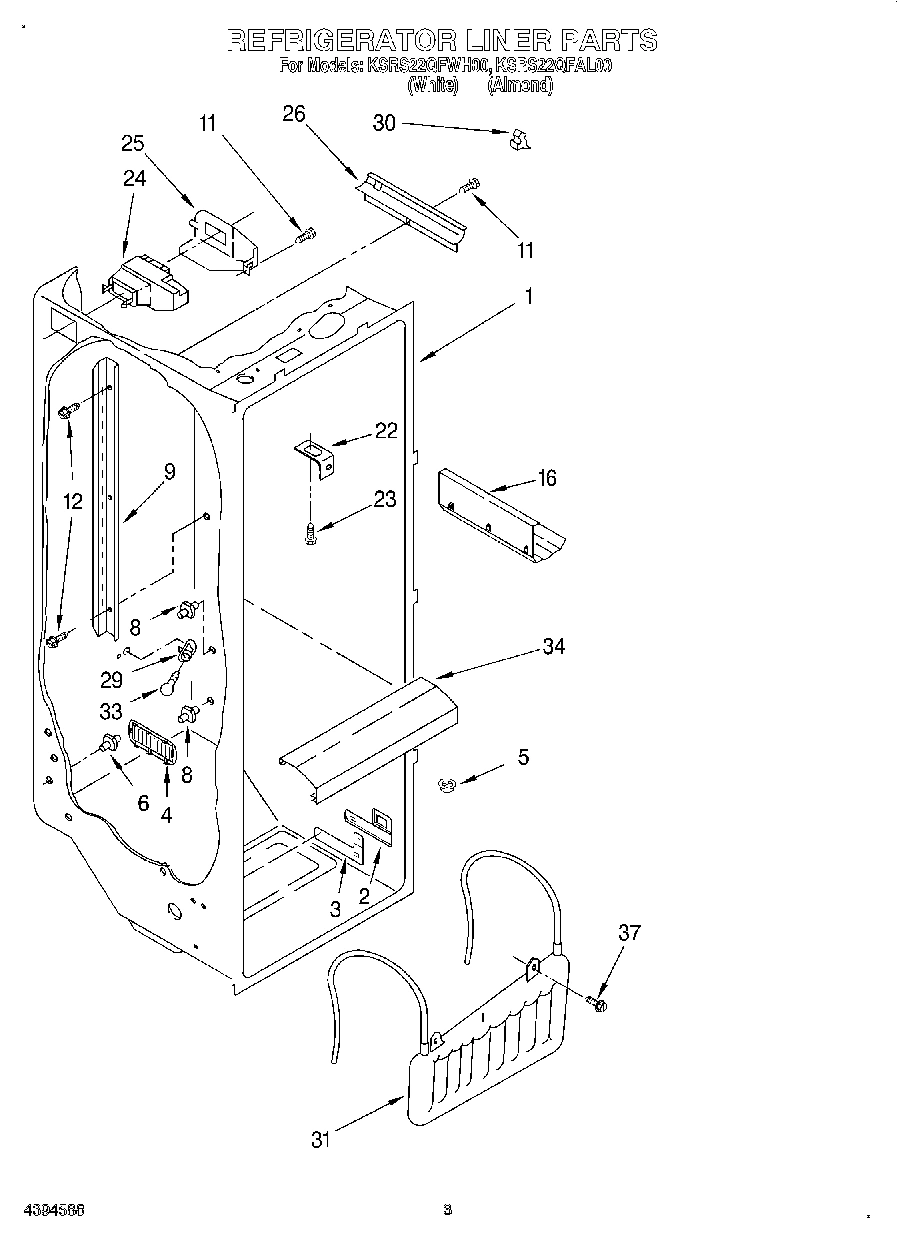

02 - REFRIGERATOR LINER

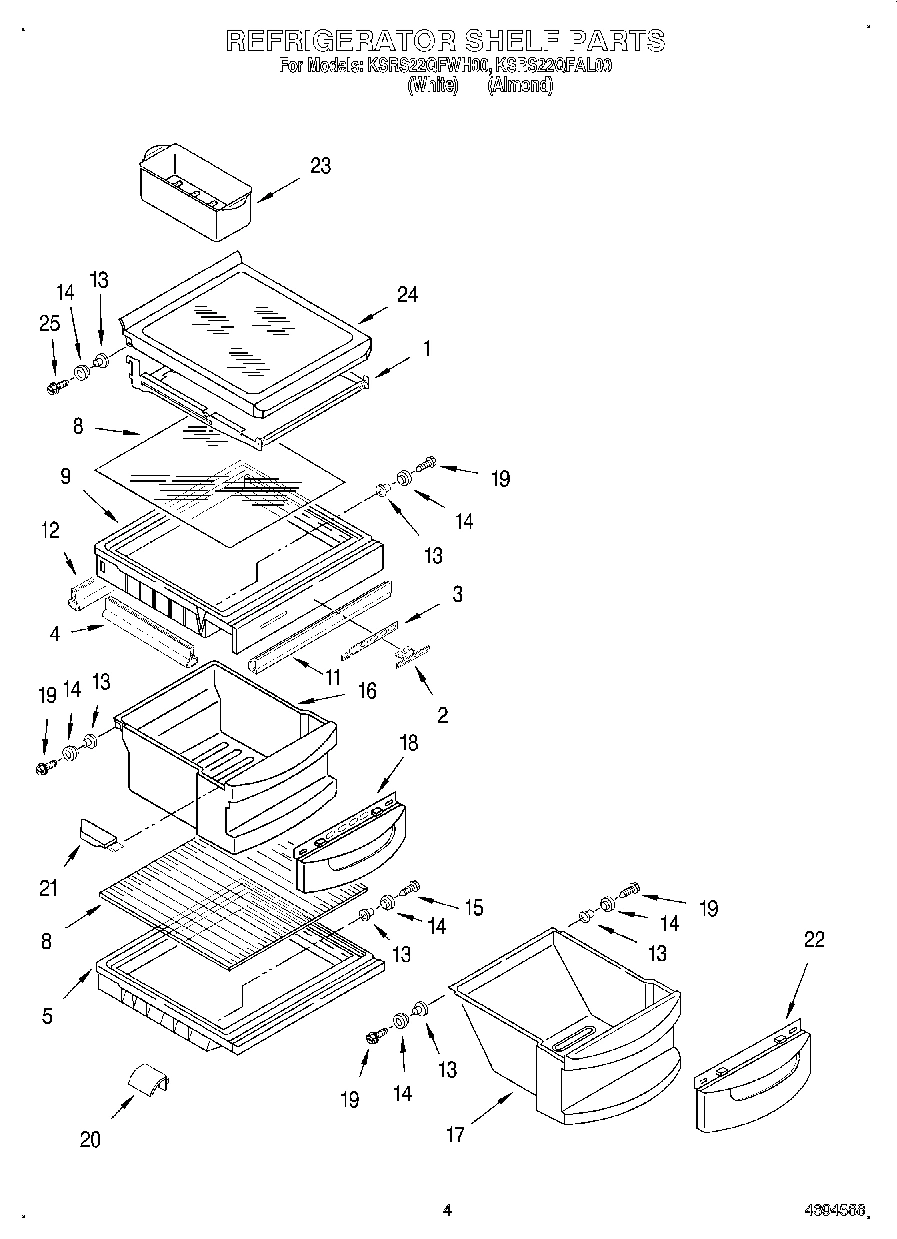

03 - REFRIGERATOR SHELF

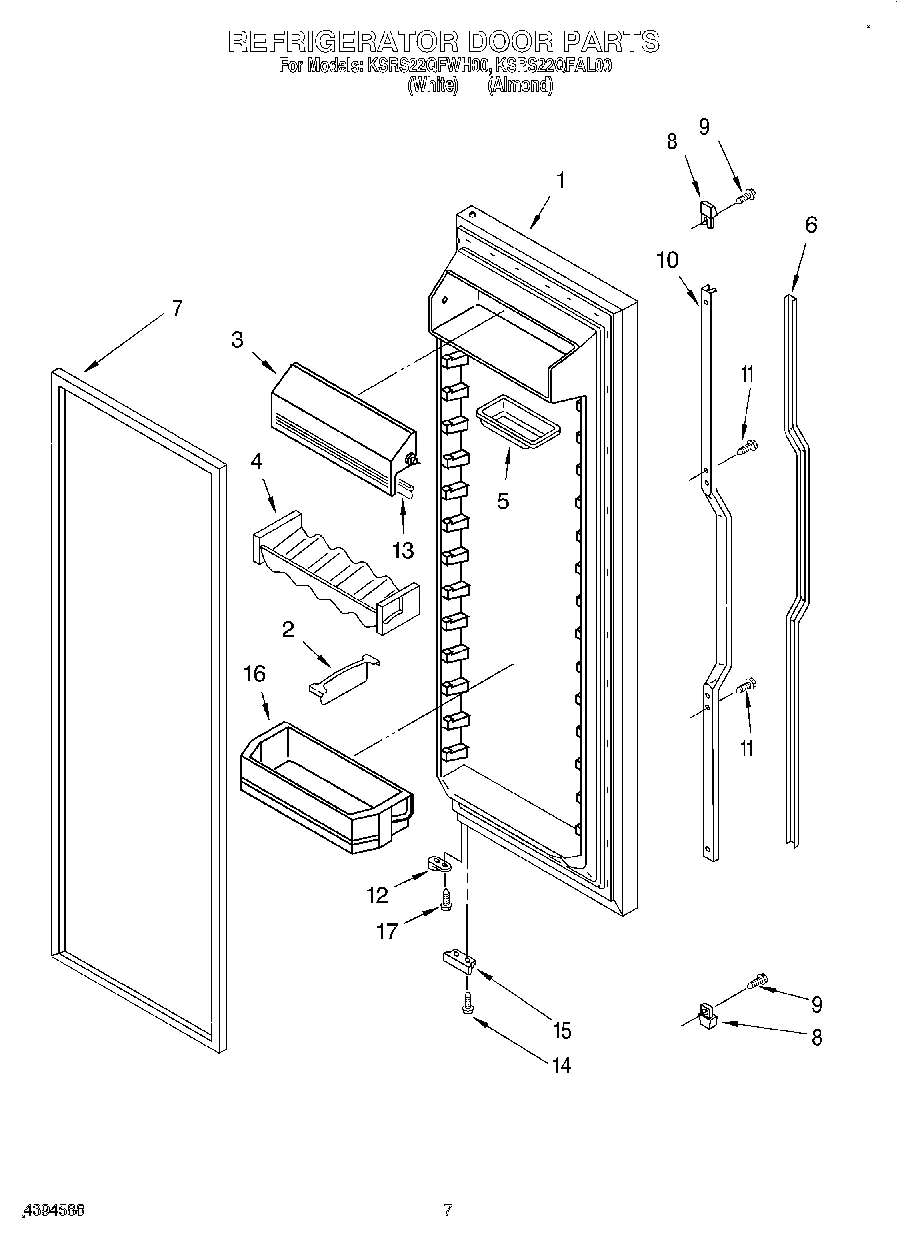

05 - REFRIGERATOR DOOR

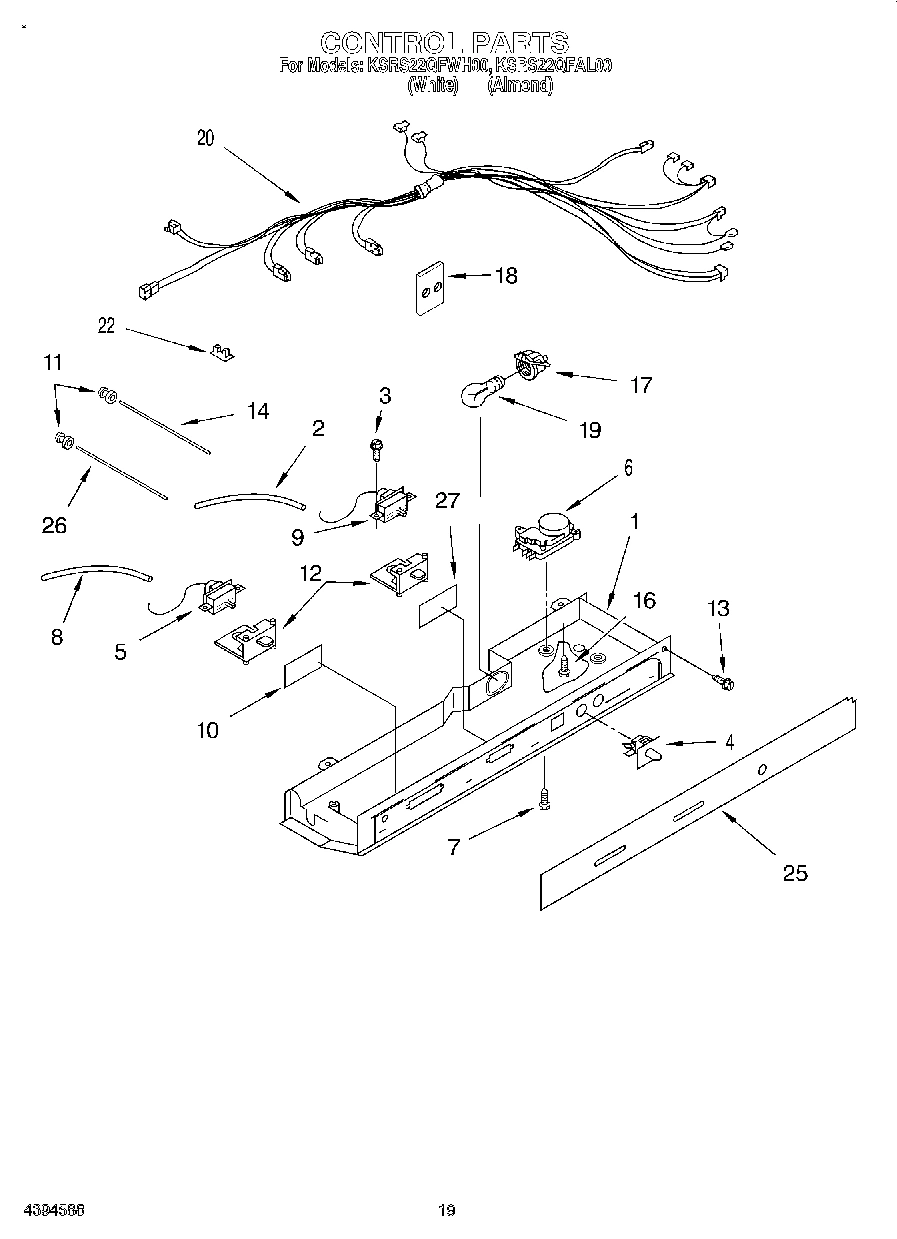

12 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool KSRS22QFWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2182833 WPL LIT2182833 Contact Us For Availability
WPL LIT2194922 WPL LIT2194922 Contact Us For Availability
WPL LIT2198138 WPL LIT2198138 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182860 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182861 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100993A Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174023 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194200N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194200W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Hole Plug WPL 940014 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Insert, Handle (White) WPL 2173830 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
7
Shelf Bin (4) WPL 2171071 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2194776N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194776W Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Bracket, Door Stop WPL 2155332 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2182130 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Hinge Cover (White) WPL 1119787 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Basket, Upper WPL 2181761 Contact Us For Availability
24
Front, Basket WPL 2171768 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Basket, Lower WPL 2181762 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
KIT, WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
