Model Whirlpool KSRS22QDWH01 – Common Parts & Diagrams

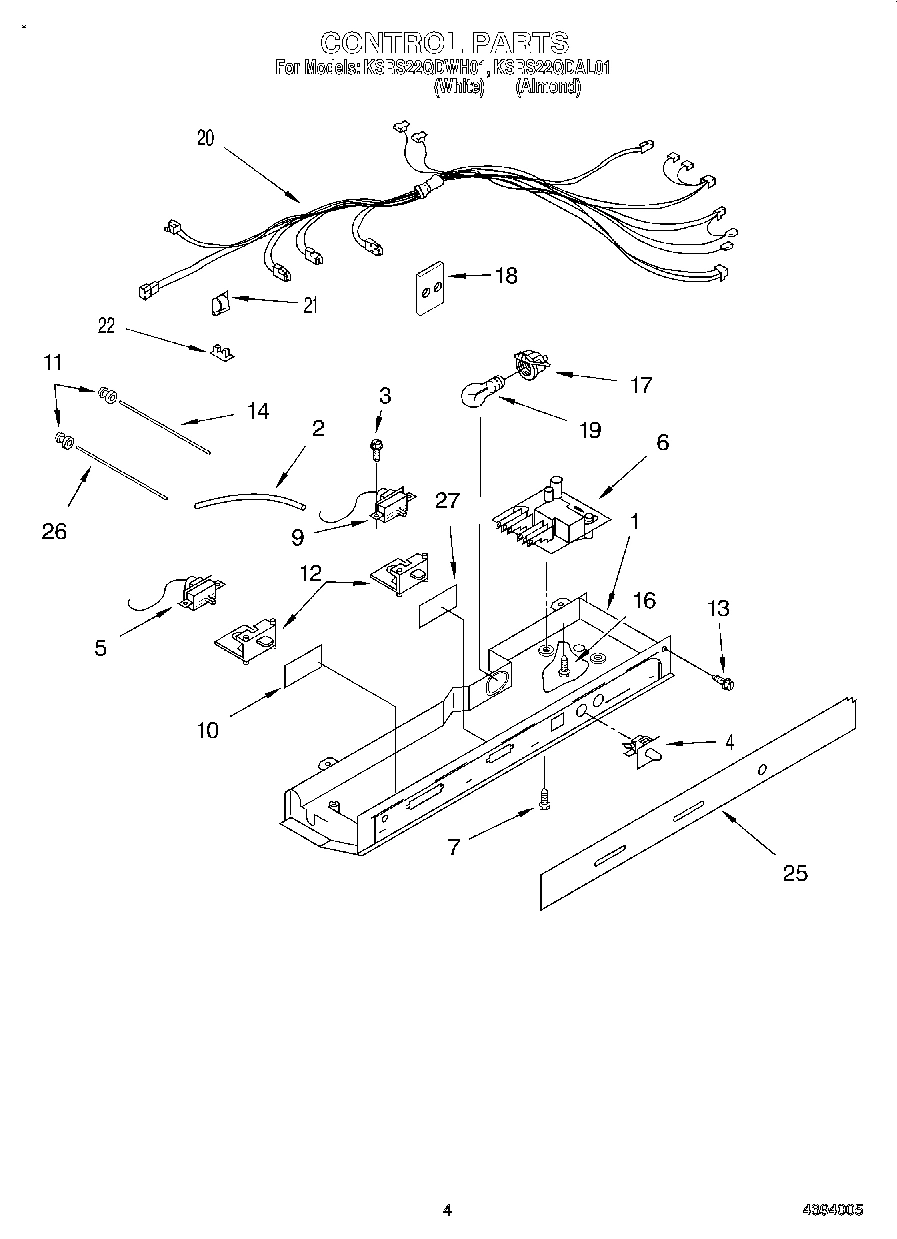

03 - CONTROL

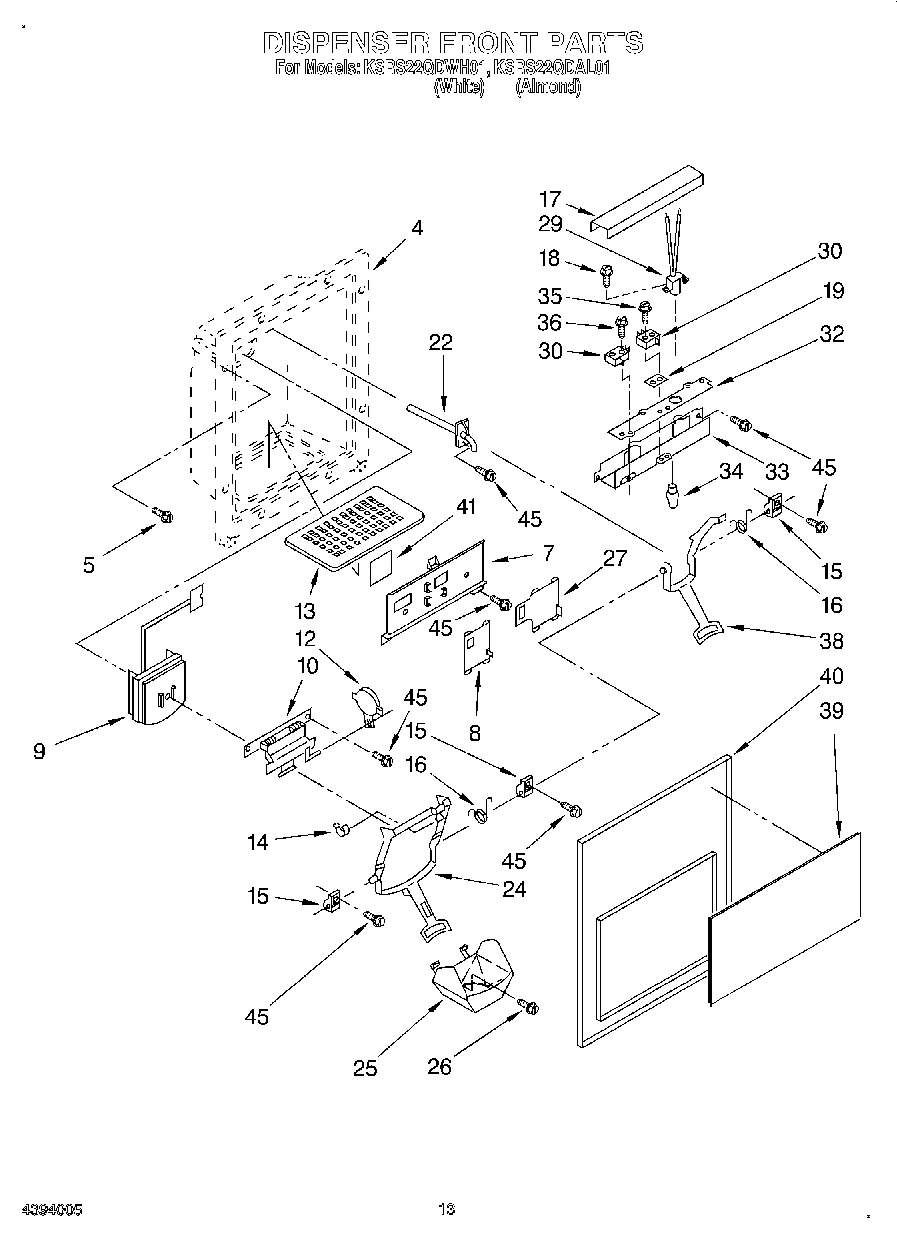

08 - DISPENSER FRONT
10 - FREEZER LINER
12 - ICEMAKER, LIT/OPTIONAL
07 - FREEZER DOOR
01 - CABINET
02 - REFRIGERATOR LINER
05 - MOTOR AND ICE CONTAINER
09 - UNIT
11 - AIR FLOW
04 - REFRIGERATOR SHELF
06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSRS22QDWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2189716 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2189717 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI100965A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100966A Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2174023 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2189709 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2189710 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
6
Insert, Handle (White) WPL 2173830 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Shelf Bin (4) WPL 2171071 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
End Cap, Handle WPL 2173826 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Retainer, Insert WPL 2173827 Contact Us For Availability
10
Insert, Air Baffle WPL 2176796 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Bracket, Door Stop WPL 2155332 Contact Us For Availability
15
Relay (See Overload) WPL ARI100968A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
16
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
16
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
16
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
16
Trim Kit WPL 4318336 Contact Us For Availability
16
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
16
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
16
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Cover WPL 2169935 Contact Us For Availability
26
Harness, Intermediate WPL 2181709 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
42
Housing WPL 2152700 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
