Model Whirlpool KSRP22FSBL02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Important: The spray paint is not to be used WPL ARI99668A3 Contact Us For Availability

Miscellaneous WPL ARI99669A8 Contact Us For Availability

TORX SCREW WRENCH WPL ARI99670A1 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

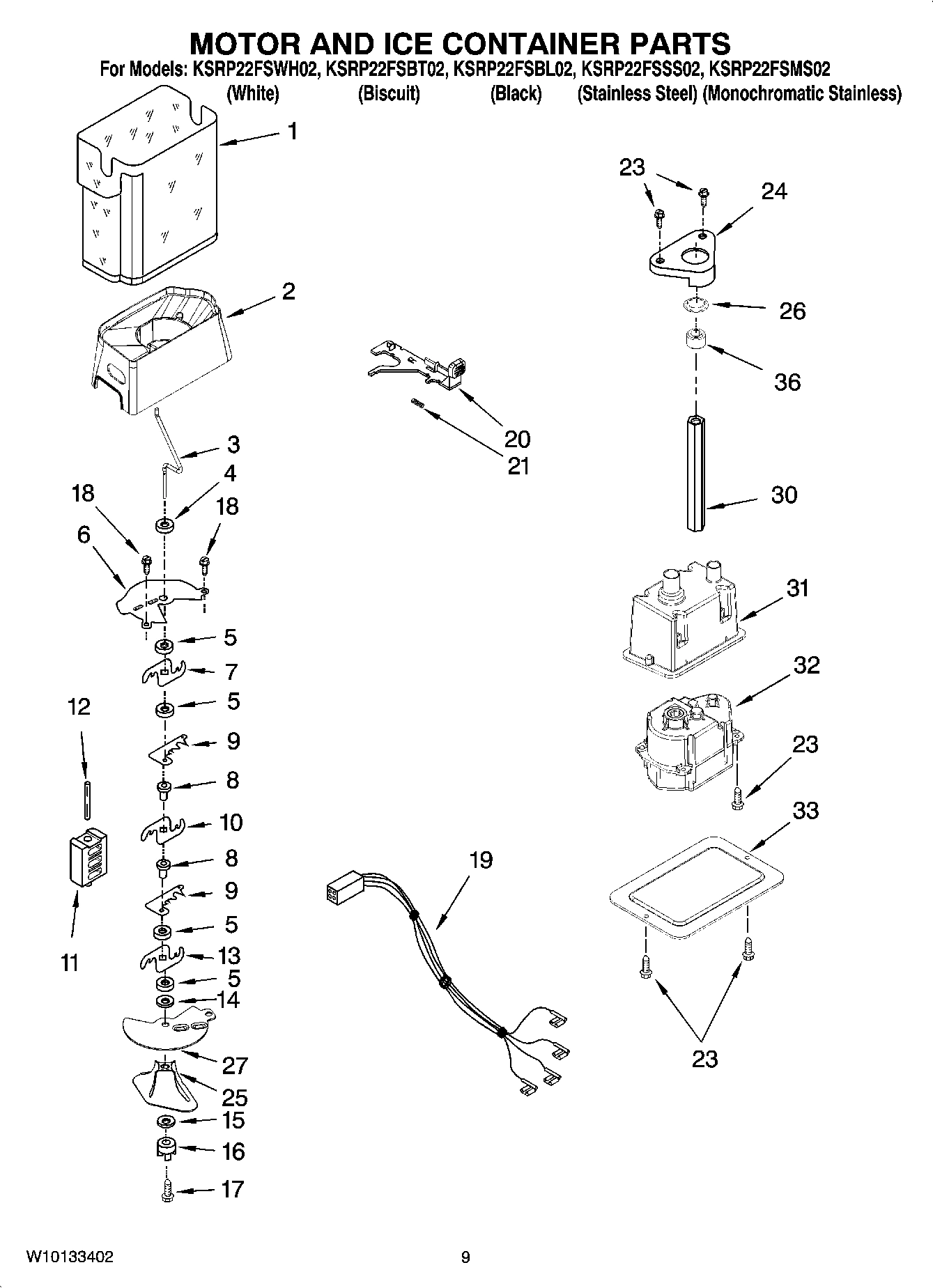

Ice Bin WPL 2317246 Contact Us For Availability

1

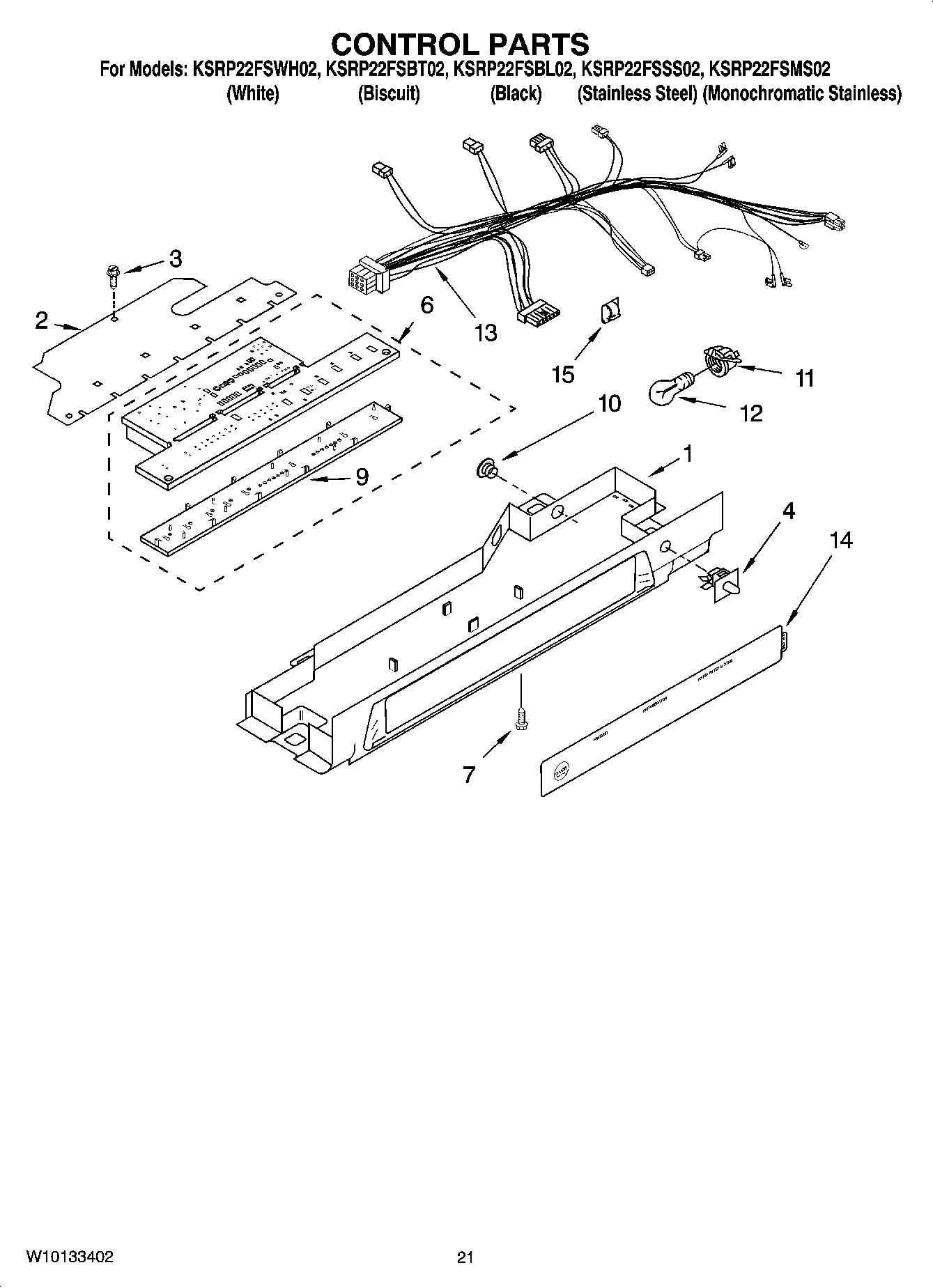

Control Box WPL 2212005 Contact Us For Availability

1

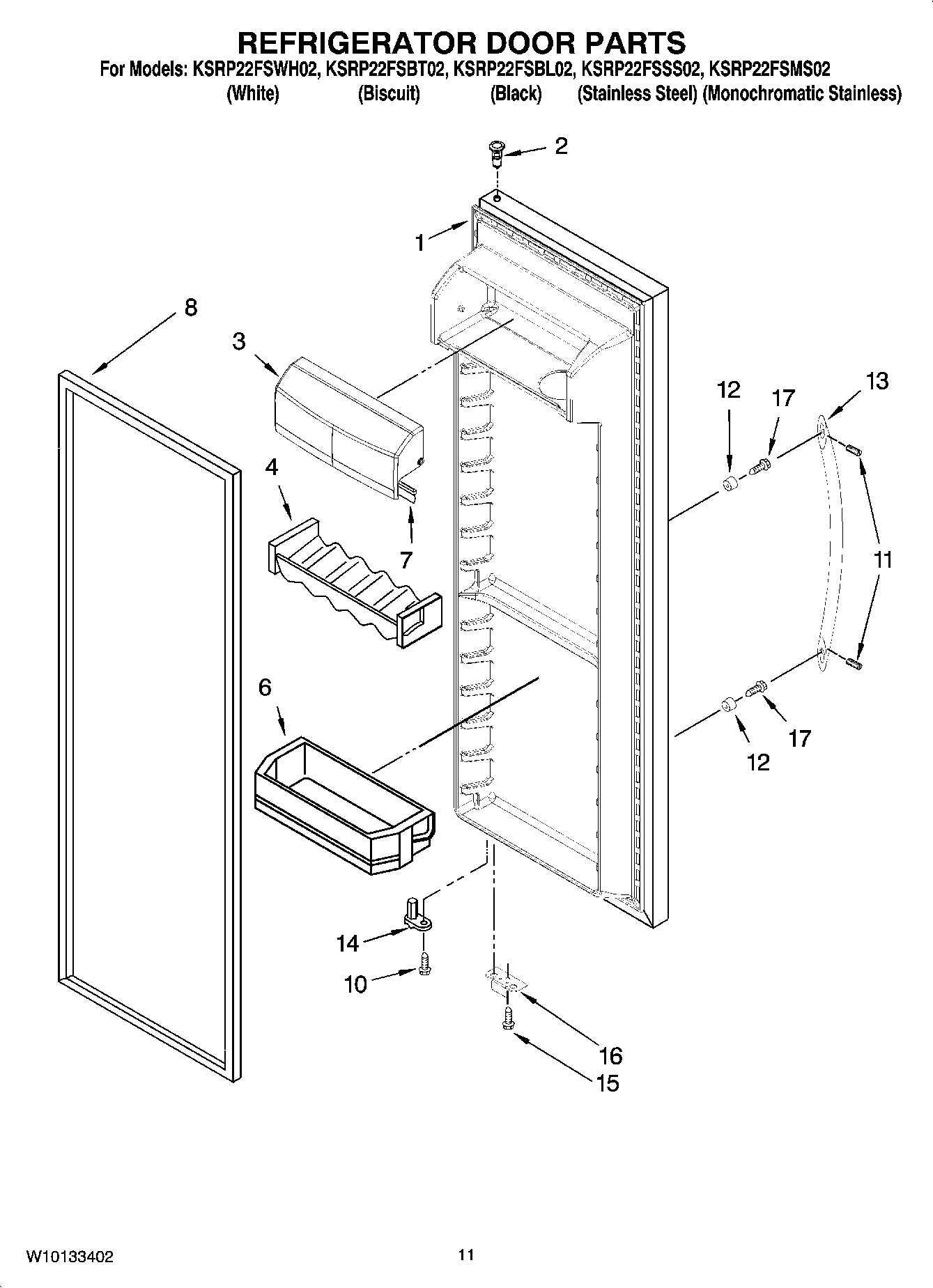

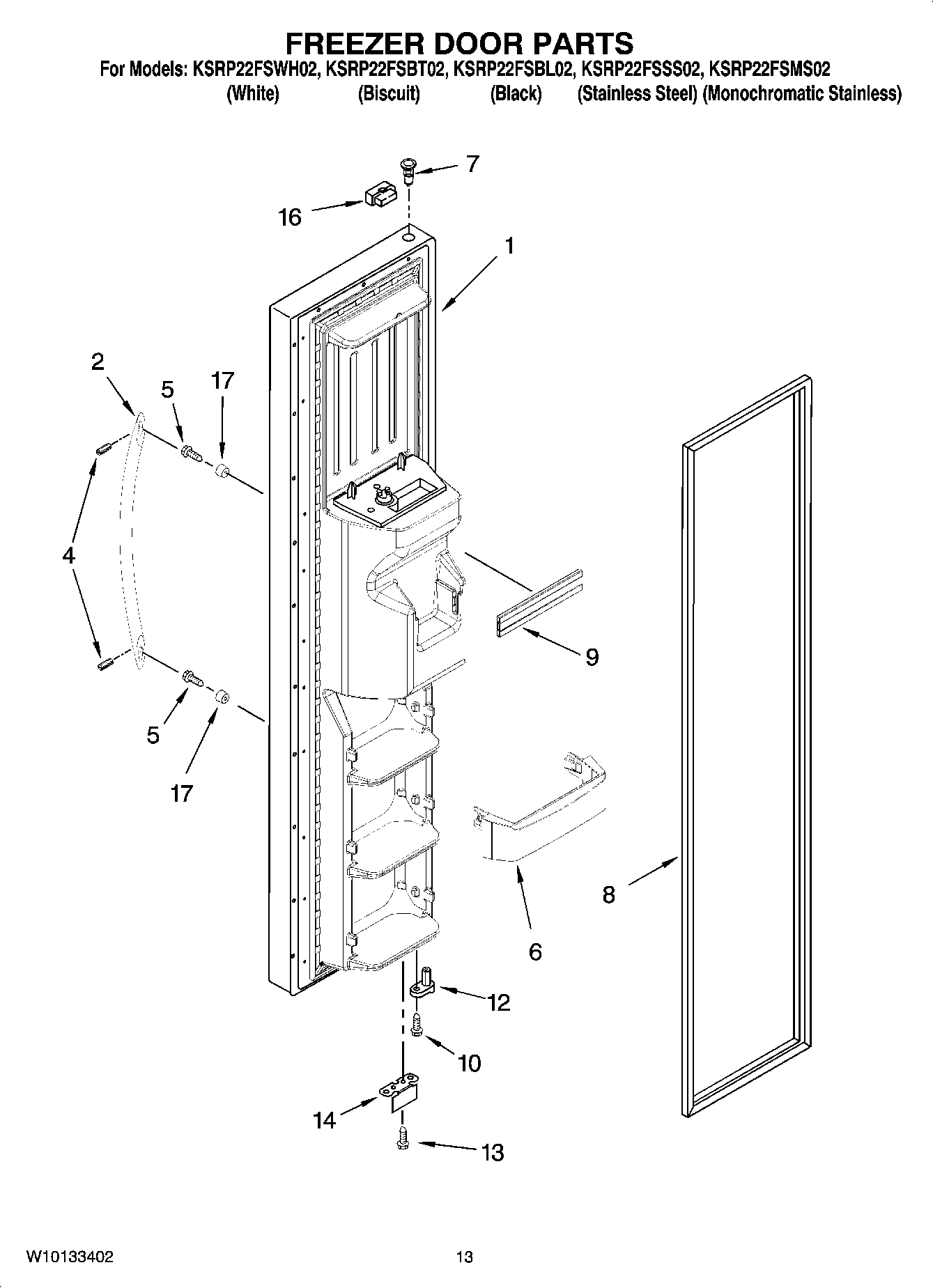

Refrigerator Door (Includes Item 8) (Stainles WPL 2301188S Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Monocrom WPL 2301188SAP Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Black) WPL 2318439B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2318439T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2318439W Contact Us For Availability

1

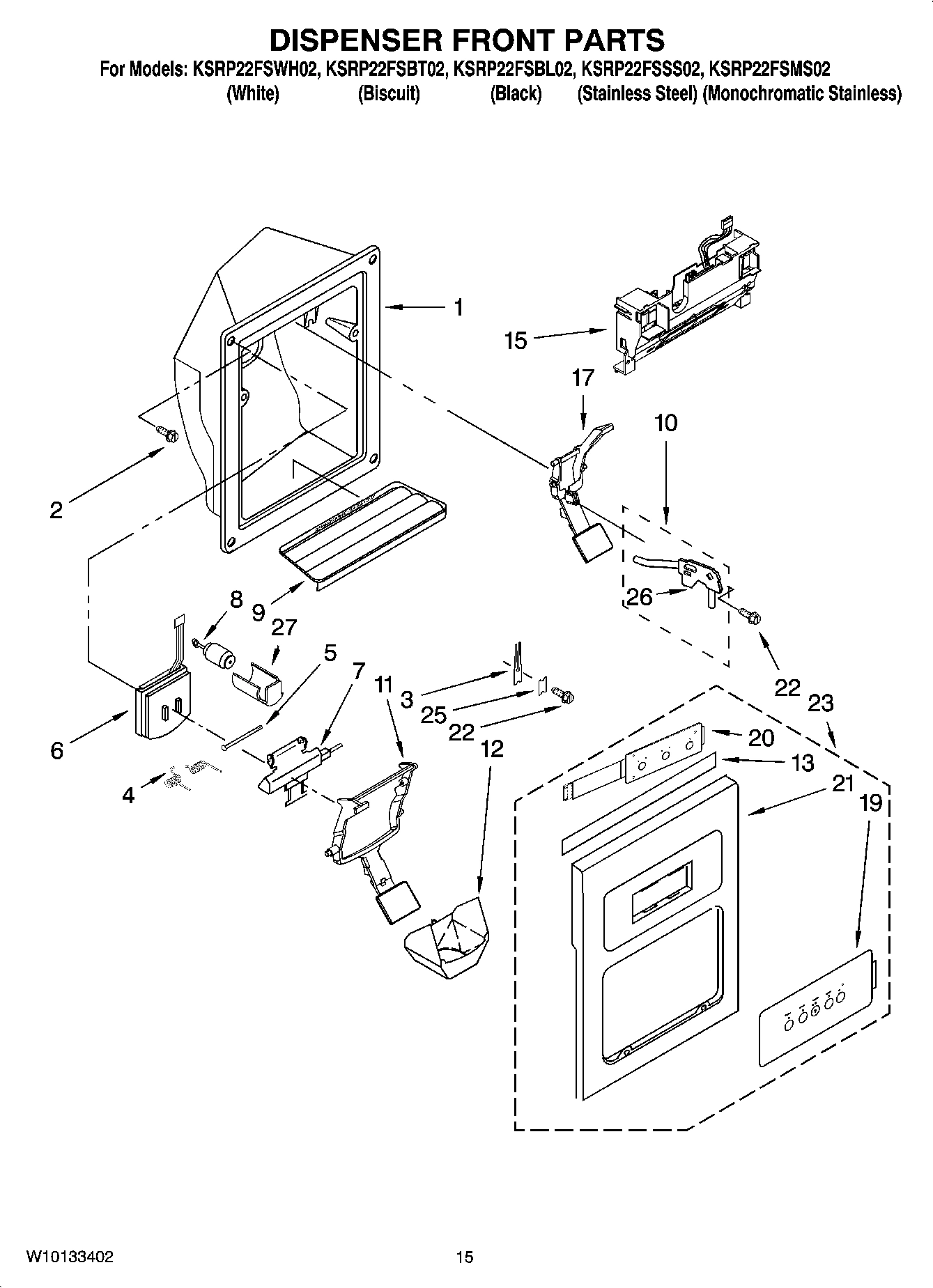

Housing Dispenser (Not Serviced) WPL ARI99660A5 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Cover Thermostat WPL 2216879 Contact Us For Availability

2

Crusher Bin WPL 2317257 Contact Us For Availability

2

Thimble, Top (For Stainless Steel Models) WPL 2308050 Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Auger WPL 2317247 Contact Us For Availability

3

Door, Compartment WPL 2301486 Contact Us For Availability

4

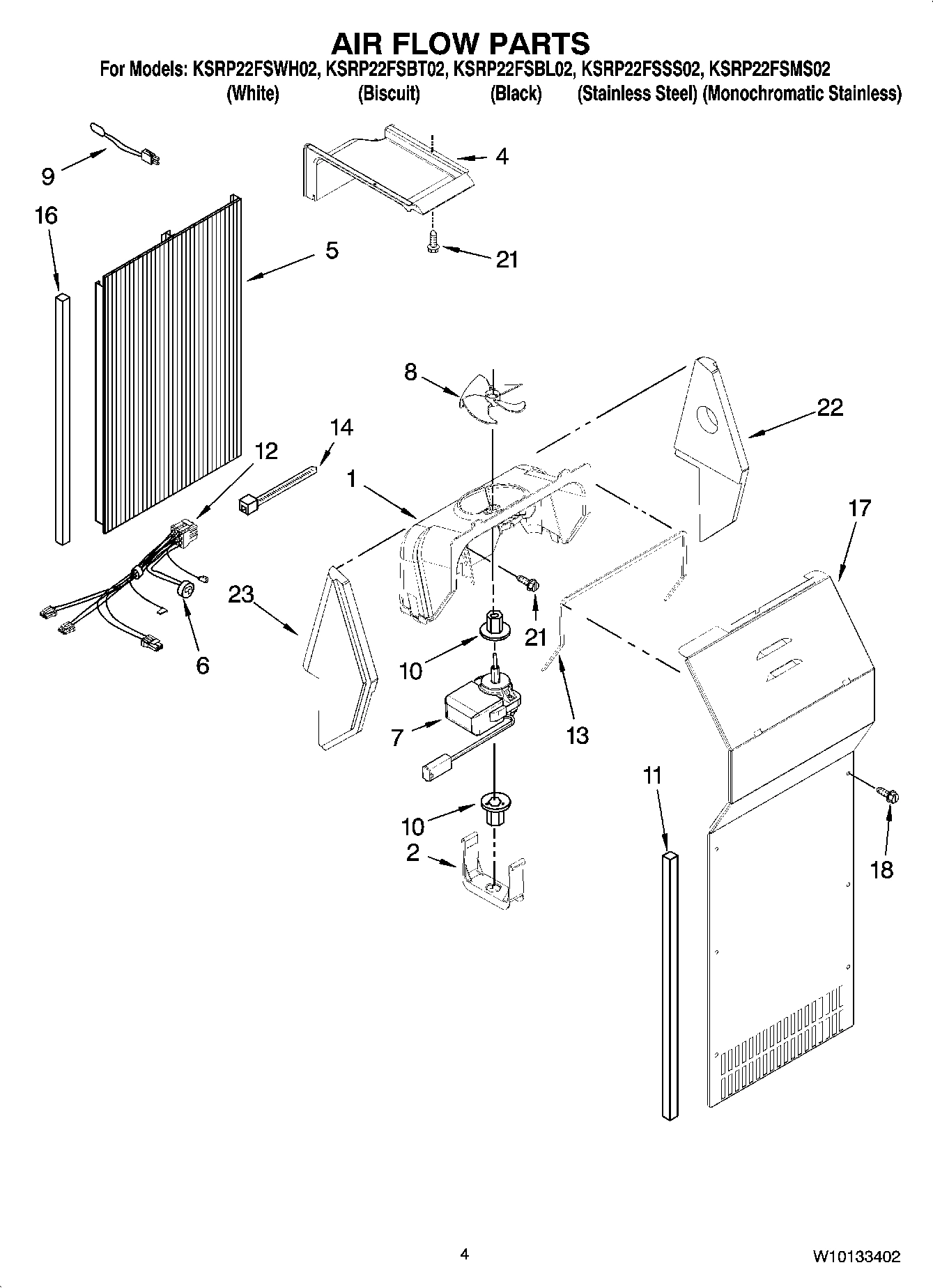

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

Washer WPL 2258220 Contact Us For Availability

4

Beverage Holder WPL 2193409K Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Window, Snack Pan WPL 2301006 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Control Board WPL 2304009 Contact Us For Availability

6

Door Bin (4) WPL 2205821K Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

7

Thimble, Top (For Stainless Steel Models) WPL 2301049 Contact Us For Availability

7

Gasket WPL 2159124 Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2159073 Whirlpool Refrigerator Door Gasket Backorder WPL 2159073 $87.71

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

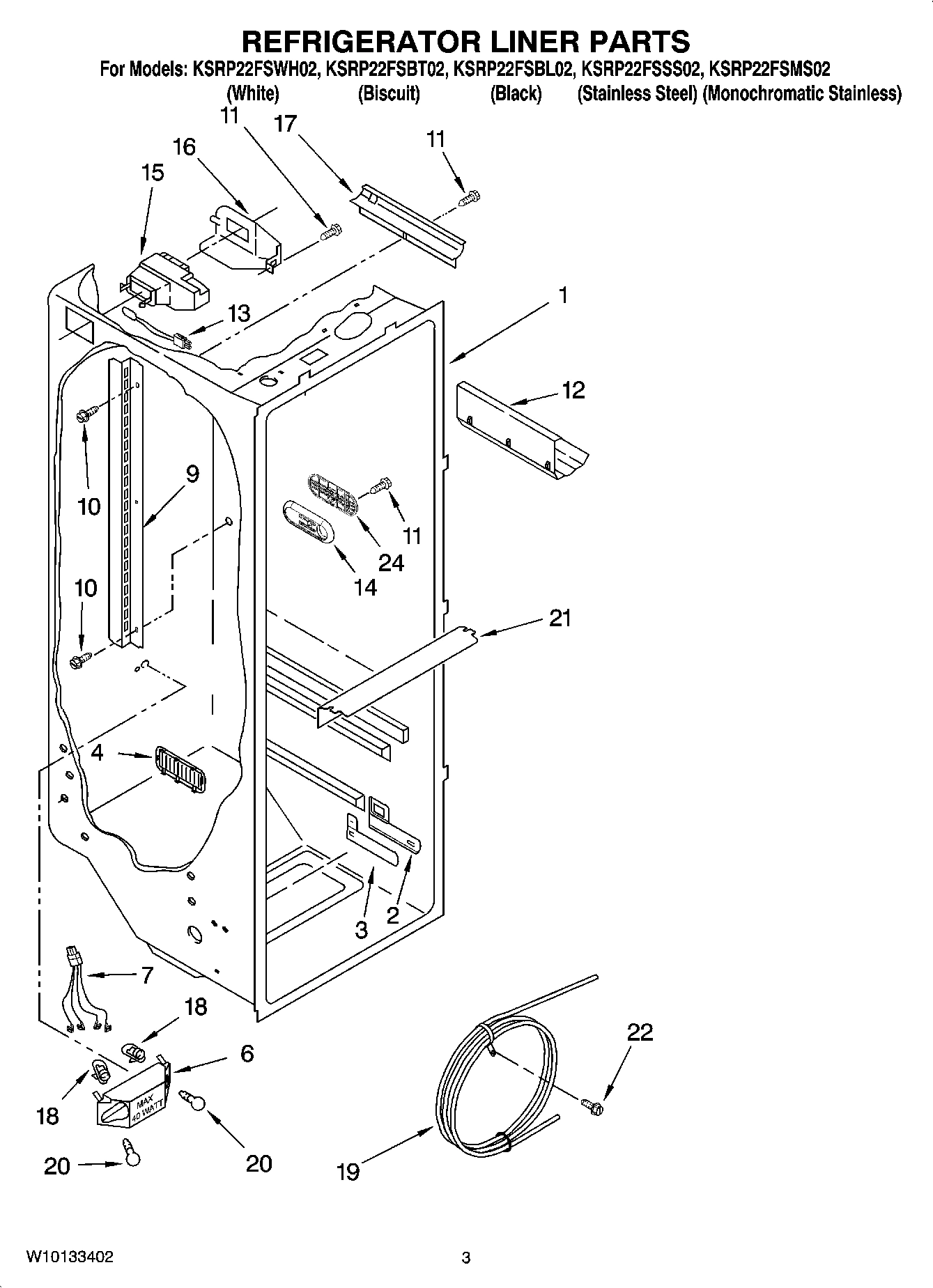

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

8

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

W10171992 Whirlpool Refrigerator Grille Backorder WPL W10171992 $28.80

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Insert, Control Board (Not Serviceable, Order WPL ARI99667A6 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2206671T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Apollo Gray) WPL 2180261AP Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Harness, Fan Evaporator (Includes 6) WPL 2310239 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $9.11

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

Harness, Control Box WPL 2216115 Contact Us For Availability

Handle (Includes 11) (Black) WPL 2304832B Contact Us For Availability

Handle (Includes 11) (Stainless Steel) WPL 2304832SK Contact Us For Availability

Handle (Includes 11) (Biscuit) WPL 2304832T Contact Us For Availability

Handle (Includes 11) (White) WPL 2304832W Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $29.19

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Overlay, Control Box WPL 2255617 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Bracket, Control WPL 2323001 Contact Us For Availability

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $67.53

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

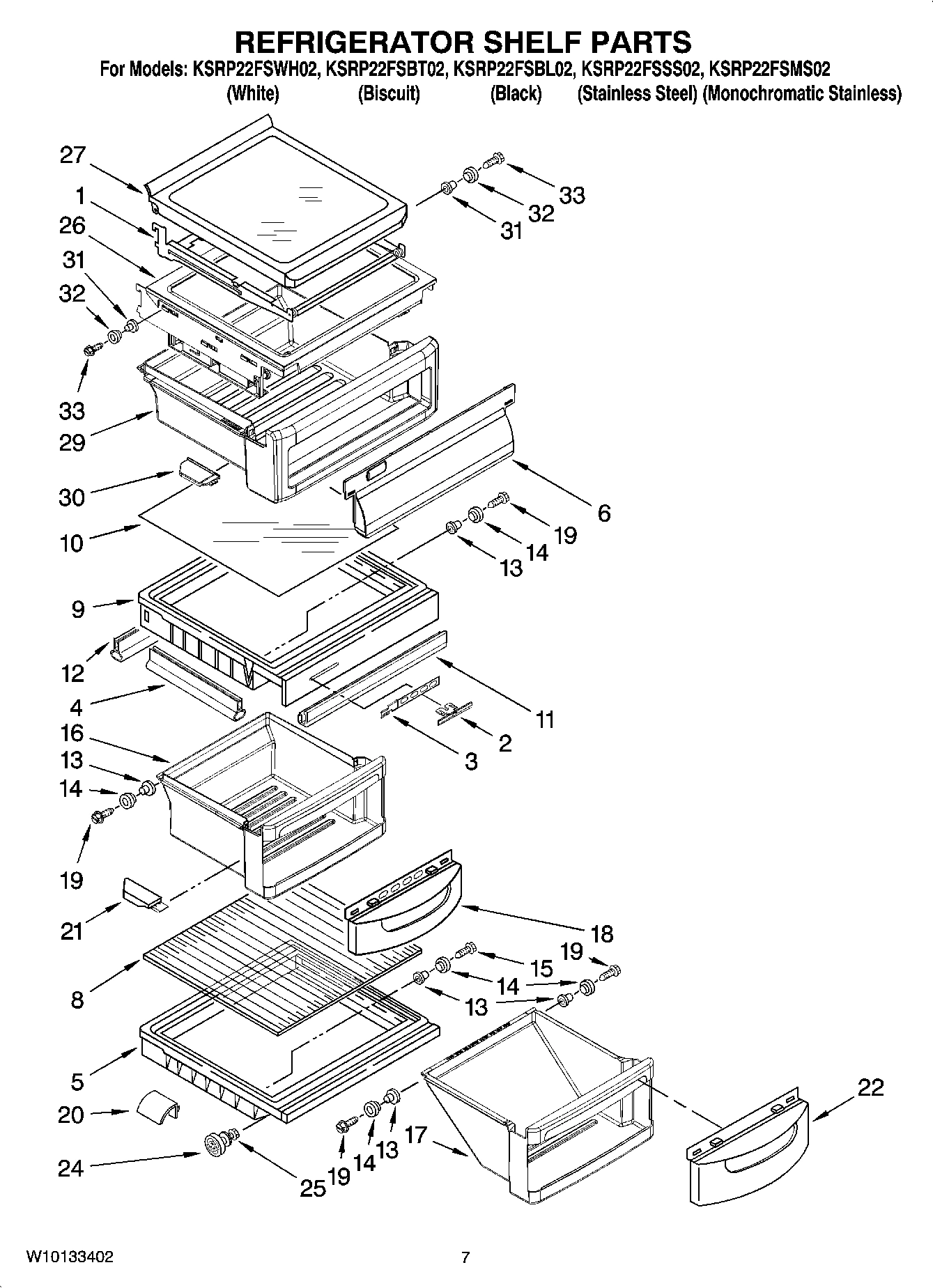

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Lever, Water Dispenser (Apollo Gray) WPL 2180270AP Contact Us For Availability

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Window, Crisper WPL 2174076 Contact Us For Availability

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Slide, Ice Maker WPL 2212321 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI99661A7 Contact Us For Availability

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $244.13

Extension Tube WPL 2304937 Contact Us For Availability

Latch, Bin WPL 2317269 Contact Us For Availability

LED Display (Not Available Order 23) WPL ARI99662A4 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI99663A8 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081B Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081T Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081US Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081W Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

25

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $28.80

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $132.65

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

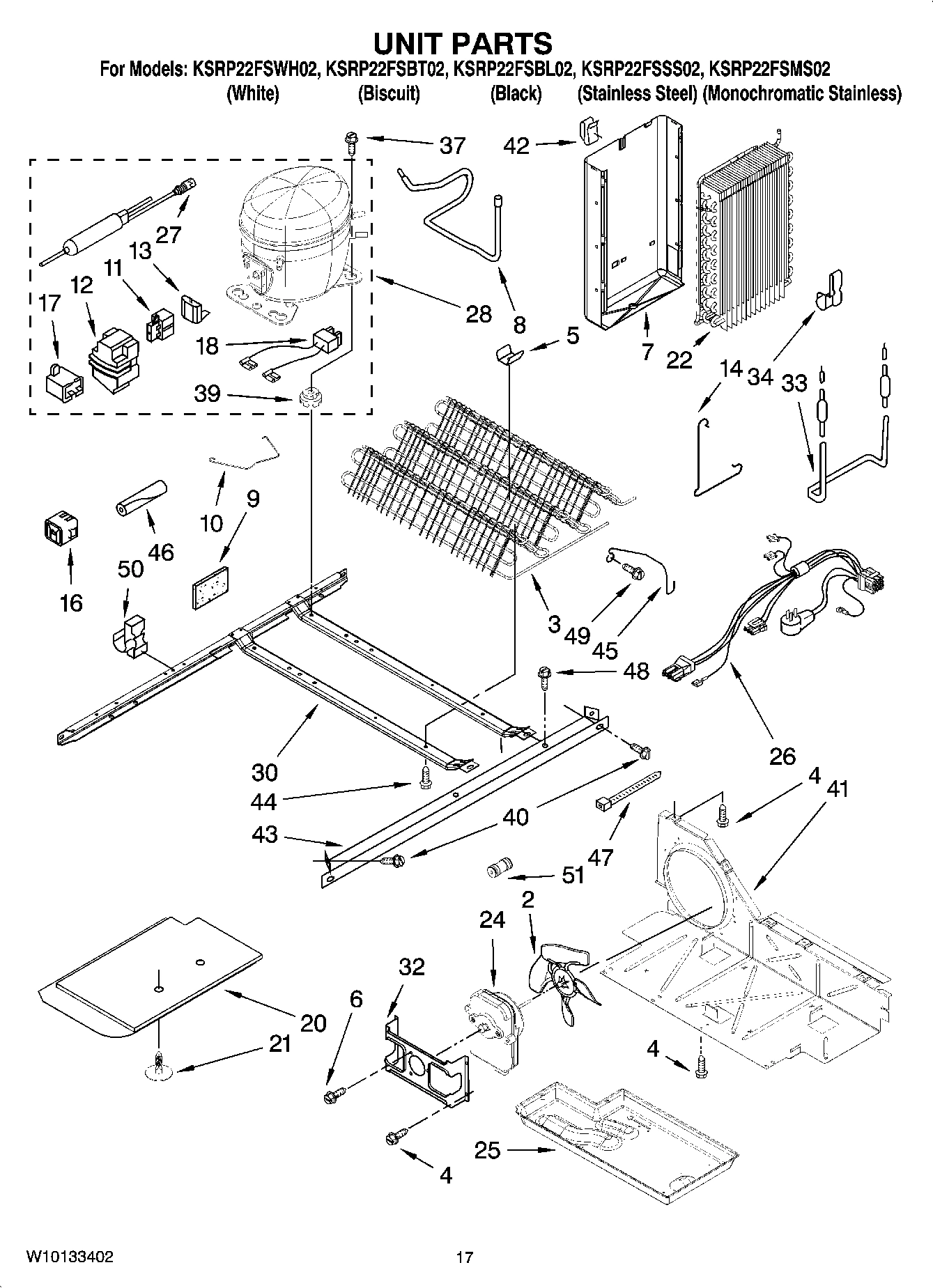

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $353.02

28

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $20.74

31

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

31

Enclosure, Motor WPL 2256154 Contact Us For Availability

32

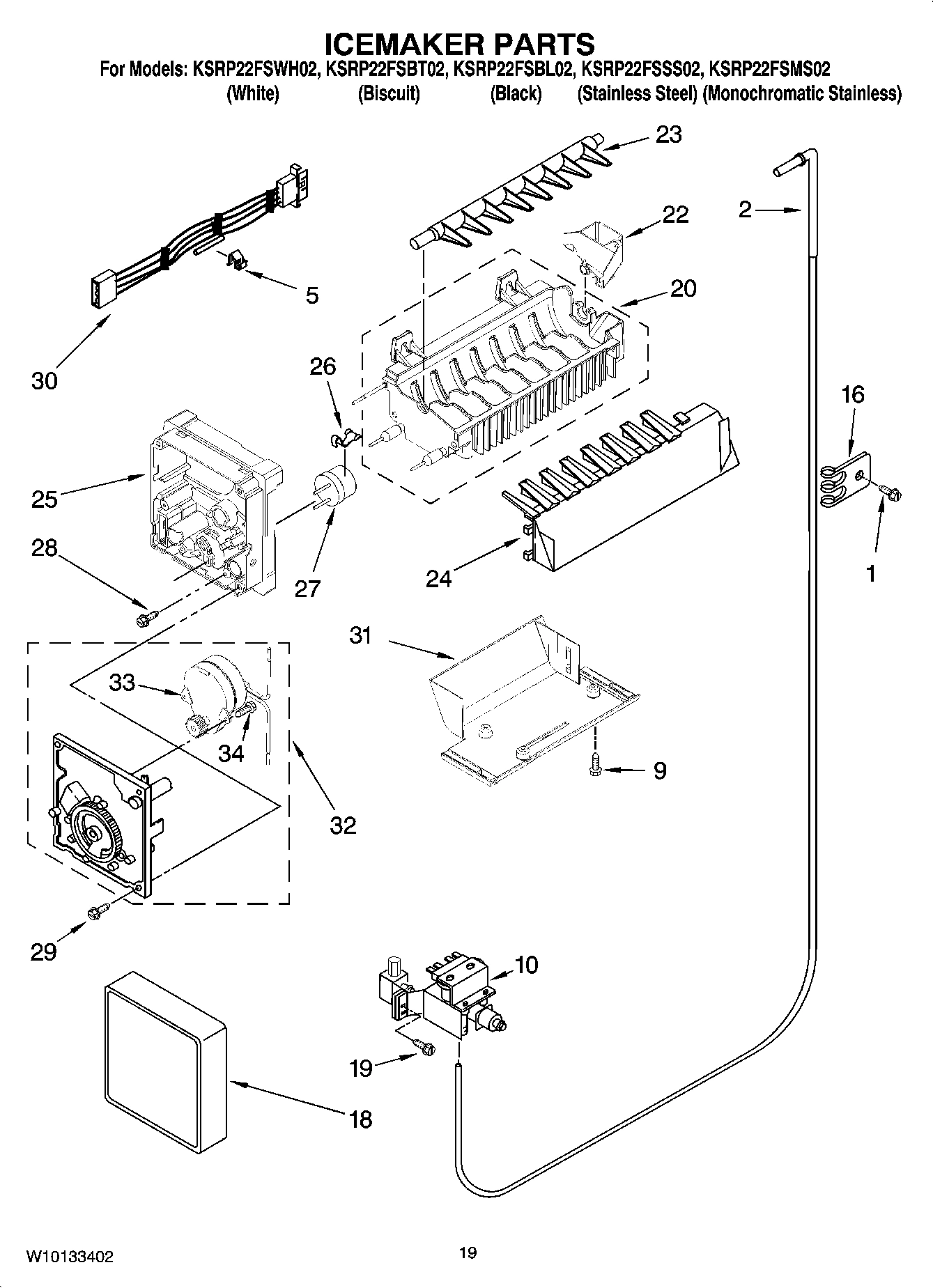

W10271509 Whirlpool Refrigerator Ice Maker Au In Stock WPL W10271509 $128.94

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $47.25

33

Cover WPL 2212305 Contact Us For Availability

34

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

39

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

Unit Mounting Rail WPL 2149718 Contact Us For Availability

44

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

45

Guard, Fan WPL 2260516 Contact Us For Availability

46

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

47

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

48

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

49

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

50

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI99664A4 Contact Us For Availability

REFRIGERANT CHARGE 5.0 WPL ARI99665A8 Contact Us For Availability

100

Ice Container (Complete) WPL 2317270 Contact Us For Availability
