Model Whirlpool KSRK25ILSS01 REFRIGERATOR – Common Parts & Diagrams

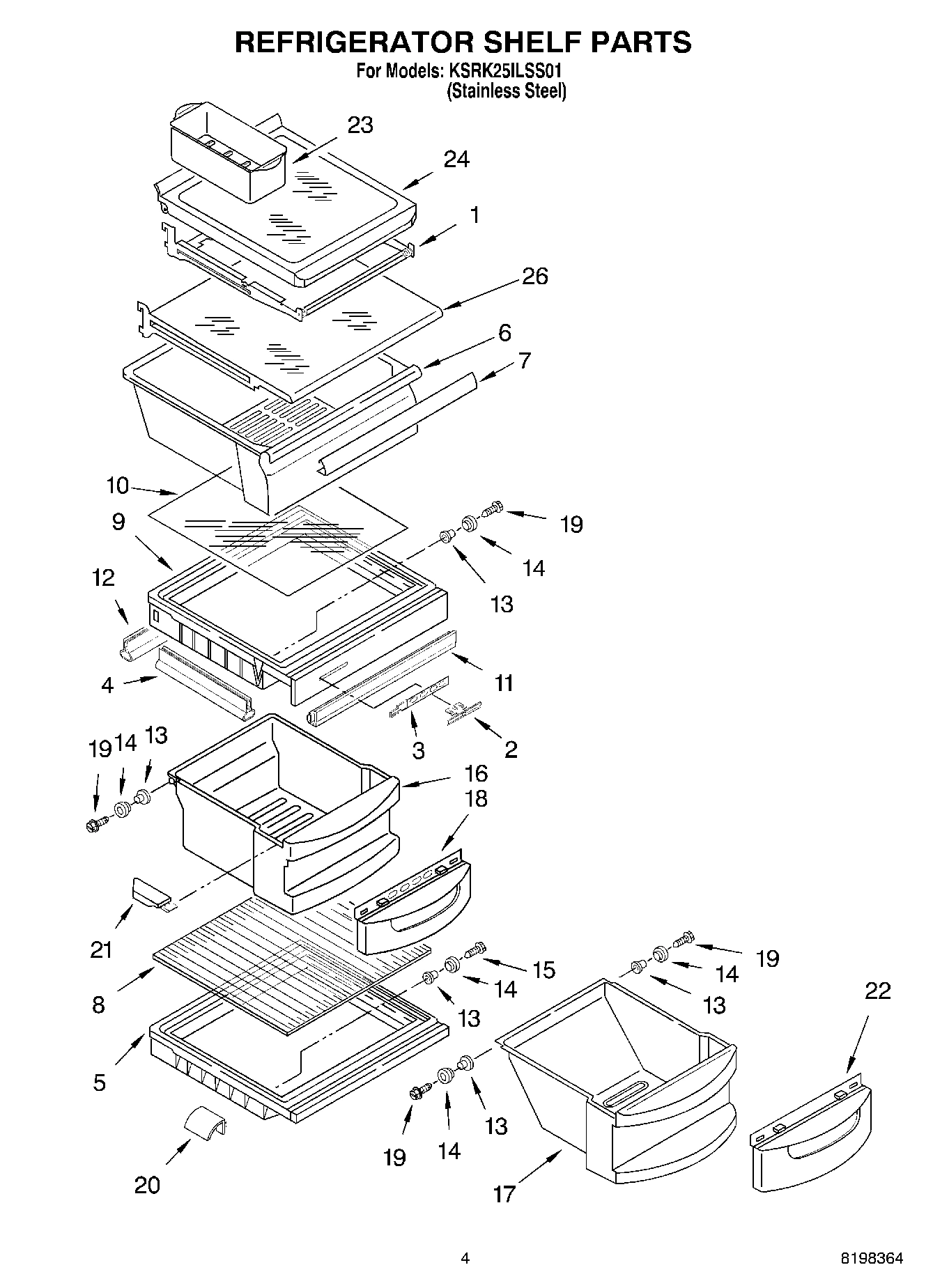

03 - REFRIGERATOR SHELF

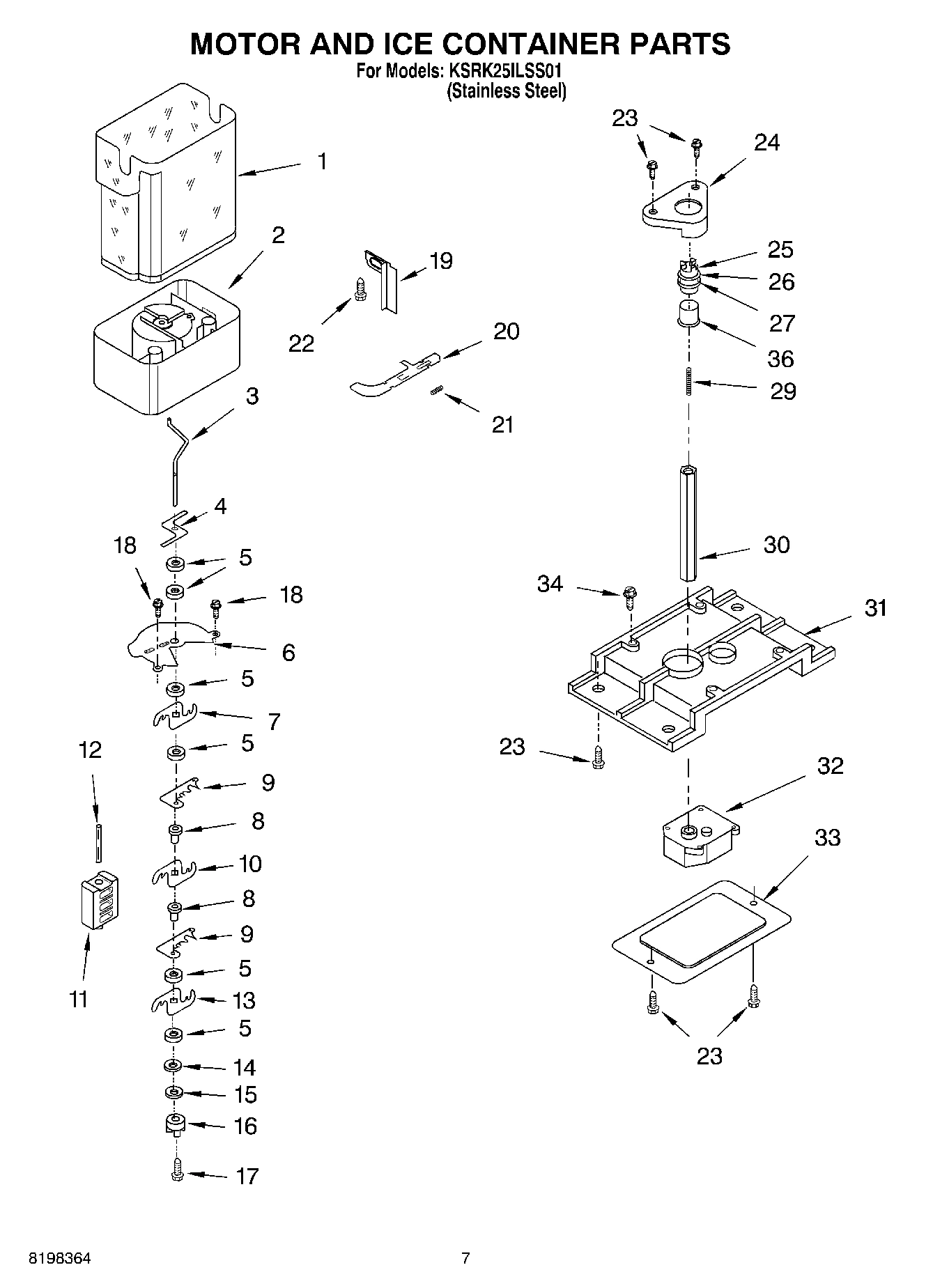

05 - MOTOR AND ICE CONTAINER
06 - REFRIGERATOR DOOR
01 - CABINET, LITERATURE
02 - REFRIGERATOR LINER
08 - DISPENSER FRONT
10 - CONTROL
07 - FREEZER DOOR
09 - AIR FLOW
04 - FREEZER LINER
11 - UNIT
12 - ICE MAKER, OPTIONAL
Common parts from model Whirlpool KSRK25ILSS01 REFRIGERATOR
1
Control Box WPL 2216588 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216569S Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI98792A7 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Handle (Stainless Steel) WPL 2188635S Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Stud, Handle WPL 2203690 Contact Us For Availability
3
Air Scoop WPL 2198595 Contact Us For Availability
3
Condenser Assembly WPL 2204484 Contact Us For Availability
4
Air Duct, Upper WPL 2212377 Contact Us For Availability
4
Hole Plug WPL 940014 Contact Us For Availability
5
Air Duct Freezer WPL 2198580 Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Screw WPL 98654 Contact Us For Availability
6
Basket, Tall WPL 2181765 Contact Us For Availability
6
Nut, Compression WPL 2200083 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Track, Basket-Dual (Right Side) WPL 2216106 Contact Us For Availability
7
Track, Basket-Dual (Left Side) WPL 2216107 Contact Us For Availability
8
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
8
Gasket, Ladder WPL 2198697 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Shelf, Slide Out Upper WPL 2211746 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Slide, Thermostat WPL 2161466 Contact Us For Availability
12
Roll Pin WPL 489229 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Wire Harness WPL 2206178 Contact Us For Availability
13
Shelf Track (Left Side) WPL 2181759 Contact Us For Availability
13
Shelf Track (Right Side) WPL 2181760 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Shelf WPL 2205837 Contact Us For Availability
15
Basket, Sloped WPL 2181764 Contact Us For Availability
17
Cover, Evaporator WPL 2206314 Contact Us For Availability
18
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Wire Assembly WPL 2187406 Contact Us For Availability
20
Control Box Harness WPL 2216587 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI98796A2 Contact Us For Availability
22
Screw WPL 2198671 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220092B Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
25
Escutcheon, Control Box WPL 2219879 Contact Us For Availability
26
Cover, Conduit WPL 2150331 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Window WPL 2172940 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Tube Kit WPL 876765 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
31
Heat Shield WPL 2172931 Contact Us For Availability
31
Unit, Harness WPL 2187510 Contact Us For Availability
33
Window WPL 2172941 Contact Us For Availability
34
Light Lens WPL 2254920 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Cover, Receiver WPL 2198588 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
37
Motor WPL 827811 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
40
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
40
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
40
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
40
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
40
Enamel, Almond (12 Oz. Spray Can) WPL 350956 Contact Us For Availability
40
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
40
WPL 876370 WPL 876370 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
WPL 833938 WPL 833938 Contact Us For Availability
40
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
40
Bag, Insulation (36-5/8`` x 46 WPL 606755 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Light Shield WPL 2198589 Contact Us For Availability
40
Screw WPL 489340 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability
40
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
41
Light Lens WPL 2212340 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
44
Clip WPL 489396 Contact Us For Availability
45
Ladder (Left Side) WPL 2198609 Contact Us For Availability
45
Ladder (Right Side) WPL 2198610 Contact Us For Availability
46
Shield, Wiring WPL 2219878 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
NI
Clip, Retaining WPL 2223314 Contact Us For Availability
× ![]()
