Model Whirlpool KSRJ25FXWH04 REFRIGERATOR – Common Parts &amp; Diagrams

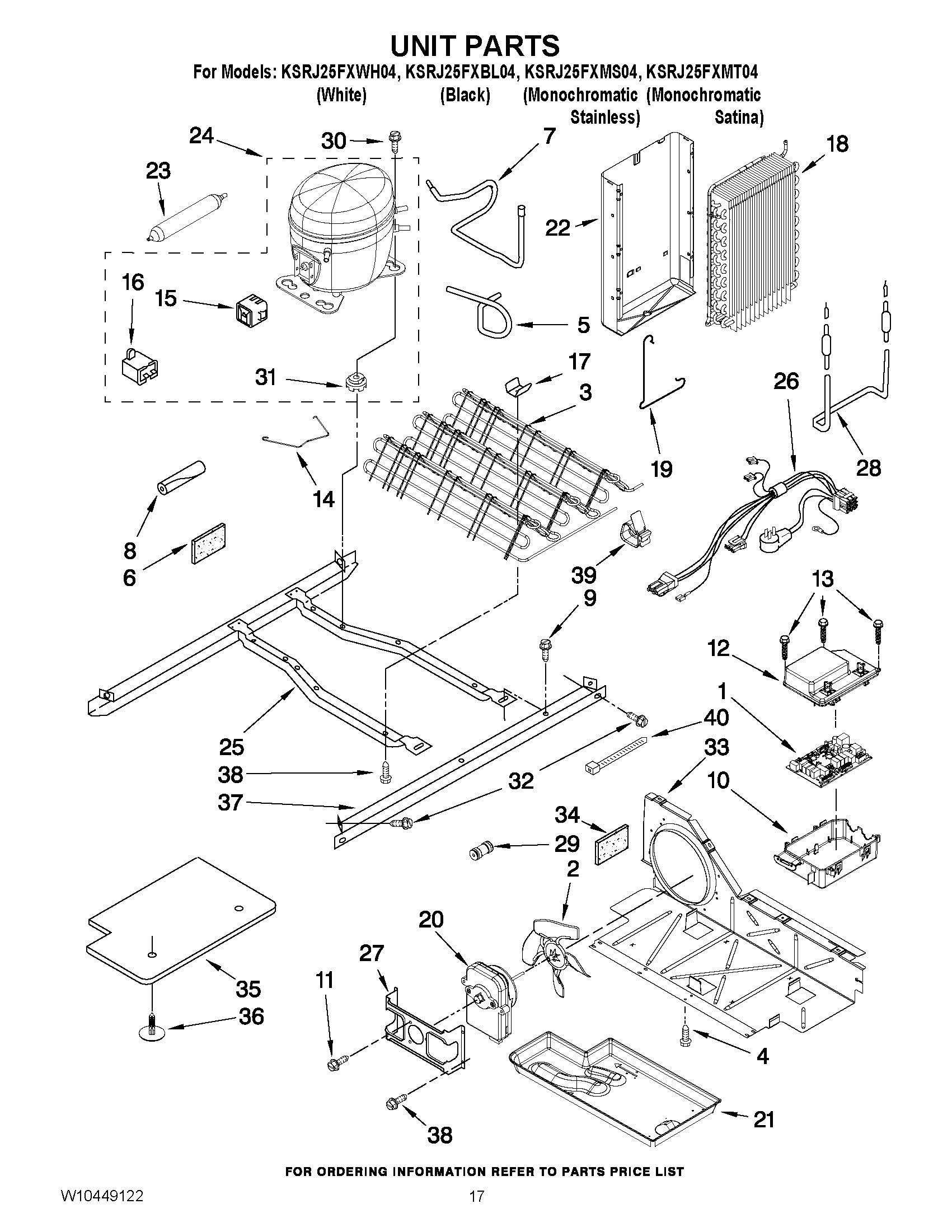

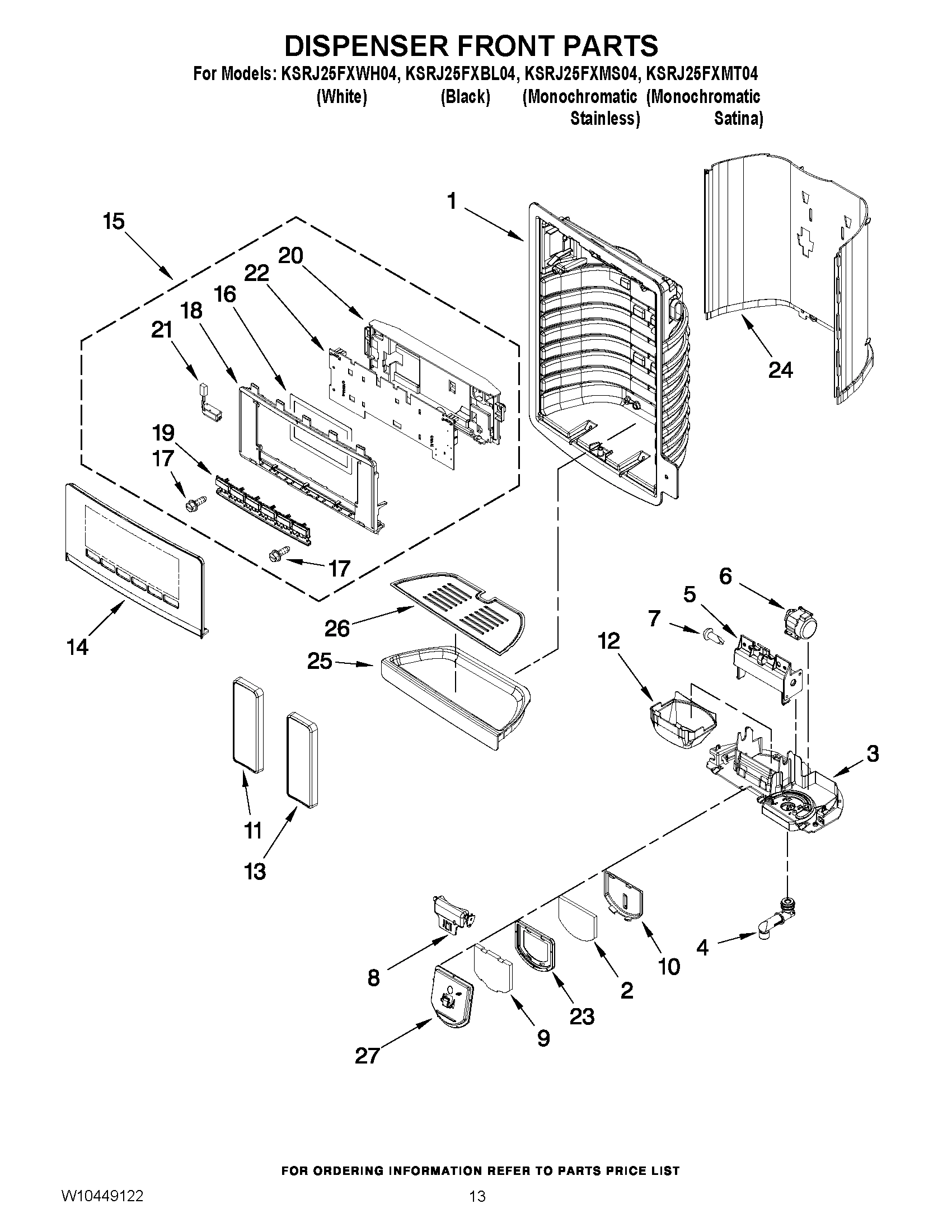

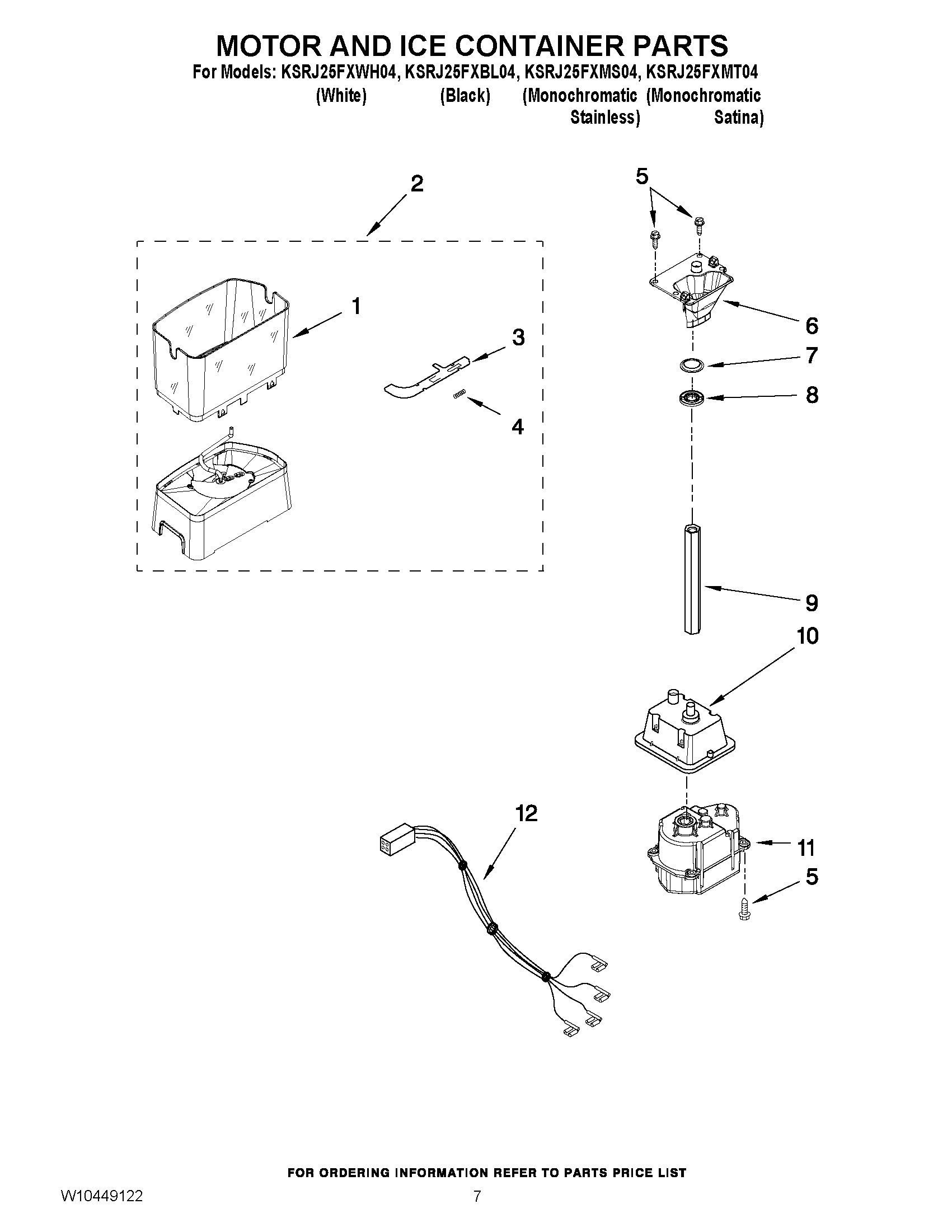

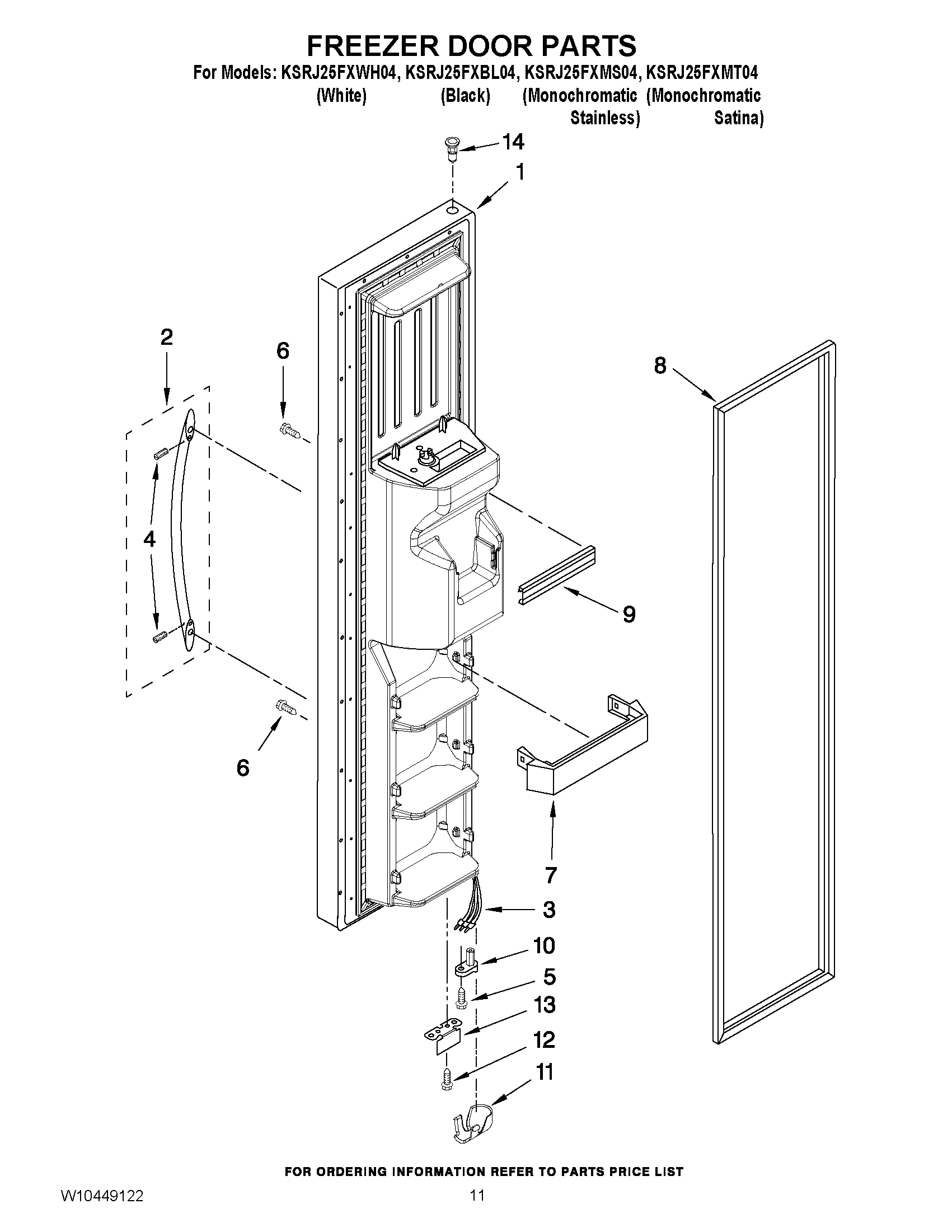

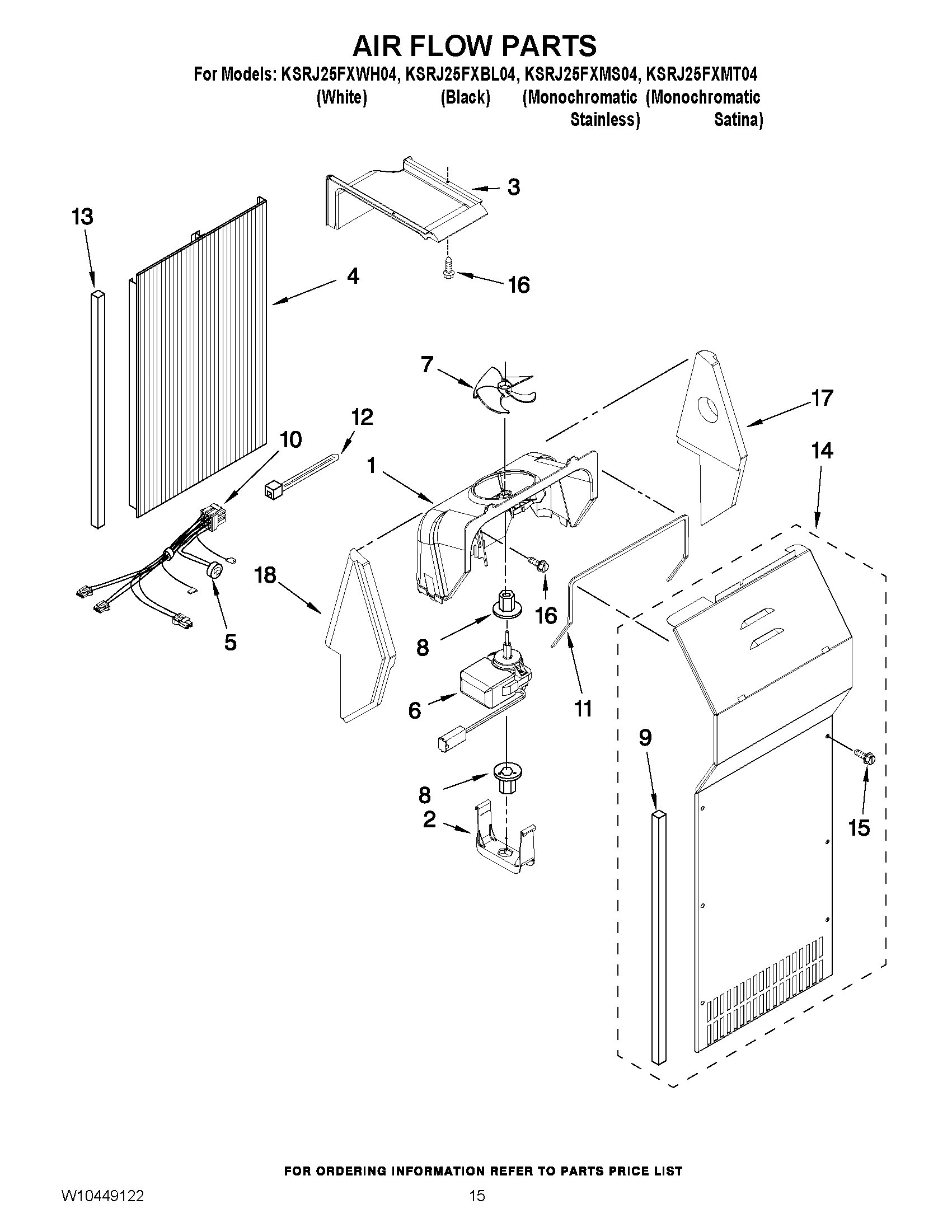

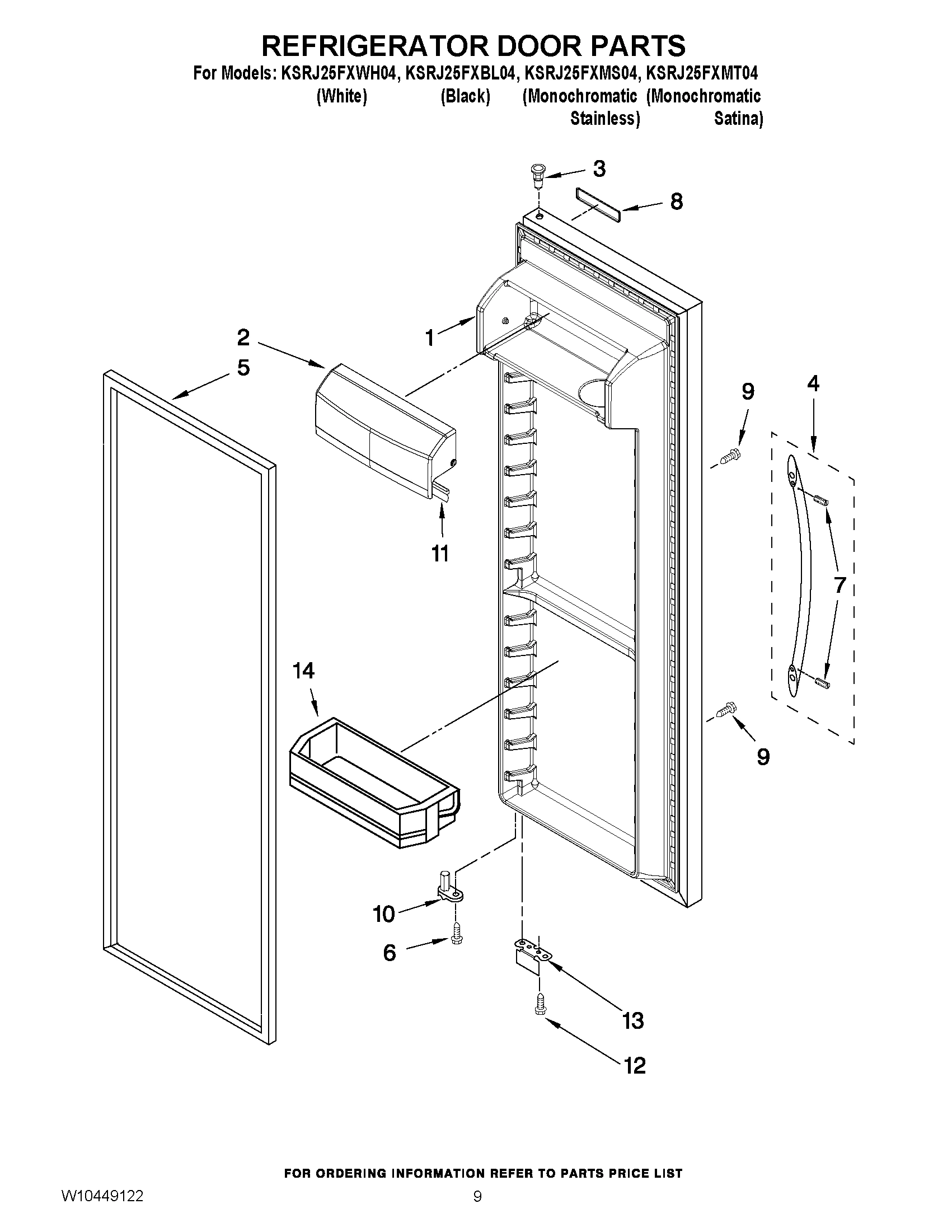

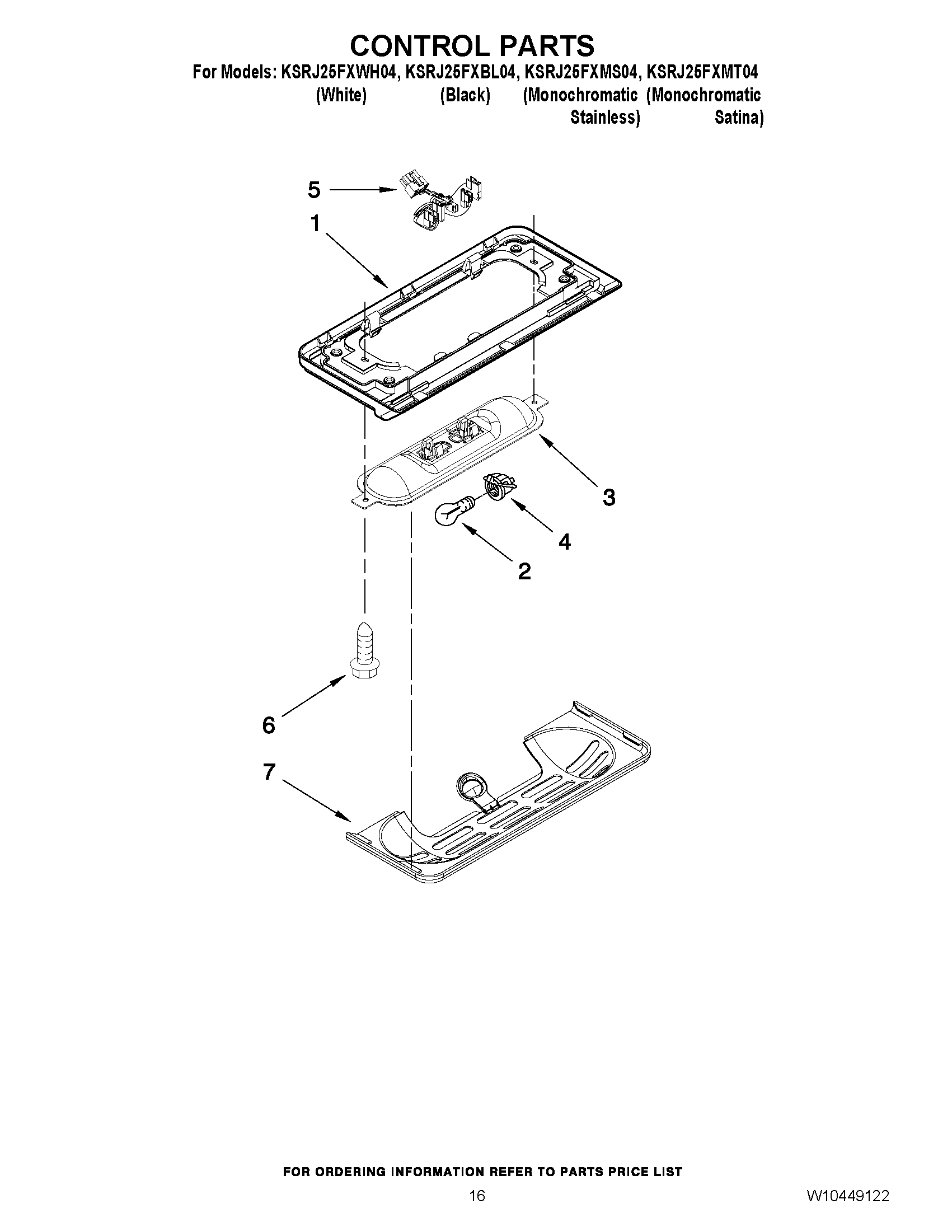

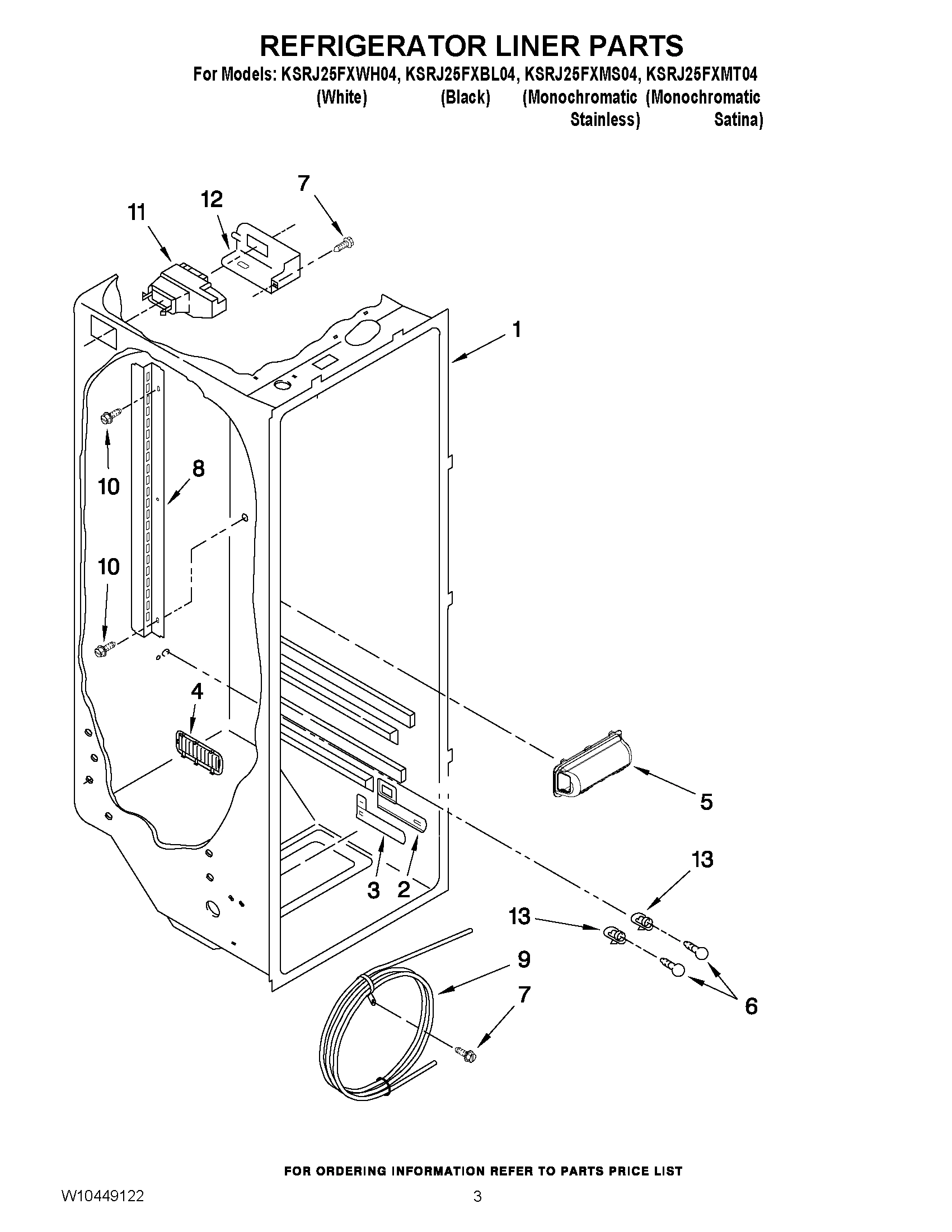

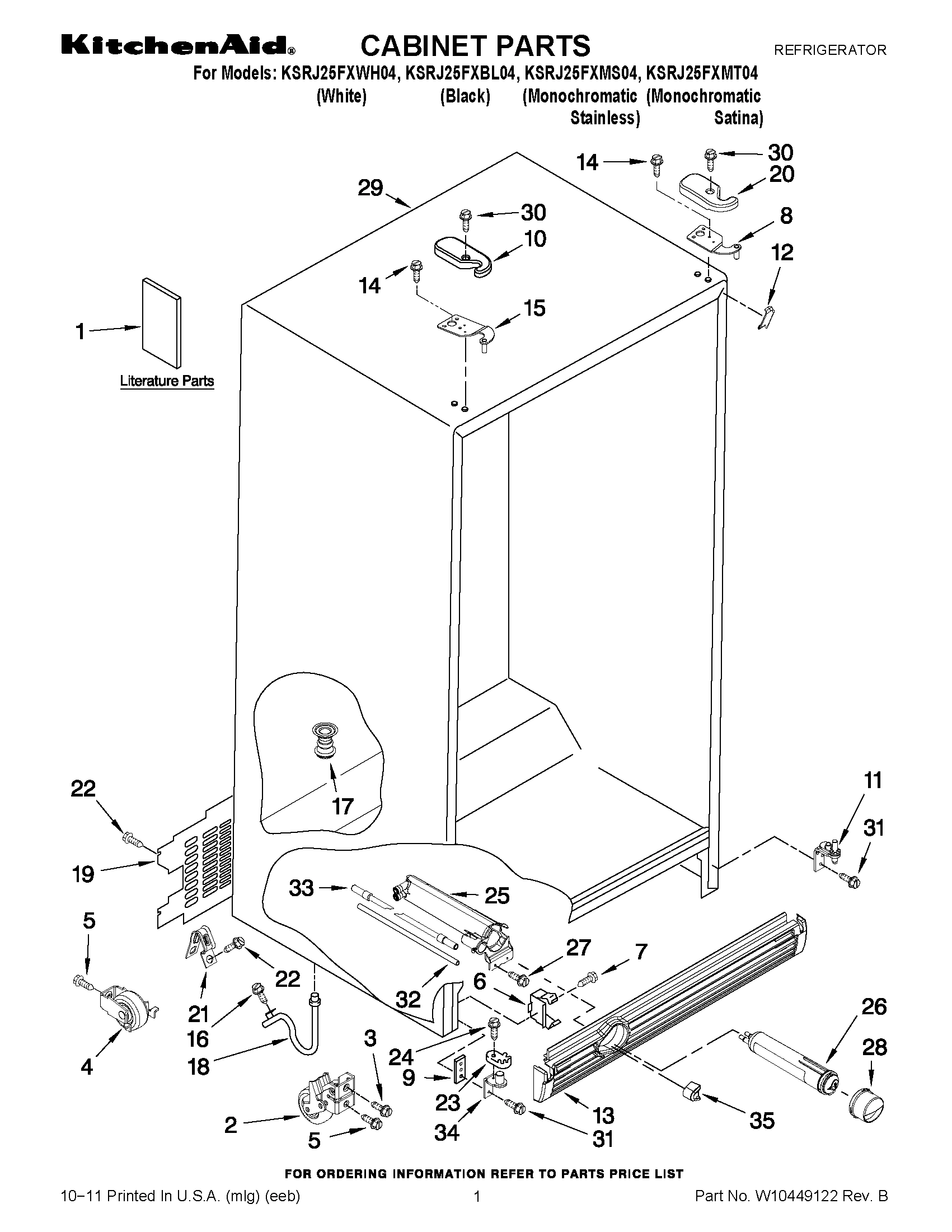

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

1

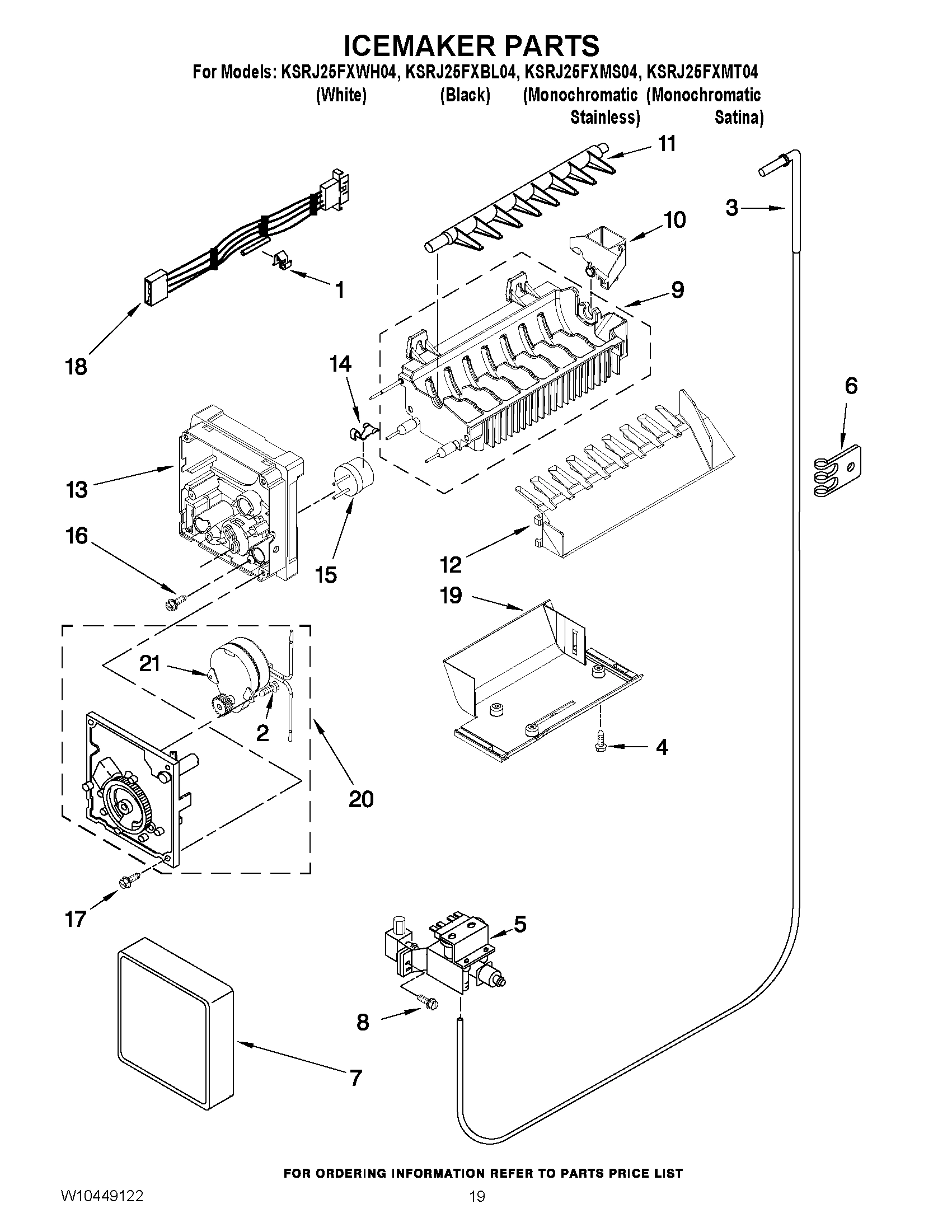

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

USE & CARE GUIDE WPL W10289678 Contact Us For Availability

1

INSTR SHEET, DOOR REMOVAL WPL W10305232 Contact Us For Availability

1

ENERGY GUIDE WPL W10320901 Contact Us For Availability

1

SERVICE & WIRING SHEET WPL W10324237 Contact Us For Availability

1

HOUSING, DISPENSER (NOT SERVICED) WPL NP Contact Us For Availability

2

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $8.42

2

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

2

WPW10331454 Whirlpool Refrigerator Insulation Backorder WPL WPW10331454 $9.44

2

FRONT ROLLER WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $37.22

3

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

Tube, Water WPL 2303216 Contact Us For Availability

3

SEPARATOR, FIXED WPL W10286902 Contact Us For Availability

4

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

4

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $122.04

4

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

HANDLE (INCLUDES ITEM 7) (STAINLESS STEEL) WPL 2319727S Contact Us For Availability

4

SPIGOT-BODY ASSY WPL W10317267 Contact Us For Availability

5

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $66.34

5

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

5

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

5

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $52.73

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

6

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

6

WPW10205978 Whirlpool Motor Backorder WPL WPW10205978 $35.32

6

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $128.57

7

2301548 Whirlpool Refrigerator Glide Backorder WPL 2301548 $98.93

7

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

7

W10174818 Whirlpool Refrigerator Clip Backorder WPL W10174818 $7.78

7

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

7

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $52.72

7

WPW10141604 Whirlpool Screw Backorder WPL WPW10141604 $3.90

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

8

W10242649 Whirlpool Refrigerator Door Hinge Backorder WPL W10242649 $33.56

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

8

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

8

WPW10346124 Whirlpool Refrigerator Support Backorder WPL WPW10346124 $15.94

8

Glass, Cover WPL 2301028 Contact Us For Availability

8

BASKET, FRONT WPL 2301134 Contact Us For Availability

8

Ladder, Shelf WPL 2319866 Contact Us For Availability

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

9

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $59.78

9

WPW10331456 Whirlpool Refrigerator Insulation Backorder WPL WPW10331456 $9.44

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

COVER, CRISPER (INCLUDES ITEMS 2, 3, 4, 7, 11 WPL 2301567 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $33.96

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $30.62

WPW10317279 Whirlpool Refrigerator Door Chute Backorder WPL WPW10317279 $7.70

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

HINGE COVER, FC (WHITE) WPL W10331627 Contact Us For Availability

HINGE COVER, FC (BLACK) WPL W10331628 Contact Us For Availability

HINGE COVER, FC (APOLLO GRAY) WPL W10331630 Contact Us For Availability

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $28.42

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $101.79

WPW10368730 Whirlpool Refrigerator Pad In Stock WPL WPW10368730 $120.79

HINGE BOTTOM WPL W10219817 Contact Us For Availability

PAD, ICE DISPENSER (WHITE) WPL W10334780 Contact Us For Availability

PAD, ICE DISPENSER (BLACK) WPL W10334783 Contact Us For Availability

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $66.55

W10295559 Whirlpool Refrigerator Dispenser Ha Backorder WPL W10295559 $57.23

W10334855 Whirlpool Refrigerator Cover Backorder WPL W10334855 $30.29

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

Filler, Wrapper (Apollo Gray) WPL W10143043 Contact Us For Availability

WPW10184888 Whirlpool Refrigerator Grille Backorder WPL WPW10184888 $111.77

WPW10184890 Whirlpool Refrigerator Grille Backorder WPL WPW10184890 $91.17

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $58.37

Window, Snack Pan WPL 2301006 Contact Us For Availability

PAD, WATER DISPENSER (WHITE) WPL W10334804 Contact Us For Availability

PAD, WATER DISPENSER (BLACK) WPL W10334807 Contact Us For Availability

PAD, WATER DISPENSER (APOLLO GRAY) WPL W10334810 Contact Us For Availability

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

FASCIA ASSY (BLACK) WPL W10286904 Contact Us For Availability

FASCIA ASSY (WHITE) WPL W10286905 Contact Us For Availability

FASCIA ASSY (STAINLESS) WPL W10286918 Contact Us For Availability

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $40.53

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

UI ASSY, STEALTH WPL W10286916 Contact Us For Availability

HINGE, TOP (FC) WPL W10242650 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10916292 Whirlpool Refrigerator Crisper Pan Backorder WPL W10916292 $99.22

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

BARRIER, MOISTURE WPL W10254293 Contact Us For Availability

17

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

17

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

W11643622 Whirlpool Wire Harness Backorder WPL W11643622 $9.75

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

Window, Crisper WPL 2301001 Contact Us For Availability

FRAME, FASCIA WPL W10286907 Contact Us For Availability

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

TREE, BUTTON WPL W10286909 Contact Us For Availability

W10254277 Whirlpool Cover Assembly Backorder WPL W10254277 $26.21

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

HINGE COVER, RC (WHITE) WPL W10331623 Contact Us For Availability

HINGE COVER, RC (BLACK) WPL W10331624 Contact Us For Availability

HINGE COVER, RC (APOLLO GRAY) WPL W10331626 Contact Us For Availability

21

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

21

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $31.09

22

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $165.08

22

SCREW 8-15 X 1/2 WPL W10141645 Contact Us For Availability

22

CTRL-ELEK, STEALTH WPL W10289813 Contact Us For Availability

23

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

23

WPW10317282 Whirlpool Refrigerator Door Gaske Backorder WPL WPW10317282 $14.38

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

FALSE WALL (WHITE) WPL W10286898 Contact Us For Availability

FALSE WALL (BLACK) WPL W10286899 Contact Us For Availability

FALSE WALL (STAINLESS) WPL W10286900 Contact Us For Availability

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

DRIP TRAY (WHITE) WPL W10286894 Contact Us For Availability

DRIP TRAY (BLACK) WPL W10286895 Contact Us For Availability

DRIP TRAY (STAINLESS) WPL W10286896 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

GRATE, DRIP TRAY (STAINLESS) WPL W10286922 Contact Us For Availability

GRATE, DRIP TRAY (WHITE) WPL W10286920 Contact Us For Availability

GRATE, DRIP TRAY (BLACK) WPL W10286921 Contact Us For Availability

W10339582 Whirlpool Refrigerator Clip Backorder WPL W10339582 $29.23

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $27.21

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

30

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

30

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

32

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

33

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

33

TUBE, FILTER INLET WPL W10281289 Contact Us For Availability

34

2303141 Whirlpool Refrigerator Door Hinge Backorder WPL 2303141 $120.29

35

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

35

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

8212473 Whirlpool Refrigerator Touch Up Paint In Stock WPL 8212473 $8.69

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
