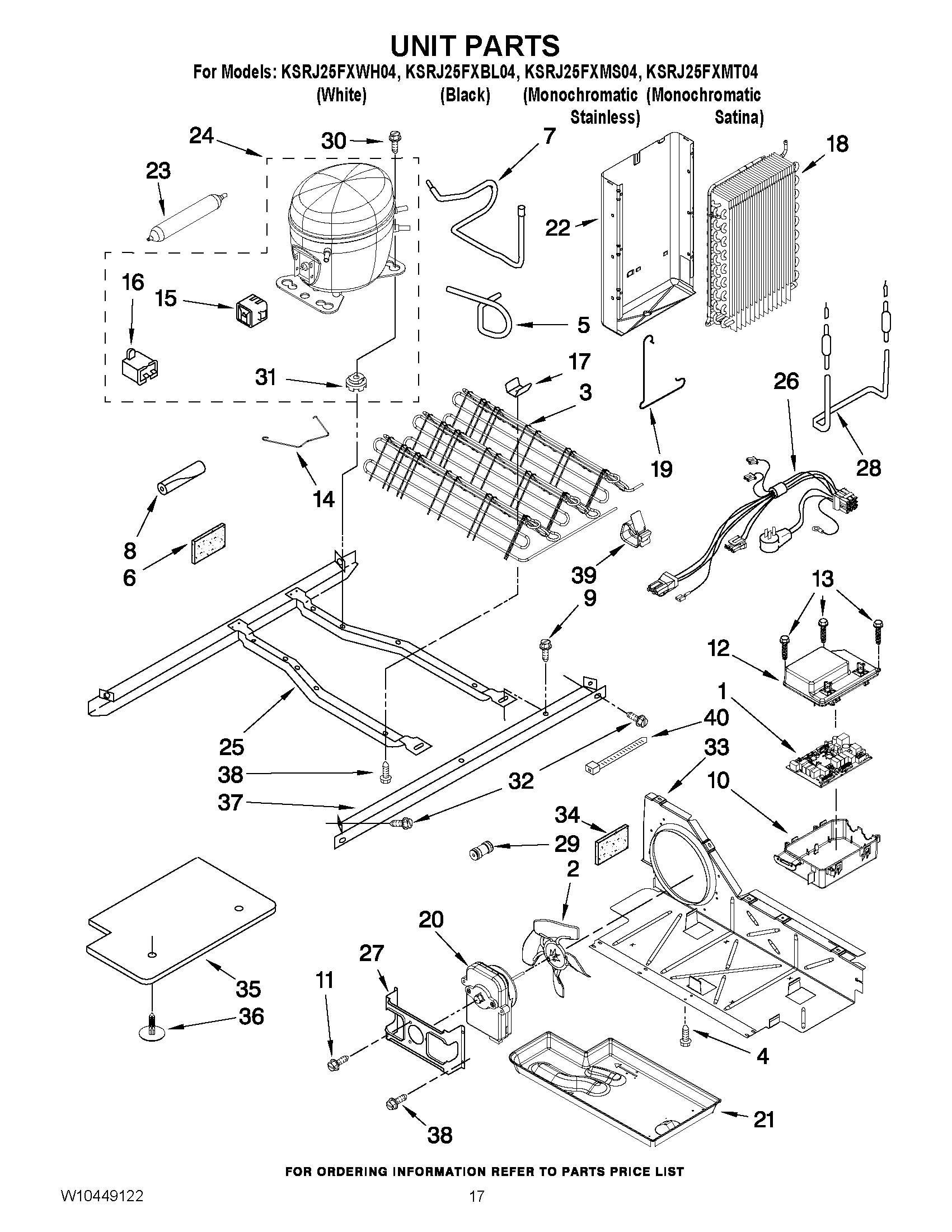

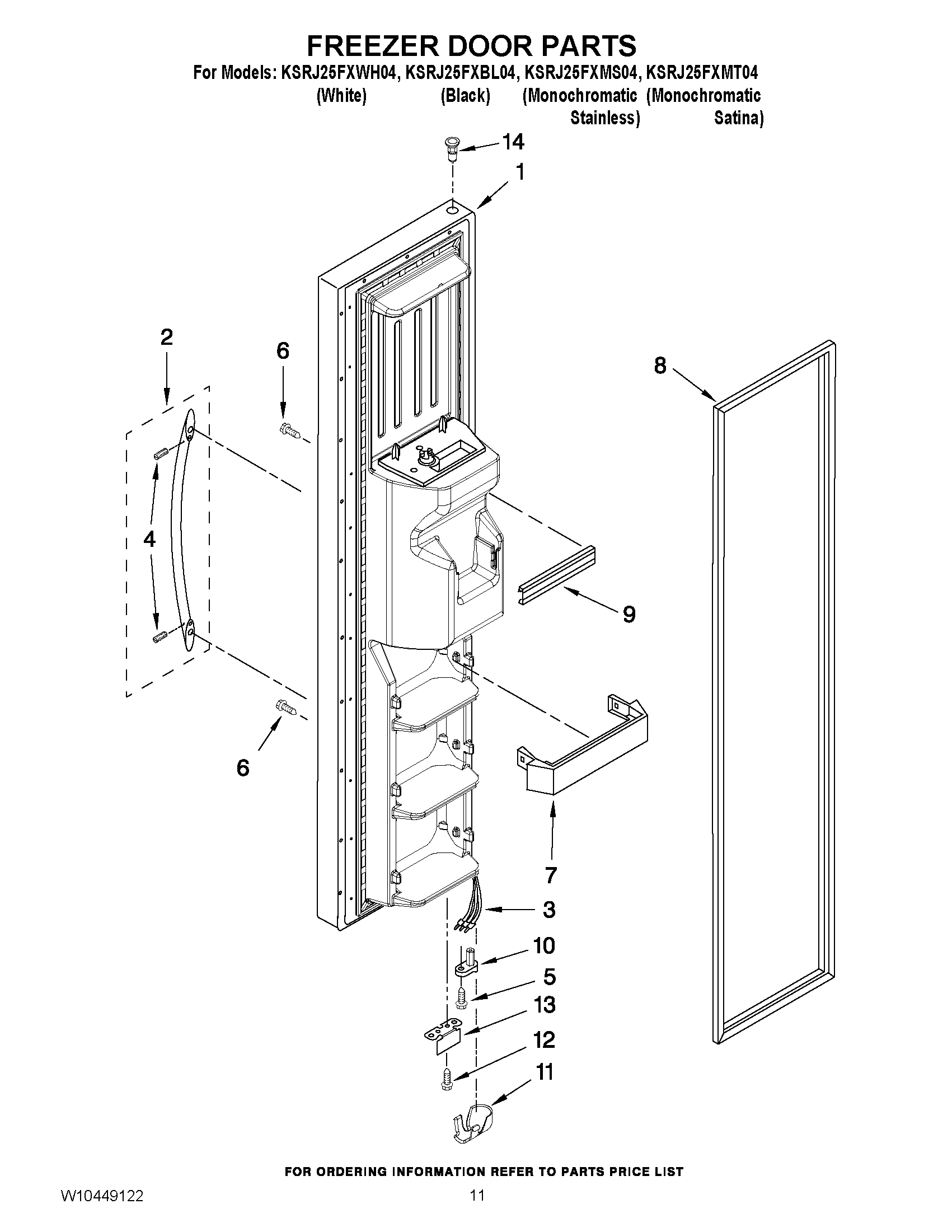

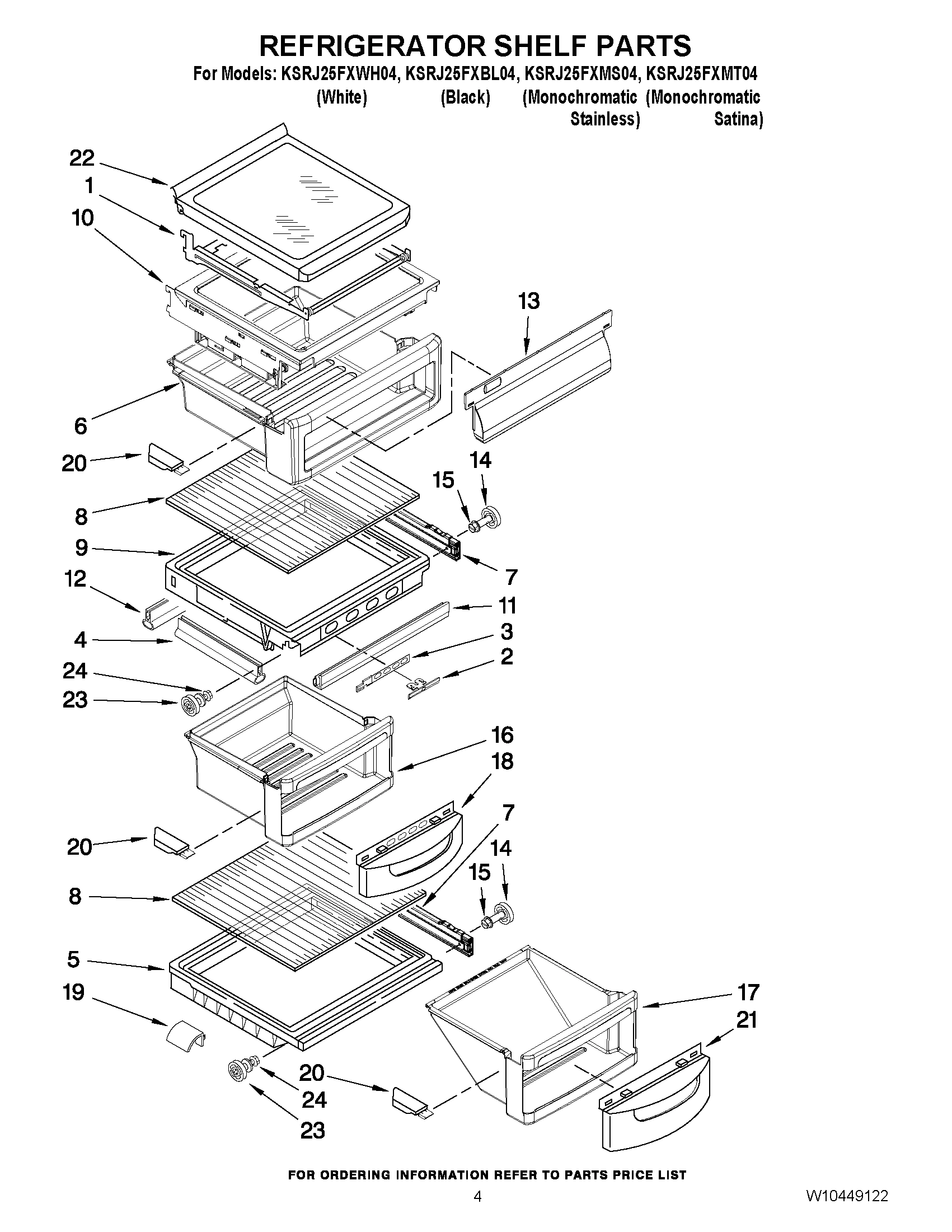

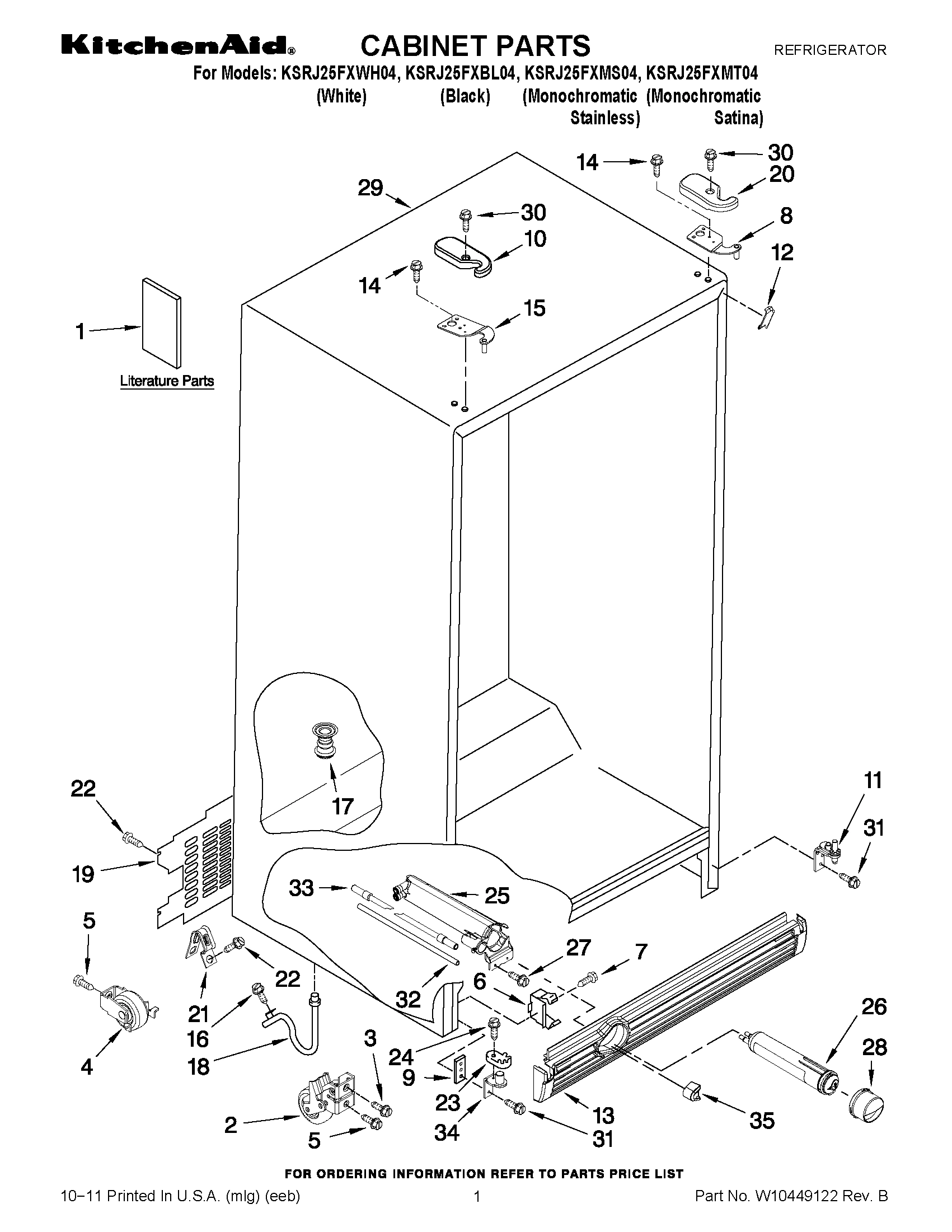

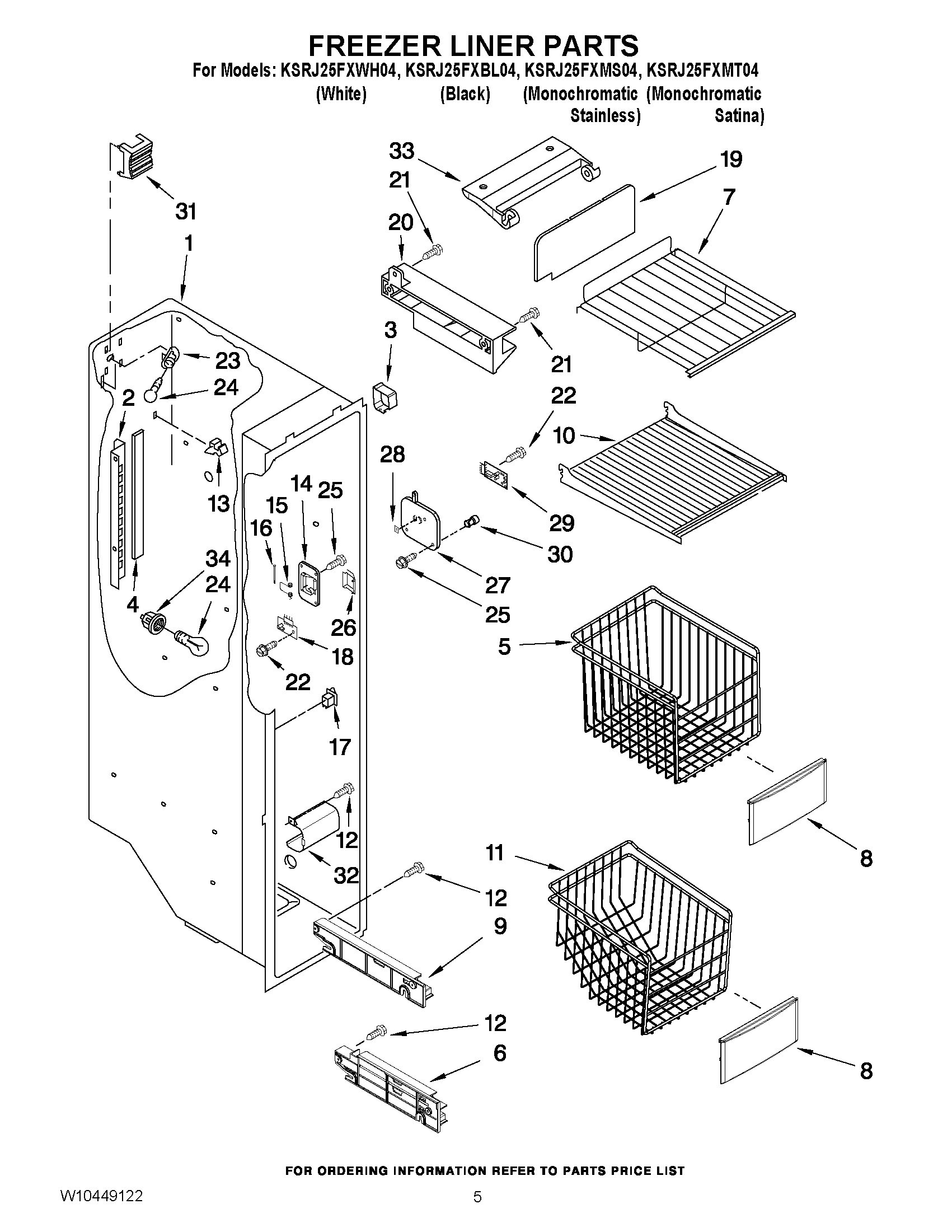

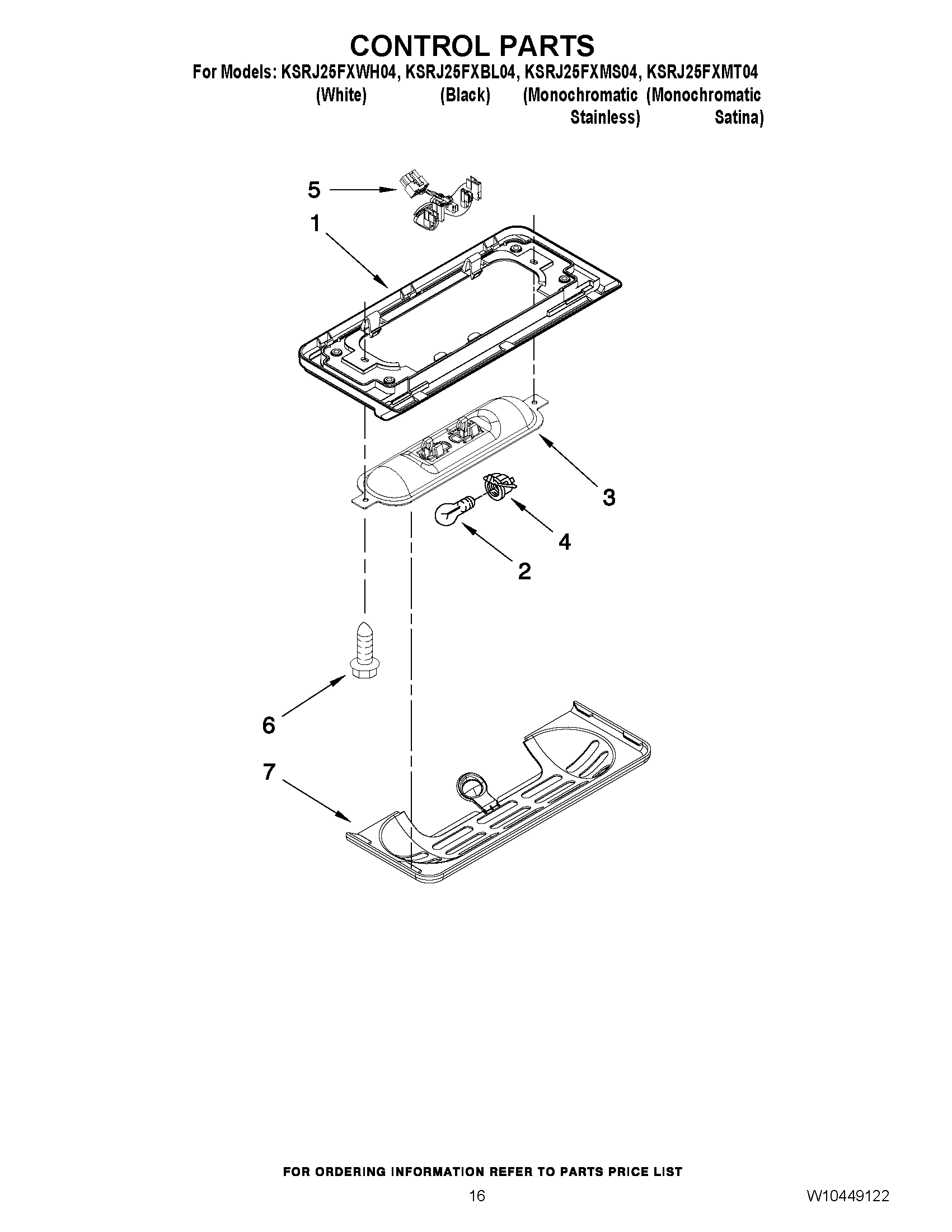

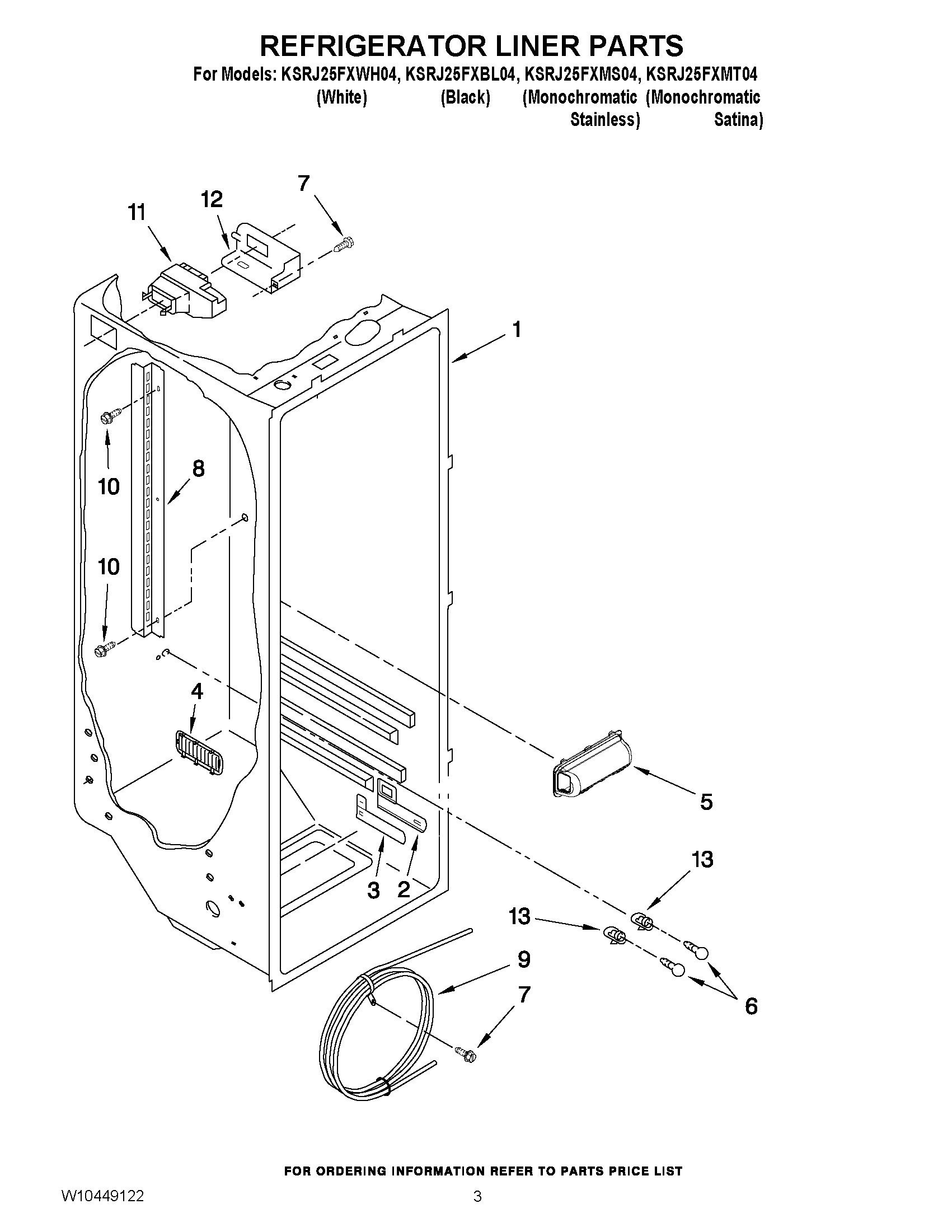

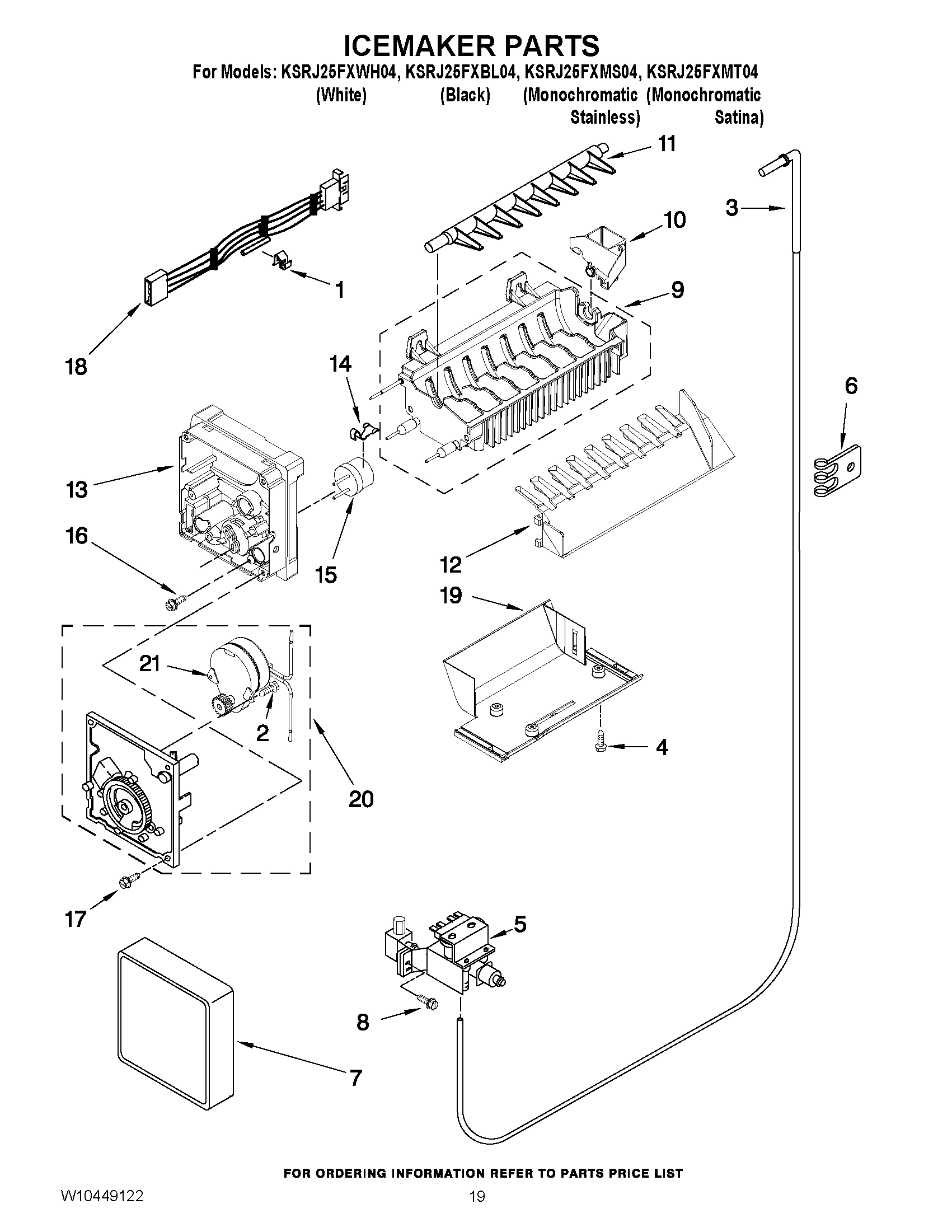

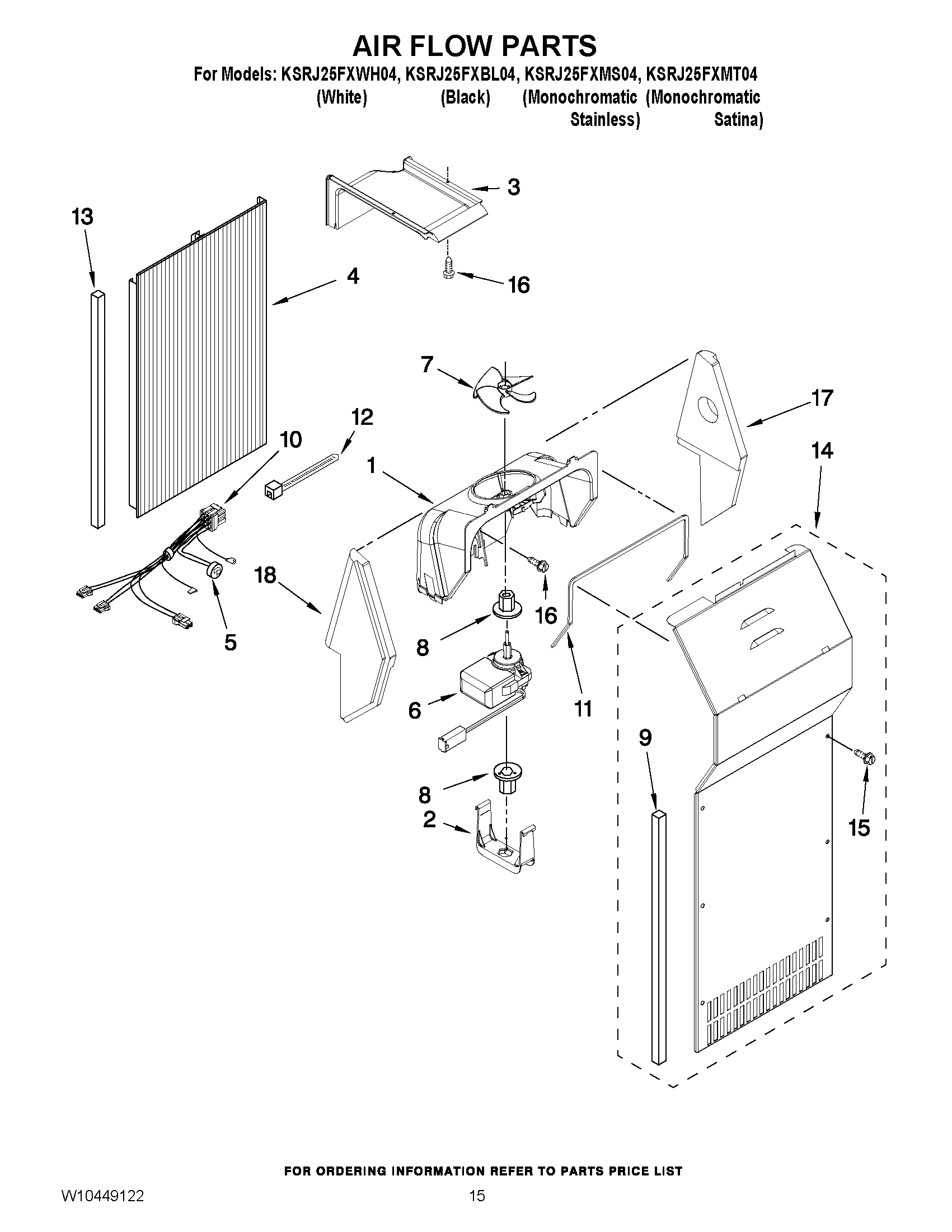

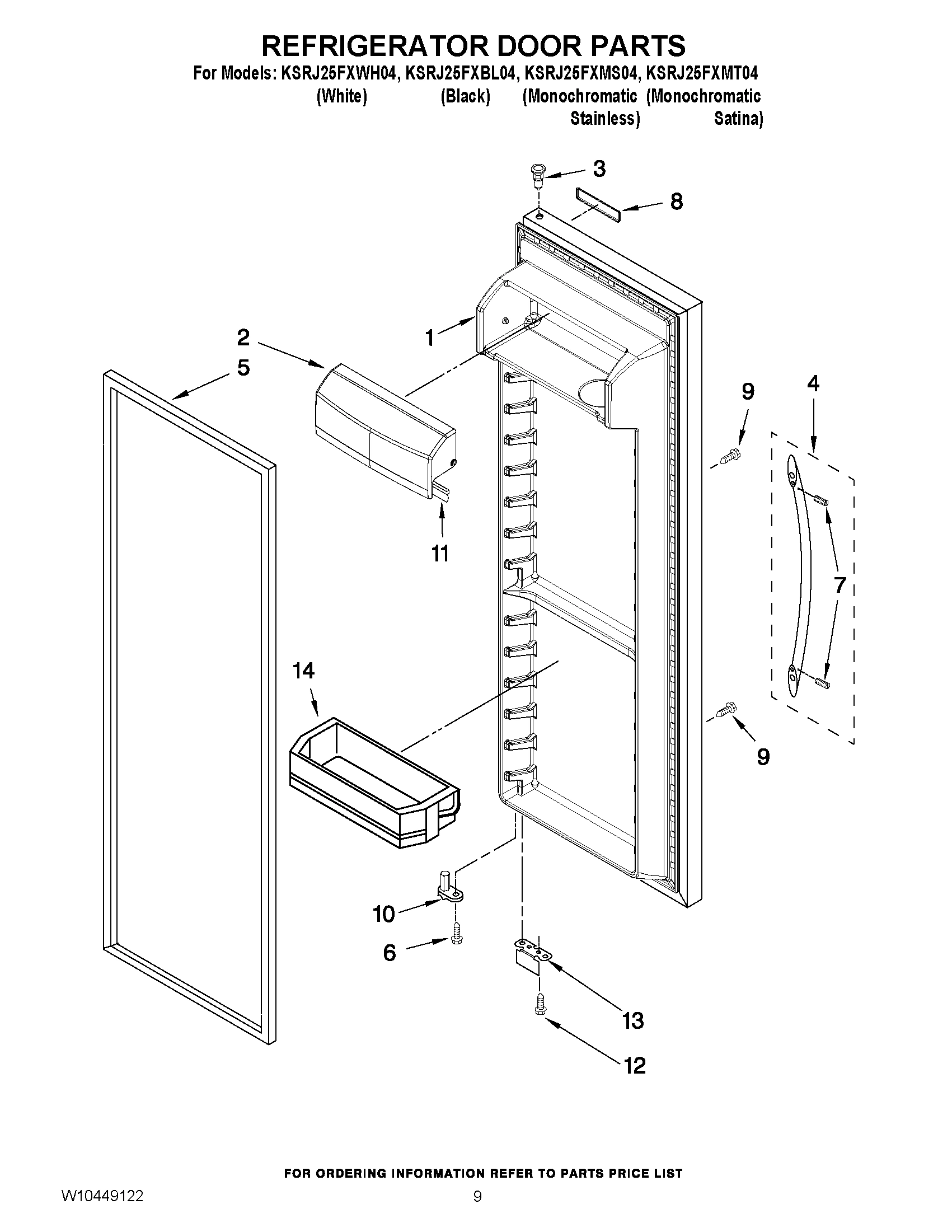

Model Whirlpool KSRJ25FXBL04 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $9.24

2

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

2

WPW10331454 Whirlpool Refrigerator Insulation Backorder WPL WPW10331454 $9.44

2

HANDLE (INCLUDES ITEM 4) (STAINLESS STEEL) WPL 2319727S Contact Us For Availability

2

HANDLE (INCLUDES ITEM 4) (BLACK) WPL 2319727B Contact Us For Availability

2

Ladder (Left Side) WPL 2198609 Contact Us For Availability

2

Ladder (Right Side) WPL 2198610 Contact Us For Availability

3

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

3

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Tube, Water WPL 2303216 Contact Us For Availability

4

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Gasket WPL 2198697 Contact Us For Availability

4

Air Duct Freezer WPL 2198580 Contact Us For Availability

5

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $69.65

5

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

5

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $133.00

5

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

5

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

5

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $77.91

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

5

Basket, Tall WPL 2301139 Contact Us For Availability

6

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.41

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

6

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

6

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $138.30

6

Track, Basket-Dual (Right Side) WPL 2301293 Contact Us For Availability

6

Track, Basket-Dual (Left Side) WPL 2301294 Contact Us For Availability

7

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

7

W10174818 Whirlpool Refrigerator Clip Backorder WPL W10174818 $7.78

7

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

7

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

7

Glide Assy (Right Side) WPL 2301548 Contact Us For Availability

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Shelf, Slide Out Upper WPL 2211746 Contact Us For Availability

8

W10242649 Whirlpool Refrigerator Door Hinge Backorder WPL W10242649 $35.25

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

8

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

8

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $15.94

8

Glass, Cover WPL 2301028 Contact Us For Availability

8

BASKET, FRONT WPL 2301134 Contact Us For Availability

8

Ladder, Shelf WPL 2319866 Contact Us For Availability

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

9

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

9

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

9

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $63.59

9

WPW10331456 Whirlpool Refrigerator Insulation Backorder WPL WPW10331456 $9.44

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

COVER, CRISPER (INCLUDES ITEMS 2, 3, 4, 7, 11 WPL 2301567 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $35.67

W11225843 Whirlpool Refrigerator Wire Harness Backorder WPL W11225843 $64.74

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

WPW10317279 Whirlpool Refrigerator Door Chute Backorder WPL WPW10317279 $7.70

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

Shelf WPL 2205837K Contact Us For Availability

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $29.85

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $116.82

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

WPW10368730 Whirlpool Refrigerator Pad In Stock WPL WPW10368730 $121.59

Basket, Sloped WPL 2301140 Contact Us For Availability

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $69.88

W10295559 Whirlpool Refrigerator Dispenser Ha Backorder WPL W10295559 $60.09

W10334855 Whirlpool Refrigerator Cover Backorder WPL W10334855 $31.81

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WPW10171469 Whirlpool Refrigerator Screw Backorder WPL WPW10171469 $4.58

Window, Snack Pan WPL 2301006 Contact Us For Availability

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

COVER, EVAPORATOR (INCLUDES ITEM 9) WPL 2206314 Contact Us For Availability

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $42.57

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

UI ASSY, STEALTH WPL W10286916 Contact Us For Availability

SCREW 8-18 X 1-3/8 WPL W10191952 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.68

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $228.34

W11643622 Whirlpool Wire Harness Backorder WPL W11643622 $9.75

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

Window, Crisper WPL 2301001 Contact Us For Availability

19

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

19

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

19

Clamp WPL 2161324 Contact Us For Availability

20

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

20

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

21

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

22

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

22

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $173.34

22

Heat Shield WPL 2217194 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

WPW10317282 Whirlpool Refrigerator Door Gaske Backorder WPL WPW10317282 $14.38

DOOR CLOSER, LOWER CAM WPL 2223751 Contact Us For Availability

24

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $293.57

24

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

24

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

25

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

25

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

25

DRIP TRAY (WHITE) WPL W10286894 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

GRATE, DRIP TRAY (STAINLESS) WPL W10286922 Contact Us For Availability

UNIT, HARNESS WPL W10334858 Contact Us For Availability

W10339582 Whirlpool Refrigerator Clip Backorder WPL W10339582 $29.23

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Cover, Receiver WPL W10173569 Contact Us For Availability

28

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

28

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

28

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $14.24

29

P.C. BOARD, RECEIVER WPL W10279461 Contact Us For Availability

30

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

30

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

31

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

31

Light Shield WPL 2198589 Contact Us For Availability

32

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

32

Light Lens WPL 2212340 Contact Us For Availability

33

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

33

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

33

TUBE, FILTER INLET WPL W10281289 Contact Us For Availability

34

2217070 Whirlpool Foam Kit Backorder WPL 2217070 $10.76

34

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

35

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

35

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

37

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

39

W10812039 Whirlpool Clip Backorder WPL W10812039 $4.28

40

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

8212473 Whirlpool Refrigerator Touch Up Paint In Stock WPL 8212473 $8.69

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

REFRIGERANT CHARGE 5.00 OZ. (R-134A) WPL NP Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
