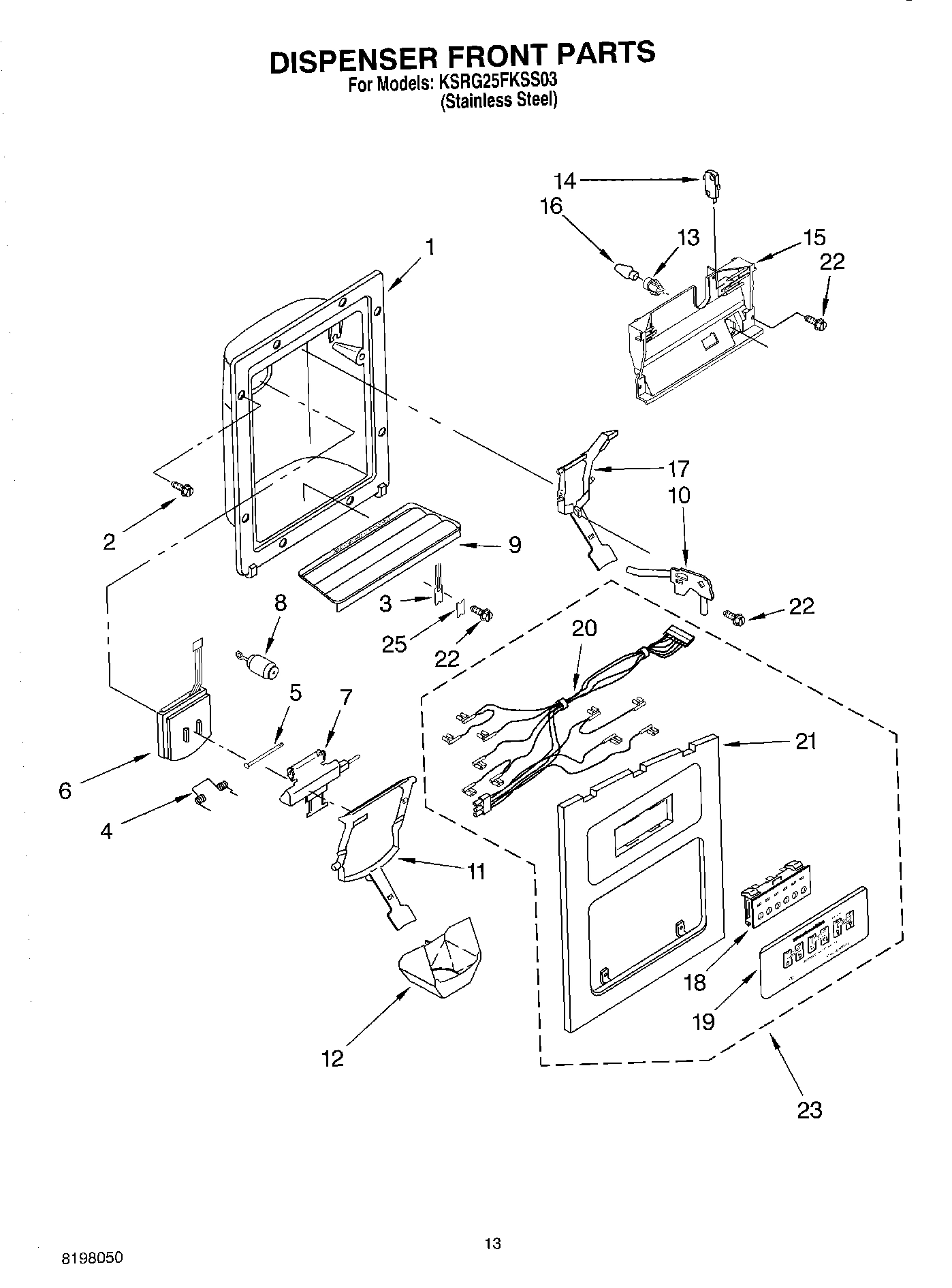

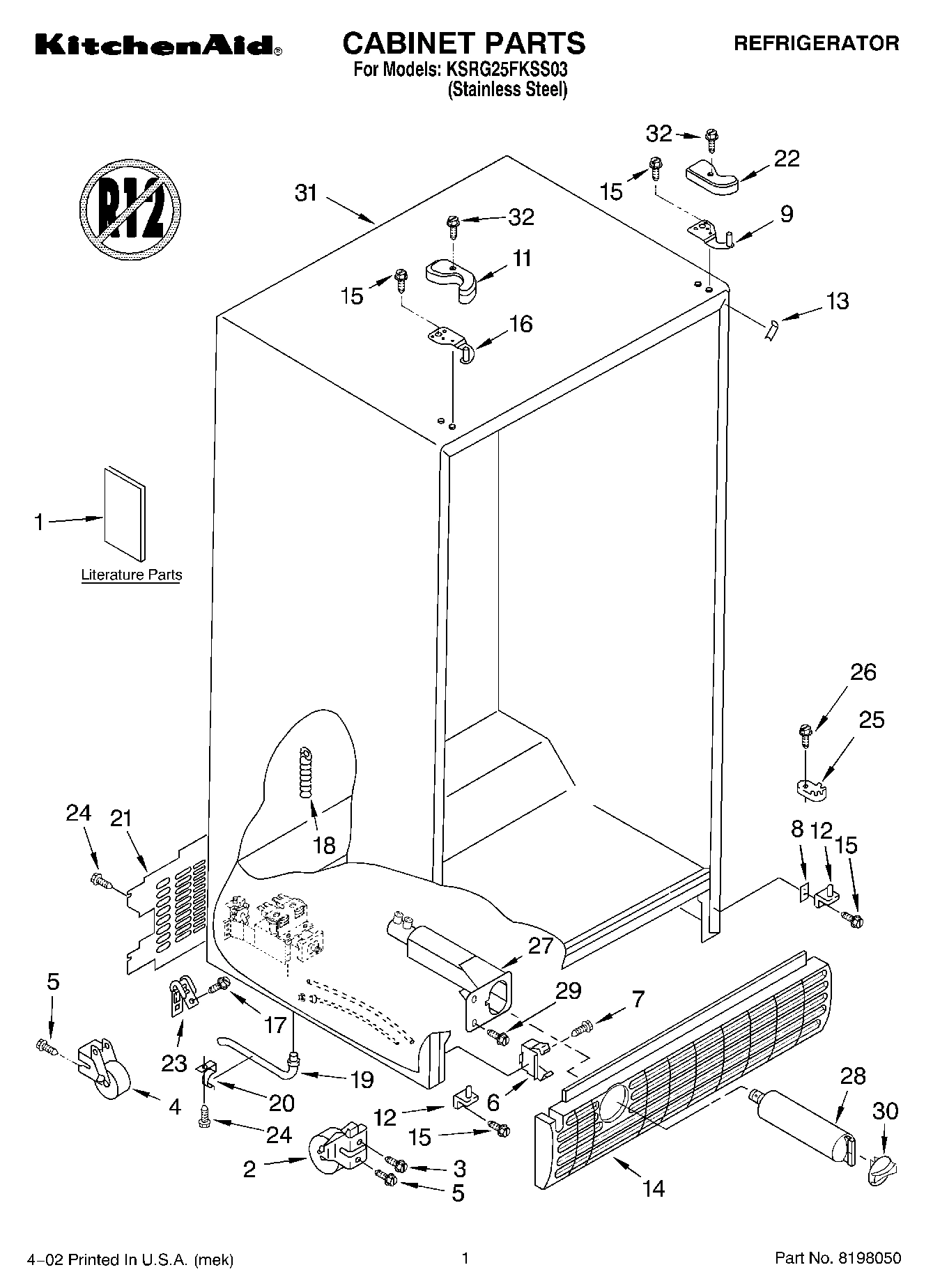

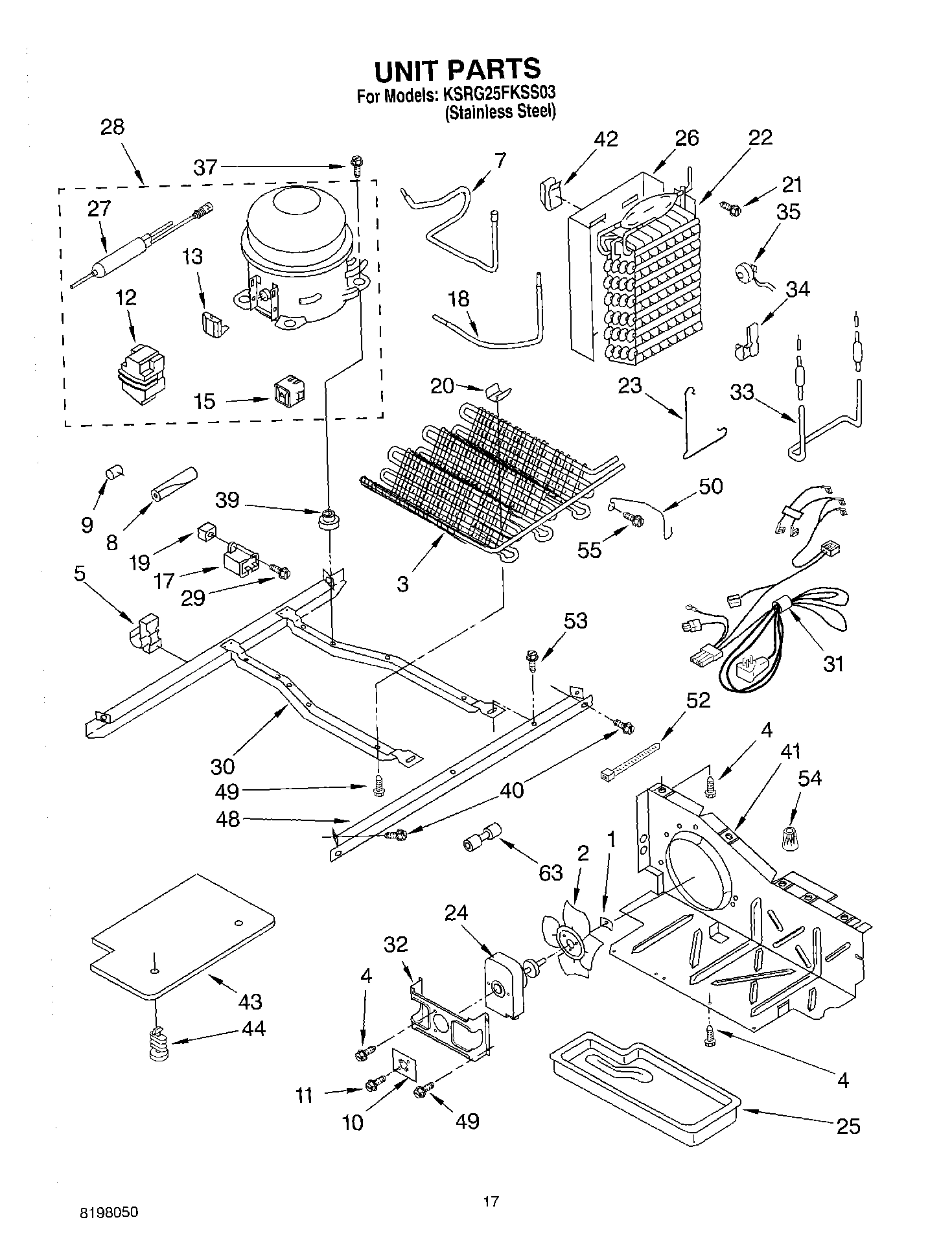

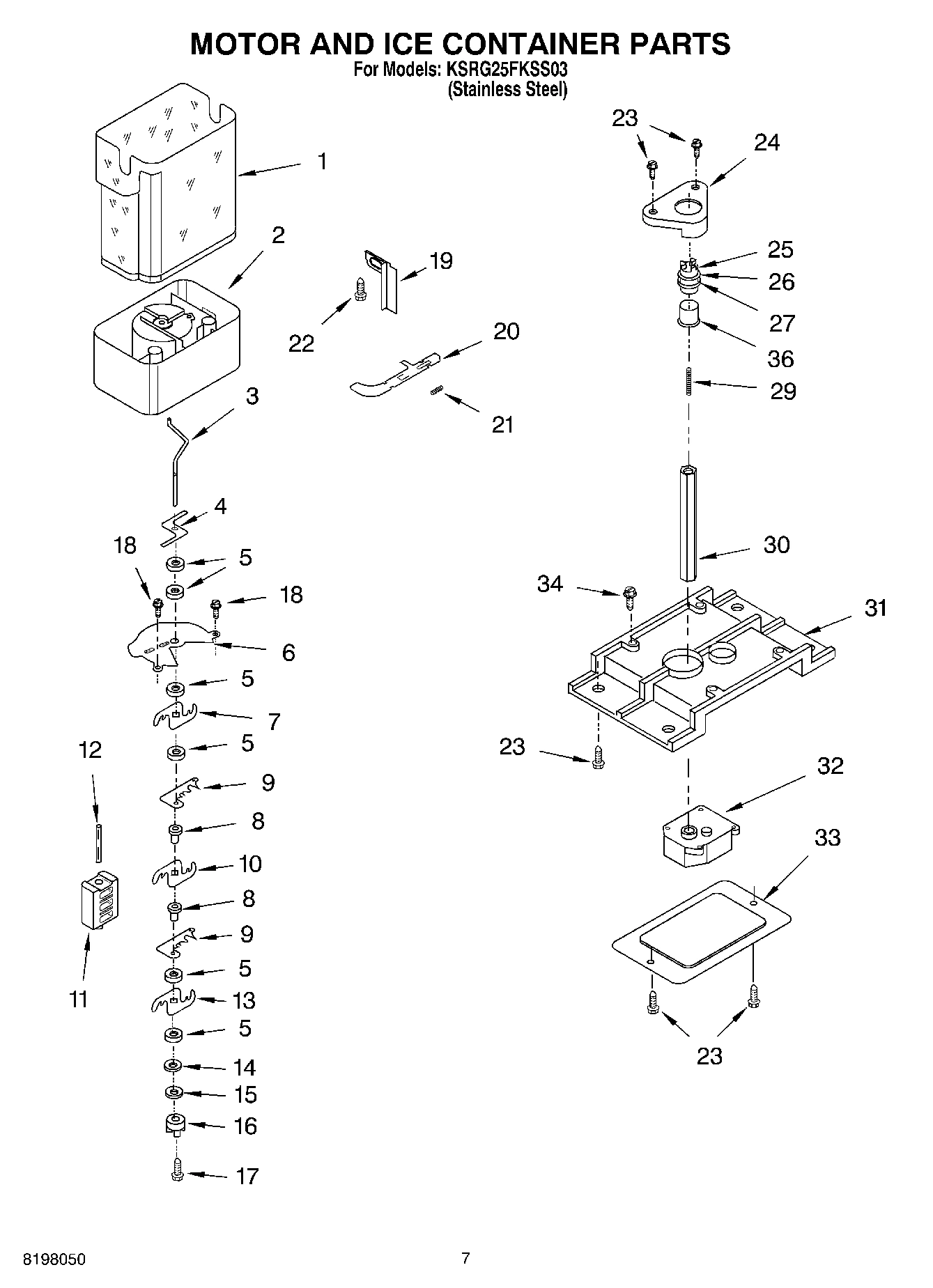

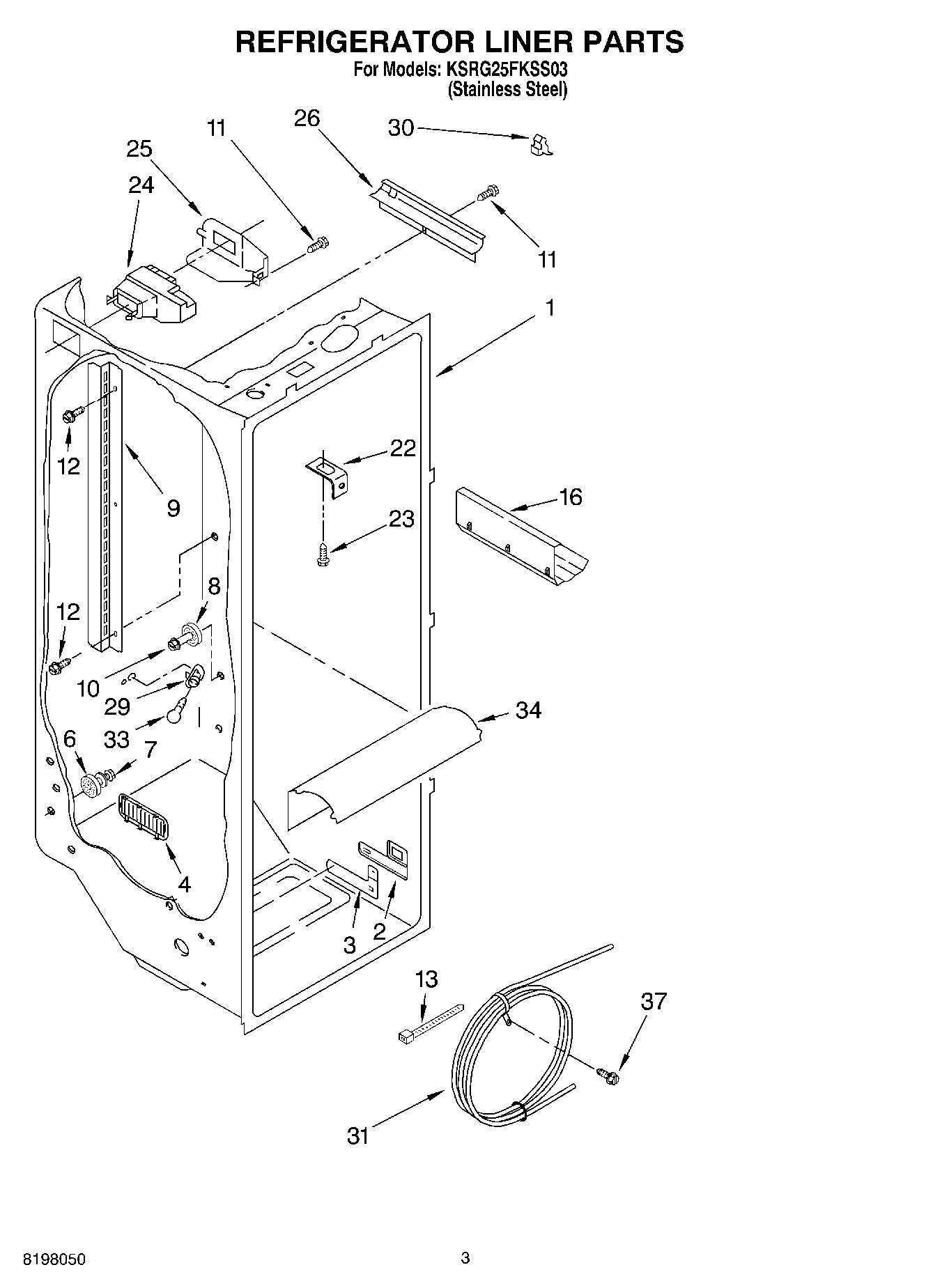

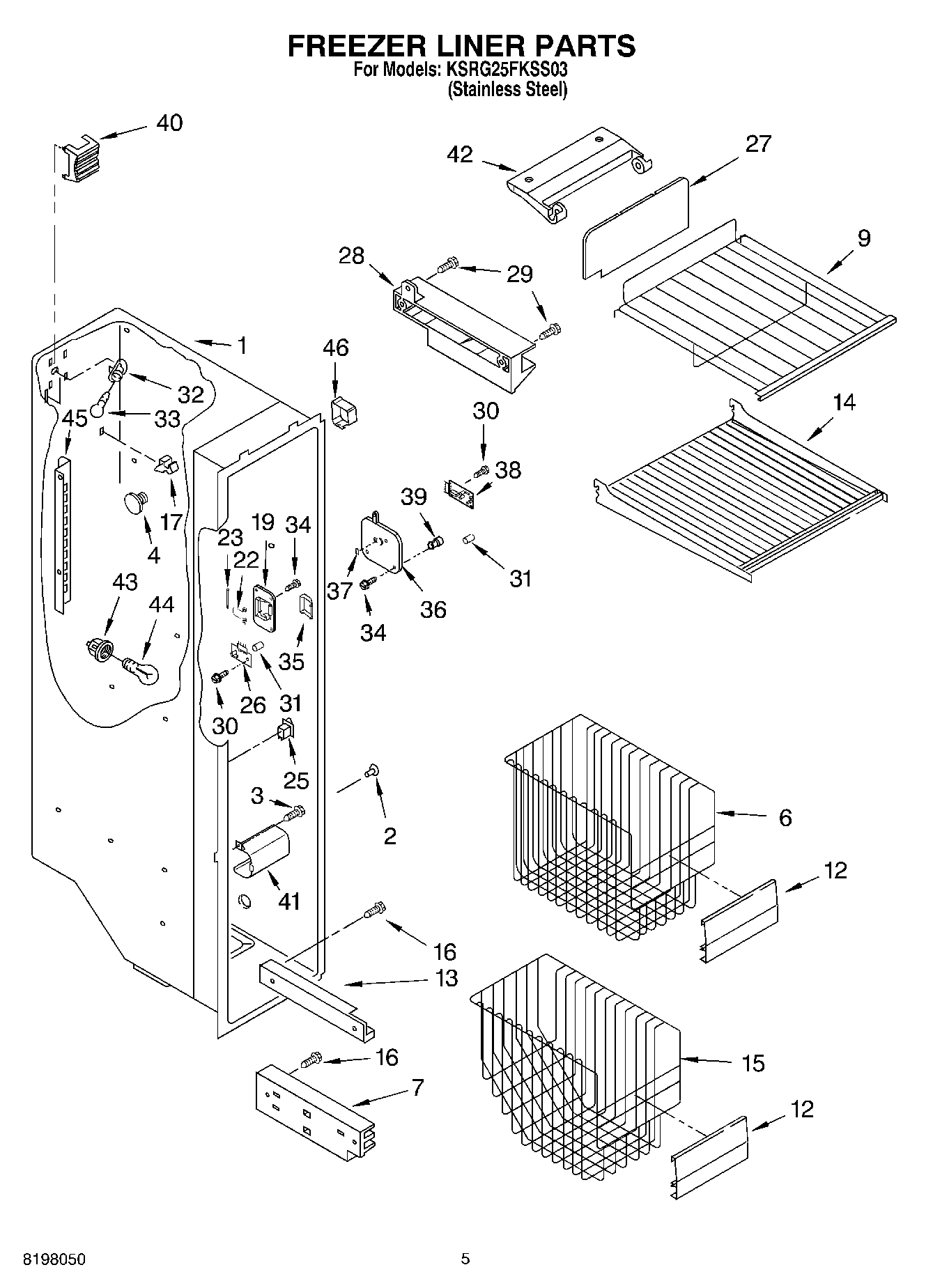

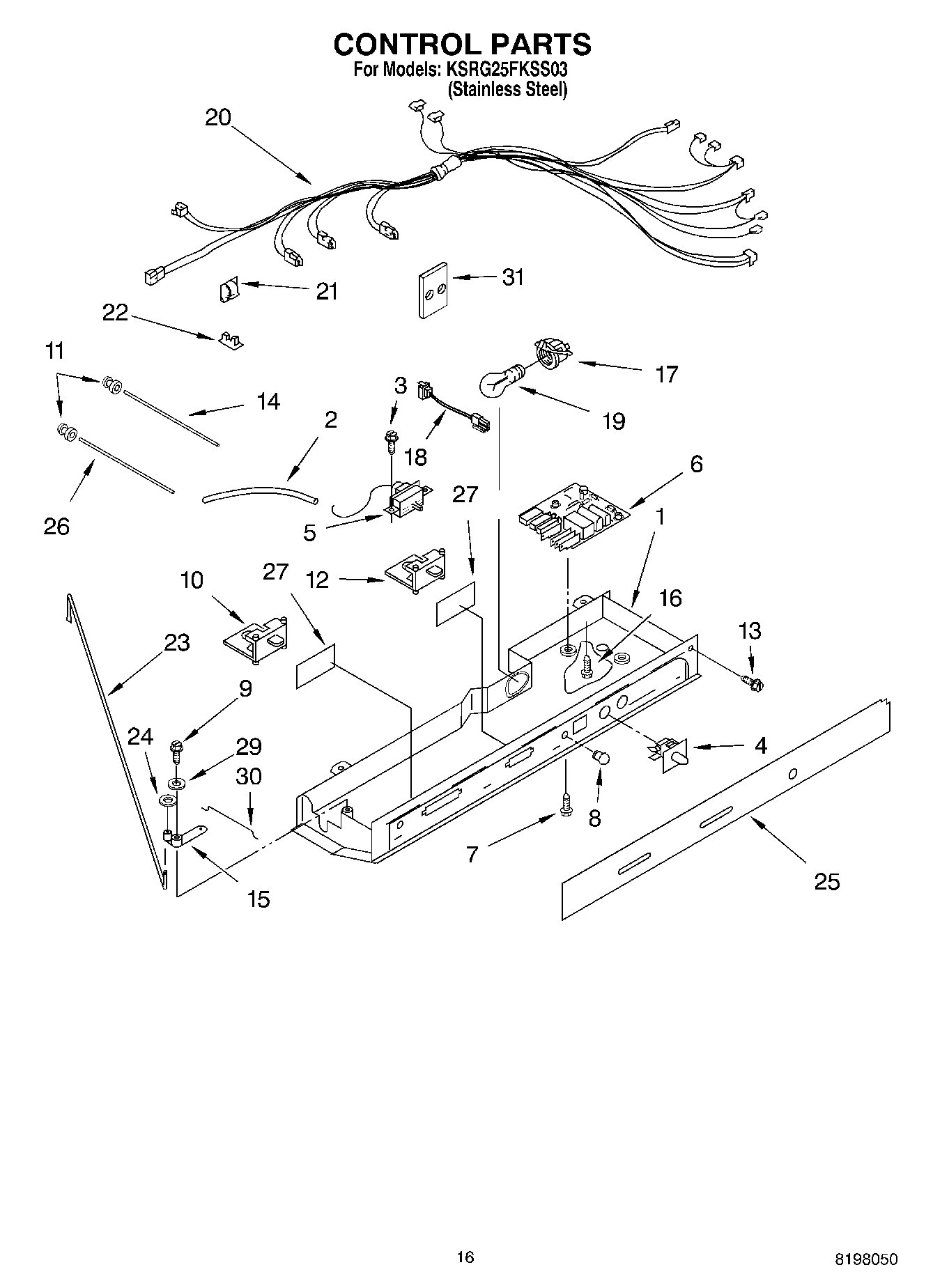

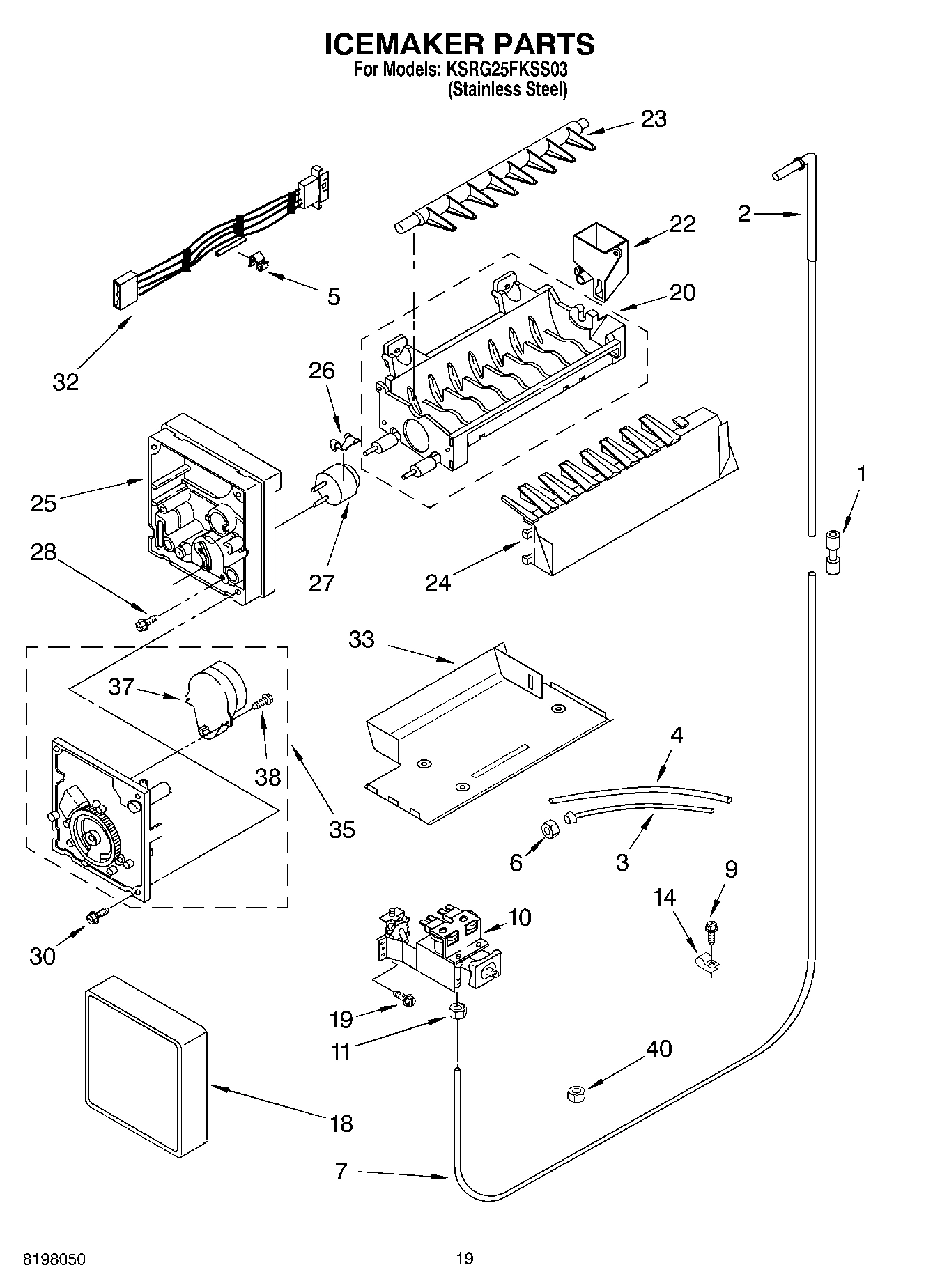

Model Whirlpool KSRG25FKSS03 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $11.80

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 8201785 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI97149A1 Contact Us For Availability

1

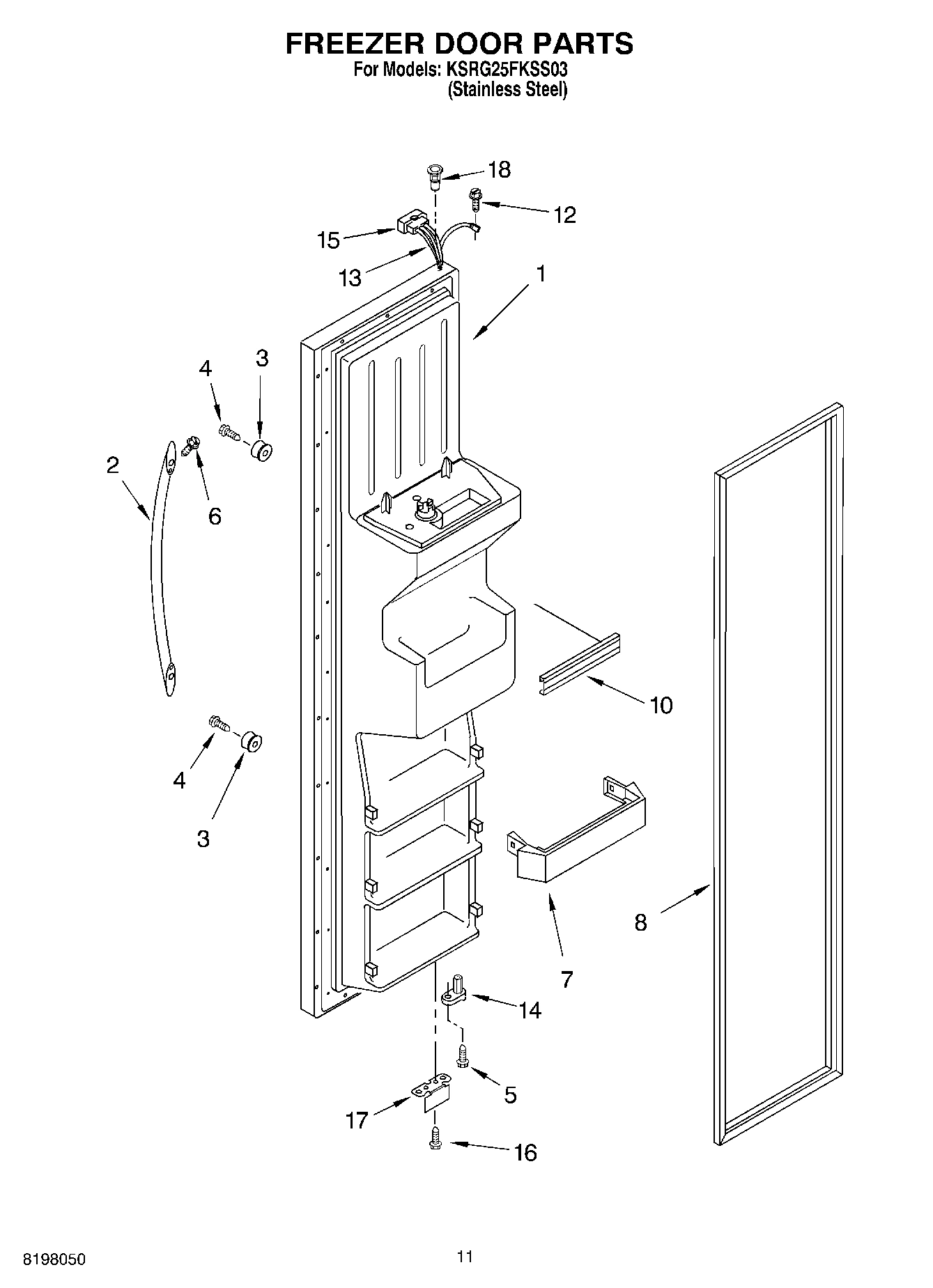

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216569S Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.33

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2212367 Contact Us For Availability

2

Handle (Stainless Steel) WPL 2204454S Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Stud, Handle WPL 2203690 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.95

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

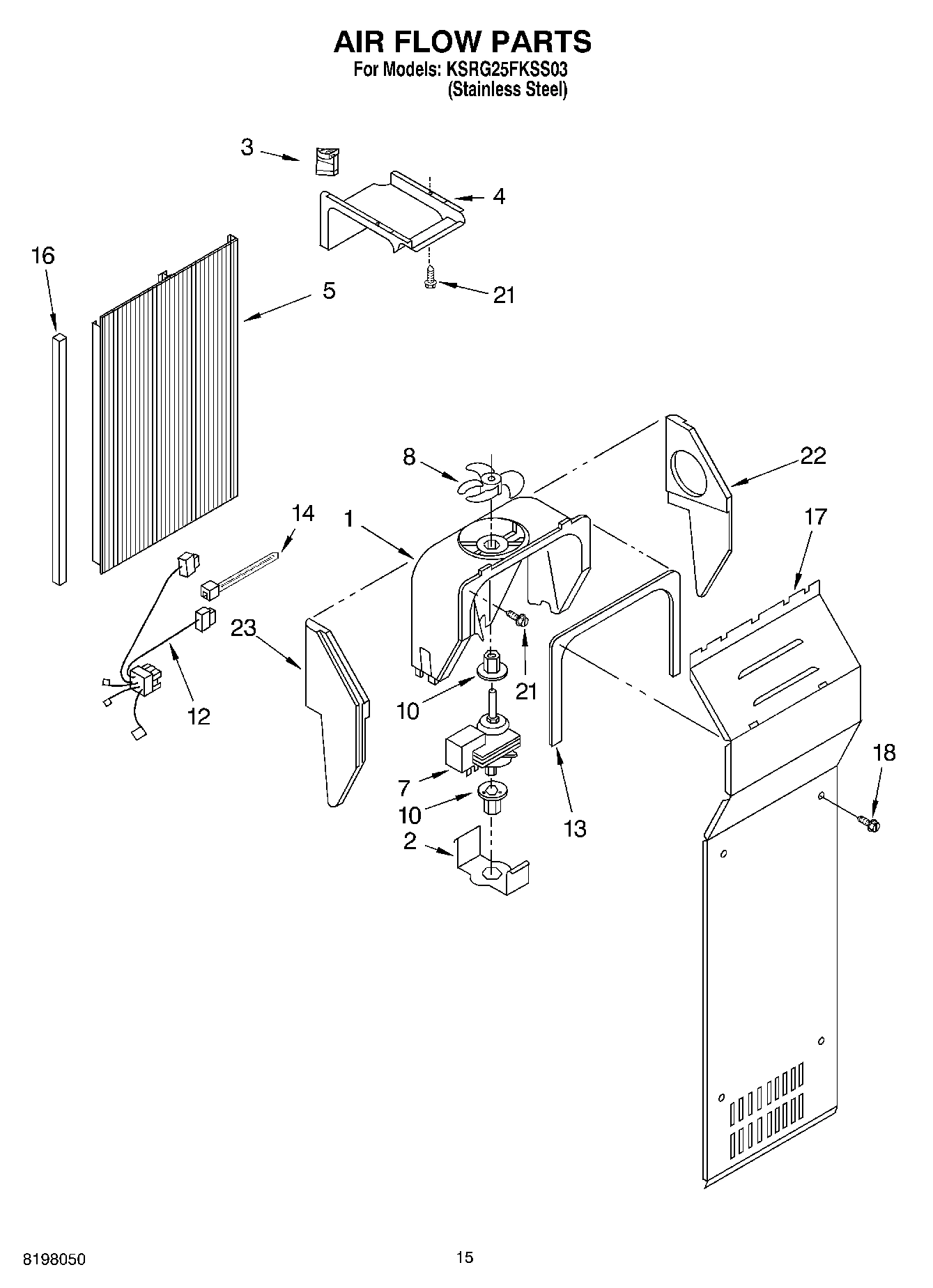

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $228.95

6

Screw WPL 98654 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Shelf Bin (4) WPL 2171070 Contact Us For Availability

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $148.70

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

9

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206273 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Bracket, Insert WPL 2216997 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $5.42

Block, Blade WPL 2198602 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $64.16

NLA:SCREW Backorder WPL WPW10141645 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Wire Harness WPL 2206178 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

Start Device, Combination (Start Relay and Ov WPL 2212194 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $133.84

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

Cover, Evaporator WPL 2206314 Contact Us For Availability

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Window, Crisper WPL 2174076 Contact Us For Availability

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

19

Screw Grommet WPL 509812 Contact Us For Availability

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $87.84

20

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

CLIP, WIRING WPL 1115375 Contact Us For Availability

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $47.56

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $44.36

Holder WPL 2212369 Contact Us For Availability

Fastner, Push-On WPL 489391 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Escutcheon, Control Box WPL 2211959 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

Heat Shield WPL 2149294 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

Window WPL 2175513 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $26.79

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

31

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

31

Unit, Harness WPL 2187425 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $55.72

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

34

Light Lens WPL 2254920 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

Screw WPL 489473 Contact Us For Availability

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186495 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $24.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
