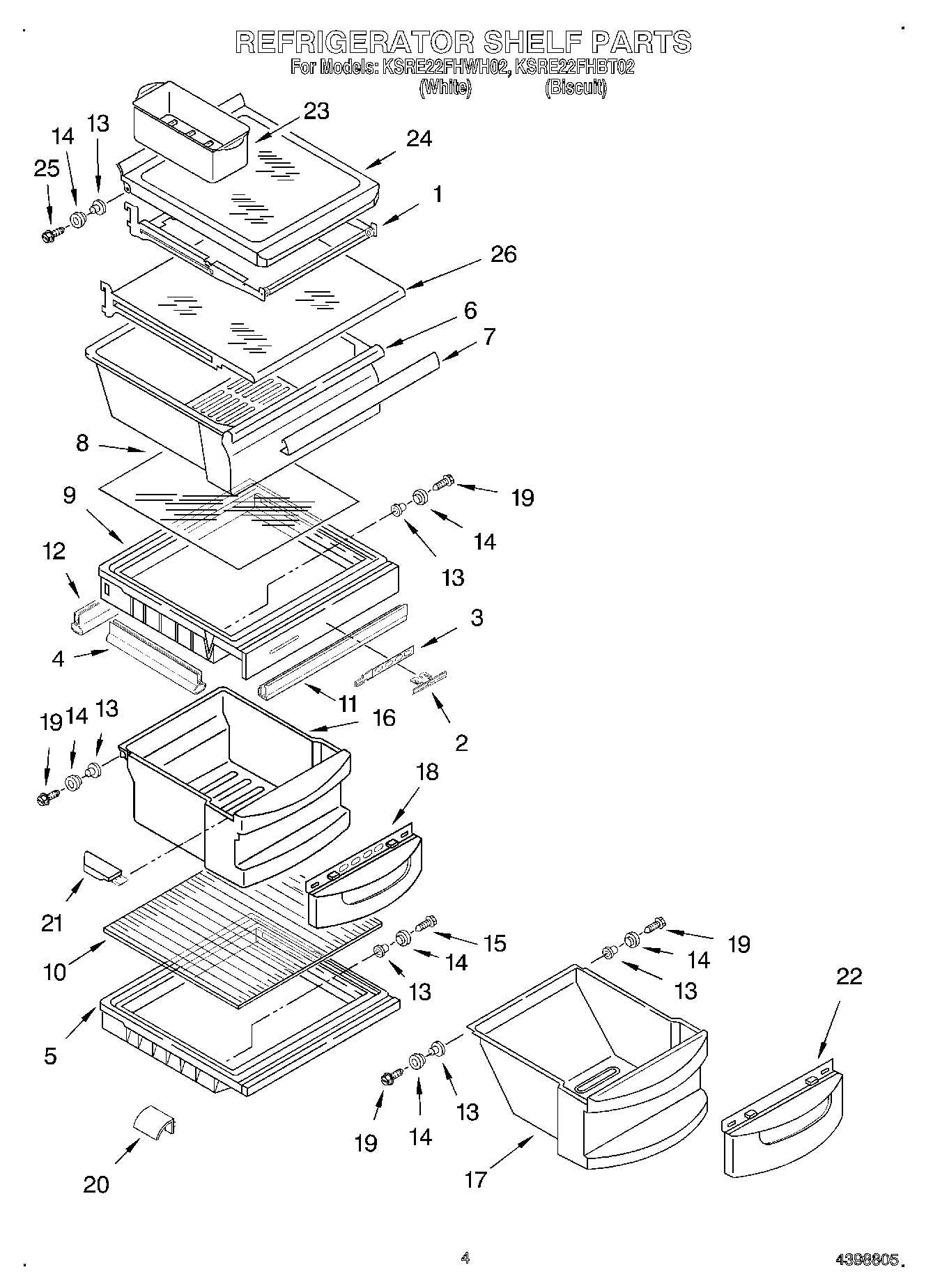

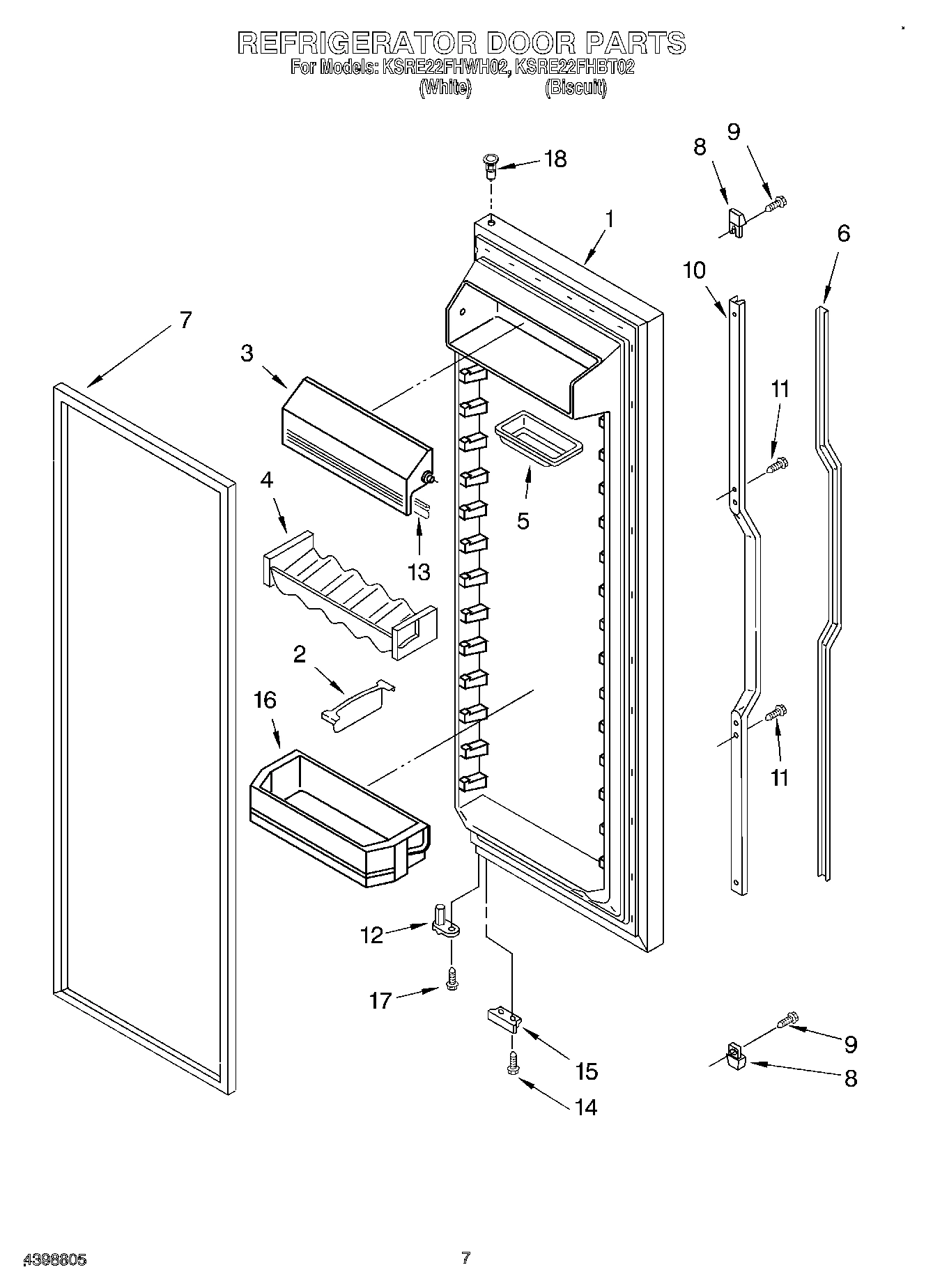

Whirlpool KSRE22FHBT02 Parts List

Service & Wiring Sheet WPL LIT2200278 Contact Us For Availability

View on Model

Energy Label WPL LIT2211865 Contact Us For Availability

View on Model

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

View on Model

1

2200135 Whirlpool Refrigerator Control Box Backorder WPL 2200135 $75.53

View on Model

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

View on Model

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

View on Model

1

LITERATURE PARTS WPL ARI96125A2 Contact Us For Availability

View on Model

1

Use & Care Guide WPL LIT2206106 Contact Us For Availability

View on Model

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2186518T Contact Us For Availability

View on Model

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2186518W Contact Us For Availability

View on Model

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

View on Model

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

View on Model

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

View on Model

2

Blade, Fan WPL 2190685 Contact Us For Availability

View on Model

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

View on Model

2

Front Roller (2) WPL 2174748 Contact Us For Availability

View on Model

2

Retainer, Insert (Biscuit) WPL 2194776T Contact Us For Availability

View on Model

2

Retainer, Insert (White) WPL 2194776W Contact Us For Availability

View on Model

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

View on Model

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

View on Model

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

View on Model

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

View on Model

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

View on Model

3

Air Scoop WPL 2161231 Contact Us For Availability

View on Model

3

End Cap (2) (Biscuit) WPL 2194778T Contact Us For Availability

View on Model

3

End Cap (2) (White) WPL 2194778W Contact Us For Availability

View on Model

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

View on Model

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

View on Model

4

Gasket WPL 2209604 Contact Us For Availability

View on Model

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

View on Model

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.14

View on Model

5

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $121.72

View on Model

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

View on Model

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

View on Model

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

View on Model

5

Stud, Rear WPL 2196207 Contact Us For Availability

View on Model

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

View on Model

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

View on Model

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

View on Model

6

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

View on Model

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

View on Model

7

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

View on Model

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

View on Model

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

View on Model

7

WP2179243 Whirlpool Refrigerator Pan Trim In Stock WPL WP2179243 $34.18

View on Model

7

Shelf Bin (4) WPL 2171071 Contact Us For Availability

View on Model

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

View on Model

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

View on Model

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

View on Model

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

View on Model

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

View on Model

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

View on Model

9

Grommet (4) WPL 2176134 Contact Us For Availability

View on Model

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

View on Model

9

Gasket WPL 2209605 Contact Us For Availability

View on Model

9

Shim, Hinge Top WPL 2196048 Contact Us For Availability

View on Model

9

Insert, Handle (White) WPL 2173830 Contact Us For Availability

View on Model

9

Insert, Handle (Biscuit) WPL 2200434 Contact Us For Availability

View on Model

10

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

View on Model

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

View on Model

10

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

View on Model

10

Screw WPL 489284 Contact Us For Availability

View on Model

11

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

View on Model

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

View on Model

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

View on Model

11

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

View on Model

11

Hinge Cover (White) WPL 1129262 Contact Us For Availability

View on Model

11

Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability

View on Model

11

Grommet, Light Bar WPL 2172906 Contact Us For Availability

View on Model

12

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

View on Model

12

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $29.66

View on Model

12

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

View on Model

12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

View on Model

12

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

View on Model

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

View on Model

13

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

View on Model

13

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

View on Model

13

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

View on Model

13

NLA:SCREW Backorder WPL WPW10141645 $3.70

View on Model

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

View on Model

13

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

View on Model

13

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

View on Model

13

Wire Harness WPL 2198272 Contact Us For Availability

View on Model

14

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $58.14

View on Model

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

View on Model

14

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

View on Model

14

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

View on Model

14

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

View on Model

14

Light Bar (RC) WPL 2179920 Contact Us For Availability

View on Model

14

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

View on Model

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

View on Model

15

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

View on Model

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

View on Model

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

View on Model

15

Bracket, Door Stop WPL 2195950 Contact Us For Availability

View on Model

15

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

View on Model

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

View on Model

16

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $133.84

View on Model

16

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

View on Model

16

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

View on Model

16

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

View on Model

17

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

View on Model

17

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

View on Model

17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

View on Model

17

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

View on Model

17

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $36.47

View on Model

18

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

View on Model

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

View on Model

18

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

View on Model

18

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

View on Model

18

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

View on Model

18

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

View on Model

18

Window, Crisper WPL 2174076 Contact Us For Availability

View on Model

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

View on Model

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

View on Model

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

View on Model

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

View on Model

19

Screw Grommet WPL 509812 Contact Us For Availability

View on Model

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

View on Model

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

View on Model

20

Harness, Control Box WPL 2206517 Contact Us For Availability

View on Model

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

View on Model

21

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

View on Model

21

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

View on Model

22

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

View on Model

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

View on Model

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

View on Model

22

Hinge Cover (White) WPL 1119787 Contact Us For Availability

View on Model

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

View on Model

23

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

View on Model

23

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

View on Model

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

View on Model

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

View on Model

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

View on Model

24

Retainer, Light Lens WPL 2200097 Contact Us For Availability

View on Model

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

View on Model

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

View on Model

25

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

View on Model

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $43.29

View on Model

25

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

View on Model

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

View on Model

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

View on Model

26

Harness, Unit WPL 2211330 Contact Us For Availability

View on Model

26

Light Bar (FC) WPL 2179921 Contact Us For Availability

View on Model

27

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

View on Model

27

285006 Whirlpool Spray In Stock WPL 285006 $28.82

View on Model

27

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

View on Model

27

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

View on Model

27

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

View on Model

27

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

View on Model

27

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

View on Model

27

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

View on Model

27

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

View on Model

27

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

View on Model

27

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

View on Model

27

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

View on Model

27

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

View on Model

27

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

View on Model

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

View on Model

27

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

View on Model

27

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

View on Model

27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

View on Model

27

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

View on Model

27

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

View on Model

27

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

View on Model

27

WPL 876029 WPL 876029 Contact Us For Availability

View on Model

27

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

View on Model

27

WPL 799344 WPL 799344 Contact Us For Availability

View on Model

27

Torx Key WPL 1117510 Contact Us For Availability

View on Model

27

Window WPL 2172941 Contact Us For Availability

View on Model

27

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

View on Model

27

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

View on Model

27

WPL 799340 WPL 799340 Contact Us For Availability

View on Model

27

WPL 799833 WPL 799833 Contact Us For Availability

View on Model

27

WPL 978883 WPL 978883 Contact Us For Availability

View on Model

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

View on Model

28

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

View on Model

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

View on Model

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

View on Model

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

View on Model

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

View on Model

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

View on Model

30

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

View on Model

30

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

View on Model

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

View on Model

31

Cabinet (Not A Serviceable Part) WPL ARI96126A9 Contact Us For Availability

View on Model

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

View on Model

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

View on Model

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

View on Model

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

View on Model

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

View on Model

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

View on Model

34

Light Lens WPL 2203266 Contact Us For Availability

View on Model

34

Clip WPL 2161330 Contact Us For Availability

View on Model

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

View on Model

37

Screw WPL 489387 Contact Us For Availability

View on Model

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

View on Model

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

View on Model

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

View on Model

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

View on Model

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

View on Model

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

View on Model

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

View on Model

42

Clip, Heat WPL 2155547 Contact Us For Availability

View on Model

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

View on Model

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

View on Model

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

View on Model

49

Screw WPL 488624 Contact Us For Availability

View on Model

50

Guard, Fan WPL 2186496 Contact Us For Availability

View on Model

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

View on Model

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

View on Model

54

Wire Connector WPL 850145 Contact Us For Availability

View on Model

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

View on Model

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

View on Model

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

View on Model

62

Clip, Tube WPL 2200079 Contact Us For Availability

View on Model

63

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

View on Model

63

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

View on Model

63

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

View on Model

63

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

View on Model

63

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

View on Model

63

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

View on Model

63

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

View on Model

63

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

View on Model

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

View on Model

Model Whirlpool KSRE22FHBT02 – Common Parts & Diagrams

Common parts from model Whirlpool KSRE22FHBT02

Search result for :
