Model Whirlpool KSRD22FTST02 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Bracket, Motor WPL 2254588 Contact Us For Availability

1

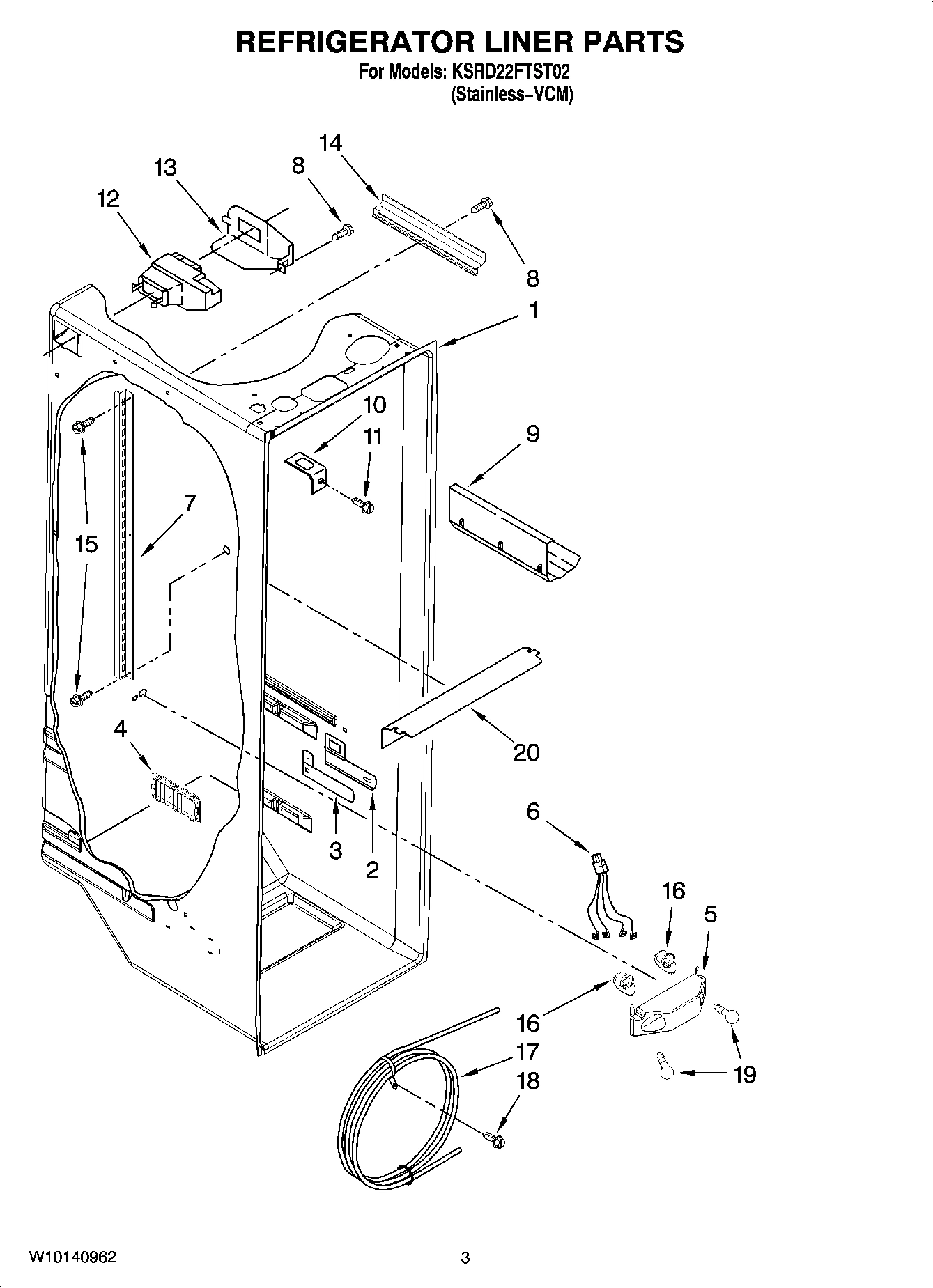

Liner (Not A Serviceable Part) WPL ARI95716A2 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI95717A2 Contact Us For Availability

1

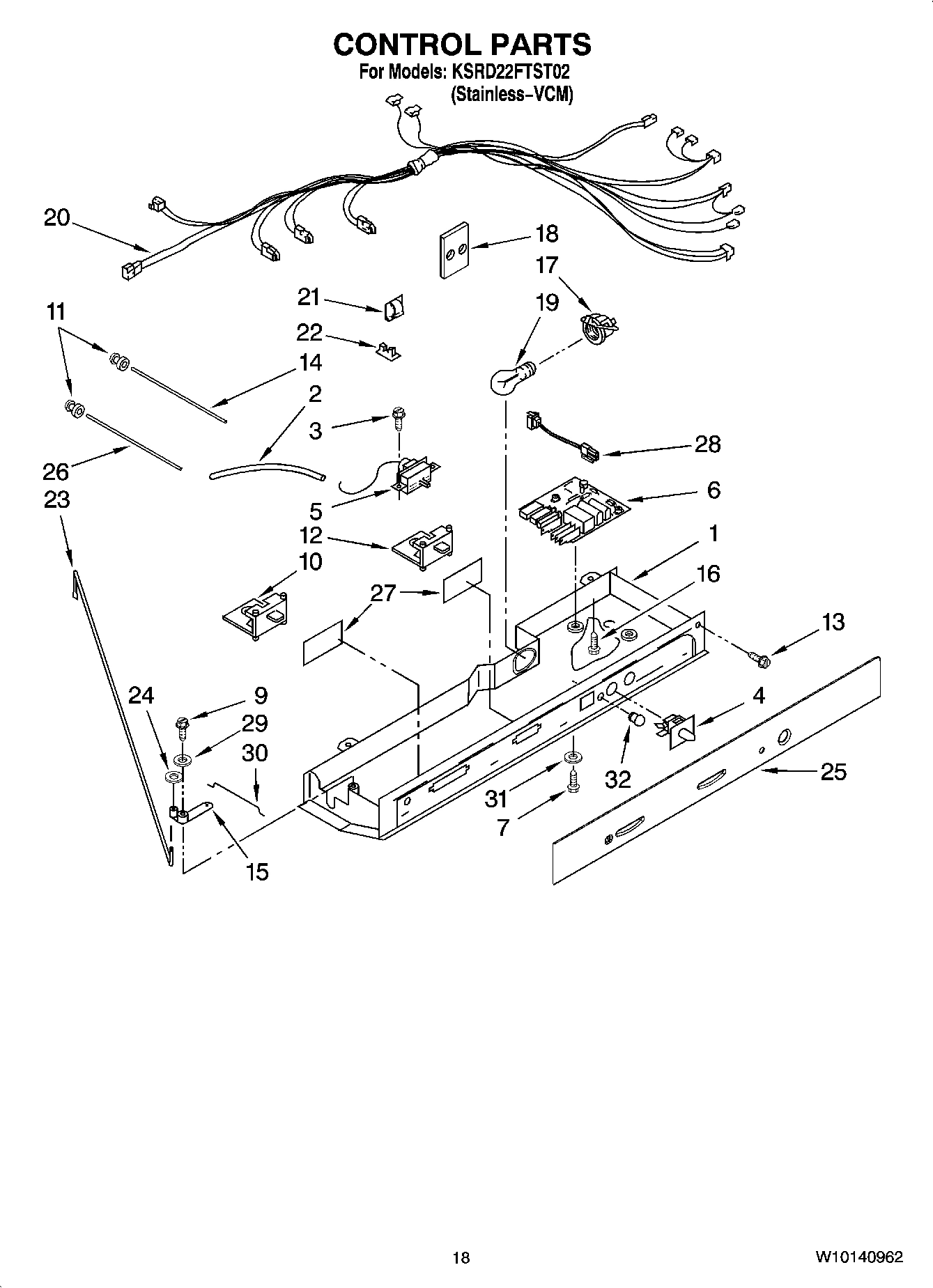

Control Box WPL 8201785 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

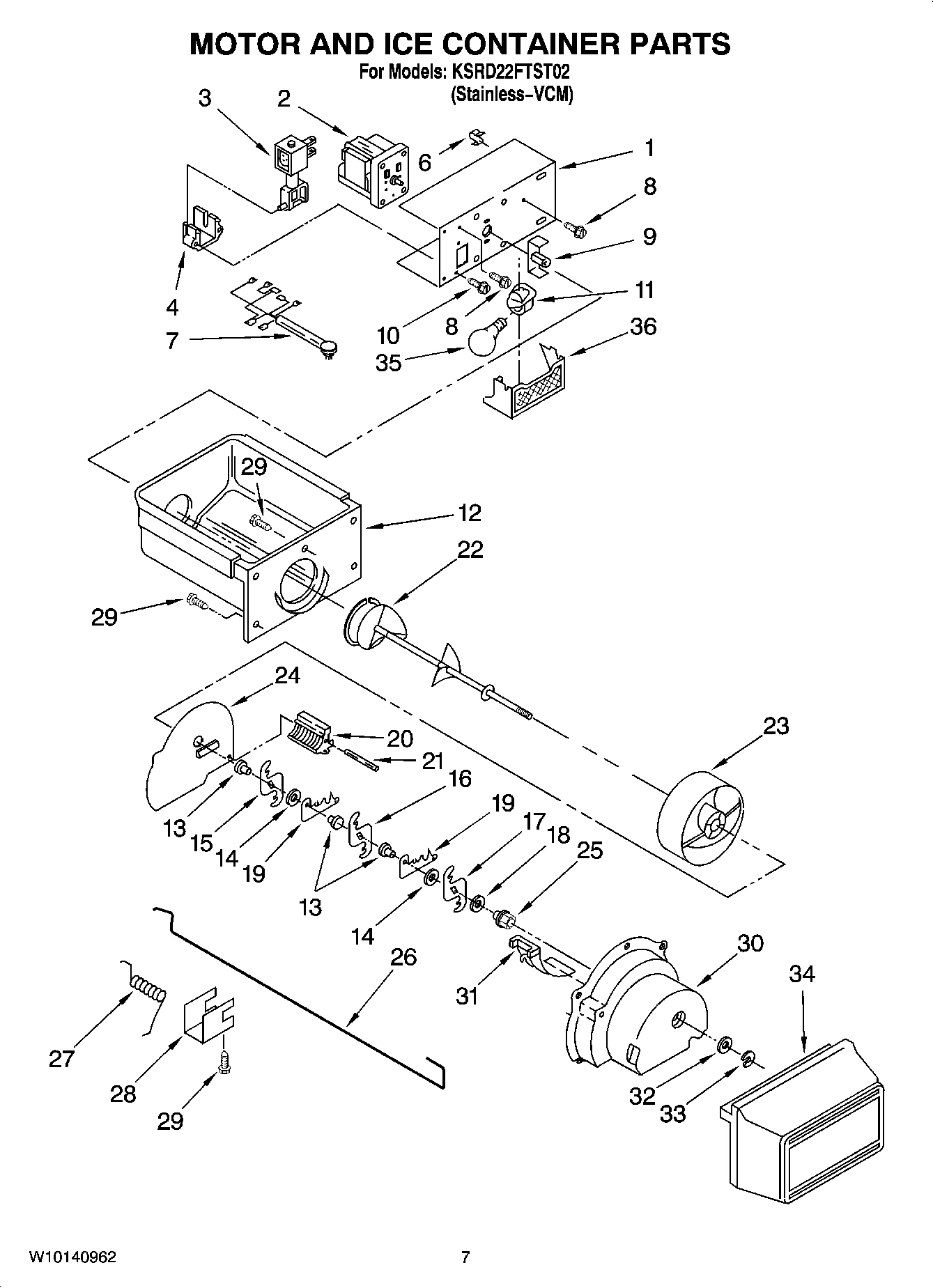

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

Slide, Ice Door WPL 1115380 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

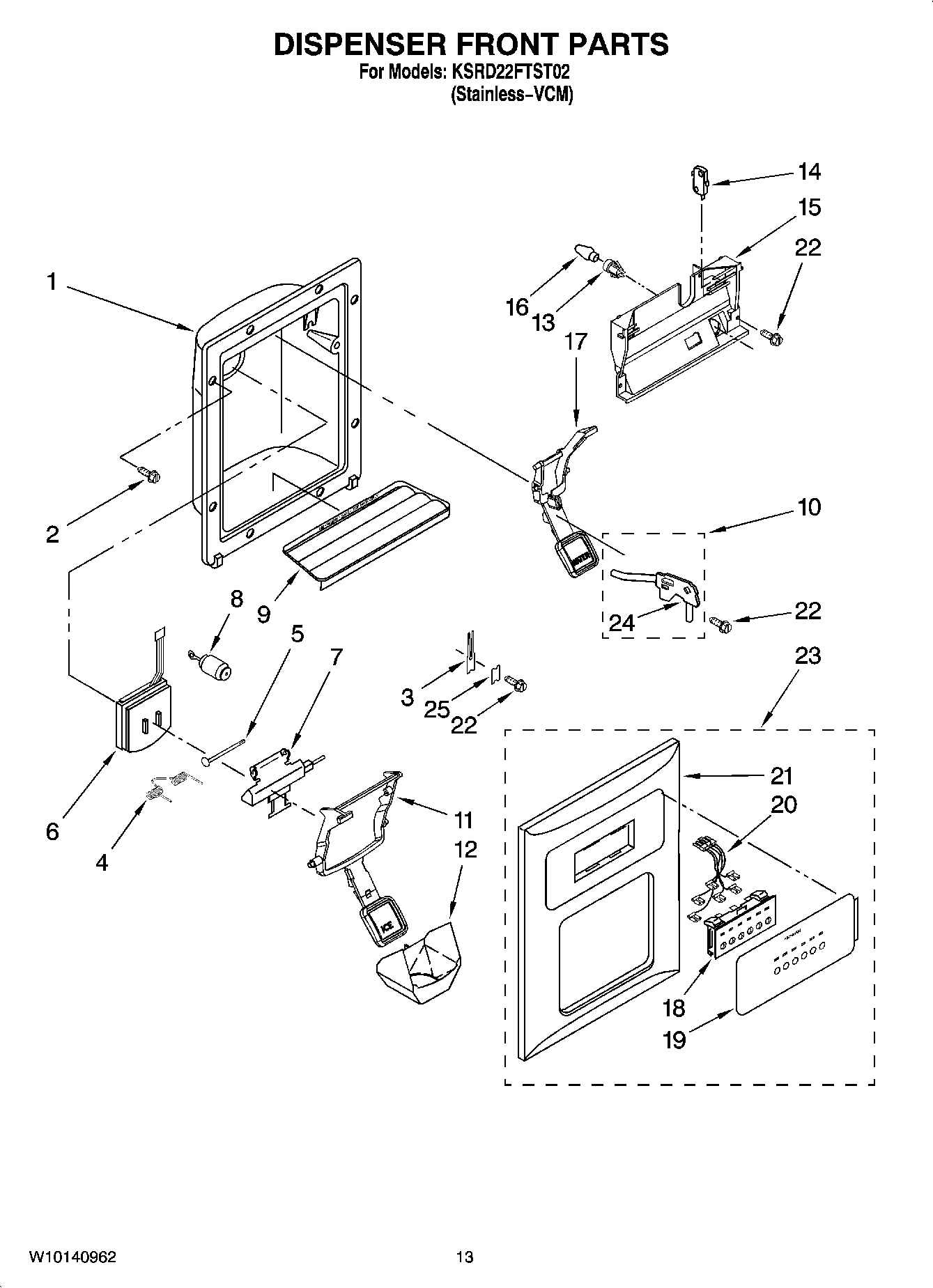

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

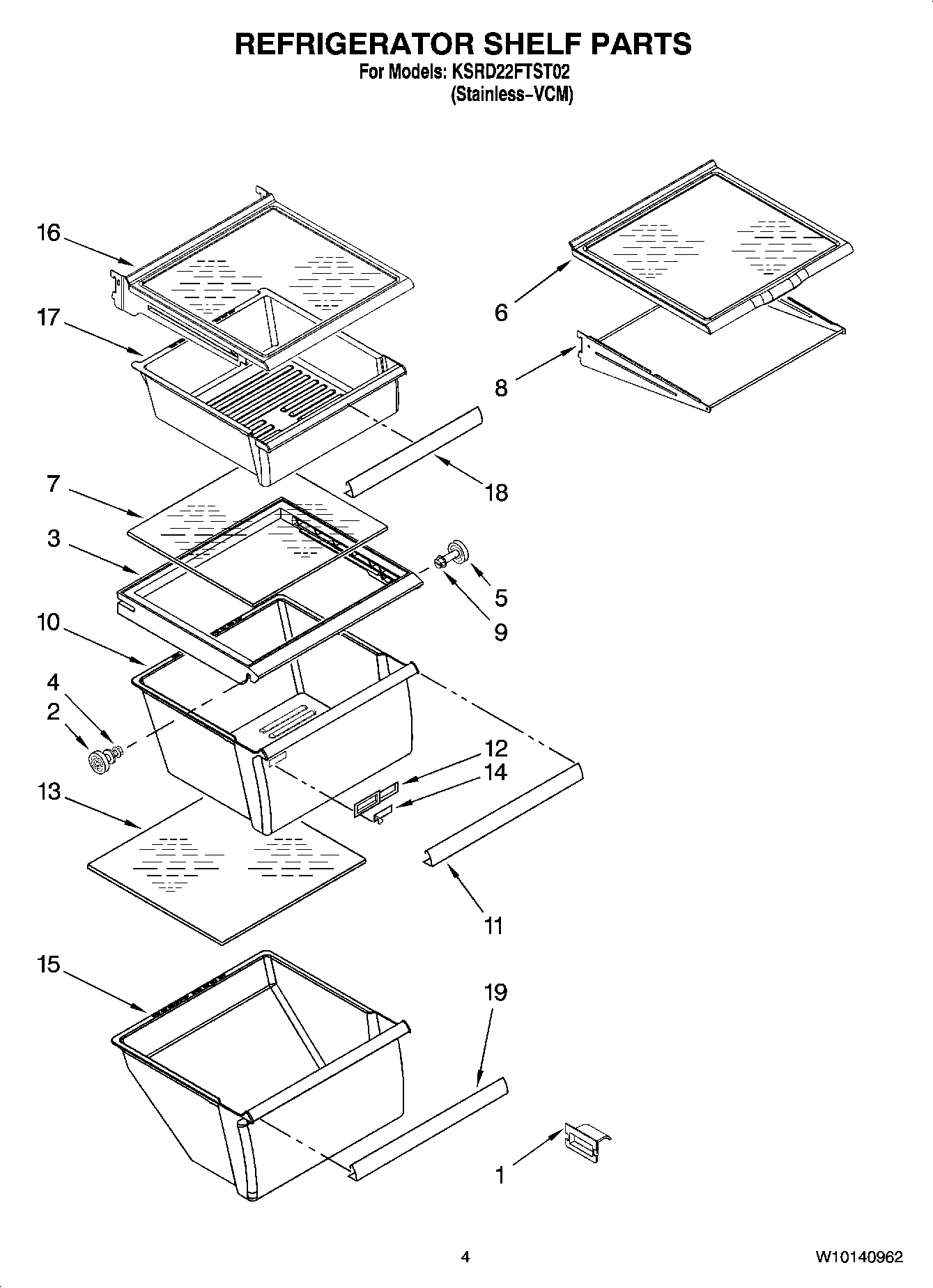

Shelf Bin (4) WPL 2171063K Contact Us For Availability

4

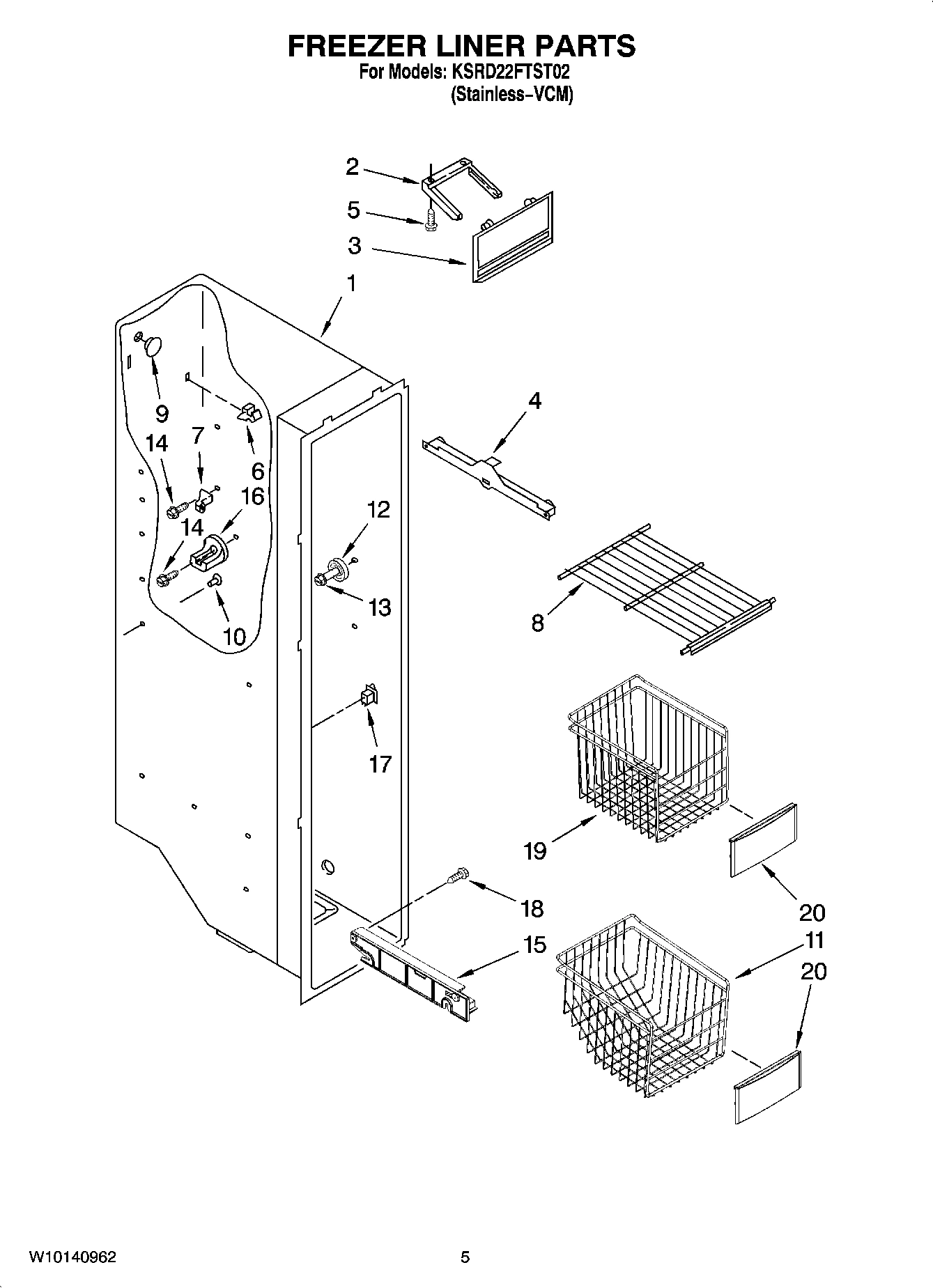

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

4

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2257741 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $49.85

5

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $50.03

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Spillguard, Slide Out (2) WPL 2216102 Contact Us For Availability

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

7

Ladder, Shelf WPL 2206270 Contact Us For Availability

8

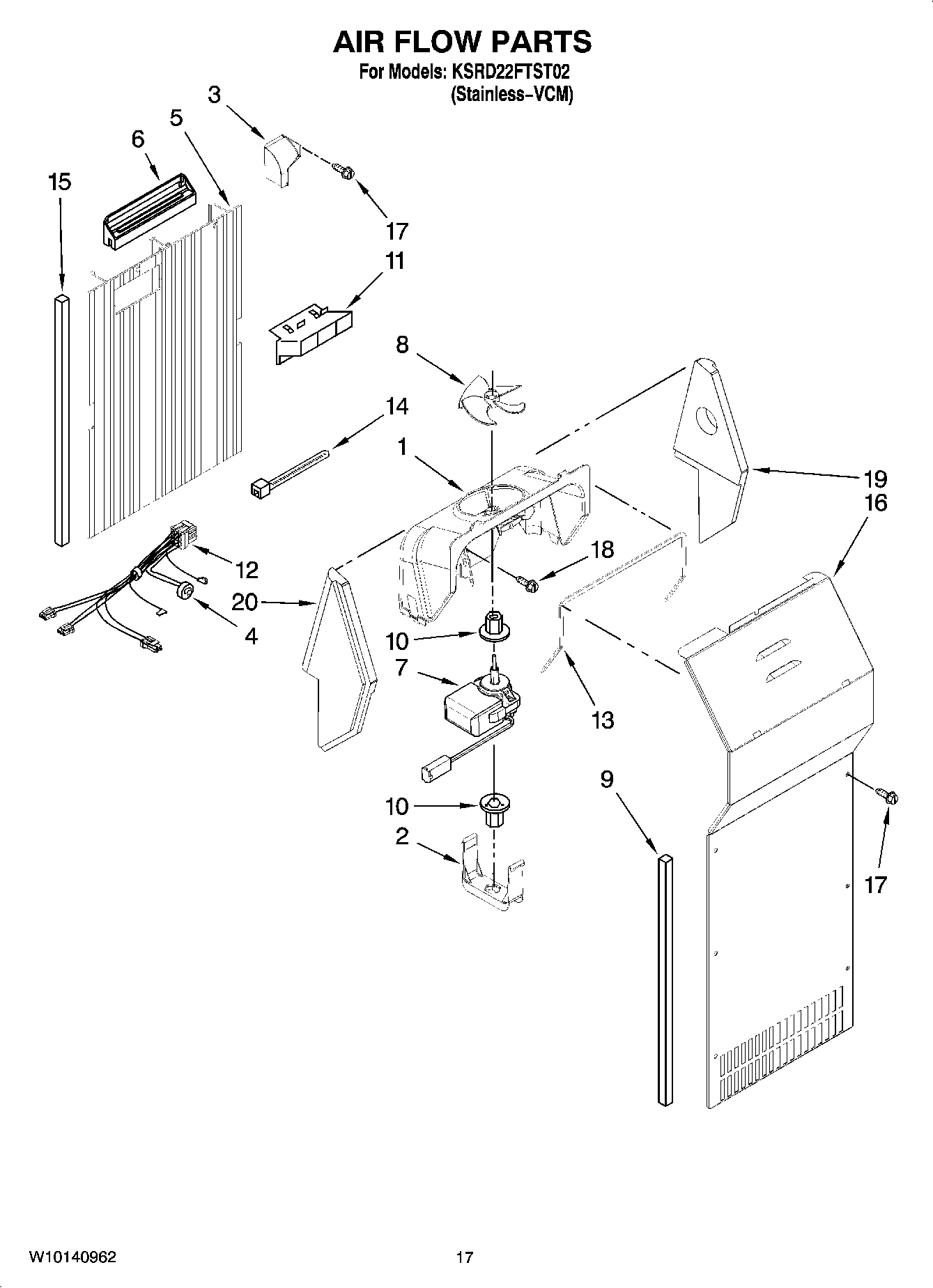

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $107.97

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Frame, Shelf (2) WPL 2195975 Contact Us For Availability

9

Backorder WPL 2179404 $8.47

9

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

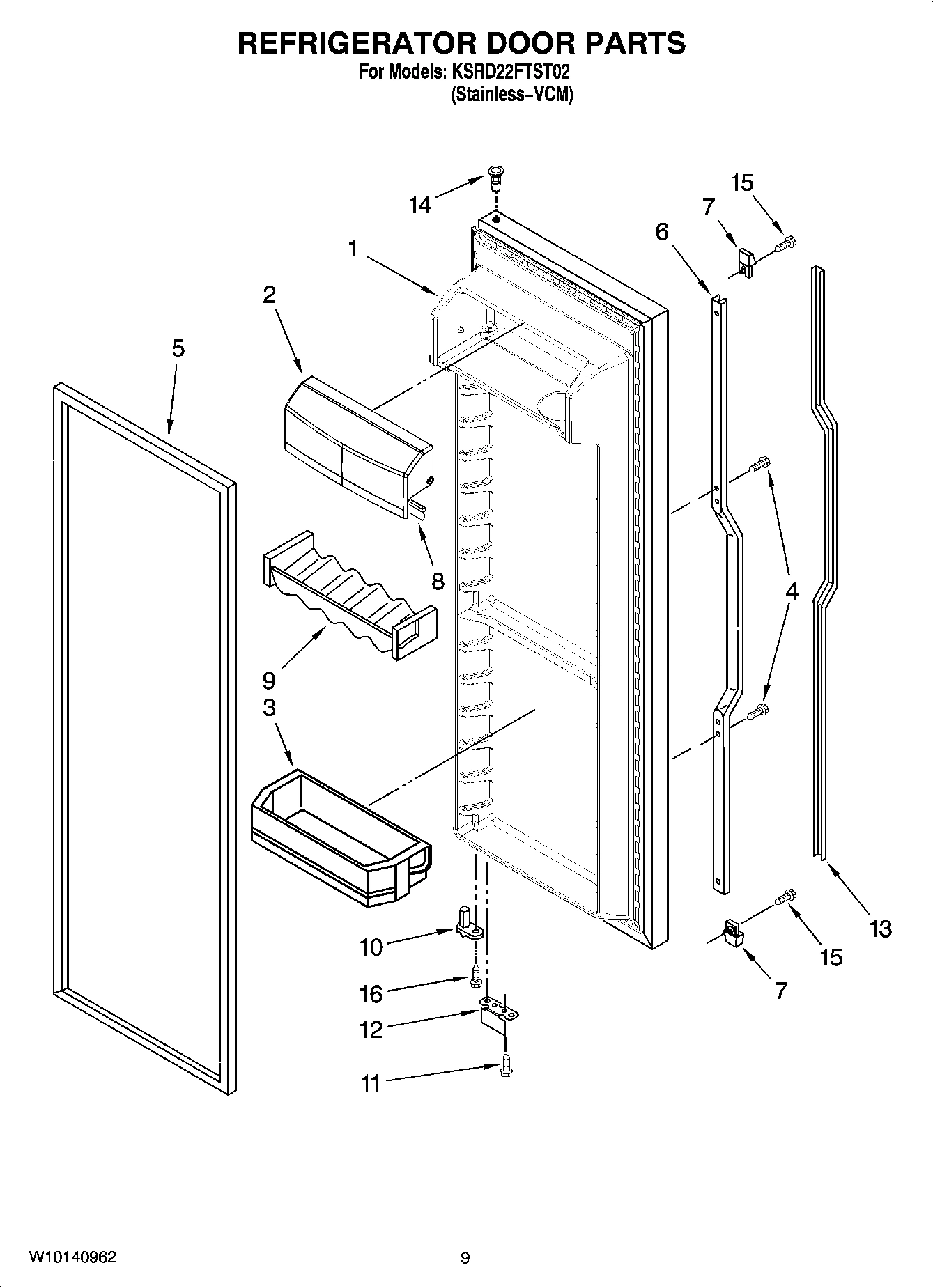

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

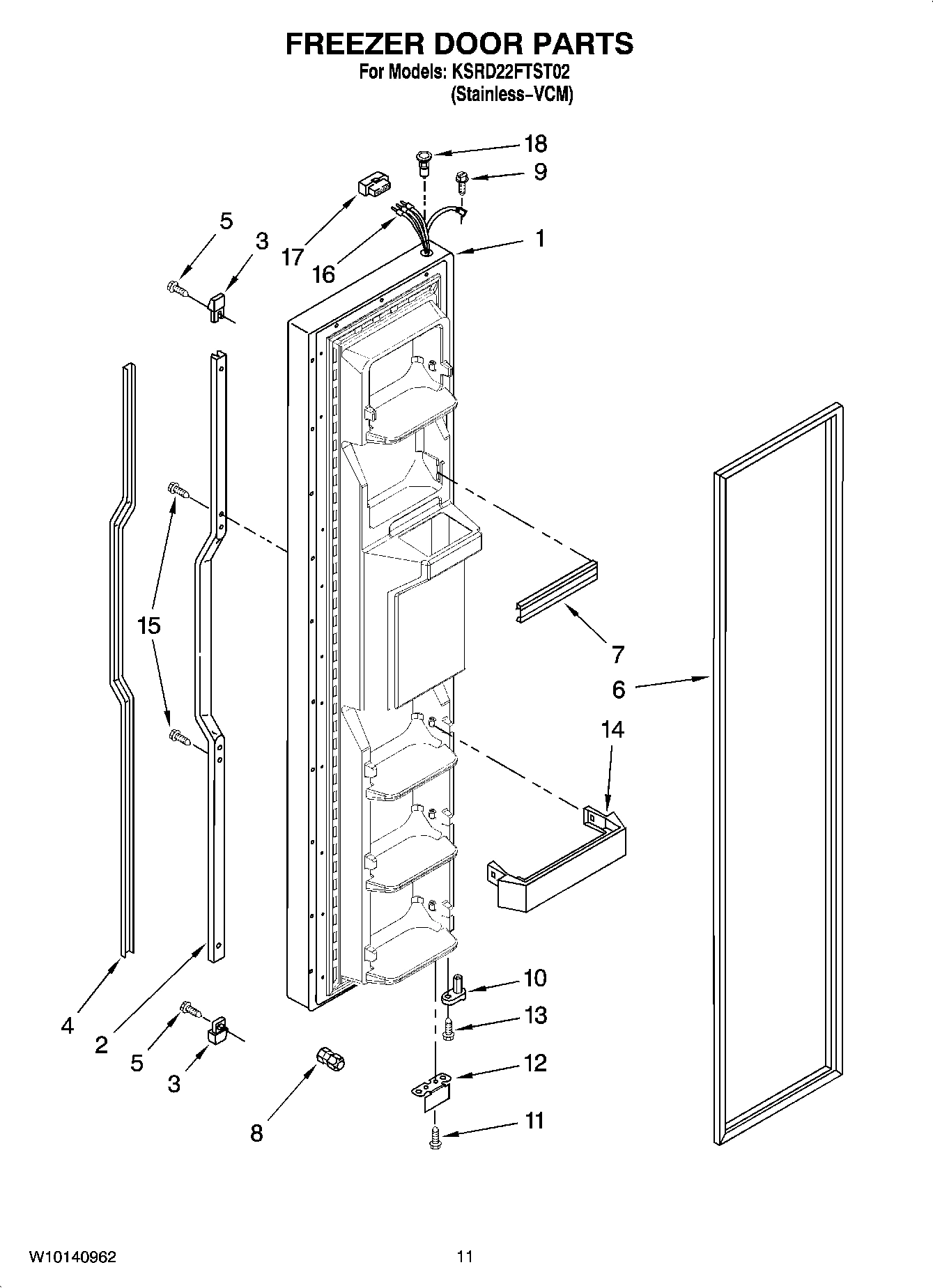

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

Basket, Sloped WPL 2301193 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

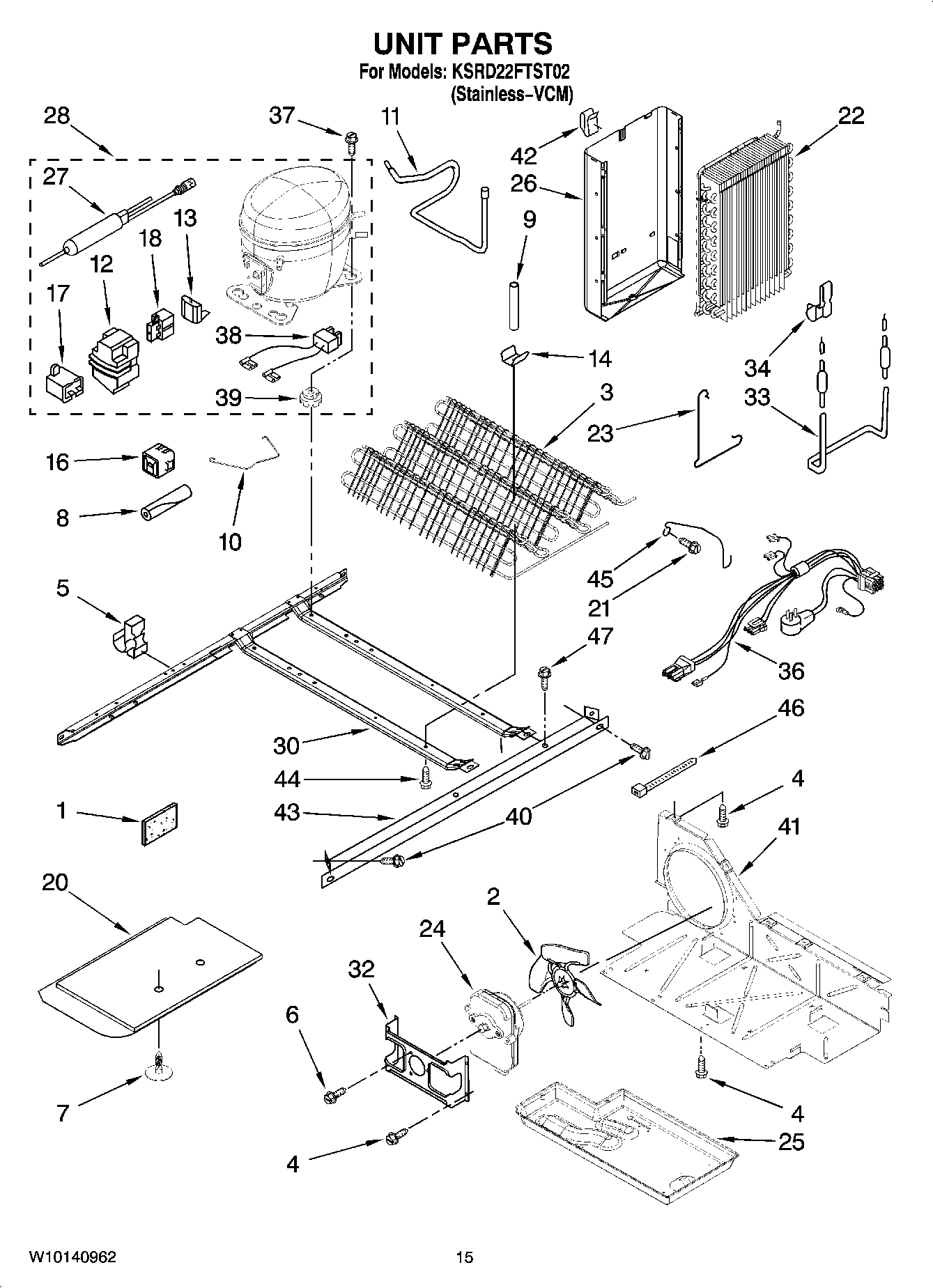

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

WP2261449 Whirlpool Refrigerator Track Backorder WPL WP2261449 $44.08

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Slide, Freezer Bin (Left Side) WPL 2261448 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Stud, Rear WPL 2196207 Contact Us For Availability

Shelf, Snack Bin WPL 2206346 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Screw WPL 488280 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

Basket, Square WPL 2301192 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $83.66

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

Extension Tube WPL 2304937 Contact Us For Availability

Front, Basket WPL 2171768K Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

21

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

21

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $97.41

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

CLIP, WIRING WPL 1115375 Contact Us For Availability

23

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $45.29

23

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

23

Clamp WPL 2161324 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Fastener, Push-On WPL 489391 Contact Us For Availability

25

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

Escutcheon, Control Box WPL W10124122 Contact Us For Availability

26

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

26

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

27

Window WPL 2175513 Contact Us For Availability

28

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

28

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

28

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

29

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

29

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

31

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

31

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

33

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

34

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

36

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

44

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz WPL ARI95723A6 Contact Us For Availability

100

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07
