Model Whirlpool KSRB27QFSS00 – Common Parts & Diagrams
12 - ICEMAKER, LIT/OPTIONAL
07 - FREEZER DOOR
01 - CABINET

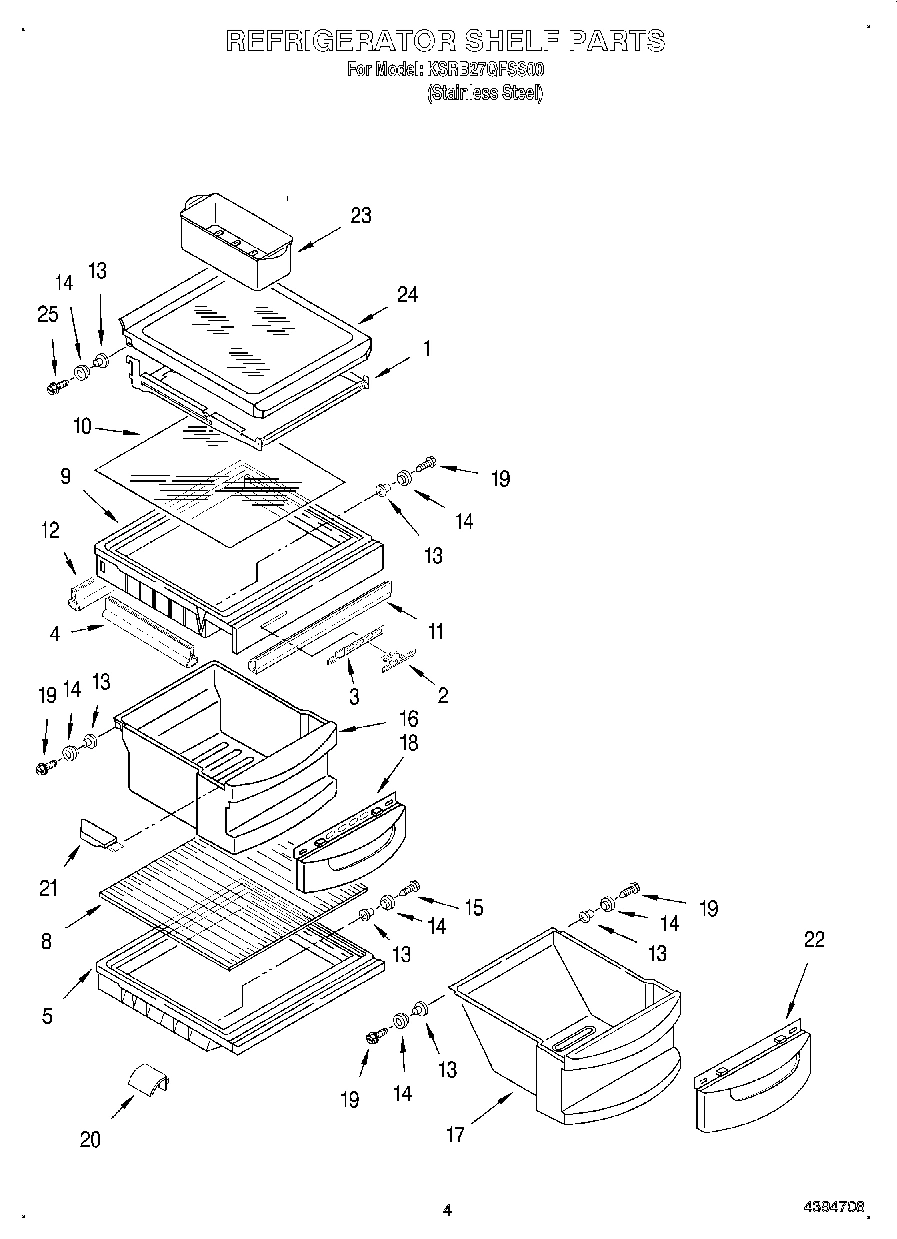

03 - REFRIGERATOR SHELF

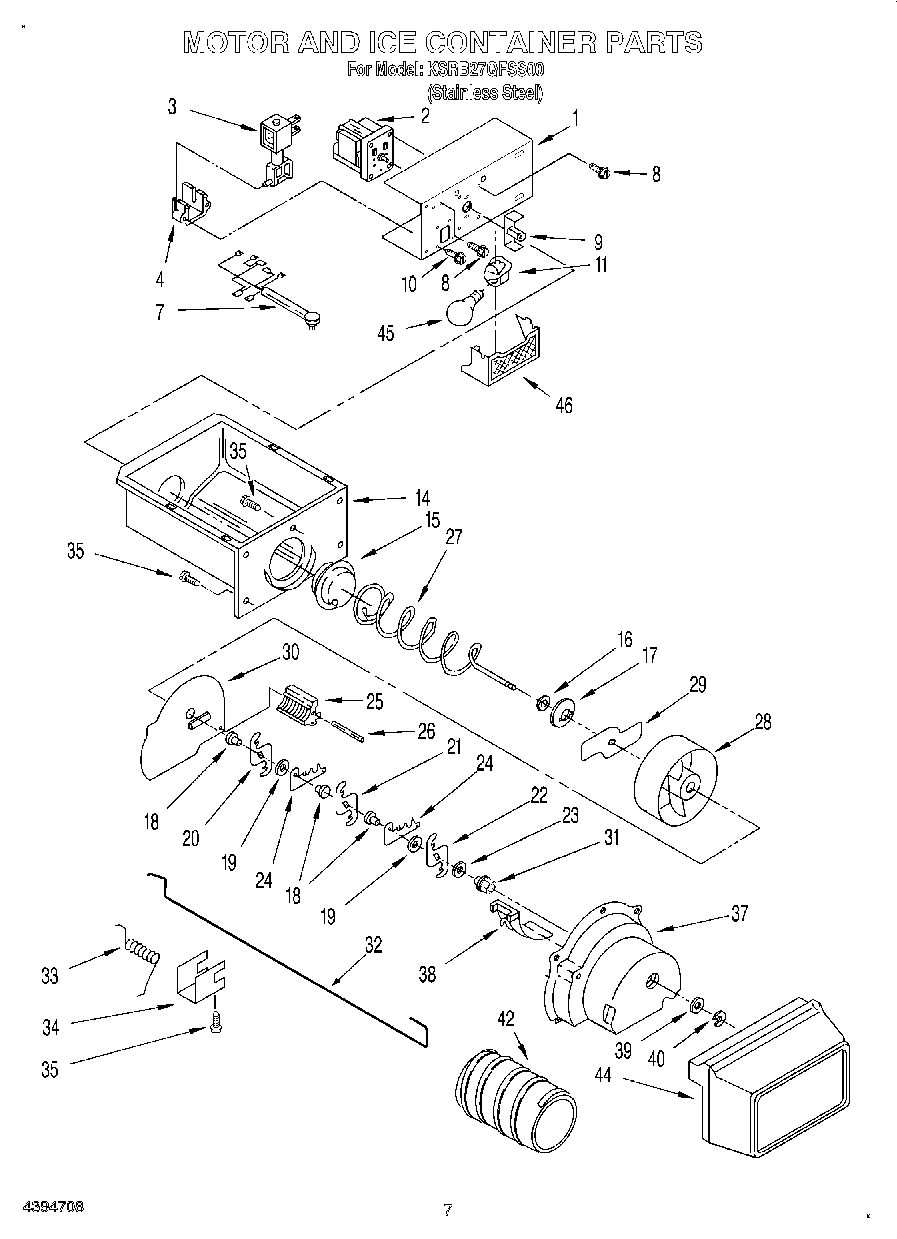

05 - MOTOR AND ICE CONTAINER

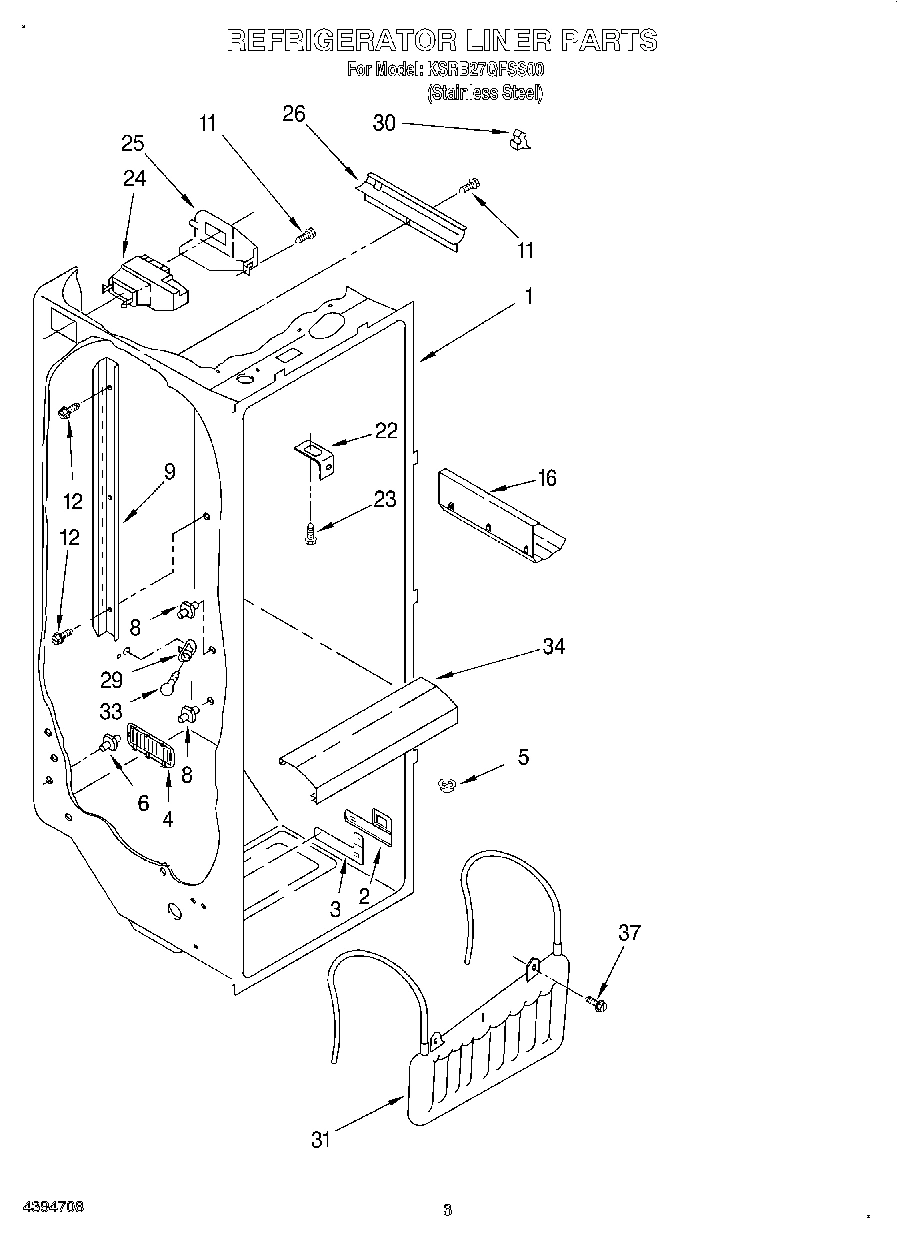

02 - REFRIGERATOR LINER
04 - FREEZER LINER
10 - CONTROL

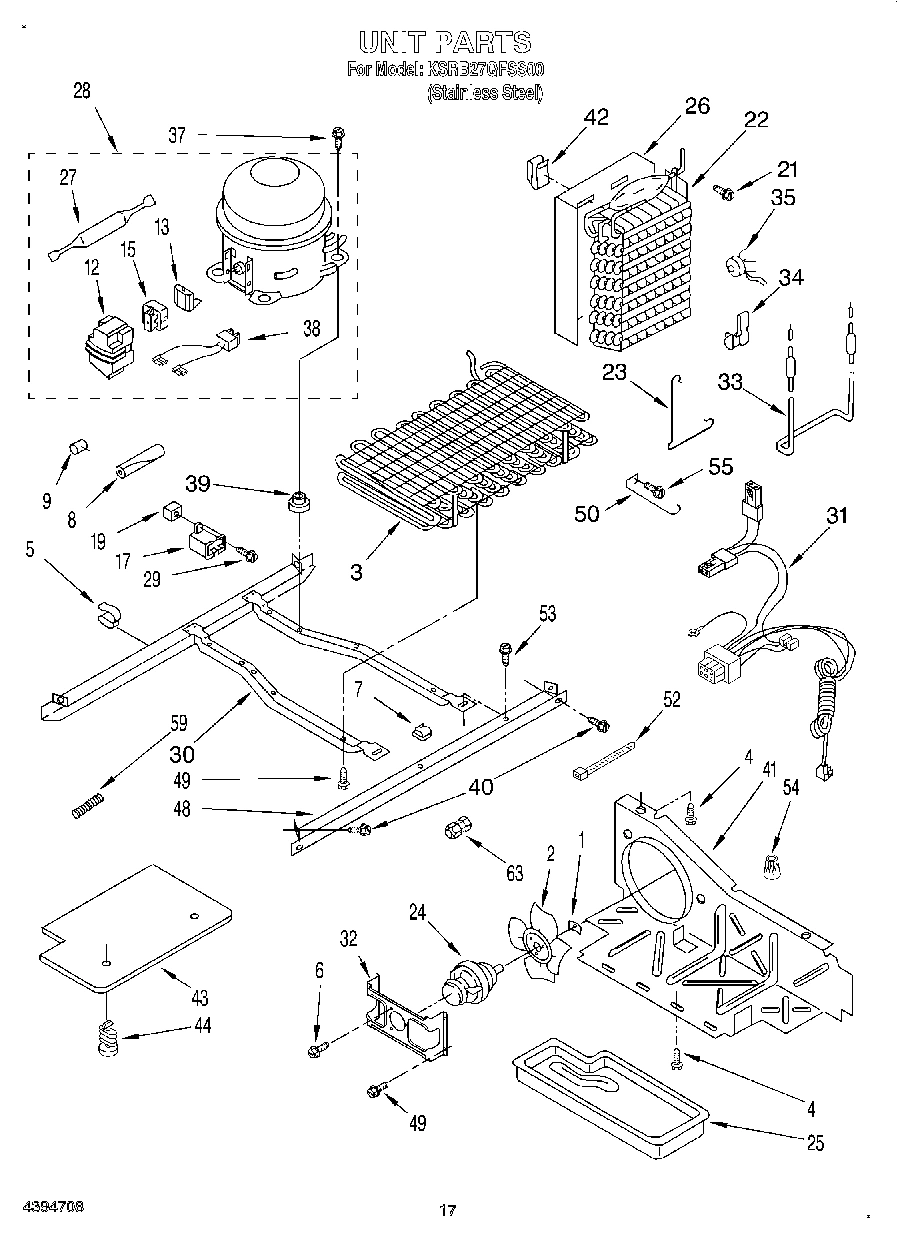

11 - UNIT
09 - AIR FLOW

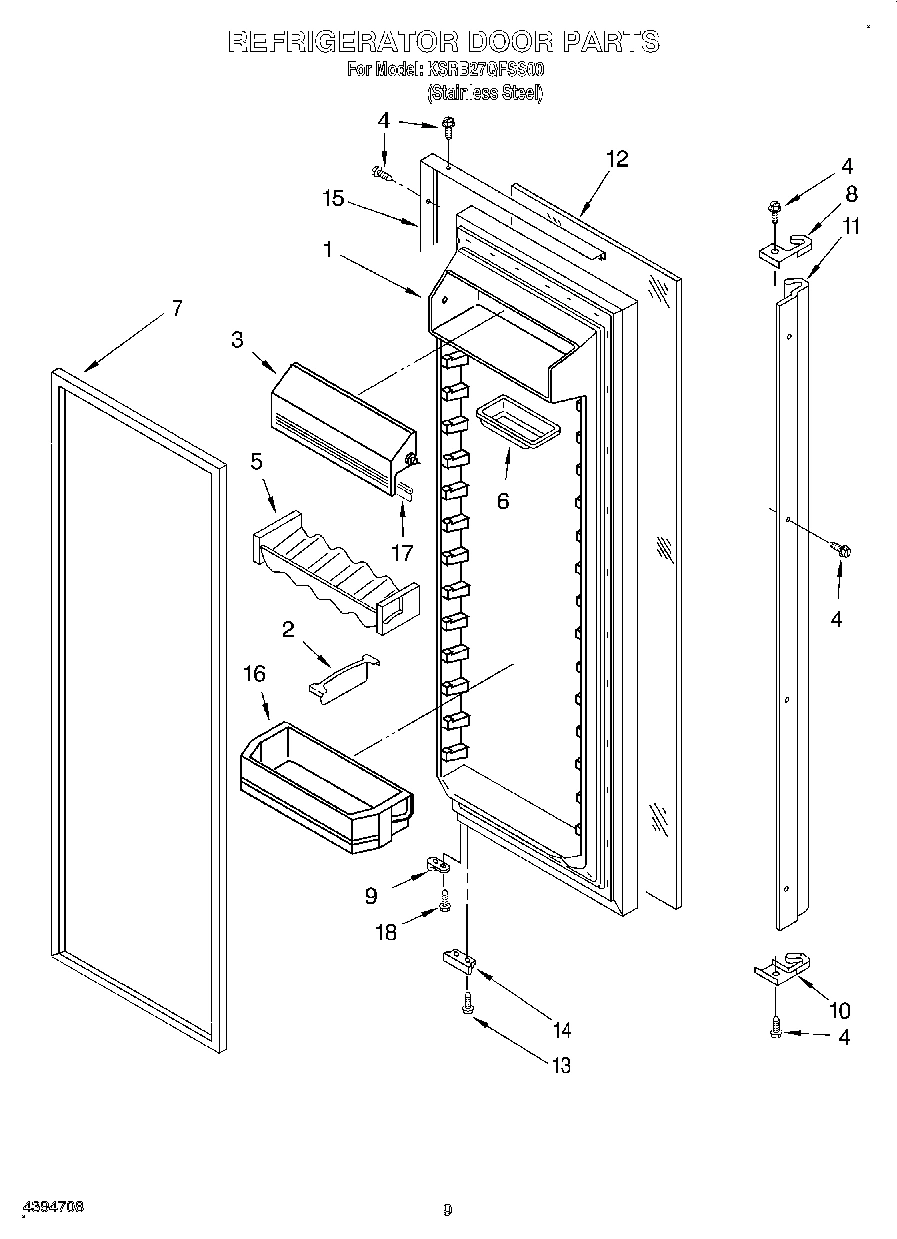

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
Common parts from model Whirlpool KSRB27QFSS00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95129A9 Contact Us For Availability
1
Control Box WPL 2172930 Contact Us For Availability
1
Refrigerator Door (Includes Item 7) WPL 2194959 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI95130A6 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Screw WPL 489481 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
5
Beverage Holder WPL 2193409 Contact Us For Availability
6
Tray, Butter WPL 2165792 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap WPL 2198101 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
10
End Cap WPL 2198099 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Handle WPL 2194948 Contact Us For Availability
11
Lever, Ice Dispenser WPL 2180261 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Panel (Stainless Steel) WPL 2194928 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
14
Grille WPL 2155485 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Bracket, Door Stop WPL 2155331 Contact Us For Availability
15
Relay (See Overload) WPL ARI95132A5 Contact Us For Availability
15
Trim, Door WPL 2194951 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Plaque, Front Cover WPL 2180370 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI95131A9 Contact Us For Availability
22
Hinge Cover WPL 2155938 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180398 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Unit, Harness WPL 2194749 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
