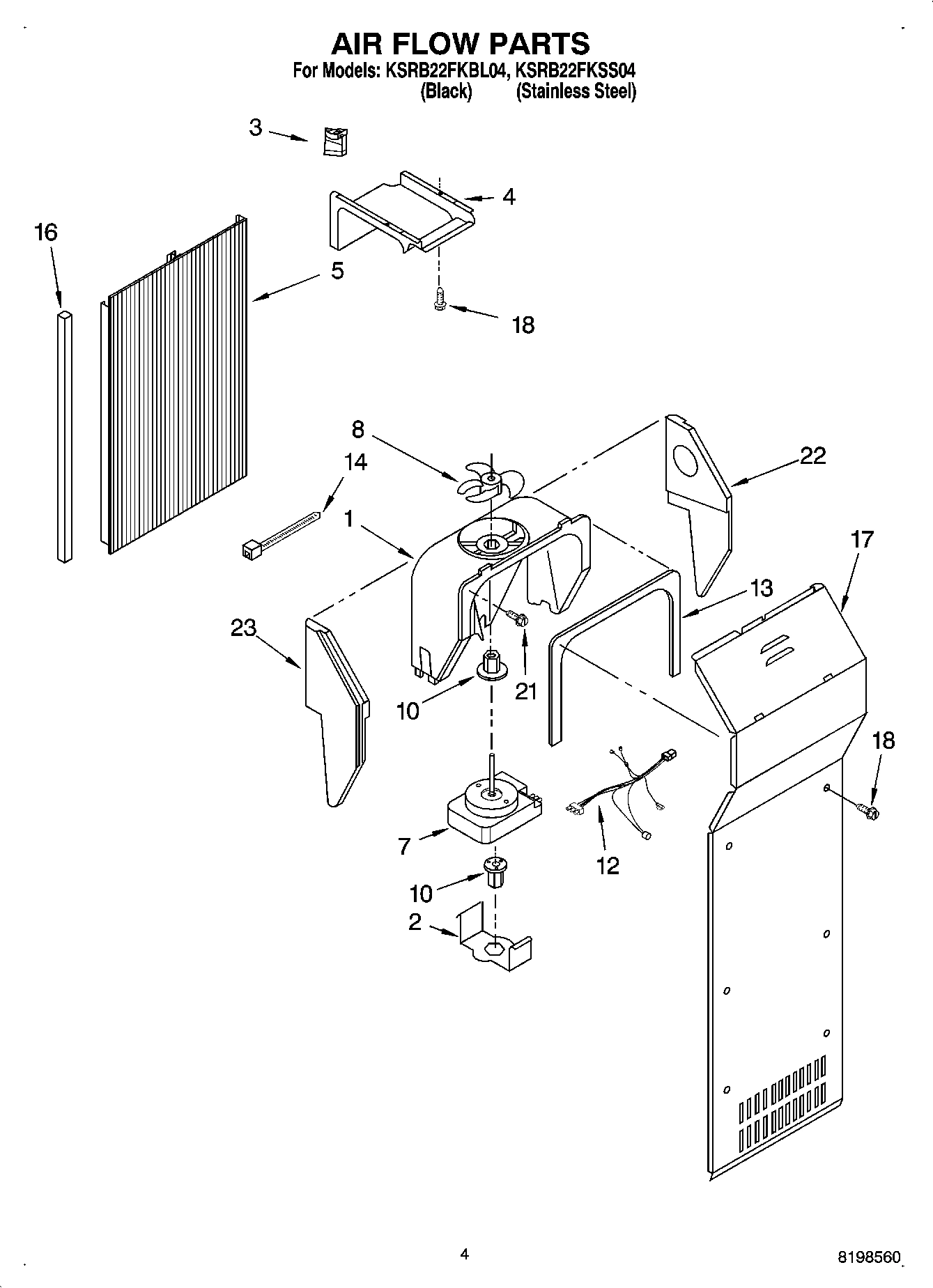

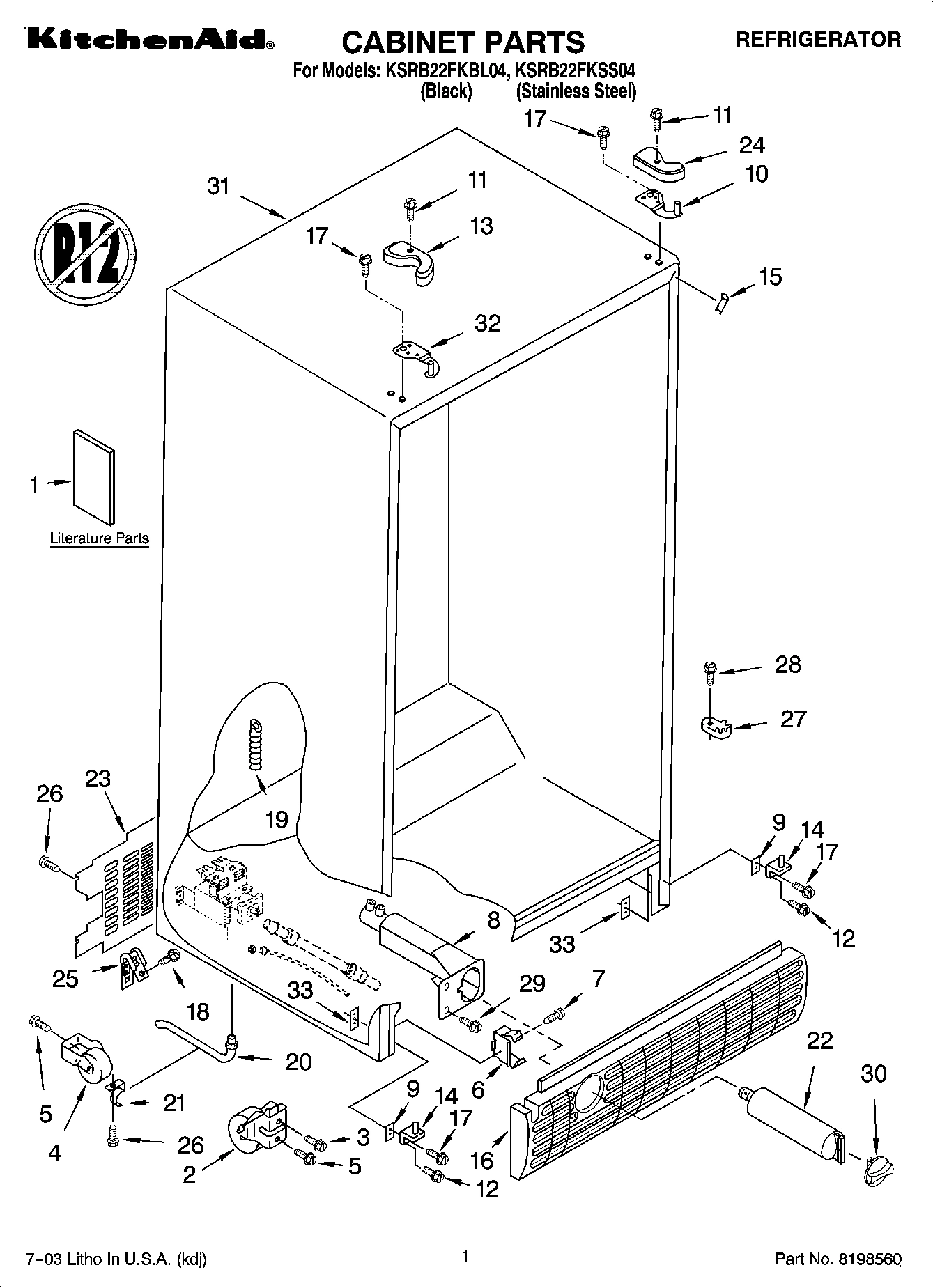

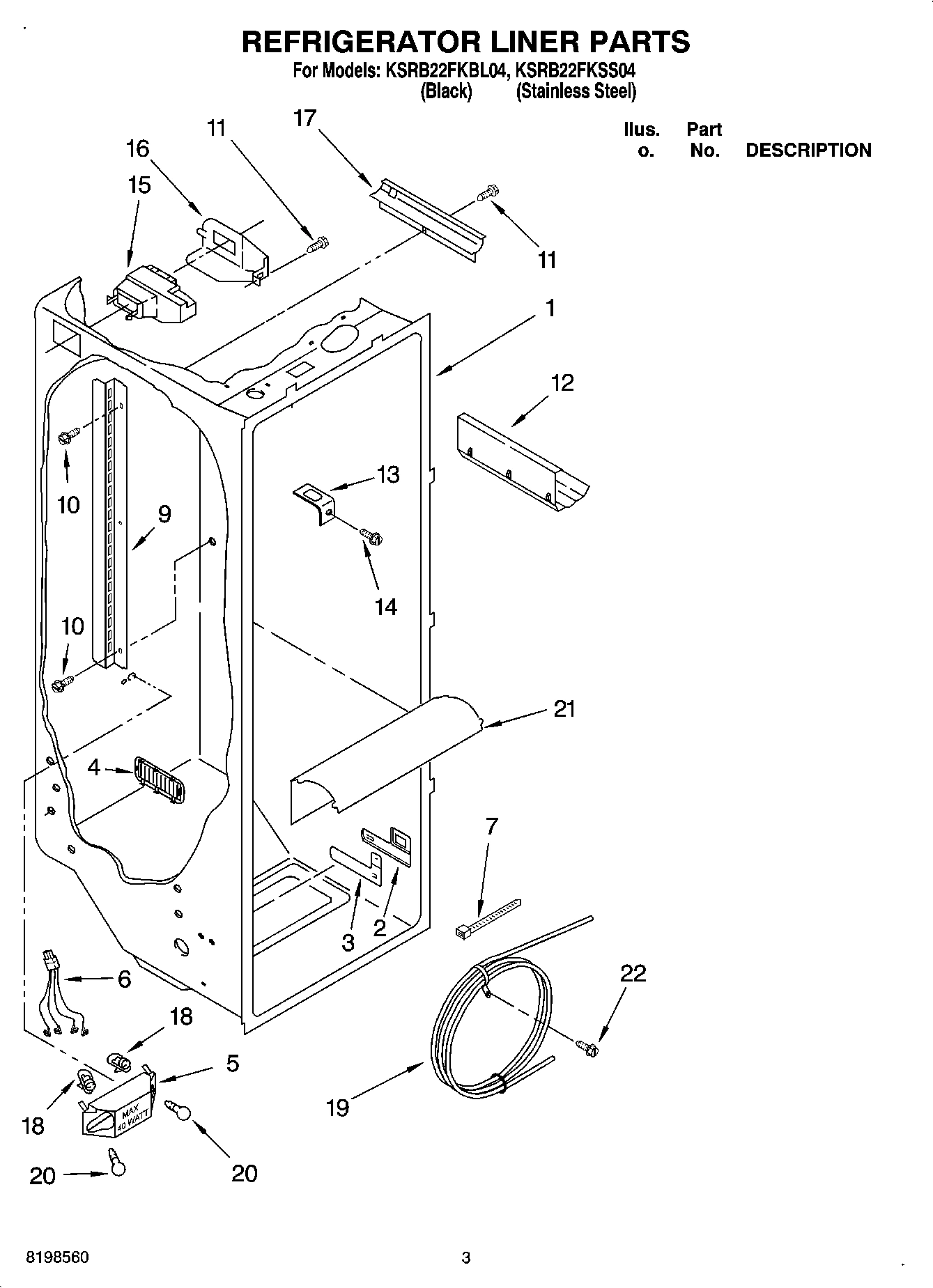

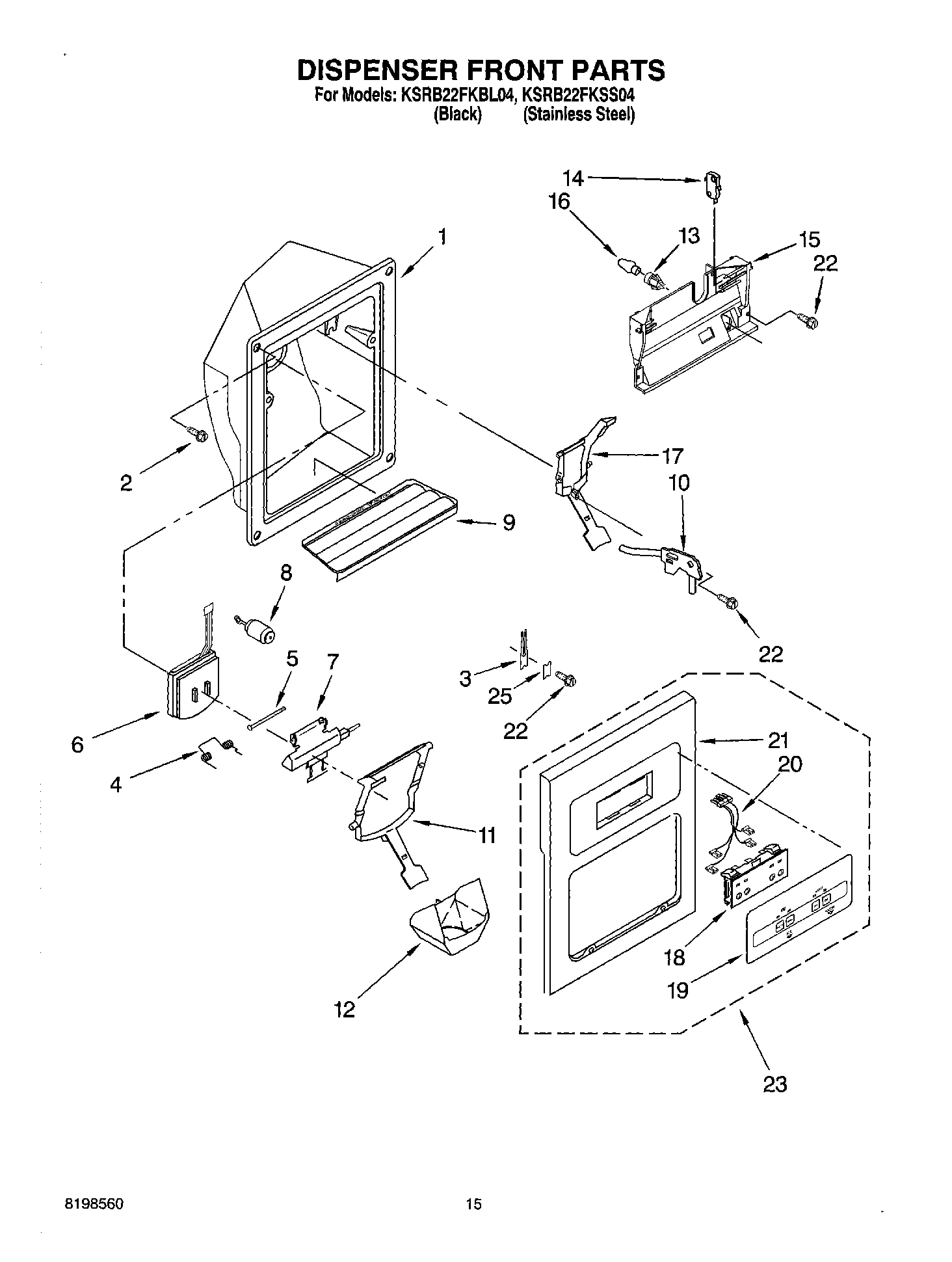

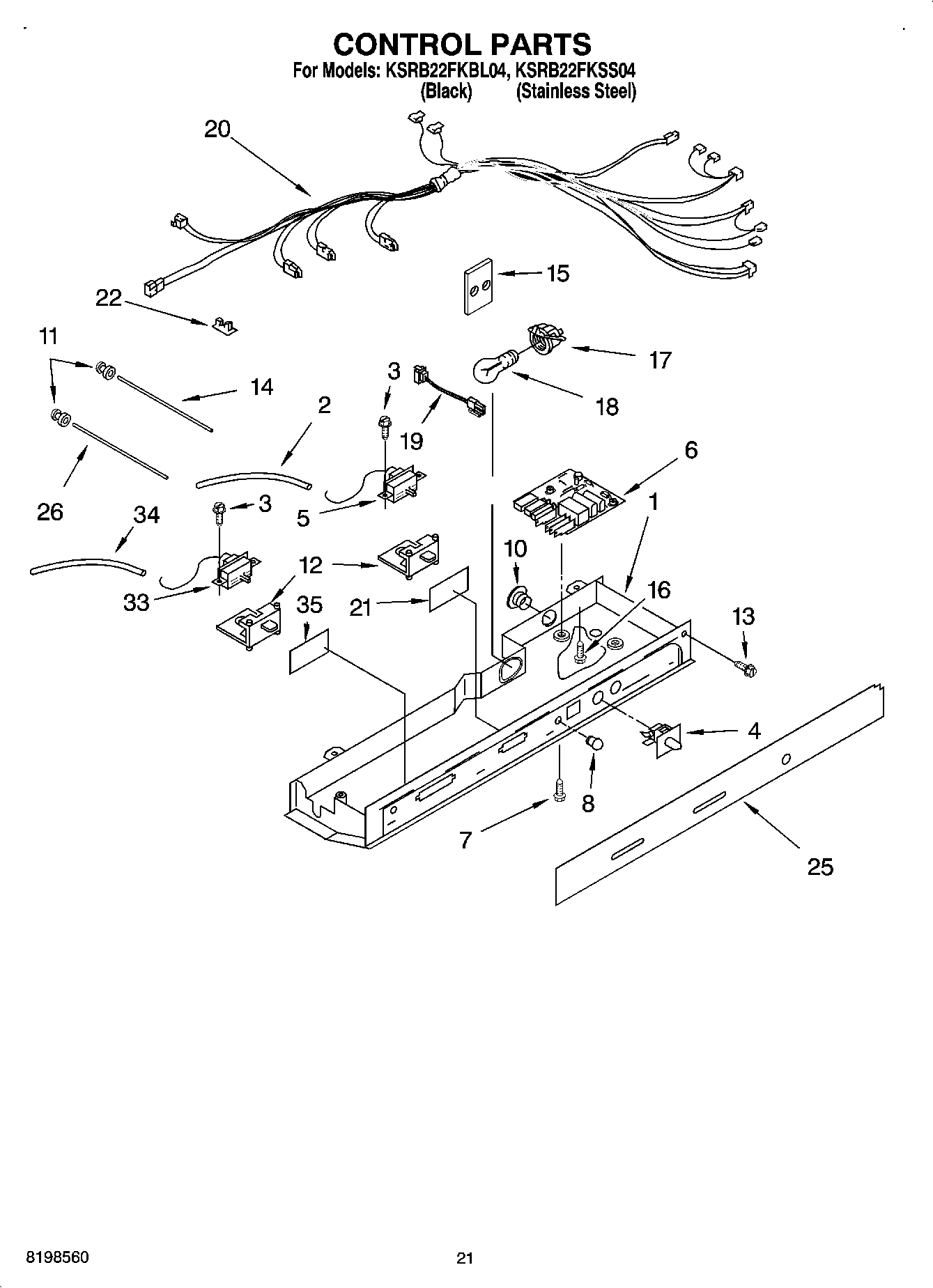

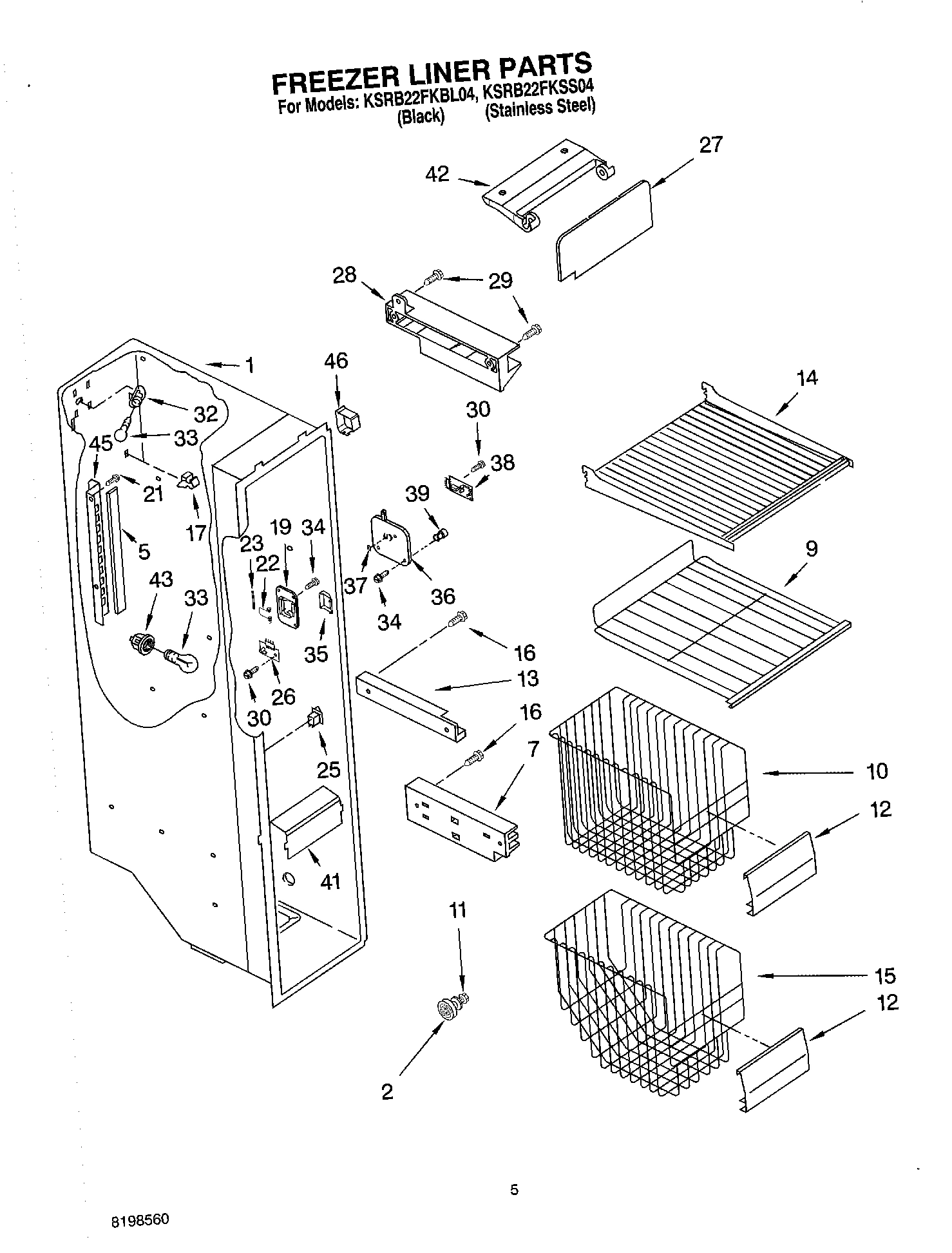

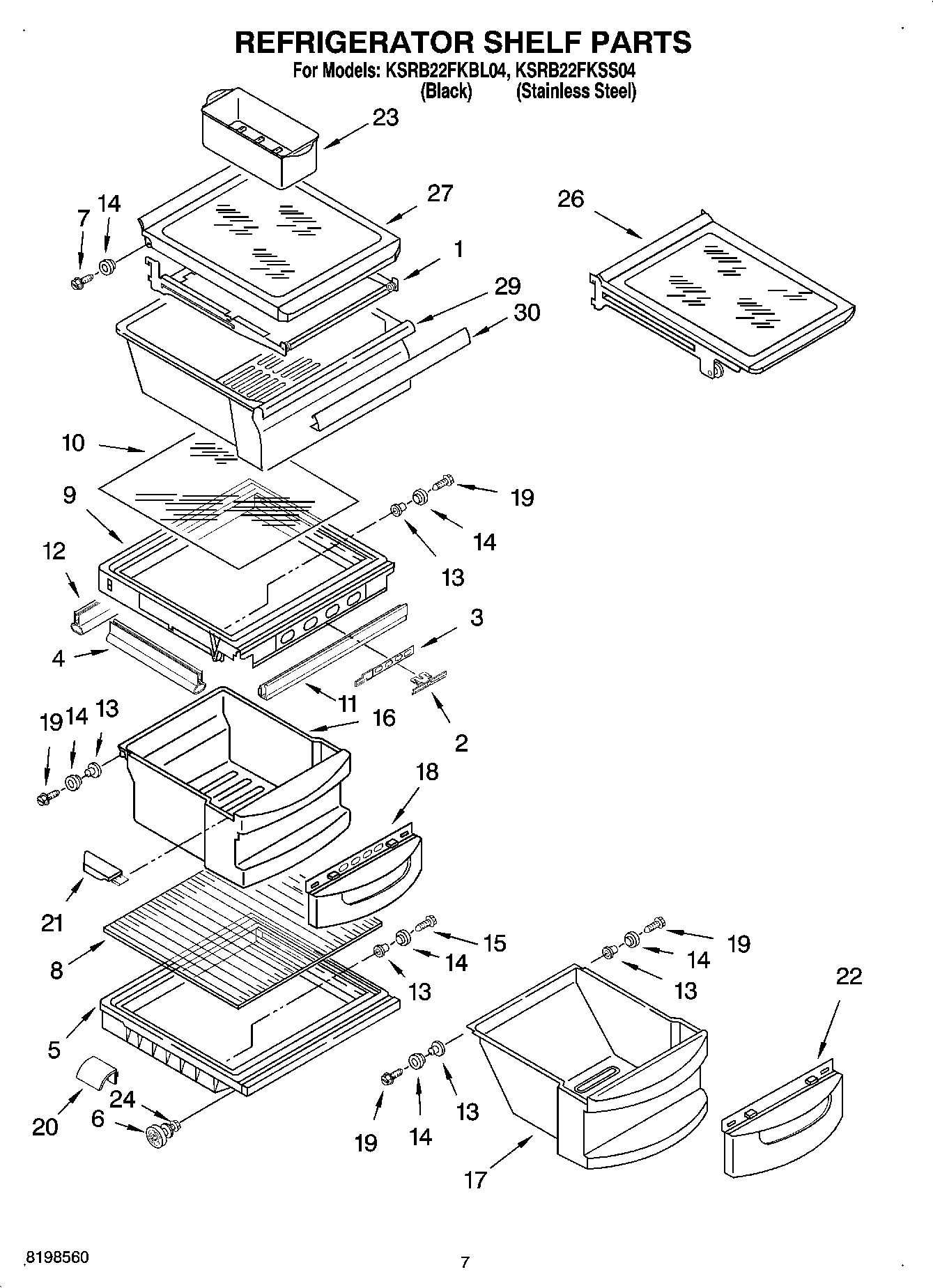

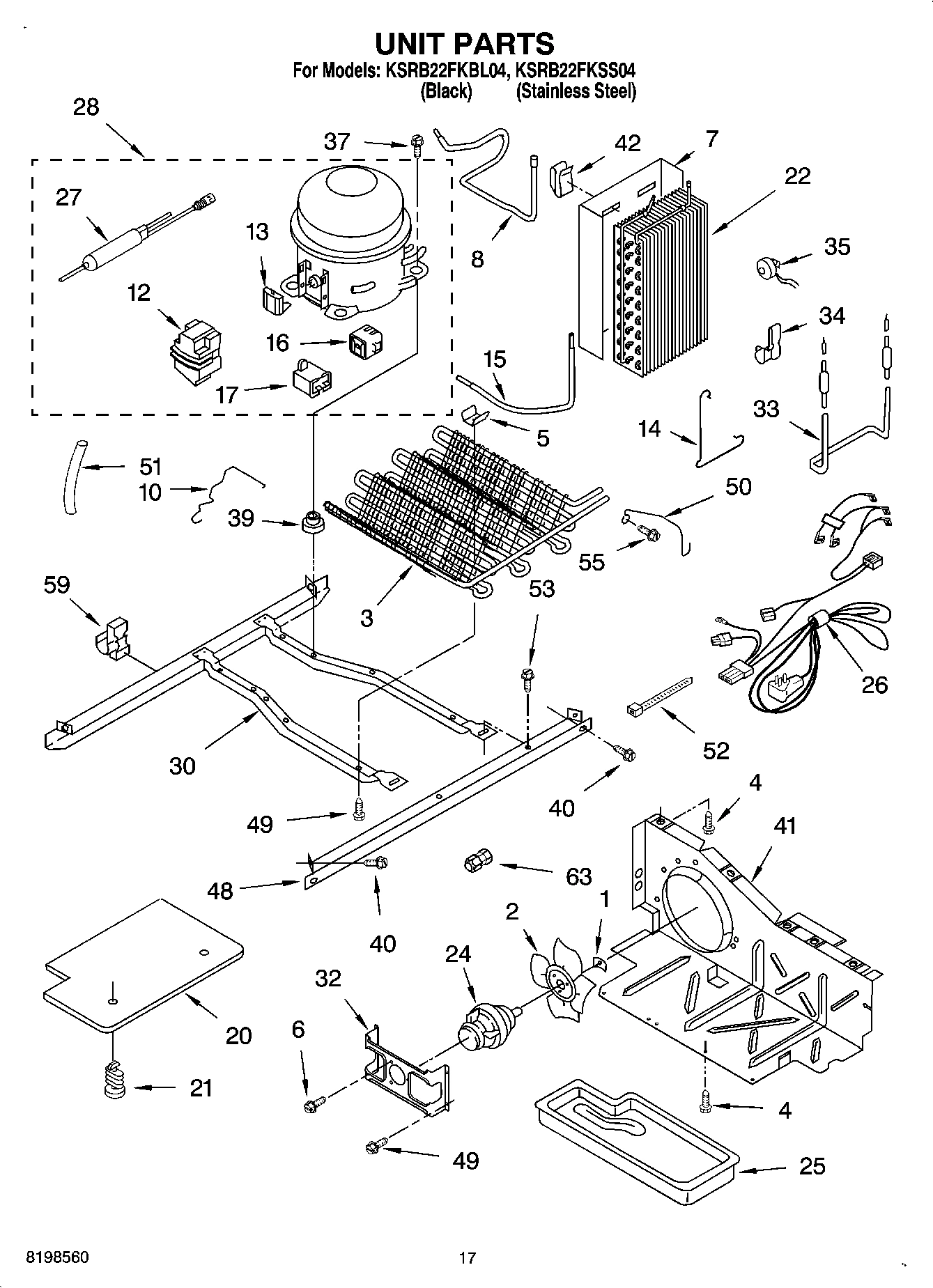

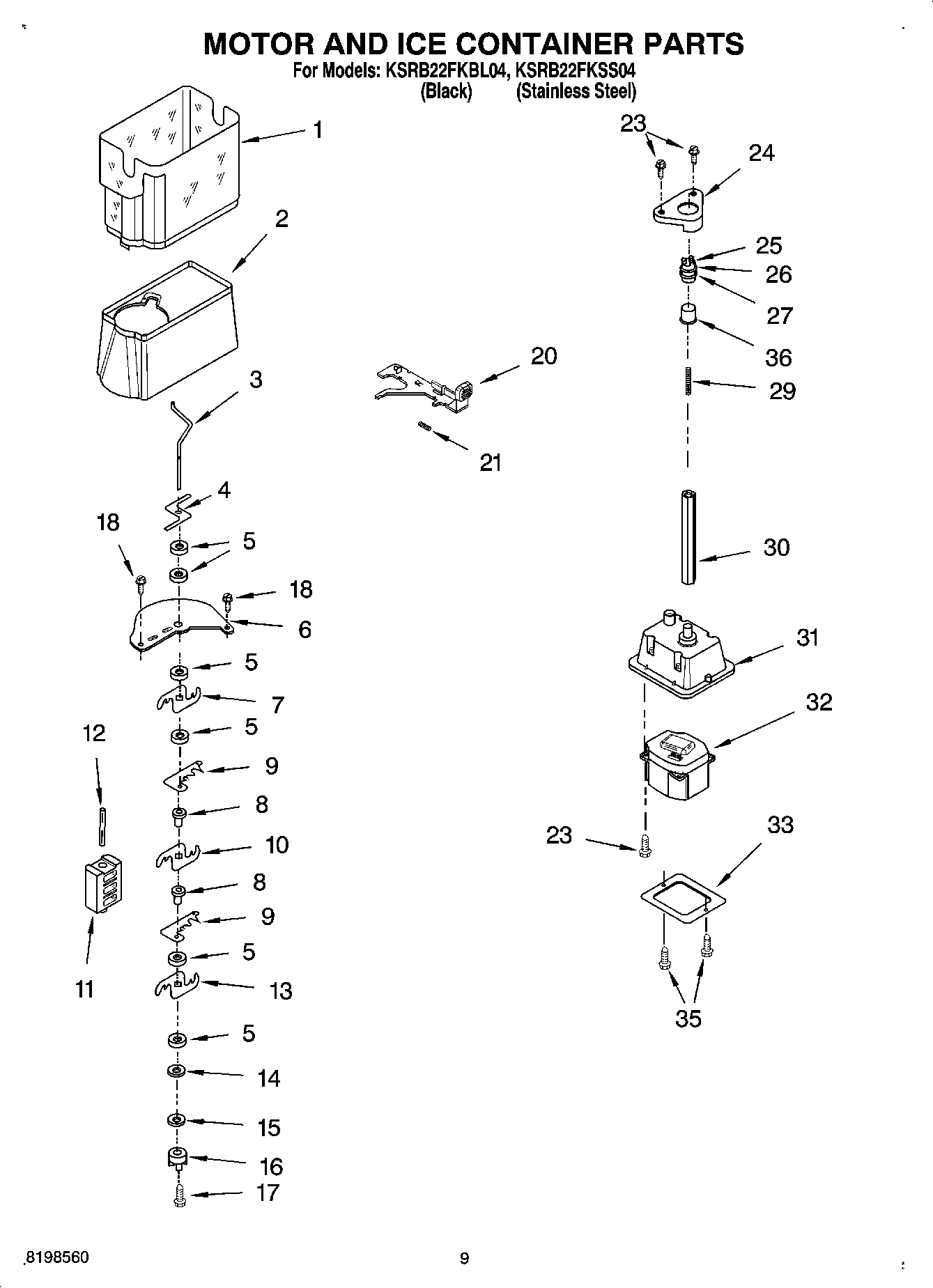

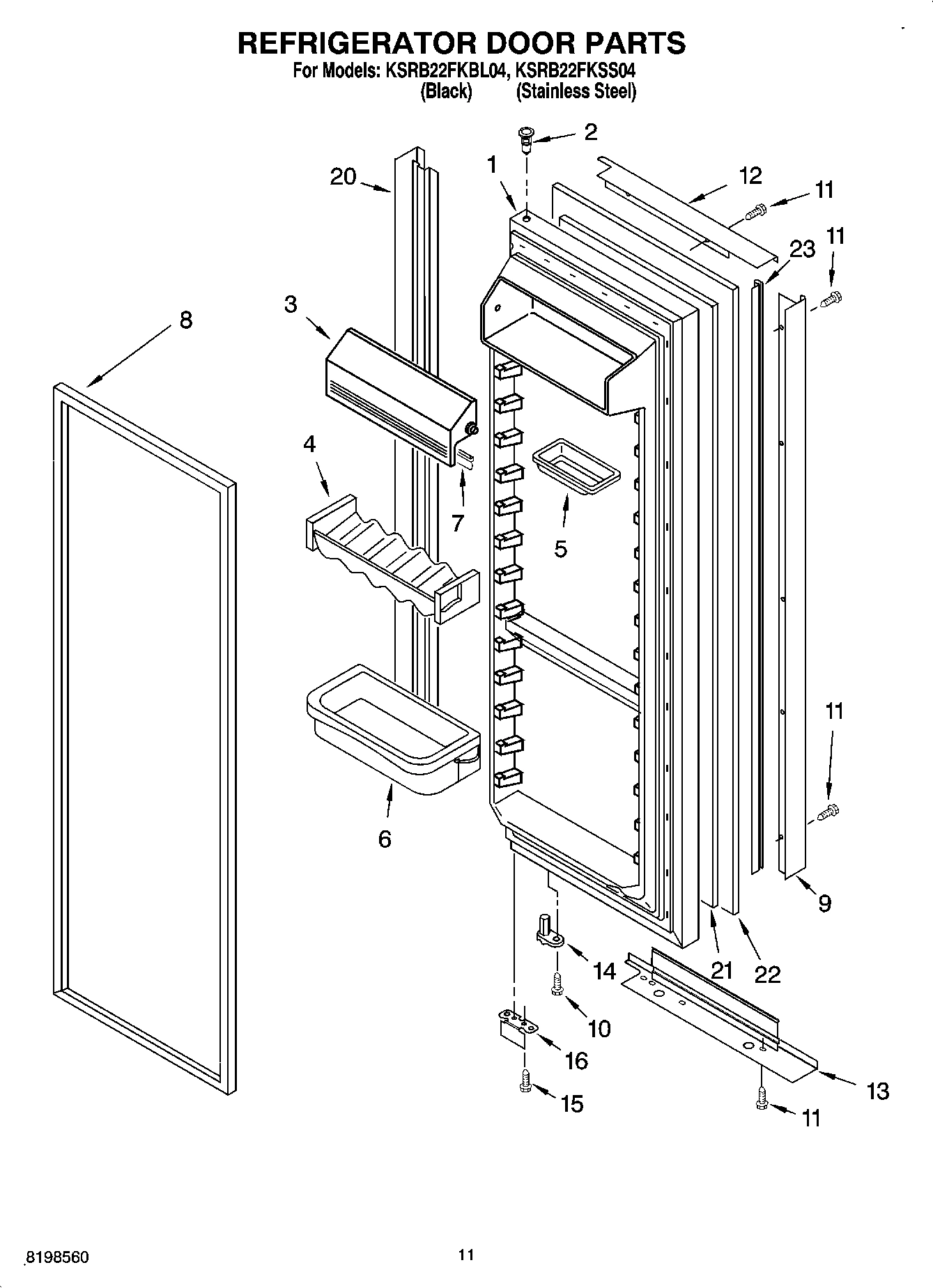

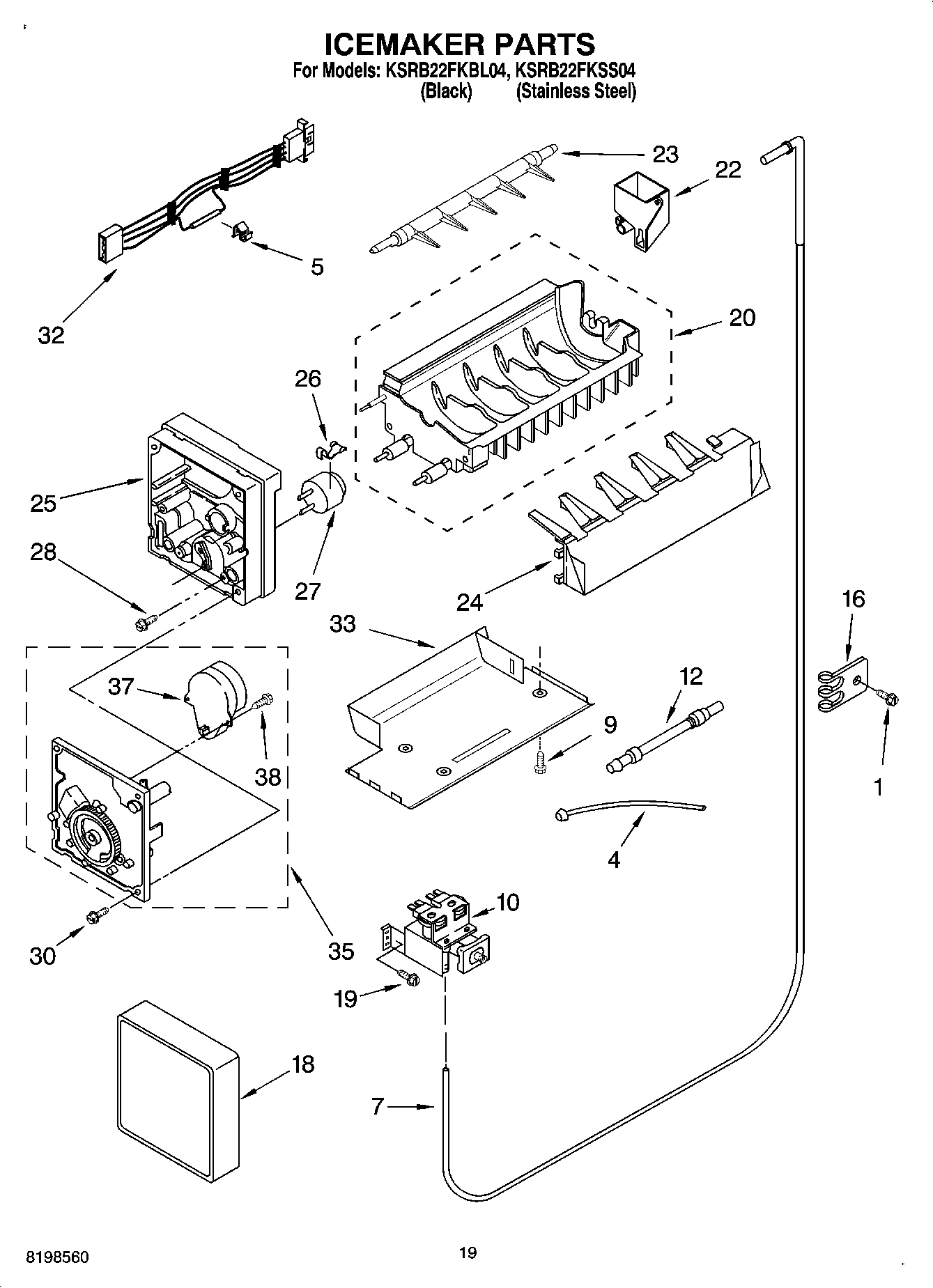

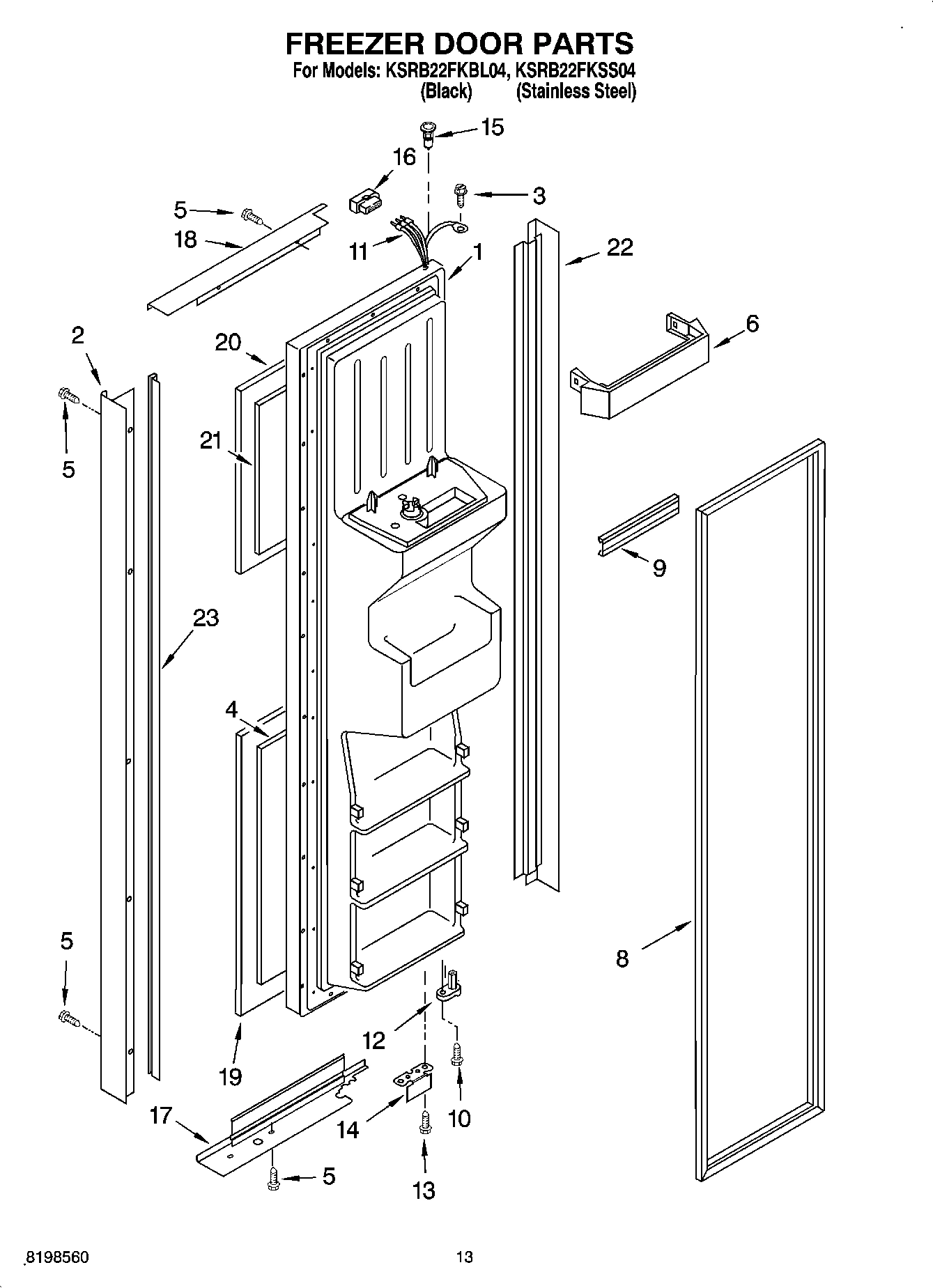

Model Whirlpool KSRB22FKBL04 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL ARI94272A6 WPL ARI94272A6 Contact Us For Availability

WPL ARI94273A1 WPL ARI94273A1 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 2216588 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI94261A5 Contact Us For Availability

1

Frame Assembly, Slide-Out WPL 2195978 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $170.79

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Gasket WPL 2216957 Contact Us For Availability

5

Air Duct Freezer WPL 2212313 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $228.24

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

Track, Basket-Dual (Right) WPL 2223706 Contact Us For Availability

7

Track, Basket-Dual (Left) WPL 2223707 Contact Us For Availability

7

Screw WPL 489439 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2256149 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

Shim WPL 2209697 Contact Us For Availability

9

Shelf, Slide Out Upper WPL 2211743 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2256153 Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Basket, Tall WPL 2223582 Contact Us For Availability

Glass, Cover WPL 2255143 Contact Us For Availability

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Screw (Black) WPL 3400899 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Basket, Front WPL 2171768 Contact Us For Availability

GASKET (REAR) WPL 2223362 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

NLA:SCREW Backorder WPL WPW10141645 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Shelf Track (Left Side) WPL 2223704 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Light, Bar WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Shelf WPL 2212343 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $162.82

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Basket, Slope WPL 2223278 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Crisper Pan (Includes 13, 14, 18, 19, & 21) WPL 2223358 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

Cover, Evaporator WPL 2212314 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Window, Crisper WPL 2174076 Contact Us For Availability

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $30.25

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Harness, Control Box WPL 2216587 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

CLIP, WIRING WPL 1115375 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

Holder WPL 2212369 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $227.62

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

Light Bar WPL 2179921 Contact Us For Availability

Shelf Assembly WPL 2206346 Contact Us For Availability

Harness, Wire WPL 2187510 Contact Us For Availability

W10180062 Whirlpool Refrigerator Ice Door Backorder WPL W10180062 $40.10

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Shelf, Slide-Out Assembly WPL 2174021 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $94.84

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $121.72

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Clip WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

35

Window WPL 2172941 Contact Us For Availability

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

2212376 Whirlpool Light Lens Backorder WPL 2212376 $30.25

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

45

Ladder (Left Side) WPL 2212315 Contact Us For Availability

45

Ladder (Right Side) WPL 2212316 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI94266A3 Contact Us For Availability

and Optional Parts Not Included WPL ARI94267A4 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. ( WPL ARI94268A9 Contact Us For Availability
