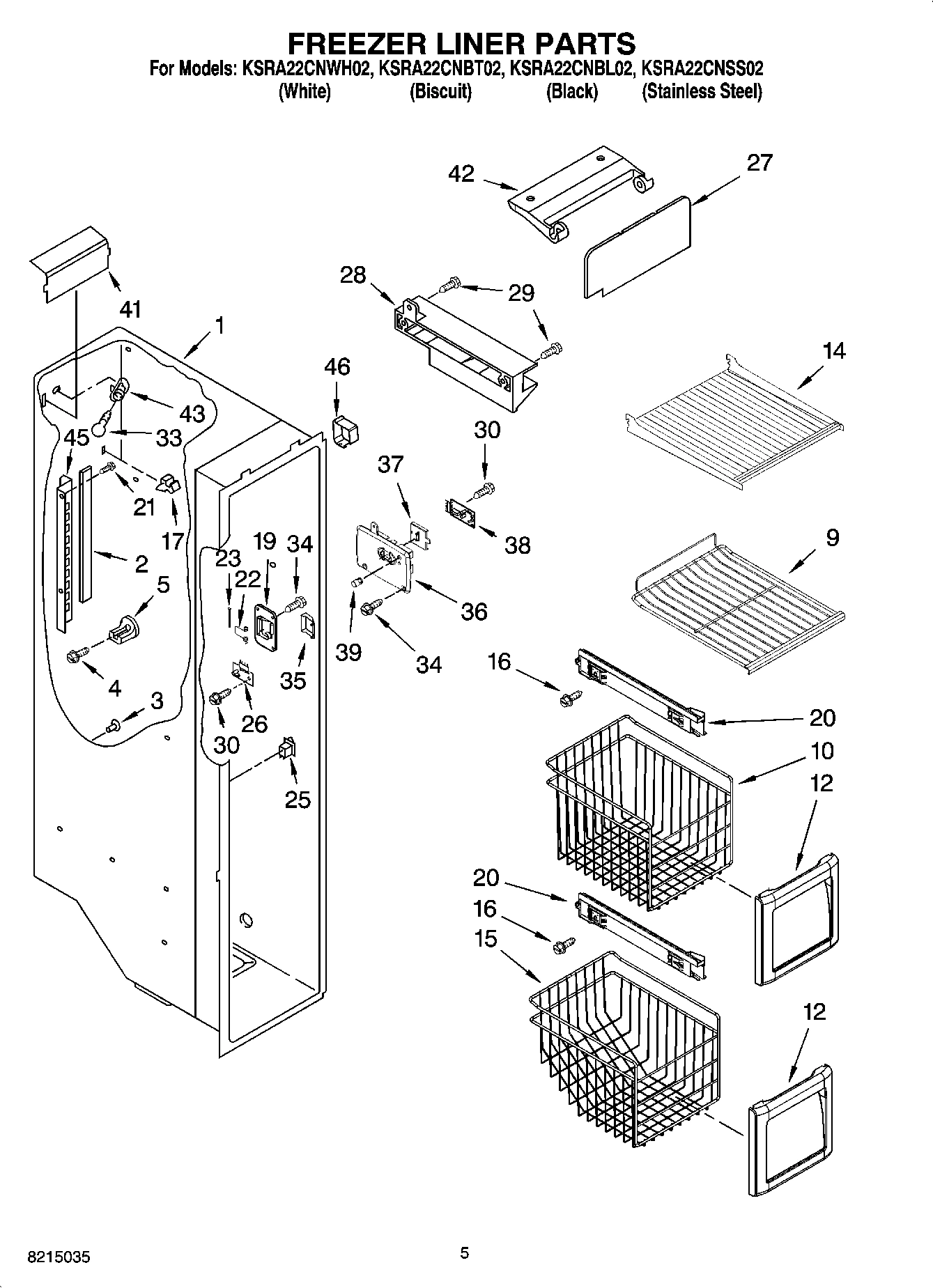

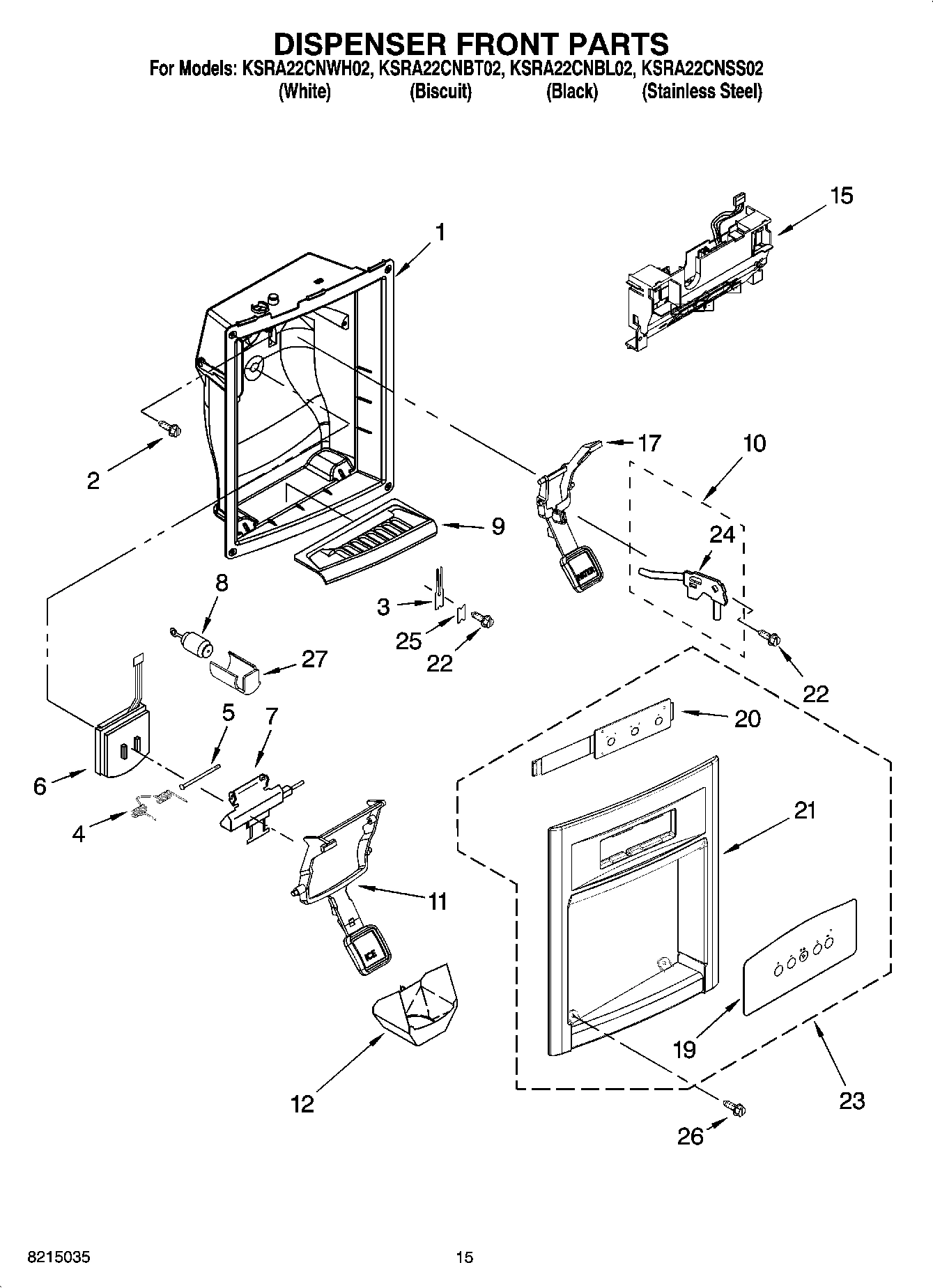

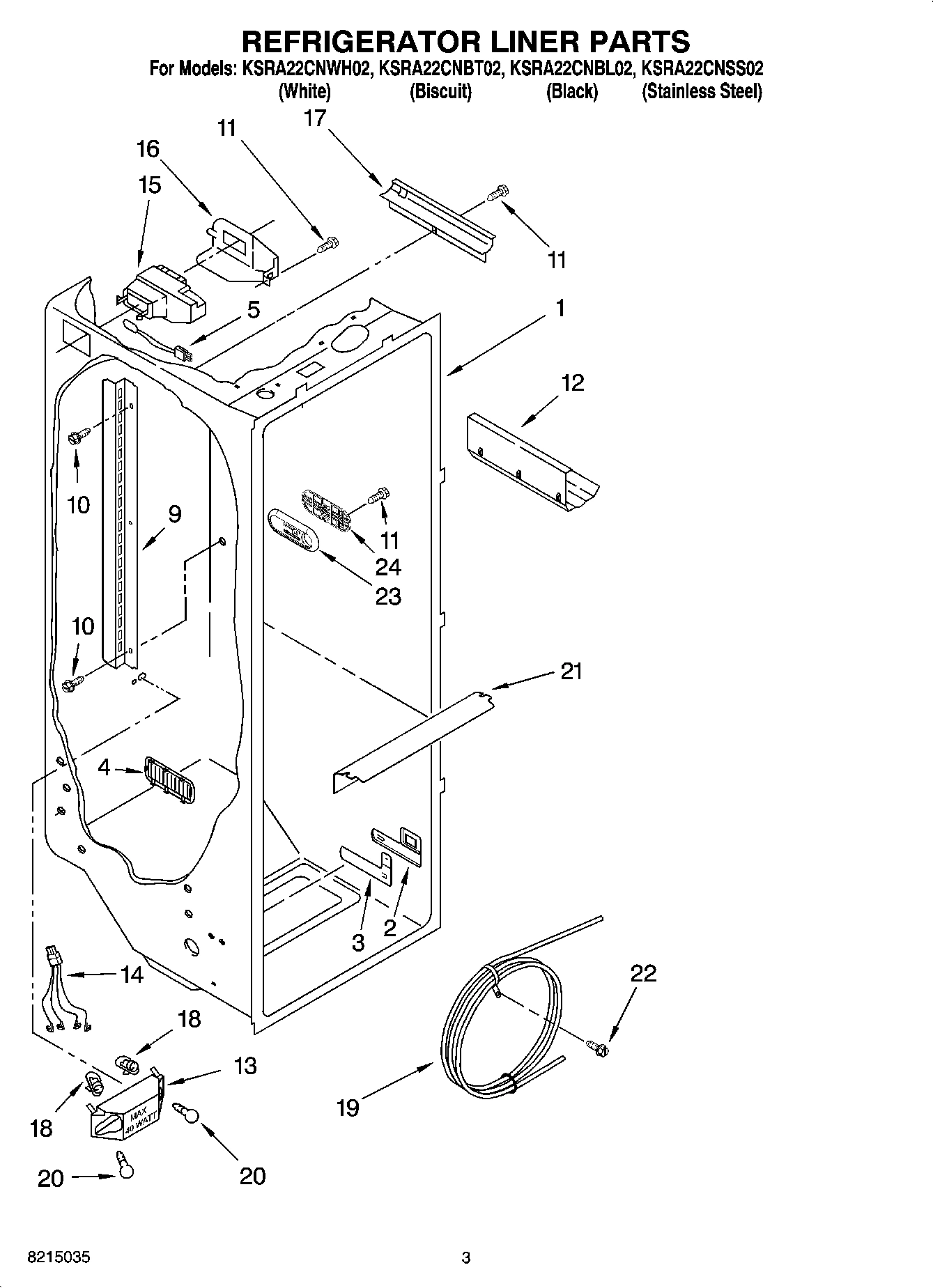

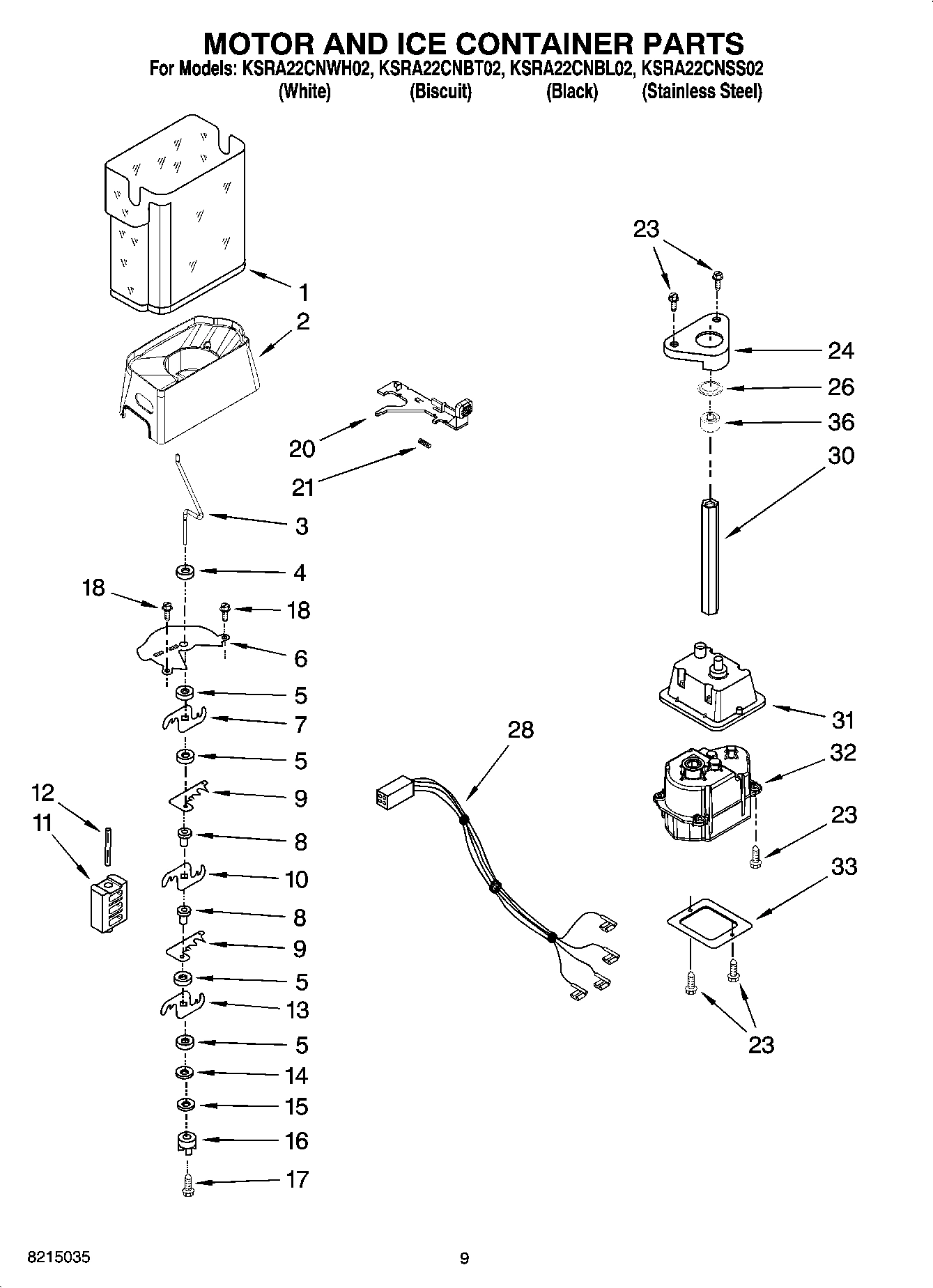

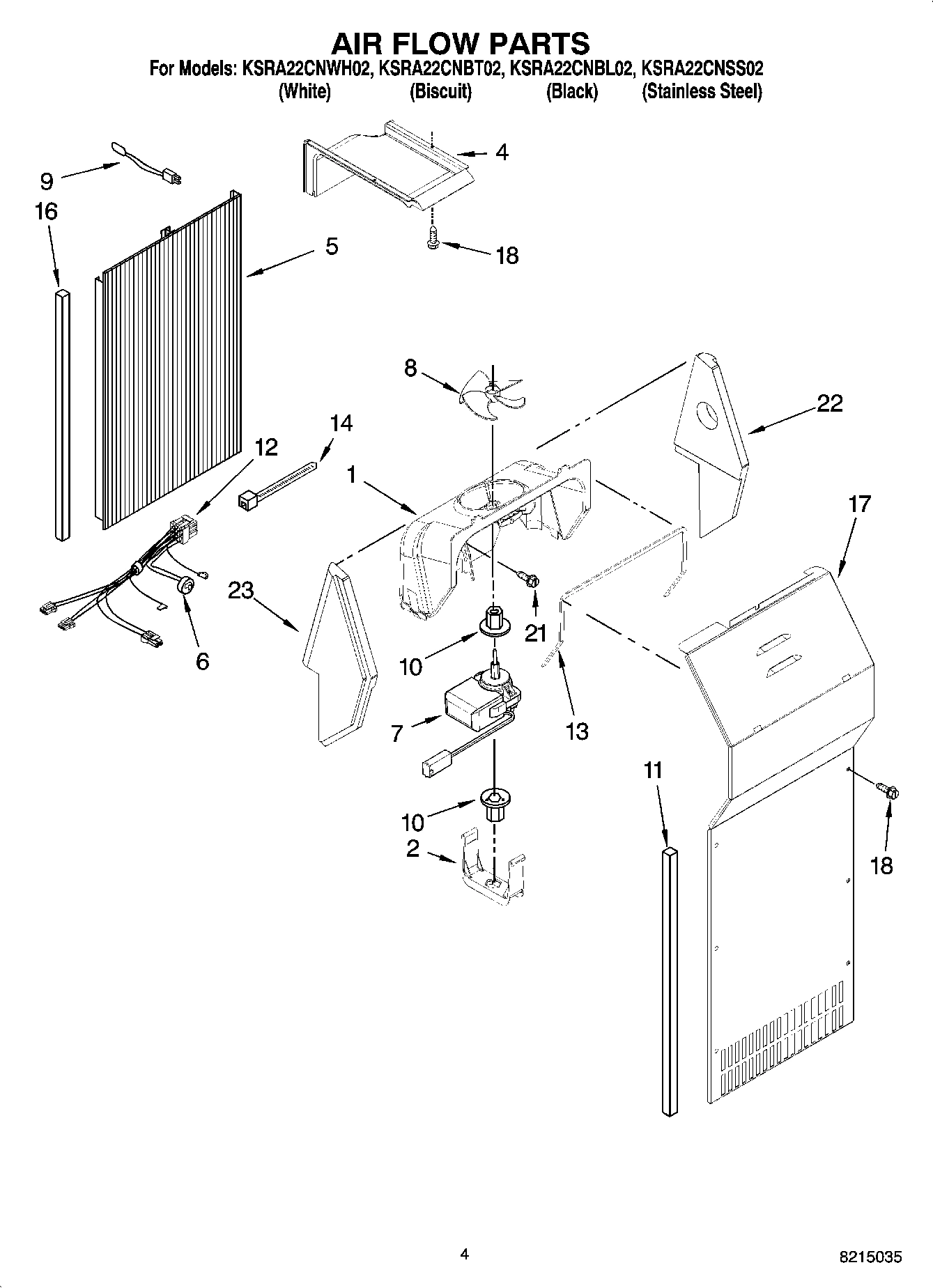

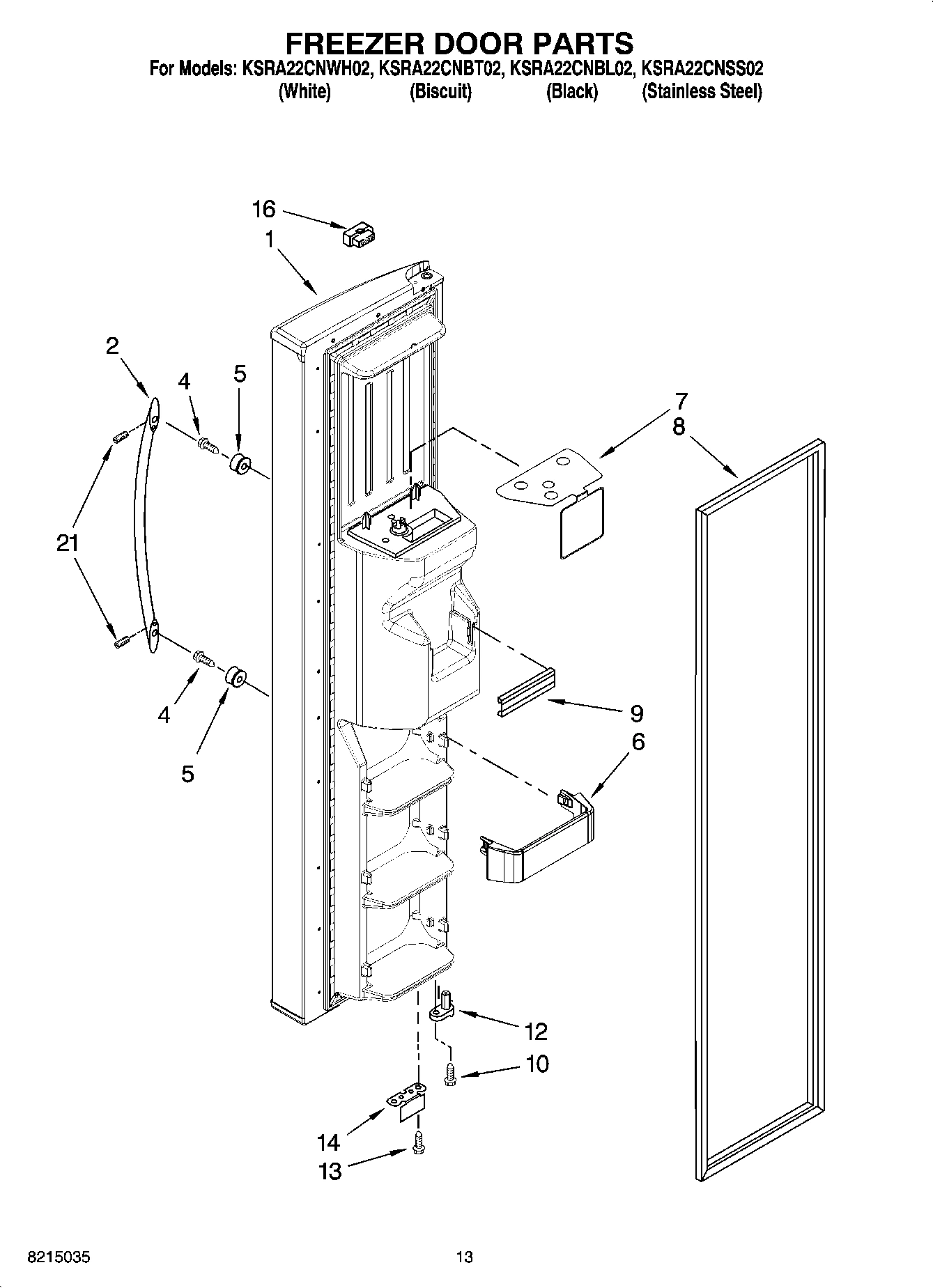

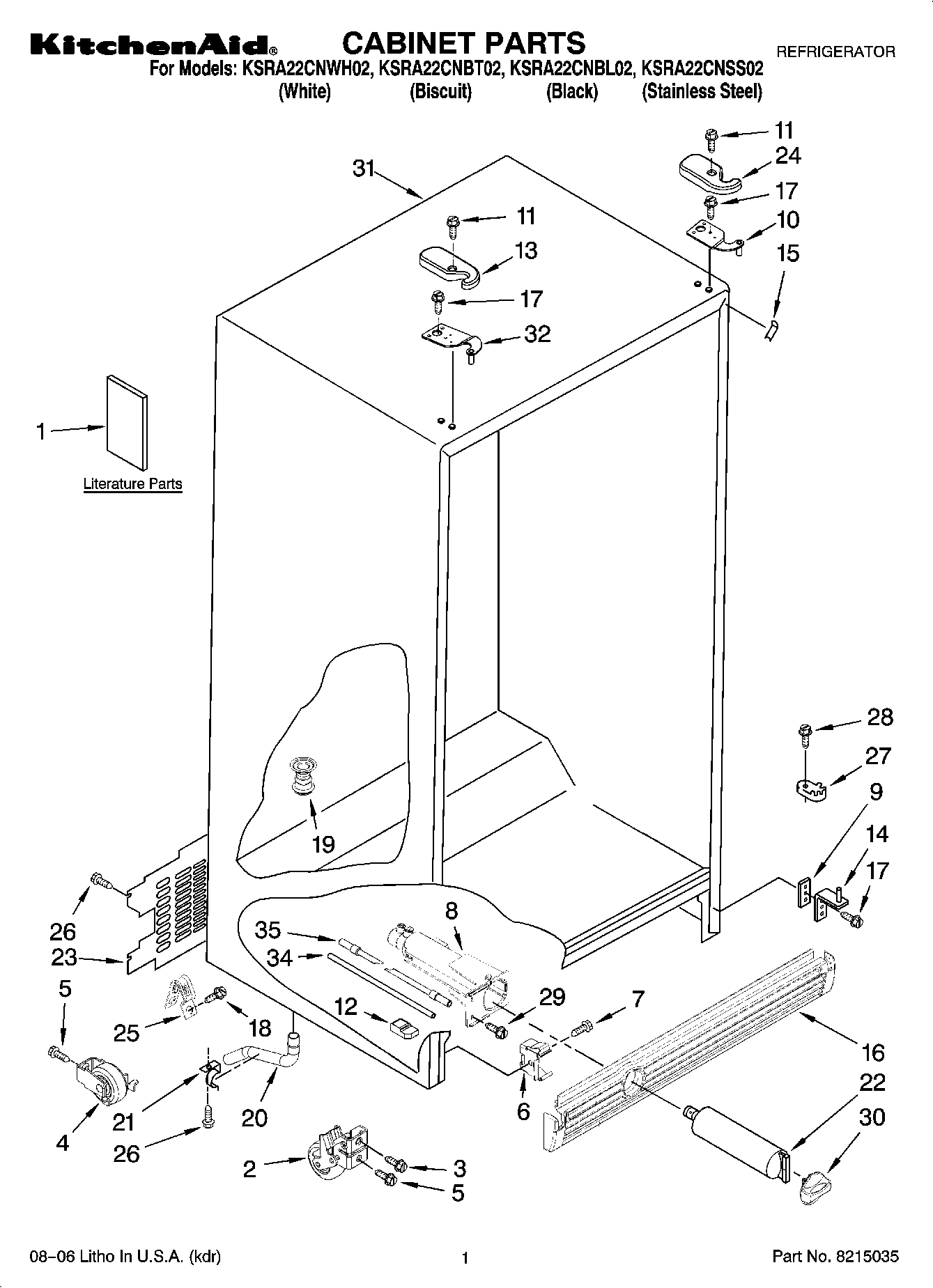

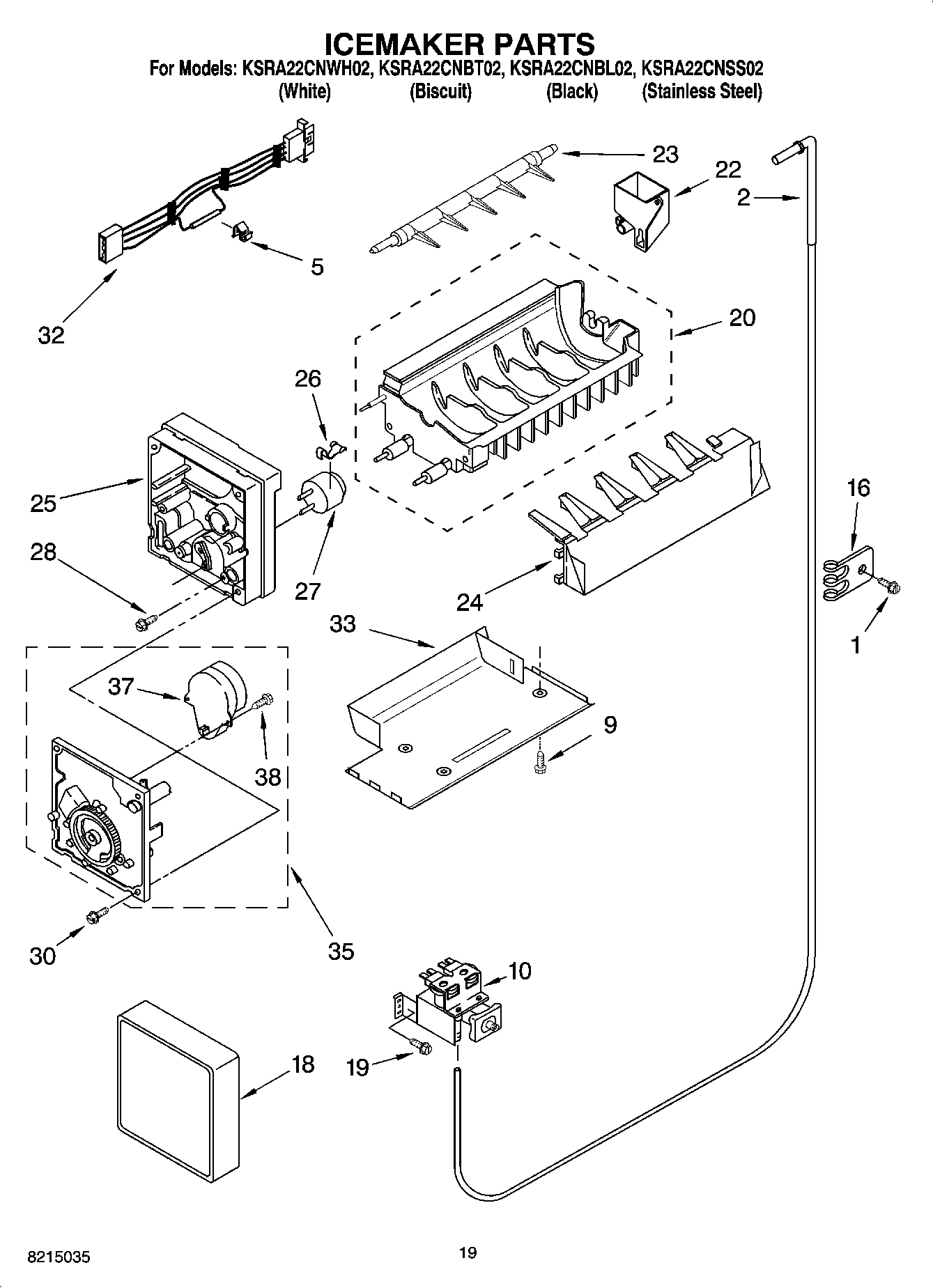

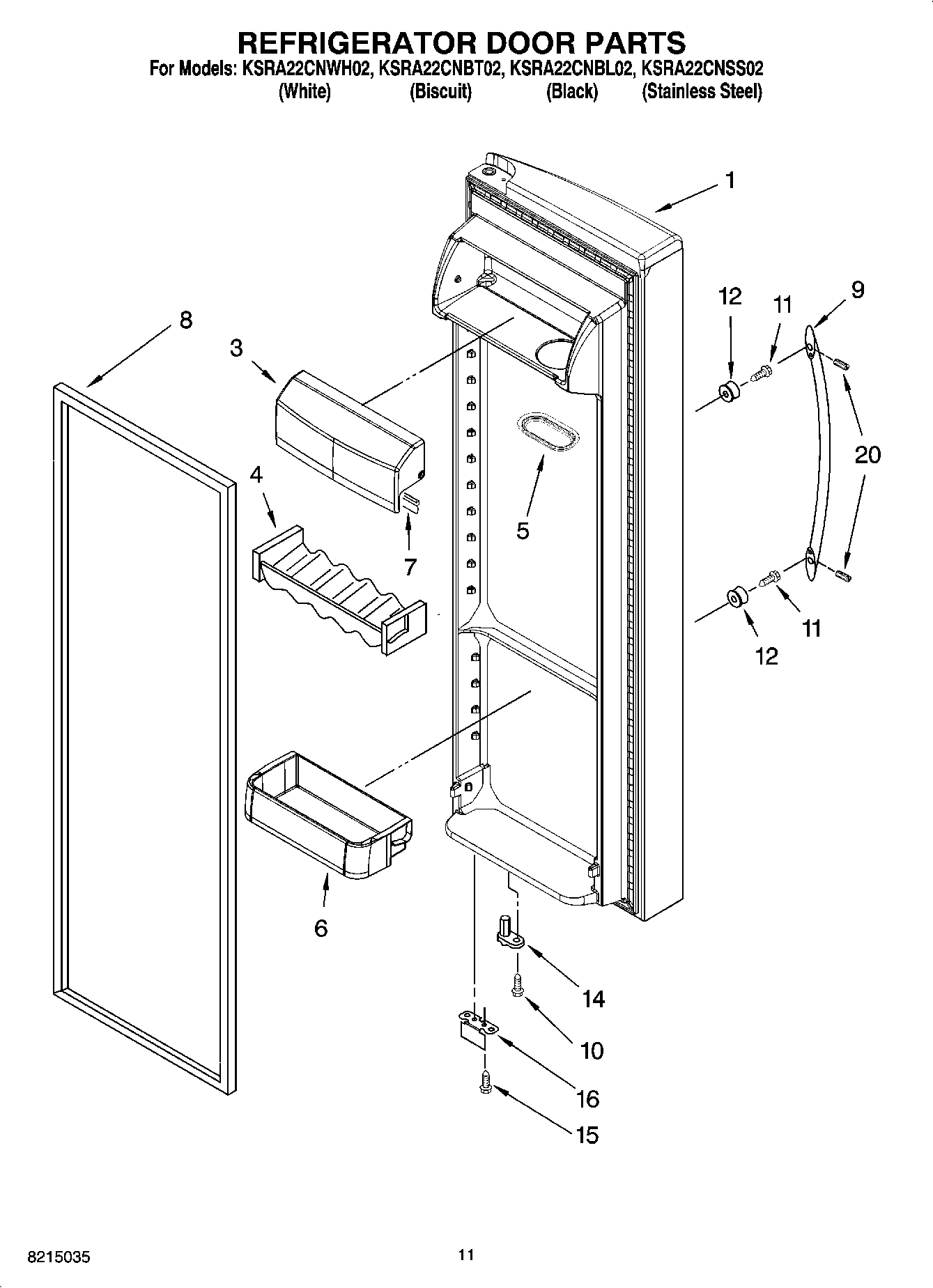

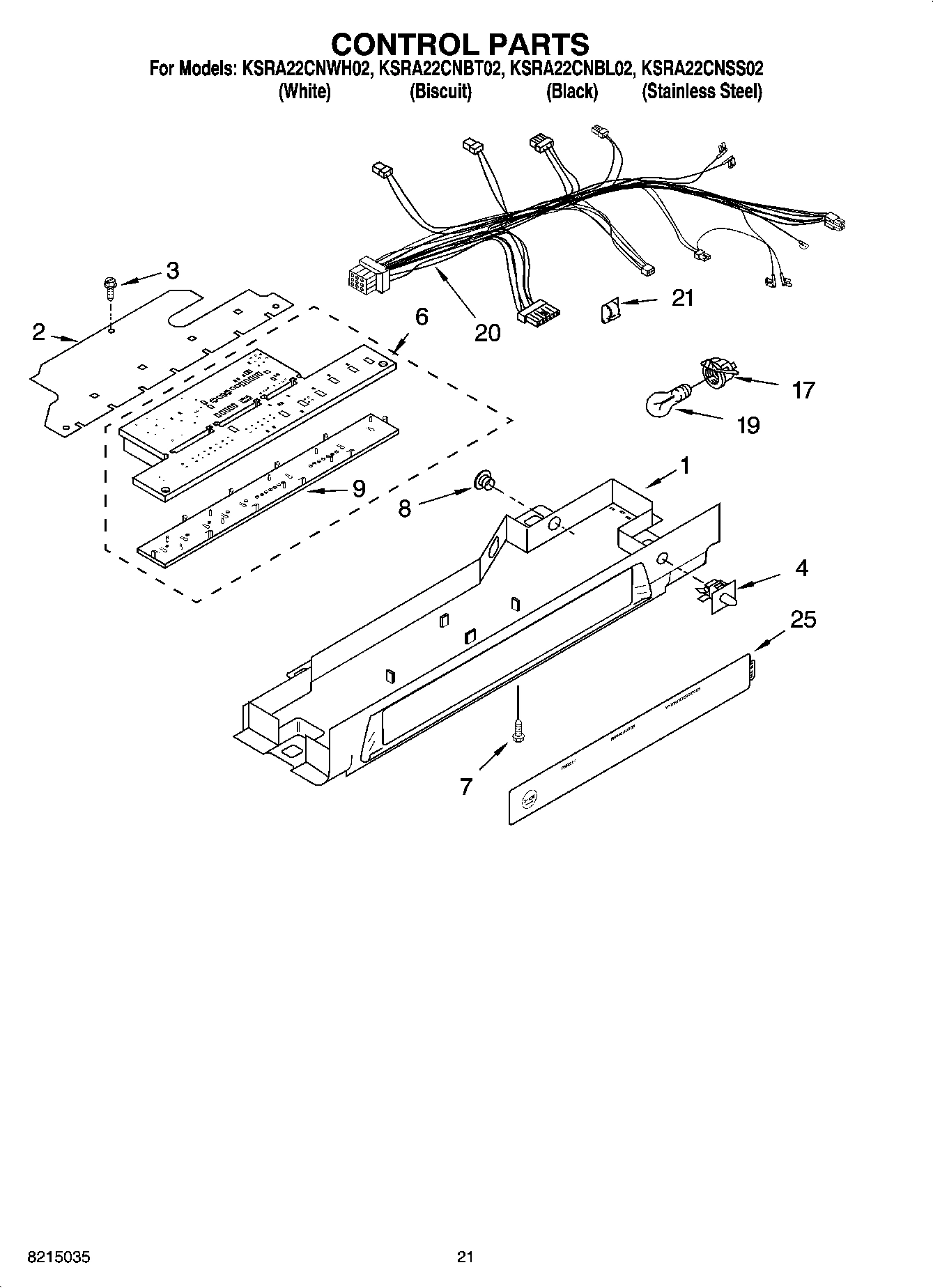

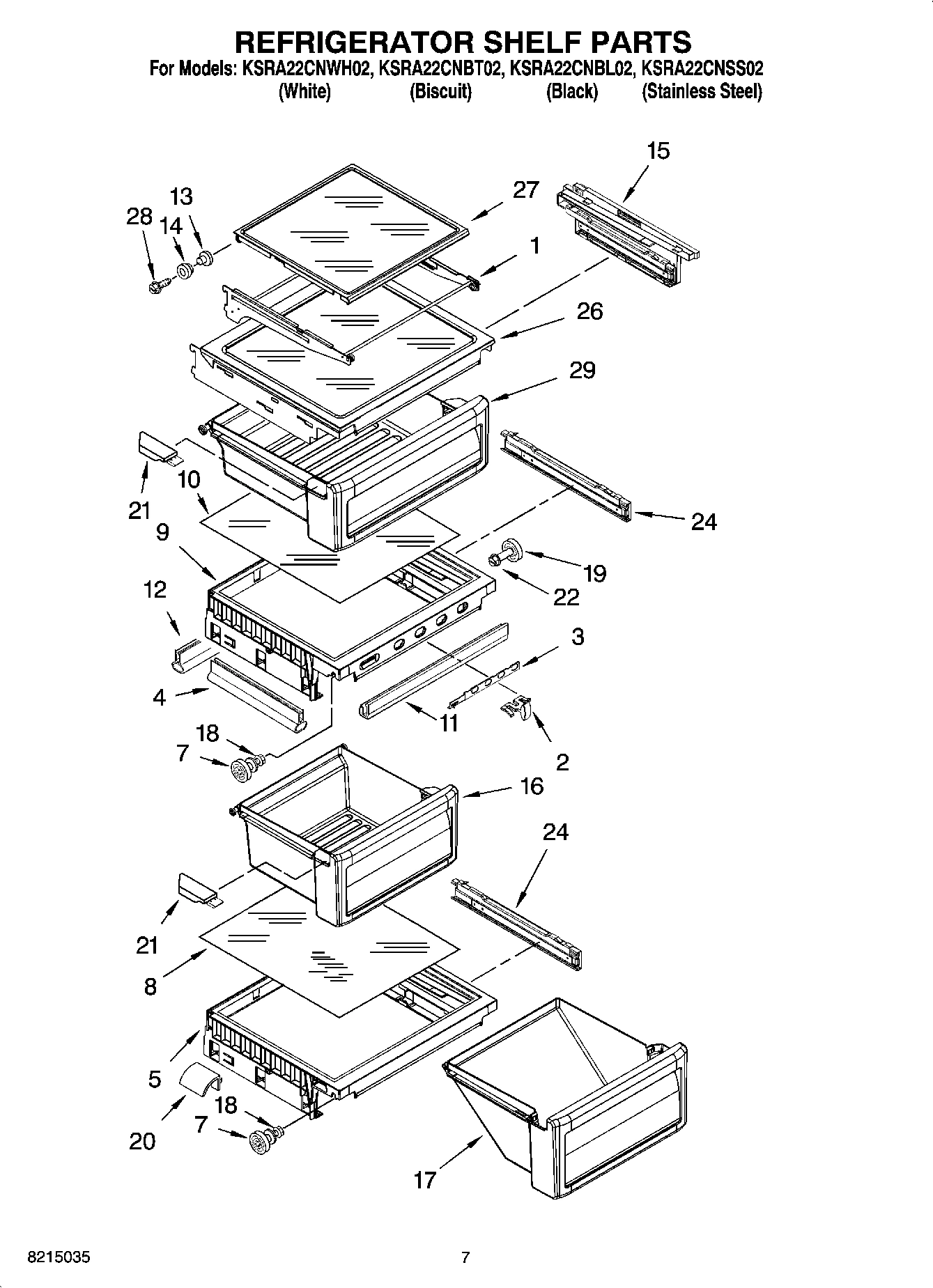

Model Whirlpool KSRA22CNBT02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

ACCESSORIES WPL ARI92559A2 Contact Us For Availability

TORX SCREW WRENCH WPL ARI92560A6 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Frame Assembly WPL 2301072 Contact Us For Availability

1

Control Box WPL 2212005 Contact Us For Availability

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Knob, Humidity WPL 2301025 Contact Us For Availability

2

Cover WPL 2216879 Contact Us For Availability

3

2301026 Whirlpool Refrigerator Slide Backorder WPL 2301026 $38.48

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Grommet WPL 2176134 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Gasket, Side (2) WPL 2301117 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Support, Stud WPL 2196207 Contact Us For Availability

5

Dish, Butter WPL 2165792K Contact Us For Availability

5

Cover, Meat Pan (Includes 20 & 24) WPL 2301568 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $61.75

6

Control Board WPL 2304006 Contact Us For Availability

7

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

7

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

7

Heat Shield And Drain Pan WPL 2304288 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

8

Glass, Meat Pan Cover WPL 2301028 Contact Us For Availability

9

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $113.37

9

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4,11,12 & 24) WPL 2301567 Contact Us For Availability

9

Grille, Overflow (Black) WPL 2207048B Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Insert, Control (Not available Order 6) WPL ARI92558A3 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

Glass, Crisper Cover WPL 2301027 Contact Us For Availability

11

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

11

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

11

Block, Blade WPL 2198602 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Harness, Fan Evaporator (Includes 6) WPL 2310239 Contact Us For Availability

Gasket, Rear WPL 2301115 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

14

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

14

Roller WPL 2188212 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Basket, Sloped WPL 2301142 Contact Us For Availability

Support Assembly (Left Side) WPL 2301570 Contact Us For Availability

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $67.68

Screw WPL 8534064 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Meat Pan (Includes 21) WPL 2301022 Contact Us For Availability

18

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Relay (Service Only) WPL 2183454 Contact Us For Availability

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $244.13

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Glide Assy, Basket (Right Side) WPL 2301542 Contact Us For Availability

Glide Assy, Basket (Left Side) WPL 2301543 Contact Us For Availability

Deflector WPL 2301126 Contact Us For Availability

Control Box Harness WPL 2216115 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2301017 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip, Retaining WPL 2255199 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Glide Assm-Pan (Right Side) WPL 2301548 Contact Us For Availability

Glide Assm-Pan (Left Side) WPL 2301549 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Overlay, Control Box WPL 2255619 Contact Us For Availability

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $227.62

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $139.29

Shelf Assembly WPL 2301566 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

Cover, Icemaker WPL 2255591 Contact Us For Availability

Shelf & Roller Assembly (2) WPL 2301084 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Slide, Ice Maker WPL 2212321 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

Snack Bin WPL 2301023 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

31

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

35

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

36

Cover, Receiver WPL 2255561 Contact Us For Availability

37

Slide, Ice Maker Shut Off WPL 2301340 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

2212376 Whirlpool Light Lens Backorder WPL 2212376 $30.25

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

45

Ladder (Left Side) WPL 2212315 Contact Us For Availability

45

Ladder (Right Side) WPL 2212316 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI92555A1 Contact Us For Availability

WPL ARI92556A3 WPL ARI92556A3 Contact Us For Availability
