Model Whirlpool KGYL517BWH1 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

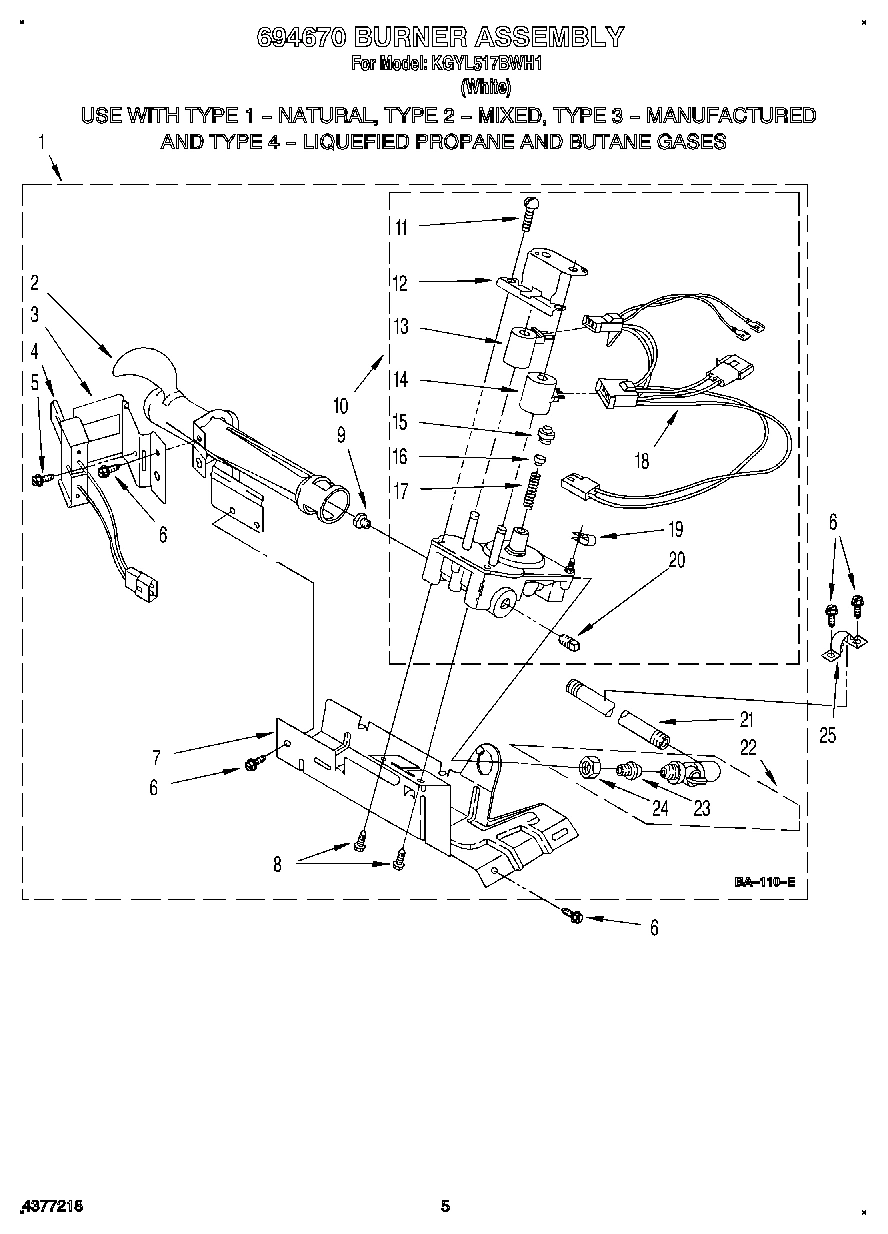

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

Lint Chute WPL 686215 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

2

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

5

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

5

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

6

686889 Whirlpool Pad Backorder WPL 686889 $10.76

6

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

7

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

8

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

9

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

Cover, Lint Screen (White) WPL 691200 Contact Us For Availability

11

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

15

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

15

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

15

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

Top (White) WPL 3399162 Contact Us For Availability

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $103.71

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Washer WPL 237446 Contact Us For Availability

Clip, Harness WPL 694510 Contact Us For Availability

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

Bumper, Lint Lid WPL 297535 Contact Us For Availability

21

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

21

Timer Assembly, 60 Hz. WPL 3398138 Contact Us For Availability

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

Connector 6-Circuit WPL 3347243 Contact Us For Availability

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

23

WP3399640 Whirlpool Switch Backorder WPL WP3399640 $43.24

23

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Wire-Jumper Assembly WPL 3396030 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

28

Hinge, Door (R.H.) WPL 687905 Contact Us For Availability

29

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

30

Harness, Wiring WPL 3399664 Contact Us For Availability

31

Knob, Temperature Control WPL 3363437 Contact Us For Availability

34

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

37

Clip WPL 689180 Contact Us For Availability

39

Relay, Push-To-Start WPL 3395395 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Connector, Timer WPL 3397269 Contact Us For Availability

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

48

Timer Knob & Clip WPL 3396267 Contact Us For Availability

48

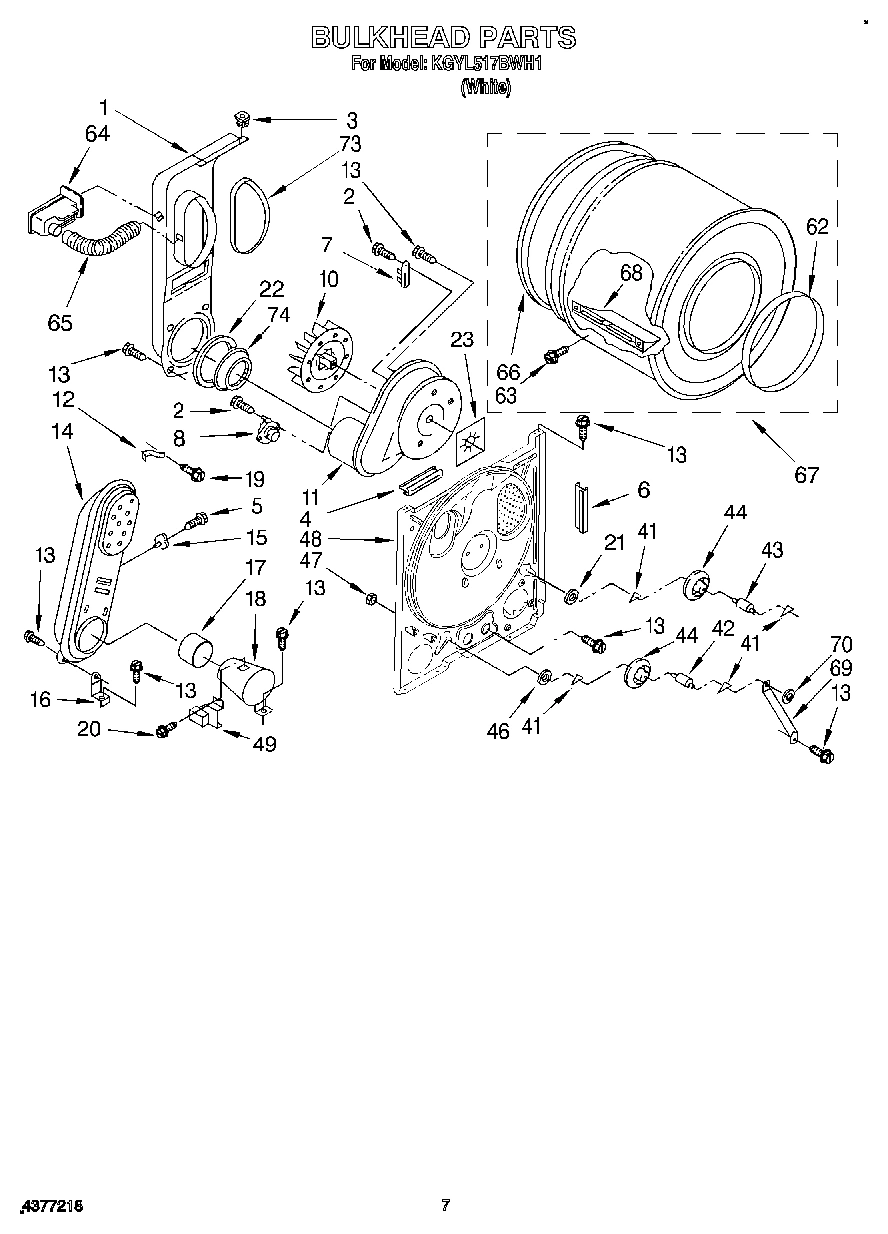

Bulkhead WPL 3397264 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control WPL 3362005 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

64

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $51.66

64

Alert, Lint WPL 690981 Contact Us For Availability

65

Hose, Differential WPL 686577 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

75

Receptacle, 3-Way WPL 691707 Contact Us For Availability

81

Knob, Push-To-Start WPL 3396276 Contact Us For Availability

82

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

88

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

89

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

90

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
