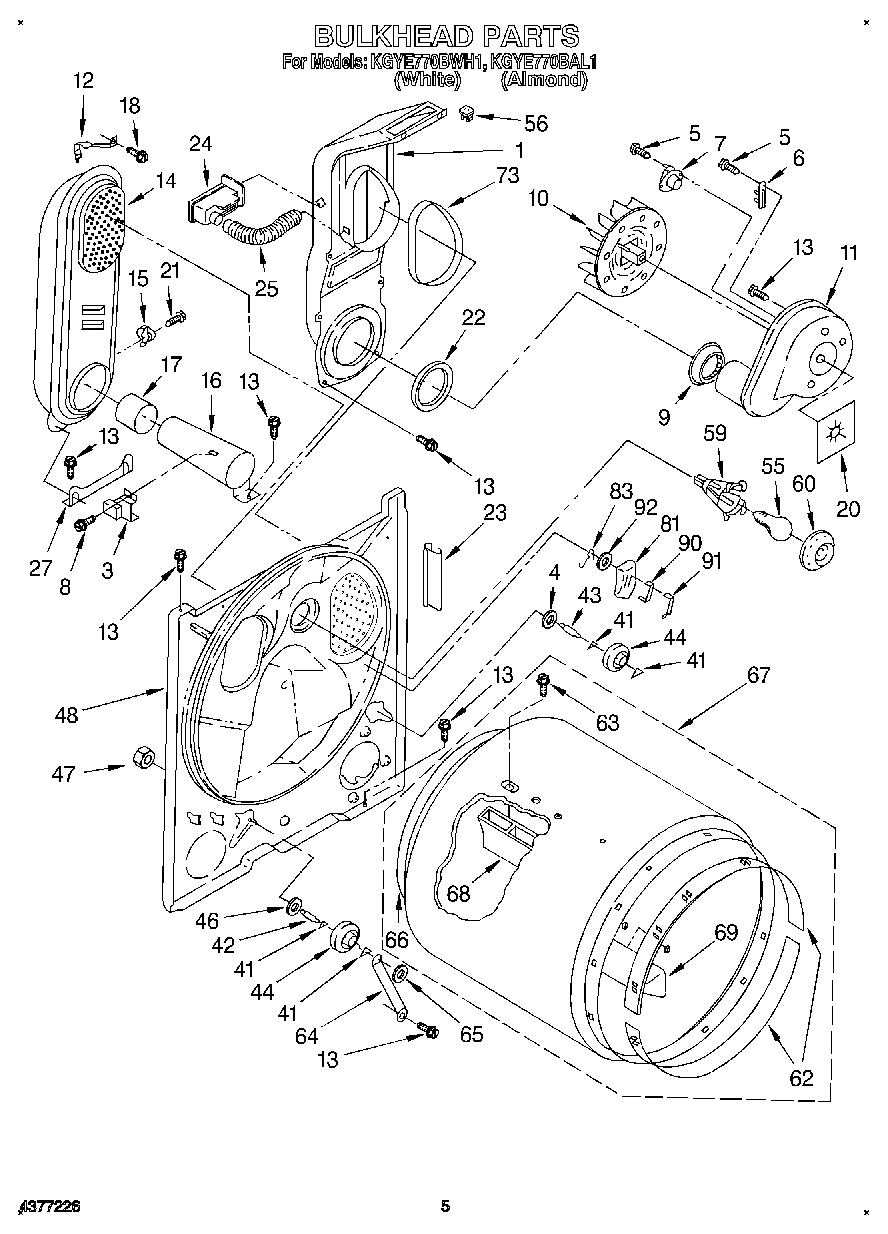

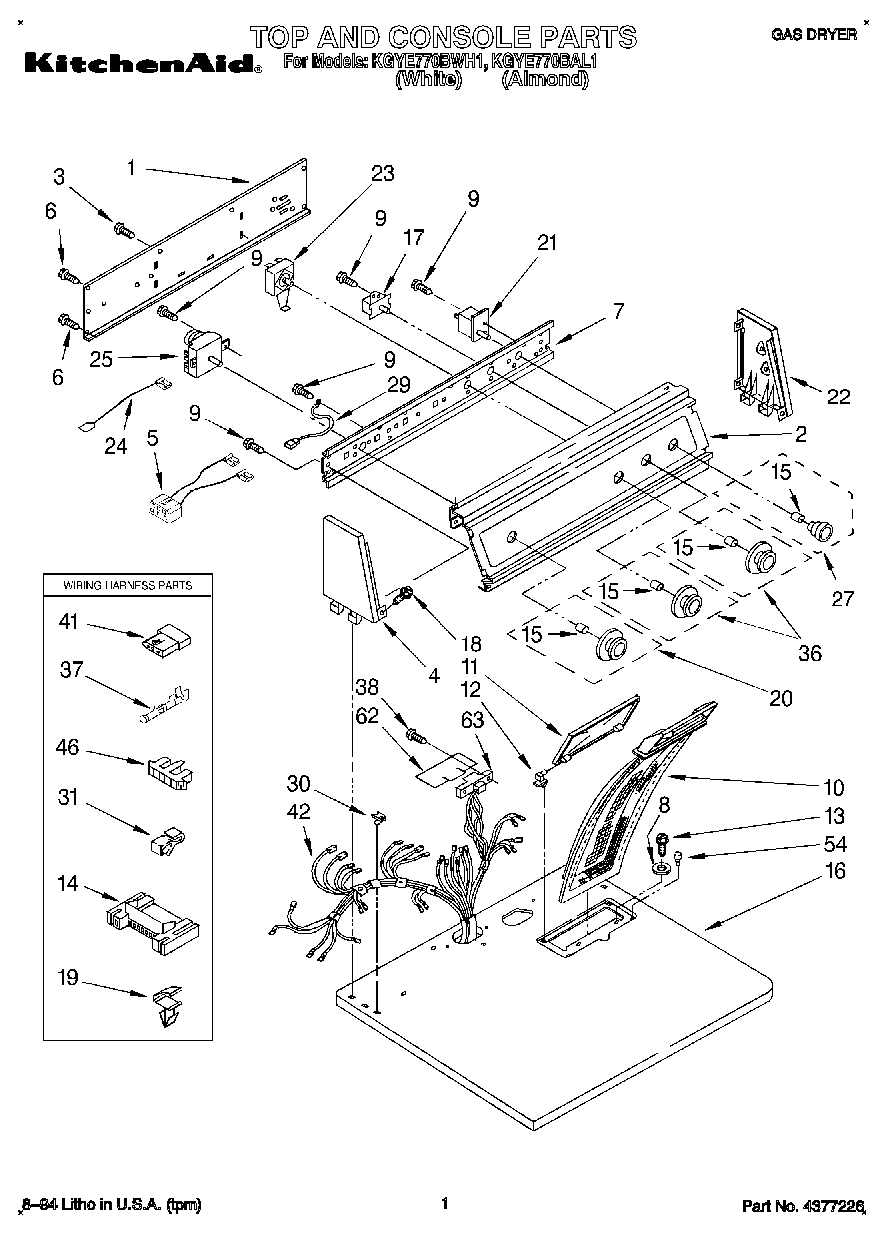

Model Whirlpool KGYE770BWH1 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

1

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

3

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

Screw, 10-12 x 1/2 WPL 342043 Contact Us For Availability

7

280043 Whirlpool Rear Panel Backorder WPL 280043 $135.03

7

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

8

Wire, Ground WPL 690236 Contact Us For Availability

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

12

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

Bracket, Dryer Rack WPL 692989 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Top (White) WPL 3399162 Contact Us For Availability

Top (Almond) WPL 3399163 Contact Us For Availability

17

18849 Whirlpool Pad Backorder WPL 18849 $9.13

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

Buzzer, Adjustable WPL 3394983 Contact Us For Availability

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $107.10

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

Cabinet Assembly (Includes Illus. Nos. 5, 7, WPL 3399585 Contact Us For Availability

Cabinet Assembly (Includes Illus. Nos. 5, 7, WPL 3399586 Contact Us For Availability

19

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

20

Knob, Timer WPL 3396269 Contact Us For Availability

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

Switch, Push-To-Start WPL 3395395 Contact Us For Availability

Panel Front (Almond) WPL 695631 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Cap, End (R.H.) WPL 3360568 Contact Us For Availability

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $11.93

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

WP3399640 Whirlpool Switch In Stock WPL WP3399640 $45.40

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Wire, Jumper WPL 3393818 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $16.78

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

Timer, 60Hz. WPL 3398139 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

27

Knob, Push To Start WPL 3390054 Contact Us For Availability

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $32.34

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $32.63

29

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

29

Wire, Ground WPL 690853 Contact Us For Availability

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

30

Locator, Top WPL 98669 Contact Us For Availability

31

Clip, Retainer WPL 689180 Contact Us For Availability

31

Dry Rack Assembly WPL 692990 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

36

Knob, Control (2) WPL 3363041 Contact Us For Availability

36

Door, Front (Almond) WPL 3393550 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.71

37

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

37

handle, door (almond) WPL 3390782 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $44.78

39

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

40

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

41

Connector WPL 691707 Contact Us For Availability

42

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

42

Harness, Wiring WPL 3399676 Contact Us For Availability

44

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Connector, Timer WPL 3397269 Contact Us For Availability

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

49

Panel, Toe (White) WPL 697095 Contact Us For Availability

49

Panel, Toe (Almond) WPL 697096 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

54

Bumper, Lint Lid WPL 297535 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

62

WPW10476828-includeCORE Whirlpool WPW10476828 Backorder WPL WPW10476828-includeCORE $180.58

63

3391885 Whirlpool Connector Backorder WPL 3391885 $30.25

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

NI

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50
