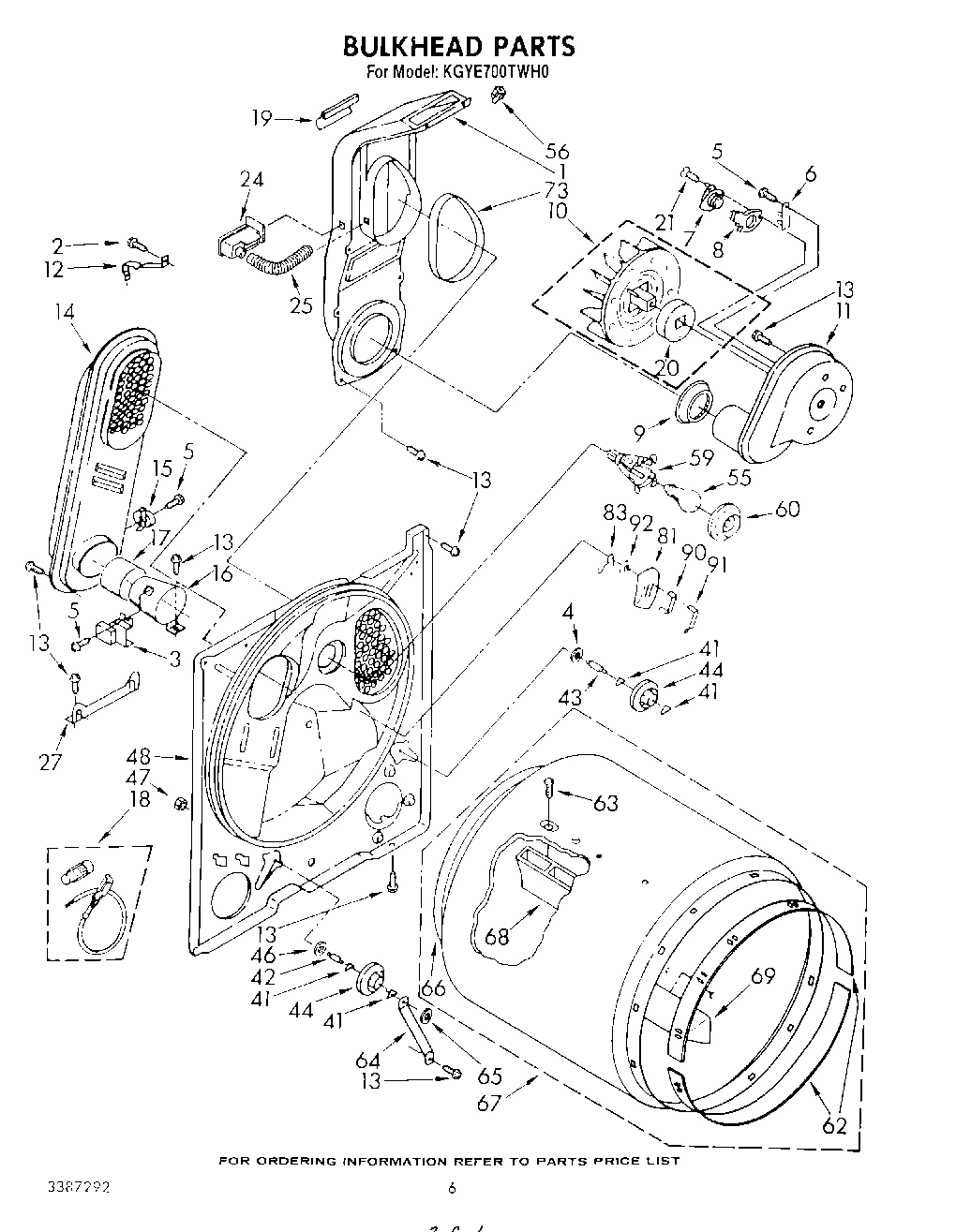

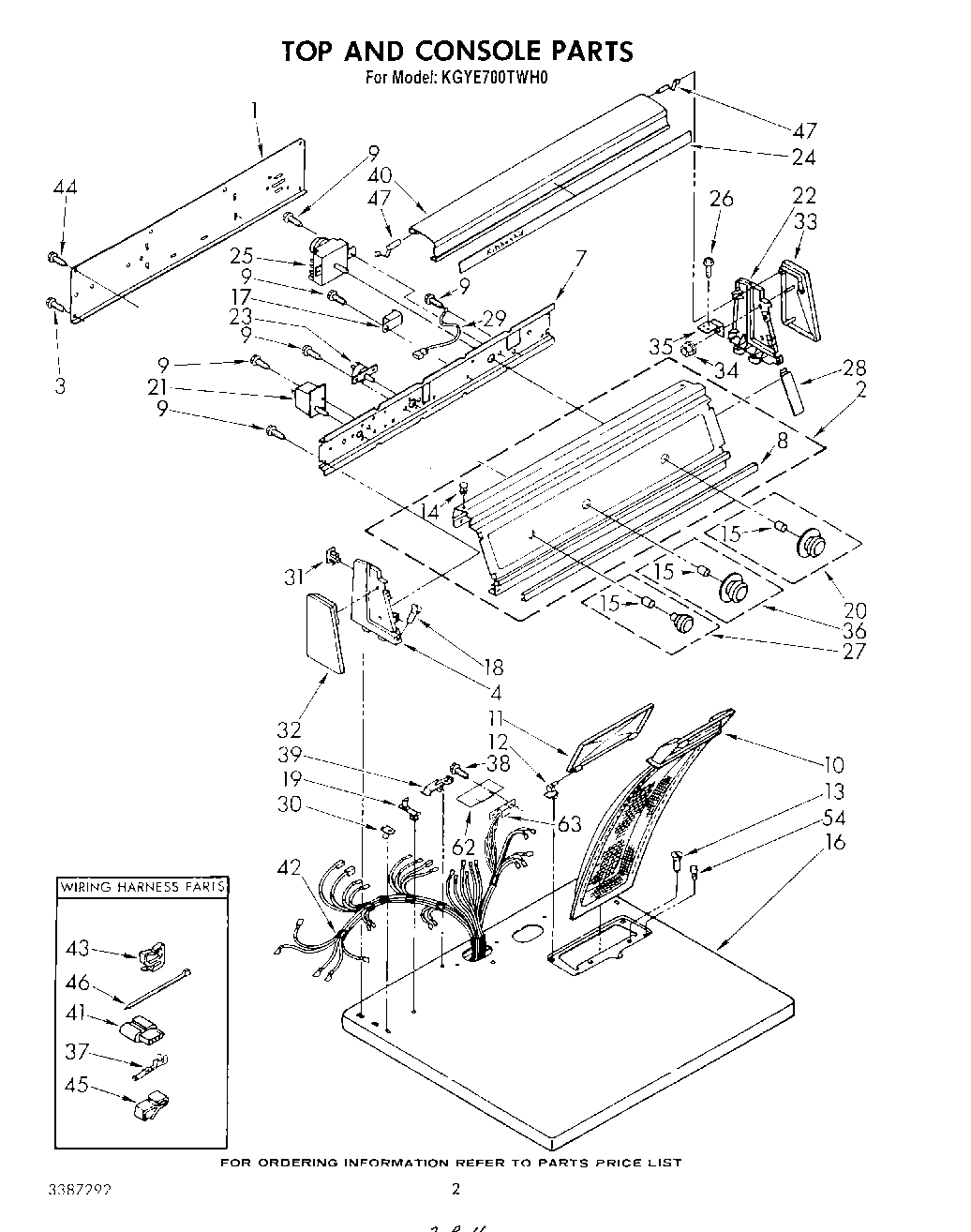

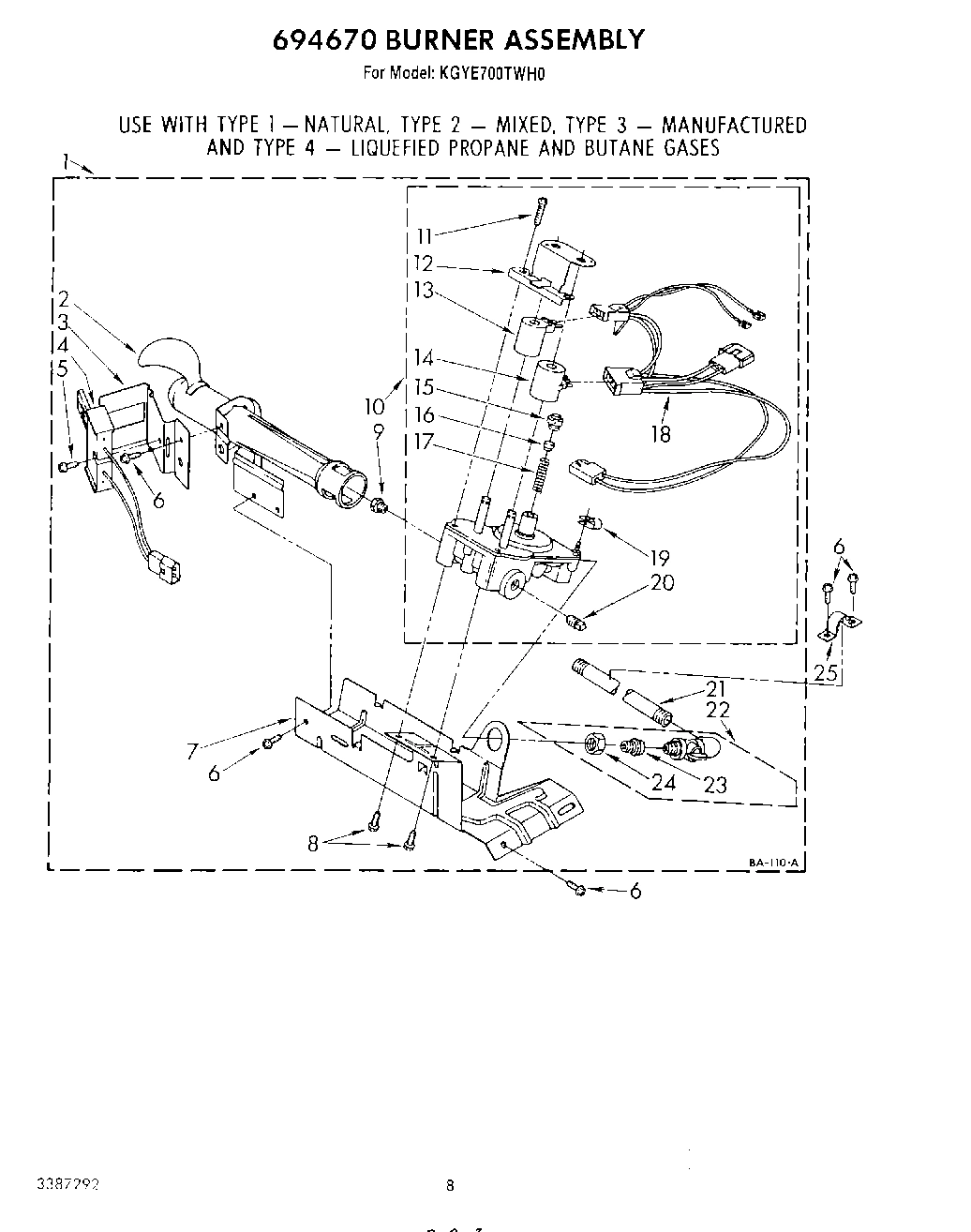

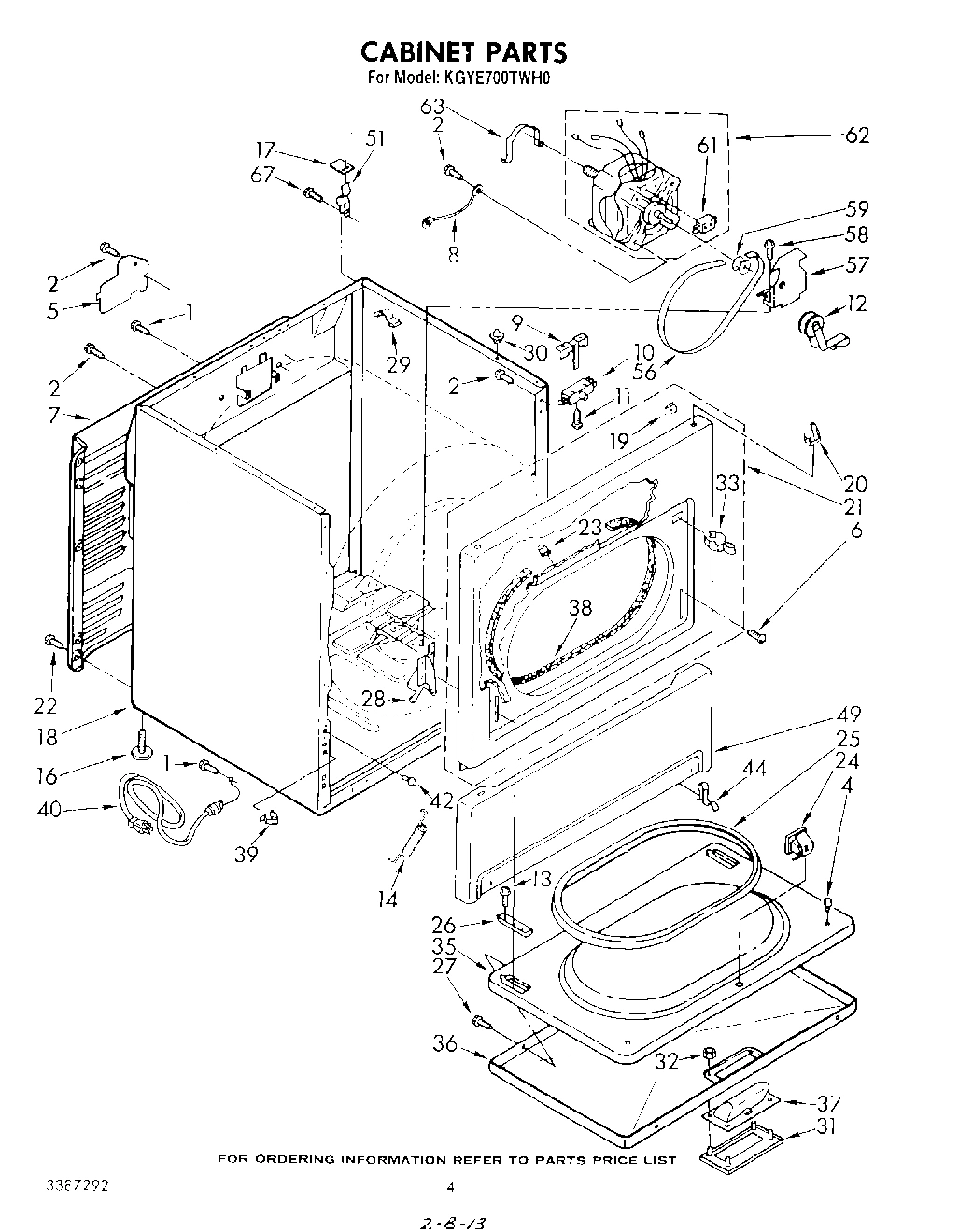

Model Whirlpool KGYE700TTO0 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

Harvest Wheat WPL 261890 Contact Us For Availability

Harvest Wheat (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Plati WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3387292 WPL LIT3387292 Contact Us For Availability

WPL LIT3387320 WPL LIT3387320 Contact Us For Availability

WPL LIT3387325 WPL LIT3387325 Contact Us For Availability

WPL LIT3388652 WPL LIT3388652 Contact Us For Availability

WPL LIT3389703 WPL LIT3389703 Contact Us For Availability

WPL LIT3390031 WPL LIT3390031 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

1

Lint Chute Assembly WPL 686214 Contact Us For Availability

2

Panel, Control WPL 3389630 Contact Us For Availability

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

4

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

4

Cap, End (L.H.) WPL 388503 Contact Us For Availability

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

7

Bracket, Control WPL 697727 Contact Us For Availability

8

Heater, Thermostat WPL 61894 Contact Us For Availability

8

Trim, Console WPL 3347053 Contact Us For Availability

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

11

Cover, Lint Screen WPL 691205 Contact Us For Availability

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

Plug, Latch (3) WPL 387887 Contact Us For Availability

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Top (White) WPL 697680 Contact Us For Availability

Top (Almond) WPL 697681 Contact Us For Availability

Top (Harvest Wheat) WPL 697682 Contact Us For Availability

Top (Toast) WPL 697683 Contact Us For Availability

Top (Platinum) WPL 697684 Contact Us For Availability

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

18

Cabinet (Platinum) WPL 694877 Contact Us For Availability

18

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Stop, Push-In (2) WPL 358473 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

Knob, Timer WPL 3389724 Contact Us For Availability

20

Seal, Blower WPL 694630 Contact Us For Availability

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Panel Front (Almond) WPL 695631 Contact Us For Availability

panel, front (harvest wheat) WPL 695632 Contact Us For Availability

Panel Front (Toast) WPL 695633 Contact Us For Availability

Panel, Front (Platinum) WPL 695634 Contact Us For Availability

Switch, Puch To Start WPL 348314 Contact Us For Availability

22

Cap, End (R.H.) WPL 388504 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $11.93

23

Switch, Temperature WPL 696910 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

Nut, Compression WPL 233076 Contact Us For Availability

Insert, Lamp Cover WPL 3388189 Contact Us For Availability

Alert, Lint WPL 690981 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

25

Timer, 60Hz. WPL 3389865 Contact Us For Availability

25

Hose, Differential WPL 686577 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Screw, 8-32 x 3/8 WPL 310629 Contact Us For Availability

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

27

Knob, Temperture Control WPL 3390054 Contact Us For Availability

27

Support, Box WPL 348484 Contact Us For Availability

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $32.63

28

Spacer, Console WPL 3349338 Contact Us For Availability

29

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

29

Wire, Ground WPL 690853 Contact Us For Availability

30

Locator, Top WPL 98669 Contact Us For Availability

30

Nut, Push-In (2) WPL 358472 Contact Us For Availability

31

Clip, Push-On (4) WPL 689559 Contact Us For Availability

31

Insert, Handle WPL 389043 Contact Us For Availability

32

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

32

Trim, End Cap (L.H.) WPL 388745 Contact Us For Availability

33

Trim, End Cap (R.H.) WPL 388746 Contact Us For Availability

34

Nut, No.10 Thread WPL 388744 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

35

Bracket, End Cap WPL 3349048 Contact Us For Availability

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

Door, Front (Almond) WPL 692319 Contact Us For Availability

door, front (harvest wheat) WPL 692322 Contact Us For Availability

door, front (toast) WPL 695130 Contact Us For Availability

Door, Front (Platinum) WPL 695131 Contact Us For Availability

Knob, Push To Start WPL 3349254 Contact Us For Availability

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Handle, Door (White) WPL 3387212 Contact Us For Availability

Handle, Door (Almond) WPL 3387213 Contact Us For Availability

Handle, Door (Harvest Wheat) WPL 3387214 Contact Us For Availability

Handle, Door (Toast) WPL 3387215 Contact Us For Availability

Handle, Door (Platinum) WPL 3387216 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $45.51

38

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

39

Clip, Toe Panel WPL 342601 Contact Us For Availability

39

Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability

40

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

40

Cover, Light (Includes No.24) WPL 3387152 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Connector WPL 691707 Contact Us For Availability

42

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

42

Harness, Gas WPL 3390032 Contact Us For Availability

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

43

Clip, Harness (Rear Bulkhead Area) WPL 688412 Contact Us For Availability

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

44

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

45

Clip, Harness Retainer (Door Switch Wires) WPL 689180 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

47

Hinge, Lamp Cover WPL 3347112 Contact Us For Availability

48

BULKHEAD WPL 685821 Contact Us For Availability

Panel, Toe (White) WPL 697095 Contact Us For Availability

Panel, Toe (Almond) WPL 697096 Contact Us For Availability

To WPL 697097 Contact Us For Availability

WPL 697098 WPL 697098 Contact Us For Availability

WPL 697099 WPL 697099 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

54

Bumper, Lint Lid WPL 297535 Contact Us For Availability

55

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

56

98460 Whirlpool Nut Backorder WPL 98460 $9.59

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

59

Socket Assembly WPL 691034 Contact Us For Availability

60

Lens, Drum Light WPL 341165 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.04

62

Control, Electronic WPL 661513 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

Connector WPL 341141 Contact Us For Availability

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $132.34

67

WPL ARI154668A WPL ARI154668A Contact Us For Availability

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

81

279366 Whirlpool Sensor Kit In Stock WPL 279366 $54.81

83

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

90

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

91

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32
