Model Whirlpool KFIS27CXWH2 REFRIGERATOR – Common Parts &amp; Diagrams

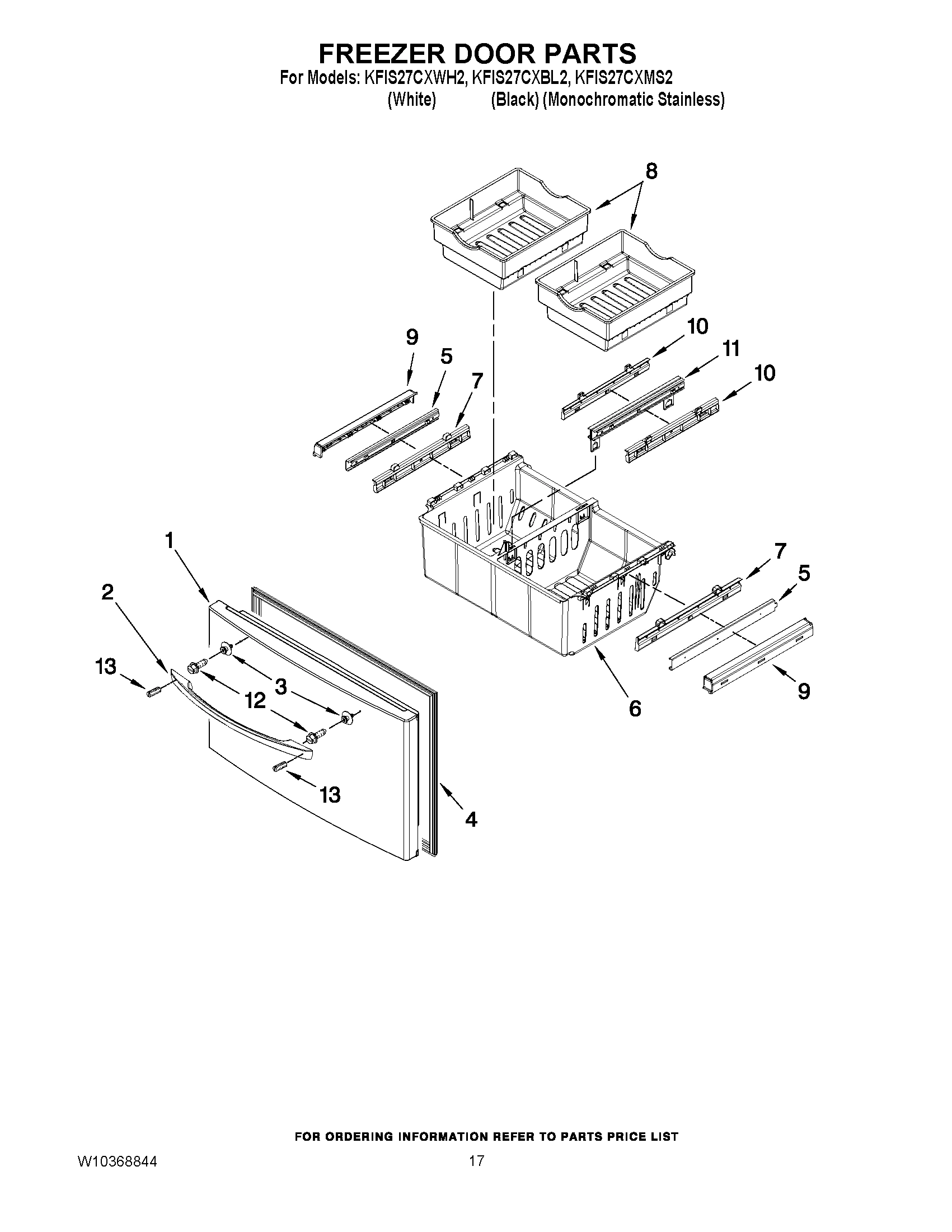

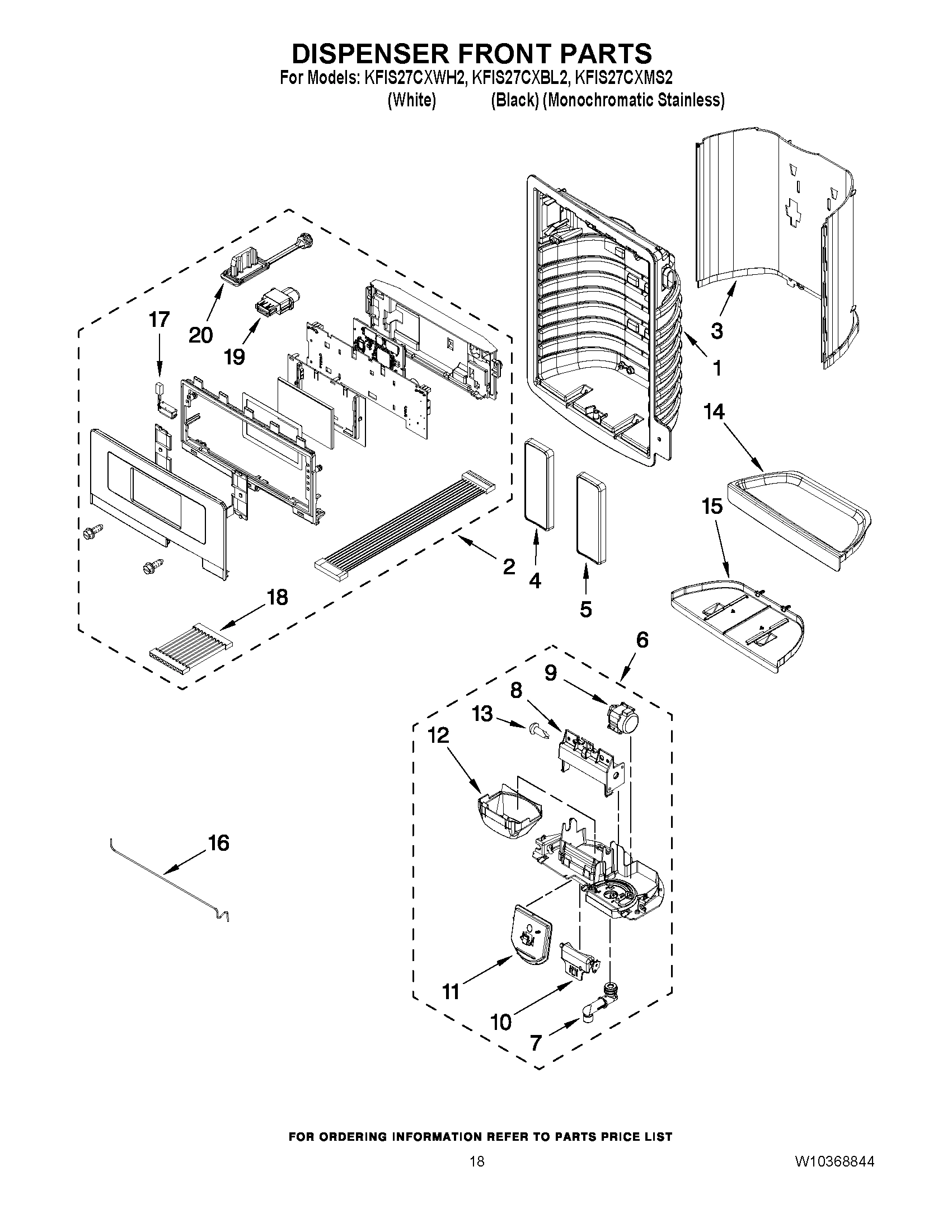

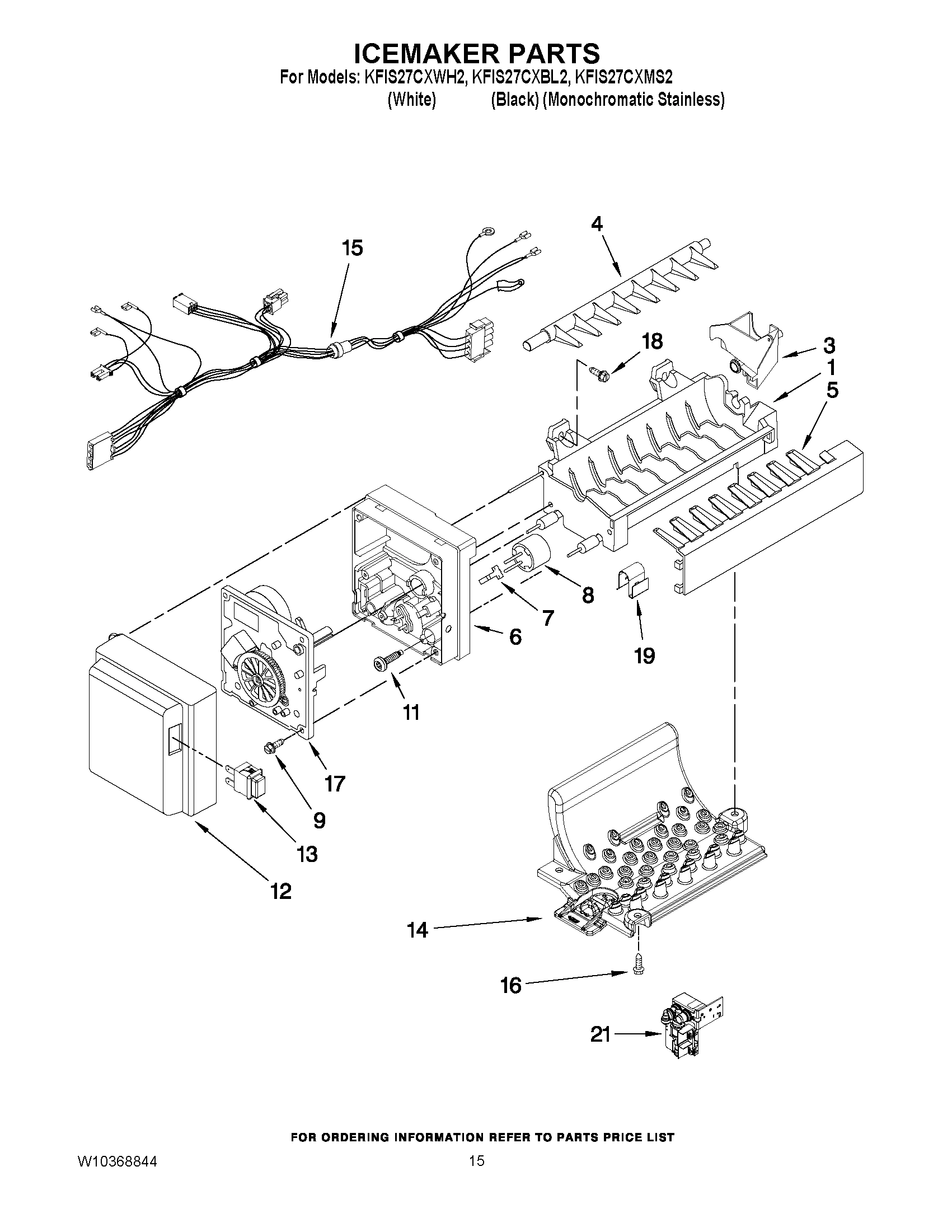

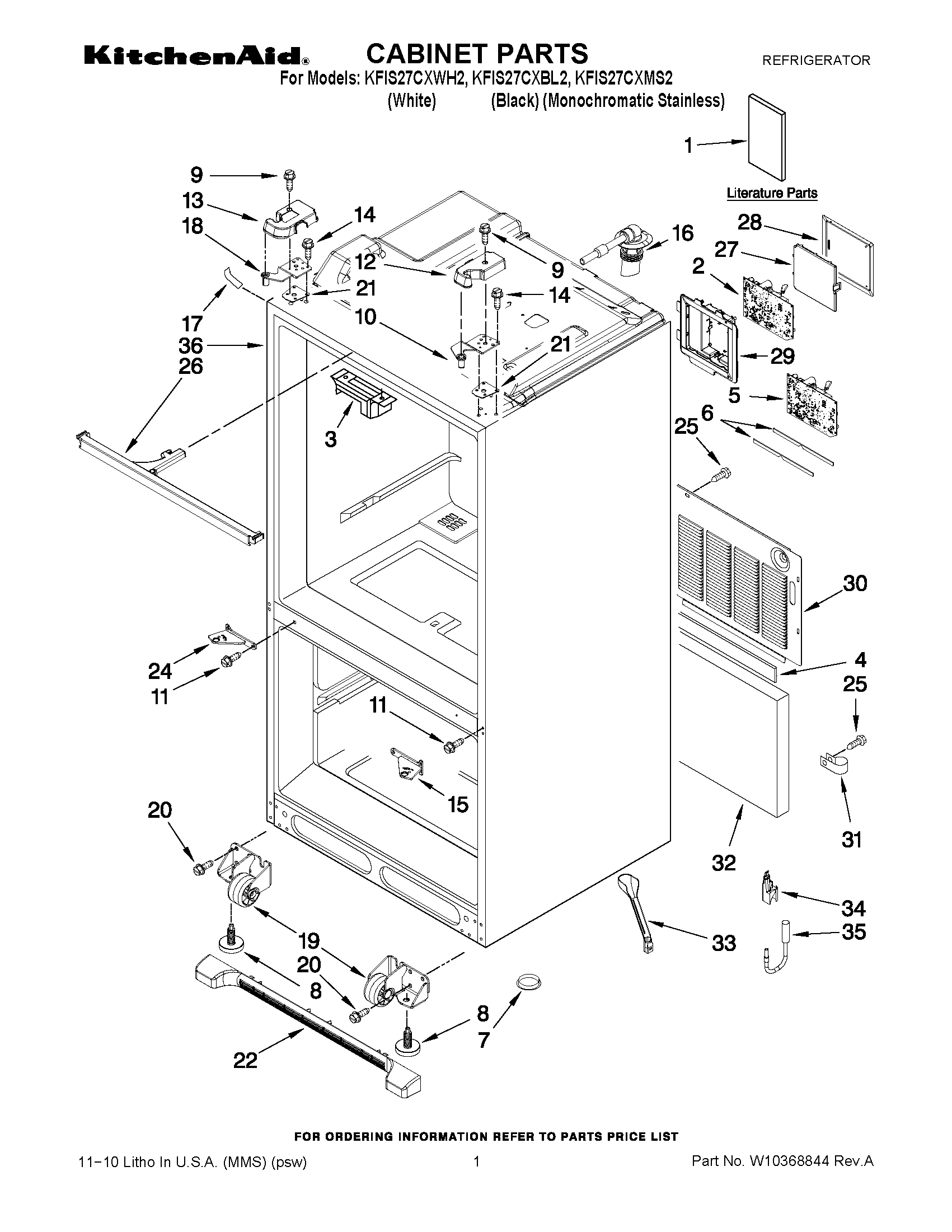

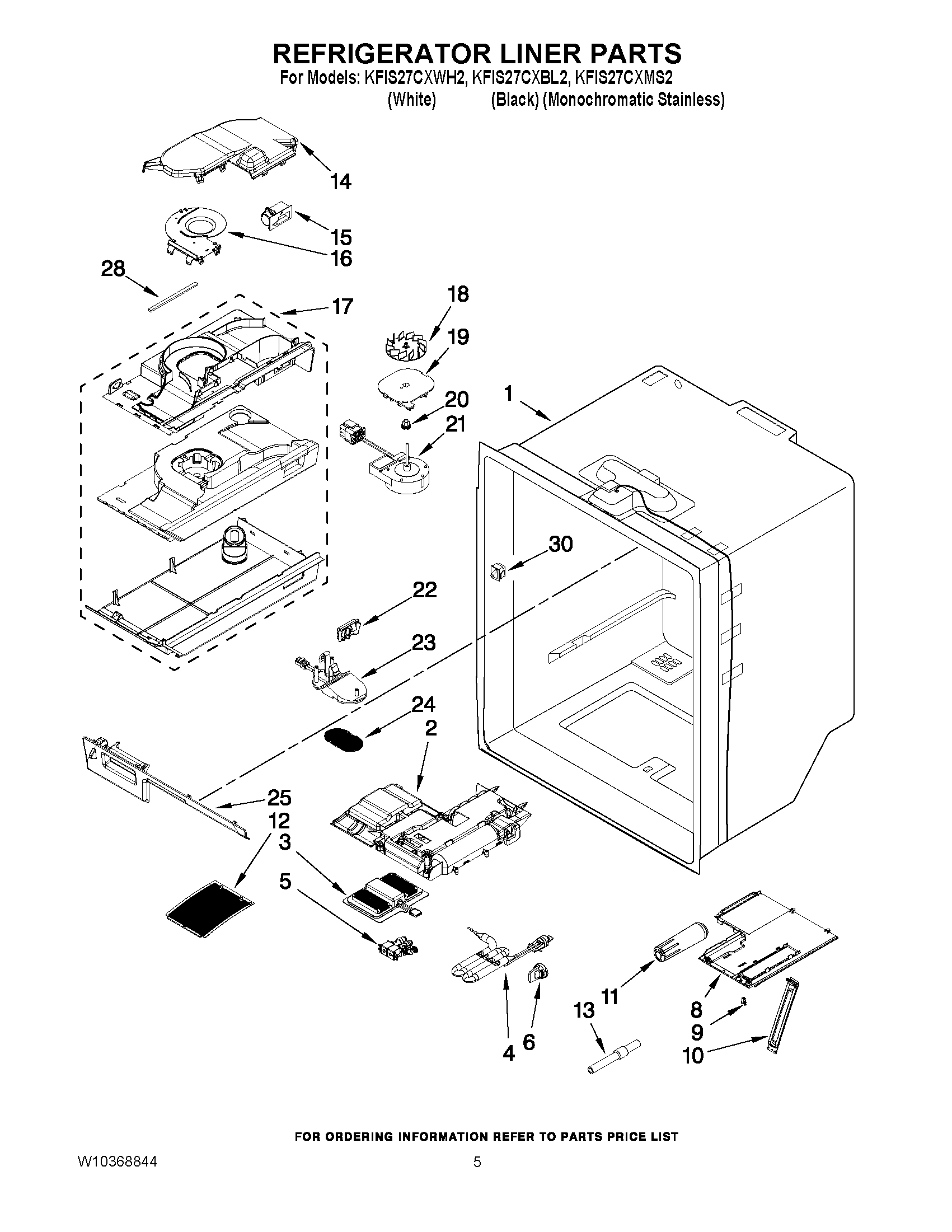

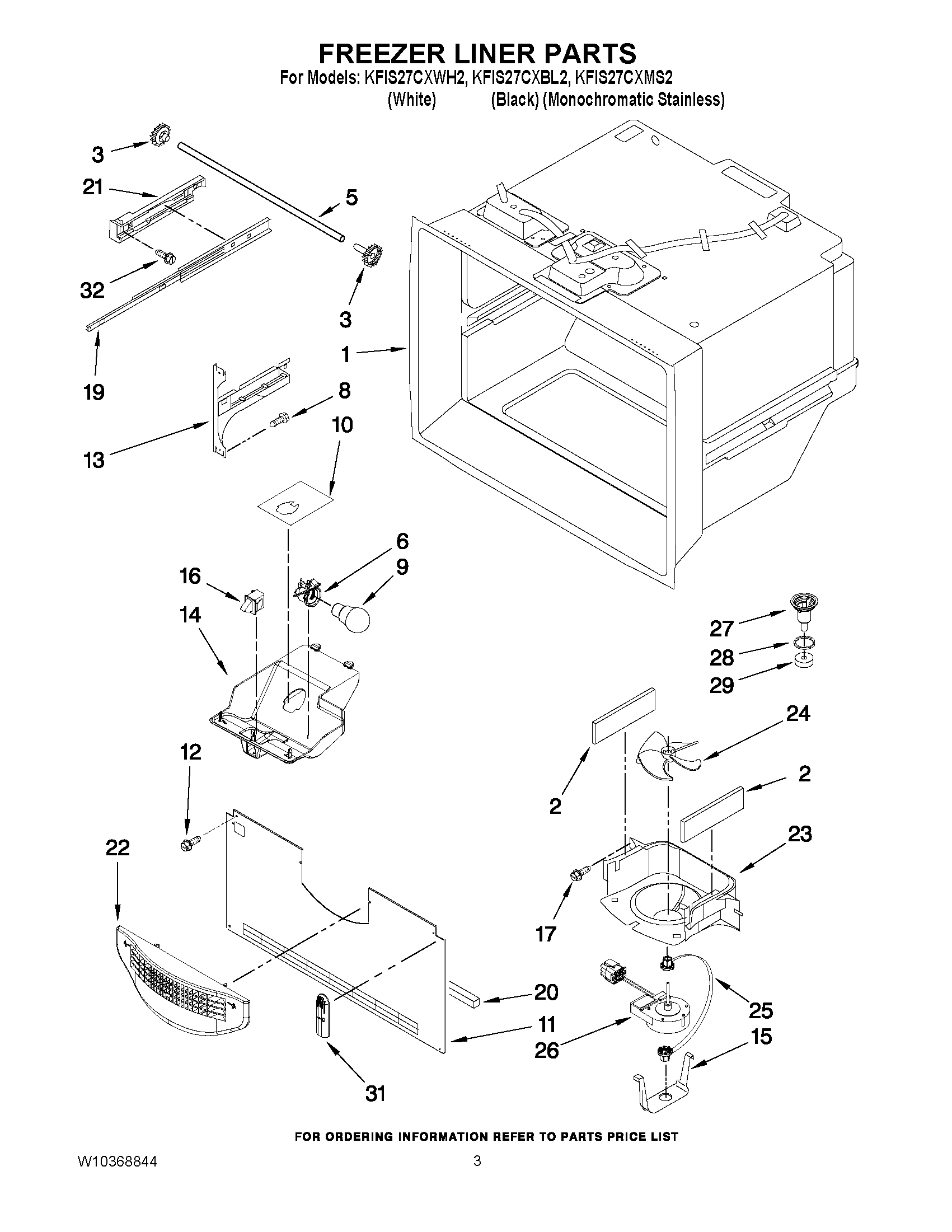

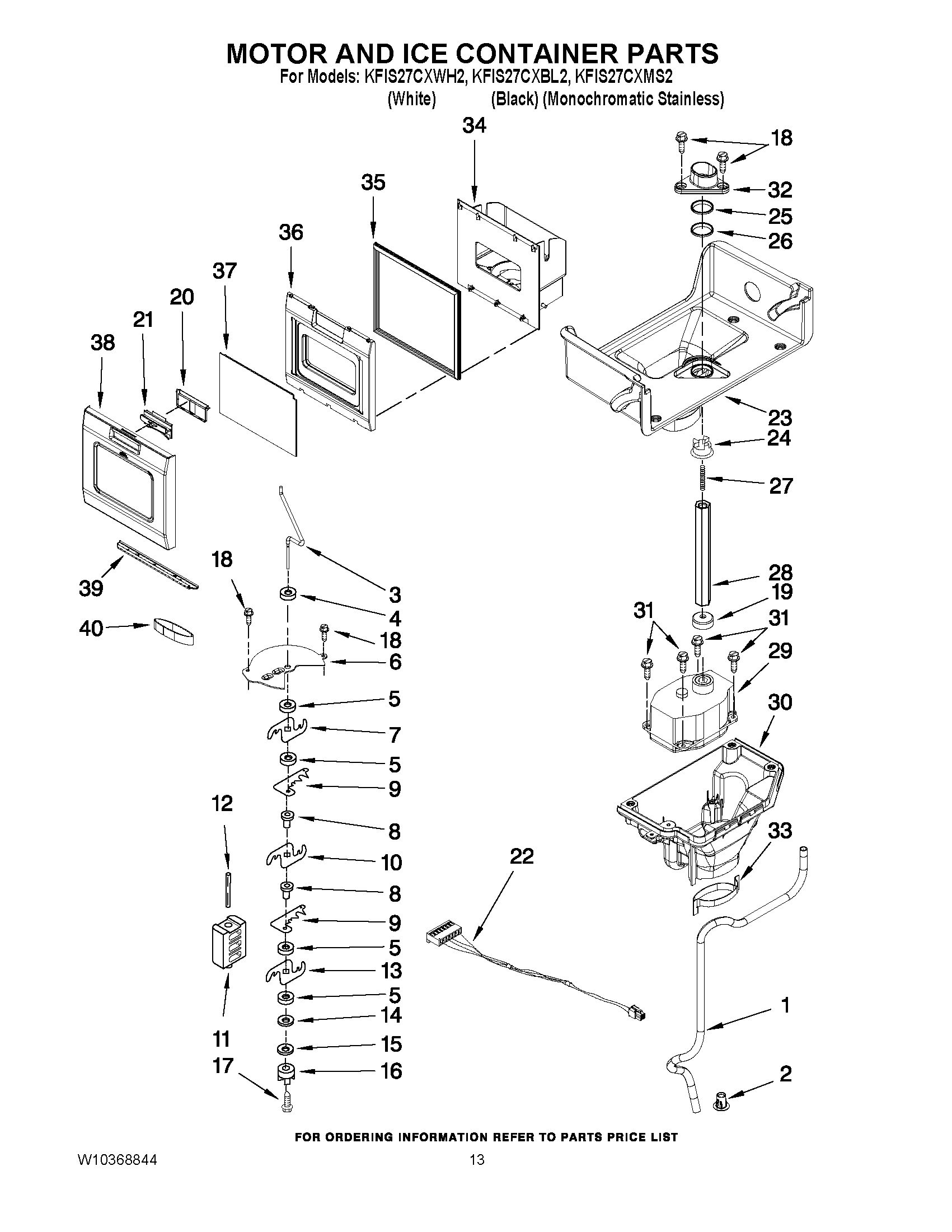

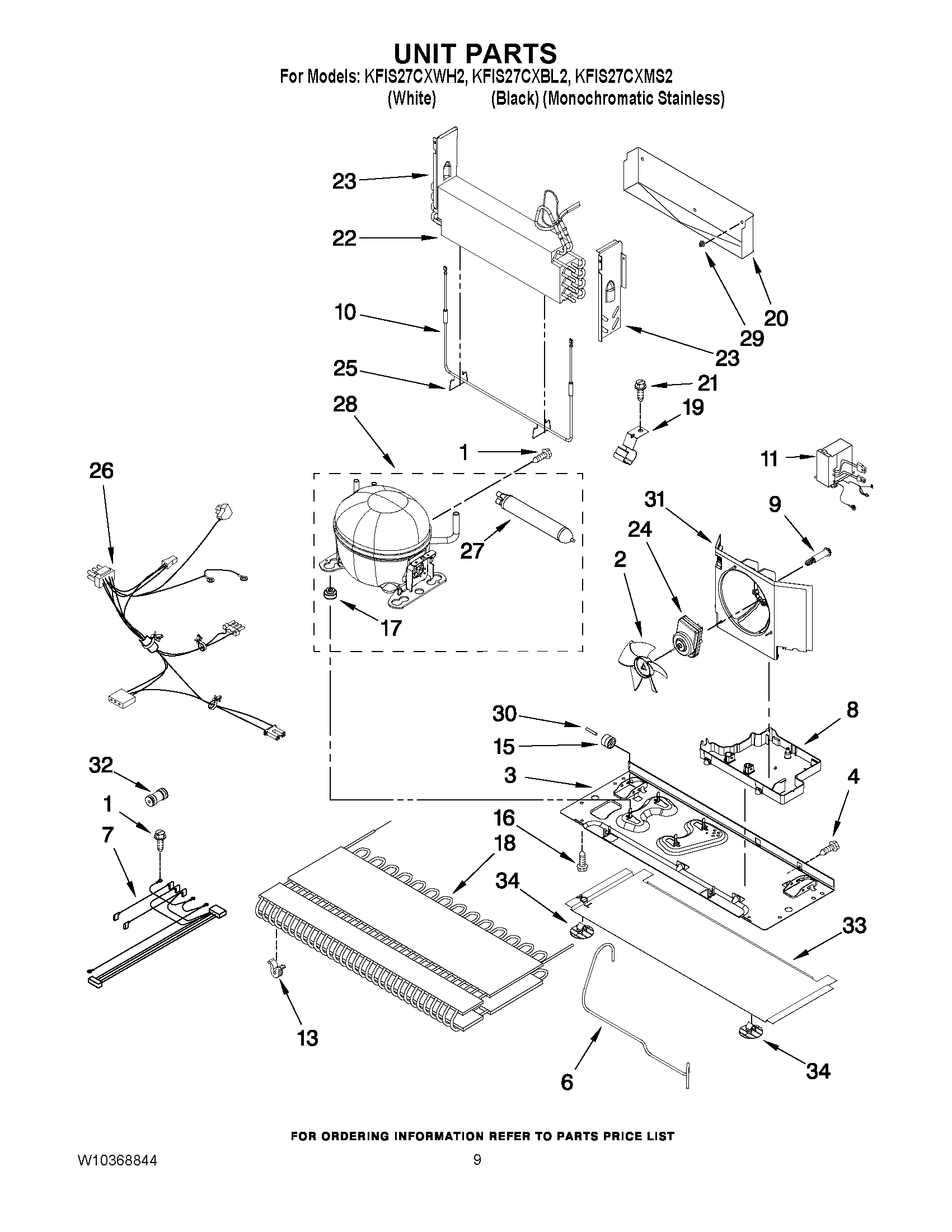

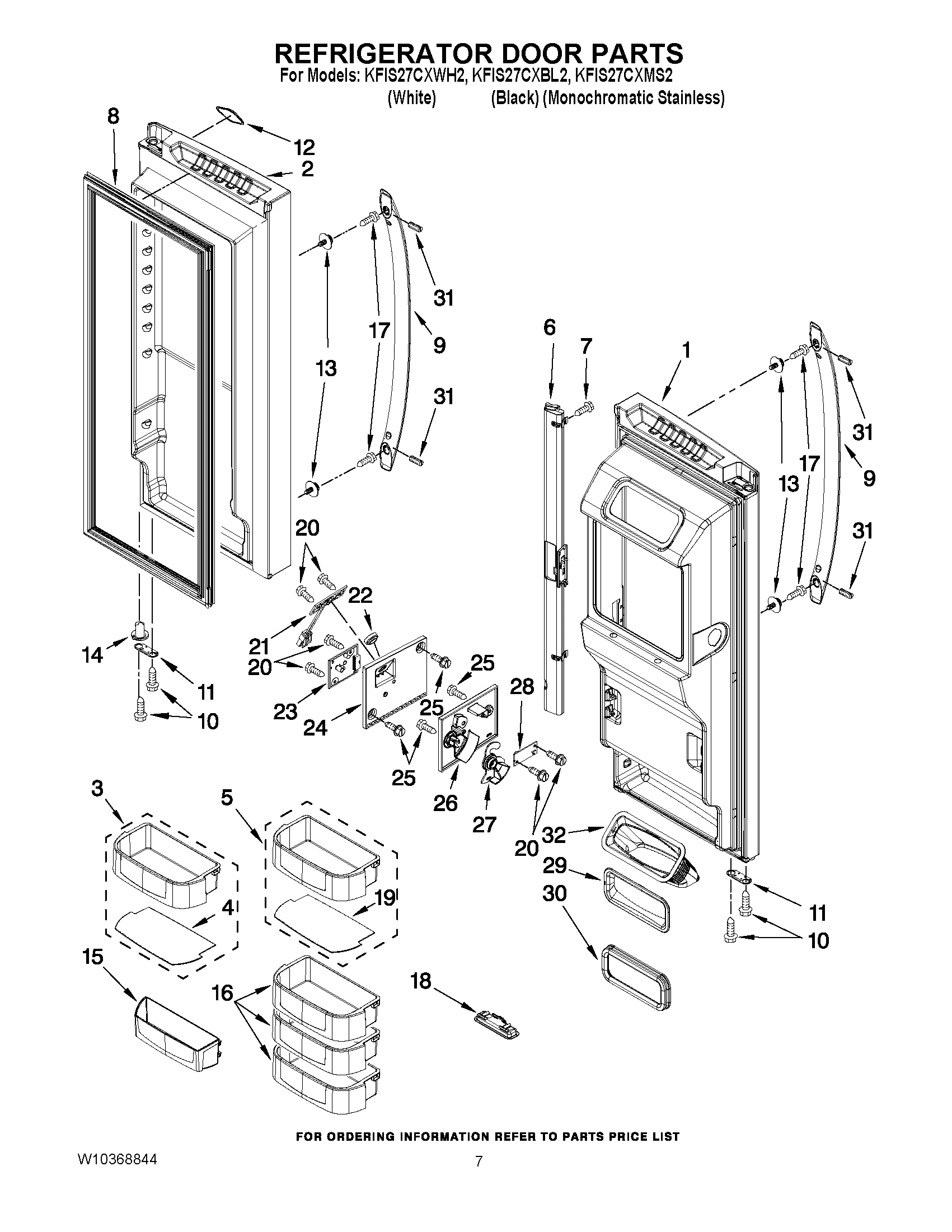

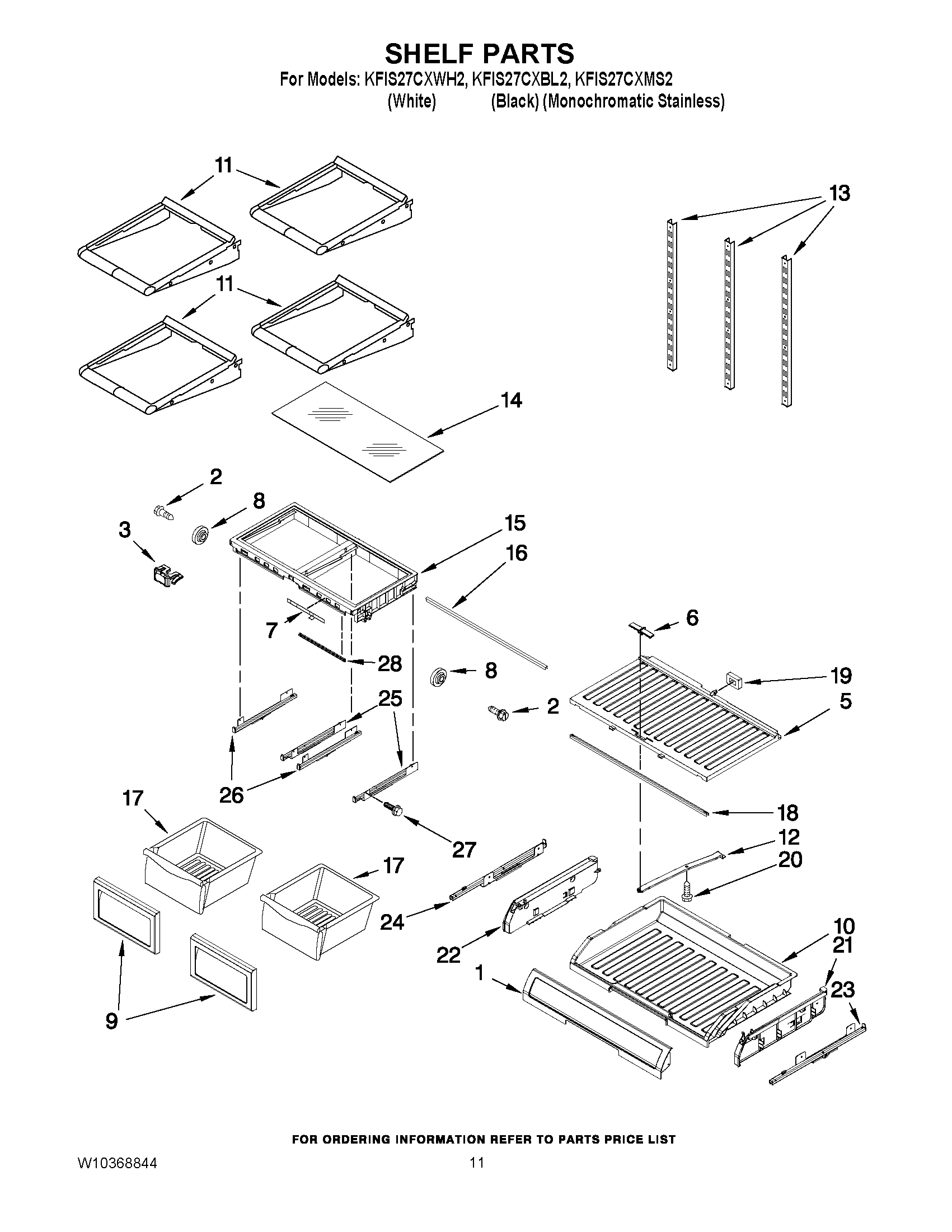

1

W10161596 Whirlpool Refrigerator Ice Mold Backorder WPL W10161596 $93.38

1

LID ASSEMBLY, PANTRY WPL W10278935 Contact Us For Availability

2

67006692 Whirlpool Refrigerator Screw Backorder WPL 67006692 $4.58

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.96

2

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $227.62

2

UI ASSEMBLY (STAINLESS) WPL W10309089 Contact Us For Availability

2

BRACKET, WATER SYSTEM WPL W10214813 Contact Us For Availability

2

UI ASSEMBLY (BLACK) WPL W10309225 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

W10119222 Whirlpool Refrigerator Control Knob Backorder WPL W10119222 $8.00

3

W10160726 Whirlpool Refrigerator Cup Fill Backorder WPL W10160726 $30.69

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10318644 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318644 $12.24

4

WPW10216070 Whirlpool Refrigerator Reservoir Backorder WPL WPW10216070 $178.31

4

WPW10368730 Whirlpool Refrigerator Pad In Stock WPL WPW10368730 $121.59

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.13

5

WP12956105 Whirlpool Refrigerator Valve In Stock WPL WP12956105 $87.50

5

WPW10235367 Whirlpool Refrigerator Glide Backorder WPL WPW10235367 $132.77

5

WPW10267646 Whirlpool Refrigerator Electronic Backorder WPL WPW10267646 $212.78

5

BUCKET, DOOR GALLON (INCLUDES No.4) WPL W10283469 Contact Us For Availability

5

PANTRY, TOP WPL W10276693 Contact Us For Availability

5

ICE STRIPPER WPL W10267602 Contact Us For Availability

6

12722815B Whirlpool Refrigerator Mullion Rail Backorder WPL 12722815B $123.96

6

W10242974 Whirlpool Refrigerator 25" Tube Backorder WPL W10242974 $30.25

6

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $42.05

6

WP12722815AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722815AP $137.10

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

6

COVER, CRUSHER WPL W10178232 Contact Us For Availability

6

KNOB, PANTRY TEMP WPL W10276721 Contact Us For Availability

7

W10119217 Whirlpool Refrigerator Slide Backorder WPL W10119217 $9.96

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $49.67

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

8

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

8

WP12924903 Whirlpool Refrigerator Freezer Bin Backorder WPL WP12924903 $71.39

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

8

COVER, WATER SYSTEM WPL W10215169 Contact Us For Availability

8

ROLLER, CRISPER FRAME WPL 12756701 Contact Us For Availability

9

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $50.71

9

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $42.36

9

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

FRONT, CRISPER WPL W10276729 Contact Us For Availability

12925404SP Whirlpool Refrigerator Bracket Backorder WPL 12925404SP $21.67

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.89

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $82.30

PAN, PANTRY WPL W10276689 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $56.07

W10205737 Whirlpool Refrigerator Glass Shelf Backorder WPL W10205737 $153.45

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $108.00

WPW10235357 Whirlpool Refrigerator Glide Asse Backorder WPL WPW10235357 $144.39

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

SCREW-HANDLE WPL W10290759 Contact Us For Availability

LENS, REFRIGERATOR LED WPL W10312047 Contact Us For Availability

COVER, RIGHT HINGE (STAINLESS) WPL W10272998 Contact Us For Availability

ARM, PANTRY CONTROL WPL W10276723 Contact Us For Availability

COVER WPL W10212429 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

W10884855 Whirlpool Refrigerator Switch Backorder WPL W10884855 $37.35

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

LADDER (3) WPL W10268264 Contact Us For Availability

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $13.21

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $43.13

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10305897 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10305897 $43.10

DUCT, SCROLL INLET WPL W10194596 Contact Us For Availability

DUCT, IMPINGER TOP WPL W10194598 Contact Us For Availability

GLASS, CRISPER WPL W10279105 Contact Us For Availability

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $55.95

W10267860 Whirlpool Refrigerator Drip Tray Backorder WPL W10267860 $37.04

W10267861 Whirlpool Refrigerator Drip Tray Backorder WPL W10267861 $37.09

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $28.99

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10247377 Whirlpool Refrigerator Control Backorder WPL WPW10247377 $176.26

HARNESS, ICEMAKER WPL W10292582 Contact Us For Availability

BUCKET, SMALL WPL W10280560 Contact Us For Availability

FRAME, CRISPER WPL W10276725 Contact Us For Availability

W10490807 Whirlpool Refrigerator Support Backorder WPL W10490807 $35.78

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

FILL TUBE, ICEMAKER WPL W10213219 Contact Us For Availability

TUBE, WATER WPL W10314372 Contact Us For Availability

PLATE, SCROLL INLET WPL W10194595 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

PAN, CRISPER (2) WPL W10276727 Contact Us For Availability

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $44.96

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

WPW10123444K Whirlpool Refrigerator Wheel Backorder WPL WPW10123444K $31.92

HARNESS, JUMPER WPL W10193350 Contact Us For Availability

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $75.69

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

Grommet, Drive Shaft WPL 2323357 Contact Us For Availability

BRACKET, MOTOR WPL W10194600 Contact Us For Availability

GASKET, PANTRY WPL W10279104 Contact Us For Availability

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.33

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.93

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $30.85

Screw WPL W10141645 Contact Us For Availability

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $35.59

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $36.00

WPW10270395 Whirlpool Refrigerator Valve In Stock WPL WPW10270395 $192.30

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $50.23

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $76.56

WPW10305123 Whirlpool Refrigerator Electronic Backorder WPL WPW10305123 $91.26

ENDCAP, PANTRY(RH) WPL W10276661 Contact Us For Availability

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $105.96

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $69.64

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $57.79

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $62.25

ENDCAP, PANTRY(LH) WPL W10276687 Contact Us For Availability

GRILLE, REF AIR WPL W10216534 Contact Us For Availability

LENS, ICE BIN LED WPL W10225288 Contact Us For Availability

23

W10132652 Whirlpool Refrigerator Glide Backorder WPL W10132652 $92.96

23

BOARD, RECEIVER WPL W10273549 Contact Us For Availability

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $37.30

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $41.43

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $49.19

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.82

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

WPW10132653 Whirlpool Refrigerator Glide Backorder WPL WPW10132653 $121.88

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

GLIDE-CRISPER-R WPL W10286440 Contact Us For Availability

W10271463 Whirlpool Refrigerator Wire Harness Backorder WPL W10271463 $160.18

W11334745 Whirlpool Refrigerator Evaporator F In Stock WPL W11334745 $78.14

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

COVER, WATER LINE (WHITE) WPL W10253808 Contact Us For Availability

COVER, WATER LINE (BLACK) WPL W10253809 Contact Us For Availability

COVER, WATER LINE (STAINLESS) WPL W10253811 Contact Us For Availability

GLIDE-CRISPER-L WPL W10286442 Contact Us For Availability

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

27

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $31.81

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

28

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $41.10

28

SHAFT, MOTOR WPL W10258592 Contact Us For Availability

28

GASKET-PAN COVER WPL W10279036 Contact Us For Availability

29

WP2323603 Whirlpool Refrigerator Motor In Stock WPL WP2323603 $123.75

29

SEAL, ICE DOOR WPL W10247763 Contact Us For Availability

29

BOX-HV CONTROL WPL W10159461 Contact Us For Availability

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $81.61

30

GASKET, ICE CHUTE WPL W10247668 Contact Us For Availability

31

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $11.58

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.01

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

32

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

32

CLIP, SHAFT WPL W10218551 Contact Us For Availability

32

INSULATION, SOUND WPL 12820505 Contact Us For Availability

33

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $25.33

34

CONTAINER, ICE WPL W10267558 Contact Us For Availability

34

COVER, WATER VALVE WPL W10236761 Contact Us For Availability

35

GASKET, ICE CONTAINER WPL W10178224 Contact Us For Availability

35

WATERLINE WPL W10223786 Contact Us For Availability

36

WPL NP WPL NP Contact Us For Availability

40

GASKET, CHUTE WPL W10166865 Contact Us For Availability

100

WPW10122559 Whirlpool Refrigerator Icemaker In Stock WPL WPW10122559 $136.16

100

ICEBOX ASSEMBLY, COMPLETE WPL W10293764 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

GRATE, DISPENSER WPL W10215957 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

HARNESS, RC LIGHTS (INCLUDES THERMISTOR) WPL W10292583 Contact Us For Availability
