Model Whirlpool KFIS27CXWH0 REFRIGERATOR – Common Parts &amp; Diagrams

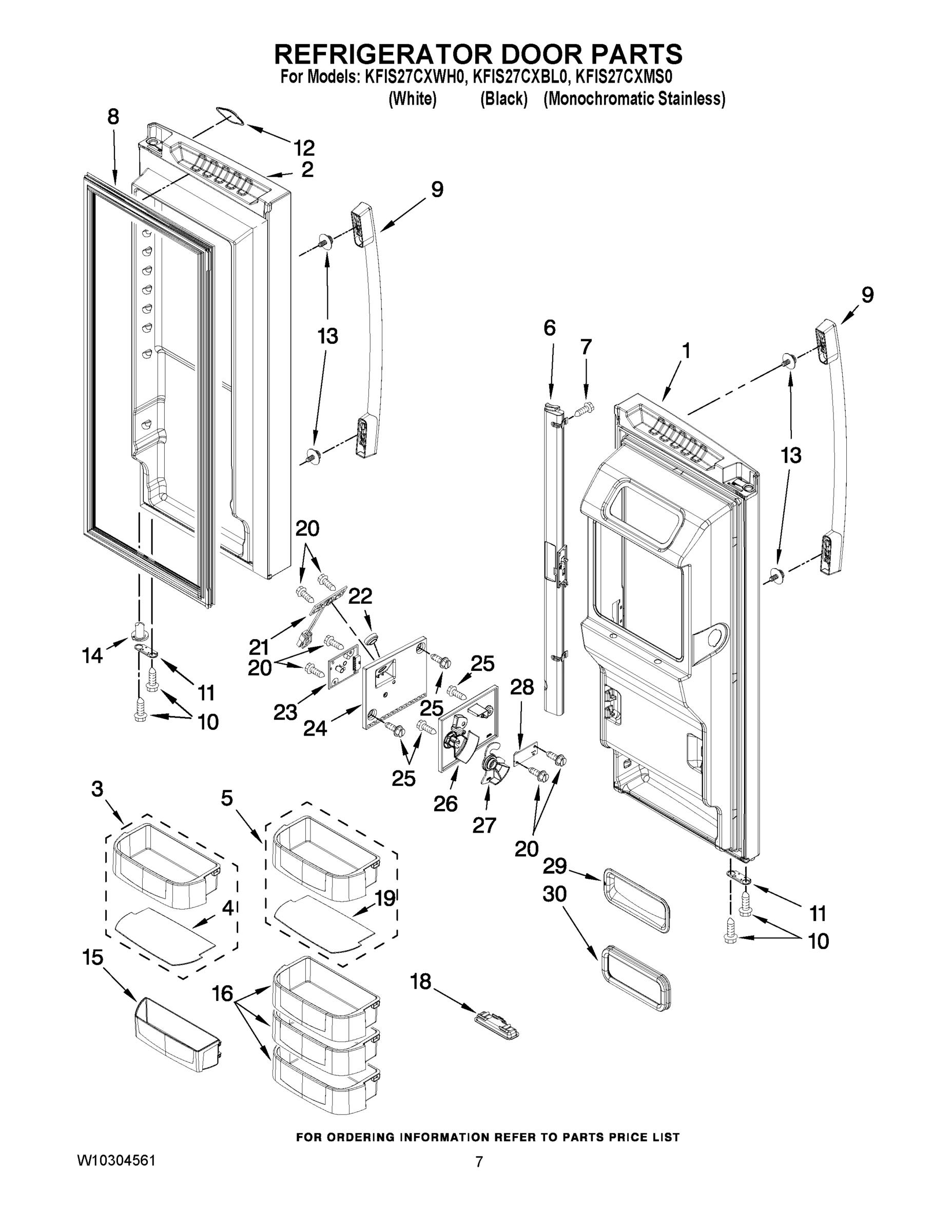

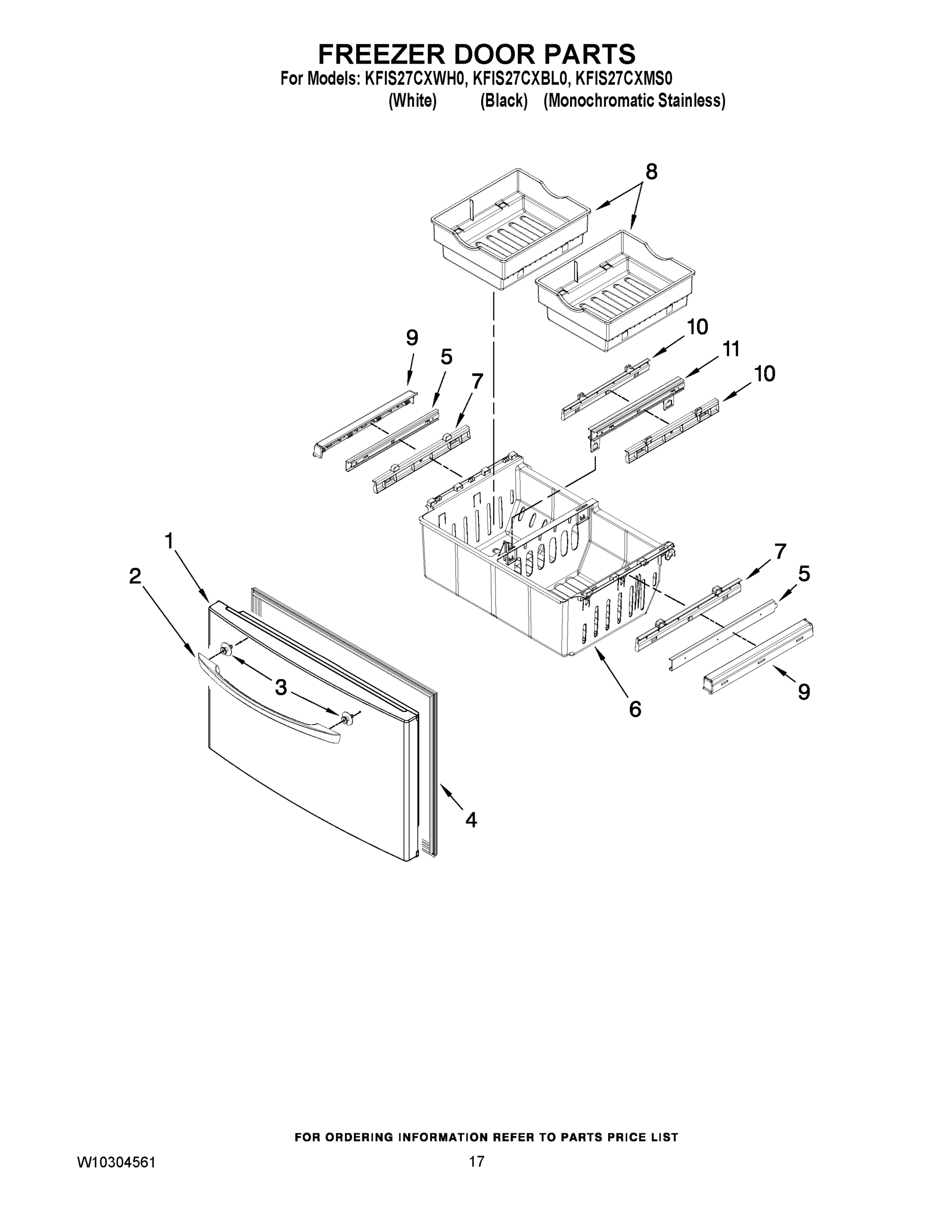

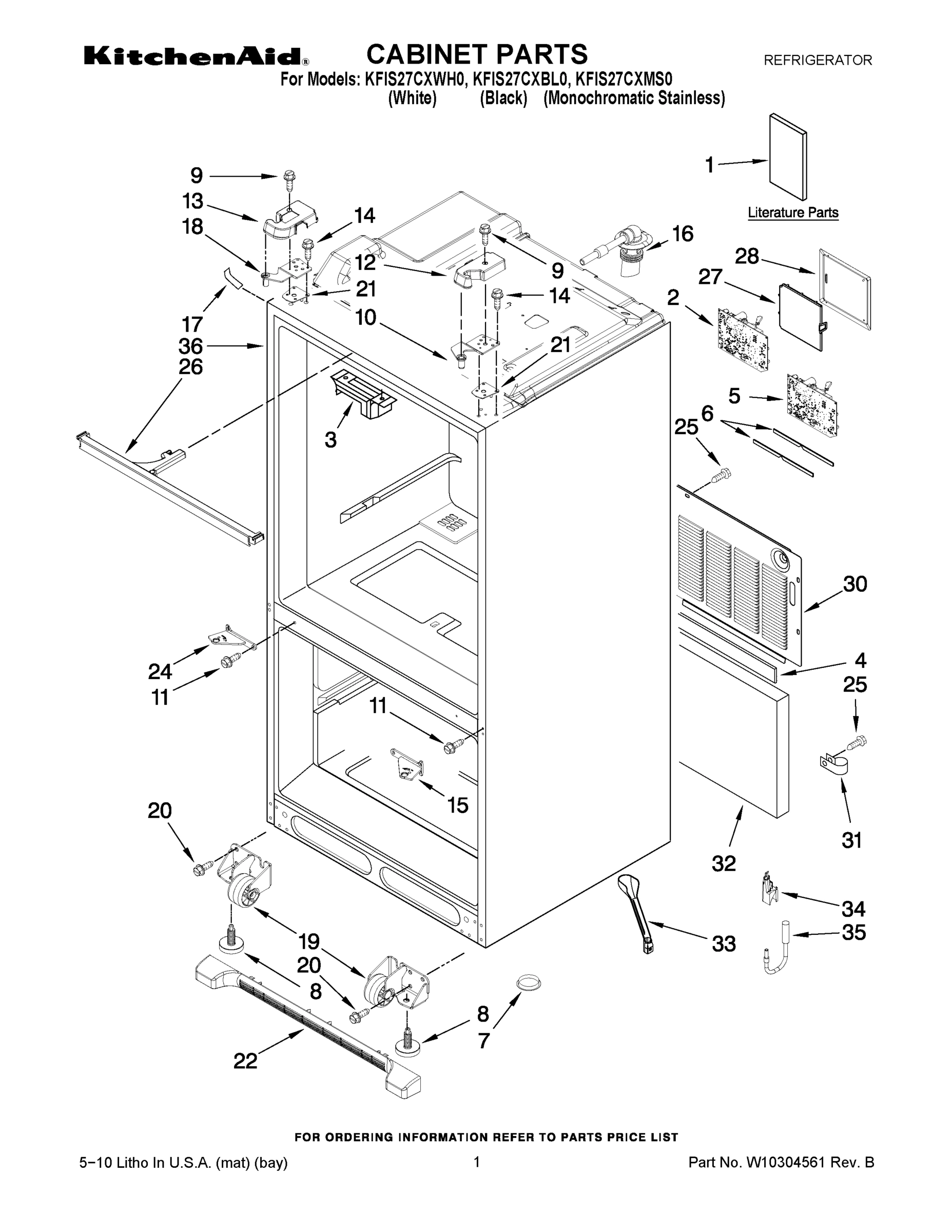

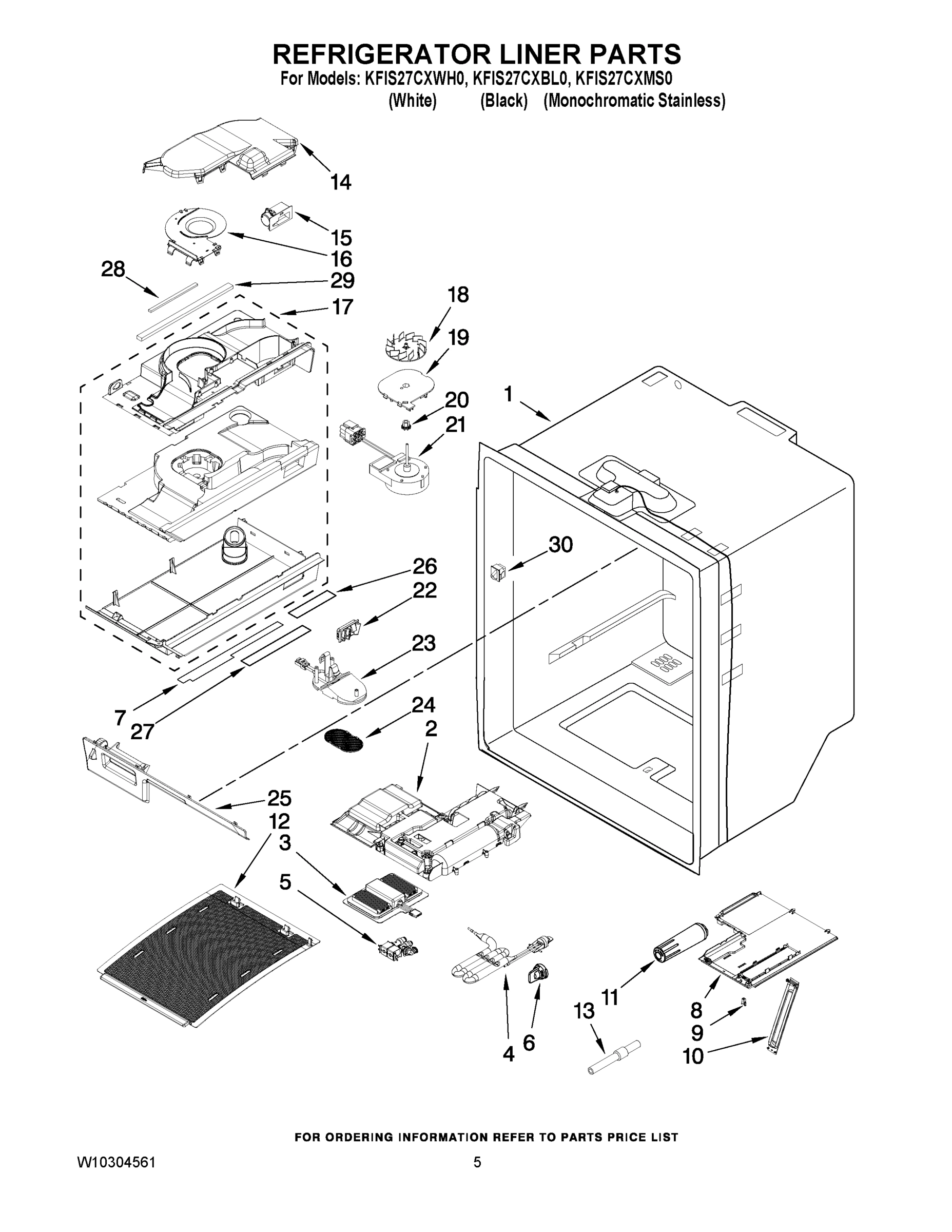

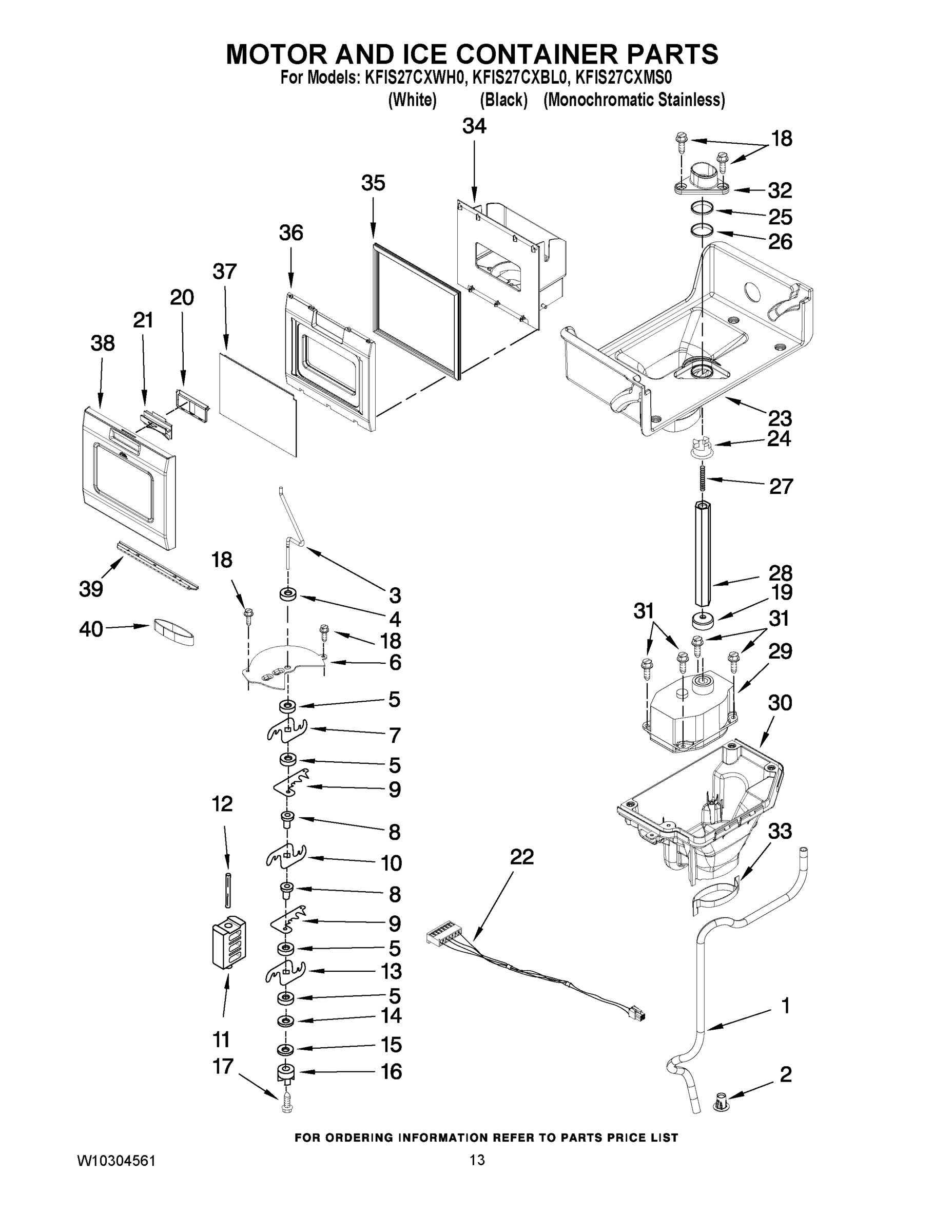

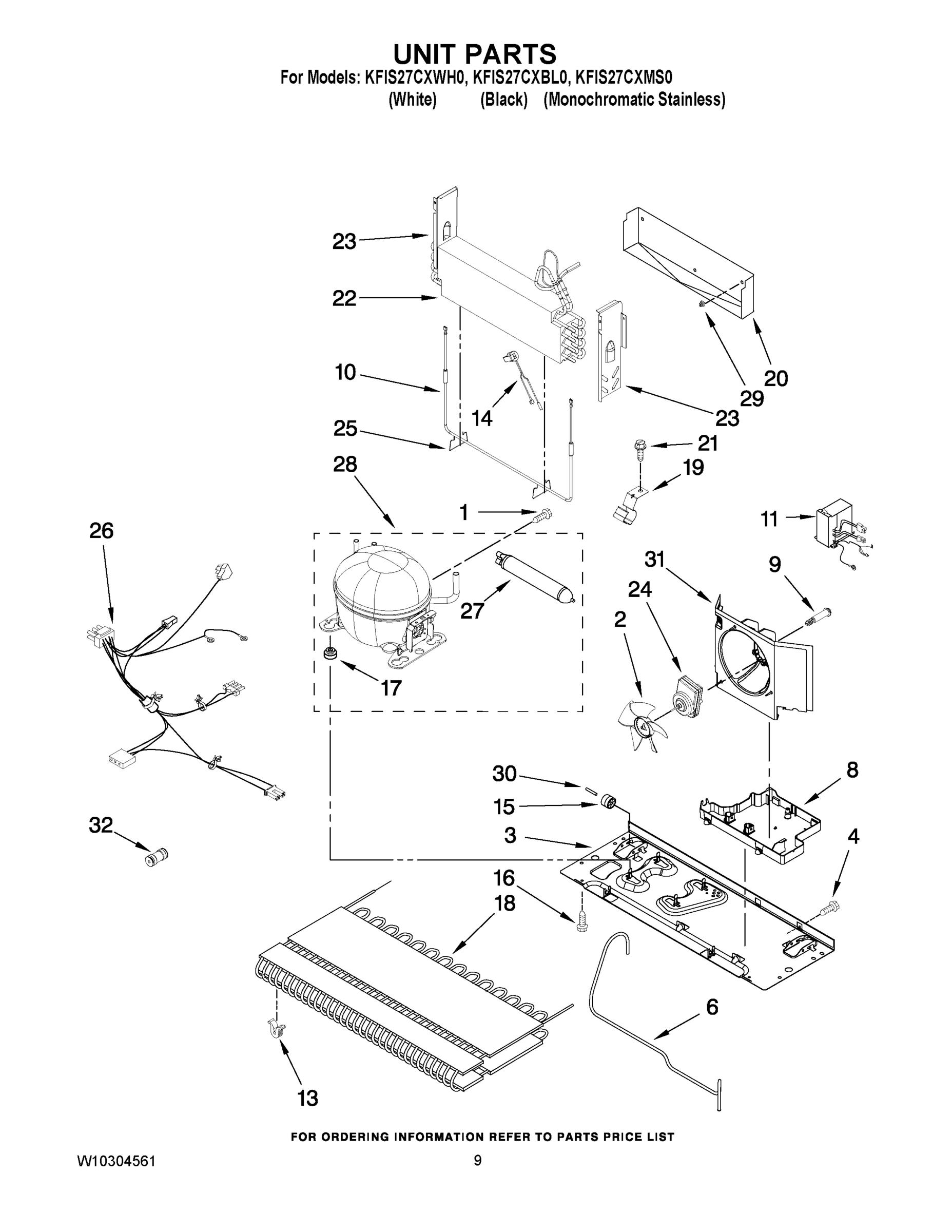

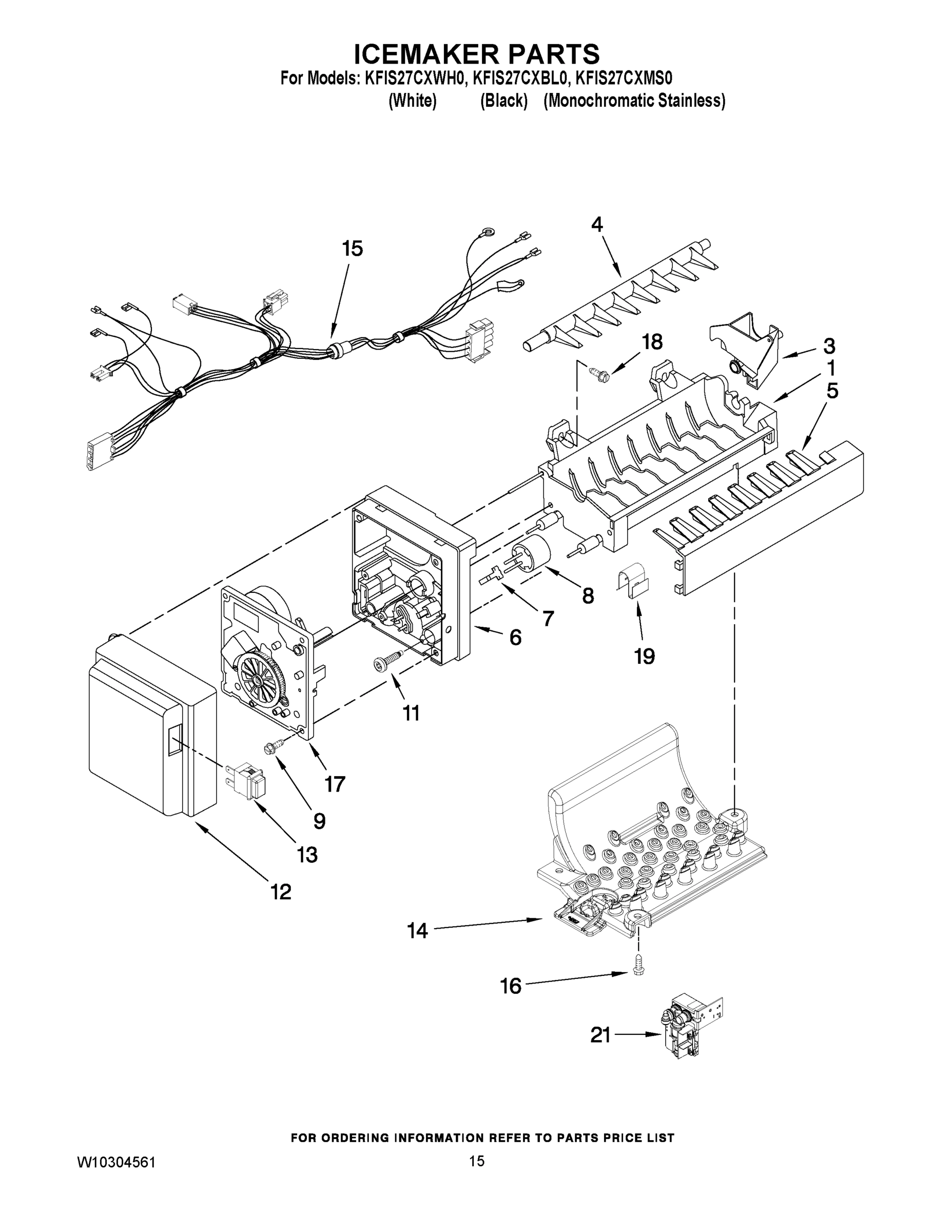

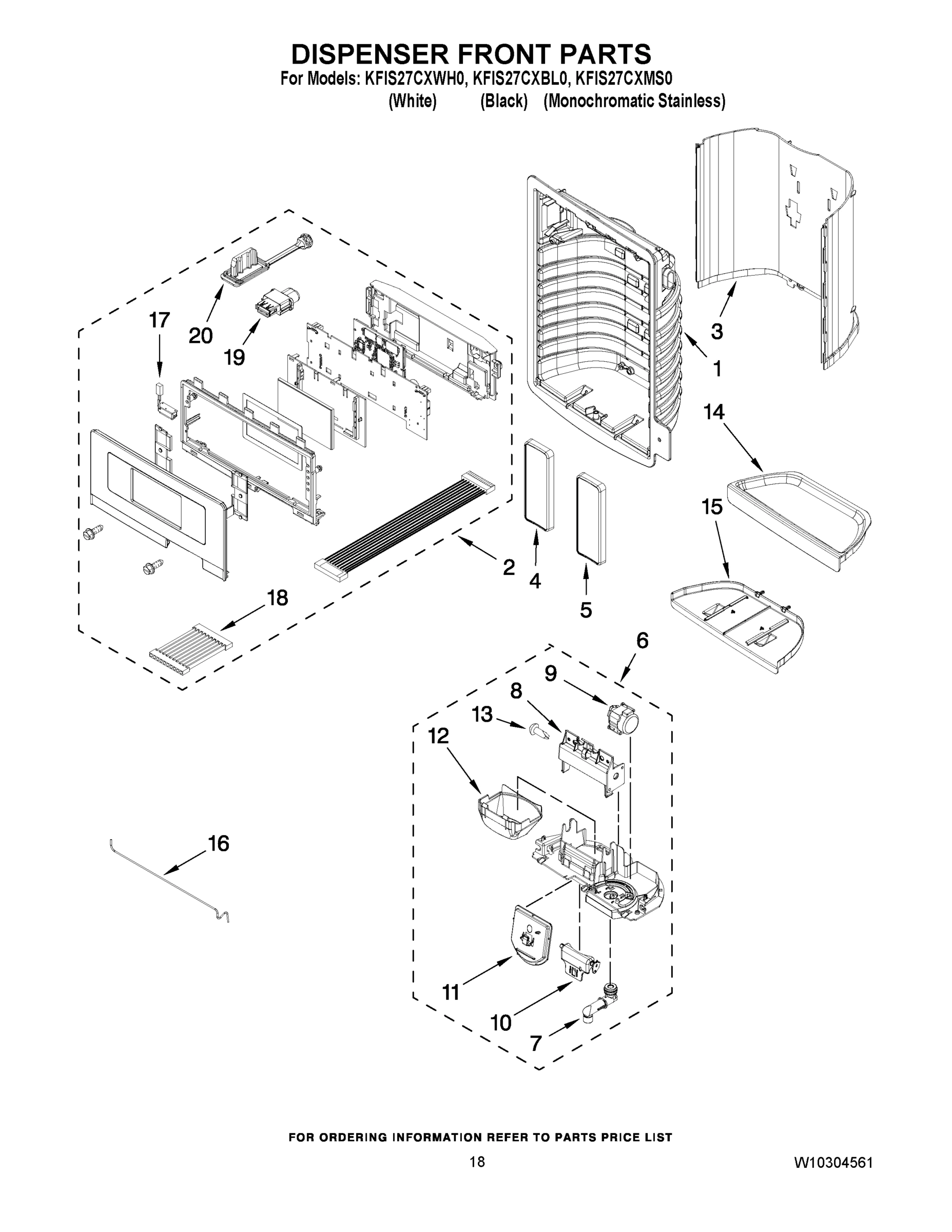

1

W10161596 Whirlpool Refrigerator Ice Mold Backorder WPL W10161596 $88.93

1

LID ASSEMBLY, PANTRY WPL W10278935 Contact Us For Availability

1

DOOR, LEFT (STAINLESS) WPL 13102607SQ Contact Us For Availability

1

TUBE, DRAIN WPL W10245518 Contact Us For Availability

1

DOOR, LEFT (WHITE) WPL 13102602WQ Contact Us For Availability

1

DOOR, LEFT (BLACK) WPL 13102609BQ Contact Us For Availability

2

W10562834 Whirlpool Refrigerator Clip Backorder WPL W10562834 $5.67

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

2

BRACKET, WATER SYSTEM WPL W10214813 Contact Us For Availability

2

DOOR, RIGHT (WHITE) WPL 13102603WQ Contact Us For Availability

2

DOOR, RIGHT (STAINLESS) WPL 13102606SQ Contact Us For Availability

2

DOOR, RIGHT (BLACK) WPL 13102608BQ Contact Us For Availability

3

W10119222 Whirlpool Refrigerator Control Knob Backorder WPL W10119222 $8.00

3

W10160726 Whirlpool Refrigerator Cup Fill Backorder WPL W10160726 $29.23

3

W11045976 Whirlpool Refrigerator Shield Backorder WPL W11045976 $28.11

3

AUGER, CRUSHER WPL W10178230 Contact Us For Availability

3

BUCKET, DOOR SMALL (INCLUDES No.4) WPL W10283472 Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10318644 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318644 $12.24

4

W10368729 Whirlpool Refrigerator Pad Backorder WPL W10368729 $124.53

4

WPW10216070 Whirlpool Refrigerator Reservoir Backorder WPL WPW10216070 $170.99

4

WPW10368730 Whirlpool Refrigerator Pad In Stock WPL WPW10368730 $120.79

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

PAD, ICE (WHITE) WPL W10270549 Contact Us For Availability

4

GRIPPER, GALLON WPL W10283151 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

W11032808 Whirlpool Refrigerator Spacer Backorder WPL W11032808 $6.28

5

WP12956105 Whirlpool Refrigerator Valve In Stock WPL WP12956105 $87.50

5

WPW10267646 Whirlpool Refrigerator Electronic Backorder WPL WPW10267646 $211.99

5

BUCKET, DOOR GALLON (INCLUDES No.4) WPL W10283469 Contact Us For Availability

5

PAD, WATER (WHITE) WPL W10270553 Contact Us For Availability

5

PAD, WATER (BLACK) WPL W10270554 Contact Us For Availability

5

ICE STRIPPER WPL W10267602 Contact Us For Availability

6

12722815B Whirlpool Refrigerator Mullion Rail Backorder WPL 12722815B $118.05

6

W10242974 Whirlpool Refrigerator 25" Tube Backorder WPL W10242974 $28.80

6

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $24.32

6

WP12722815AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722815AP $129.80

6

WP12722815W Whirlpool Refrigerator Mullion Ra Backorder WPL WP12722815W $130.14

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

6

WPW10353552 Whirlpool Refrigerator Separator In Stock WPL WPW10353552 $97.61

6

COVER, CRUSHER WPL W10178232 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

W10119217 Whirlpool Refrigerator Slide Backorder WPL W10119217 $9.96

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $47.31

7

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $9.59

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

8

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

8

W10189661 Whirlpool Refrigerator Spacer Backorder WPL W10189661 $30.51

8

W10830055 Whirlpool Refrigerator Door Gasket In Stock WPL W10830055 $124.35

8

W11378944 Whirlpool Door Gasket In Stock WPL W11378944 $105.32

8

W11396037 Whirlpool Door Gasket In Stock WPL W11396037 $105.32

8

WP12924903 Whirlpool Refrigerator Freezer Bin Backorder WPL WP12924903 $67.98

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

8

COVER, WATER SYSTEM WPL W10215169 Contact Us For Availability

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $37.55

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

9

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $37.17

9

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

9

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

HANDLE, DOOR (BLACK) WPL W10280766 Contact Us For Availability

12925404SP Whirlpool Refrigerator Bracket Backorder WPL 12925404SP $20.64

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $75.66

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10346124 Whirlpool Refrigerator Support Backorder WPL WPW10346124 $15.94

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $55.44

W10178238 Whirlpool Blade Block Backorder WPL W10178238 $4.78

W10346235 Whirlpool Refrigerator Chute Door Backorder WPL W10346235 $62.97

W11703060 Whirlpool Door Stop Backorder WPL W11703060 $5.38

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

W10166878 Whirlpool Roll Pin Backorder WPL W10166878 $7.43

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

Nameplate (Stainless) WPL W10046610 Contact Us For Availability

COVER, RIGHT HINGE (APOLLO GREY) WPL W10272998 Contact Us For Availability

COVER WPL W10212429 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

W10884855 Whirlpool Refrigerator Switch Backorder WPL W10884855 $35.58

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

WPW10305897 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10305897 $41.05

DUCT, SCROLL INLET WPL W10194596 Contact Us For Availability

DUCT, IMPINGER TOP WPL W10194598 Contact Us For Availability

TRAY, DISPENSER (WHITE) WPL W10289518 Contact Us For Availability

TRAY, DISPENSER (BLACK) WPL W10289519 Contact Us For Availability

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $53.88

W10267860 Whirlpool Refrigerator Drip Tray Backorder WPL W10267860 $35.28

W10267861 Whirlpool Refrigerator Drip Tray Backorder WPL W10267861 $35.32

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $27.61

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10212139 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10212139 $44.63

WPW10247377 Whirlpool Refrigerator Control Backorder WPL WPW10247377 $177.47

WPW10267863 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10267863 $34.73

HARNESS, ICEMAKER WPL W10249475 Contact Us For Availability

FRAME, CRISPER WPL W10276725 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

FILL TUBE, ICEMAKER WPL W10213219 Contact Us For Availability

PLATE, SCROLL INLET WPL W10194595 Contact Us For Availability

TUBE, WATER WPL W10180827 Contact Us For Availability

BUCKET, DOOR GALLON (RH) (WITHOUT GRIPPER) WPL W10237237 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $31.09

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

PAN, CRISPER (2) WPL W10276727 Contact Us For Availability

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $42.82

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WPW10123444K Whirlpool Refrigerator Wheel Backorder WPL WPW10123444K $30.40

HARNESS, JUMPER WPL W10193350 Contact Us For Availability

LATCH, ICE BIN WPL W10212141 Contact Us For Availability

2323357 Whirlpool Refrigerator Washer Backorder WPL 2323357 $9.59

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

BRACKET, MOTOR WPL W10194600 Contact Us For Availability

USB HARNESS WPL W10278979 Contact Us For Availability

GRIPPER WPL W10283145 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

COVER- USB WPL W10309116 Contact Us For Availability

COVER, LATCH WPL W10215692 Contact Us For Availability

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

WPW10270395 Whirlpool Refrigerator Valve In Stock WPL WPW10270395 $182.39

WPW10305123 Whirlpool Refrigerator Electronic Backorder WPL WPW10305123 $91.26

ENDCAP, PANTRY(RH) WPL W10276661 Contact Us For Availability

SPRING, LATCH WPL W10292300 Contact Us For Availability

ENDCAP, PANTRY(LH) WPL W10276687 Contact Us For Availability

GRILLE, REF AIR WPL W10216534 Contact Us For Availability

LENS, ICE BIN LED WPL W10225288 Contact Us For Availability

HARNESS, DISPENSER MOTOR WPL W10185589 Contact Us For Availability

23

BOARD, RECEIVER WPL W10273549 Contact Us For Availability

23

COVER, MOUNTING PLATE WPL W10276436 Contact Us For Availability

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $35.52

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $39.45

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $46.85

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

COVER, RECEIVER WPL W10251672 Contact Us For Availability

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

25

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

W10271463 Whirlpool Refrigerator Wire Harness Backorder WPL W10271463 $152.55

W11334745 Whirlpool Refrigerator Evaporator F In Stock WPL W11334745 $77.32

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

COVER, EMITTER WPL W10199834 Contact Us For Availability

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

27

SHUTOFF, EMITTER WPL W10211511 Contact Us For Availability

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

W10870822 Whirlpool Refrigerator Electronic C In Stock WPL W10870822 $131.95

SHAFT, MOTOR WPL W10258592 Contact Us For Availability

GASKET, ICEBOX (SHORT) WPL W10292453 Contact Us For Availability

29

WP2323603 Whirlpool Refrigerator Motor In Stock WPL WP2323603 $123.75

29

SEAL, ICE DOOR WPL W10247763 Contact Us For Availability

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $77.72

30

GASKET, ICE CHUTE WPL W10247668 Contact Us For Availability

30

HOUSING, AUGER MOTOR WPL W10245601 Contact Us For Availability

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

32

CLIP, SHAFT WPL W10218551 Contact Us For Availability

32

INSULATION, SOUND WPL 12820505 Contact Us For Availability

33

GASKET, MOTOR BOX WPL W10247398 Contact Us For Availability

34

COVER, WATER VALVE WPL W10236761 Contact Us For Availability

34

CONTAINER, ICE WPL W10213606 Contact Us For Availability

35

GASKET, ICE CONTAINER WPL W10178224 Contact Us For Availability

36

EPS, ICE CONTAINER WPL W10213615 Contact Us For Availability

37

WINDOW, ICE CONTAINER WPL W10218689 Contact Us For Availability

38

FRONT, ICE CONTAINER WPL W10292299 Contact Us For Availability

39

HINGE, ICE BUCKET WPL W10248280 Contact Us For Availability

40

GASKET, CHUTE WPL W10166865 Contact Us For Availability

100

WPW10122559 Whirlpool Refrigerator Icemaker In Stock WPL WPW10122559 $136.16

100

ICEBOX ASSEMBLY, COMPLETE WPL W10256944 Contact Us For Availability

100

CONTAINER, ICE (COMPLETE) WPL W10292301 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11033771 Whirlpool Refrigerator Coupling Backorder WPL W11033771 $13.21

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10267346 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10267346 $75.66

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
