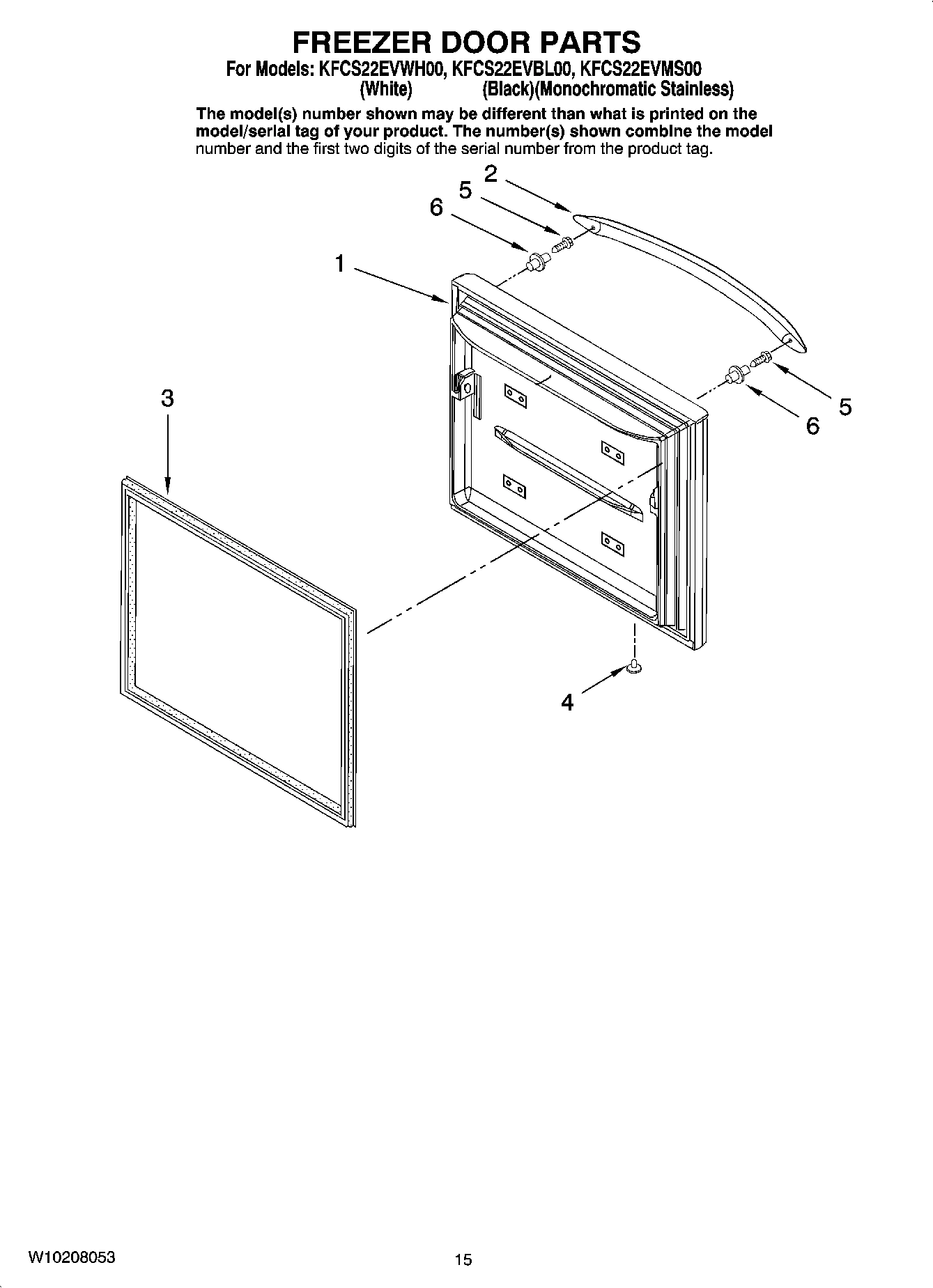

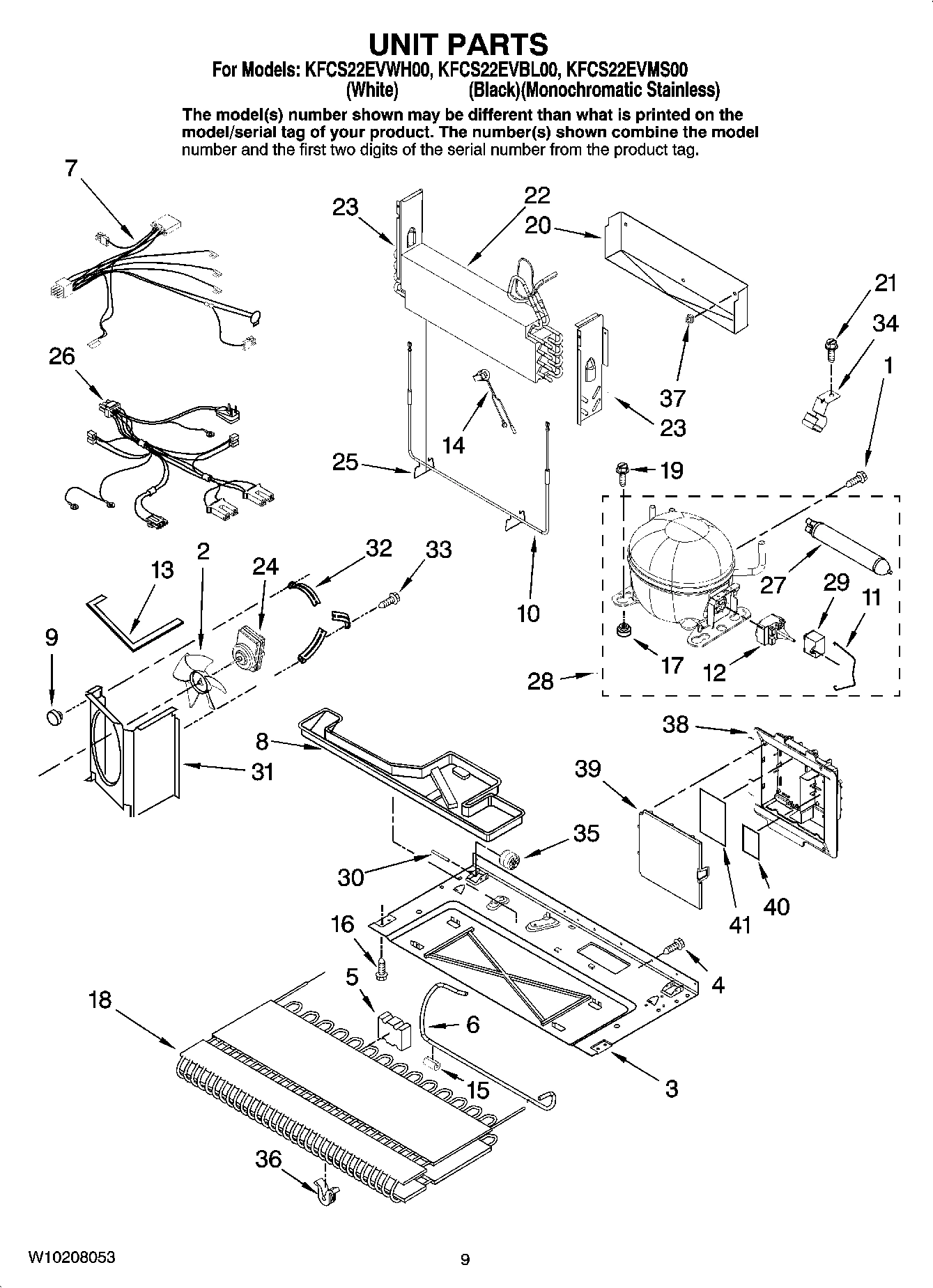

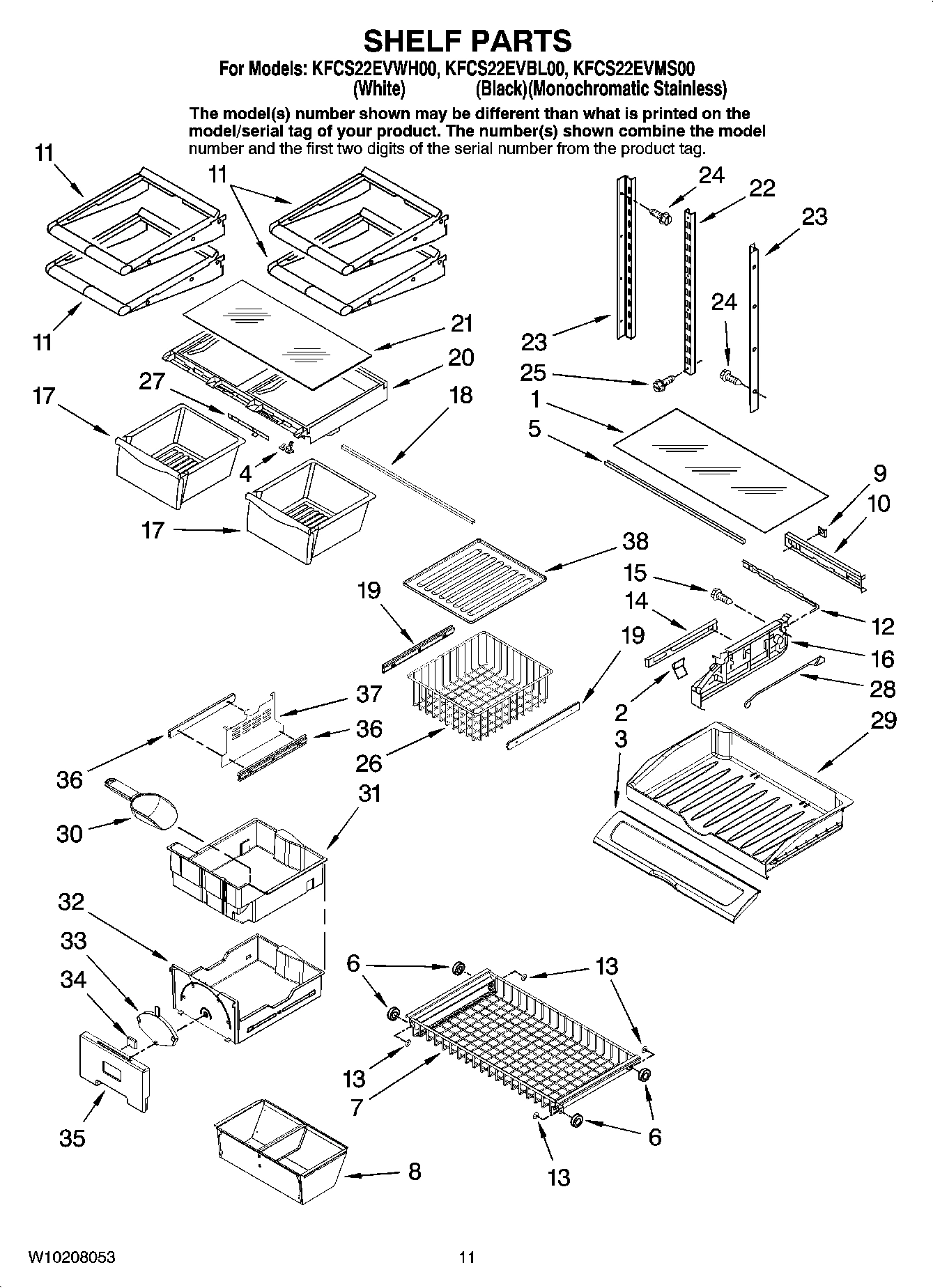

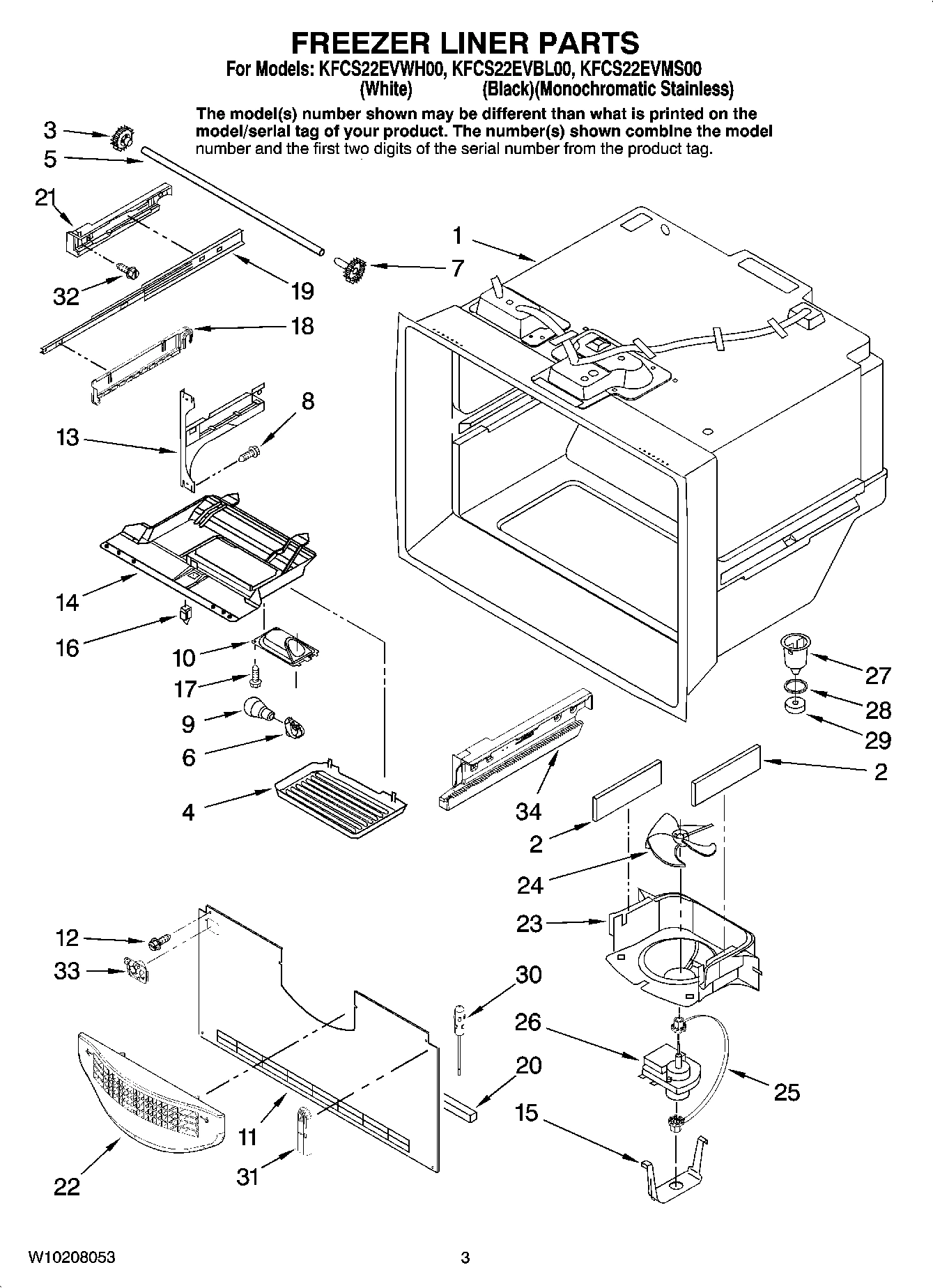

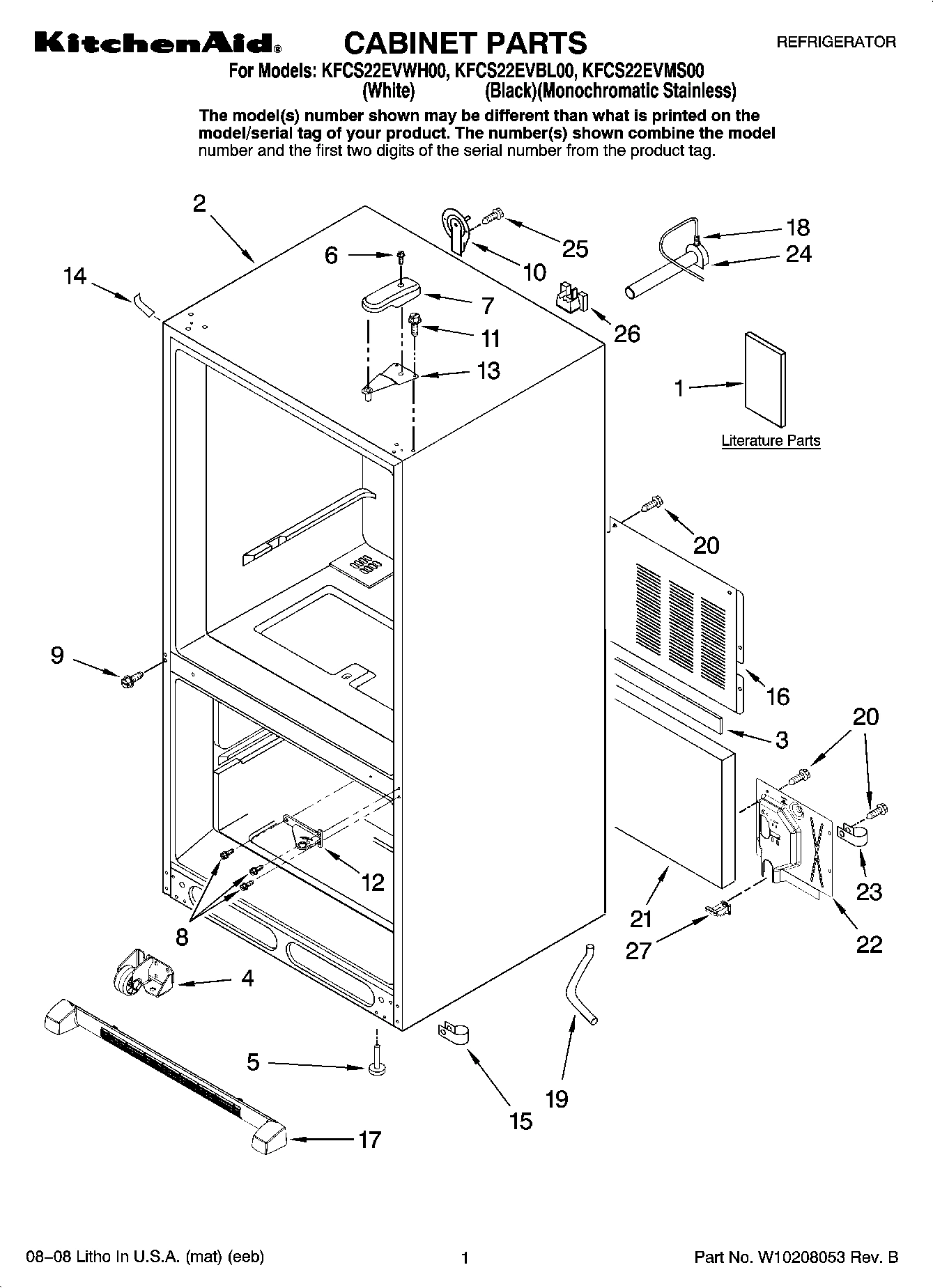

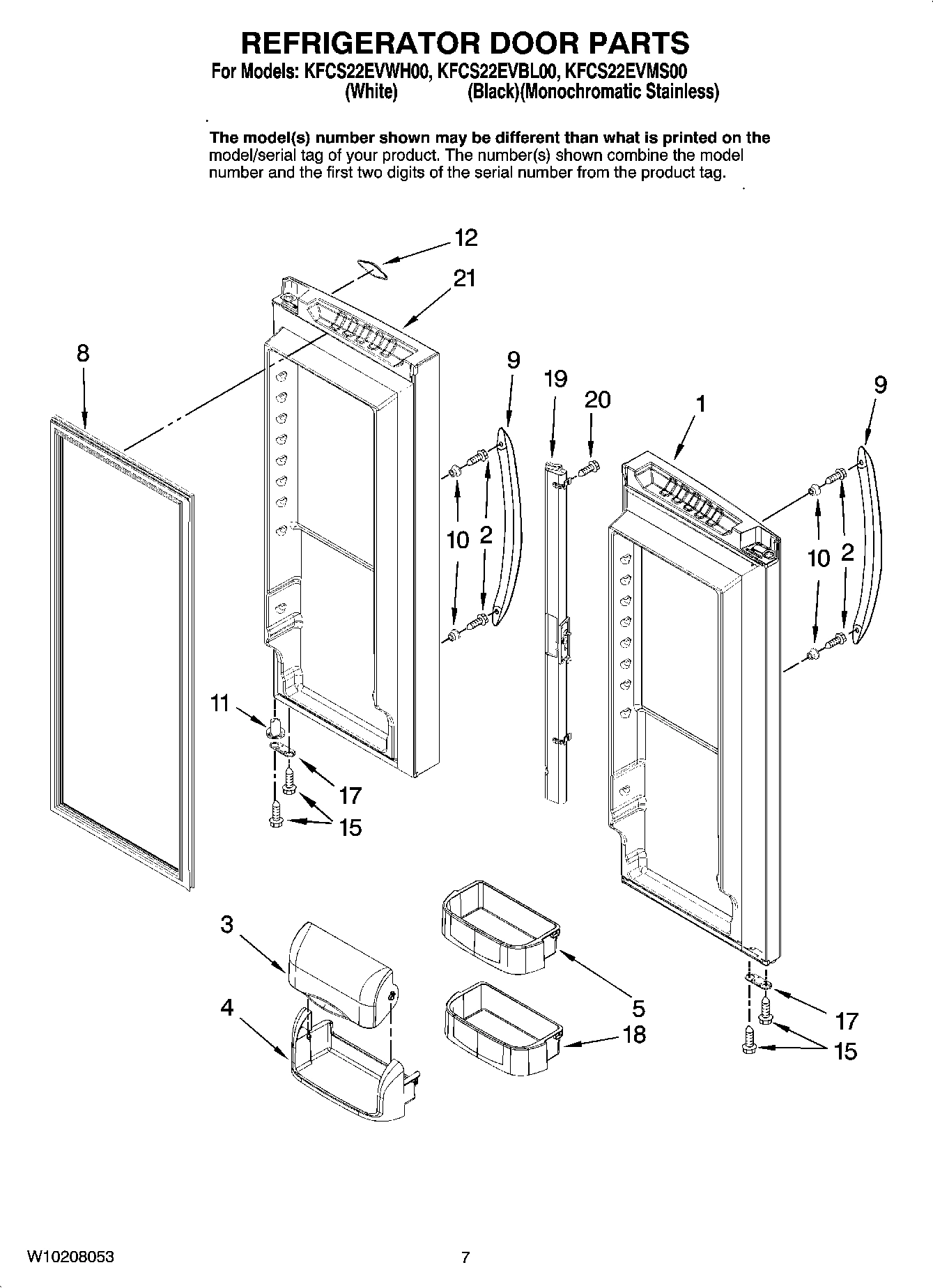

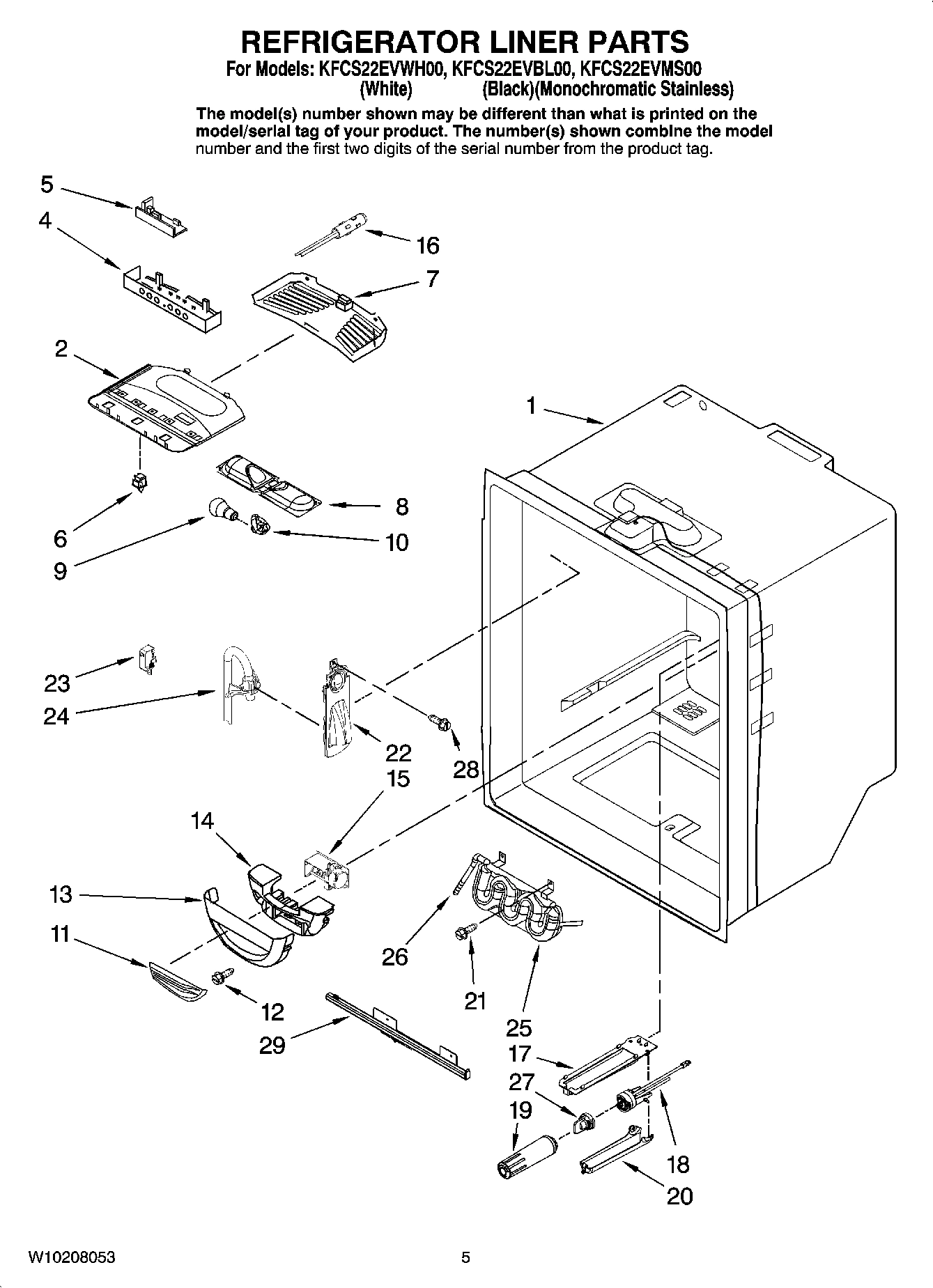

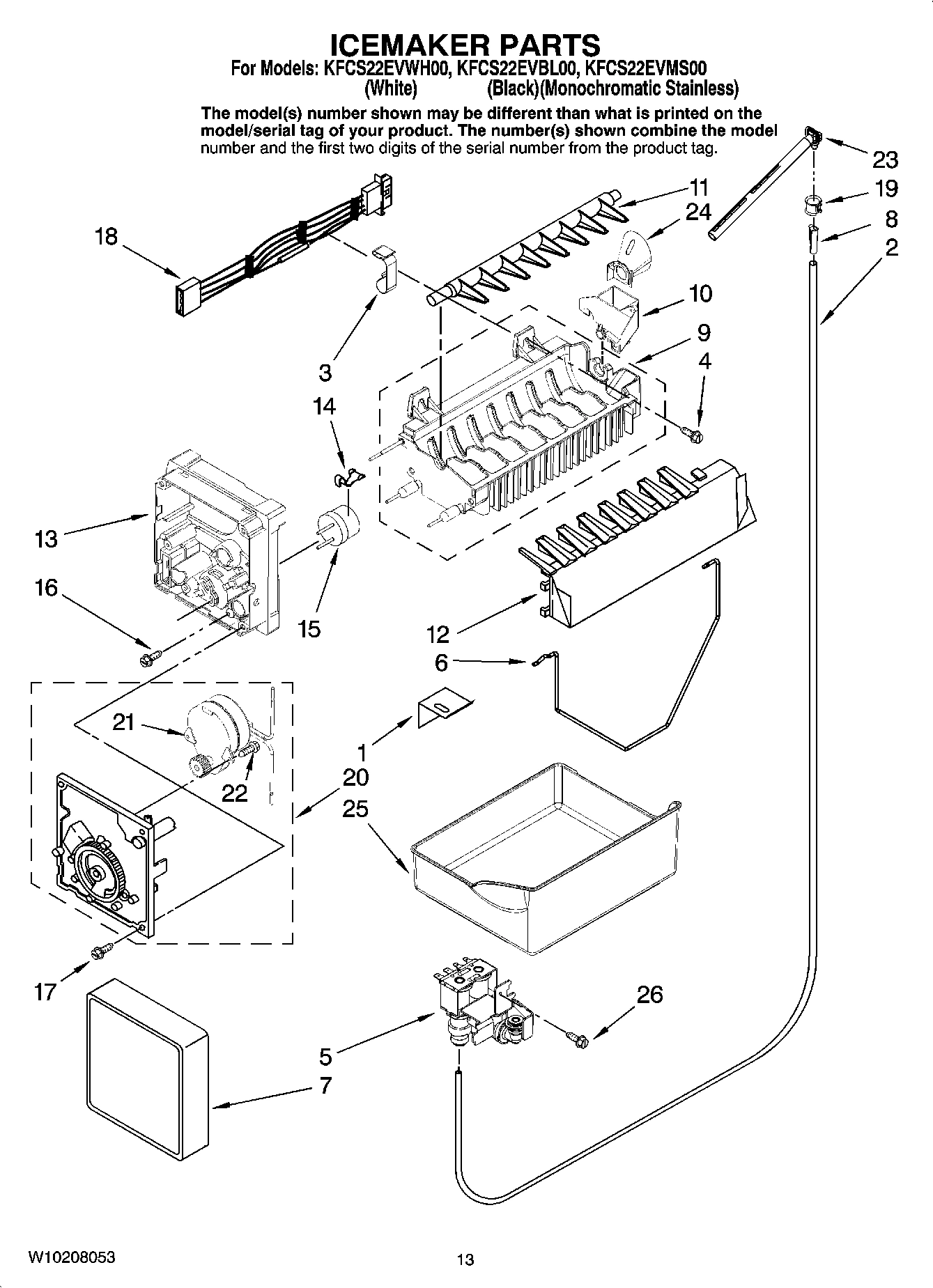

Model Whirlpool KFCS22EVBL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W10196195 Whirlpool Refrigerator Wire Harness Backorder WPL W10196195 $84.29

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10119821 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10119821 $85.29

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

TORX SCREW WRENCH WPL ARI87115A1 Contact Us For Availability

ACCESSO WPL ARI87116A2 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI87111A7 Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI87112A4 Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

Door, Freezer (White) WPL 13094903WQ Contact Us For Availability

1

Door, Freezer (Stainless) WPL 13094901SQ Contact Us For Availability

1

Door, Freezer (Black) WPL 13094903BQ Contact Us For Availability

1

Energy Guide WPL W10194233 Contact Us For Availability

1

Use & Care Guide WPL W10210867 Contact Us For Availability

1

Tech Sheet WPL W10210870 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

WP2319727W Whirlpool Refrigerator Handle Backorder WPL WP2319727W $111.68

2

Cabinet (Not A Servicable Part) WPL ARI87106A4 Contact Us For Availability

3

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $128.87

3

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $191.86

3

WP12656822 Whirlpool Refrigerator Pantry Draw In Stock WPL WP12656822 $56.74

3

Gasket WPL B5759649 Contact Us For Availability

3

Basepan WPL 67005889 Contact Us For Availability

4

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

4

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

4

W10119222 Whirlpool Refrigerator Control Knob Backorder WPL W10119222 $8.00

4

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

4

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

5

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $2.51

5

WPW10116216-includeCORE Whirlpool WPW10116216 Backorder WPL WPW10116216-includeCORE $211.82

5

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

5

Block, Condenser WPL 67005491 Contact Us For Availability

6

W11214482 Whirlpool Refrigerator Roller Backorder WPL W11214482 $34.97

6

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

Tube, Discharge WPL W10134293 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

W10153131 Whirlpool Refrigerator Cover Backorder WPL W10153131 $10.52

7

W10153710 Whirlpool Refrigerator Front Cover Backorder WPL W10153710 $10.16

7

W10163247 Whirlpool Cover Backorder WPL W10163247 $9.15

7

W10892761 Whirlpool Cover Backorder WPL W10892761 $10.58

7

W10892762 Whirlpool Refrigerator Cover Backorder WPL W10892762 $11.11

7

WPW10120102 Whirlpool Refrigerator Cover Backorder WPL WPW10120102 $3.51

7

WPW10120103 Whirlpool Refrigerator Cover Backorder WPL WPW10120103 $3.70

7

Harness, Evap. Heater WPL W10196196 Contact Us For Availability

8

WP12579803 Whirlpool Refrigerator Drain Pan In Stock WPL WP12579803 $152.51

8

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

9

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

9

Handle, Door (Stainless) WPL 2319727S Contact Us For Availability

9

Handle, Door (Black) WPL 2319727B Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

10

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

10

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $76.49

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

W10136415 Whirlpool Clip Backorder WPL W10136415 $26.21

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Shelf, Stationary WPL W10156631 Contact Us For Availability

W10162694 Whirlpool Door Hinge Backorder WPL W10162694 $26.75

W10162695 Whirlpool Refrigerator Door Hinge Backorder WPL W10162695 $26.75

W10210882 Whirlpool Refrigerator Door Hinge Backorder WPL W10210882 $28.04

W10210883 Whirlpool Refrigerator Door Hinge Backorder WPL W10210883 $26.94

W10861742 Whirlpool Refrigerator Door Hinge Backorder WPL W10861742 $29.83

Backorder WPL W11747629 $22.36

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $26.96

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $40.46

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

Nameplate (Grey) WPL W10046610 Contact Us For Availability

2207415 Whirlpool Refrigerator Nut Backorder WPL 2207415 $9.59

W10210891 Whirlpool Refrigerator Door Hinge Backorder WPL W10210891 $27.29

W10892768 Whirlpool Refrigerator Door Hinge Backorder WPL W10892768 $26.55

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W10132652 Whirlpool Refrigerator Glide Backorder WPL W10132652 $88.53

W11712699 Whirlpool Housing Backorder WPL W11712699 $32.28

WPW10132653 Whirlpool Refrigerator Glide Backorder WPL WPW10132653 $121.88

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $32.00

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $91.80

Clip, Drain WPL W10157973 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11690896 Whirlpool Thermistor In Stock WPL W11690896 $12.65

WPW10121977 Whirlpool End Cap In Stock WPL WPW10121977 $31.75

WPW10122078 Whirlpool Endcap Assembly In Stock WPL WPW10122078 $32.34

Cover, Unit WPL 67006102 Contact Us For Availability

Screw WPL 67006573 Contact Us For Availability

67006325 Whirlpool Filter Base Bracket In Stock WPL 67006325 $41.96

W10153126 Whirlpool Refrigerator Door Stop Backorder WPL W10153126 $8.53

W10163249 Whirlpool Refrigerator Door Stop Backorder WPL W10163249 $9.61

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10120097 Whirlpool Refrigerator Door Stop Backorder WPL WPW10120097 $2.93

WPW10131134 Whirlpool Refrigerator Front Gril Backorder WPL WPW10131134 $43.96

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

Grille, Toe (White) WPL W10131133 Contact Us For Availability

W10119848 Whirlpool Refrigerator Bracket Backorder WPL W10119848 $13.29

W10119849 Whirlpool Refrigerator Bracket Asse Backorder WPL W10119849 $45.51

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $153.47

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

Head, Filter WPL W10204043 Contact Us For Availability

19

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

19

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $8.73

19

WPW10170836 Whirlpool Refrigerator Glide Backorder WPL WPW10170836 $117.53

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

20

WPW10119215 Whirlpool Refrigerator Frame Backorder WPL WPW10119215 $174.10

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

W10163084 Whirlpool Refrigerator Bracket Backorder WPL W10163084 $10.69

W10163087 Whirlpool Refrigerator Bracket Backorder WPL W10163087 $14.31

WP12204827 Whirlpool Refrigerator Glass Shelf Backorder WPL WP12204827 $140.58

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $26.21

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $185.26

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W11243624 Whirlpool Refrigerator Cover Backorder WPL W11243624 $39.18

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

Cover, Water Valve WPL 67004098 Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $34.13

Dam (Left Side) WPL W10203108 Contact Us For Availability

Dam (Right Side) WPL W10203109 Contact Us For Availability

W10117324 Whirlpool Refrigerator Ice Guide Backorder WPL W10117324 $28.80

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $41.85

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

Motor, Fan WPL 67004432 Contact Us For Availability

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

W11690160 Whirlpool Grommet Backorder WPL W11690160 $2.40

25

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

26

W10120003 Whirlpool Refrigerator Freezer Bask Backorder WPL W10120003 $146.26

26

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

26

Harness, Unit with Power Cord WPL W10137210 Contact Us For Availability

27

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

27

W10119217 Whirlpool Refrigerator Slide Backorder WPL W10119217 $9.96

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $8.09

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $383.49

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $124.83

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $124.94

WP12655703 Whirlpool Refrigerator Utility Pan Backorder WPL WP12655703 $86.25

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

30

W10182881 Whirlpool Refrigerator Scoop Backorder WPL W10182881 $12.35

30

W11132993 Whirlpool Wire Harness Backorder WPL W11132993 $126.93

31

W10120005 Whirlpool Refrigerator Ice Pan Backorder WPL W10120005 $121.31

31

SHROUD WPL W10158508 Contact Us For Availability

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $29.43

32

WPW10120008 Whirlpool Refrigerator Ice Pan Backorder WPL WPW10120008 $82.25

33

W10184030 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10184030 $61.65

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

35

WPW10174720 Whirlpool Refrigerator Front Pan Backorder WPL WPW10174720 $43.39

36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

36

WPW10170835 Whirlpool Refrigerator Glide In Stock WPL WPW10170835 $180.03

37

Clip, Evaporator WPL 13058002 Contact Us For Availability

38

Box, HV Control WPL W10119790 Contact Us For Availability

39

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $30.29

40

WPW10356039-includeCORE Whirlpool WPW10356039 Backorder WPL WPW10356039-includeCORE $221.25
