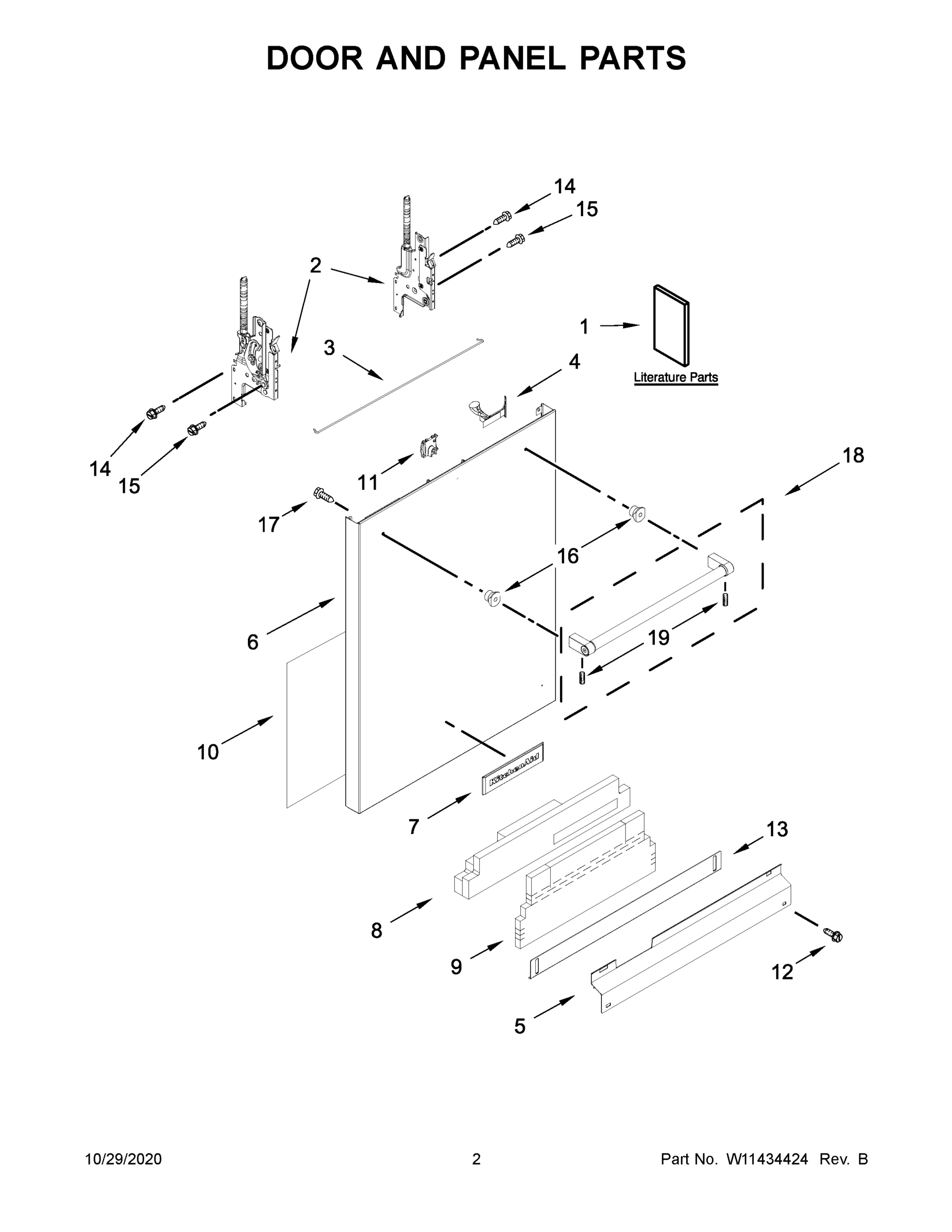

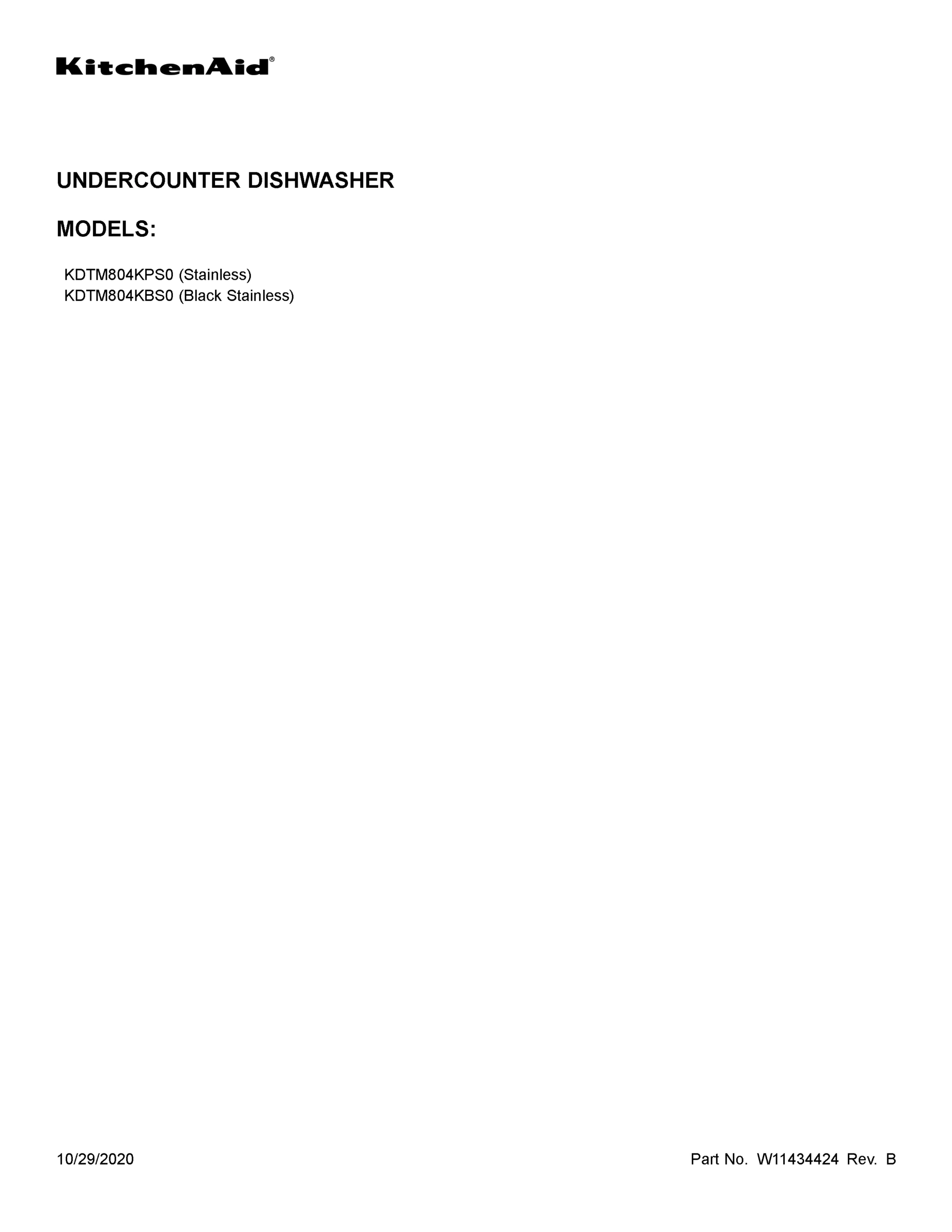

Model Whirlpool KDTM804KBS0 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams

2
BASE, TERMINAL BOX
BASE, TERMINAL BOX WPL W11226744 Contact Us For Availability
View on Model
2
TRACK ASSEMBLY (LEFT HAND)
TRACK ASSEMBLY (LEFT HAND) WPL W11047813 Contact Us For Availability
View on Model
2A
TRACK ASSEMBLY (RIGHT HAND)
TRACK ASSEMBLY (RIGHT HAND) WPL W11047815 Contact Us For Availability
View on Model
4
LID, SILVERWARE BASKET
LID, SILVERWARE BASKET WPL W11267718 Contact Us For Availability
View on Model
4
MOUNT, DISHRACK
MOUNT, DISHRACK WPL W11130709 Contact Us For Availability
View on Model
5
HANDLE, DISHRACK FRONT
HANDLE, DISHRACK FRONT WPL W11392620 Contact Us For Availability
View on Model
6A
ADJUSTMENT ASSEMBLY (RIGHT HAND)
ADJUSTMENT ASSEMBLY (RIGHT HAND) WPL W11268078 Contact Us For Availability
View on Model
7
TINE ROW, SLIDING
TINE ROW, SLIDING WPL W10554952 Contact Us For Availability
View on Model
8
HANDLE, DISHRACK FRONT
HANDLE, DISHRACK FRONT WPL W11268682 Contact Us For Availability
View on Model
8
CUP GUARD
CUP GUARD WPL W11202101 Contact Us For Availability
View on Model
9
RING, VOLUTE
RING, VOLUTE WPL W10380239 Contact Us For Availability
View on Model
10
HANDLE, DISHRACK REAR
HANDLE, DISHRACK REAR WPL W11268681 Contact Us For Availability
View on Model
10
BRACKET, FRONT HANGER
BRACKET, FRONT HANGER WPL W11226505 Contact Us For Availability
View on Model
11
BARREL NUT, FRONT PANEL
BARREL NUT, FRONT PANEL WPL W10692757 Contact Us For Availability
View on Model
11
ISOLATOR, REAR MOTOR
ISOLATOR, REAR MOTOR WPL W11036663 Contact Us For Availability
View on Model
12
WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & F
WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & F WPL W11330869 Contact Us For Availability
View on Model
12
COVER, WASH TUBE
COVER, WASH TUBE WPL W11101860 Contact Us For Availability
View on Model
12
UTENSIL BASKET
UTENSIL BASKET WPL W11267721 Contact Us For Availability
View on Model
13
POSITIONER
POSITIONER WPL W11179755 Contact Us For Availability
View on Model
13
KNIFE HOLDER
KNIFE HOLDER WPL W11267722 Contact Us For Availability
View on Model
13
TUBE, WASH
TUBE, WASH WPL W10830571 Contact Us For Availability
View on Model
18
DUCT, VENT
DUCT, VENT WPL W11038734 Contact Us For Availability
View on Model
19
FUSE, IN-LINE
FUSE, IN-LINE WPL W11397505 Contact Us For Availability
View on Model
NI
COMPRESSION HOSE FITTING, WATER LINE
COMPRESSION HOSE FITTING, WATER LINE WPL W10685193 Contact Us For Availability
View on Model
NI
MOISTURE BARRIER KIT
MOISTURE BARRIER KIT WPL 4396277 Contact Us For Availability
View on Model
NI
FILL HOSE KIT
FILL HOSE KIT WPL W10278635RP Contact Us For Availability
View on Model
NI
EXTERNAL DRAIN HOSE, 12 FT
EXTERNAL DRAIN HOSE, 12 FT WPL W11381654 Contact Us For Availability
View on Model
NI
STRAIN RELIEF, POWER CORD (METALLIC)
STRAIN RELIEF, POWER CORD (METALLIC) WPL 4396672 Contact Us For Availability
View on Model
NI
POWER CORD KIT (STRAIGHT)
POWER CORD KIT (STRAIGHT) WPL W11365011 Contact Us For Availability
View on Model
NI
POWER CORD KIT (RIGHT ANGLE)
POWER CORD KIT (RIGHT ANGLE) WPL W11365014 Contact Us For Availability
View on Model
