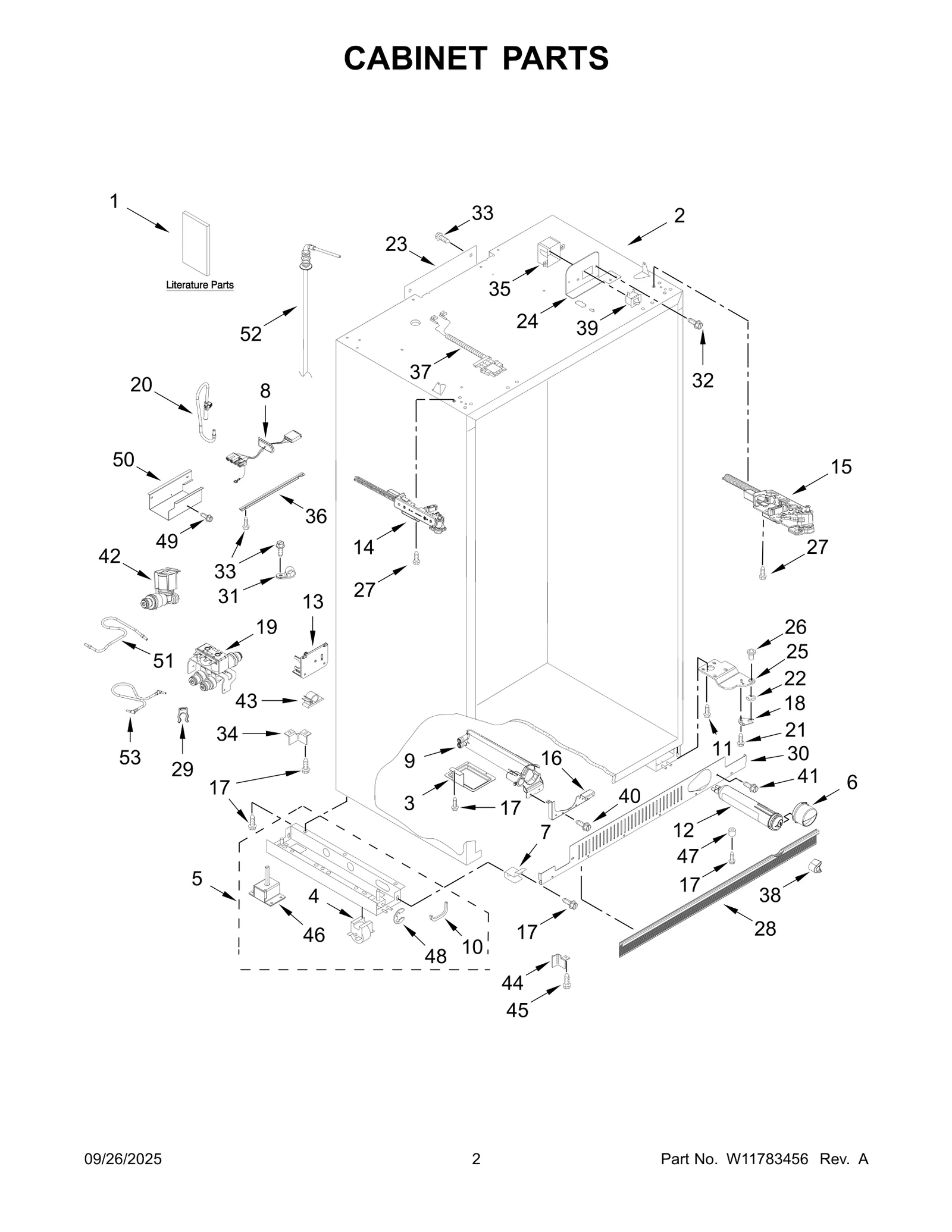

Model Whirlpool KBSD736SPS00 Refrigerator – Common Parts &amp; Diagrams

1

Shelf Assembly, Fixed WPL W11410509 Contact Us For Availability

1

Shelf Assembly WPL W11602369 Contact Us For Availability

1

Door, Refrigerator WPL W11576431 Contact Us For Availability

1

Door, Freezer WPL W11502199 Contact Us For Availability

1

Grille Assembly, Top WPL W11756776 Contact Us For Availability

1

Bracket, Evaporator Right Top WPL W11695309 Contact Us For Availability

2

Pan Assembly, Crisper WPL W11740835 Contact Us For Availability

2

Shelf, Wire WPL W11603233 Contact Us For Availability

2

Cover, Upper Unit WPL W11708444 Contact Us For Availability

2

Screw WPL 489473 Contact Us For Availability

2

Tube, Transition WPL W11698962 Contact Us For Availability

3

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $56.13

3

W10542660 Whirlpool Refrigerator Bracket In Stock WPL W10542660 $33.54

3

W10749207 Whirlpool Refrigerator Bin Button Backorder WPL W10749207 $27.93

3

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

3

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $14.57

3

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

3

W11557671 Whirlpool Refrigerator Compressor In Stock WPL W11557671 $445.05

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

W11752085 Whirlpool Door Hinge In Stock WPL W11752085 $24.89

3

Pan Cover Assembly, Meat WPL W11453927 Contact Us For Availability

3

Basket, Freezer WPL W11602364 Contact Us For Availability

3

Screw (Black) WPL W10784922 Contact Us For Availability

4

W10134784 Whirlpool Refrigerator Bin Latch Backorder WPL W10134784 $32.06

4

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $37.39

4

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

4

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $14.40

4

WPW10546285 Whirlpool Refrigerator Motor In Stock WPL WPW10546285 $57.49

4

Pan Cover Assembly, Crisper WPL W11410383 Contact Us For Availability

4

Front, Freezer Basket WPL W11410127 Contact Us For Availability

4

Panel, Unit Back WPL W11708420 Contact Us For Availability

5

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $116.23

5

GROMMET Backorder WPL W10587113 $7.16

5

W11157086 Whirlpool Dishwasher Door Handle St In Stock WPL W11157086 $20.44

5

W11435372 Whirlpool Cover-Unit Backorder WPL W11435372 $28.51

5

W11444578 Whirlpool Tube Backorder WPL W11444578 $47.63

5

PAN-MEAT Backorder WPL W11448426 $188.62

5

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

5

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $153.01

5

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $38.12

6

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

6

2302878 Whirlpool Refrigerator Door Hinge Backorder WPL 2302878 $38.85

6

W11238395 Whirlpool Refrigerator Filter Cap In Stock WPL W11238395 $29.92

6

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

6

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $68.60

6

WPW10504458 Whirlpool Refrigerator Door Chute In Stock WPL WPW10504458 $8.27

6

Pan Assembly, Crisper WPL W11767856 Contact Us For Availability

6

Badge WPL W11688412 Contact Us For Availability

6

Pan Assembly, Drain WPL W11491712 Contact Us For Availability

7

W10542663 Whirlpool Refrigerator Support Backorder WPL W10542663 $30.12

7

W10645086 Whirlpool Refrigerator Divider Backorder WPL W10645086 $41.96

7

W10800803 Whirlpool Refrigerator FIP Gasket In Stock WPL W10800803 $164.67

7

BIN Backorder WPL W11610621 $83.57

7

Shelf Assembly, Bakeware WPL W11754543 Contact Us For Availability

7

Cover, Icemaker WPL W11567120 Contact Us For Availability

7

Support, Condenser WPL W11695311 Contact Us For Availability

7

Cover, Wiring Bottom WPL W11695781 Contact Us For Availability

8

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $32.06

8

2307810 Whirlpool Refrigerator Air Duct Backorder WPL 2307810 $29.17

8

W11766462 Whirlpool Bracket Backorder WPL W11766462 $12.37

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

Handle, Door WPL W11737006 Contact Us For Availability

8

Support, Condenser WPL W11695312 Contact Us For Availability

8

Cover, Wire Box WPL W11695782 Contact Us For Availability

9

W11445483 Whirlpool Tube Backorder WPL W11445483 $47.63

9

W11625072 Whirlpool Refrigerator FIP Gasket In Stock WPL W11625072 $187.95

9

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $31.88

9

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $54.24

9

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.55

9

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $104.55

9

Shelf Assembly, Platter WPL W11766361 Contact Us For Availability

9

Insulation, Unit Back Panel WPL W11244166 Contact Us For Availability

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

W10321050 Whirlpool Refrigerator Shield Backorder WPL W10321050 $29.17

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

W11649219 Whirlpool Separator Backorder WPL W11649219 $23.31

Pan, Cake WPL W11522385 Contact Us For Availability

Skin, RC Door Filler (Not Serviced-Included W WPL W11737537 Contact Us For Availability

Skin, FC Door Filler (Not Serviced-Included W WPL W11737538 Contact Us For Availability

Cover, Safety Switch WPL W11356980 Contact Us For Availability

W11504450 Whirlpool Refrigerator Coupler In Stock WPL W11504450 $25.69

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $17.70

CNTRL-ELEC+CORE Backorder WPL W11752963-includeCORE $209.31

Screw WPL 3400525 Contact Us For Availability

Enclosure, Dispenser Motor WPL W11608470 Contact Us For Availability

Pan, Loaf WPL W11522389 Contact Us For Availability

Screw (Stainless) WPL W11672062 Contact Us For Availability

Housing, Middle (Not Available Order Item 12) WPL N/S Contact Us For Availability

Bracket, Install (Left) WPL W11756499 Contact Us For Availability

Evaporator and Heater Assembly (Also Order th WPL W11408051 Contact Us For Availability

W10758113 Whirlpool Refrigerator Spacer Backorder WPL W10758113 $64.15

W10822606 Whirlpool Refrigerator Dispenser Mo In Stock WPL W10822606 $90.75

W11267070 Whirlpool Heater Backorder WPL W11267070 $95.17

TRACK Backorder WPL W11410122 $38.01

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.68

Spacer, Crisper Pan WPL W11410123 Contact Us For Availability

Spacer, Door Skin WPL W10758109 Contact Us For Availability

Housing Assembly, Pad WPL W11745339 Contact Us For Availability

Bracket, Install (Right) WPL W11756500 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $31.38

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11608469 Whirlpool Cover Backorder WPL W11608469 $31.55

W11629268 Whirlpool Thermistor In Stock WPL W11629268 $21.19

Spacer, Meat Pan WPL W11410124 Contact Us For Availability

Spacer, Meat Pan WPL W11410125 Contact Us For Availability

Paddle Assembly, Water WPL W11745341 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide In Stock WPL 2302956 $131.65

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $97.40

SPACER Backorder WPL W10758111 $30.71

HOUSING Backorder WPL W11623130 $18.81

W11715935 Whirlpool Dampener Backorder WPL W11715935 $7.61

WPW10254073 Whirlpool Refrigerator Washer Backorder WPL WPW10254073 $4.15

Paddle Assembly, Ice WPL W11745340 Contact Us For Availability

W10732727 Whirlpool Refrigerator Slide Backorder WPL W10732727 $130.90

W10756209 Whirlpool Refrigerator Spacer Backorder WPL W10756209 $56.06

W10758121 Whirlpool Refrigerator Spacer Backorder WPL W10758121 $34.93

W10844011 Whirlpool Refrigerator Slide Backorder WPL W10844011 $130.90

W11574170 Whirlpool Ice Container Backorder WPL W11574170 $162.14

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Control, User Interface WPL W11753453 Contact Us For Availability

W10432308 Whirlpool Gasket Backorder WPL W10432308 $8.86

W11629730 Whirlpool Jumper Wire In Stock WPL W11629730 $8.88

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $29.72

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

Condenser (Also Order the Following Lokring� WPL W11601407 Contact Us For Availability

W10761935 Whirlpool Refrigerator Spacer Backorder WPL W10761935 $34.93

W11421662 Whirlpool Wire Harness Backorder WPL W11421662 $83.97

W11629953 Whirlpool Switch Backorder WPL W11629953 $10.58

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $179.07

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Tray, Dispenser Drip WPL W11745342 Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $32.06

BIN-CNTLVR Backorder WPL W11408935 $114.35

W11627456 Whirlpool Sensor Backorder WPL W11627456 $34.22

W11700297 Whirlpool Refrigerator Gap Hinge Backorder WPL W11700297 $13.29

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Cover, Dispensing WPL W11460940 Contact Us For Availability

2320554 Whirlpool Bracket Backorder WPL 2320554 $27.78

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $8.55

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

WPW10279866 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10279866 $106.50

Icemaker, Complete WPL W11548788 Contact Us For Availability

Screw WPL W10068580 Contact Us For Availability

20

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

20

BIN-CNTLVR Backorder WPL W11408928 $114.35

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $13.58

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $16.34

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

Bin, Shallow Door WPL W11408934 Contact Us For Availability

22

W10672548 Whirlpool Refrigerator Shim Backorder WPL W10672548 $7.65

22

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

22

Bracket, Control Assembly WPL W11435371 Contact Us For Availability

23

W11623099 Whirlpool Condenser Motor Backorder WPL W11623099 $55.04

24

Bracket, Condenser Bottom WPL W11695784 Contact Us For Availability

25

W10527053 Whirlpool Refrigerator Door Hinge In Stock WPL W10527053 $78.05

25

W11234470 Whirlpool Refrigerator Clamp In Stock WPL W11234470 $10.76

25

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $112.37

26

WP2302876 Whirlpool Refrigerator Hinge Bushin In Stock WPL WP2302876 $30.10

26

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

27

Tube, Heat Loop Transition WPL W11602251 Contact Us For Availability

28

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $75.51

28

Switch, Power Disconnect WPL W11311927 Contact Us For Availability

29

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $51.95

29

W10782423 Whirlpool Refrigerator Ring Backorder WPL W10782423 $8.53

29

W10782424 Whirlpool Refrigerator Ring Backorder WPL W10782424 $8.53

30

Tube, Drier Transition WPL W11602250 Contact Us For Availability

31

Tube, Process WPL W11672778 Contact Us For Availability

33

Cover, Condenser Support WPL W11695783 Contact Us For Availability

34

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $32.06

34

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $35.12

35

W11247667 Whirlpool Refrigerator Cover Backorder WPL W11247667 $43.61

40

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

42

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $80.67

44

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $32.06

46

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $72.45

47

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

52

W11212166 Whirlpool Refrigerator Inlet Tube In Stock WPL W11212166 $17.55
