Model Whirlpool KBRS20EVMS5 REFRIGERATOR – Common Parts &amp; Diagrams

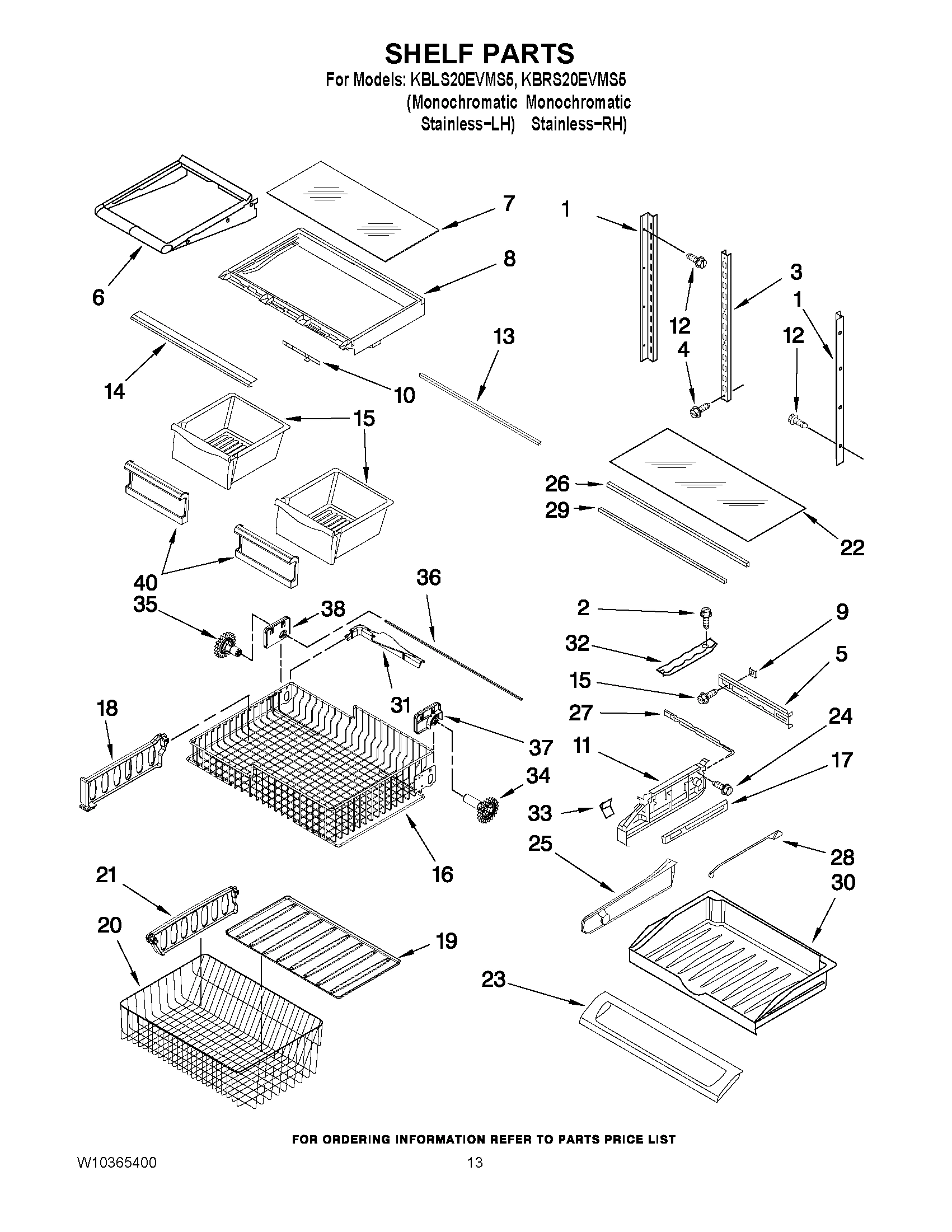

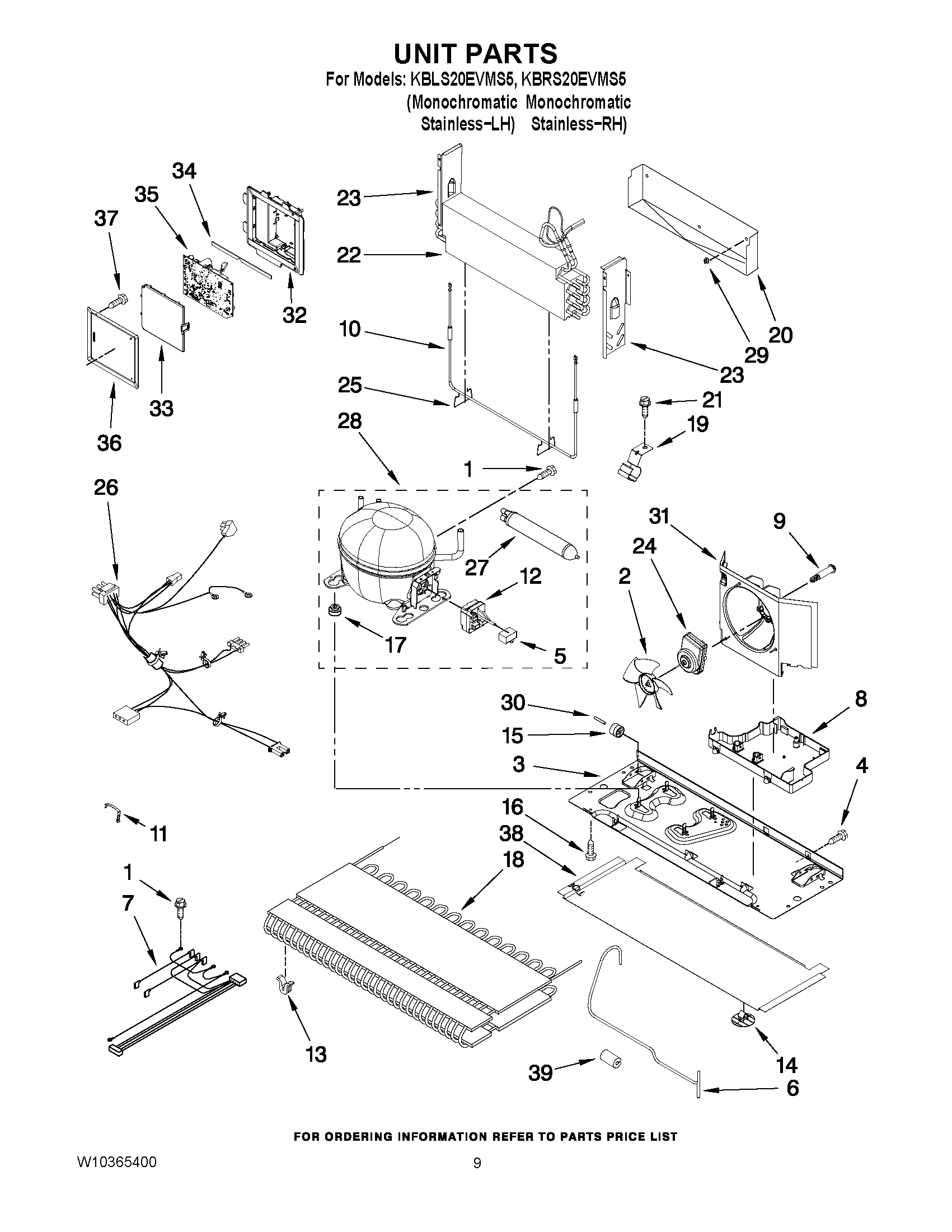

1

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

1

DOOR, REFRIGERATOR (STAINLESS - LH) WPL 13107518S Contact Us For Availability

1

DOOR, REFRIGERATOR (STAINLESS - RH) WPL 13107520S Contact Us For Availability

1

DOOR, FREEZER (STAINLESS) WPL 13092276S Contact Us For Availability

2

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $50.05

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $43.32

2

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

2

MODULE, LIGHT WPL 12806301 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $10.83

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $41.82

3

OVERLAY WPL W10217738 Contact Us For Availability

3

MOUNT, HANDLE WPL 12691403 Contact Us For Availability

4

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $28.80

4

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

4

W10443320 Whirlpool Gray Outer Gasket In Stock WPL W10443320 $74.61

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $83.33

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

5

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $52.78

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

5

SCREW WPL W10290759 Contact Us For Availability

5

Gripper, Bucket WPL 12567322SP Contact Us For Availability

6

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP12463911 Whirlpool Refrigerator Glass Shelf Backorder WPL WP12463911 $119.74

6

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

6

TUBE, DISCHARGE WPL W10217746 Contact Us For Availability

7

W10292242 Whirlpool Refrigerator Wire Harness Backorder WPL W10292242 $82.37

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

Nameplate (Grey) WPL W10046610 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $43.32

8

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

8

Gasket, Door (Apollo Grey) WPL W10179478 Contact Us For Availability

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $76.49

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $56.82

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $32.79

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $30.91

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $109.42

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WPW10244032 Whirlpool Refrigerator Start Devi Backorder WPL WPW10244032 $29.43

BUCKET, SHELF (GALLON) WPL 12849115SP Contact Us For Availability

13

10961006AP Whirlpool Refrigerator Hinge Bushi Backorder WPL 10961006AP $5.71

13

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $43.13

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $43.54

Backorder WPL W11750607 $18.30

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $52.87

Retainer, Door WPL 12690503 Contact Us For Availability

12607103AP Whirlpool Refrigerator Door Hinge Backorder WPL 12607103AP $25.80

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $91.80

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $10.76

16

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

16

WPW10163893 Whirlpool Refrigerator Insulation Backorder WPL WPW10163893 $28.80

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

17

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.31

17

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $108.35

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

W11346623 Whirlpool Refrigerator Water Filter In Stock WPL W11346623 $55.58

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

WPW10281115 Whirlpool Refrigerator Bracket Backorder WPL WPW10281115 $26.48

WPW10281116 Whirlpool Bracket Backorder WPL WPW10281116 $26.48

19

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

19

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $55.44

19

W11658403 Whirlpool Slide In Stock WPL W11658403 $74.88

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

20

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $44.58

W10150061 Whirlpool Refrigerator Divider Backorder WPL W10150061 $28.80

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

WPW10284692 Whirlpool Refrigerator Bracket Backorder WPL WPW10284692 $42.36

WPW10284693 Whirlpool Mounting Bracket Backorder WPL WPW10284693 $42.33

22

CLIP, FACADE WPL B8390302SP Contact Us For Availability

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

23

FACADE, DISP. WPL 12706909SP Contact Us For Availability

24

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $29.61

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $27.29

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $27.82

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $42.82

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

27

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

27

W10208593 Whirlpool Refrigerator Valve Cover Backorder WPL W10208593 $9.24

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $12.55

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $76.82

29

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $59.89

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

INSULATION, SOUND WPL 12820505 Contact Us For Availability

30

W10516604 Whirlpool Refrigerator Rail Backorder WPL W10516604 $39.73

30

W10516605 Whirlpool Refrigerator Rail Backorder WPL W10516605 $39.77

30

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $9.90

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $28.80

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

33

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $11.69

36

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

36

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

37

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

39

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

HARNESS, CONTROL (REFRIGERATOR) (INCLUDES THE WPL W10224290 Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
