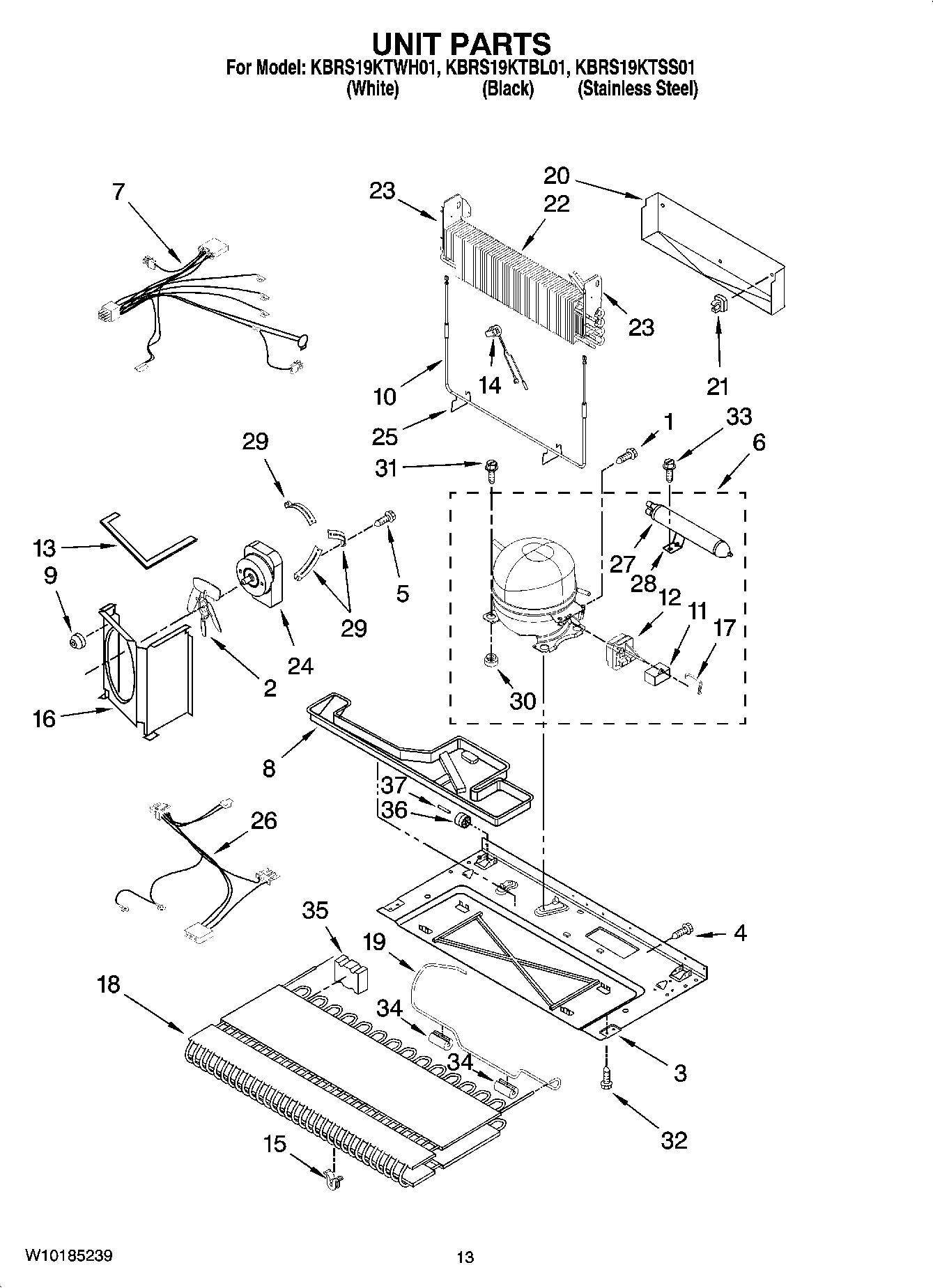

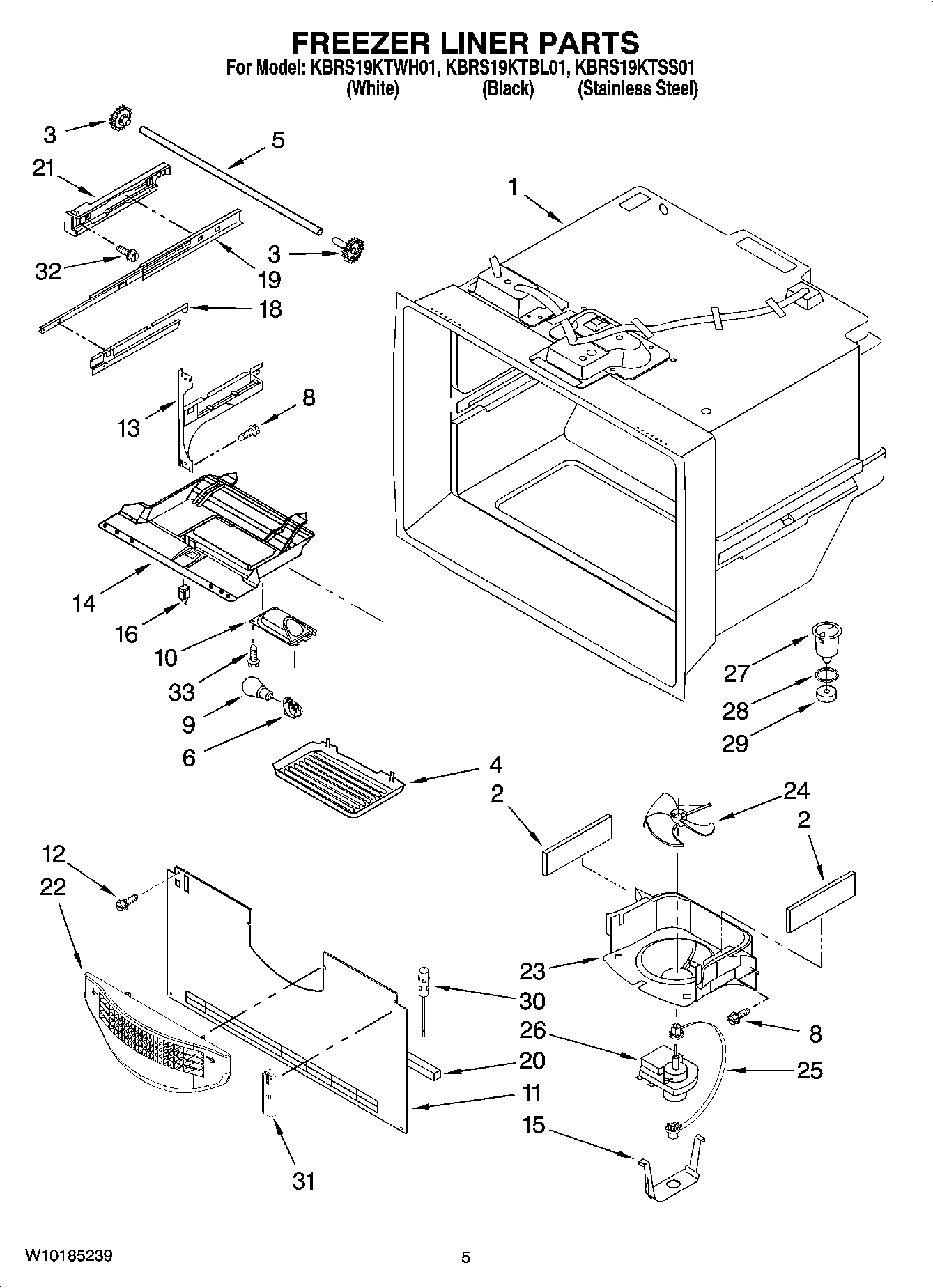

Model Whirlpool KBRS19KTBL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $50.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI153767A Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI153768A Contact Us For Availability

Following Parts Not Illustrated WPL ARI153764A Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI153766A Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

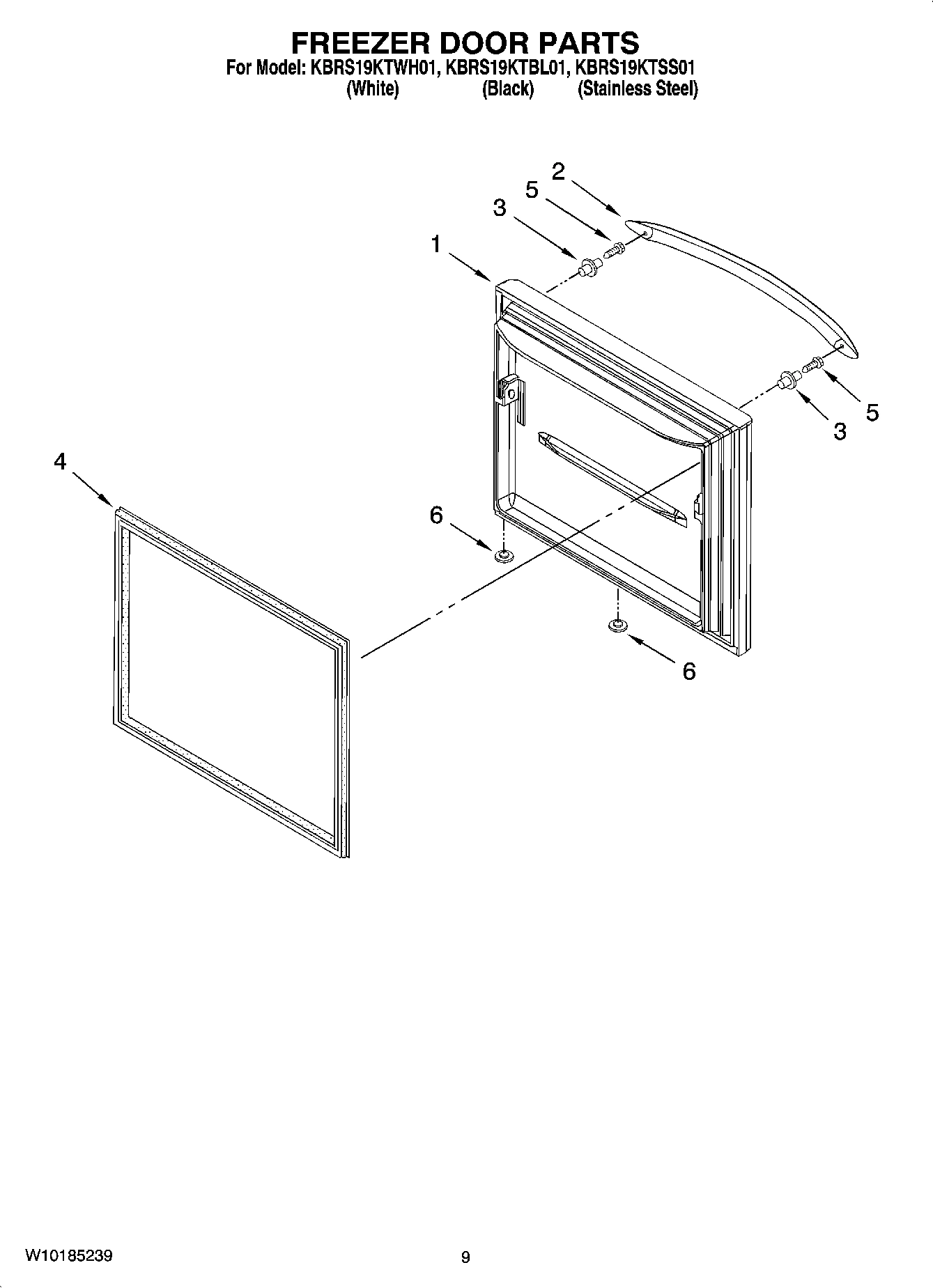

Freezer Door (w/ Insulation) (Stainless Steel WPL W10174587 Contact Us For Availability

1

Freezer Door (w/ Insulation) (White) WPL W10185245 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Black) WPL W10185246 Contact Us For Availability

1

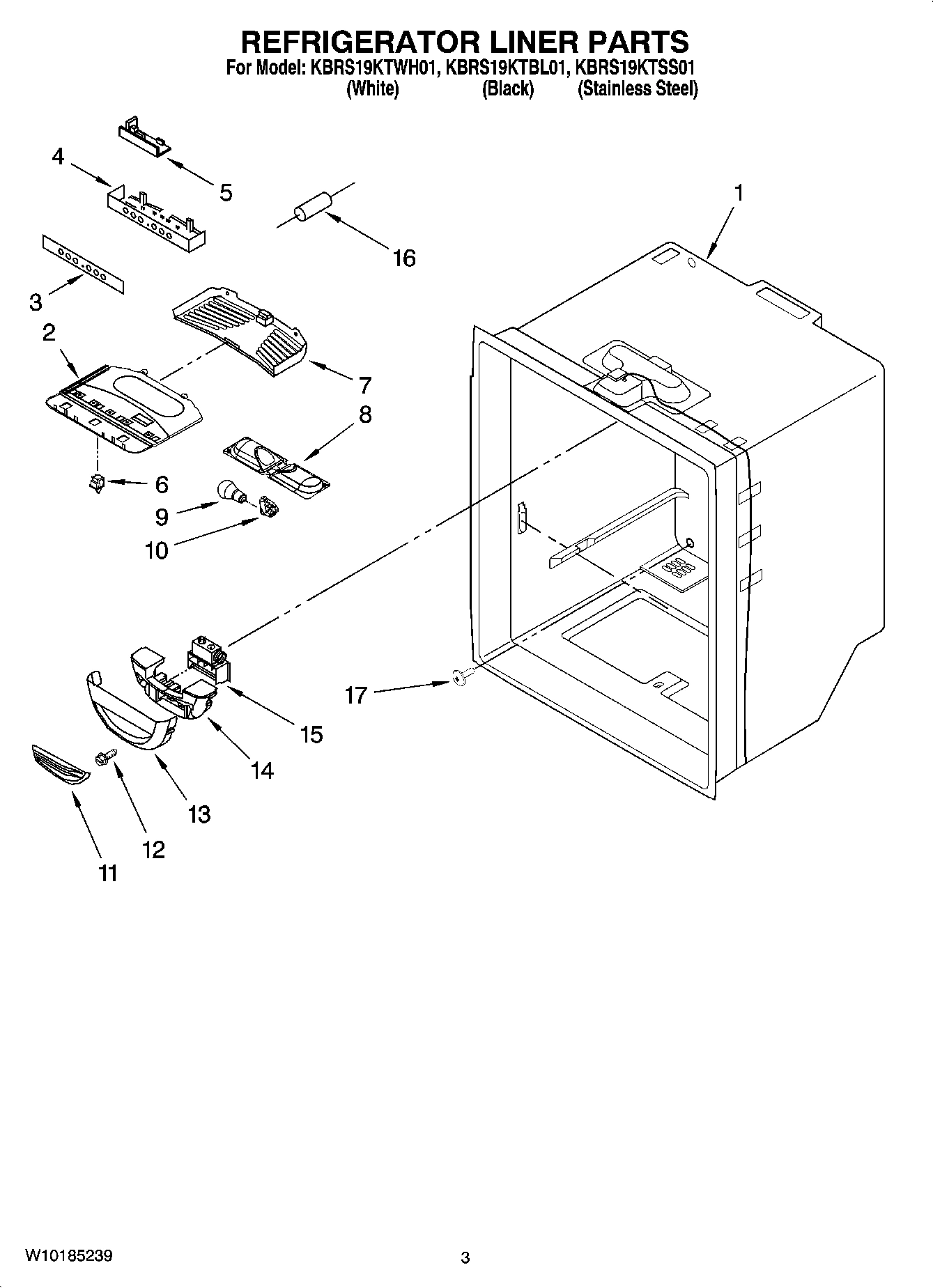

Liner (Not A Serviceable Part) WPL ARI153763A Contact Us For Availability

1

Owners Manual WPL W10137649 Contact Us For Availability

1

Energy Tag WPL W10138304 Contact Us For Availability

1

Tech Sheet WPL W10165418 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI153765A Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

2

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

2

Handle, Door (Black) WPL W10119643 Contact Us For Availability

2

Bracket, Control and Lights WPL Y67003896 Contact Us For Availability

2

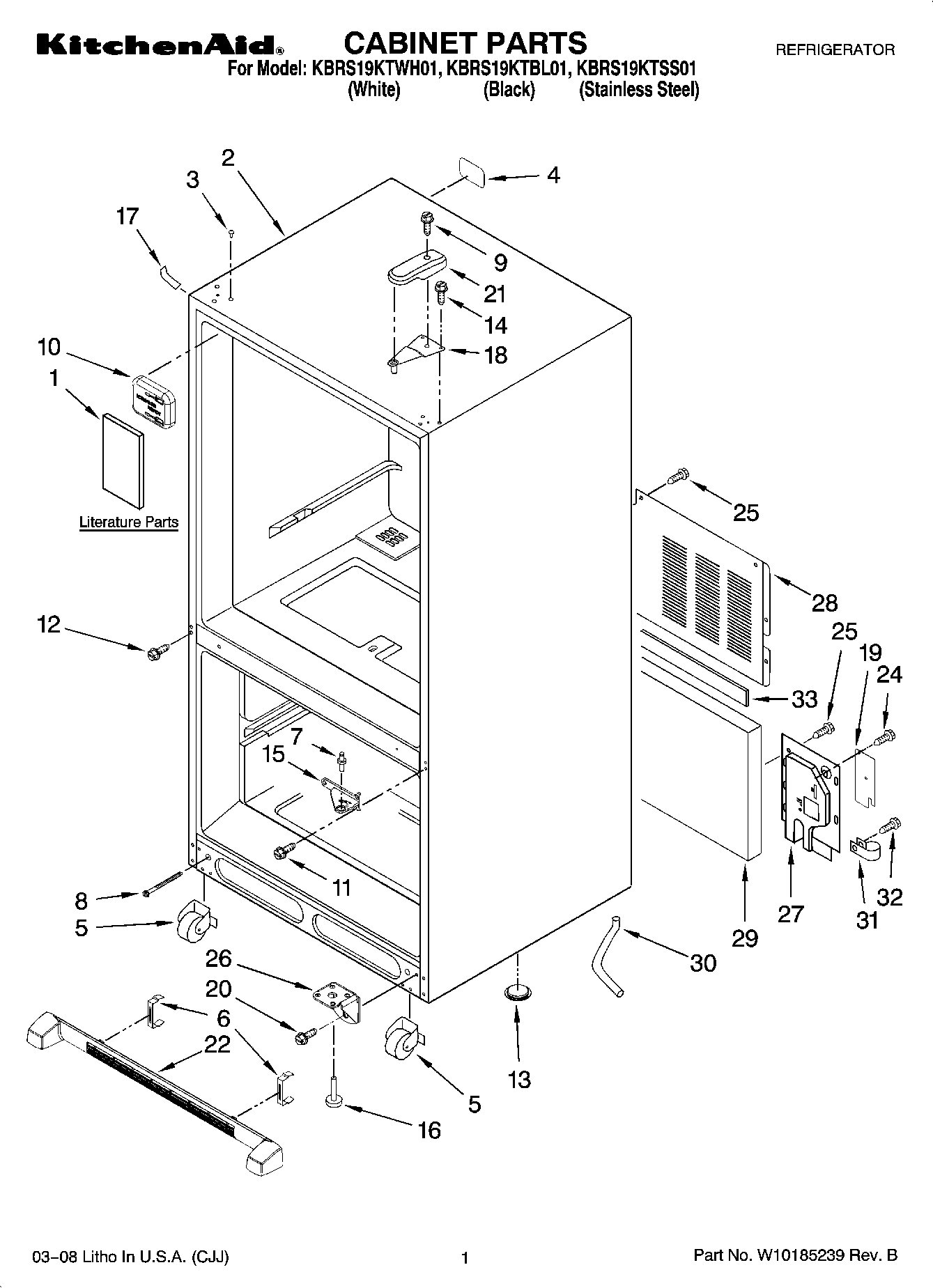

Cabinet (Not A Servicable Part) WPL ARI153762A Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $55.71

3

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.70

3

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.82

3

Basepan WPL 67006914 Contact Us For Availability

3

Overlay WPL 67005072 Contact Us For Availability

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $209.98

4

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $136.12

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $38.85

4

Label, Fill Tube WPL 67005064 Contact Us For Availability

4

Cover, Light WPL 67003905 Contact Us For Availability

5

W10802329 Whirlpool Refrigerator Shaft Backorder WPL W10802329 $43.52

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

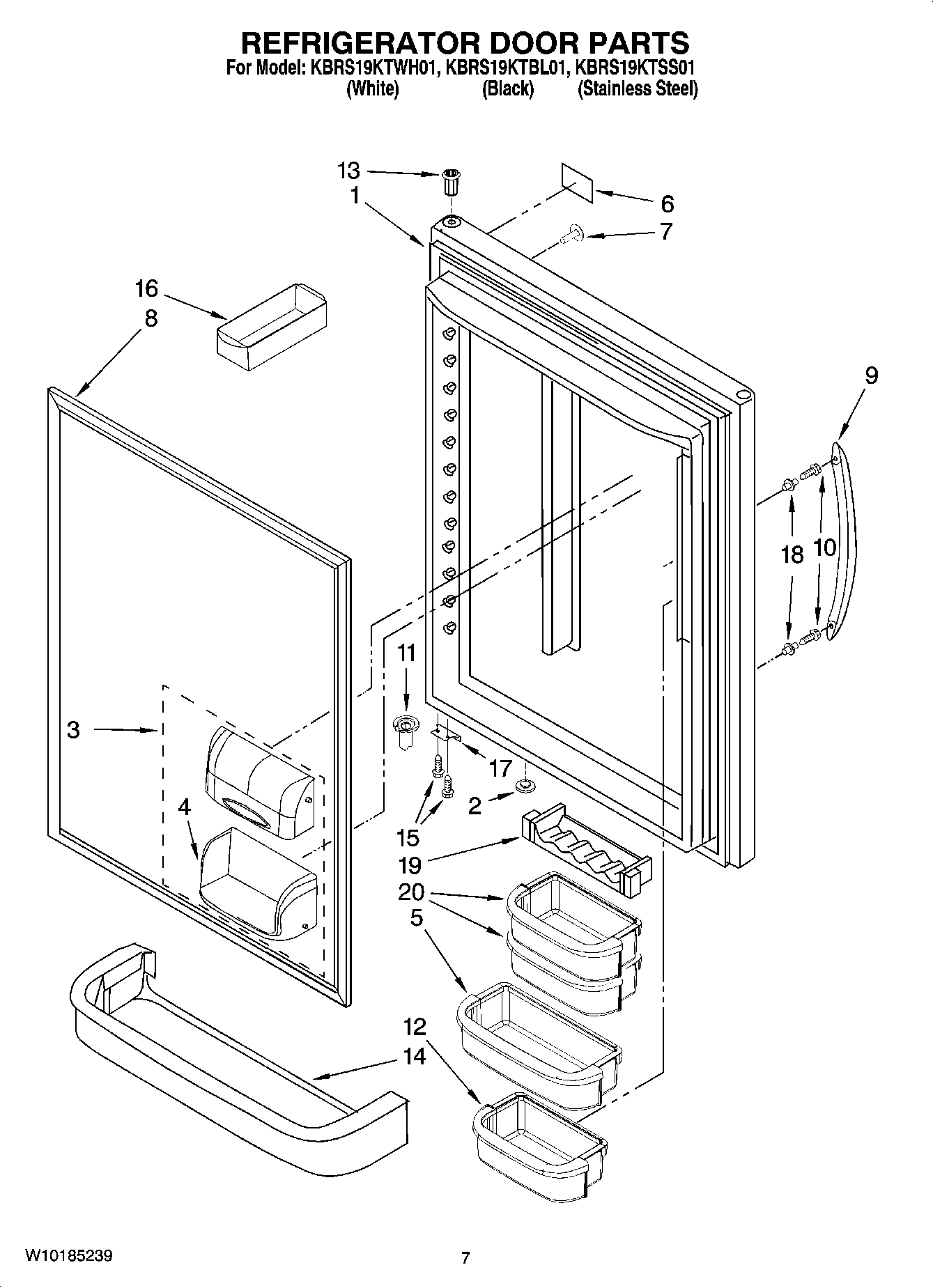

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $44.12

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $125.44

5

Roller Assembly WPL 67006118 Contact Us For Availability

6

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

6

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

6

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

6

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

6

Nameplate (Grey) WPL W10046610 Contact Us For Availability

6

Shelf, Sta (2) WPL 67001149 Contact Us For Availability

6

COMPRESSOR WPL W10130129 Contact Us For Availability

6

Clip, Grille WPL 12627302 Contact Us For Availability

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $4.52

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $123.39

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $135.02

8

Drain Pan WPL 67004713 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

9

Grommet (3) WPL 61004743 Contact Us For Availability

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $74.77

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.52

Housing, Frz. Light WPL 67001035 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.52

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.52

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.33

WPW10308414 Whirlpool Refrigerator Evaporator Backorder WPL WPW10308414 $100.36

8201769 Whirlpool Refrigerator Compressor Rel In Stock WPL 8201769 $58.17

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.38

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $3.33

Bucket (1) (Short) WPL 67004124 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.30

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $59.75

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $51.55

Backorder WPL W11750607 $19.22

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $32.98

Retainer, Door WPL 67002505 Contact Us For Availability

W11689473 Whirlpool Door Hinge In Stock WPL W11689473 $26.41

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $93.06

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $6.81

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.68

Shroud, Condenser WPL W10158508 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $4.72

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

Clip, Capacitor WPL W10131991 Contact Us For Availability

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

CONDENSER WPL 67006133 Contact Us For Availability

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $75.69

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $45.48

Tube, Discharge WPL W10174591 Contact Us For Availability

Plate, Cover WPL 12479901 Contact Us For Availability

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.33

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $58.14

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

WPW10351081 Whirlpool Refrigerator Cantilever Backorder WPL WPW10351081 $46.23

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

Clip, Evaporator WPL 10623002 Contact Us For Availability

Bracket, Slide (Left) WPL W10128118 Contact Us For Availability

Bracket, Slide (Right) WPL W10128119 Contact Us For Availability

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $40.86

WPW10534166 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534166 $38.78

WPW10534167 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534167 $37.99

EVAPORATOR WPL 12002051 Contact Us For Availability

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $35.83

23

Dam (Left Side) WPL 67001083 Contact Us For Availability

23

Dam (Right Side) WPL 67001084 Contact Us For Availability

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

24

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

24

Motor, Fan WPL 67004432 Contact Us For Availability

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

25

W10121318 Whirlpool Refrigerator Grommet In Stock WPL W10121318 $28.66

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $44.47

26

Harness, Unit Includes Cord WPL 13060202 Contact Us For Availability

26

Bracket, Foot WPL 67007174 Contact Us For Availability

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $67.80

Shelf, Glide (2) WPL 67001151 Contact Us For Availability

Cover, Water Valve WPL 67001173 Contact Us For Availability

28

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

Cover, Unit WPL 12575101ED Contact Us For Availability

29

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

29

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $30.89

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.52

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $23.46

30

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $8.73

30

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.52

31

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

31

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

32

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $27.52

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

Screw (4) WPL 67006573 Contact Us For Availability

33

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $9.59

33

Gasket WPL B5759649 Contact Us For Availability

34

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

35

Block, Condenser WPL 67005491 Contact Us For Availability

36

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

37

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70
