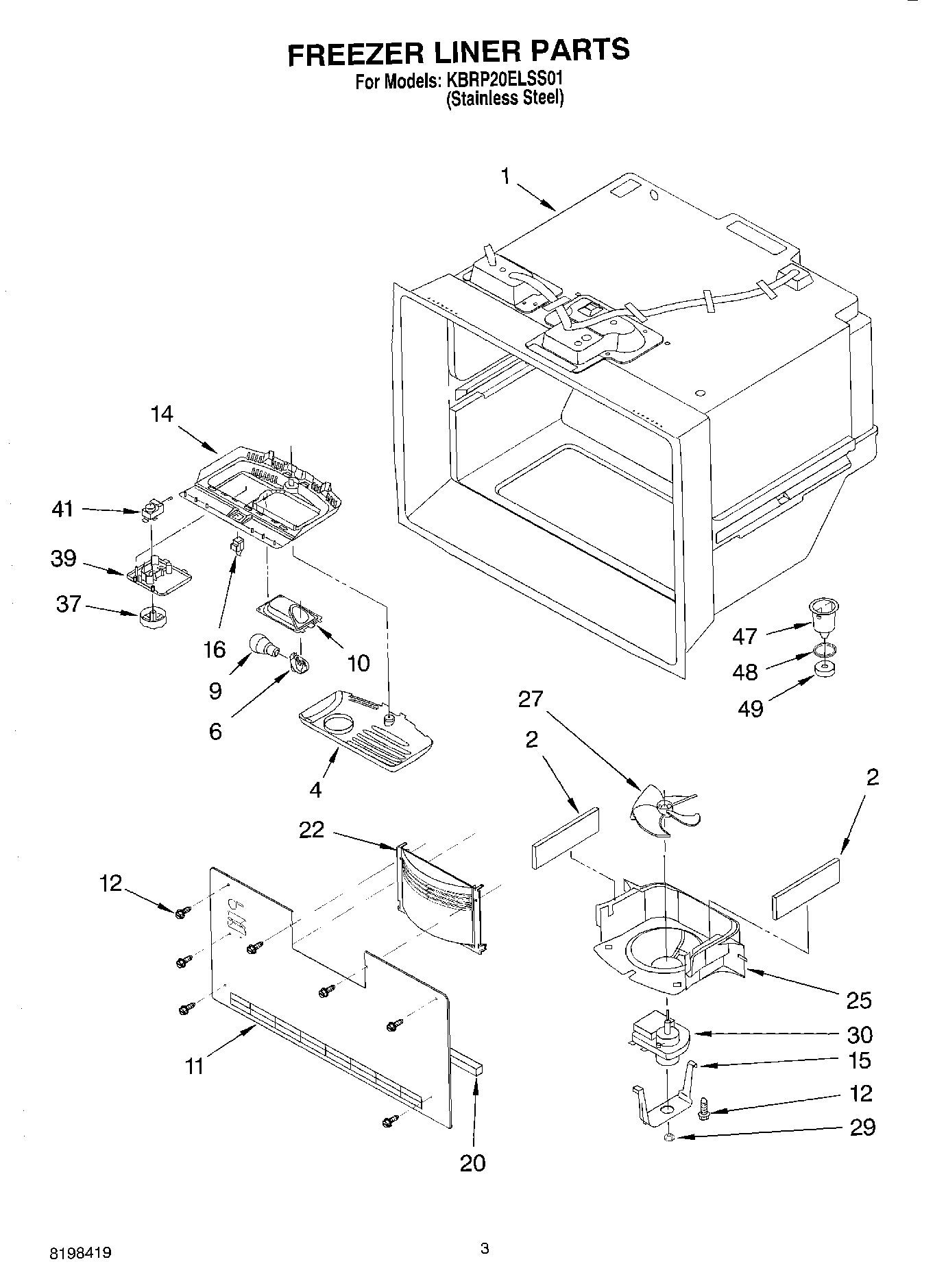

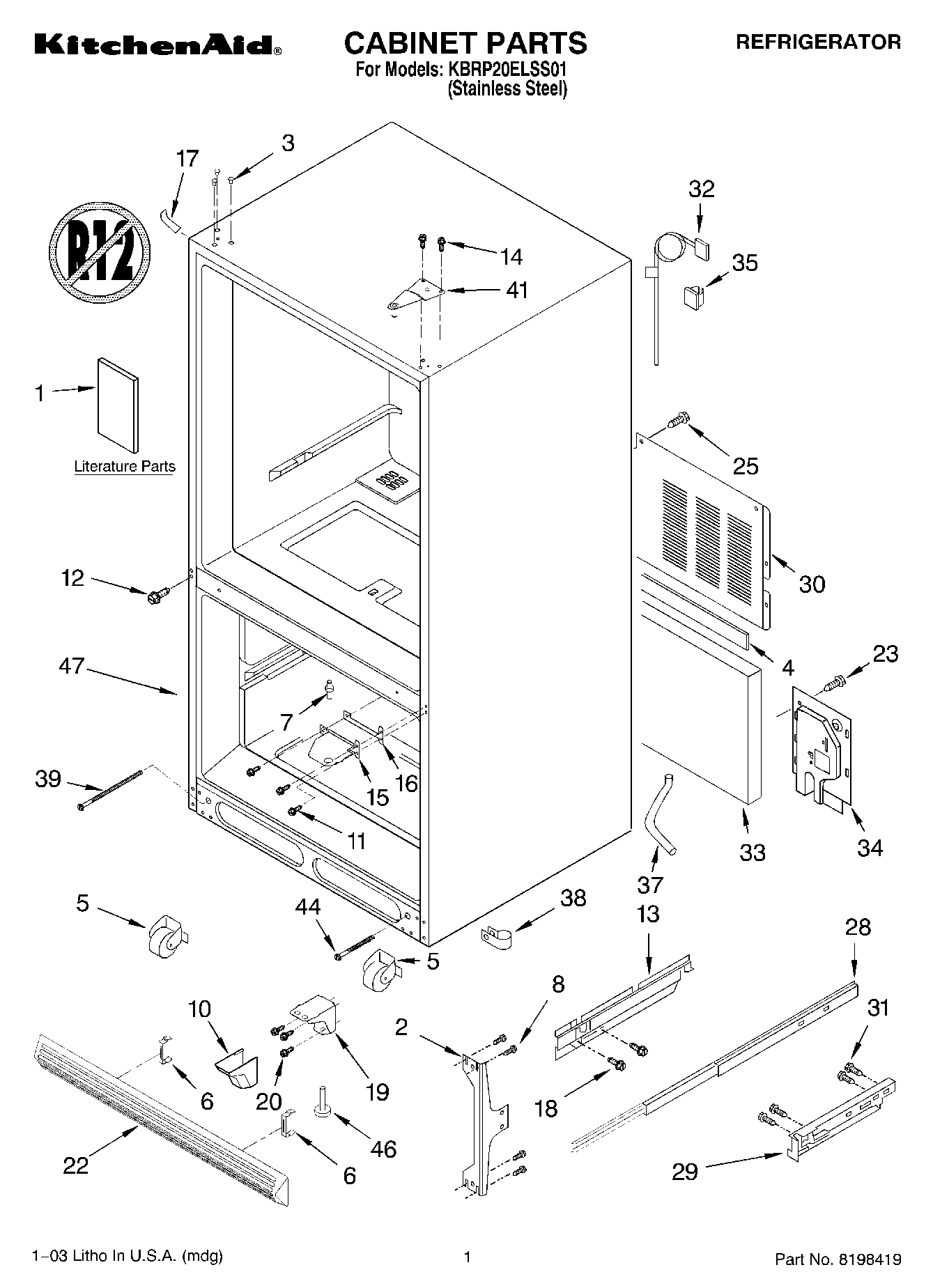

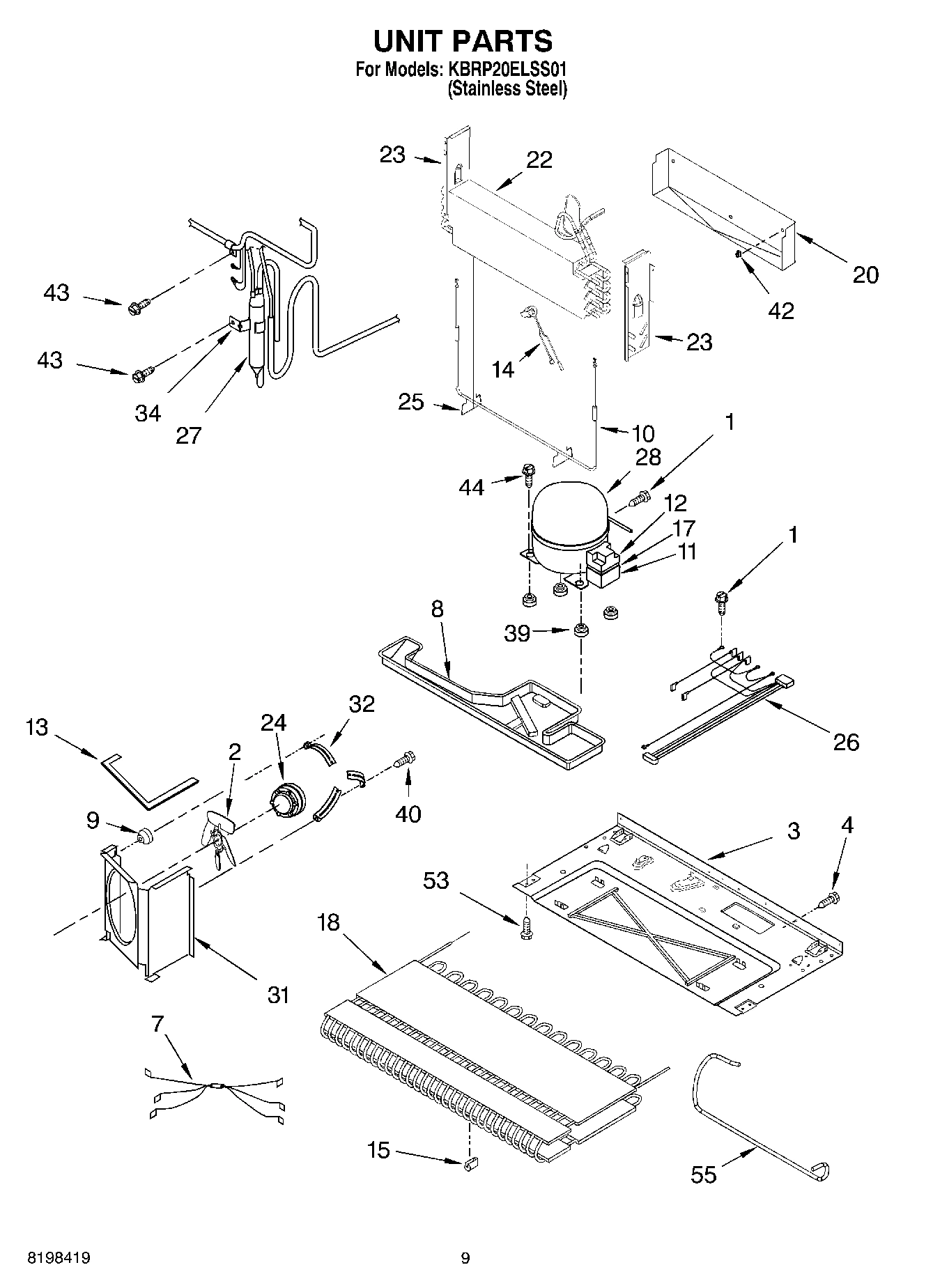

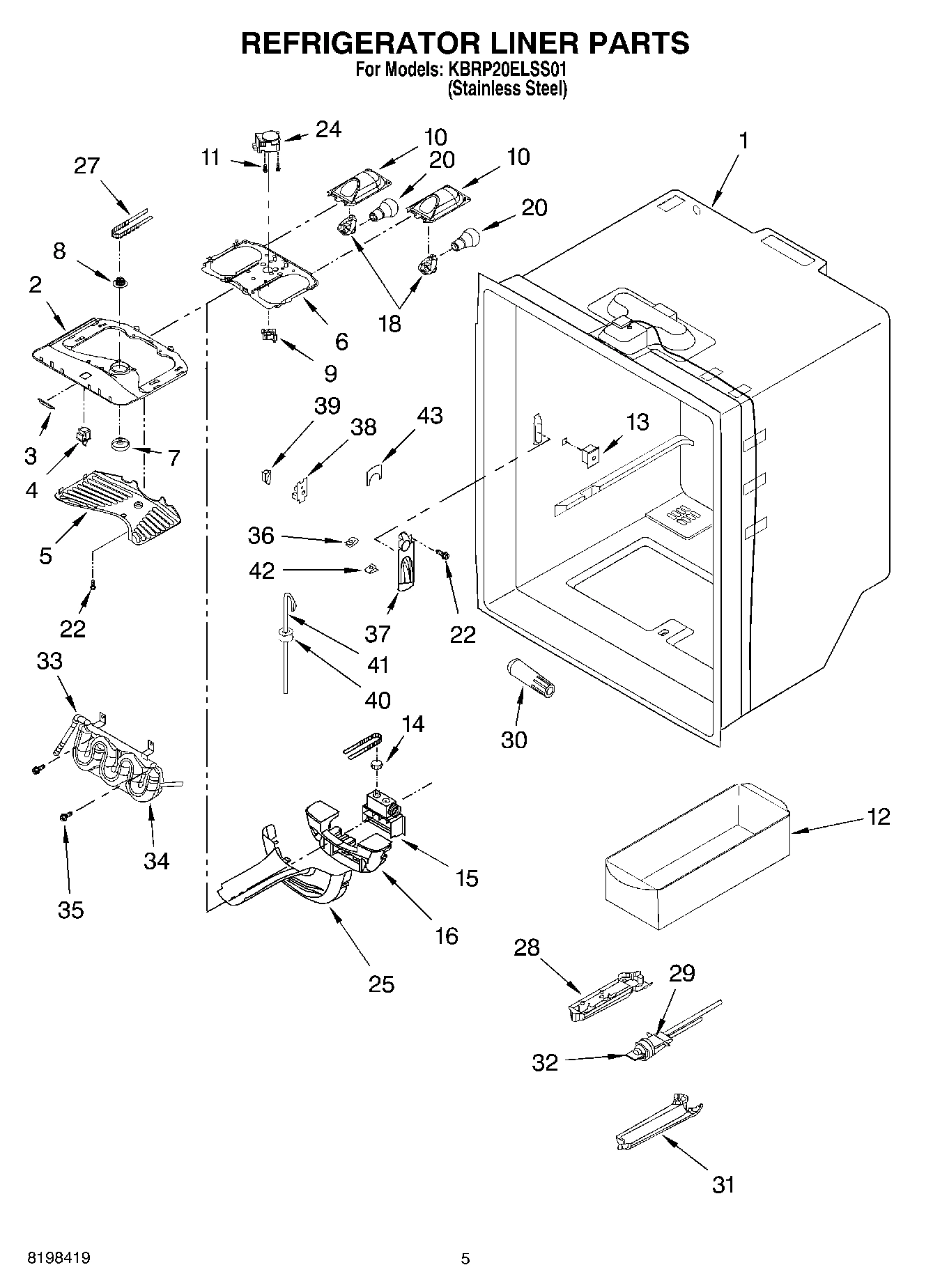

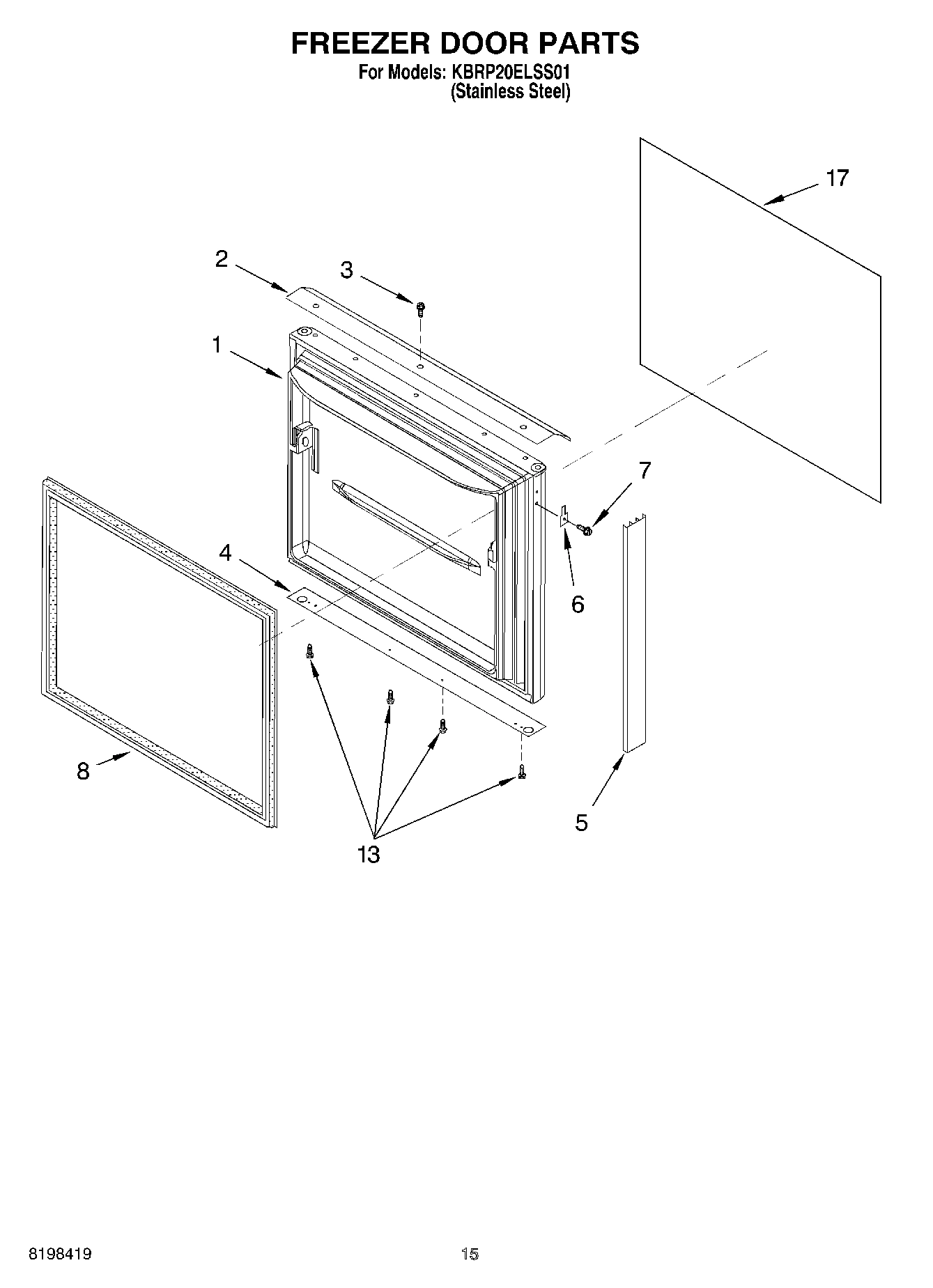

Model Whirlpool KBRP20ELSS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Container Assembly WPL 4343700 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

Parts Not Il WPL ARI79757A4 Contact Us For Availability

WPL ARI79758A4 WPL ARI79758A4 Contact Us For Availability

WPL ARI79759A7 WPL ARI79759A7 Contact Us For Availability

WPL ARI79760A2 WPL ARI79760A2 Contact Us For Availability

WPL ARI79761A2 WPL ARI79761A2 Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

1

Freezer Door WPL 8170885 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8170954 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8171102 Contact Us For Availability

1

Literature Parts (Guide, Energy) WPL LIT8171125 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI79752A6 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI79751A6 Contact Us For Availability

1

Refrigerator Door WPL 8170814 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $53.27

2

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

2

HANDLE WPL 8171112 Contact Us For Availability

2

Stop, Door WPL 8171074 Contact Us For Availability

2

Housing, Ref. Light WPL 8171026 Contact Us For Availability

2

Screw WPL 8170431 Contact Us For Availability

3

67006529 Whirlpool Refrigerator Screw Backorder WPL 67006529 $9.59

3

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

3

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $41.82

3

Base WPL 8171087 Contact Us For Availability

3

OVERLAY WPL 8171027 Contact Us For Availability

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

4

GASKET WPL 8170924 Contact Us For Availability

4

Cover, Control WPL 8170847 Contact Us For Availability

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

5

Trim, Door (Right Side) WPL 8171114 Contact Us For Availability

5

Trim, Door (Left Side) WPL 8171115 Contact Us For Availability

5

Roller Assembly WPL 8170886 Contact Us For Availability

5

Cover, Ref. Light WPL 8170832 Contact Us For Availability

5

Shelf Bin (Large) WPL 8171019 Contact Us For Availability

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

6

WP67002085 Whirlpool Refrigerator Housing Backorder WPL WP67002085 $53.53

6

Clip, Grille WPL 8170869 Contact Us For Availability

7

12002311 Whirlpool Refrigerator Center Hinge Backorder WPL 12002311 $3.70

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

Harness, Evap. Heater WPL 8170903 Contact Us For Availability

7

Screw WPL 8170421 Contact Us For Availability

7

Knob, Damper WPL 8170835 Contact Us For Availability

7

Trim, Door Extension WPL 8171104 Contact Us For Availability

8

67001033 Whirlpool Refrigerator Knob Gear Backorder WPL 67001033 $14.13

8

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $128.87

8

W10849442 Whirlpool Refrigerator FIP Gasket In Stock WPL W10849442 $124.88

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

8

Drain Pan WPL 8171089 Contact Us For Availability

9

67001034 Whirlpool Refrigerator Tensioner Bel Backorder WPL 67001034 $4.78

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

9

Grommet (3) WPL 8170908 Contact Us For Availability

9

Door Handle WPL 8171106 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $41.85

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $68.67

Hinge Cover, Bottom WPL 8171002 Contact Us For Availability

Housing, Frz. Light WPL 8170838 Contact Us For Availability

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

Harness, Water Valve WPL 8170413 Contact Us For Availability

Strap WPL 8170724 Contact Us For Availability

Screw (2) WPL 4344395 Contact Us For Availability

Cover, Evaporator WPL 8171082 Contact Us For Availability

Trim, Door (Top) WPL 8171105 Contact Us For Availability

12002193 Whirlpool Refrigerator Water Valve K In Stock WPL 12002193 $69.15

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

Screw WPL 4344167 Contact Us For Availability

Overload (Includes Relay) WPL 8171148 Contact Us For Availability

Shelf Bin (Medium) WPL 8170751 Contact Us For Availability

67002451 Whirlpool Refrigerator Handle Clip A Backorder WPL 67002451 $4.39

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Screw, (3) WPL 4344397 Contact Us For Availability

Slide, Door (Left) WPL 8171078 Contact Us For Availability

Slide, Door (Right) WPL 8171079 Contact Us For Availability

Grommet, Screw WPL 8170888 Contact Us For Availability

12001937 Whirlpool Refrigerator 42-Degree Def In Stock WPL 12001937 $50.86

WP12476002 Whirlpool Refrigerator Module Backorder WPL WP12476002 $61.94

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $31.46

Gear, Damper WPL 8170841 Contact Us For Availability

Trim, Door Shelf WPL 8171012 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $43.32

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

Hinge, Center WPL 8171146 Contact Us For Availability

Control, Damper WPL 8170845 Contact Us For Availability

Clip, Evap. Motor WPL 8170895 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

WPM0274062 Whirlpool Refrigerator Shim In Stock WPL WPM0274062 $12.94

Insulation, Damper WPL 8170846 Contact Us For Availability

Trim, Door (Right Side) WPL 8171108 Contact Us For Availability

Trim, Door (Left Side) WPL 8171109 Contact Us For Availability

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $38.80

Panel, Door (Stainless Steel) WPL 8171116 Contact Us For Availability

18

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $153.47

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

18

Screw WPL 4343861 Contact Us For Availability

19

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

19

Screw WPL 4343788 Contact Us For Availability

19

Hinge Bottom WPL 8171066 Contact Us For Availability

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $59.33

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.70

Tray, Drip WPL 8171081 Contact Us For Availability

Trim, Door (Bottom) WPL 8171110 Contact Us For Availability

21

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

21

Nut, Sleeve WPL 8171099 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $185.26

WP67002224 Whirlpool Refrigerator Grille Asse Backorder WPL WP67002224 $42.80

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

INSERT WPL 8171098 Contact Us For Availability

Panel, Door (Stainless Steel) WPL 8171111 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

Dam (Left Side) WPL 8171154 Contact Us For Availability

Dam (Right Side) WPL 8171155 Contact Us For Availability

Bushing WPL 4344361 Contact Us For Availability

24

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

24

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

24

WP67001036 Whirlpool Refrigerator Defrost Tim In Stock WPL WP67001036 $92.40

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Cover, Control WPL 8171028 Contact Us For Availability

Shroud, Evap.Fan WPL 8171153 Contact Us For Availability

Nameplate WPL 8170732 Contact Us For Availability

26

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

26

Harness, Unit WPL 8171092 Contact Us For Availability

26

Dish, Butter WPL 4344296 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

Belt, Damper WPL 8171029 Contact Us For Availability

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $8.09

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.31

Spring WPL 4343686 Contact Us For Availability

Slide, Drawer WPL 8171075 Contact Us For Availability

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $72.82

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

Clip, Wire WPL 4343984 Contact Us For Availability

Track, Door (Left) WPL 8171076 Contact Us For Availability

Track, Door (Right) WPL 8171077 Contact Us For Availability

Housing, Water Filter WPL 8171031 Contact Us For Availability

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $55.44

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.14

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

Cover, Unit WPL 8171093 Contact Us For Availability

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $44.58

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $46.10

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

SHROUD WPL 8171088 Contact Us For Availability

WP12544002 Whirlpool Refrigerator Inlet Valve In Stock WPL WP12544002 $129.90

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.57

Basket, Freezer Lower WPL 8170815 Contact Us For Availability

Bracket, Fan Motor WPL 8170907 Contact Us For Availability

Head, Filter Bypass WPL 8171042 Contact Us For Availability

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $9.90

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Endcap, Basket (Left Side) WPL 8170816 Contact Us For Availability

Endcap, Basket (Right Side) WPL 8170820 Contact Us For Availability

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $57.63

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $82.10

Divider, Lower Basket WPL 8171080 Contact Us For Availability

Clip, Drier WPL 8170901 Contact Us For Availability

Cover, Water Valve WPL 8171094 Contact Us For Availability

35

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

35

Basket, Freezer Upper WPL 8171070 Contact Us For Availability

35

Clip, Cord WPL 8171100 Contact Us For Availability

36

Handle, Freezer Basket WPL 8171071 Contact Us For Availability

36

Clip WPL 4343952 Contact Us For Availability

Divider, Upper Basket WPL 8171072 Contact Us For Availability

Tube, Drain WPL 8170861 Contact Us For Availability

Cover, Dispenser Front WPL 8171117 Contact Us For Availability

Knob, Control WPL 8170851 Contact Us For Availability

38

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $29.61

38

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

38

Screw WPL 8171073 Contact Us For Availability

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $27.82

Grommet (4) WPL 4343845 Contact Us For Availability

Screw (2) Rear, Adj. WPL 8170967 Contact Us For Availability

Cover, Frz. Control WPL 8170849 Contact Us For Availability

40

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

40

Screw WPL 4344562 Contact Us For Availability

12626910ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626910ED $38.94

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $111.07

Hinge, Top (Left) WPL 8170788 Contact Us For Availability

42

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

42

Clip, Evaporator WPL 4344219 Contact Us For Availability

43

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

43

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $12.55

44

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

44

Screw WPL 4343847 Contact Us For Availability

46

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

47

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

47

Cabinet (Not A Serviceable Part) WPL ARI79750A6 Contact Us For Availability

48

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

49

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

53

Screw WPL 4344292 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tube, Drain WPL 8171090 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI79753A7 Contact Us For Availability

and Optional Parts Not Included WPL ARI79754A8 Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI79755A8 Contact Us For Availability

100

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $192.72

100

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI79756A5 Contact Us For Availability
