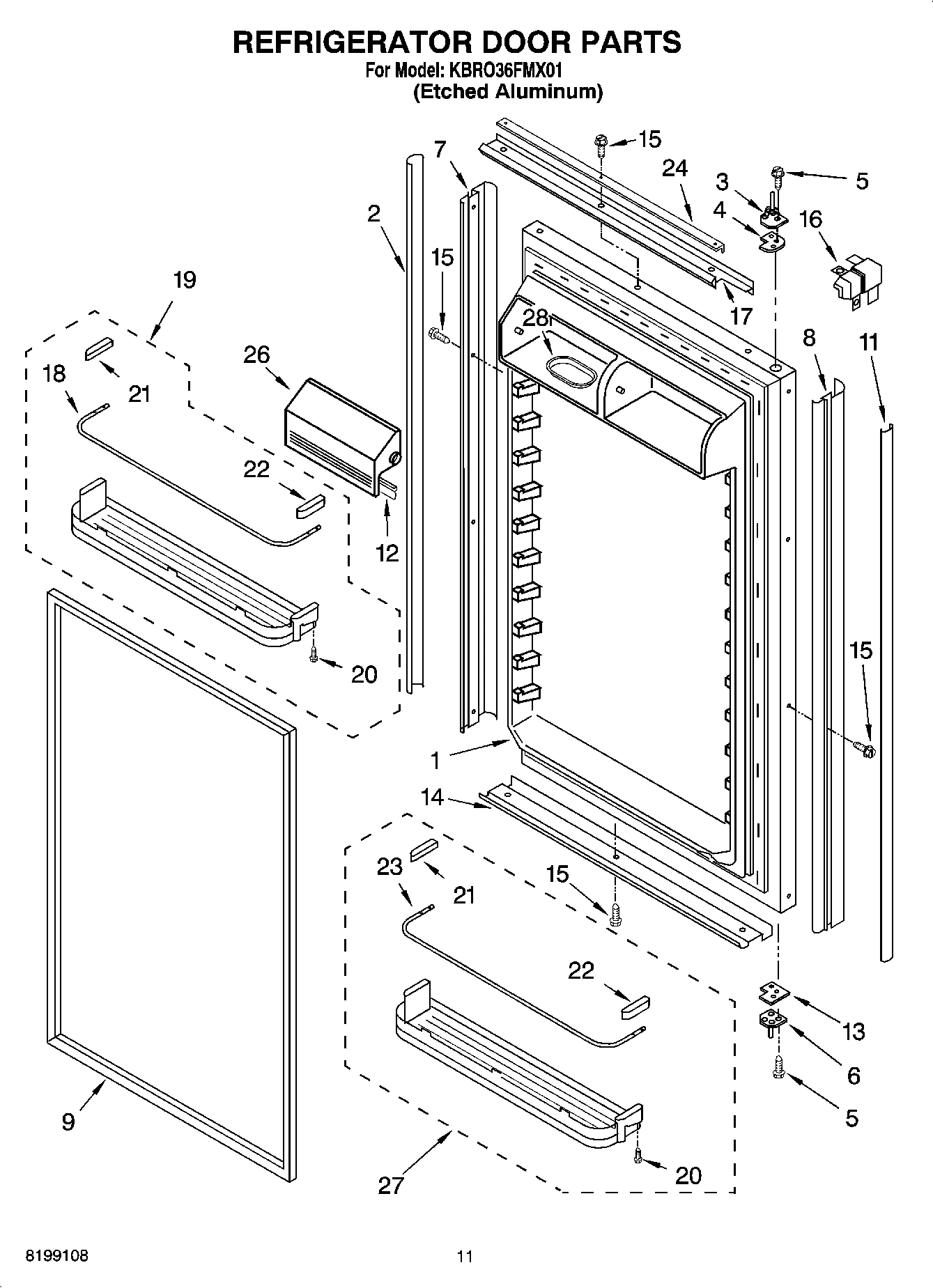

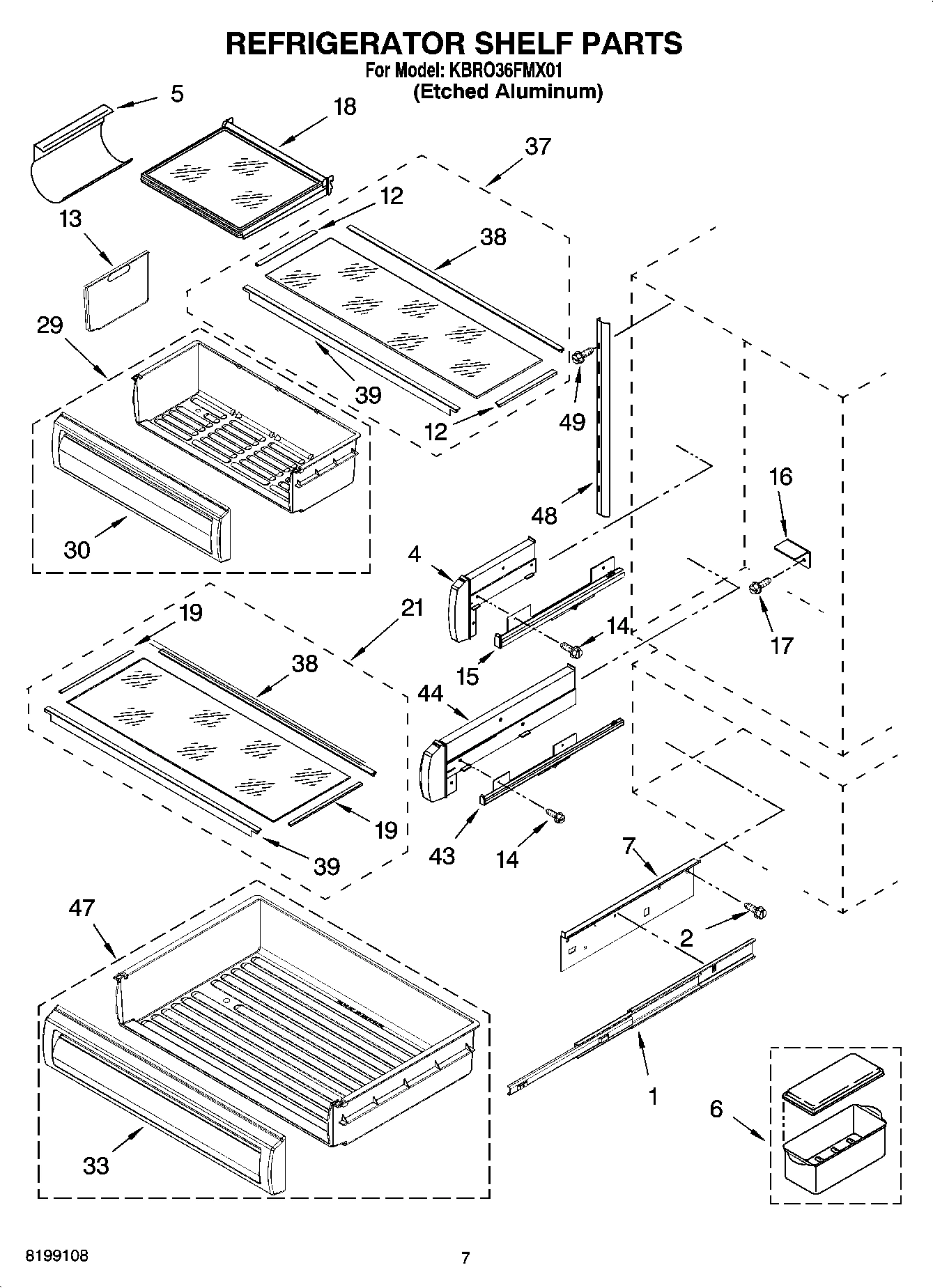

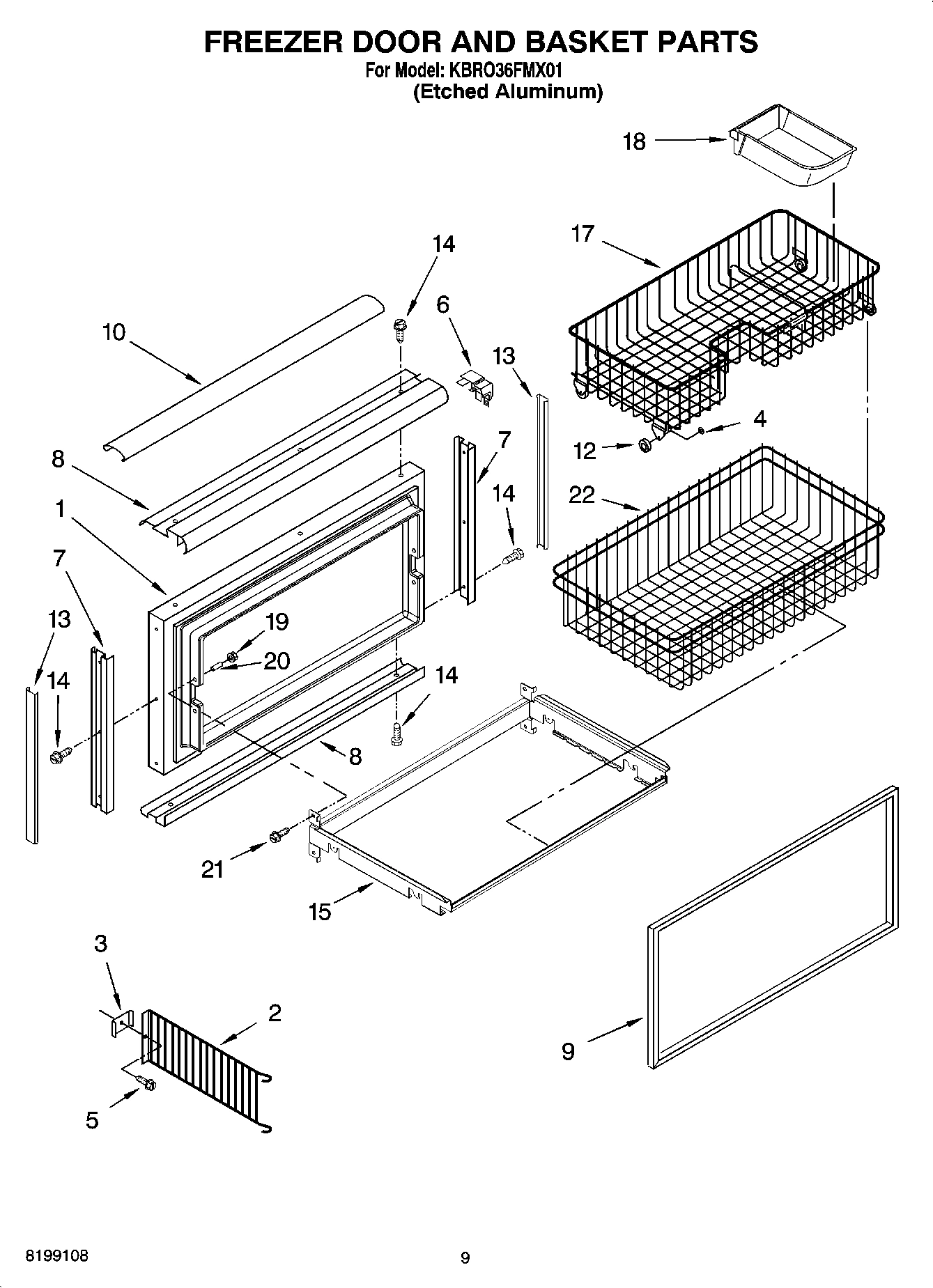

Model Whirlpool KBRO36FMX01 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts & Diagrams

1

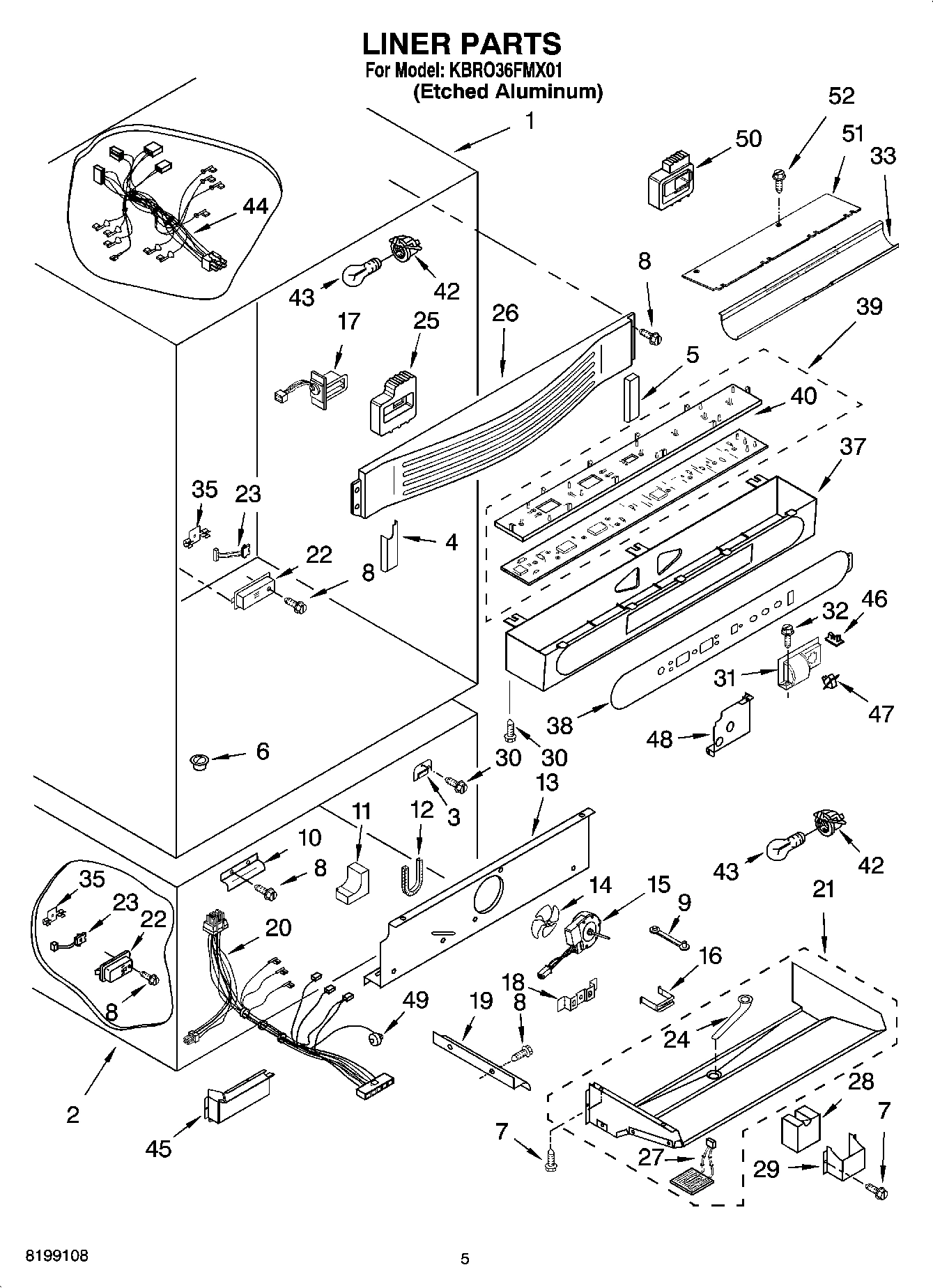

Liner, Refrigerator (Not Servicable)
Liner, Refrigerator (Not Servicable) WPL ARI79718A7 Contact Us For Availability
View on Model
1

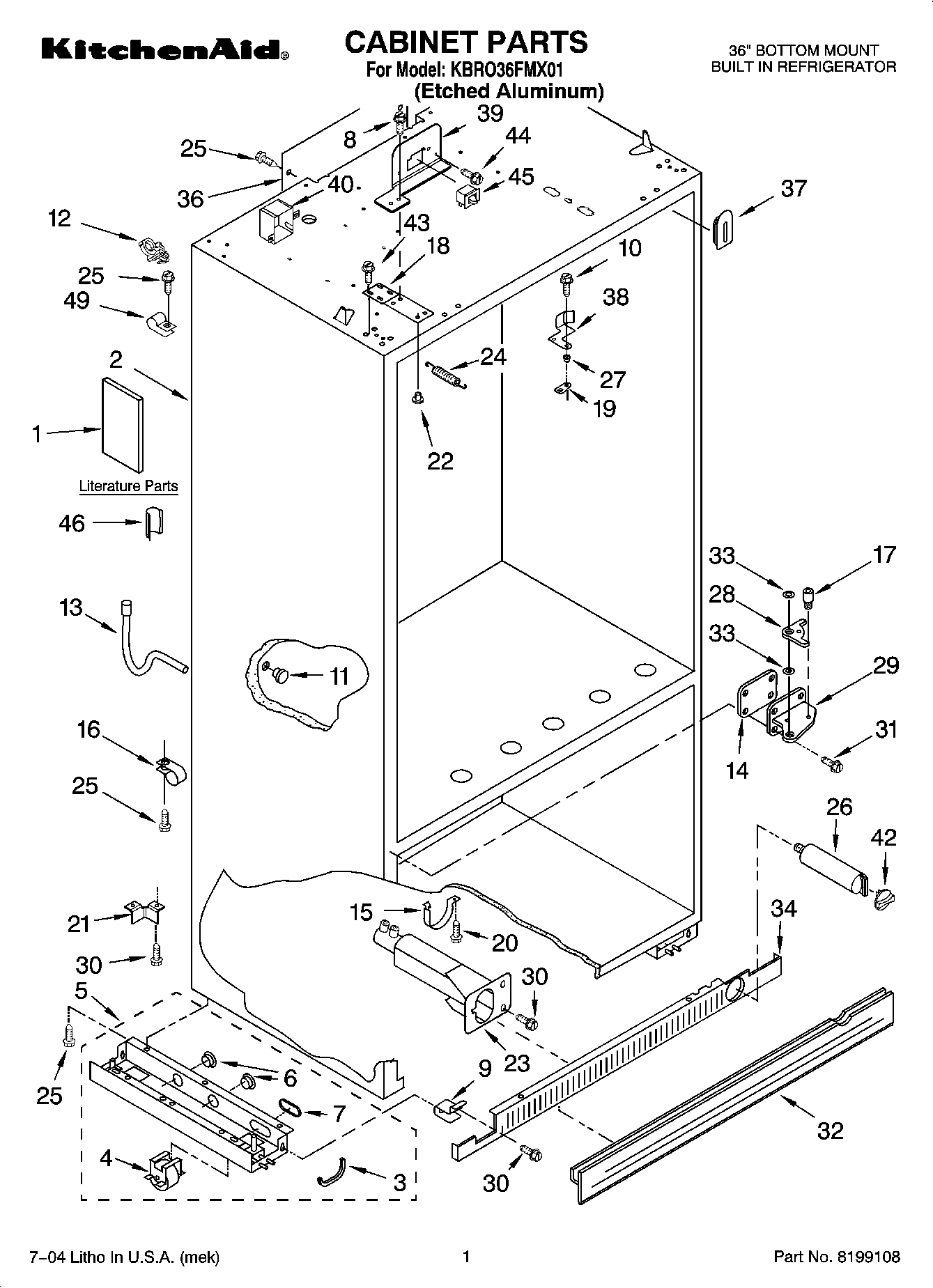

Service Sheet, Main Control
Service Sheet, Main Control WPL 2302865 Contact Us For Availability
View on Model
1
Service & Wiring Sheet
Service & Wiring Sheet WPL 2306322 Contact Us For Availability
View on Model
1
Energy Label
Energy Label WPL 2307360 Contact Us For Availability
View on Model
1
Installation Instructions
Installation Instructions WPL 2307890 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 2309067 Contact Us For Availability
View on Model
1
Modular Icemaker Service Sheet
Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability
View on Model
1

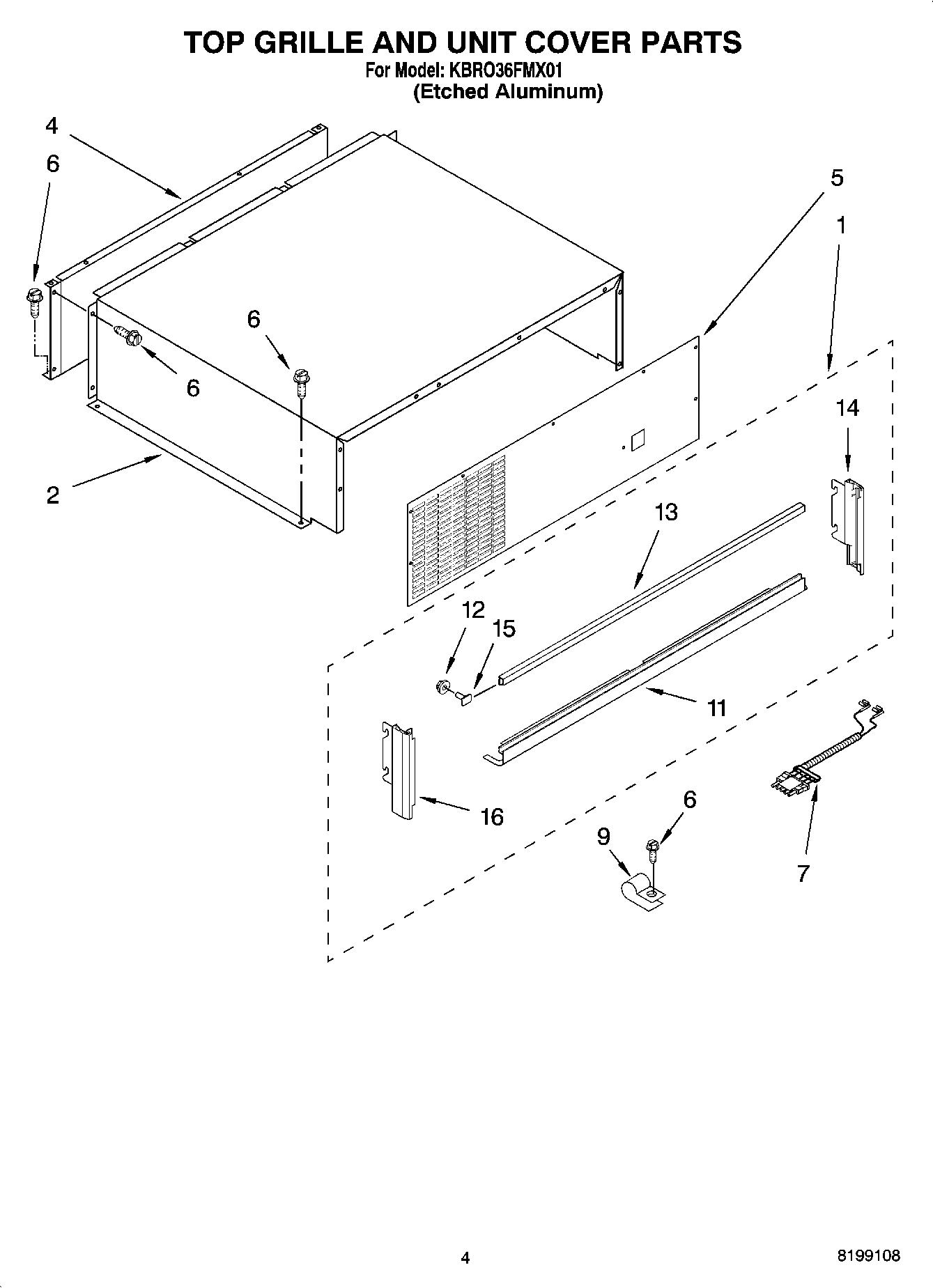

Top Grille Assembly (Etched Aluminum)
Top Grille Assembly (Etched Aluminum) WPL 2259426X Contact Us For Availability
View on Model
1

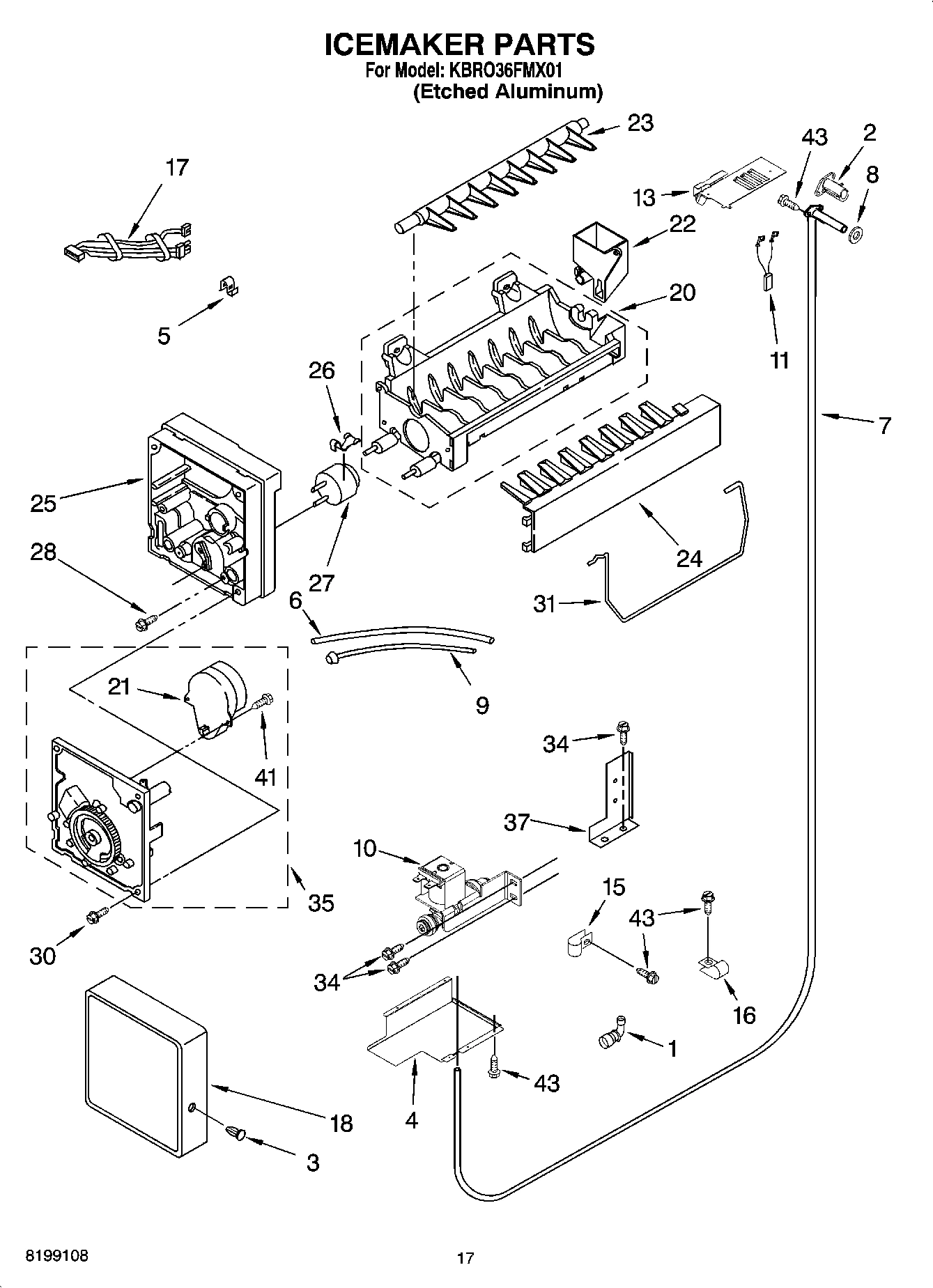

Tube, Valve
Tube, Valve WPL 2204597 Contact Us For Availability
View on Model
1

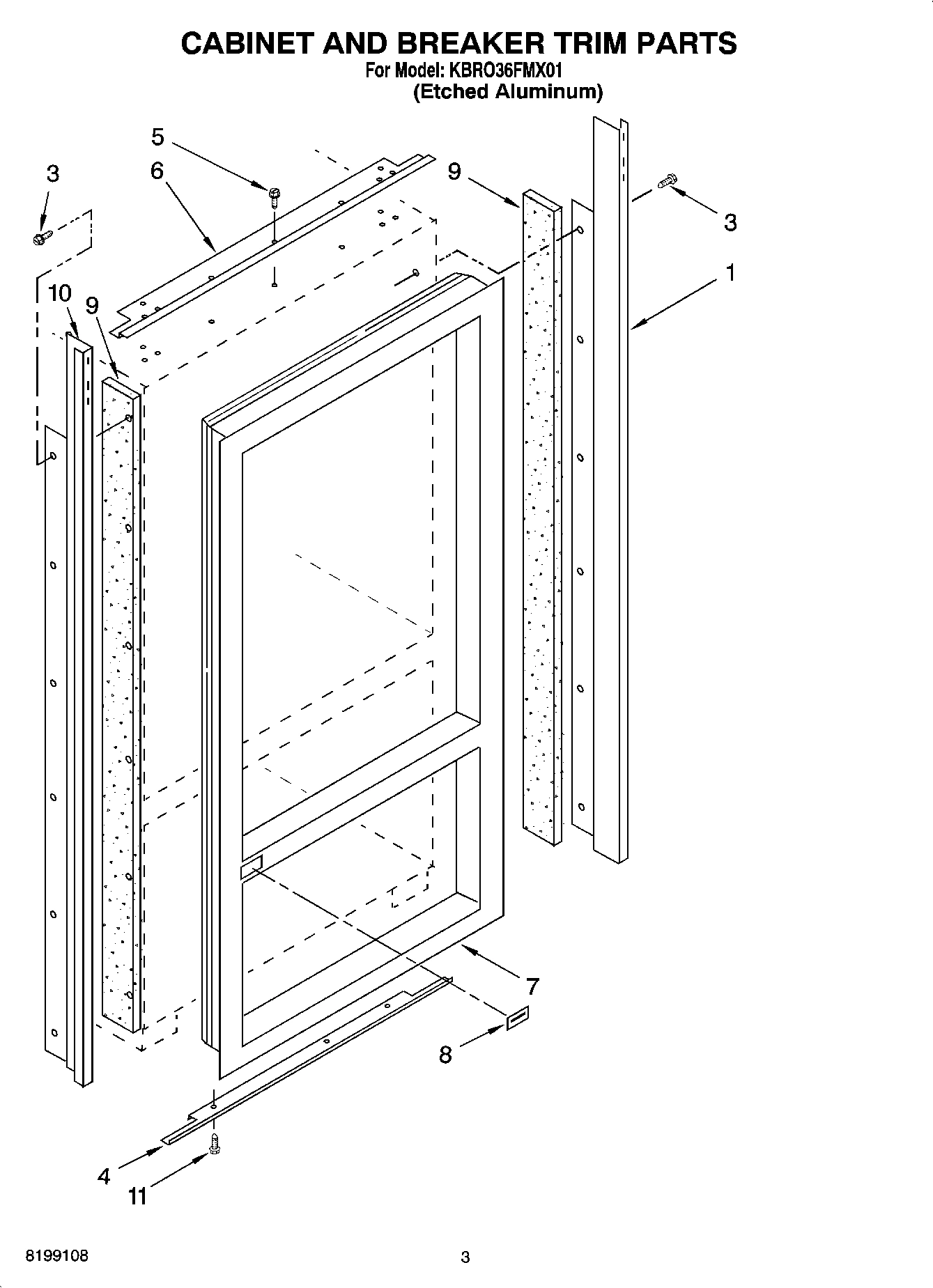

Cabinet Trim, Right Side (Etched Aluminum)
Cabinet Trim, Right Side (Etched Aluminum) WPL 2257688X Contact Us For Availability
View on Model
1

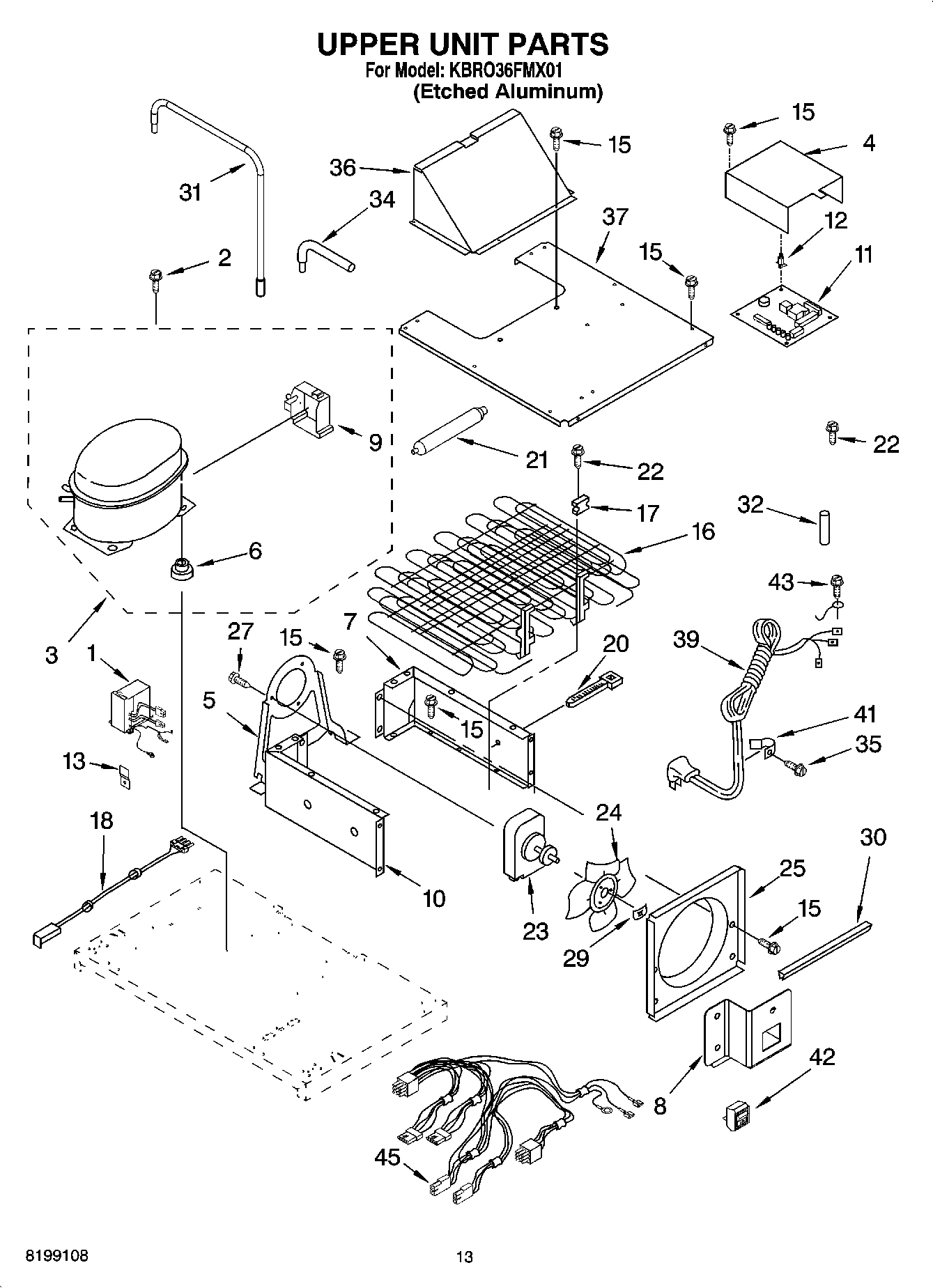

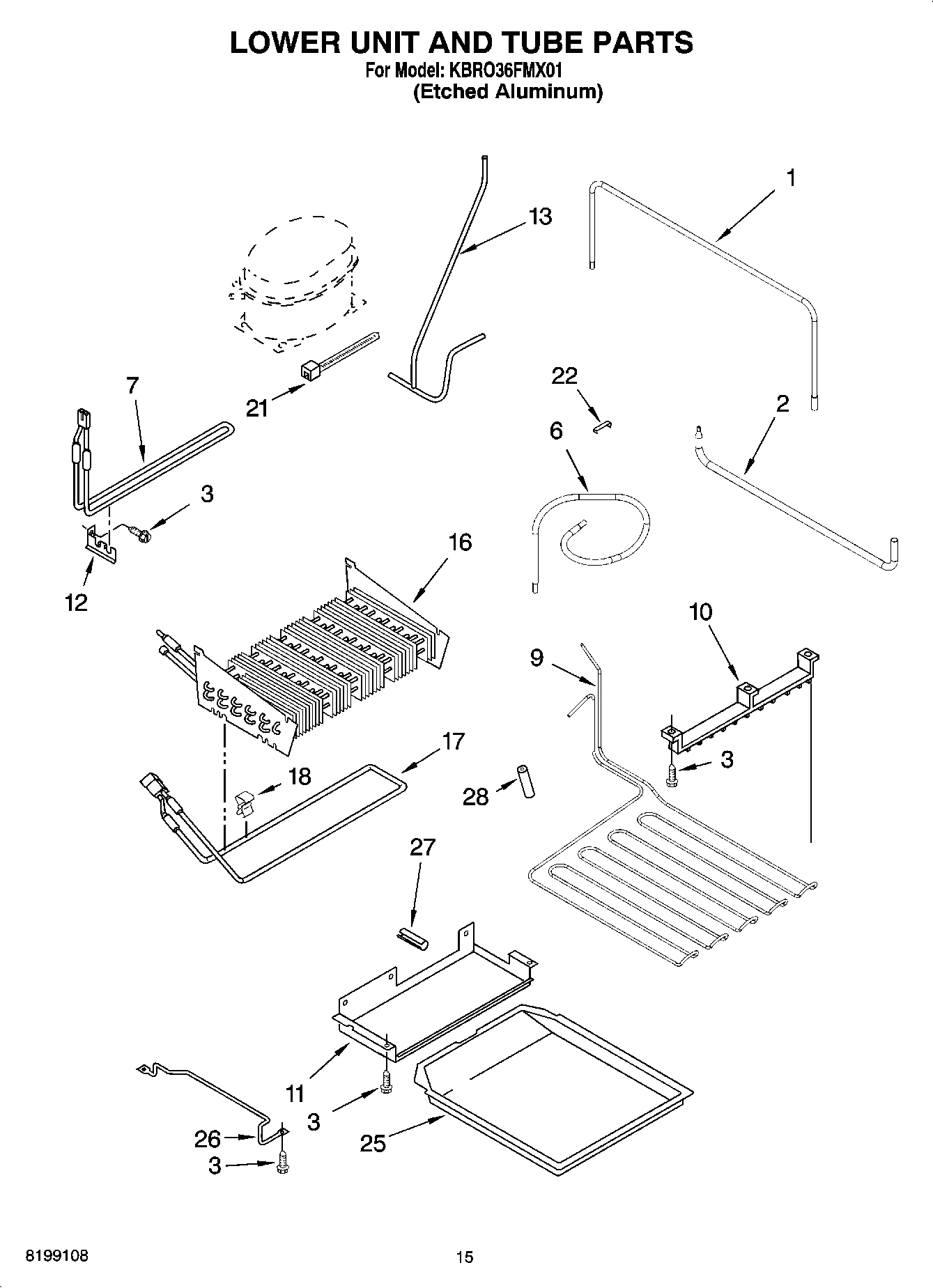

Tube, Transition (Condenser)
Tube, Transition (Condenser) WPL 2259472 Contact Us For Availability
View on Model
2
Tube, Transition (Drier/Restrictor)
Tube, Transition (Drier/Restrictor) WPL 2259304 Contact Us For Availability
View on Model
2
Liner, Freezer (Not Servicable)
Liner, Freezer (Not Servicable) WPL ARI79719A8 Contact Us For Availability
View on Model
2
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI79716A9 Contact Us For Availability
View on Model
2
Cover, Unit
Cover, Unit WPL 2259320 Contact Us For Availability
View on Model
3
Hinge Assembly, Top
Hinge Assembly, Top WPL 2266912 Contact Us For Availability
View on Model
3
Cover, Heat Exchanger
Cover, Heat Exchanger WPL 2215610 Contact Us For Availability
View on Model
3
Grommet, Crossover Tube
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
View on Model
4
Spacer-Hinge, Top
Spacer-Hinge, Top WPL 2256381 Contact Us For Availability
View on Model
4
Diffuser Cap, Left Side
Diffuser Cap, Left Side WPL 2215827 Contact Us For Availability
View on Model
4
Cover-Bottom, Electrical
Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability
View on Model
4
Cabinet, Trim (Bottom)
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
View on Model
5
Diffuser Cap, Right Side
Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability
View on Model
5
Front, Unit Cover
Front, Unit Cover WPL 2302974 Contact Us For Availability
View on Model
6
Suction Tube
Suction Tube WPL 2259303 Contact Us For Availability
View on Model
6
Hinge Assembly, Bottom
Hinge Assembly, Bottom WPL 2302927 Contact Us For Availability
View on Model
6
Grommet, Wiring
Grommet, Wiring WPL 2005006 Contact Us For Availability
View on Model
6
Tube, Filter Inlet
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
View on Model
6
Cabinet, Trim Top
Cabinet, Trim Top WPL 2257366 Contact Us For Availability
View on Model
7
Grommet, Flexible
Grommet, Flexible WPL 2005007 Contact Us For Availability
View on Model
7
Wire Assembly
Wire Assembly WPL 2187423 Contact Us For Availability
View on Model
7
Water Inlet Tube Assembly
Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability
View on Model
7
Breaker Trim (Not Serviced)
Breaker Trim (Not Serviced) WPL ARI79717A6 Contact Us For Availability
View on Model
7
Heater, Defrost (Rear)
Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability
View on Model
8
Cover, Hinge
Cover, Hinge WPL 2005782 Contact Us For Availability
View on Model
9
Seal, Side Trim
Seal, Side Trim WPL 2005925 Contact Us For Availability
View on Model
9
Mounting Bracket, Grill
Mounting Bracket, Grill WPL 2006442 Contact Us For Availability
View on Model
9
Heater, Drain Pan
Heater, Drain Pan WPL 2259329 Contact Us For Availability
View on Model
10
Screw
Screw WPL 2005921 Contact Us For Availability
View on Model
10
Wiring Channel, Freezer Rear
Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability
View on Model
10
Cabinet Trim, Left Side (Etched Aluminum)
Cabinet Trim, Left Side (Etched Aluminum) WPL 2257689X Contact Us For Availability
View on Model
10
Hanger, Heater
Hanger, Heater WPL 2209450 Contact Us For Availability
View on Model
11
Foam, Fan Shroud
Foam, Fan Shroud WPL 2215844 Contact Us For Availability
View on Model
11
Cap, Grommet
Cap, Grommet WPL 1112849 Contact Us For Availability
View on Model
11
Grille-Trim, Bottom
Grille-Trim, Bottom WPL 2259437X Contact Us For Availability
View on Model
11
Jumper, Heater Fill Tube
Jumper, Heater Fill Tube WPL 2187683 Contact Us For Availability
View on Model
11
Shield, Drain Pan
Shield, Drain Pan WPL 2005908 Contact Us For Availability
View on Model
12
Clamp
Clamp WPL 2004514 Contact Us For Availability
View on Model
12
Support, Heater
Support, Heater WPL 2204543 Contact Us For Availability
View on Model
13
Shroud, Evaporator Fan
Shroud, Evaporator Fan WPL 2215606 Contact Us For Availability
View on Model
13
Tube, Drain Condensate
Tube, Drain Condensate WPL 2204516 Contact Us For Availability
View on Model
13
Grille-Trim, Top
Grille-Trim, Top WPL 2259440X Contact Us For Availability
View on Model
13
Tube, Discharge
Tube, Discharge WPL 2259474 Contact Us For Availability
View on Model
14
Grille-Trim, Right Side
Grille-Trim, Right Side WPL 2259420X Contact Us For Availability
View on Model
15
Motor, Fan
Motor, Fan WPL 2259385 Contact Us For Availability
View on Model
15
Clamp, Filter Housing
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
View on Model
16
CONDENSER
CONDENSER WPL 2259307 Contact Us For Availability
View on Model
16
Evaporator
Evaporator WPL 2306095 Contact Us For Availability
View on Model
16
Grille-Trim, Left Side
Grille-Trim, Left Side WPL 2259421X Contact Us For Availability
View on Model
17
Heater, Defrost (Front)
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
View on Model
17
Screw, Door Stop
Screw, Door Stop WPL 2001295 Contact Us For Availability
View on Model
17
Grommet (4)
Grommet (4) WPL 943447 Contact Us For Availability
View on Model
18
Bracket
Bracket WPL 2215503 Contact Us For Availability
View on Model
18
Cover
Cover WPL 2257538 Contact Us For Availability
View on Model
18
Clamp, Heater (2)
Clamp, Heater (2) WPL 2204510 Contact Us For Availability
View on Model
19
Cam-Closer, Door
Cam-Closer, Door WPL 2005783 Contact Us For Availability
View on Model
19
Wiring Channel
Wiring Channel WPL 8201595 Contact Us For Availability
View on Model
20
Wiring Harness, Freezer (Includes Item 49)
Wiring Harness, Freezer (Includes Item 49) WPL 2187621 Contact Us For Availability
View on Model
21
Cover, Evaporator Assembly
Cover, Evaporator Assembly WPL 2306391 Contact Us For Availability
View on Model
21
Wire Tie
Wire Tie WPL 2187715 Contact Us For Availability
View on Model
22
Bushing
Bushing WPL 2002903 Contact Us For Availability
View on Model
22
Screw
Screw WPL 487522 Contact Us For Availability
View on Model
24
Blade, Fan
Blade, Fan WPL 2190685 Contact Us For Availability
View on Model
24
Drain Tube, Condensate
Drain Tube, Condensate WPL 2209208 Contact Us For Availability
View on Model
25
Orifice, Fan
Orifice, Fan WPL 2003169 Contact Us For Availability
View on Model
25
Insulation, Baffle
Insulation, Baffle WPL 2215530 Contact Us For Availability
View on Model
26
Cover, Air Diffuser
Cover, Air Diffuser WPL 2215531 Contact Us For Availability
View on Model
26
Bracket, Drain Pan (Left)
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
View on Model
26
Bracket, Drain Pan (Right)
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
View on Model
27
Heater-Tube, Drain
Heater-Tube, Drain WPL 2306386 Contact Us For Availability
View on Model
28
Insulation, Tube Drain
Insulation, Tube Drain WPL 2204538 Contact Us For Availability
View on Model
29
Cover, Tube Drain
Cover, Tube Drain WPL 2204537 Contact Us For Availability
View on Model
30
Grommet, Edge
Grommet, Edge WPL 2307907 Contact Us For Availability
View on Model
31
Tube, Transition (Condenser/Drier)
Tube, Transition (Condenser/Drier) WPL 2259302 Contact Us For Availability
View on Model
31
Housing, Switch
Housing, Switch WPL 2215835 Contact Us For Availability
View on Model
31
Shut Off Arm
Shut Off Arm WPL 2221172 Contact Us For Availability
View on Model
32
Sleeve, Condenser
Sleeve, Condenser WPL 2000645 Contact Us For Availability
View on Model
33
Shield, Light
Shield, Light WPL 2307215 Contact Us For Availability
View on Model
34
Grille Base, Front
Grille Base, Front WPL 2215889B Contact Us For Availability
View on Model
35
Clip, Thermistor
Clip, Thermistor WPL 2209204 Contact Us For Availability
View on Model
36
Cover, Fan
Cover, Fan WPL 2209495 Contact Us For Availability
View on Model
37
Cover, Condenser
Cover, Condenser WPL 2259092 Contact Us For Availability
View on Model
37
Control Panel
Control Panel WPL 2302774 Contact Us For Availability
View on Model
37
Grommet, Wiring
Grommet, Wiring WPL 1113122 Contact Us For Availability
View on Model
37
Water Valve Mounting Bracket
Water Valve Mounting Bracket WPL 2306151 Contact Us For Availability
View on Model
38
Overlay, Control Panel
Overlay, Control Panel WPL 2257521 Contact Us For Availability
View on Model
39
Service Cord
Service Cord WPL 2259197 Contact Us For Availability
View on Model
39
Circuit Board (User Interface)
Circuit Board (User Interface) WPL 2302913 Contact Us For Availability
View on Model
40
Insert, Control Box (User Interface)
Insert, Control Box (User Interface) WPL 2303938 Contact Us For Availability
View on Model
44
Harness, Control Box
Harness, Control Box WPL 2187424 Contact Us For Availability
View on Model
45
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
45
Wiring Harness, Unit Compartment
Wiring Harness, Unit Compartment WPL 2187624 Contact Us For Availability
View on Model
45
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
45
Following Parts Not Illustrated and Optional
Following Parts Not Illustrated and Optional WPL ARI79721A8 Contact Us For Availability
View on Model
45
REFRIGERANT CHARGE 5.75 oz. (R-134A)
REFRIGERANT CHARGE 5.75 oz. (R-134A) WPL ARI79722A5 Contact Us For Availability
View on Model
45
Cover, Wiring Freezer Light
Cover, Wiring Freezer Light WPL 8201534 Contact Us For Availability
View on Model
46
CLIP, WIRING
CLIP, WIRING WPL 1115375 Contact Us For Availability
View on Model
48
Wiring Cover, Icemaker
Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability
View on Model
49
Defrost Bi-Metal
Defrost Bi-Metal WPL 2187378 Contact Us For Availability
View on Model
50
Diffuser Assembly
Diffuser Assembly WPL 2215829 Contact Us For Availability
View on Model
51
Support, Control Box
Support, Control Box WPL 2221121 Contact Us For Availability
View on Model
