Model Whirlpool KBRO36FMX00 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
06 - FREEZER DOOR AND BASKET PARTS

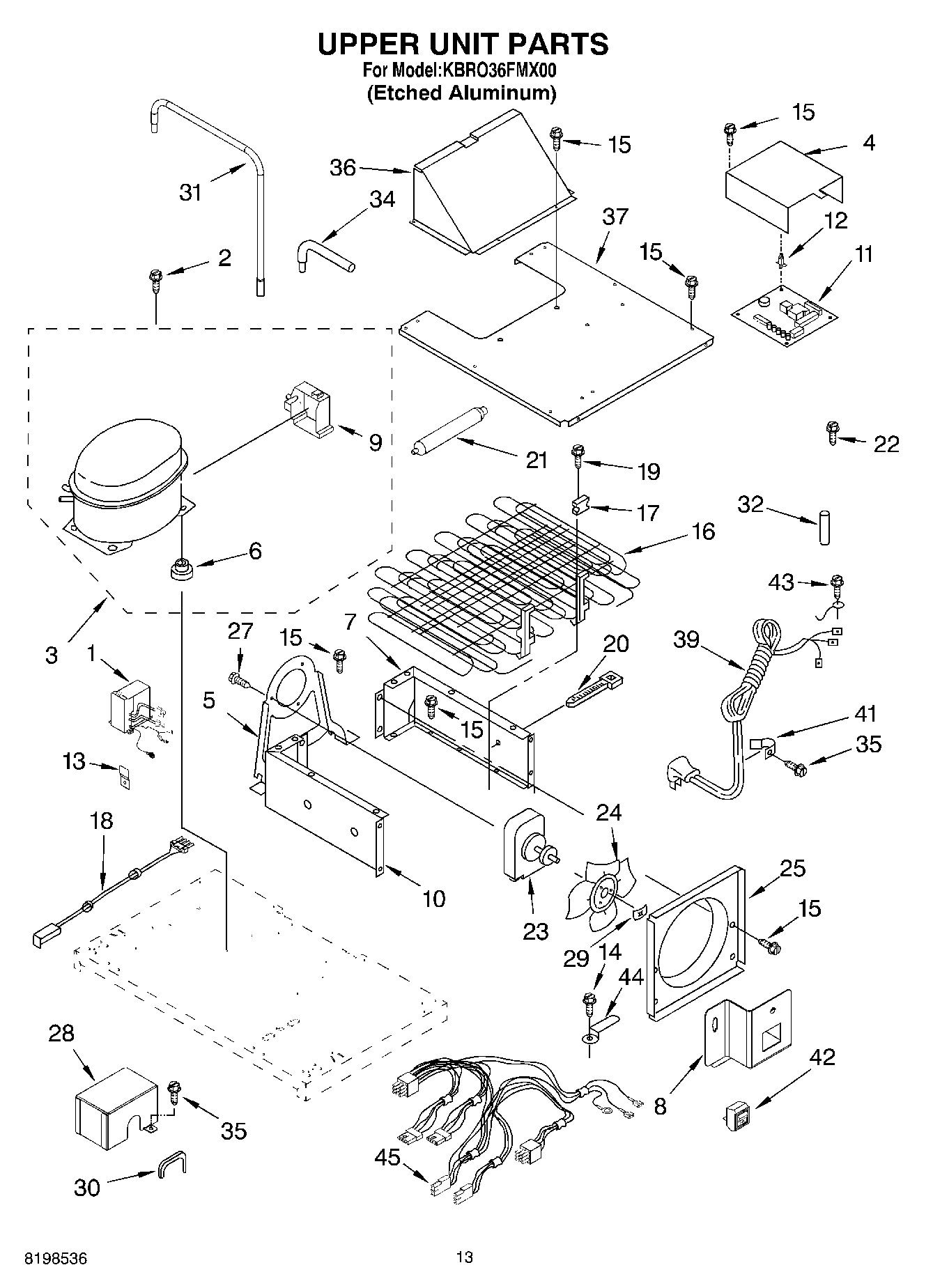

08 - UPPER UNIT PARTS

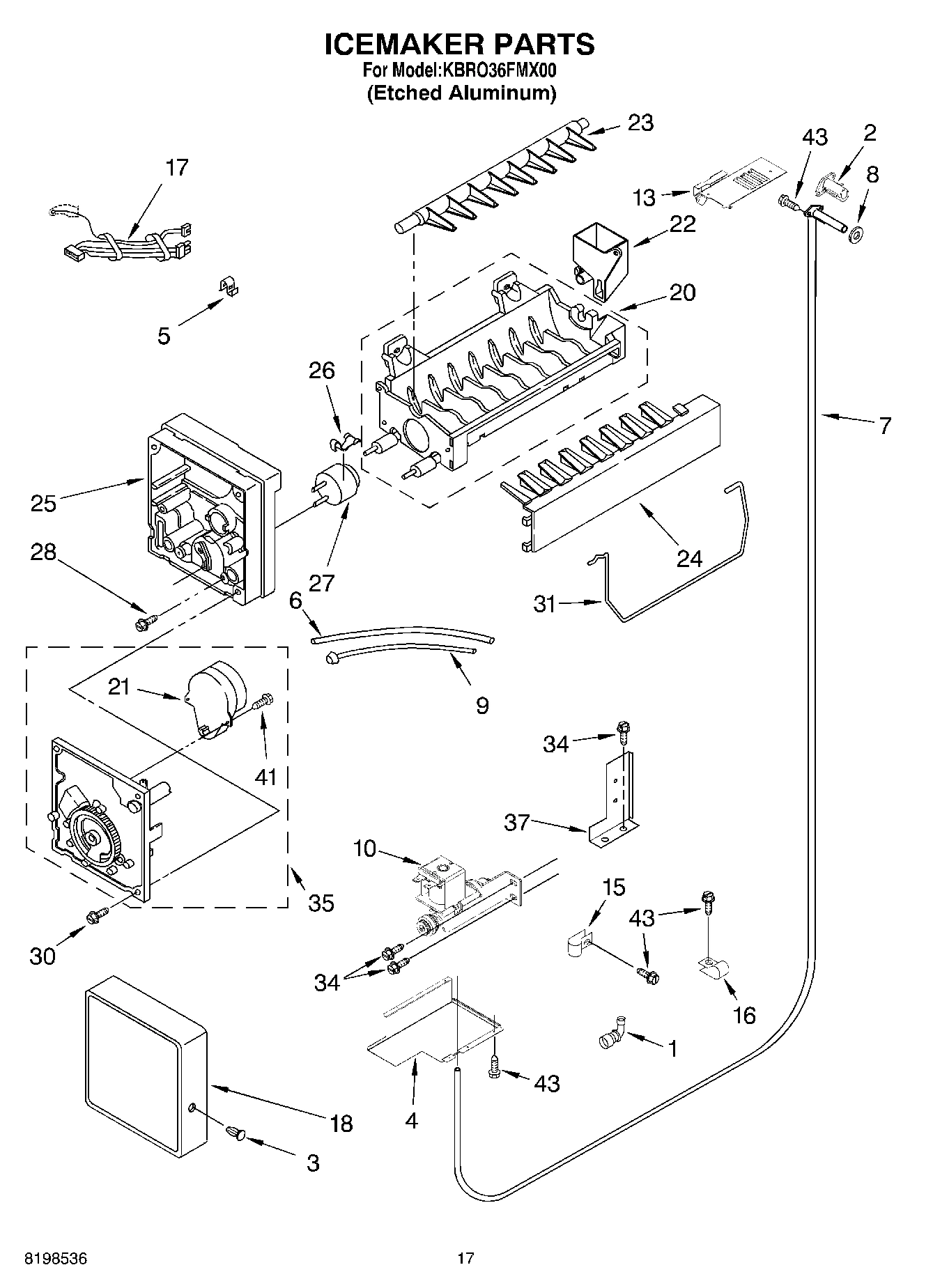

10 - ICEMAKER PARTS

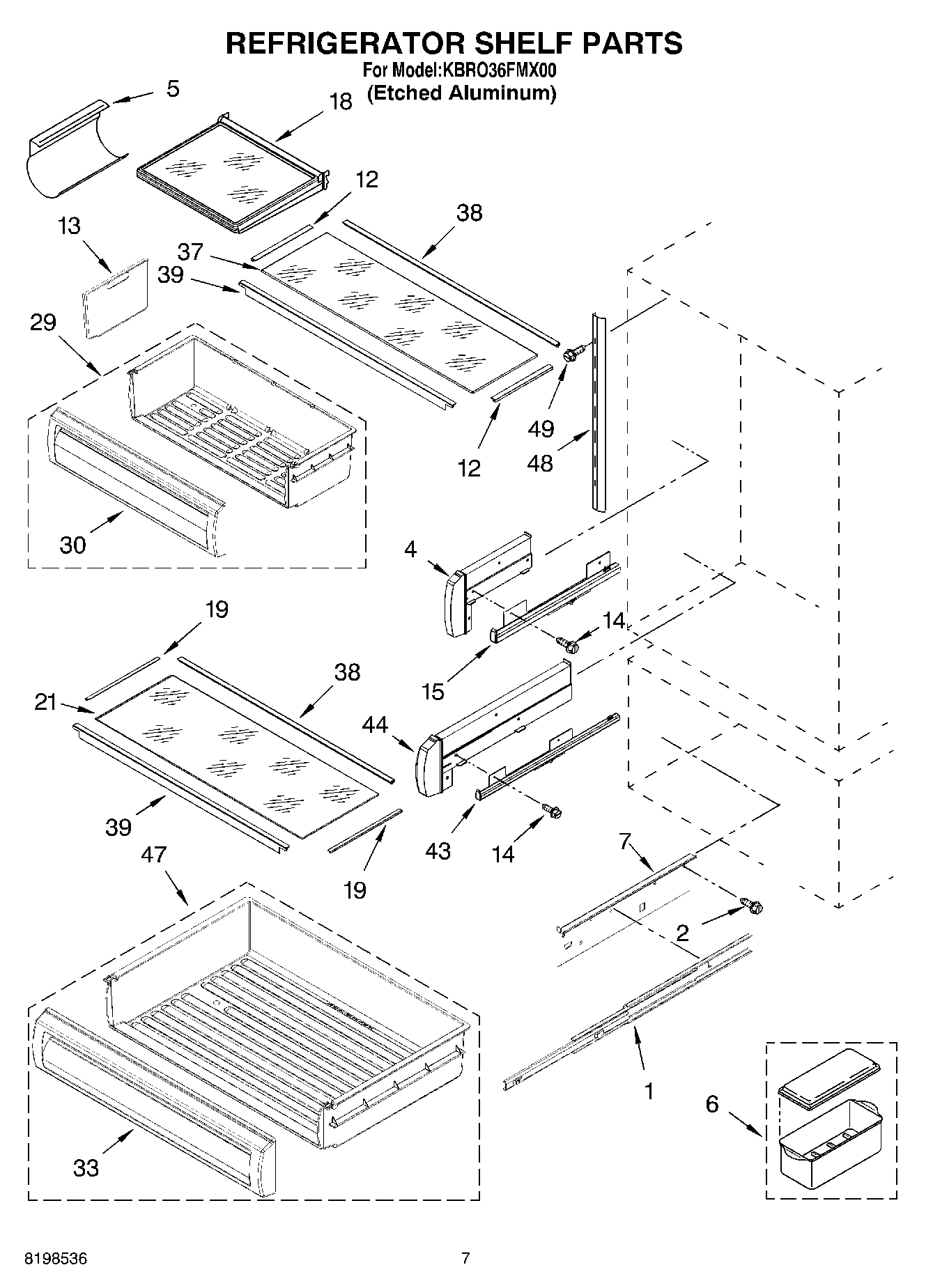

05 - REFRIGERATOR SHELF PARTS

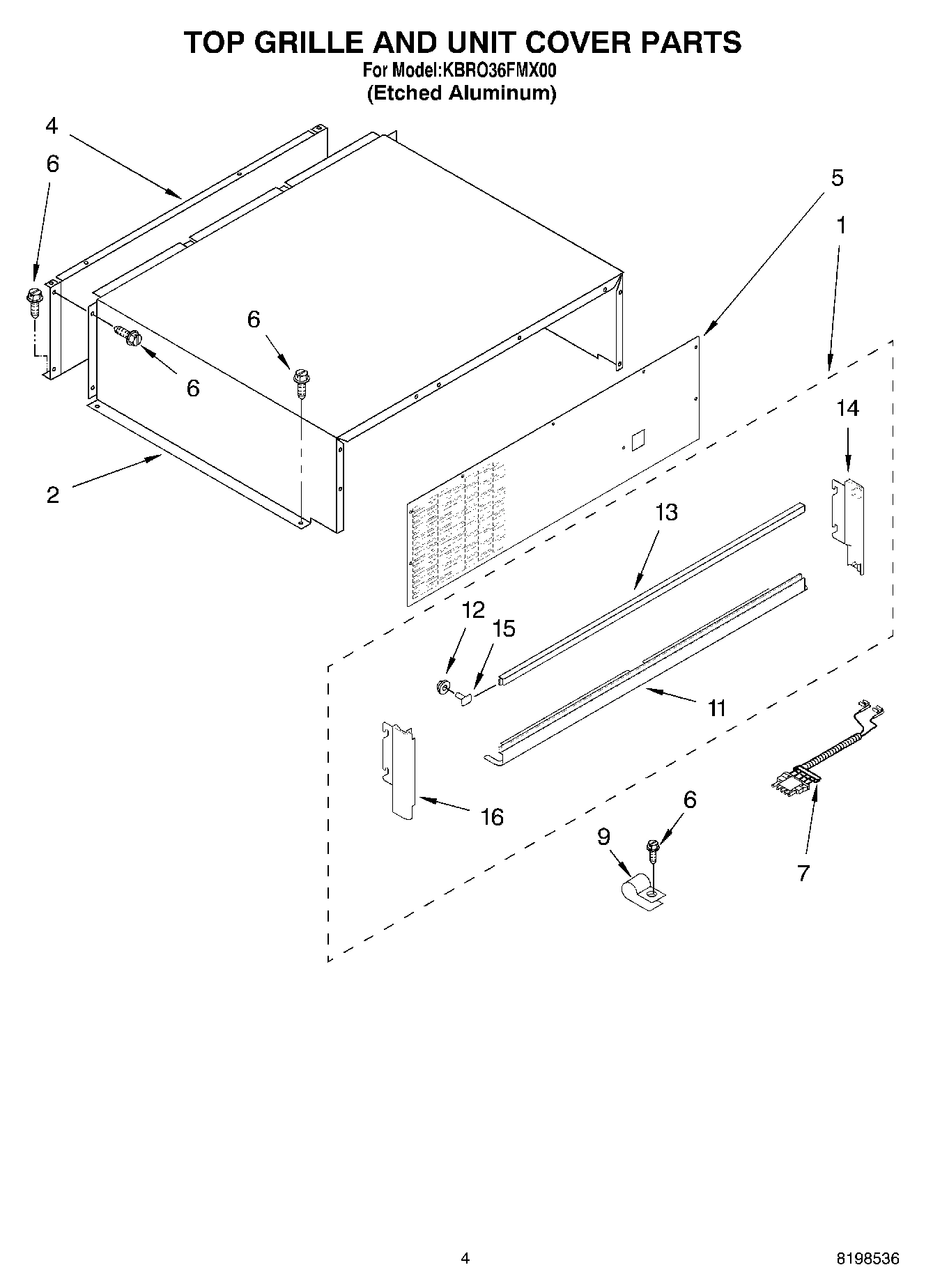

03 - TOP GRILLE AND UNIT COVER PARTS

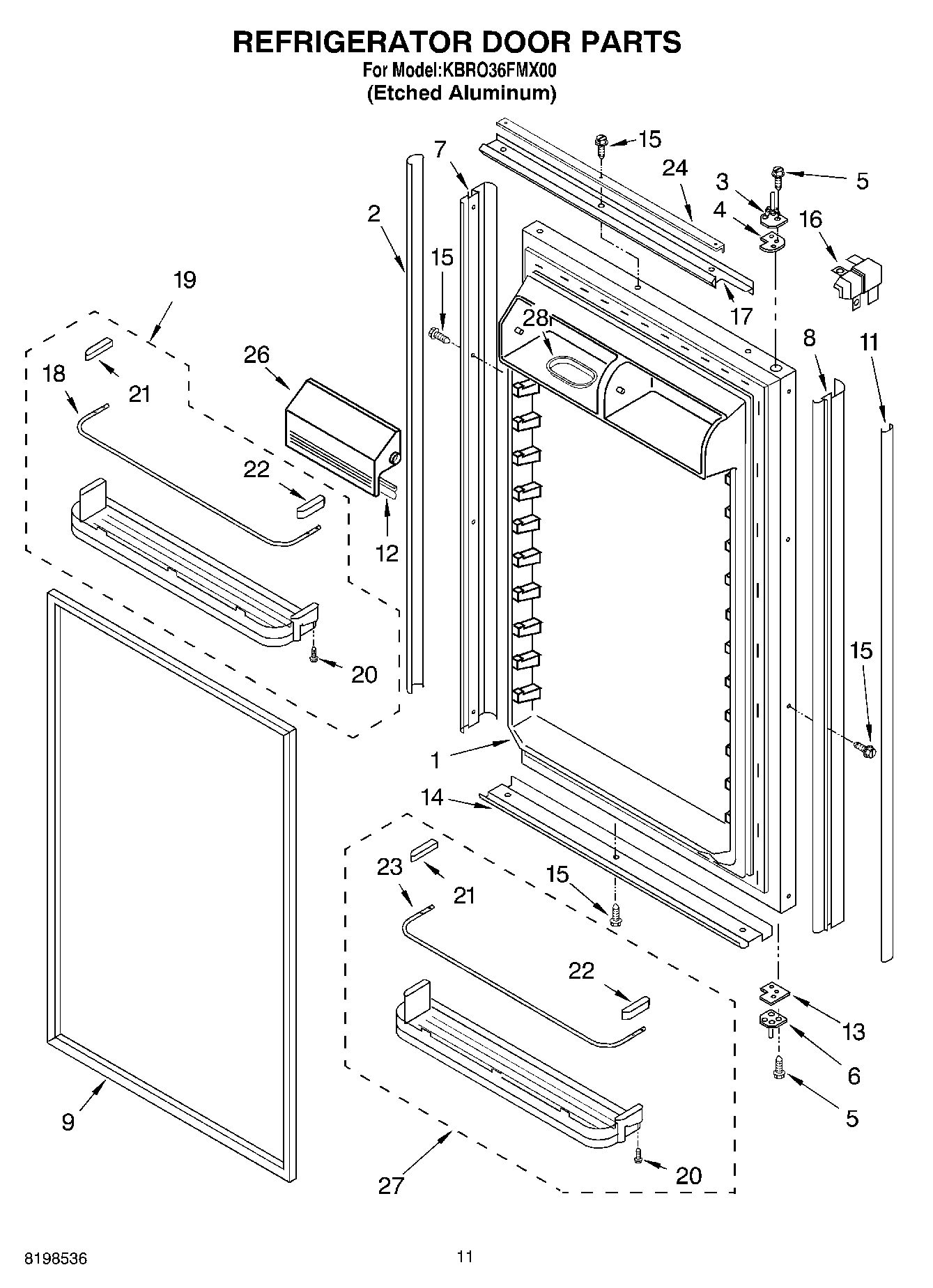

07 - REFRIGERATOR DOOR PARTS

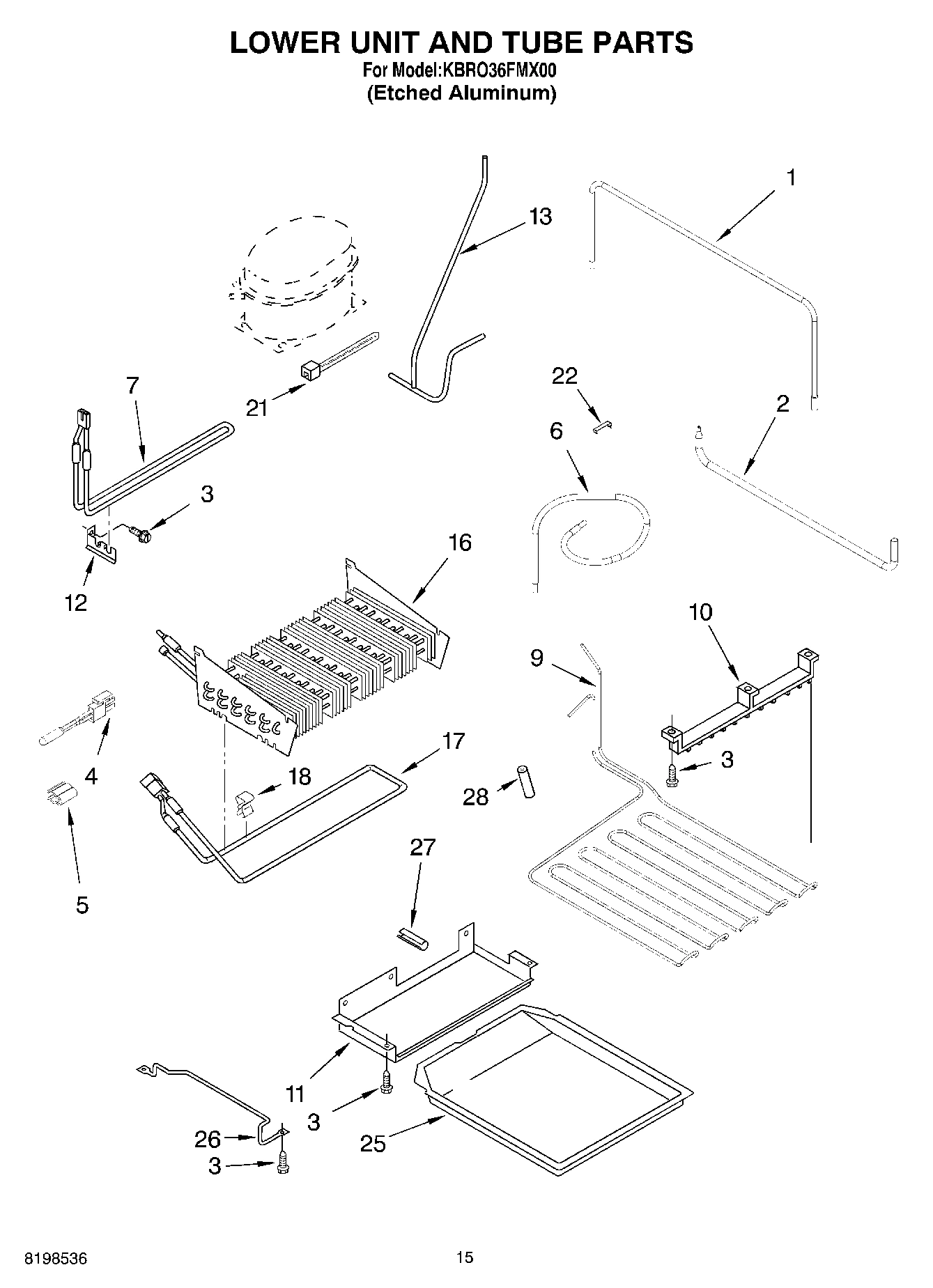

09 - LOWER UNIT AND TUBE PARTS

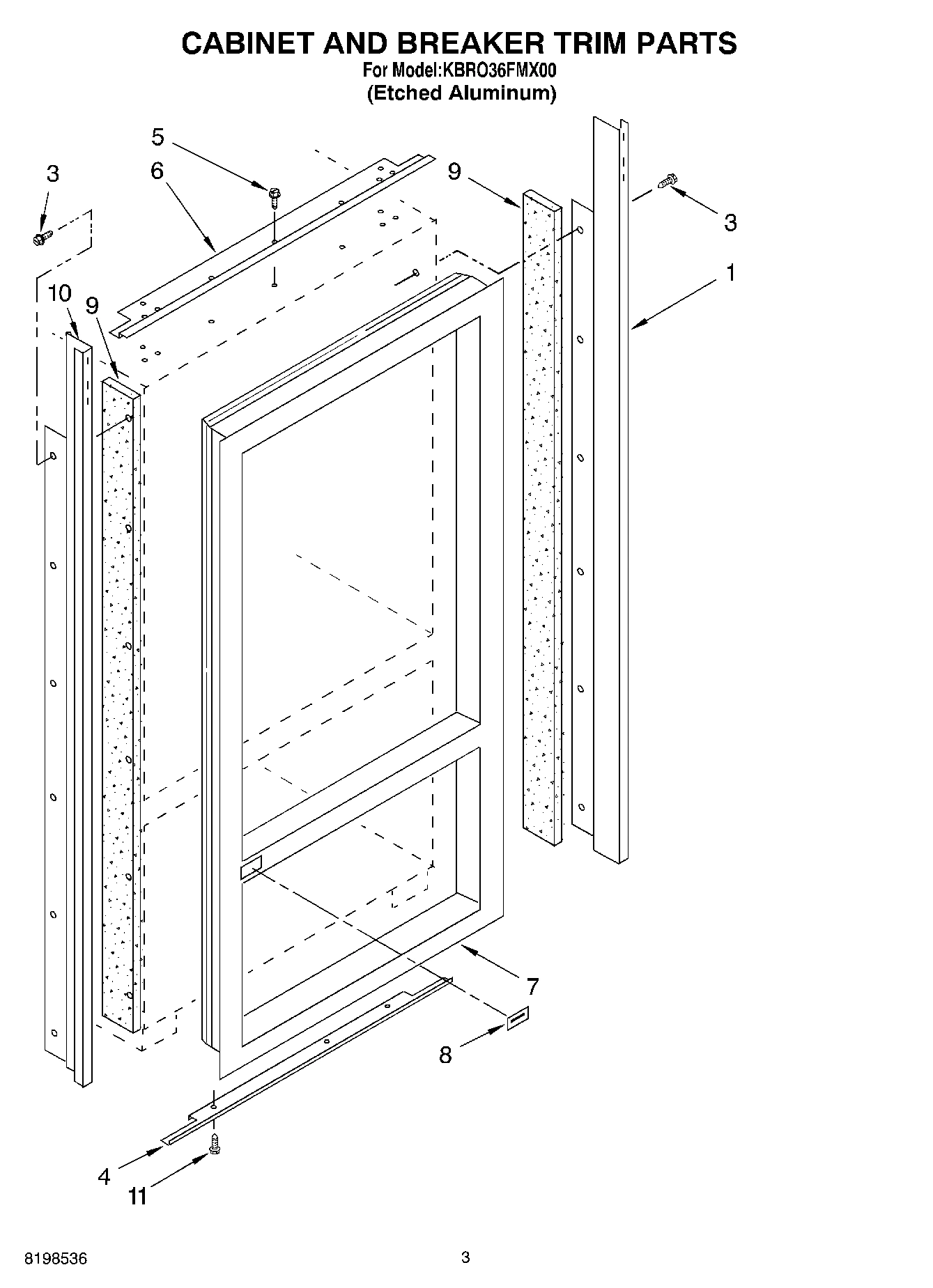

02 - CABINET AND BREAKER TRIM PARTS

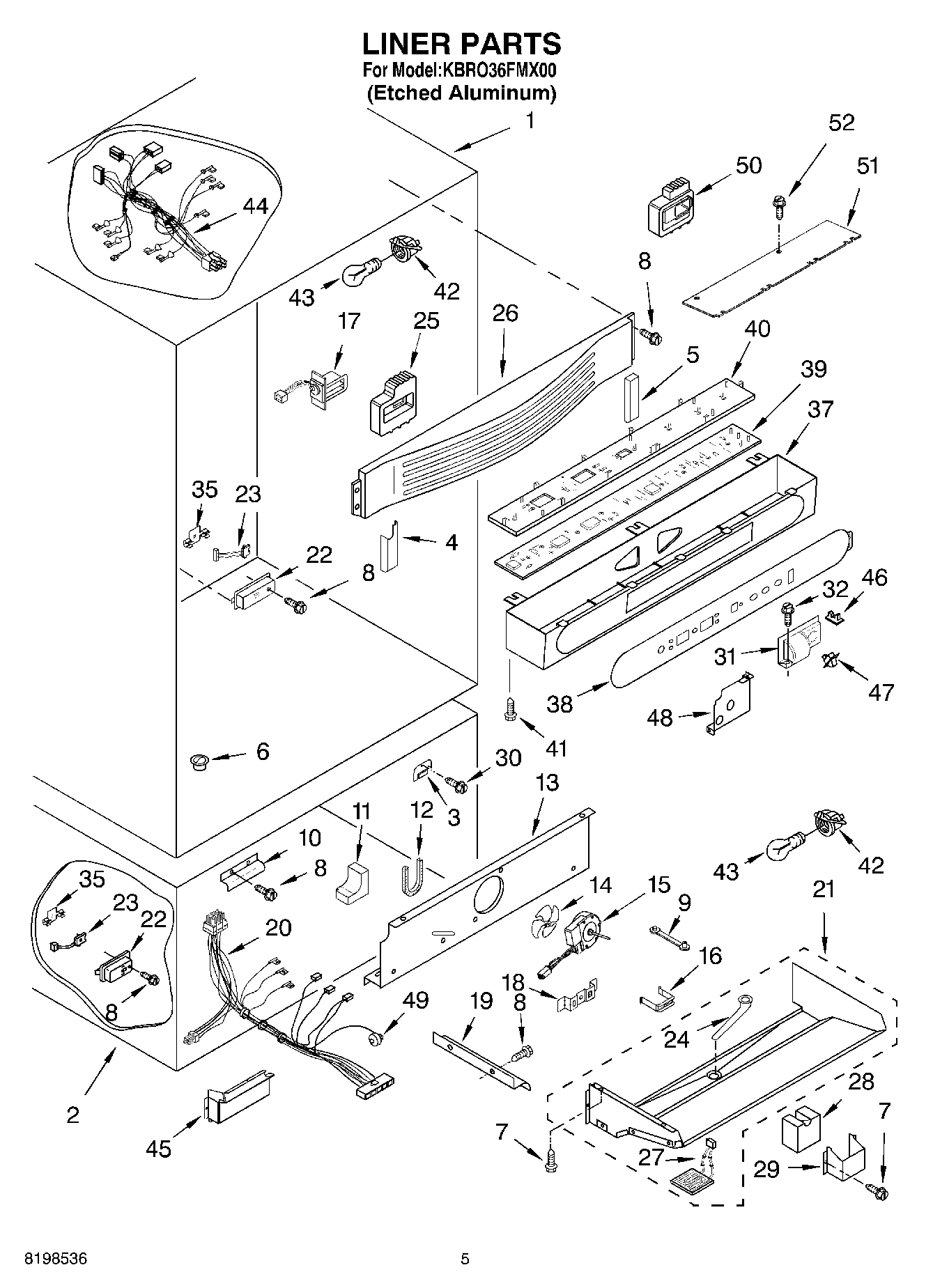

04 - LINER PARTS
Common parts from model Whirlpool KBRO36FMX00 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR
1
Tube, Valve WPL 2204597 Contact Us For Availability
1
Slide, Freezer Basket (Right Side) WPL 2257355 Contact Us For Availability
1
Slide, Freezer Basket (Left Side) WPL 2257356 Contact Us For Availability
1
Top Grille Assembly (Etched Aluminum) WPL 2259426X Contact Us For Availability
1
Refrigerator Door (Includes Item 9) WPL 2300083 Contact Us For Availability
1
Tube, Transition (Condenser) WPL 2259472 Contact Us For Availability
1
Cabinet Trim, Right Side (Etched Aluminum) WPL 2257688X Contact Us For Availability
1
Liner, Refrigerator (Not Servicable) WPL ARI79712A4 Contact Us For Availability
2
Tube, Transition (Drier/Restrictor) WPL 2259304 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
2
Cover-Screw, Handle Side WPL 2259362X Contact Us For Availability
2
Liner, Freezer (Not Servicable) WPL ARI79713A4 Contact Us For Availability
3
Hinge Assembly, Top WPL 2266912 Contact Us For Availability
3
Cover, Heat Exchanger WPL 2215610 Contact Us For Availability
4
Spacer-Hinge, Top WPL 2256381 Contact Us For Availability
4
Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability
4
Spacer, Crisper (Left Side) WPL 2256442 Contact Us For Availability
4
Spacer, Crisper (Right Side) WPL 2256443 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
4
Diffuser Cap, Left Side WPL 2215827 Contact Us For Availability
5
Front, Unit Cover WPL 2259095 Contact Us For Availability
5
CLIP WPL 2257639 Contact Us For Availability
5
Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
6
Egg Bin WPL 2221071 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2257605 Contact Us For Availability
6
Cabinet, Trim Top WPL 2257366 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability
7
Bracket, Freezer Basket (Left Side) WPL 2257326 Contact Us For Availability
7
Bracket, Freezer Basket (Right Side) WPL 2257327 Contact Us For Availability
7
Wire Assembly WPL 2187423 Contact Us For Availability
7
Trim-Door, Handle Side WPL 2258908X Contact Us For Availability
7
Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability
7
Breaker Trim (Not Serviced) WPL ARI79711A7 Contact Us For Availability
8
Trim-Door, Hinge Side WPL 2257692X Contact Us For Availability
8
Cover, Hinge WPL 2005782 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Tube, Filter Outlet WPL 2254800 Contact Us For Availability
9
Heater, Drain Pan WPL 2259329 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
10
Cabinet Trim, Left Side (Etched Aluminum) WPL 2257689X Contact Us For Availability
10
Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability
11
Grille-Trim, Bottom WPL 2259438X Contact Us For Availability
11
Cover-Screw, Hinge Side WPL 2259361X Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Foam, Fan Shroud WPL 2215844 Contact Us For Availability
12
Trim-Glass, Side WPL 2257562 Contact Us For Availability
12
Gasket (2) WPL 2005982 Contact Us For Availability
12
Support, Heater WPL 2204543 Contact Us For Availability
13
Divider, Crisper Pan WPL 2256474 Contact Us For Availability
13
Grille-Trim, Top WPL 2259440X Contact Us For Availability
13
SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability
13
Tube, Discharge WPL 2259474 Contact Us For Availability
13
Shroud, Evaporator Fan WPL 2215606 Contact Us For Availability
14
Grille-Trim, Right Side WPL 2259420X Contact Us For Availability
14
Trim-Door, Bottom WPL 2258900X Contact Us For Availability
15
Motor, Fan WPL 2259385 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
16
Grille-Trim, Left Side WPL 2259421X Contact Us For Availability
16
EVAPORATOR WPL 2259053 Contact Us For Availability
17
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Wire Harness, Icemaker WPL 2254792 Contact Us For Availability
17
Trim-Door, Top WPL 2257699X Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
18
Shelf (4) WPL 2258973 Contact Us For Availability
18
Tube, Door Shelf WPL 2005482 Contact Us For Availability
18
Clamp, Heater (2) WPL 2204510 Contact Us For Availability
18
Bracket WPL 2215503 Contact Us For Availability
19
Cam-Closer, Door WPL 2005783 Contact Us For Availability
19
Trim-Glass, Side WPL 2257563 Contact Us For Availability
19
Shelf, Door (2) WPL 2005417 Contact Us For Availability
19
Wiring Channel WPL 8201595 Contact Us For Availability
20
Wiring Harness, Freezer WPL 2187677 Contact Us For Availability
21
Glass Shelf, Deli WPL 2257561 Contact Us For Availability
21
End Cap, Left WPL 2005542 Contact Us For Availability
21
Cover, Evaporator Assembly WPL 2215833 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Screw WPL 487522 Contact Us For Availability
22
End Cap, Right WPL 2005541 Contact Us For Availability
23
Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Cover-Screw, Top WPL 2259360X Contact Us For Availability
24
Drain Tube, Condensate WPL 2209208 Contact Us For Availability
25
Insulation, Baffle WPL 2215530 Contact Us For Availability
26
Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Cover, Air Diffuser WPL 2215531 Contact Us For Availability
27
Door Shelf, Gallon WPL 2006154 Contact Us For Availability
27
Heater-Tube, Drain WPL 2204595 Contact Us For Availability
28
Cover, Electrical WPL 2259463 Contact Us For Availability
28
Butter Tray WPL 2165792 Contact Us For Availability
28
Insulation, Tube Drain WPL 2204538 Contact Us For Availability
29
Cover, Tube Drain WPL 2204537 Contact Us For Availability
30
GROMMET WPL 2266857 Contact Us For Availability
31
Tube, Transition (Condenser/Drier) WPL 2259302 Contact Us For Availability
31
Shut Off Arm WPL 2221172 Contact Us For Availability
31
Housing, Switch WPL 2215835 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
35
Clip, Thermistor WPL 2209204 Contact Us For Availability
36
Cover, Fan WPL 2209495 Contact Us For Availability
37
Cover, Condenser WPL 2259092 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
37
Glass, Crisper Shelf WPL 2257560 Contact Us For Availability
37
Control Panel WPL 2215816 Contact Us For Availability
38
Trim-Glass, Rear WPL 2257564 Contact Us For Availability
38
Overlay, Control Panel WPL 2257521 Contact Us For Availability
39
Service Cord WPL 2259197 Contact Us For Availability
39
Trim-Glass, Front WPL 2257566 Contact Us For Availability
39
Circuit Board (User Interface) WPL 2252110 Contact Us For Availability
40
Insert, Control Box (User Interface) WPL 2215670 Contact Us For Availability
43
Slide, Deli (Left Side) WPL 2257544 Contact Us For Availability
43
Slide, Deli (Right Side) WPL 2257545 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Spacer, Deli (Left Side) WPL 2257531 Contact Us For Availability
44
Spacer, Deli (Right Side) WPL 2257532 Contact Us For Availability
44
Harness, Control Box WPL 2187424 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2187675 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Following Parts Not Illustrated and Optional WPL ARI79714A5 Contact Us For Availability
45
REFRIGERANT CHARGE 5.75 oz. (R-134A) WPL ARI79715A6 Contact Us For Availability
45
Cover, Wiring Freezer Light WPL 8201534 Contact Us For Availability
46
CLIP, WIRING WPL 1115375 Contact Us For Availability
47
Deli Pan Assembly (Includes 33) WPL 2257535 Contact Us For Availability
48
Ladder, Shelf (4) WPL 2005410 Contact Us For Availability
48
Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability
49
Defrost Bi-Metal WPL 2187378 Contact Us For Availability
50
Diffuser Assembly WPL 2215829 Contact Us For Availability
51
Support, Control Box WPL 2221121 Contact Us For Availability
× ![]()
