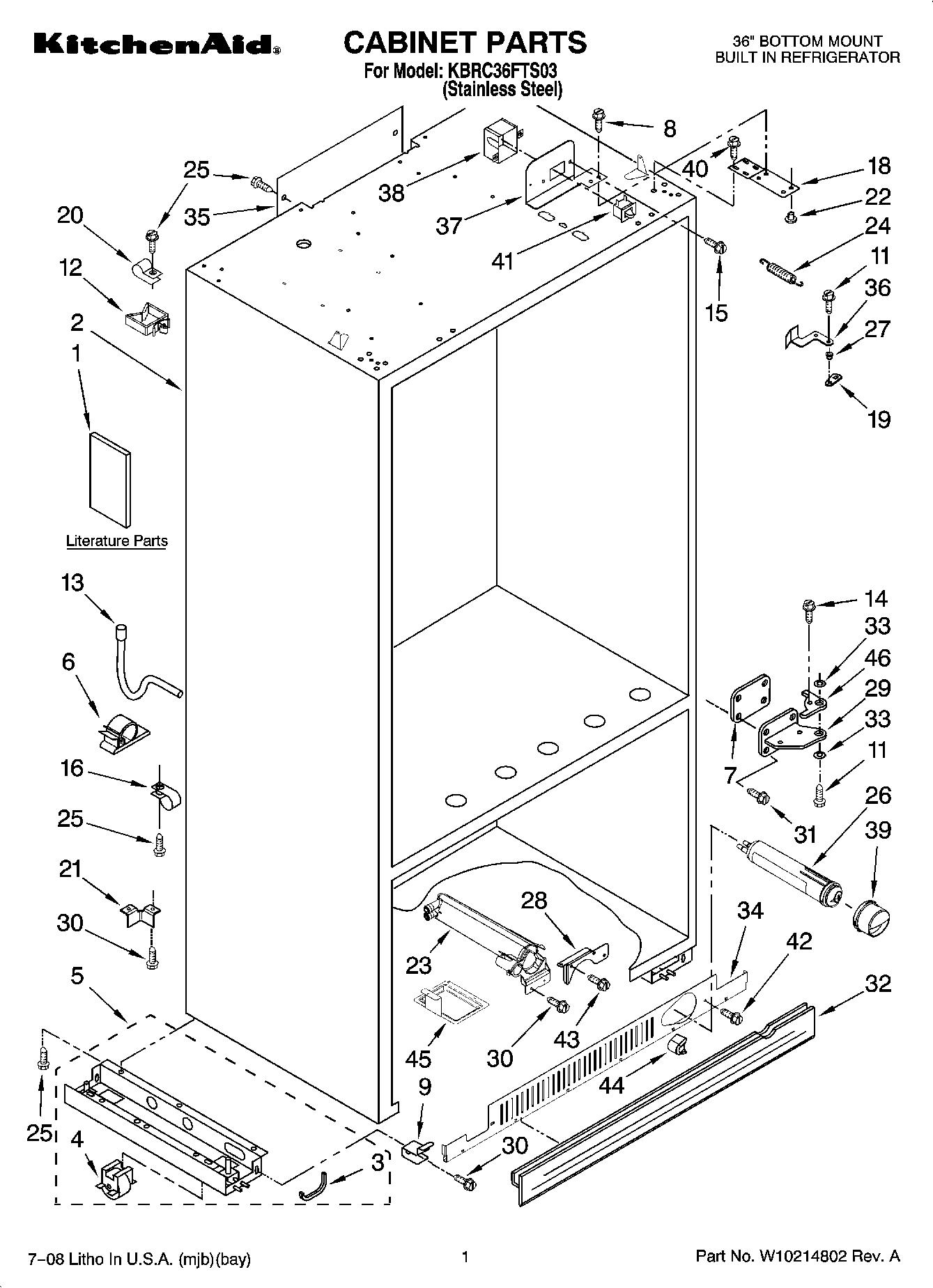

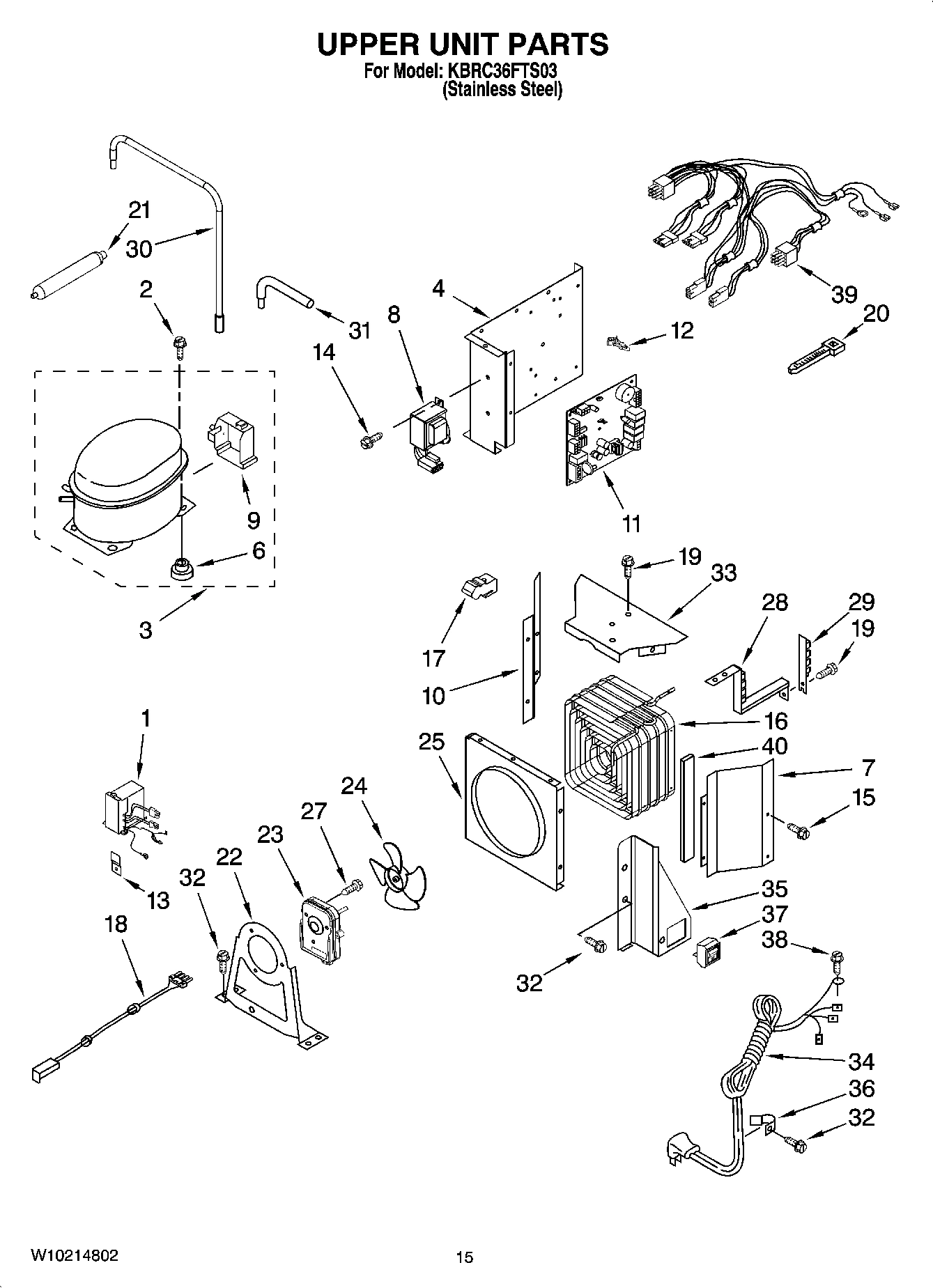

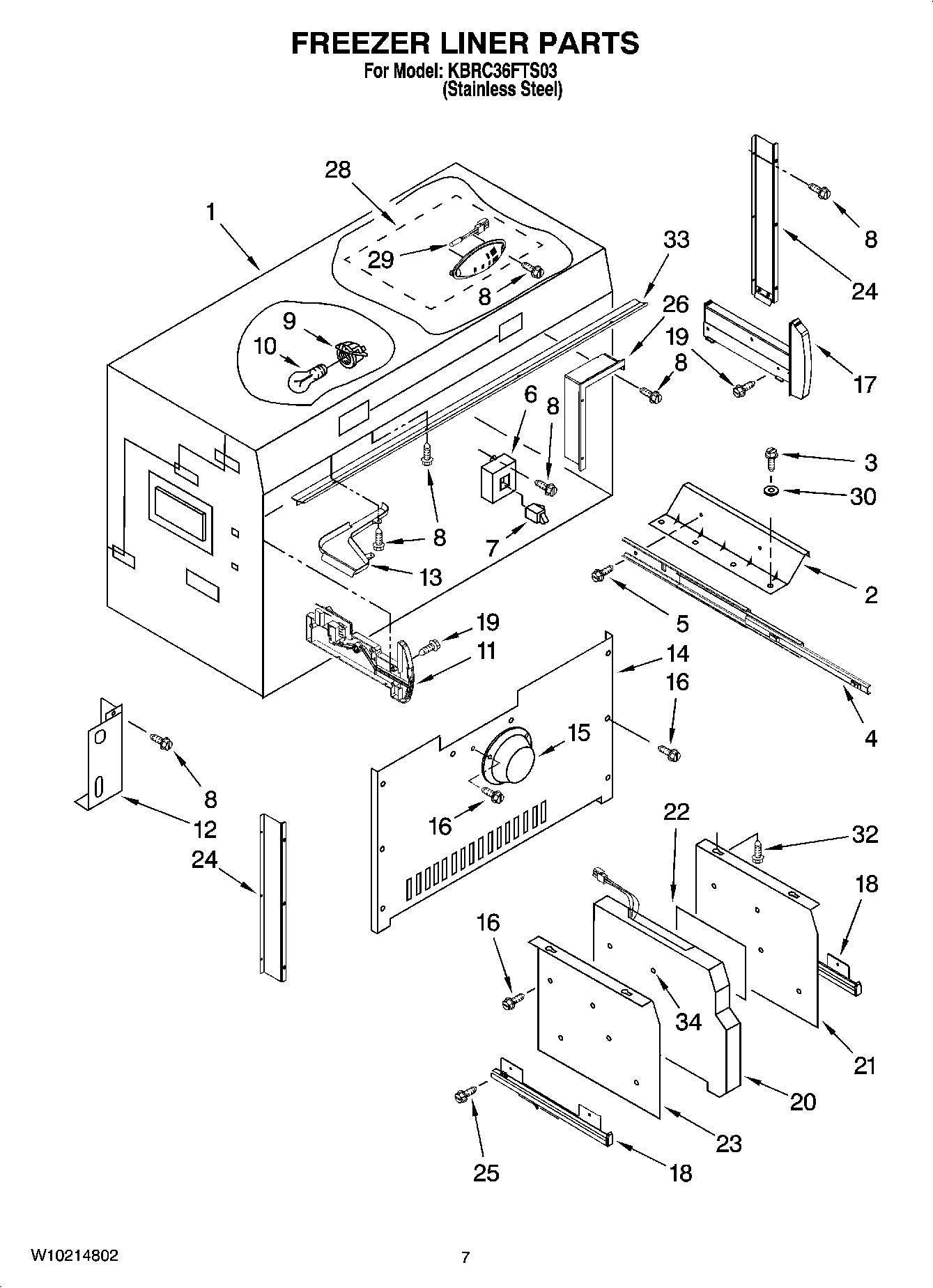

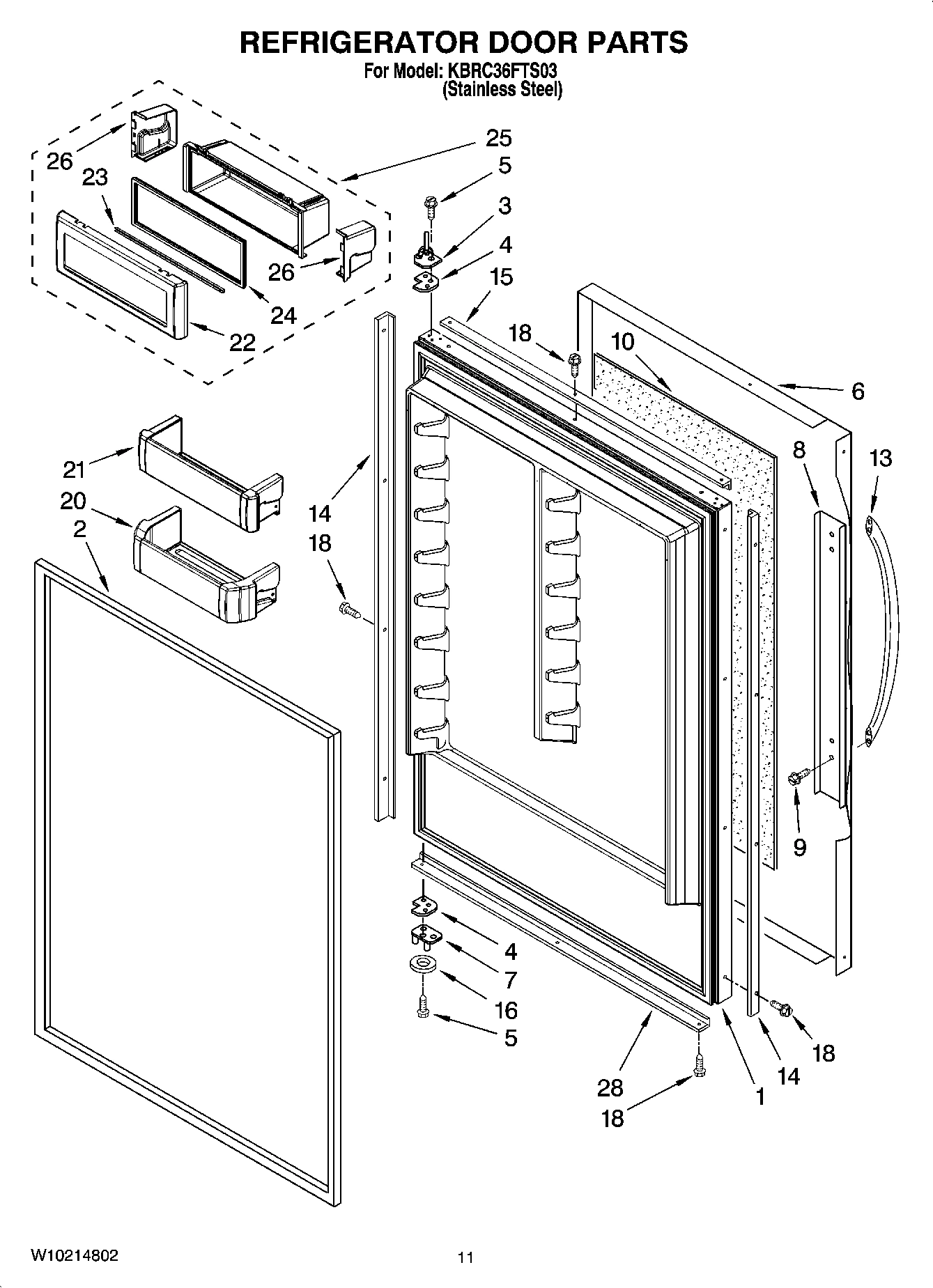

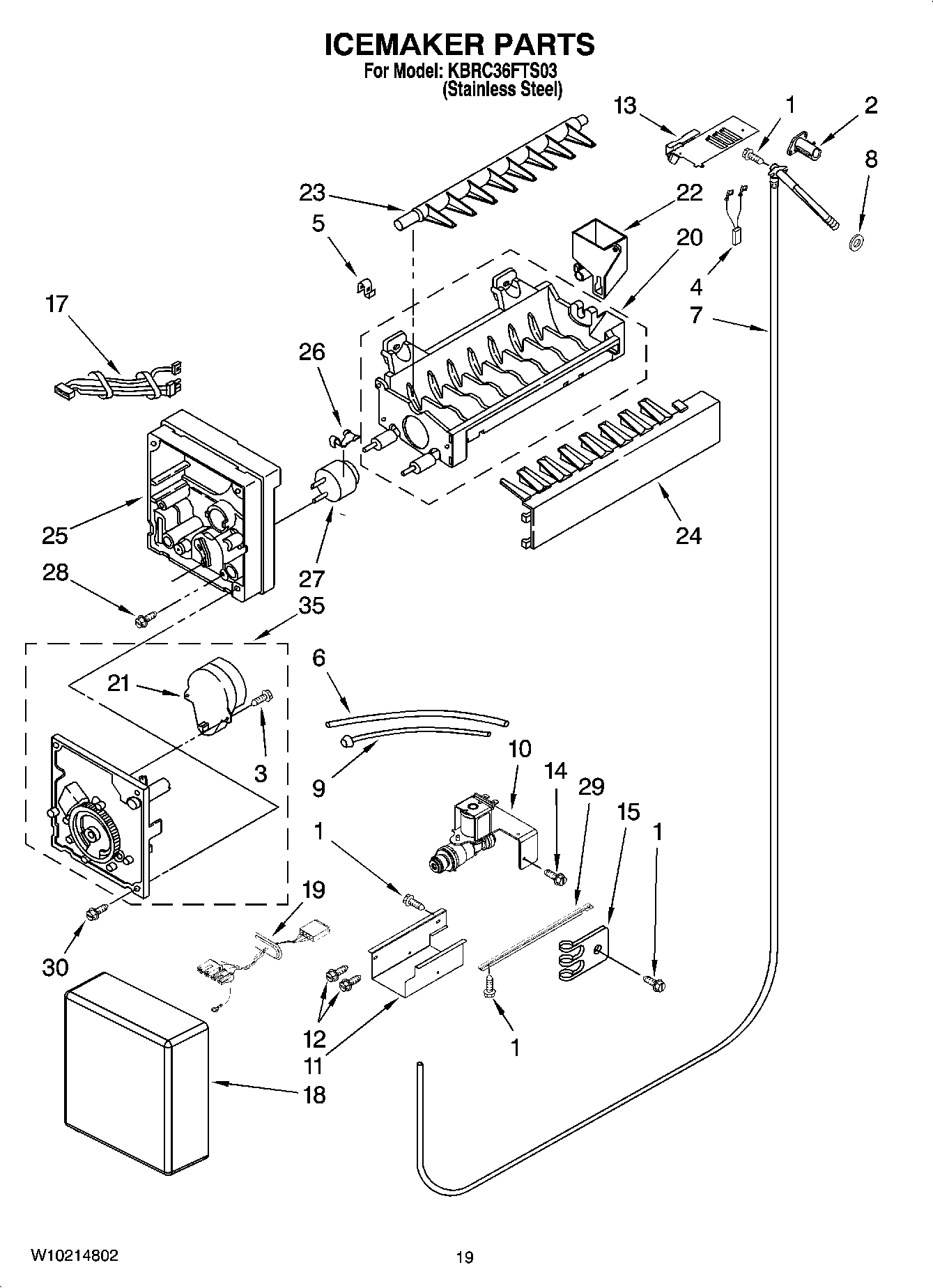

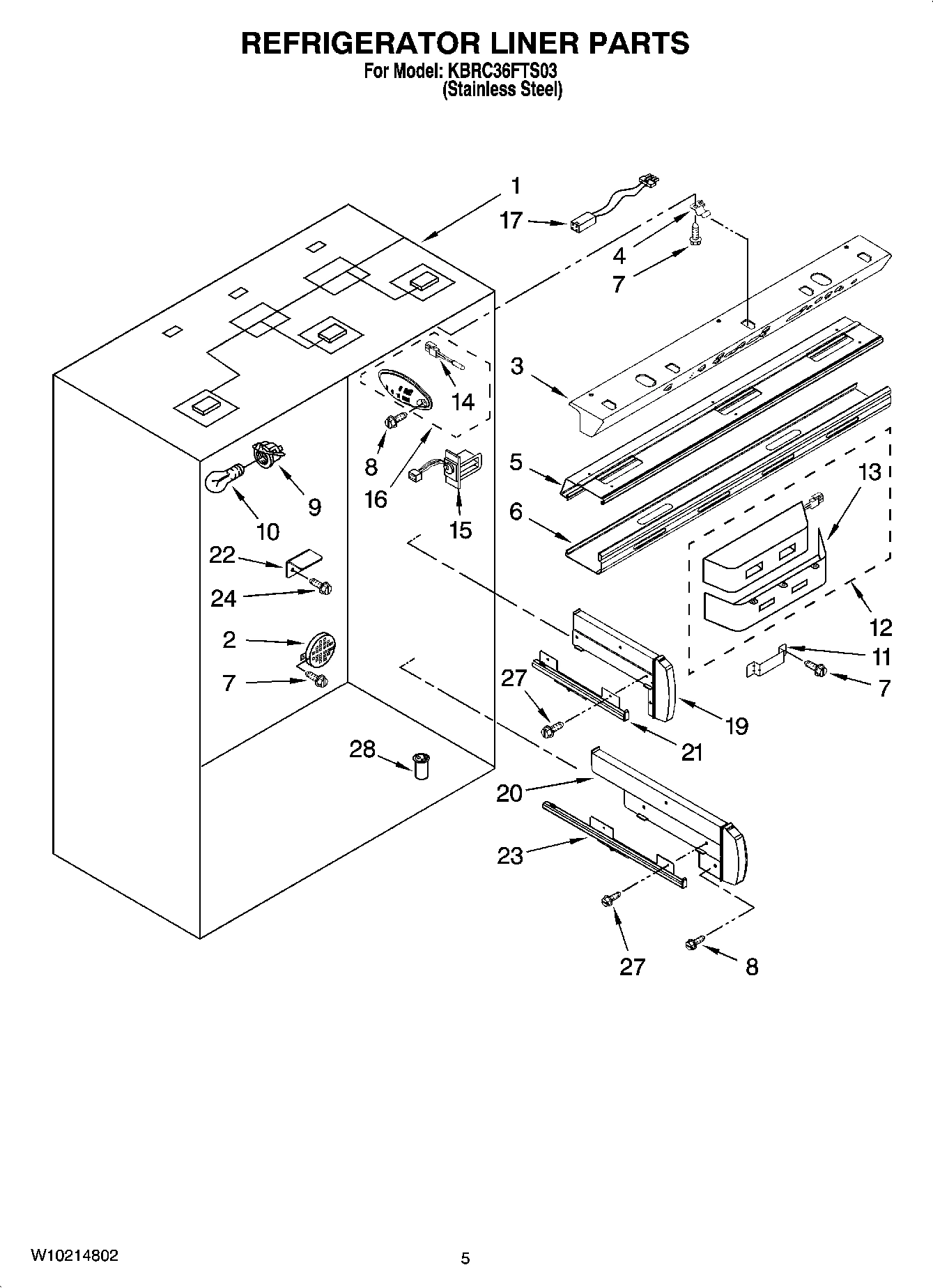

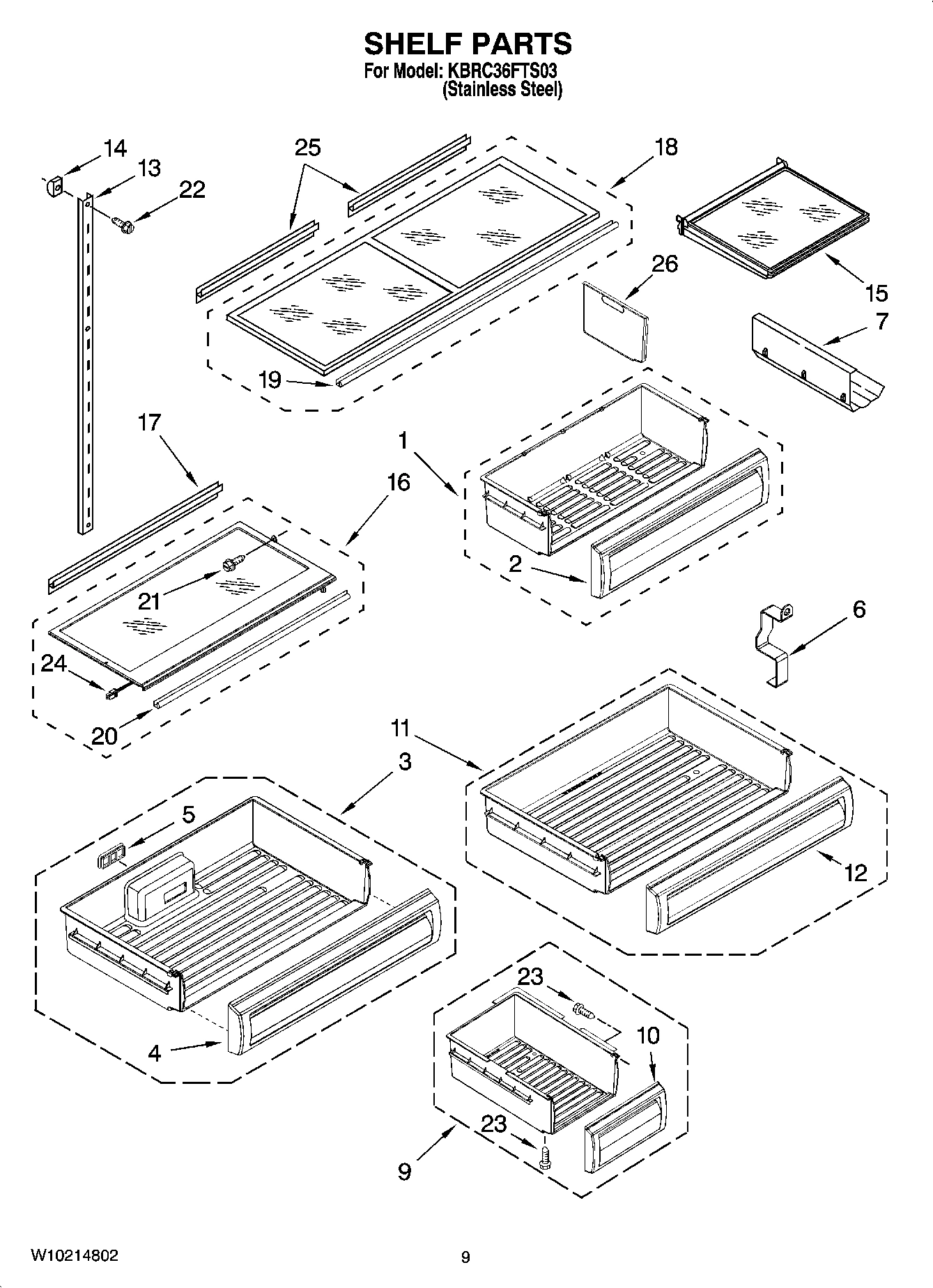

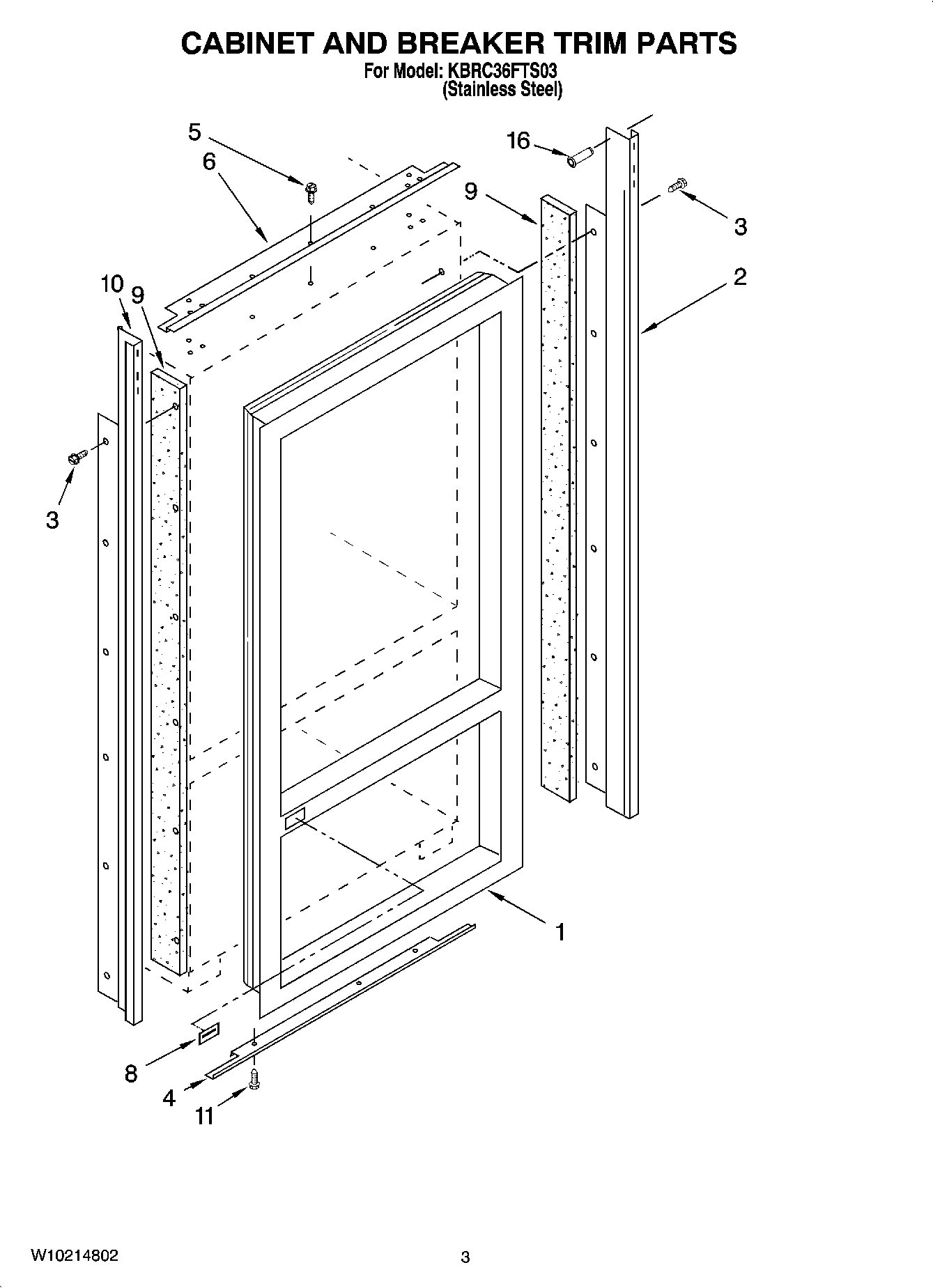

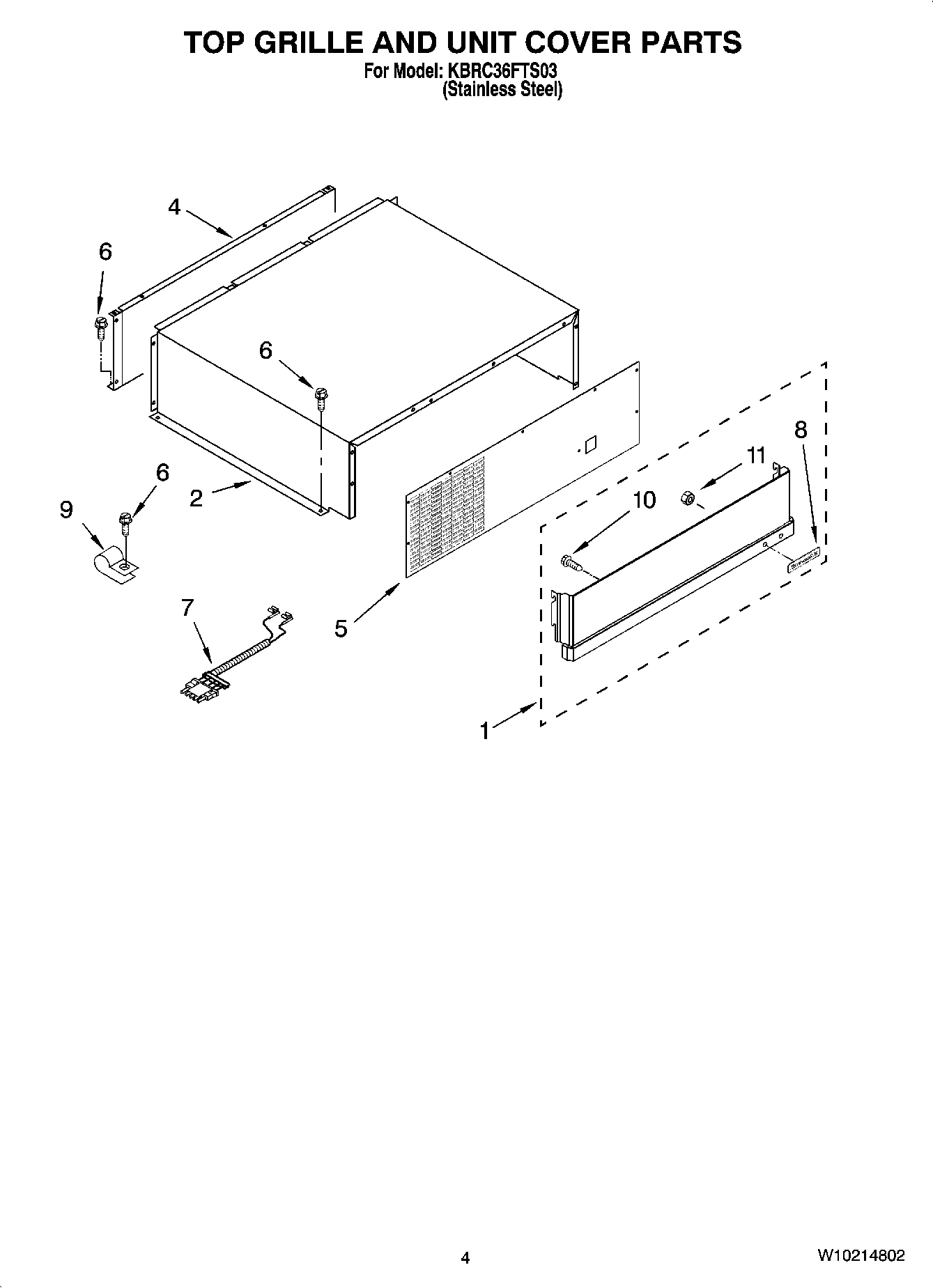

Model Whirlpool KBRC36FTS03 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W10129081 Whirlpool Refrigerator Handle Backorder WPL W10129081 $207.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

1

WP2256375 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2256375 $165.49

1

Liner, Refrigerator (Not Servicable) WPL ARI79690A7 Contact Us For Availability

1

Installation Instructions WPL 2320680 Contact Us For Availability

1

Use & Care Guide WPL 2320682 Contact Us For Availability

1

Main Control Service Sheet WPL 2324934 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

1

Service & Wiring Sheet WPL W10159833 Contact Us For Availability

1

Energy Guide WPL W10205623 Contact Us For Availability

1

Top Grille Assembly WPL 2316739S Contact Us For Availability

2

2256374 Whirlpool Front Pan Backorder WPL 2256374 $121.36

2

2317004 Whirlpool Refrigerator Air Cover Backorder WPL 2317004 $8.89

2

W10744329 Whirlpool Refrigerator Support In Stock WPL W10744329 $125.33

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

2

Cabinet, (Not A Serviceable Part) WPL ARI79688A1 Contact Us For Availability

2

Cover, Unit WPL W10161693 Contact Us For Availability

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

3

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

3

W10468945 Whirlpool Refrigerator Control Box Backorder WPL W10468945 $506.44

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

3

Hinge Assembly, Top WPL 2266912 Contact Us For Availability

3

Deli Pan Assembly (Incl. 4 & 5) WPL 2268397 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

2257548 Whirlpool Refrigerator Front Pan Backorder WPL 2257548 $69.59

4

W10135775 Whirlpool Refrigerator Screw Backorder WPL W10135775 $8.73

4

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $64.71

4

WP2320616 Whirlpool Refrigerator Slide In Stock WPL WP2320616 $142.00

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

4

Clip, Control Box WPL 2317000 Contact Us For Availability

5

2307810 Whirlpool Refrigerator Air Duct Backorder WPL 2307810 $27.52

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw WPL W10061370 Contact Us For Availability

5

Bracket, Control Box WPL 2324970 Contact Us For Availability

5

Front, Unit Cover WPL 2307682 Contact Us For Availability

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Tube, Suction WPL 2309076 Contact Us For Availability

6

Shield, Light WPL 2309270 Contact Us For Availability

6

Clip, Bin (Right) WPL 2327393 Contact Us For Availability

6

Clip, Bin (Left) WPL 2327394 Contact Us For Availability

6

CLIP, CONDUIT WPL 2004514 Contact Us For Availability

7

2187894 Whirlpool Harness Switch Backorder WPL 2187894 $30.25

7

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $30.87

7

2317847 Whirlpool Refrigerator Water Tube Backorder WPL 2317847 $30.89

7

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

7

WP2268393 Whirlpool Refrigerator Heater Backorder WPL WP2268393 $59.22

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

8

NAMEPLATE WPL 2317923S Contact Us For Availability

8

Transformer WPL 2303033 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

W10839844 Whirlpool Refrigerator Bracket Backorder WPL W10839844 $12.44

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $11.29

9

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $4.02

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Ice Pan Assembly (Includes 10) WPL 2306174 Contact Us For Availability

10

2306175 Whirlpool Refrigerator Front Pan Backorder WPL 2306175 $34.18

10

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $96.20

10

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

2327512 Whirlpool Refrigerator Pan Backorder WPL 2327512 $163.42

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

Screw WPL 2005921 Contact Us For Availability

Clip, Diffuser Cover WPL 2317917 Contact Us For Availability

2268383 Whirlpool Front Panel Backorder WPL 2268383 $37.06

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $8.55

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

Diffuser Assembly WPL 2320523 Contact Us For Availability

Clip (4) WPL W10129069 Contact Us For Availability

2314064 Whirlpool Refrigerator Drain Tube Backorder WPL 2314064 $30.25

2320519 Whirlpool Refrigerator Cover Backorder WPL 2320519 $36.89

WP2316868 Whirlpool Refrigerator Handle Backorder WPL WP2316868 $144.46

Ladder, Shelf (4) WPL 2327314 Contact Us For Availability

14

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

14

WP8533980 Whirlpool Refrigerator Screw Backorder WPL WP8533980 $27.52

14

Defrost Bi-Metal WPL W10139165 Contact Us For Availability

2317829 Whirlpool Refrigerator Cover Backorder WPL 2317829 $12.35

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

Shelf (4) WPL 2309376 Contact Us For Availability

2307998 Whirlpool Refrigerator Condenser Backorder WPL 2307998 $261.55

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $3.70

Cover, Deli Bin WPL 2308605 Contact Us For Availability

2310136 Whirlpool Refrigerator Wire Harness In Stock WPL 2310136 $67.17

2310164 Whirlpool Refrigerator Wire Harness In Stock WPL 2310164 $40.68

W10109030 Whirlpool Refrigerator Screw Backorder WPL W10109030 $8.73

Gasket, Rear WPL 2309399 Contact Us For Availability

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $122.91

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $116.41

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Cam-Closer, Door WPL 2005783 Contact Us For Availability

Spacer, Crisper (Right) WPL 2309410 Contact Us For Availability

Spacer, Crisper (Left) WPL 2309411 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

TRACK Backorder WPL 2268411 $27.52

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

Spacer, Deli (Right) WPL 2268412 Contact Us For Availability

Gasket, Front (Deli Cover) WPL 2309397 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $124.83

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $124.94

W10716209 Whirlpool Refrigerator Support In Stock WPL W10716209 $29.44

Screw WPL 8281251 Contact Us For Availability

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Bushing WPL 2300082 Contact Us For Availability

SHIELD WPL 2317927 Contact Us For Availability

Support, Crisper Cover WPL 2302788 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $44.36

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $112.14

SUPPORT, SLIDE LEFT WPL 2306105 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $32.39

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $31.49

Light Assy, (Deli) WPL 2309393 Contact Us For Availability

2309398 Whirlpool Pan Gasket Backorder WPL 2309398 $30.25

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

26

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

26

Divider, Crisper Pan WPL 2256474 Contact Us For Availability

27

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $23.70

27

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

BRACKET Backorder WPL W11755873 $29.88

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $5.20

29

2005101 Whirlpool Refrigerator Bottom Hinge In Stock WPL 2005101 $58.01

29

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

30

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.16

30

W10075920 Whirlpool Refrigerator Washer Backorder WPL W10075920 $5.38

30

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $71.24

32

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

33

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $4.59

34

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

34

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $53.73

34

WP2325187B Whirlpool Refrigerator Front Grill Backorder WPL WP2325187B $69.02

35

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $33.31

35

W10185556 Whirlpool Refrigerator Bracket Backorder WPL W10185556 $45.29

36

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

37

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $30.89

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

38

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $30.25

39

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

43

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

44

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

45

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $53.53

46

W10188434 Whirlpool Refrigerator Hinge Gap Backorder WPL W10188434 $43.57
