Model Whirlpool KBRC36FKU02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts & Diagrams
08 - UPPER UNIT PARTS
09 - LOWER UNIT AND TUBE PARTS

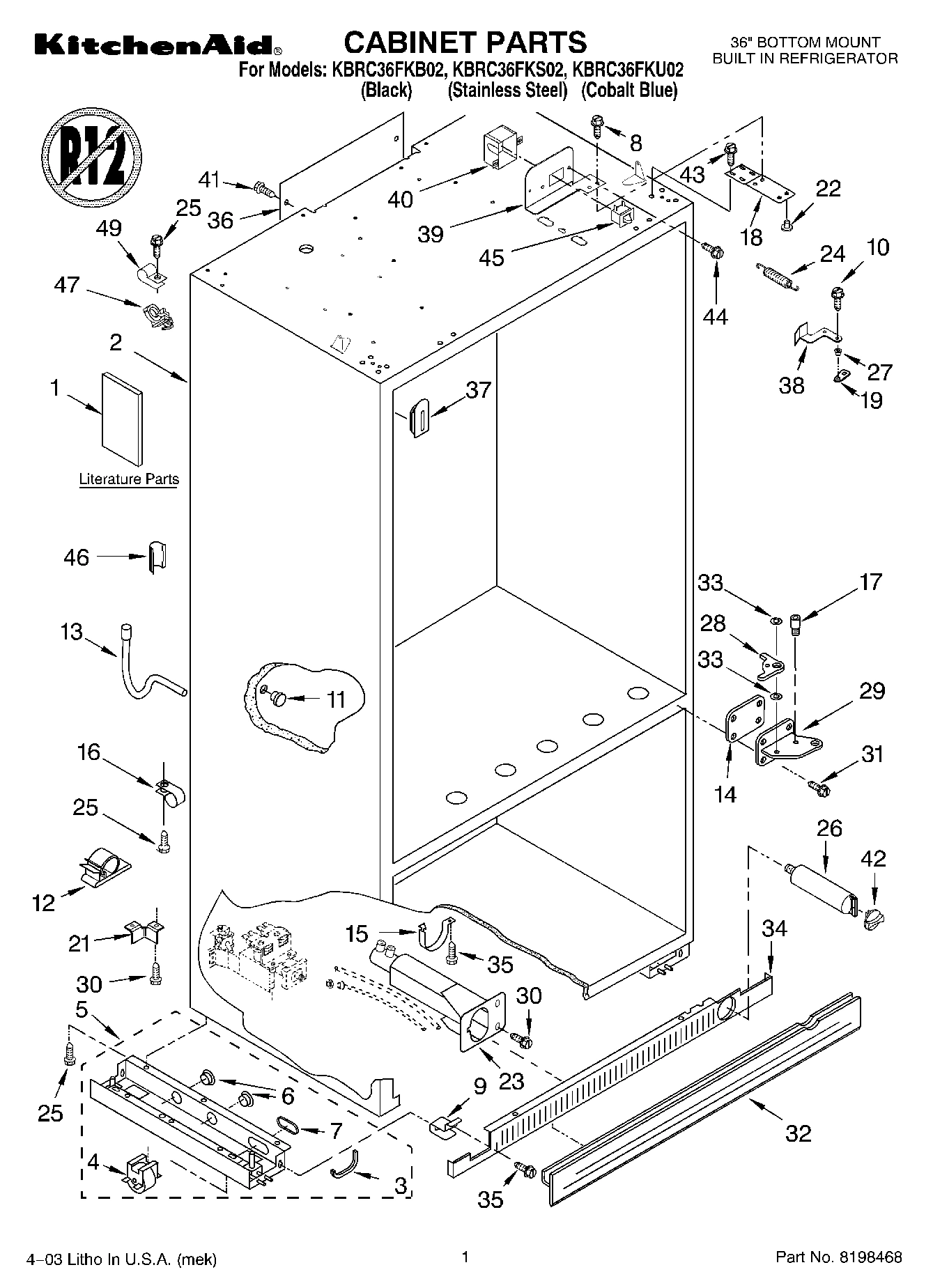

01 - CABINET PARTS

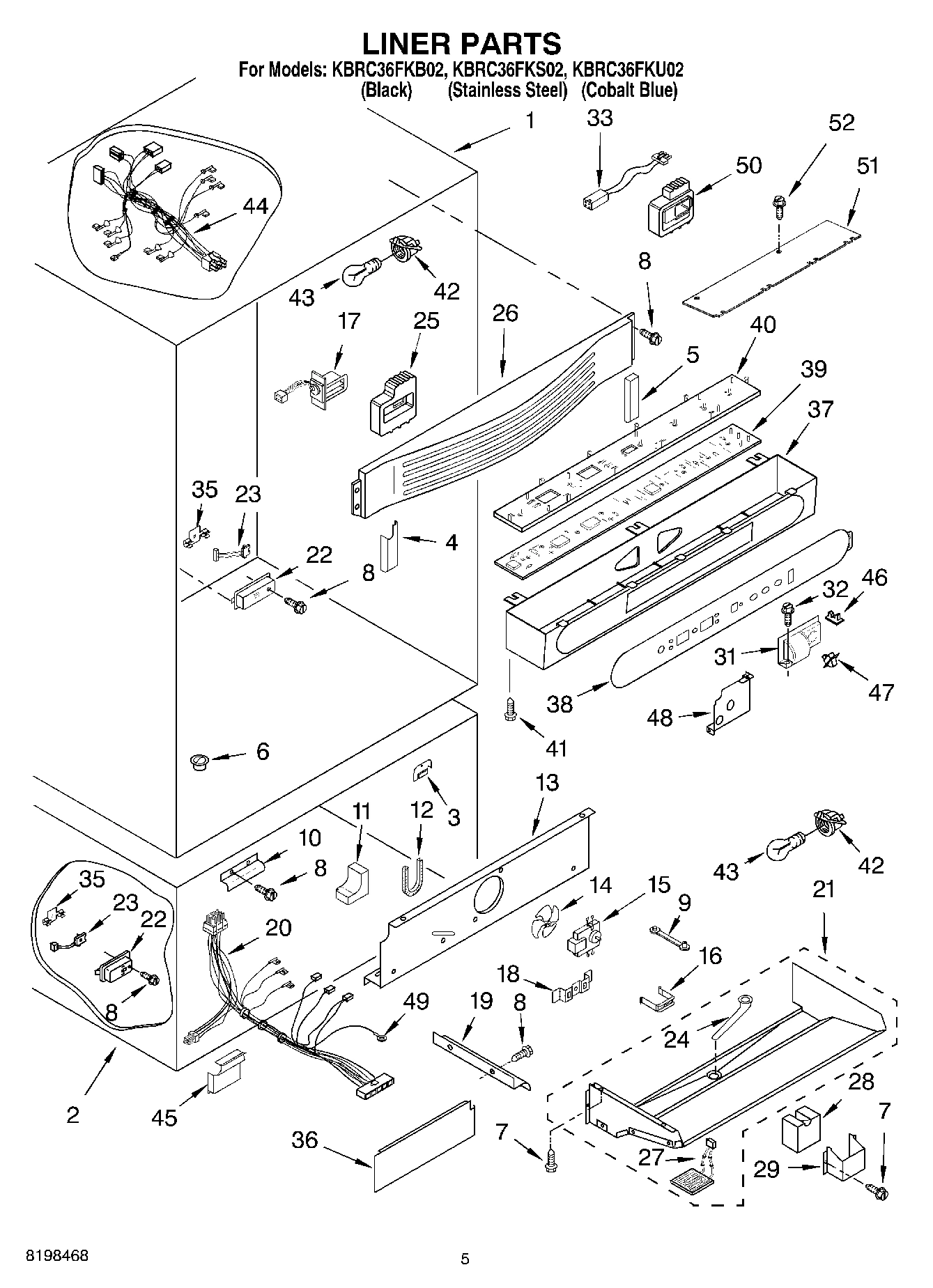

04 - LINER PARTS

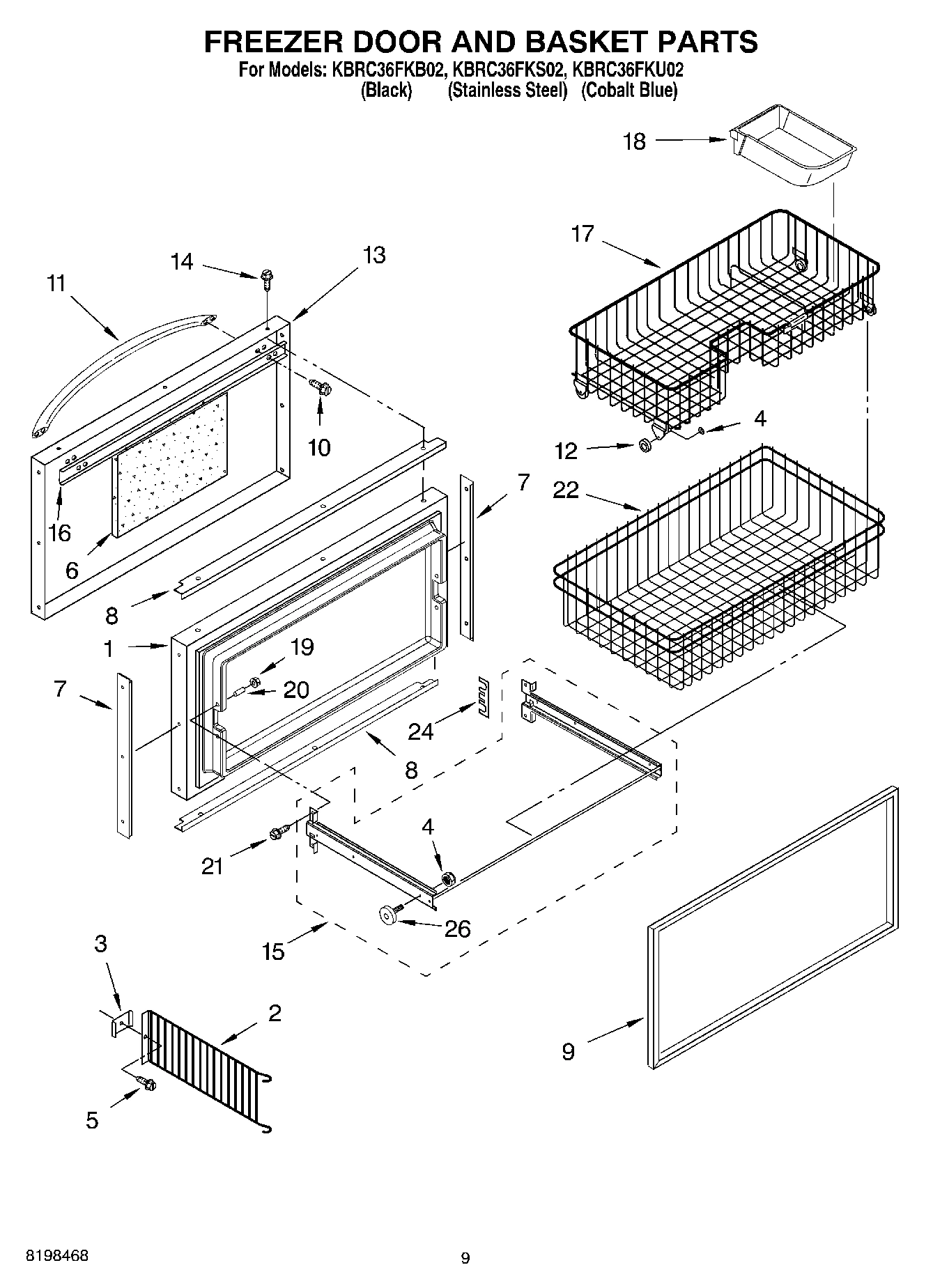

06 - FREEZER DOOR AND BASKET PARTS

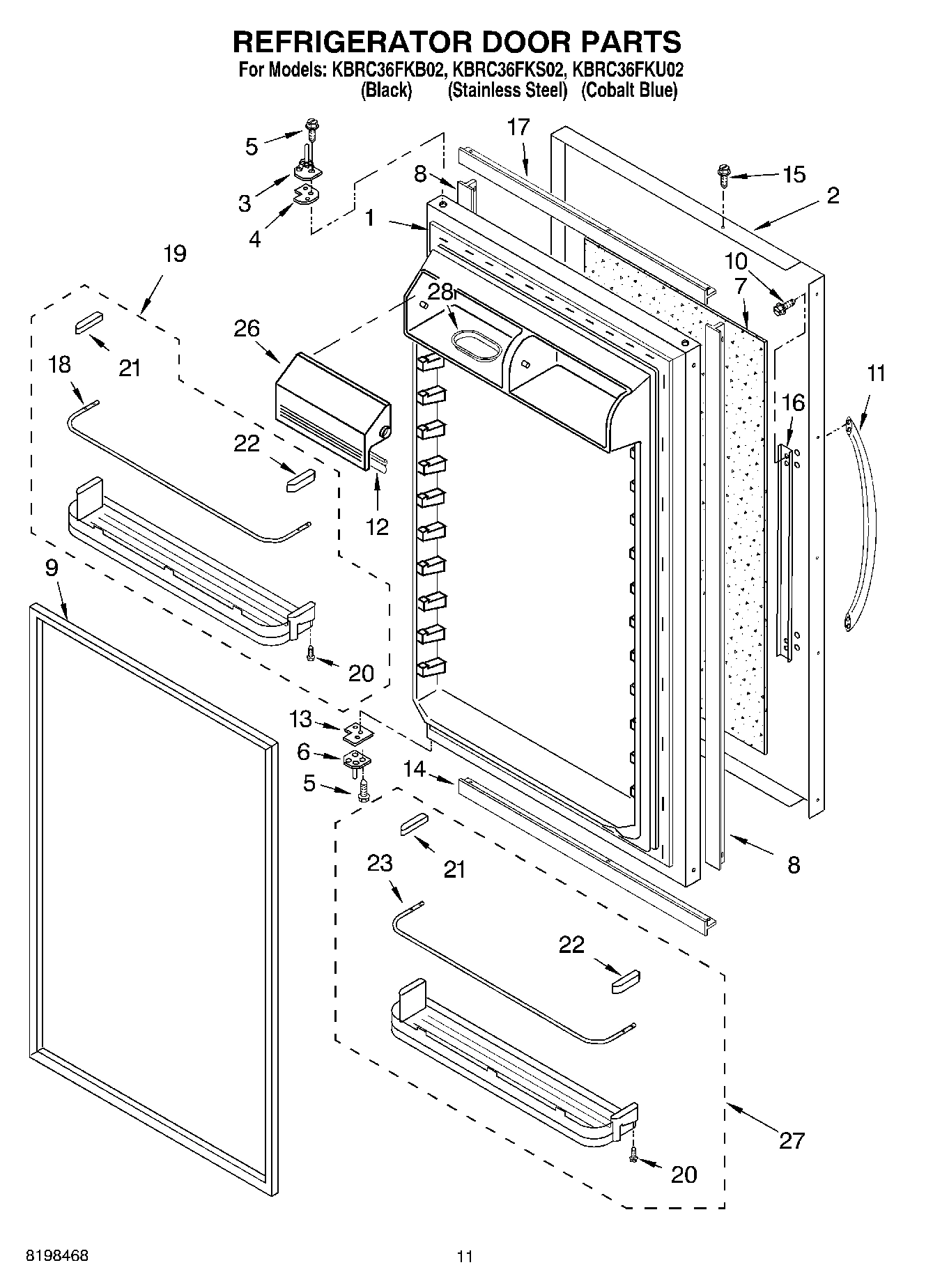

07 - REFRIGERATOR DOOR PARTS

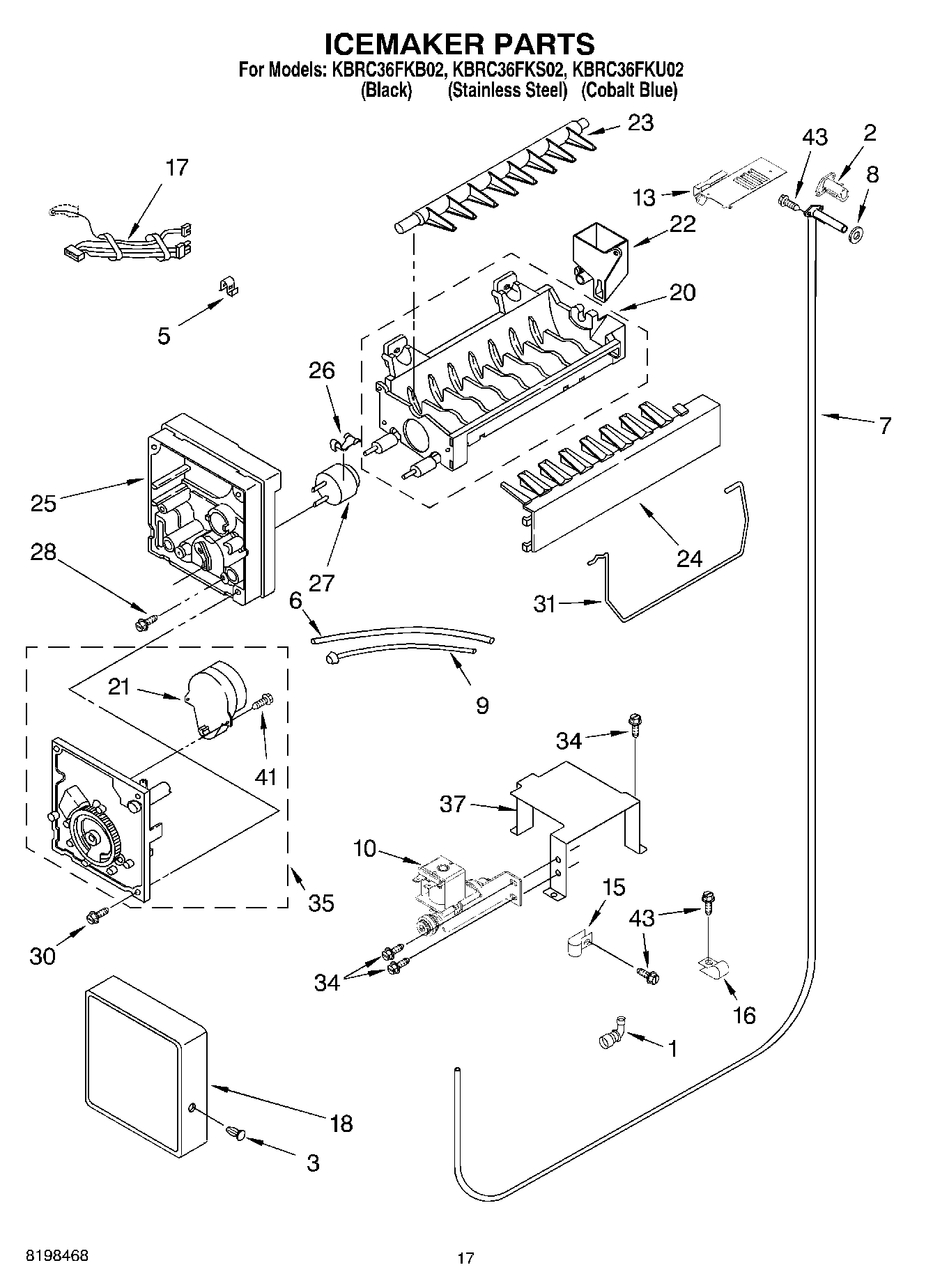

10 - ICEMAKER PARTS

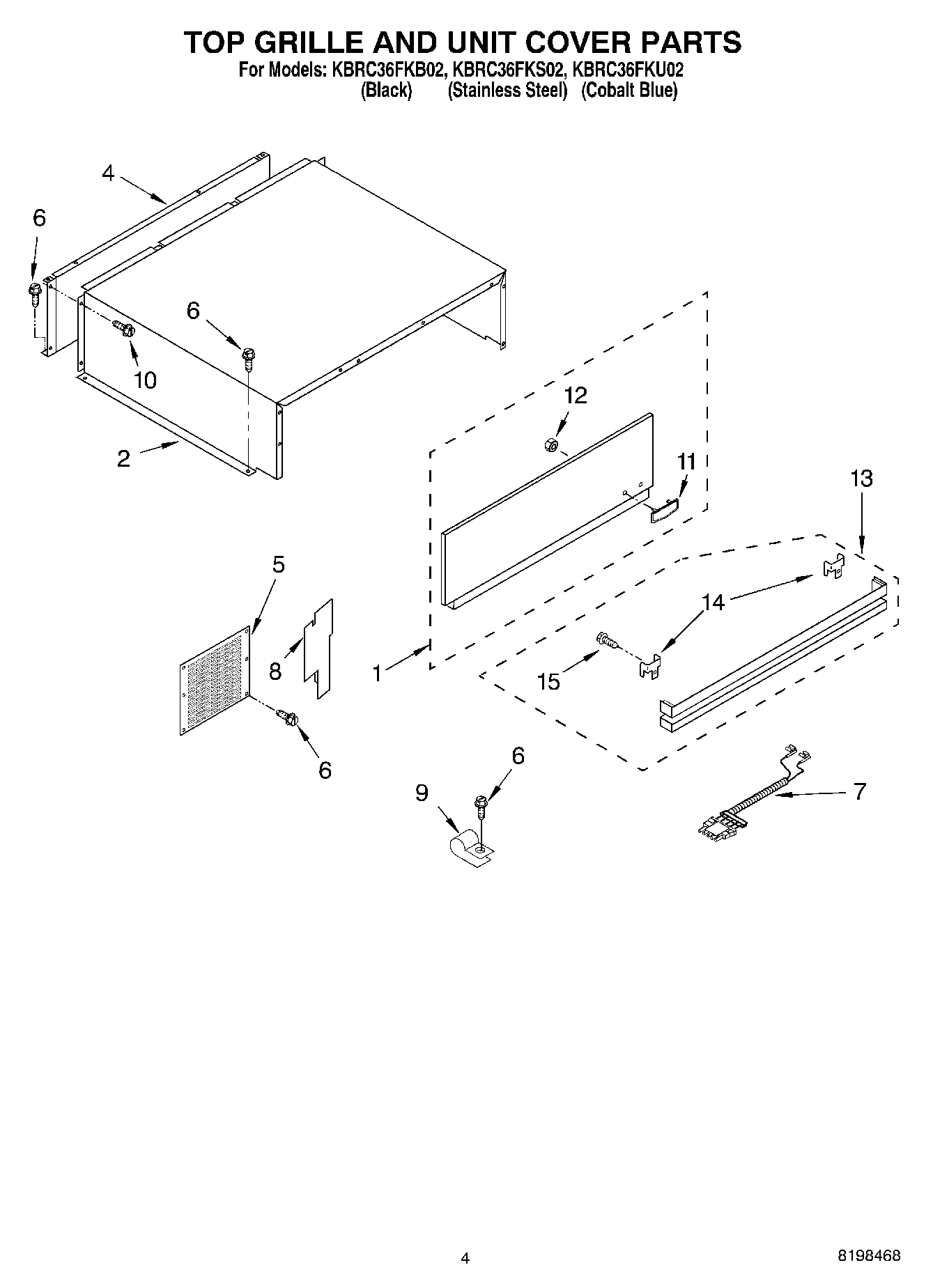

03 - TOP GRILLE AND UNIT COVER PARTS
05 - REFRIGERATOR SHELF PARTS

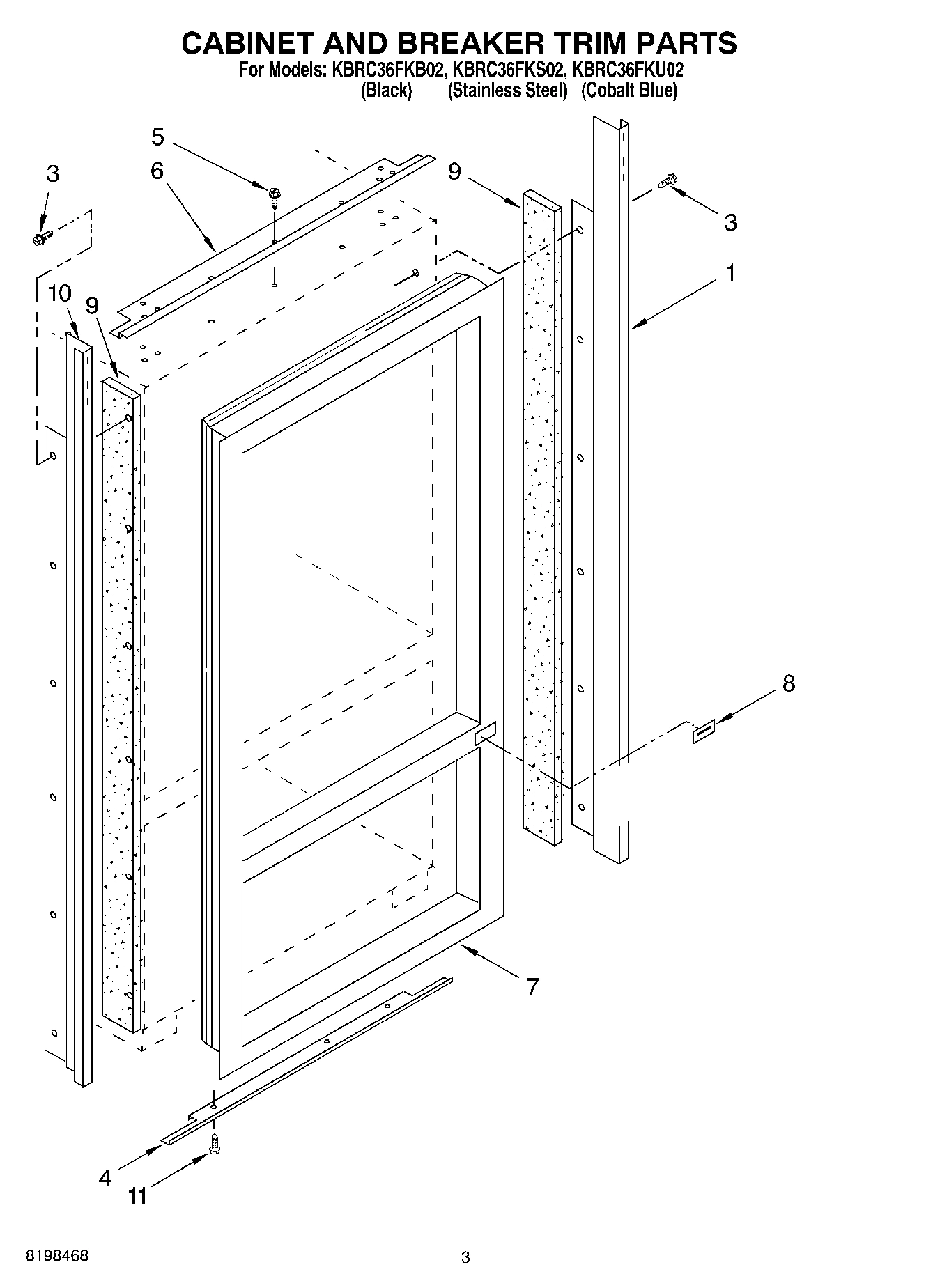

02 - CABINET AND BREAKER TRIM PARTS
Common parts from model Whirlpool KBRC36FKU02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR
1
Liner, Refrigerator (Not Servicable) WPL ARI79655A5 Contact Us For Availability
1
Freezer Door Panel (Includes Item 9) WPL 2188601 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) WPL 2259186 Contact Us For Availability
1
Tube, Valve WPL 2204597 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2215952B Contact Us For Availability
1
Top Grille Assembly (Stainless Steel) WPL 2215952S Contact Us For Availability
1
Top Grille Assembly (Cobalt Blue) WPL 2259198CB Contact Us For Availability
1
Slide, Freezer Basket (Right Side) WPL 2221278 Contact Us For Availability
1
Slide, Freezer Basket (Left Side) WPL 2221279 Contact Us For Availability
1
Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability
1
Cabinet, Trim (Right Side) (Stainless Steel) WPL 2215919S Contact Us For Availability
2
Liner, Freezer (Not Servicable) WPL ARI79656A6 Contact Us For Availability
2
Divider, Basket WPL 2204525 Contact Us For Availability
2
Skin, Door (Stainless Steel) WPL 2005396 Contact Us For Availability
2
Skin, Door (Black) WPL 2257416B Contact Us For Availability
2
Skin, Door (Cobalt Blue) WPL 2257416CB Contact Us For Availability
2
Cover, Unit WPL 2209490 Contact Us For Availability
2
Screw, 8-15 x 1.00 WPL 9751808 Contact Us For Availability
3
Hinge Assembly, Top WPL 2266912 Contact Us For Availability
3
Cover, Heat Exchanger WPL 2215610 Contact Us For Availability
3
Clamp, Divider WPL 2207429 Contact Us For Availability
4
Spacer-Hinge, Top WPL 2256381 Contact Us For Availability
4
Diffuser Cap, Left Side WPL 2215827 Contact Us For Availability
4
Spacer, Crisper (Right Side) WPL 2005138 Contact Us For Availability
4
Spacer, Crisper (Left Side) WPL 2005139 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
5
Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability
5
Guard, Wiring WPL 2209492 Contact Us For Availability
6
Filler, Foam WPL 2005400 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2257605 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
6
Egg Bin WPL 2221071 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
7
Spacer, Door Edge - Side WPL 2221031 Contact Us For Availability
7
Filler, Foam WPL 2005397 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability
7
Wire Assembly WPL 2187423 Contact Us For Availability
7
Roller WPL 2257609 Contact Us For Availability
7
Breaker Trim (Not Serviced) WPL ARI79654A8 Contact Us For Availability
8
Spacer, Door Edge Top & Bottom WPL 2221033 Contact Us For Availability
8
Spacer, Door Edge - Side (2) WPL 2221032 Contact Us For Availability
8
Baffle-Air, Condenser WPL 2215684 Contact Us For Availability
8
Bracket, Spacer (Right Side) WPL 2221280 Contact Us For Availability
8
Bracket, Spacer (Left Side) WPL 2221281 Contact Us For Availability
8
Cover, Hinge WPL 2005782 Contact Us For Availability
9
Heater, Drain Pan WPL 2209451 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Eyelet, Roller WPL 2174478 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2188533 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2188532 Contact Us For Availability
9
Tube, Filter Outlet WPL 2254800 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability
10
Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability
10
Cabinet Trim (Left Side) (Stainless Steel) WPL 2215936S Contact Us For Availability
11
Foam, Fan Shroud WPL 2215844 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability
11
Handle, Door (Black) WPL 2209095B Contact Us For Availability
11
Nameplate (Flat Black) WPL 2005292 Contact Us For Availability
11
Nameplate (Cobalt Blue) WPL 8270201 Contact Us For Availability
12
Gasket (2) WPL 2005982 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
13
Roller Stop WPL 1113169 Contact Us For Availability
13
Shroud, Evaporator Fan WPL 2215606 Contact Us For Availability
13
Skin, Door (Stainless Steel) WPL 2005399 Contact Us For Availability
13
Skin, Door (Black) WPL 2257417B Contact Us For Availability
13
Skin, Door (Cobalt Blue) WPL 2257417CB Contact Us For Availability
13
SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability
13
Louver, Vent (Black) WPL 2215970B Contact Us For Availability
13
Louver, Vent (Stainless Steel) WPL 2215970S Contact Us For Availability
14
Spacer, Door Edge - Bottom WPL 2221029 Contact Us For Availability
14
Bracket, Louver WPL 2254759 Contact Us For Availability
15
Bracket, Assembly Freezer Basket WPL 2207533 Contact Us For Availability
15
Support, Crisper Shelf (2) WPL 2005987 Contact Us For Availability
16
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
16
Plate, Handle WPL 2209202 Contact Us For Availability
16
Rail, Deli Center WPL 2006454 Contact Us For Availability
17
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Basket, Upper WPL 2005376 Contact Us For Availability
17
Spacer, Door Edge - Top WPL 2221030 Contact Us For Availability
17
Wire Harness, Icemaker WPL 2254792 Contact Us For Availability
18
Bracket WPL 2215503 Contact Us For Availability
18
Pan, Ice Cube WPL 2174124 Contact Us For Availability
18
Tube, Door Shelf WPL 2005482 Contact Us For Availability
18
Cover WPL 2221232 Contact Us For Availability
18
Shelf (4) WPL 2005571 Contact Us For Availability
19
Cam-Closer, Door WPL 2005783 Contact Us For Availability
19
Wiring Channel WPL 8201595 Contact Us For Availability
19
Shelf, Door (2) WPL 2005417 Contact Us For Availability
19
Air Damper, Deli WPL 2005429 Contact Us For Availability
20
Wiring Harness, Freezer WPL 2221261 Contact Us For Availability
20
Bushing WPL 2207471 Contact Us For Availability
20
Rail-Rear, Deli WPL 2005151 Contact Us For Availability
21
Cover, Evaporator Assembly WPL 2215833 Contact Us For Availability
21
Screw WPL 3400507 Contact Us For Availability
21
End Cap, Left WPL 2005542 Contact Us For Availability
21
Glass Shelf, Deli WPL 2005152 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Screw WPL 487522 Contact Us For Availability
22
Basket, Freezer Lower WPL 2006244 Contact Us For Availability
22
End Cap, Right WPL 2005541 Contact Us For Availability
22
Rail-Front, Deli WPL 2220883 Contact Us For Availability
23
Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability
23
Control Knob, Deli WPL 2005415 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Drain Tube, Condensate WPL 2209208 Contact Us For Availability
24
Spacer WPL 2207576 Contact Us For Availability
25
Insulation, Baffle WPL 2215530 Contact Us For Availability
25
Washer WPL 2006252 Contact Us For Availability
26
Cover, Air Diffuser WPL 2215531 Contact Us For Availability
26
Roller WPL 2207550 Contact Us For Availability
26
Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability
26
Connector, Deli Pan WPL 2005165 Contact Us For Availability
27
Heater-Tube, Drain WPL 2204595 Contact Us For Availability
27
Door Shelf, Gallon WPL 2006154 Contact Us For Availability
27
Lid, Deli Pan WPL 2222655 Contact Us For Availability
28
Insulation, Tube Drain WPL 2204538 Contact Us For Availability
28
Butter Tray WPL 2165792 Contact Us For Availability
28
Hinge Rod, Deli Pan WPL 2005923 Contact Us For Availability
29
Cover, Tube Drain WPL 2204537 Contact Us For Availability
29
Cripser Pan WPL 2005157 Contact Us For Availability
30
Handle, Crisper Pan WPL 2005480 Contact Us For Availability
31
Housing, Switch WPL 2215835 Contact Us For Availability
31
Shut Off Arm WPL 2221172 Contact Us For Availability
32
Overlay, Crisper Pan WPL 2005986 Contact Us For Availability
33
Wire, Jumper WPL 2187377 Contact Us For Availability
33
Rail-Front, Crisper Shelf WPL 2220885 Contact Us For Availability
34
Vent, Crisper Shelf WPL 2005425 Contact Us For Availability
35
Clip, Thermistor WPL 2209204 Contact Us For Availability
35
Slide-Humidity, Crisper Shelf WPL 2005413 Contact Us For Availability
36
Cover, Rear WPL 2209133 Contact Us For Availability
37
Grommet, Wiring WPL 1113122 Contact Us For Availability
37
Control Panel WPL 2215816 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability
37
Glass, Crisper Shelf WPL 2005477 Contact Us For Availability
38
Overlay, Control Panel WPL 2221064 Contact Us For Availability
38
Rail-Rear, Crisper Shelf WPL 2005478 Contact Us For Availability
39
Circuit Board (User Interface) WPL 2209159 Contact Us For Availability
39
Seal-Front, Crisper Shelf WPL 2005479 Contact Us For Availability
40
Insert, Control Box WPL 2215670 Contact Us For Availability
40
Insulation, Crisper Rail WPL 2005984 Contact Us For Availability
41
Baffle-Center, Crisper Shelf WPL 2005985 Contact Us For Availability
42
Center Support, Left Half WPL 2005794 Contact Us For Availability
43
Center Support, Right Half WPL 2005795 Contact Us For Availability
44
Harness, Control Box WPL 2187424 Contact Us For Availability
44
Bracket, Center Support WPL 2005796 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Channel, Wiring Freezer Light WPL 8201534 Contact Us For Availability
46
CLIP, WIRING WPL 1115375 Contact Us For Availability
47
Clip, Snap-In (2) WPL 2207578 Contact Us For Availability
47
Deli Pan WPL 2222741 Contact Us For Availability
48
Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability
48
Ladder, Shelf (4) WPL 2005410 Contact Us For Availability
49
Defrost Bi-Metal WPL 2187378 Contact Us For Availability
50
Diffuser Assembly WPL 2215829 Contact Us For Availability
50
Ladder, Crisper Support WPL 2005797 Contact Us For Availability
51
Support, Control Box WPL 2221121 Contact Us For Availability
52
WPL 2221260 WPL 2221260 Contact Us For Availability
53
WPL 2207522 WPL 2207522 Contact Us For Availability
55
WPL 2207569 WPL 2207569 Contact Us For Availability
56
WPL 2257387 WPL 2257387 Contact Us For Availability
× ![]()
