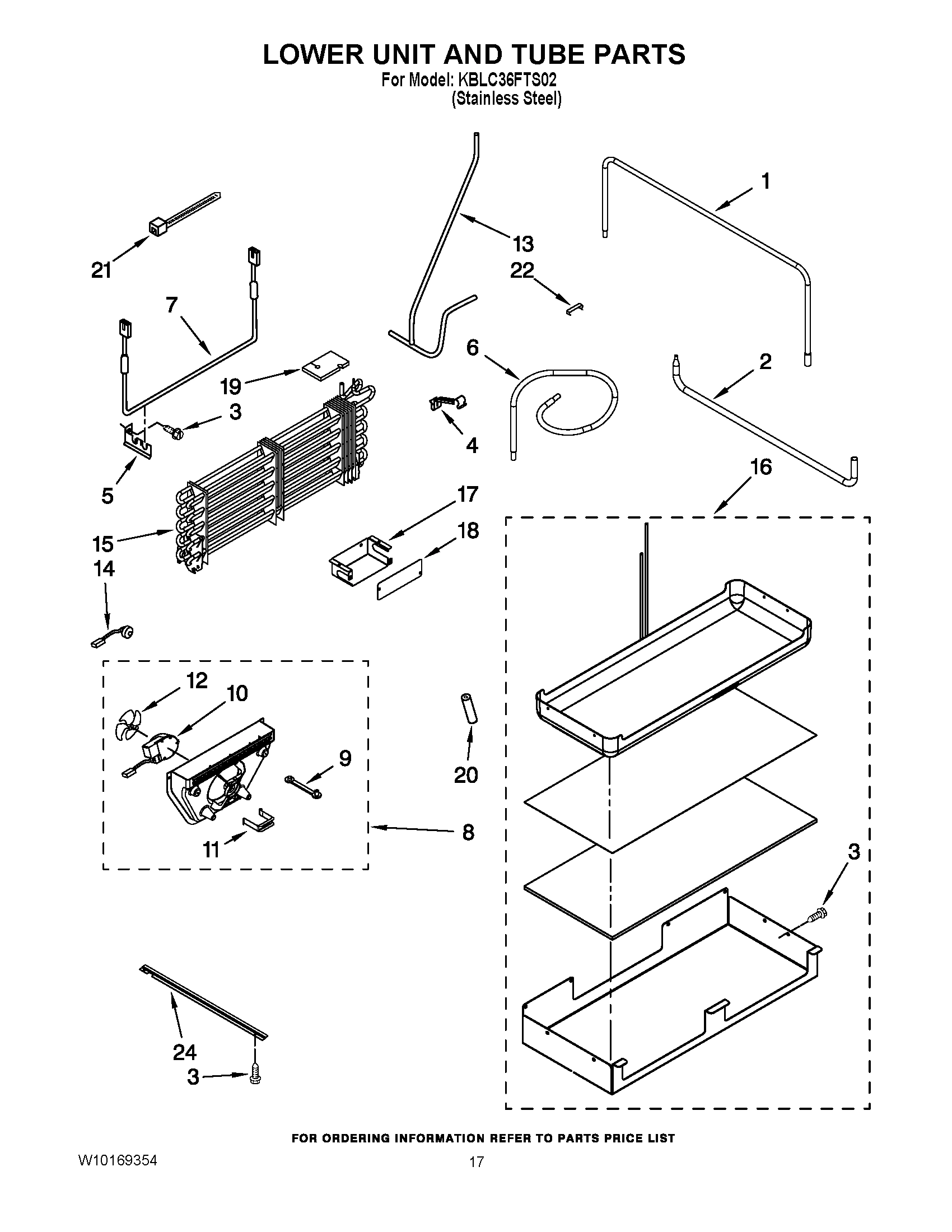

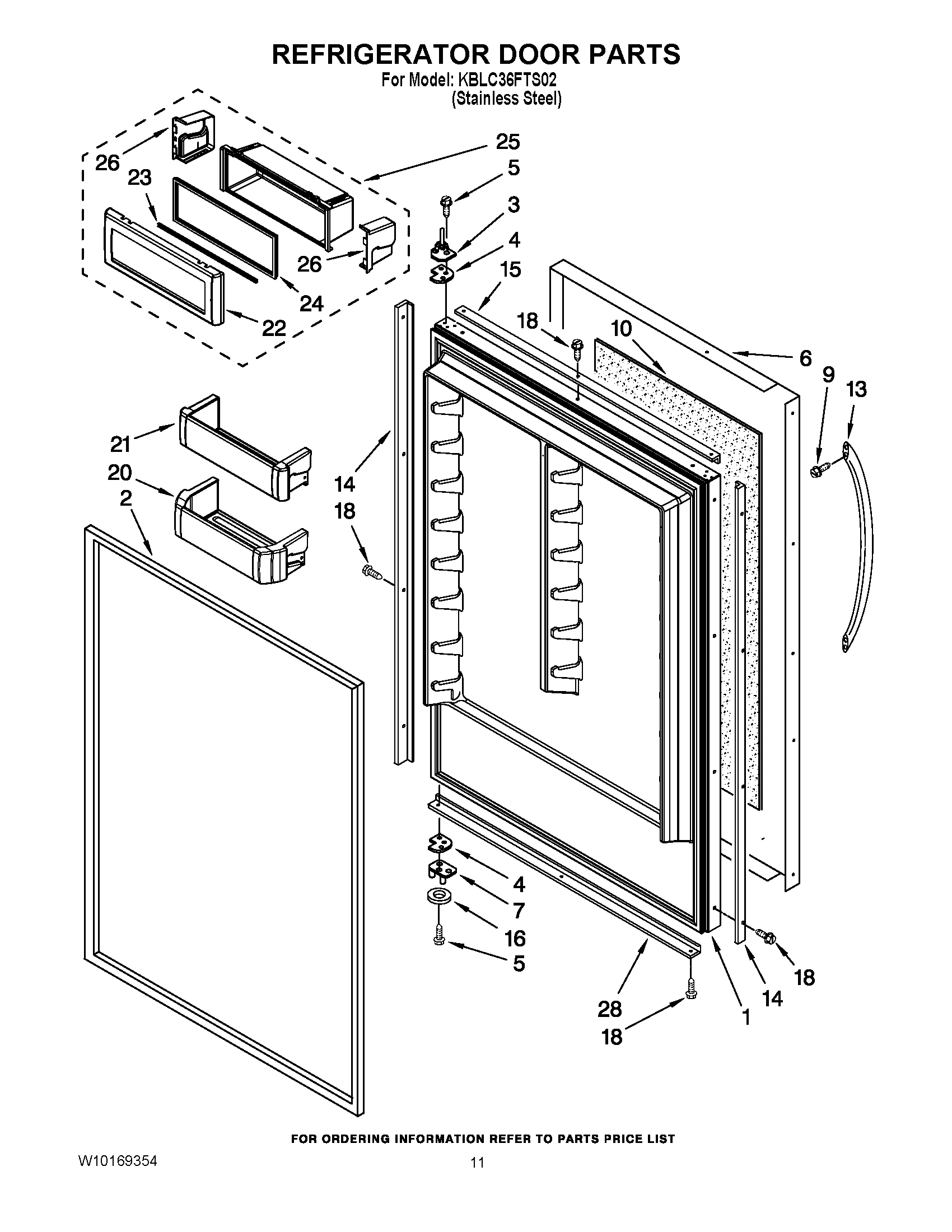

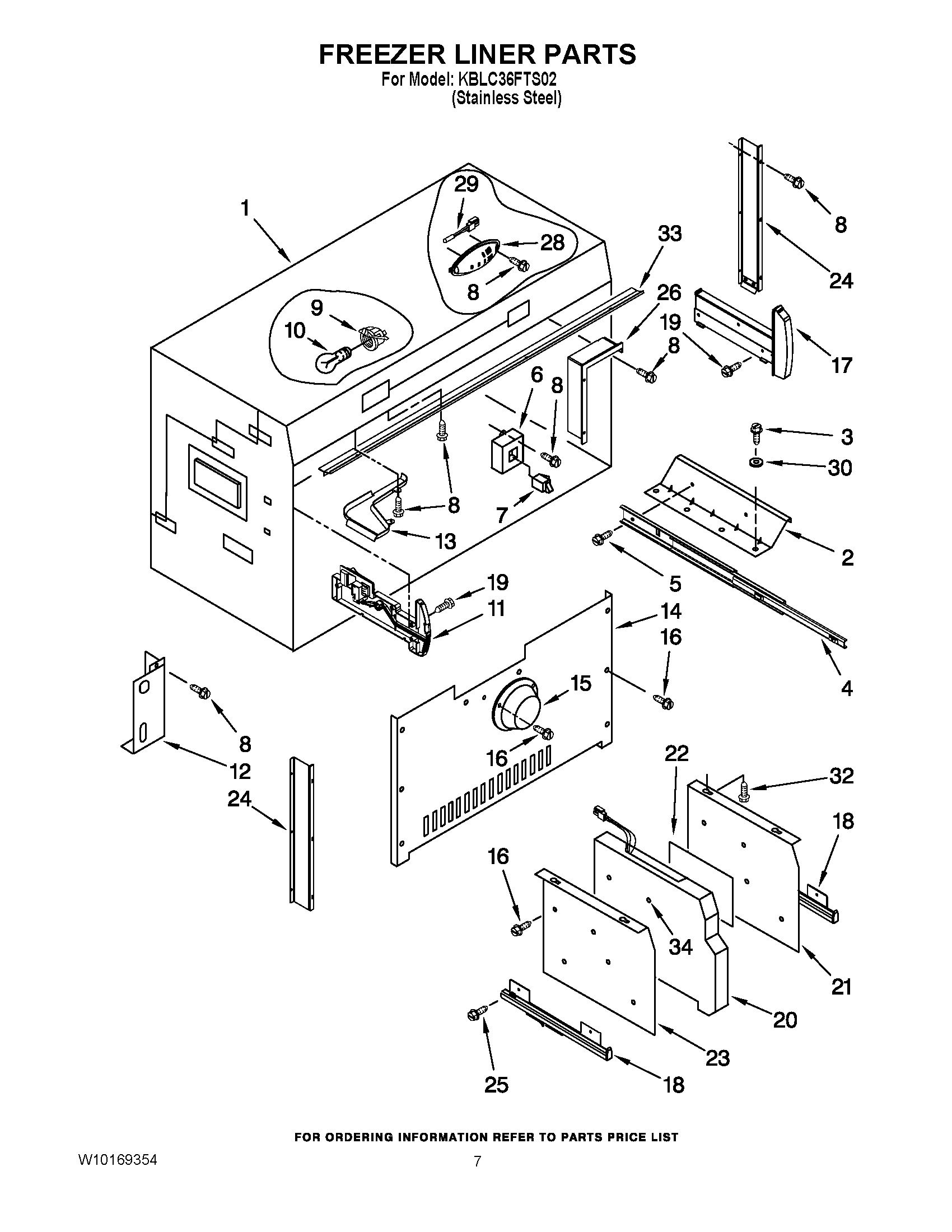

Model Whirlpool KBLC36FTS02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

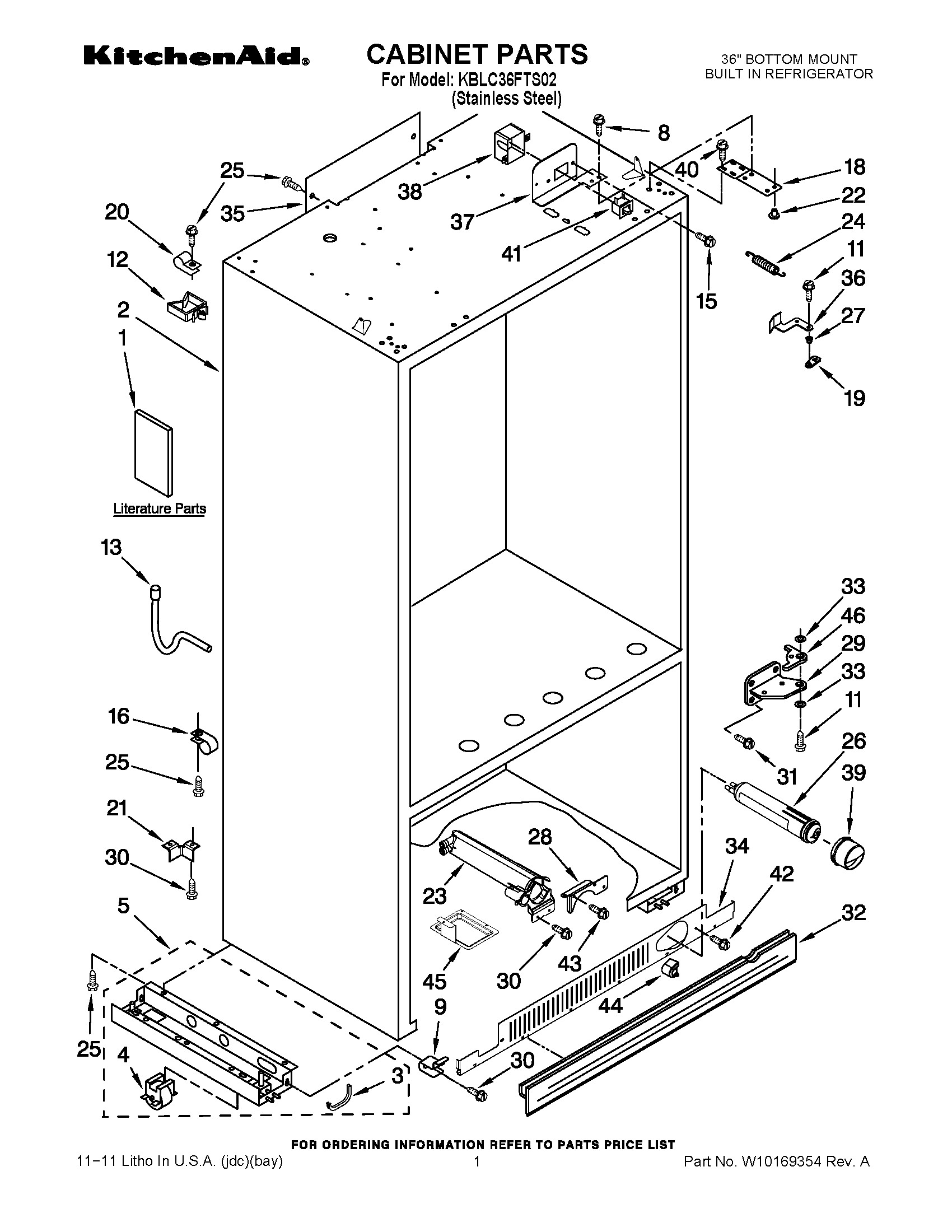

1

Energy Guide WPL 2309438 Contact Us For Availability

1

Installation Instructions WPL 2320680 Contact Us For Availability

1

Use & Care Guide WPL 2320682 Contact Us For Availability

1

Main Control Service Sheet WPL 2324934 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

1

Service & Wiring Sheet WPL W10159833 Contact Us For Availability

2

2317004 Whirlpool Refrigerator Air Cover Backorder WPL 2317004 $8.89

2

W10744329 Whirlpool Refrigerator Support Backorder WPL W10744329 $125.33

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $67.89

2

CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

2

Cover, Unit WPL W10161693 Contact Us For Availability

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

3

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

3

W10468945 Whirlpool Refrigerator Control Box Backorder WPL W10468945 $506.44

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

3

Hinge Assembly, Top WPL 2266912 Contact Us For Availability

3

Mat, Basket WPL 2314025 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

W10135775 Whirlpool Refrigerator Screw Backorder WPL W10135775 $8.73

4

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $61.63

4

WP2320616 Whirlpool Refrigerator Slide In Stock WPL WP2320616 $159.76

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

4

Clip, Control Box WPL 2317000 Contact Us For Availability

4

Jumper, Heater Fill Tube WPL 2310108 Contact Us For Availability

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WP8533980 Whirlpool Refrigerator Screw Backorder WPL WP8533980 $26.21

5

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

5

Screw WPL W10061370 Contact Us For Availability

5

Bracket, Control Box WPL 2324970 Contact Us For Availability

5

Front, Unit Cover WPL 2307682 Contact Us For Availability

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Tube, Suction WPL 2309076 Contact Us For Availability

6

Tube, Filter Inlet WPL 2325170 Contact Us For Availability

6

Shield, Light WPL 2309270 Contact Us For Availability

7

2187894 Whirlpool Harness Switch Backorder WPL 2187894 $28.80

7

2316807 Whirlpool Refrigerator Door Hinge Backorder WPL 2316807 $74.35

7

2317847 Whirlpool Refrigerator Water Tube Backorder WPL 2317847 $29.43

7

WP2268393 Whirlpool Refrigerator Heater Backorder WPL WP2268393 $56.40

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

7

SPACER, DOOR EDGE (SIDE) WPL 2300025 Contact Us For Availability

8

2300027 Whirlpool Spacer Backorder WPL 2300027 $39.14

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

8

NAMEPLATE WPL 2317923S Contact Us For Availability

8

Transformer WPL 2303033 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

2302709 Whirlpool Refrigerator Door Gasket In Stock WPL 2302709 $163.30

9

W10839844 Whirlpool Refrigerator Bracket Backorder WPL W10839844 $12.44

9

W11533506 Whirlpool Refrigerator Water Tube Backorder WPL W11533506 $11.29

9

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.51

9

SEAL TRIM, SIDE WPL 2005925 Contact Us For Availability

9

ICE PAN ASSEMBLY (INCLUDES No. 10) WPL 2306174 Contact Us For Availability

10

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $91.62

10

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

Screw WPL 2005921 Contact Us For Availability

Skin, Door WPL 2306489 Contact Us For Availability

Clip, Diffuser Cover WPL 2317917 Contact Us For Availability

Shield, Valve WPL W10129653 Contact Us For Availability

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

Diffuser Assembly WPL 2320523 Contact Us For Availability

Plate, Door WPL 2306398 Contact Us For Availability

Clip (4) WPL W10129069 Contact Us For Availability

2314064 Whirlpool Refrigerator Drain Tube Backorder WPL 2314064 $28.80

2320519 Whirlpool Refrigerator Cover Backorder WPL 2320519 $35.14

WP2221231 Whirlpool Refrigerator Shield Backorder WPL WP2221231 $38.58

WP2316868 Whirlpool Refrigerator Handle Backorder WPL WP2316868 $144.46

14

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

14

W10258182 Whirlpool Refrigerator Freezer Bask Backorder WPL W10258182 $152.49

14

Defrost Bi-Metal WPL 2310137 Contact Us For Availability

2317829 Whirlpool Refrigerator Cover Backorder WPL 2317829 $12.35

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $4.58

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

Evaporator WPL 2268391 Contact Us For Availability

2307998 Whirlpool Refrigerator Condenser In Stock WPL 2307998 $261.55

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $5.20

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $3.70

WASHER WPL W10001190 Contact Us For Availability

17

2310136 Whirlpool Refrigerator Wire Harness In Stock WPL 2310136 $63.97

17

2310164 Whirlpool Refrigerator Wire Harness Backorder WPL 2310164 $38.74

17

W10109030 Whirlpool Refrigerator Screw Backorder WPL W10109030 $8.73

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $122.91

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $110.88

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Cover WPL 2257538 Contact Us For Availability

W10139195 Whirlpool Wire Harness Backorder WPL W10139195 $41.38

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Cam-Closer, Door WPL 2005783 Contact Us For Availability

Filler, Foam WPL 2327468 Contact Us For Availability

Spacer, Crisper (Right) WPL 2309410 Contact Us For Availability

Spacer, Crisper (Left) WPL 2309411 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Spacer, Deli (Left) WPL 2268411 Contact Us For Availability

Spacer, Deli (Right) WPL 2268412 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $124.83

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $124.94

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

W10716209 Whirlpool Refrigerator Support Backorder WPL W10716209 $28.04

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2300082 Contact Us For Availability

SHIELD WPL 2317927 Contact Us For Availability

Support, Crisper Cover WPL 2302788 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $118.28

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $87.50

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $106.14

SUPPORT, SLIDE LEFT WPL 2306105 Contact Us For Availability

24

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $28.58

25

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

26

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

27

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

27

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10674648 Whirlpool Refrigerator Bracket Backorder WPL W10674648 $8.55

28

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

29

2005101 Whirlpool Refrigerator Bottom Hinge Backorder WPL 2005101 $55.24

29

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

29

Support, Valve WPL 2320559 Contact Us For Availability

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.16

W10075920 Whirlpool Refrigerator Washer Backorder WPL W10075920 $5.38

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

31

Screw WPL 3400525 Contact Us For Availability

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $67.86

32

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

33

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

34

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

34

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $51.17

34

WP2325187B Whirlpool Refrigerator Front Grill Backorder WPL WP2325187B $65.72

35

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $31.71

35

W10185556 Whirlpool Refrigerator Bracket Backorder WPL W10185556 $43.13

36

WPW10121046 Whirlpool Refrigerator Extension In Stock WPL WPW10121046 $38.52

37

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $29.43

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

38

2215938 Whirlpool Refrigerator Switch Cover Backorder WPL 2215938 $28.80

39

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

43

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

44

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

45

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $50.98

46

W10188434 Whirlpool Refrigerator Hinge Gap Backorder WPL W10188434 $41.50

100

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $160.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W10129081 Whirlpool Refrigerator Handle Backorder WPL W10129081 $207.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability
