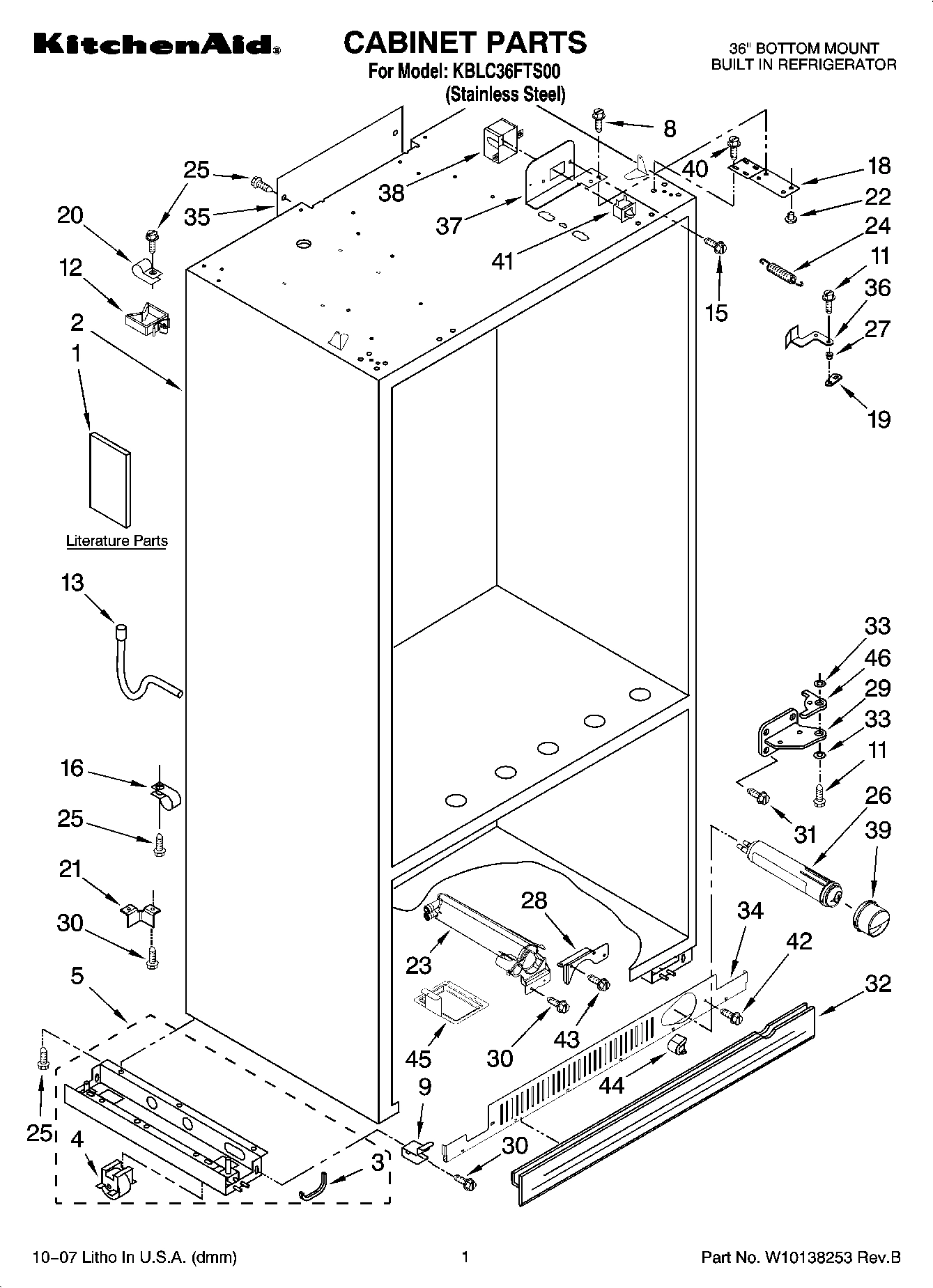

Model Whirlpool KBLC36FTS00 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W10129081 Whirlpool Refrigerator Handle Backorder WPL W10129081 $207.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

1

Tube, Transition (Condenser) WPL 2309072 Contact Us For Availability

1

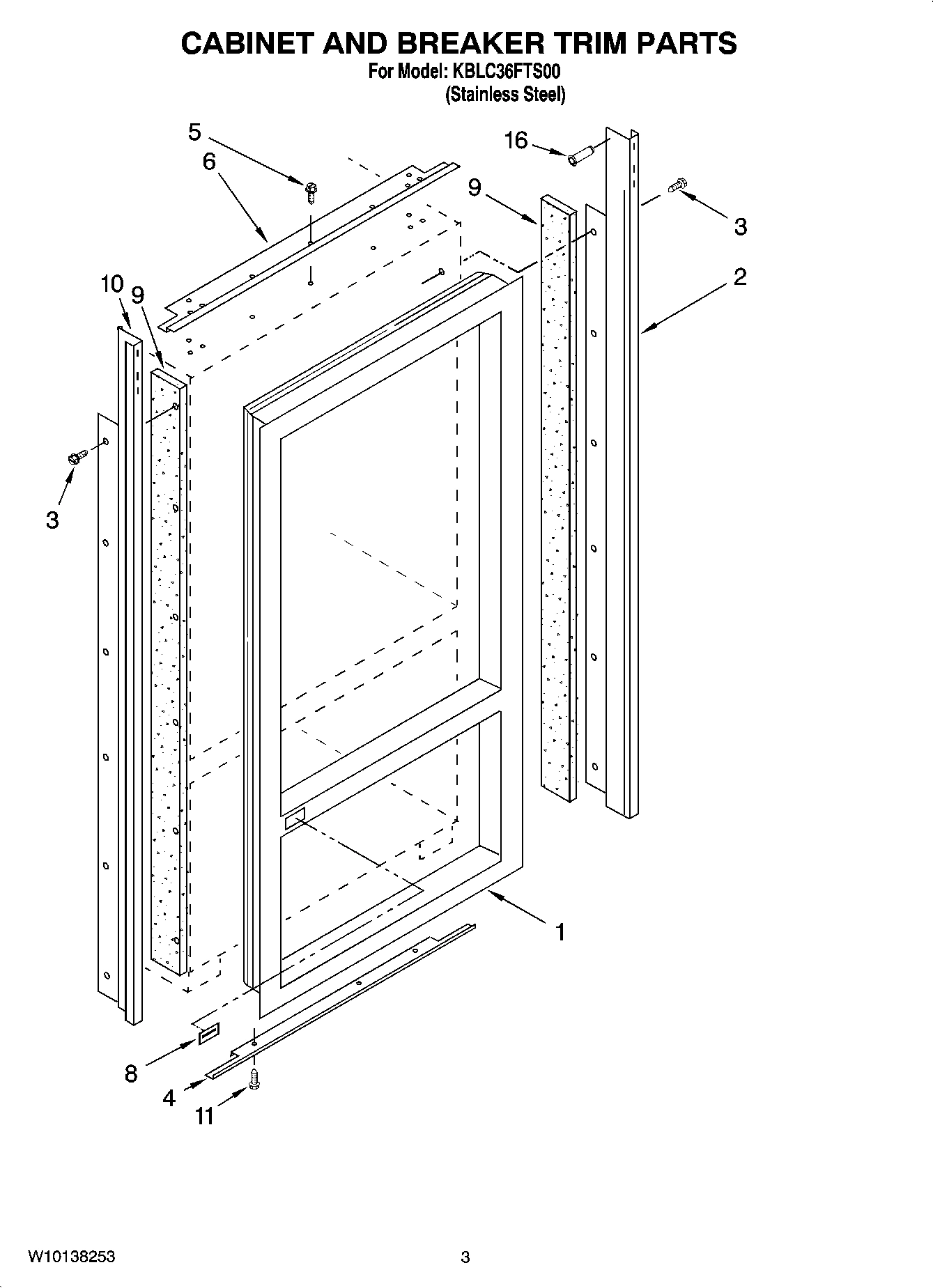

Breaker Trim (Not Serviced) WPL ARI78724A3 Contact Us For Availability

1

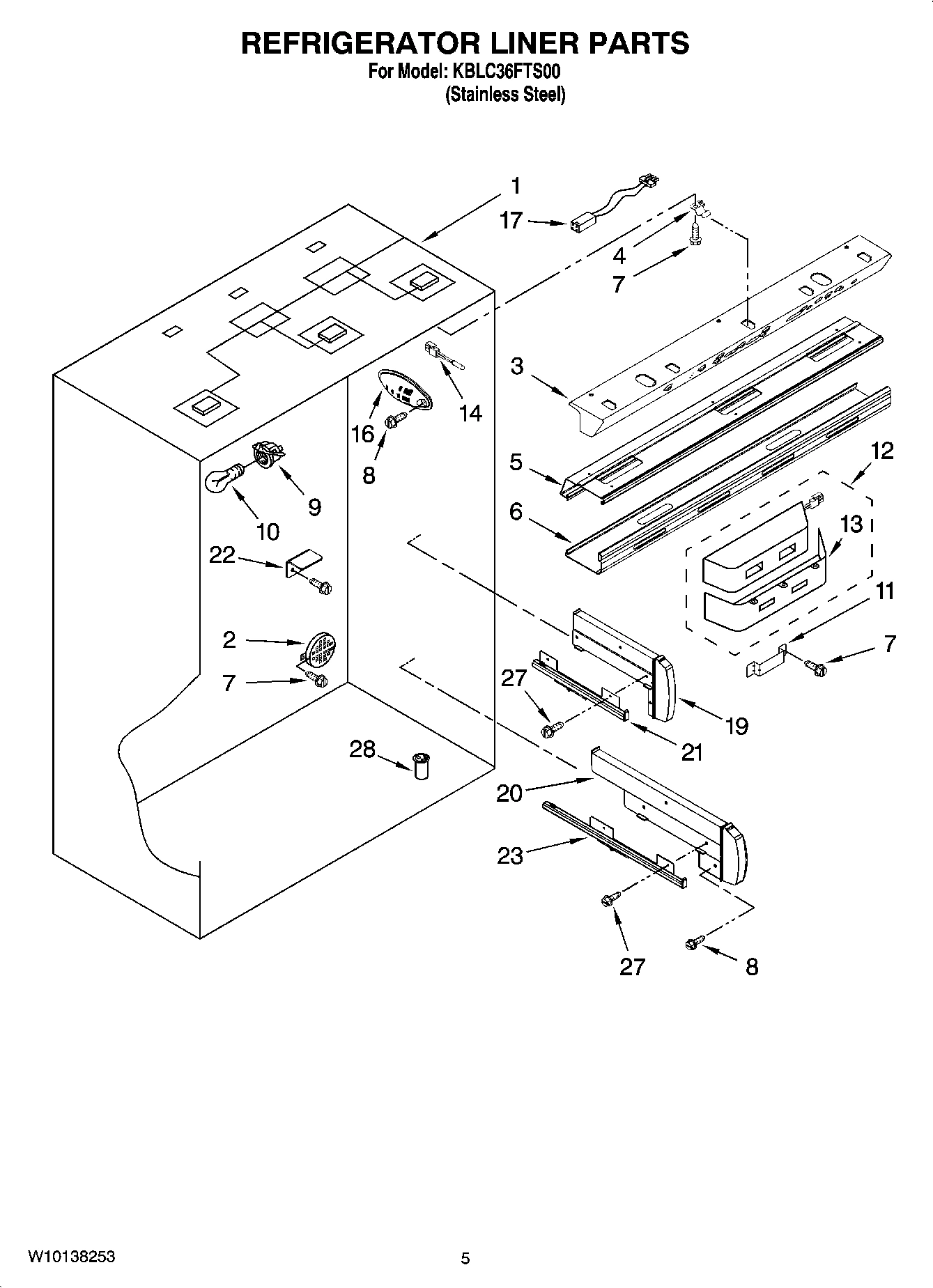

Liner, Refrigerator (Not Servicable) WPL ARI78725A3 Contact Us For Availability

1

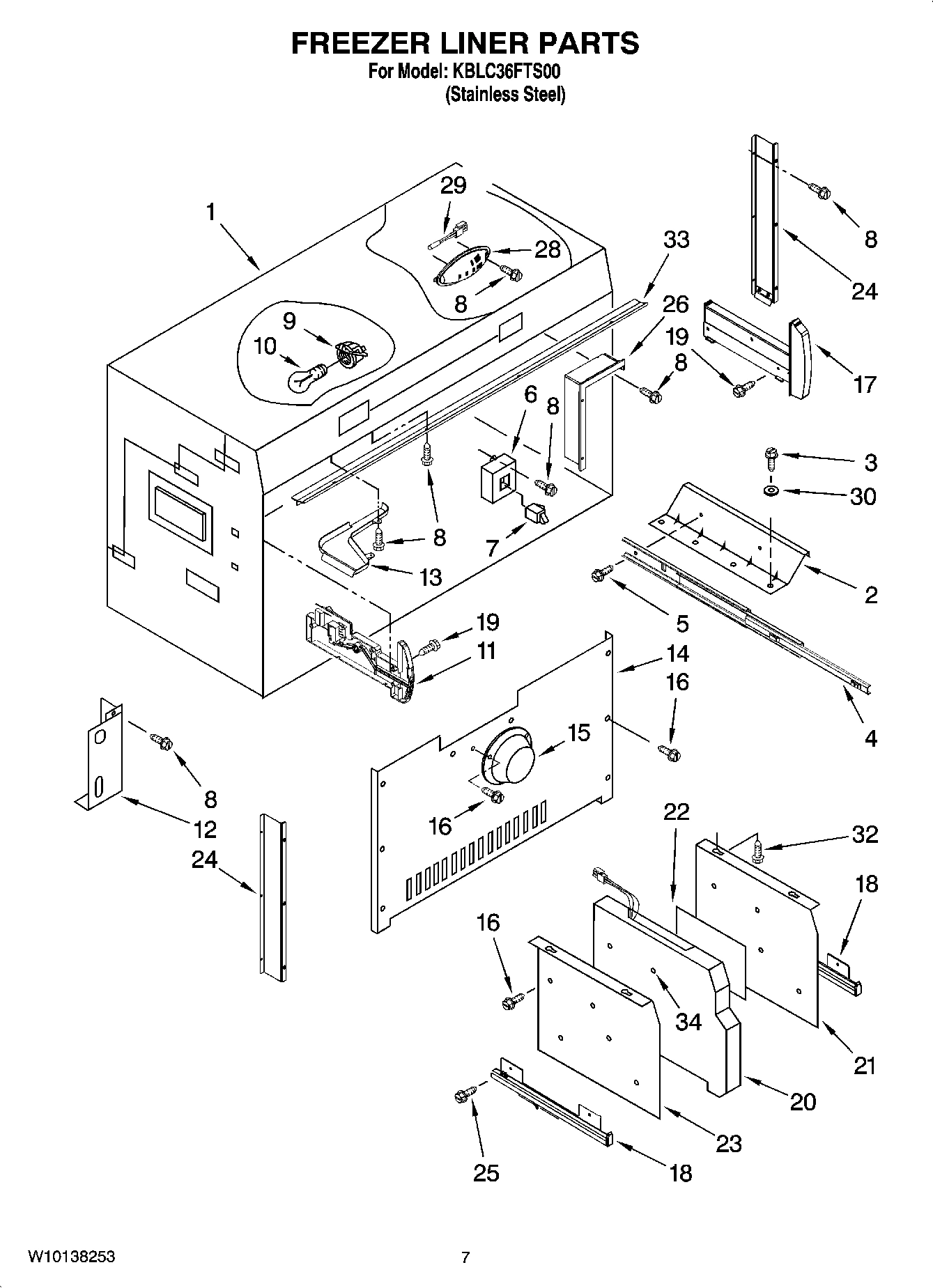

Liner, Freezer (Not Servicable) WPL ARI78726A9 Contact Us For Availability

1

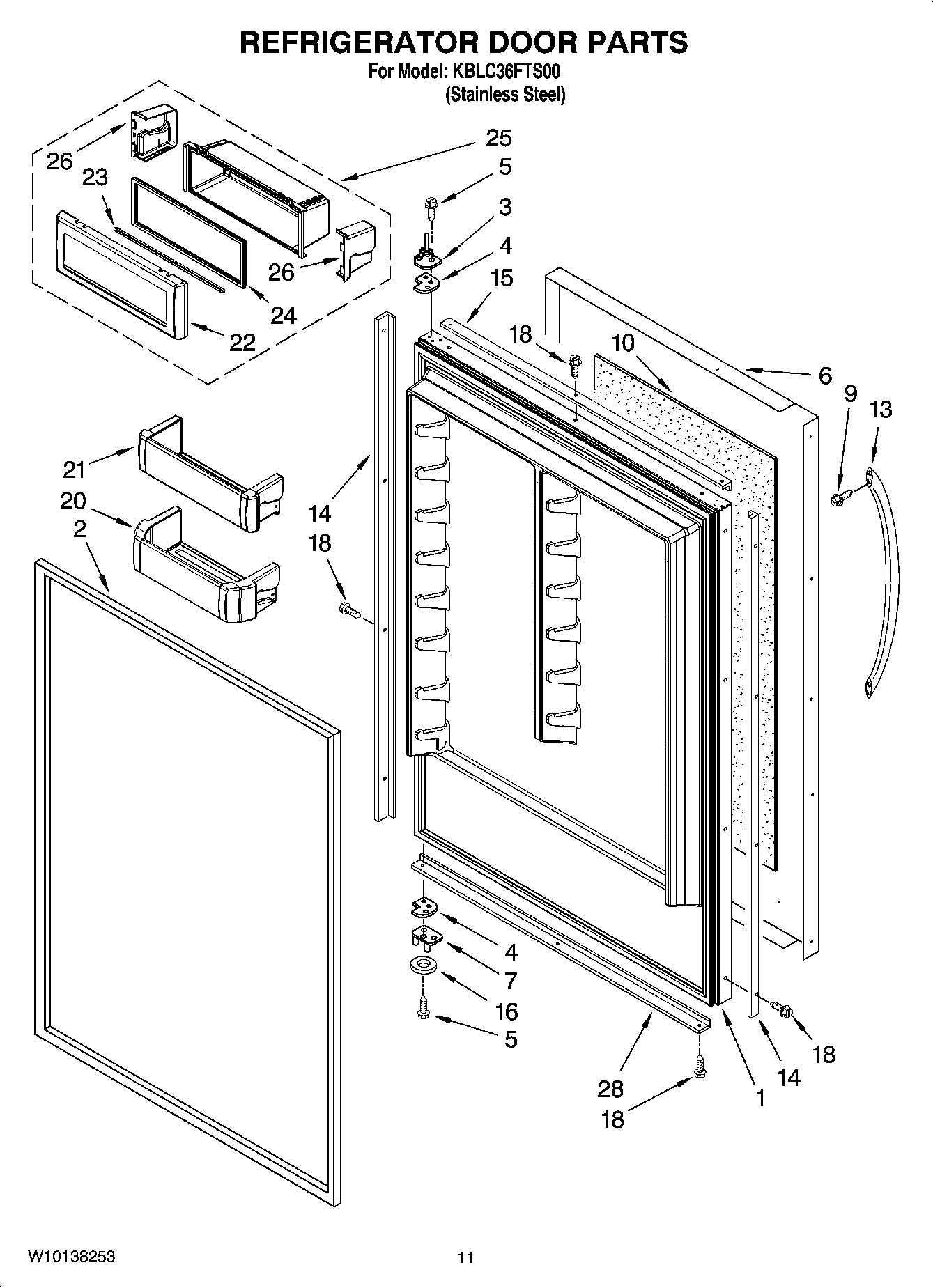

Door, Refrigerator (Includes Item 2) WPL 2309390 Contact Us For Availability

2

2302709 Whirlpool Refrigerator Door Gasket Backorder WPL 2302709 $164.10

2

2317004 Whirlpool Refrigerator Air Cover Backorder WPL 2317004 $8.89

2

W10388653 Whirlpool Refrigerator Tube Backorder WPL W10388653 $13.93

2

W10744329 Whirlpool Refrigerator Support In Stock WPL W10744329 $125.33

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

2

CABINET TRIM, RIGHT SIDE WPL W10132472 Contact Us For Availability

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

3

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

3

W10468945 Whirlpool Refrigerator Control Box Backorder WPL W10468945 $507.23

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

3

WP8204624 Whirlpool Bolt In Stock WPL WP8204624 $8.82

3

Hinge Assembly, Top WPL 2266912 Contact Us For Availability

4

2307944 Whirlpool Clip Backorder WPL 2307944 $7.61

4

2316686 Whirlpool Refrigerator Cabinet Trim Backorder WPL 2316686 $127.52

4

W10135775 Whirlpool Refrigerator Screw Backorder WPL W10135775 $8.73

4

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $65.52

4

WP2320616 Whirlpool Refrigerator Slide In Stock WPL WP2320616 $142.00

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $17.40

4

Clip, Control Box WPL 2317000 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw WPL W10061370 Contact Us For Availability

5

Bracket, Mounting WPL 2307945 Contact Us For Availability

5

Bracket, Control Box WPL 2324970 Contact Us For Availability

6

2314020 Whirlpool Refrigerator Cabinet Trim Backorder WPL 2314020 $50.33

6

Tube, Suction WPL 2309076 Contact Us For Availability

6

Tube, Filter Inlet WPL 2325170 Contact Us For Availability

6

Shield, Light WPL 2309270 Contact Us For Availability

6

Cover, Light Switch WPL 2314022 Contact Us For Availability

6

Skin, Door WPL 2306488 Contact Us For Availability

7

2316807 Whirlpool Refrigerator Door Hinge Backorder WPL 2316807 $78.07

7

2317847 Whirlpool Refrigerator Water Tube Backorder WPL 2317847 $30.89

7

WP2268393 Whirlpool Refrigerator Heater Backorder WPL WP2268393 $59.22

8

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

8

NAMEPLATE WPL 2317923S Contact Us For Availability

8

Transformer WPL 2303033 Contact Us For Availability

8

Scroll Assembly WPL 2306178 Contact Us For Availability

8

Cover, Hinge WPL 2005782 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $12.11

9

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.51

9

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $4.02

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Ice Pan Assembly (Includes 10) WPL 2306174 Contact Us For Availability

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $97.02

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

Motor, Fan WPL 2259385 Contact Us For Availability

CABINET TRIM, LEFT SIDE WPL W10132541 Contact Us For Availability

Filler, Foam WPL 2327469 Contact Us For Availability

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

Screw WPL 2005921 Contact Us For Availability

Clip, Diffuser Cover WPL 2317917 Contact Us For Availability

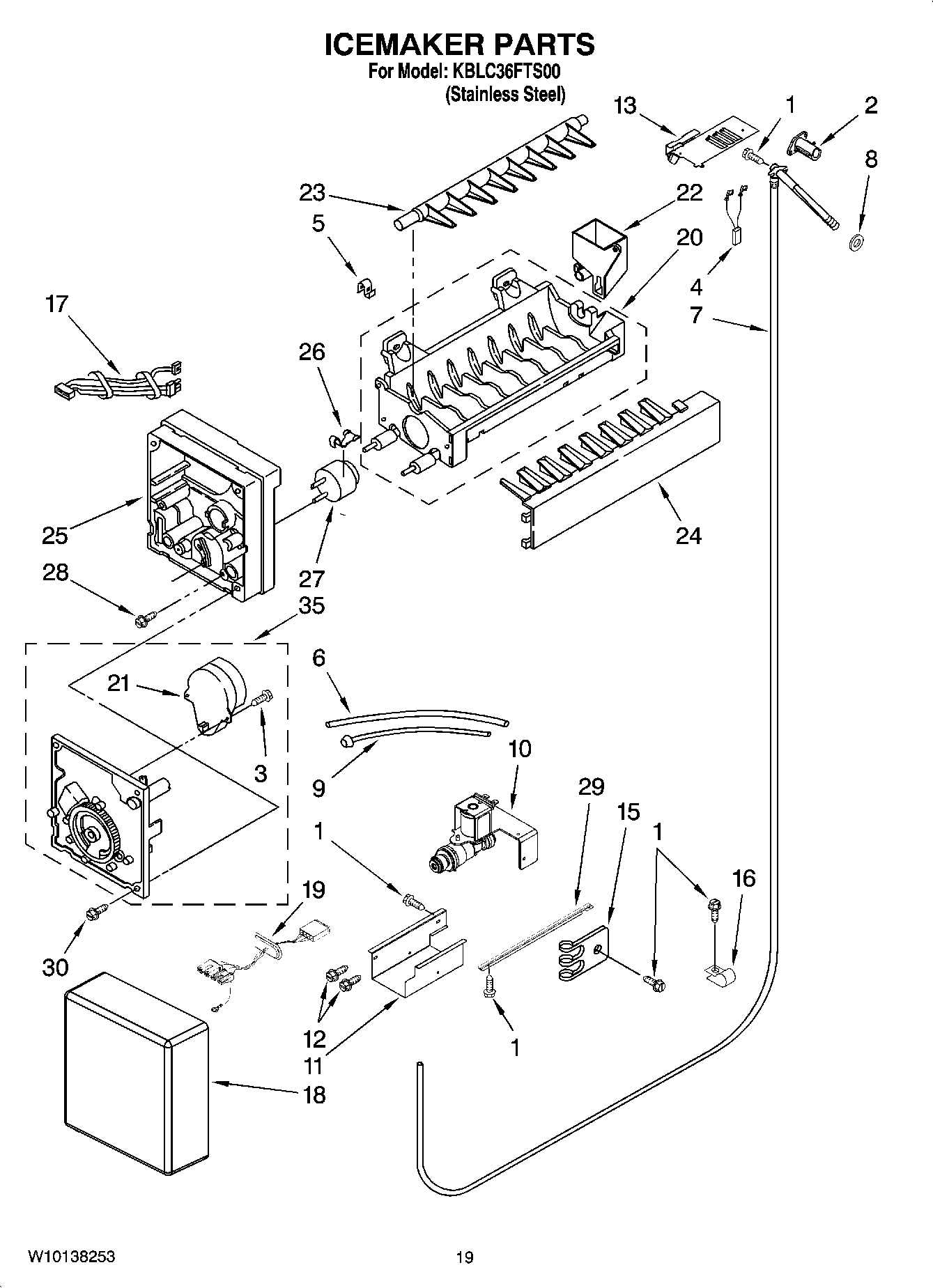

Switch Assembly, Icemaker (Includes emitter) WPL 2268299 Contact Us For Availability

12

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

12

Diffuser Assembly WPL 2320523 Contact Us For Availability

12

Cover, Wiring (Icemaker) WPL 2306187 Contact Us For Availability

2309073 Whirlpool Refrigerator Tube Backorder WPL 2309073 $27.52

2314064 Whirlpool Refrigerator Drain Tube Backorder WPL 2314064 $30.25

2320519 Whirlpool Refrigerator Cover Backorder WPL 2320519 $36.89

WP2316868 Whirlpool Refrigerator Handle Backorder WPL WP2316868 $144.46

Duct, Air Flow (Icemaker) WPL 2317006 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

Defrost Bi-Metal WPL 2310137 Contact Us For Availability

Cover, Evaporator WPL 2268380 Contact Us For Availability

Spacer, Door Edge (Hinge Side) WPL 2300026 Contact Us For Availability

2317829 Whirlpool Refrigerator Cover Backorder WPL 2317829 $12.35

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

Evaporator WPL 2268391 Contact Us For Availability

SPACER, DOOR EDGE (TOP) WPL 2300024 Contact Us For Availability

2307998 Whirlpool Refrigerator Condenser Backorder WPL 2307998 $262.35

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $3.70

WPW10281063 Whirlpool Refrigerator Heater Pan In Stock WPL WPW10281063 $171.27

2306106 Whirlpool Refrigerator Track In Stock WPL 2306106 $11.07

2310136 Whirlpool Refrigerator Wire Harness In Stock WPL 2310136 $67.17

2310164 Whirlpool Refrigerator Wire Harness In Stock WPL 2310164 $40.68

W10109030 Whirlpool Refrigerator Screw Backorder WPL W10109030 $8.73

Cover, Box WPL 2316684 Contact Us For Availability

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $122.91

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $116.41

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $5.38

Cover, Wiring WPL 2316683 Contact Us For Availability

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

Cam-Closer, Door WPL 2005783 Contact Us For Availability

Block, Evaporator WPL 2306180 Contact Us For Availability

Spacer, Crisper (Right) WPL 2309410 Contact Us For Availability

Spacer, Crisper (Left) WPL 2309411 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

TRACK Backorder WPL 2268411 $27.52

W10323749 Whirlpool Refrigerator Cantilever B Backorder WPL W10323749 $82.14

Spacer, Deli (Right) WPL 2268412 Contact Us For Availability

Divider, Freezer Bins (Includes receiver) WPL 2317925 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $124.83

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $124.94

W10716209 Whirlpool Refrigerator Support In Stock WPL W10716209 $29.44

W11590561 Whirlpool Refrigerator Cantilever B Backorder WPL W11590561 $33.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

Bushing WPL 2300082 Contact Us For Availability

SHIELD WPL 2317927 Contact Us For Availability

Clip, Heater WPL 2317920 Contact Us For Availability

Support, Crisper Cover WPL 2302788 Contact Us For Availability

Door, Utility Bin WPL 2309255 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

SUPPORT, SLIDE LEFT WPL 2306105 Contact Us For Availability

Rail, Lid WPL 2309256 Contact Us For Availability

GASKET Backorder WPL 2309257 $27.52

2320554 Whirlpool Bracket Backorder WPL 2320554 $26.21

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $33.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Bracket, Evaporator Cover (Left Side) WPL 2320512 Contact Us For Availability

Bracket, Evaporator Cover (Right Side) WPL 2327339 Contact Us For Availability

25

W10323044 Whirlpool Refrigerator Cantilever B Backorder WPL W10323044 $70.30

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $3.70

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $3.70

Bracket, Air Return WPL 2317902 Contact Us For Availability

27

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $24.52

27

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $5.20

SPACER, DOOR EDGE (BOTTOM) WPL 2300023 Contact Us For Availability

29

2005101 Whirlpool Refrigerator Bottom Hinge In Stock WPL 2005101 $58.01

29

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

30

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.16

30

W10075920 Whirlpool Refrigerator Washer Backorder WPL W10075920 $5.38

30

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

31

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.33

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $71.24

32

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $3.33

33

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $5.42

33

Air Deflector Asy WPL W10135431 Contact Us For Availability

34

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

34

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $53.73

34

WP2325187B Whirlpool Refrigerator Front Grill Backorder WPL WP2325187B $69.02

35

W10185556 Whirlpool Refrigerator Bracket Backorder WPL W10185556 $45.29

36

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

39

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

43

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

45

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $53.53
