Model Whirlpool KBLC36FMS02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

Slide, Freezer Basket (Left Side) WPL 2307977 Contact Us For Availability

1

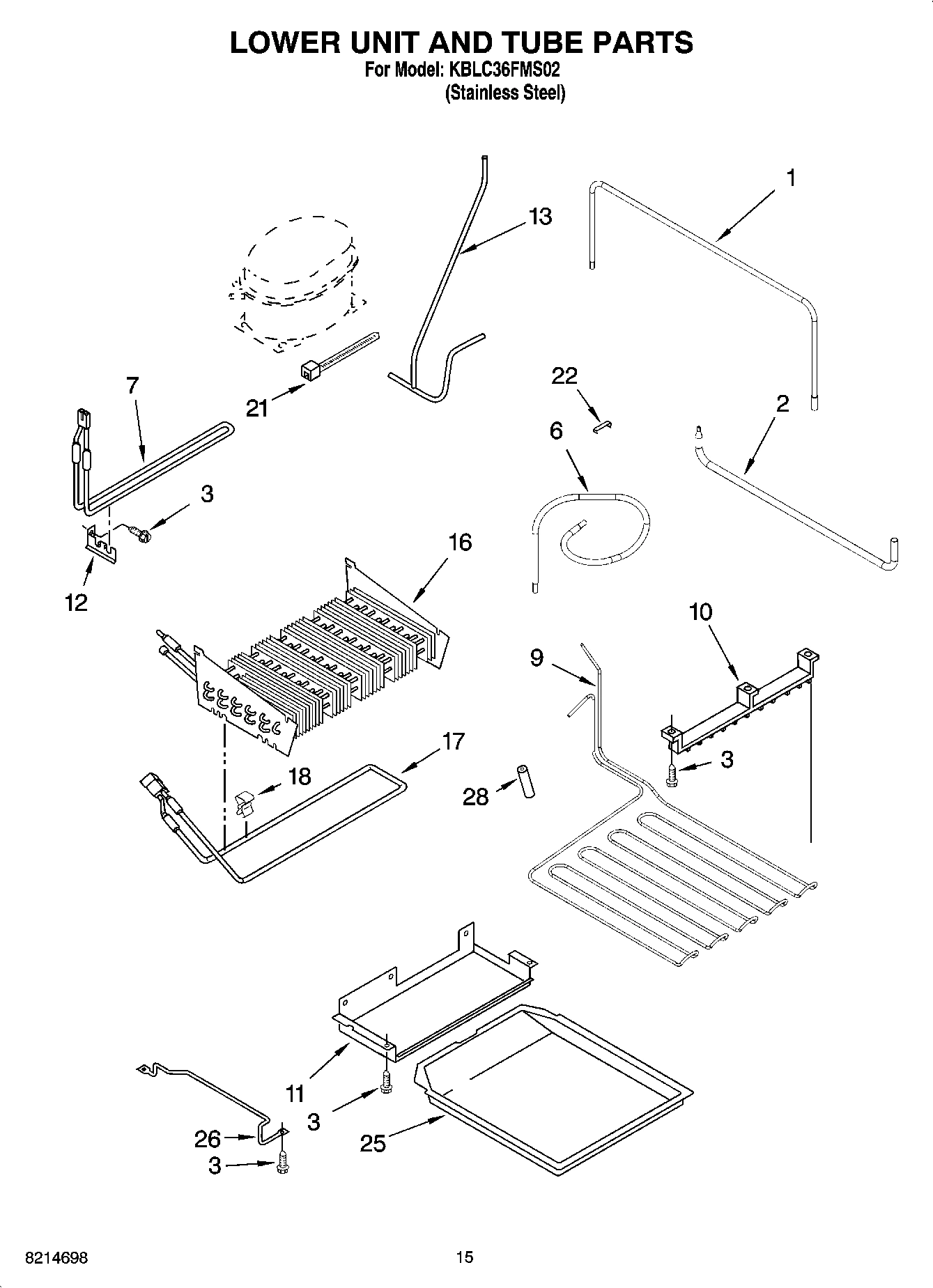

Tube, Transition (Condenser) WPL 2313922 Contact Us For Availability

1

Slide, Freezer Basket (Right Side) WPL 2307978 Contact Us For Availability

1

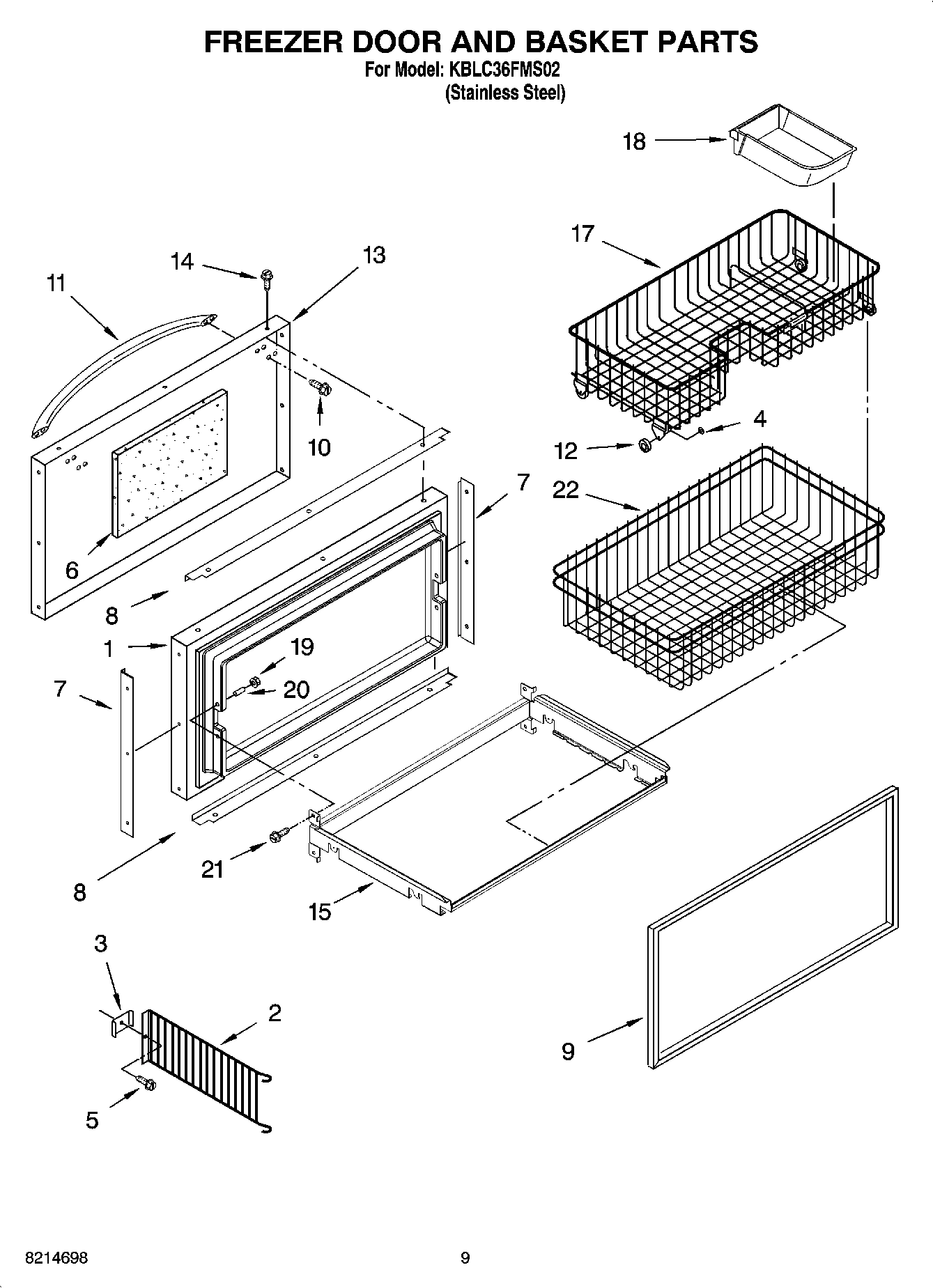

Freezer Door Panel (Includes Item 9) WPL 2300085 Contact Us For Availability

1

Main Control Service Sheet WPL 2302865 Contact Us For Availability

1

Service & Wiring Sheet WPL 2306322 Contact Us For Availability

1

Energy Label WPL 2307361 Contact Us For Availability

1

Installation Instructions WPL 2307890 Contact Us For Availability

1

Use & Care Guide WPL 2317085 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

1

Cabinet Trim, Right Side (Stainless Steel) WPL 2222552S Contact Us For Availability

1

Tube, Valve WPL 2204597 Contact Us For Availability

1

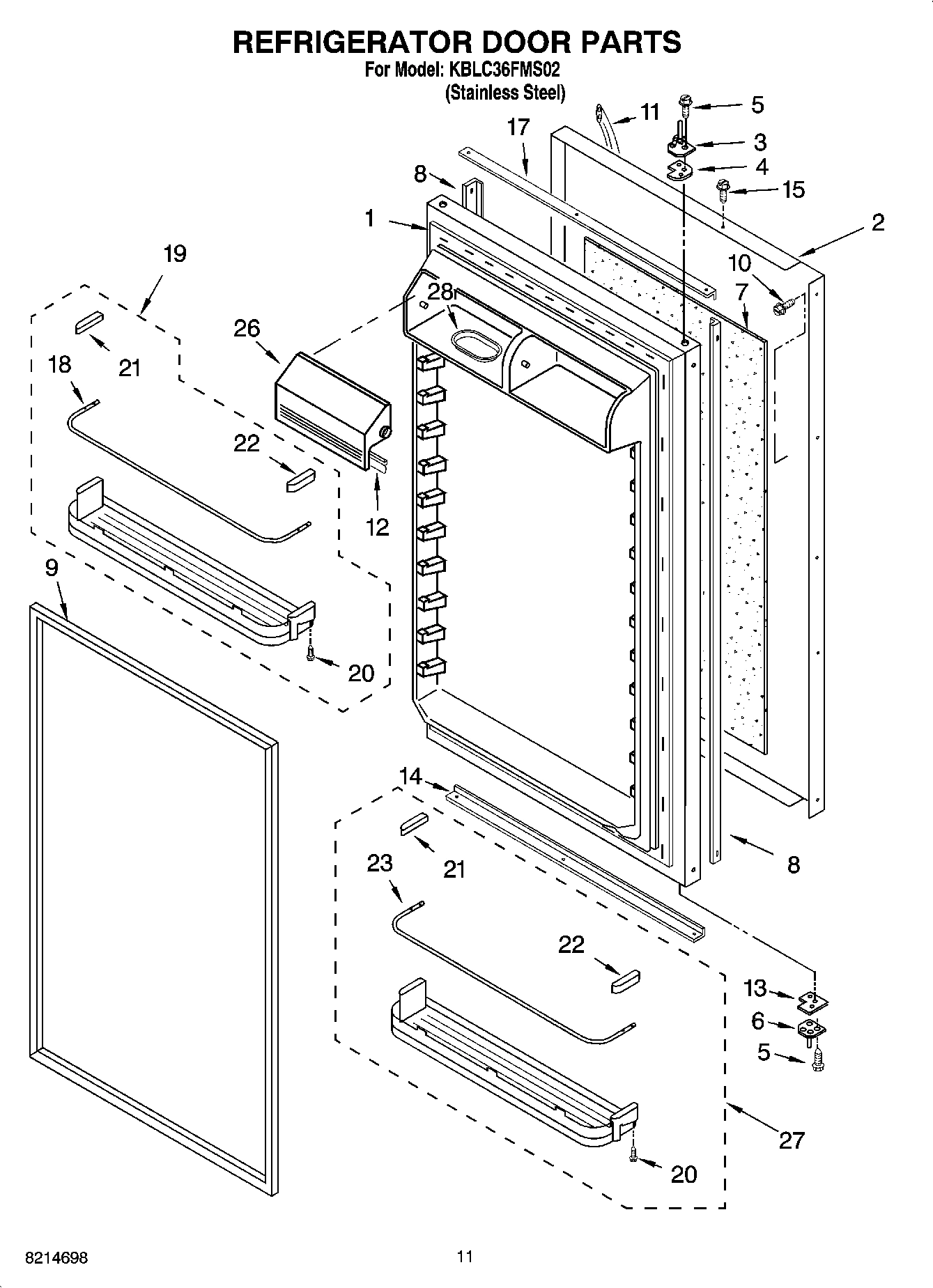

Refrigerator Door (Includes Item 9) WPL 2300083 Contact Us For Availability

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $67.89

2

Tube, Transition (Drier/Restrictor) WPL 2259304 Contact Us For Availability

2

Divider, Basket WPL 2204525 Contact Us For Availability

2

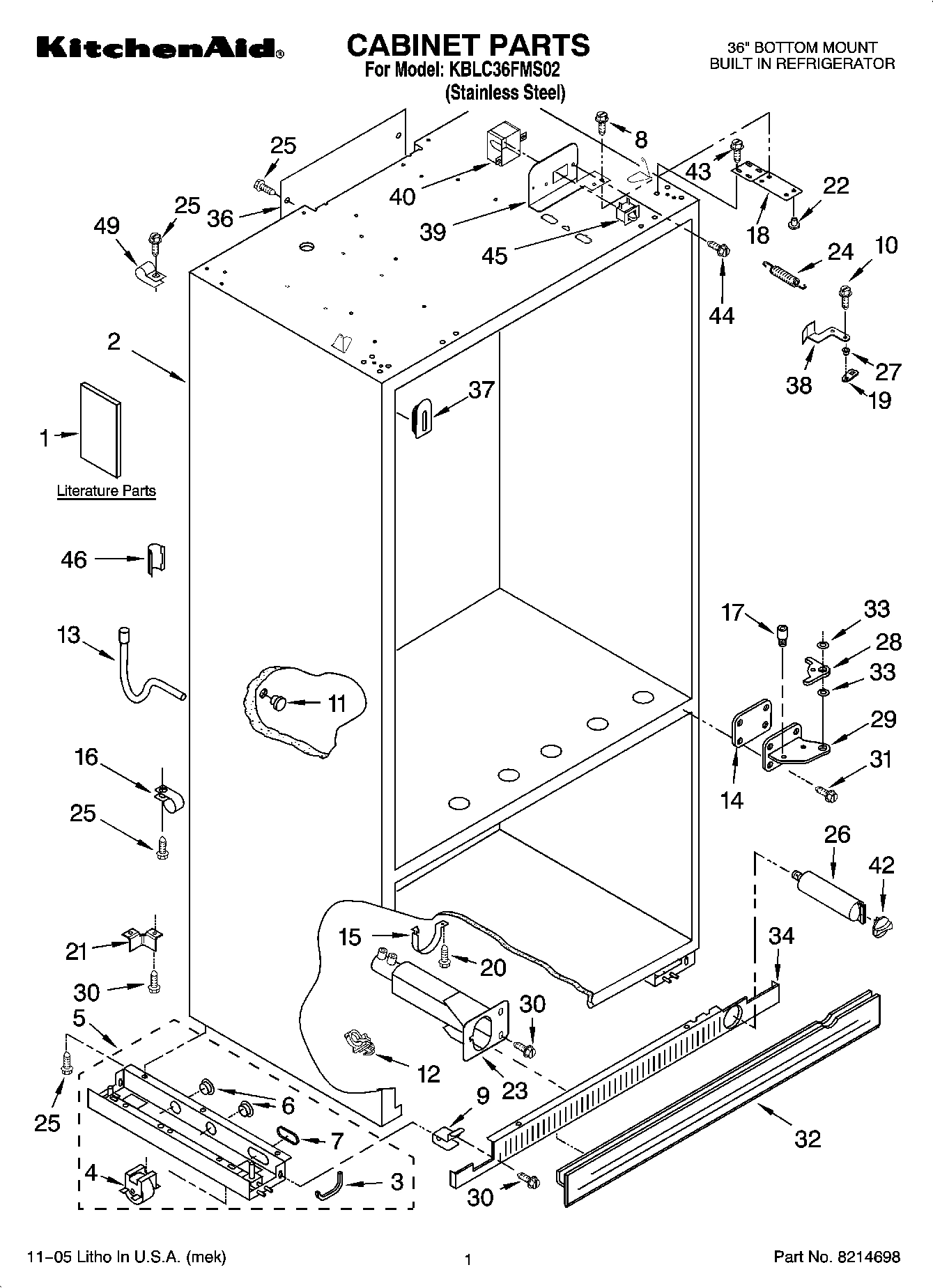

Cabinet (Not A Serviceable Part) WPL ARI78715A1 Contact Us For Availability

2

Skin, Door (Stainless Steel) WPL 2300040 Contact Us For Availability

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $319.55

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

3

Hinge Assembly, Top WPL 2266912 Contact Us For Availability

3

Clamp, Divider WPL 2207429 Contact Us For Availability

3

Grommet, Crossover Tube WPL 2005004 Contact Us For Availability

3

Jumper, Heater Fill Tube WPL 2187683 Contact Us For Availability

4

2207415 Whirlpool Refrigerator Nut Backorder WPL 2207415 $9.59

4

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

4

Spacer-Hinge, Top WPL 2256381 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw WPL 3190699 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

6

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2302928 Contact Us For Availability

6

Filler, Foam WPL 2005400 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Cabinet Trim, Top WPL 2313995 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

7

2300027 Whirlpool Spacer Backorder WPL 2300027 $39.14

7

Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

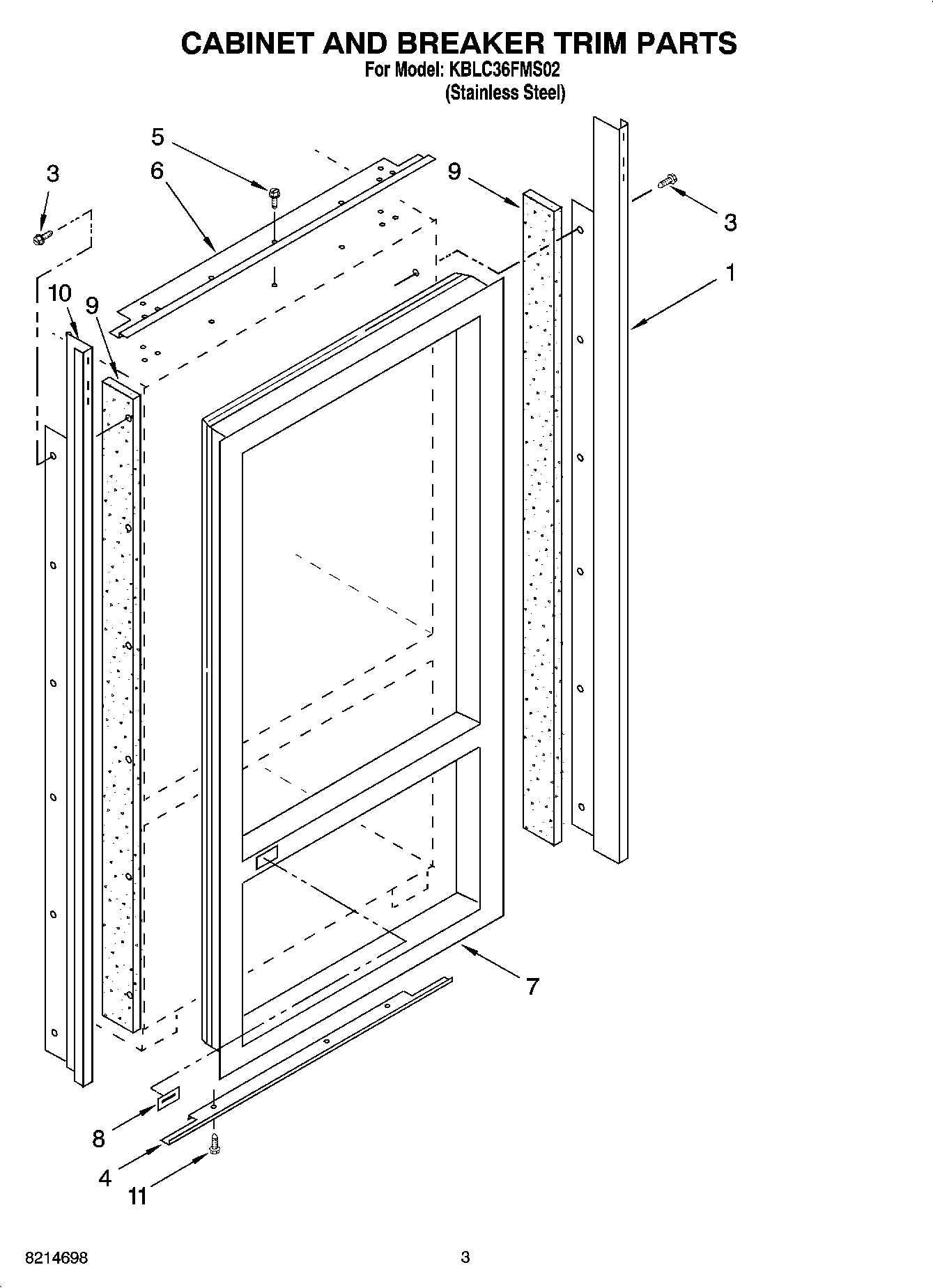

Breaker Trim (Not Serviced) WPL ARI78716A1 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2317093 Contact Us For Availability

7

Filler, Foam WPL 2005397 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

8

Spacer, Door Edge Top & Bottom WPL 2300025 Contact Us For Availability

8

Bracket, Switch WPL 2302969 Contact Us For Availability

8

Cover, Hinge WPL 2005782 Contact Us For Availability

8

Spacer, Door Edge - Side (2) WPL 2300026 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

2302709 Whirlpool Refrigerator Door Gasket In Stock WPL 2302709 $163.30

9

2302710 Whirlpool Refrigerator Door Gasket Backorder WPL 2302710 $198.79

9

W11533506 Whirlpool Refrigerator Water Tube Backorder WPL W11533506 $11.29

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Heater, Drain Pan WPL 2259329 Contact Us For Availability

9

Mounting Bracket, Grill WPL 2006442 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $89.88

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Screw WPL 2005921 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability

Cabinet Trim, Left Side (Stainless Steel) WPL 2222553S Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Cap, Grommet WPL 1112849 Contact Us For Availability

Cover, Bottom WPL 2300104 Contact Us For Availability

W11214482 Whirlpool Refrigerator Roller Backorder WPL W11214482 $34.97

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

Support, Heater WPL 2204543 Contact Us For Availability

Clamp WPL 2004514 Contact Us For Availability

Gasket (2) WPL 2005982 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $28.20

WP2221231 Whirlpool Refrigerator Shield Backorder WPL WP2221231 $38.58

Tube, Discharge WPL 2259474 Contact Us For Availability

Skin, Door (Stainless Steel) WPL 2300041 Contact Us For Availability

Tube, Drain Condensate WPL 2204516 Contact Us For Availability

SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability

14

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $29.41

14

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

14

SPACER, DOOR EDGE (BOTTOM) WPL 2300023 Contact Us For Availability

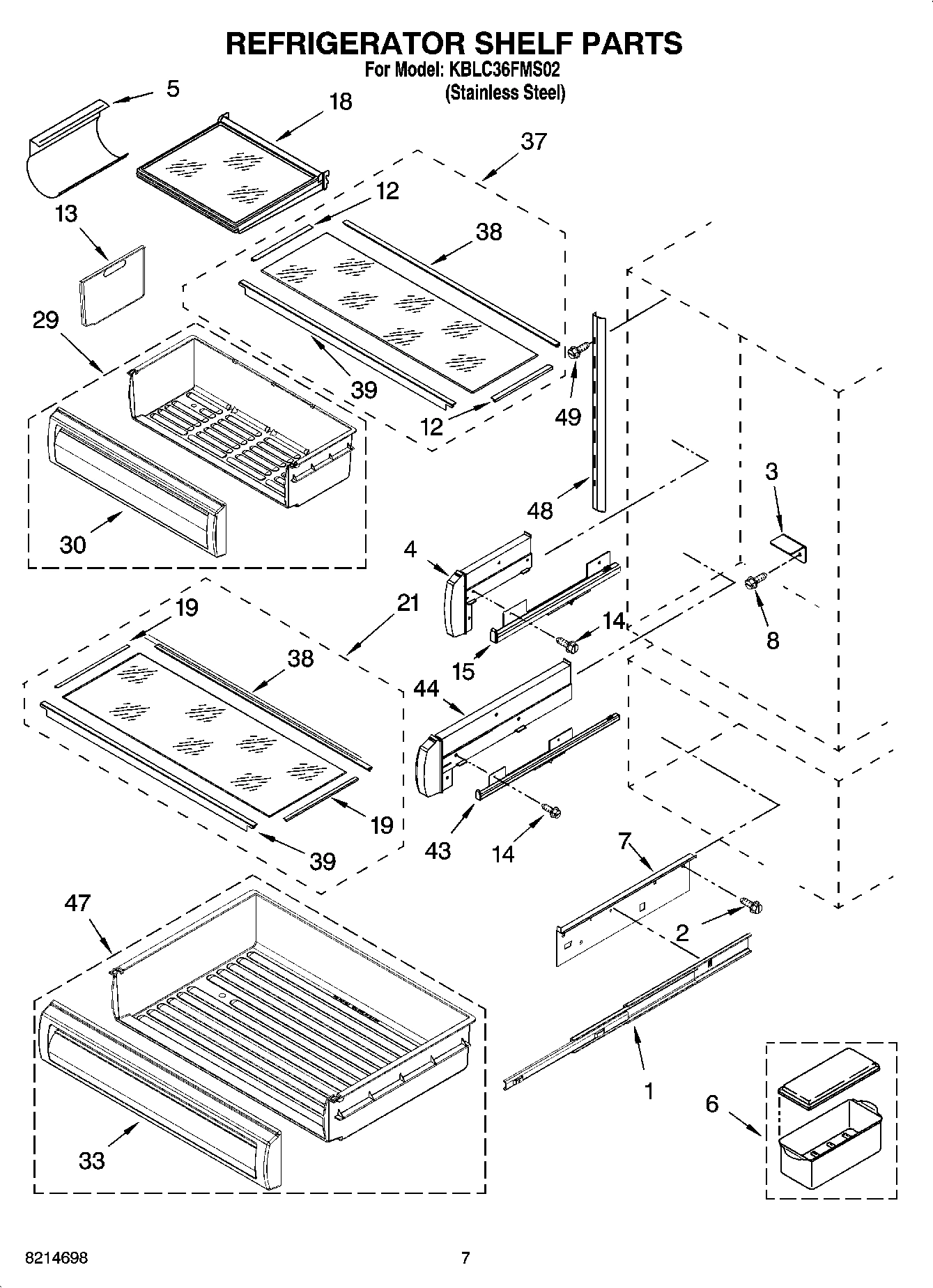

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $124.83

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $124.94

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Bracket Assembly, Freezer Basket WPL 2257426 Contact Us For Availability

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

CONDENSER WPL 2259307 Contact Us For Availability

Evaporator WPL 2306095 Contact Us For Availability

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

Heater, Defrost (Front) WPL 2207485 Contact Us For Availability

Screw, Door Stop WPL 2001295 Contact Us For Availability

Basket, Upper WPL 2257442 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

Wire Harness, Icemaker WPL 2187715 Contact Us For Availability

SPACER, DOOR EDGE (TOP) WPL 2300024 Contact Us For Availability

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

WP2187629 Whirlpool Refrigerator Wire Jumper In Stock WPL WP2187629 $37.61

Clamp, Heater (2) WPL 2204510 Contact Us For Availability

Pan, Ice Cube WPL 2174124 Contact Us For Availability

Cover WPL 2257538 Contact Us For Availability

Tube, Door Shelf WPL 2005482 Contact Us For Availability

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $4.58

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Cam-Closer, Door WPL 2005783 Contact Us For Availability

Shelf, Door (2) WPL 2005417 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bushing WPL 2207471 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Screw WPL 3400507 Contact Us For Availability

End Cap, Left WPL 2005542 Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2300082 Contact Us For Availability

Screw WPL 487522 Contact Us For Availability

Basket, Freezer Lower WPL 2257331 Contact Us For Availability

End Cap, Right WPL 2005541 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability

24

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

Blade, Fan WPL 2190685 Contact Us For Availability

25

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

25

Orifice, Fan WPL 2003169 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Door Shelf, Gallon WPL 2006154 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10188434 Whirlpool Refrigerator Hinge Gap Backorder WPL W10188434 $41.50

Butter Tray WPL 2165792 Contact Us For Availability

29

2005101 Whirlpool Refrigerator Bottom Hinge Backorder WPL 2005101 $55.24

29

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

30

Grommet, Edge WPL 2307907 Contact Us For Availability

31

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

31

Shut Off Arm WPL 2314015 Contact Us For Availability

31

Tube, Transition (Condenser/Drier) WPL 2259302 Contact Us For Availability

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $67.86

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

34

Grille Base, Front WPL 2215889B Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

Clip, Thermistor WPL 2209204 Contact Us For Availability

36

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $31.71

36

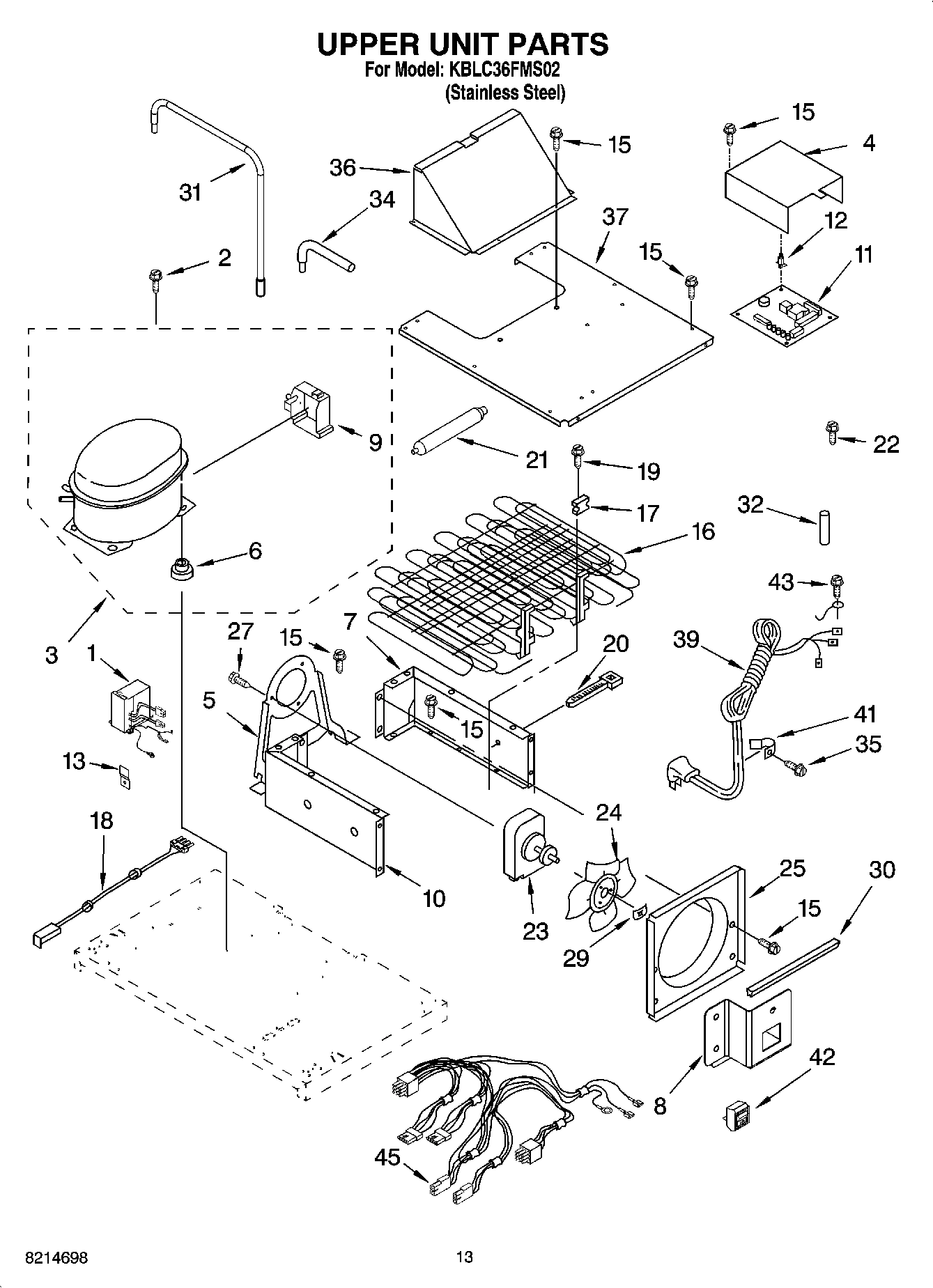

Cover, Fan WPL 2209495 Contact Us For Availability

37

Cover, Condenser WPL 2259092 Contact Us For Availability

37

Grommet, Wiring WPL 1113122 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2306151 Contact Us For Availability

38

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $30.43

39

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $29.43

39

Service Cord WPL 2259197 Contact Us For Availability

40

2215938 Whirlpool Refrigerator Switch Cover Backorder WPL 2215938 $28.80

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

42

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

43

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

43

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

44

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187624 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI78720A1 Contact Us For Availability

REFRIGERANT CHARGE 5.75 oz. (R-134A) WPL ARI78721A6 Contact Us For Availability

46

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

49

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

100

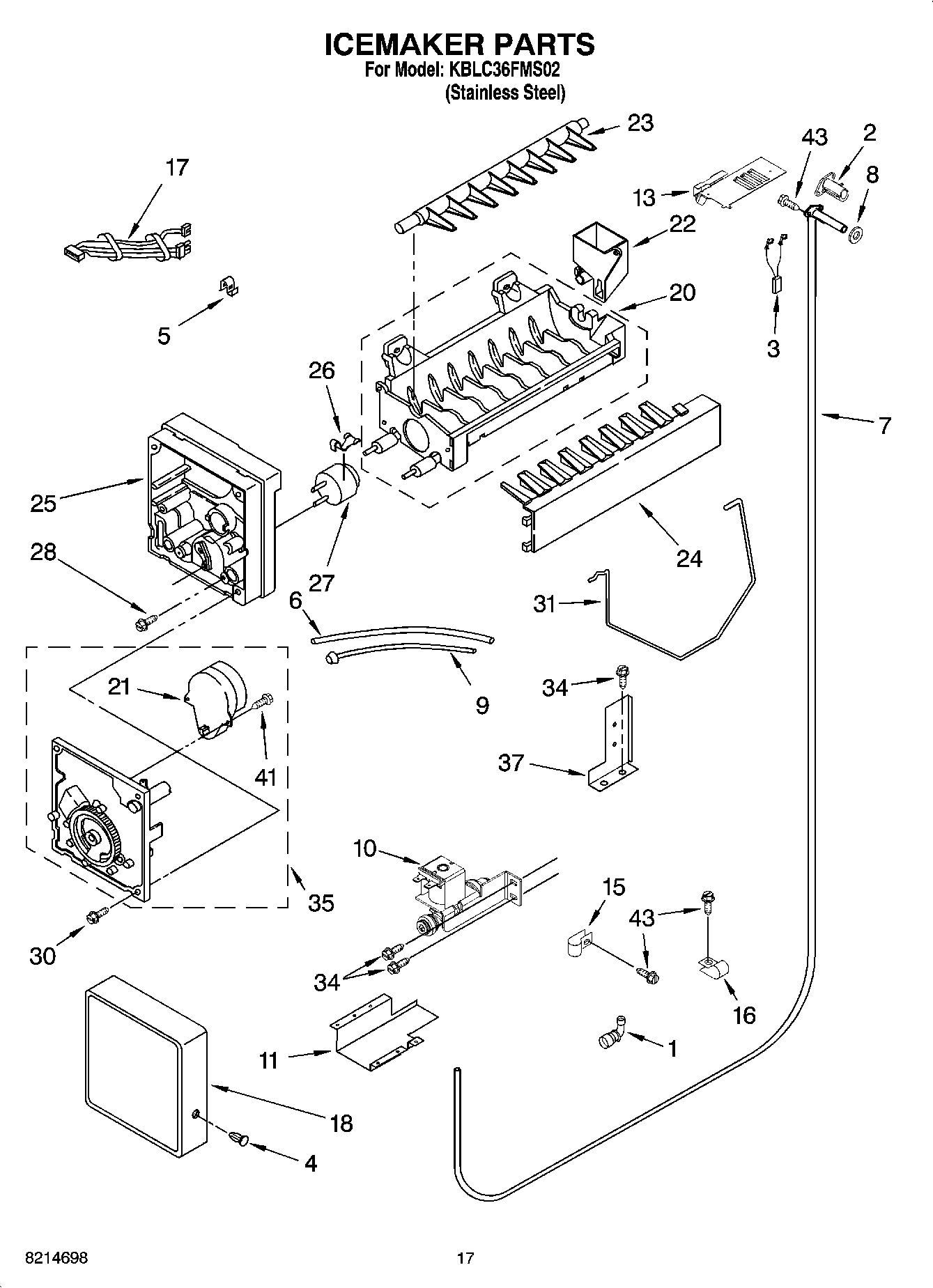

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $160.34

100

Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability

100

Following Parts Not Illustrated (Optional Par WPL ARI78722A6 Contact Us For Availability
